Illustrated Parts List

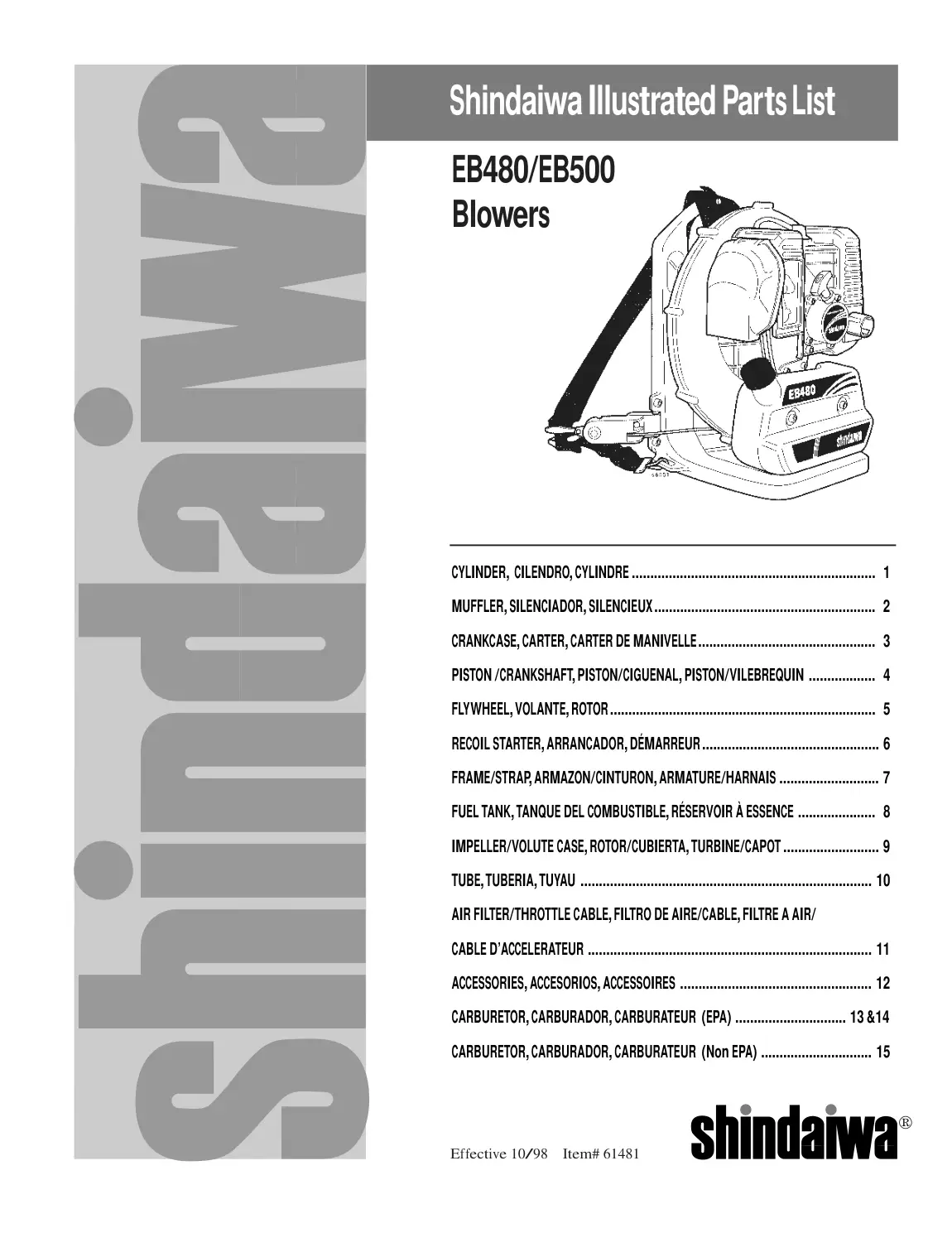

Shindaiwa EB480 EB500 Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB480 EB500
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 1 | AIR FILTER/THROTTLE CABLE, FILTRO DE AIRE/CABLE, FILTRE A AIR/ | Blowers | EB480 | EB480-Online | |
| 1 | AIR FILTER/THROTTLE CABLE, FILTRO DE AIRE/CABLE, FILTRE A AIR/ | Blowers | EB500 | EB500-Online | |

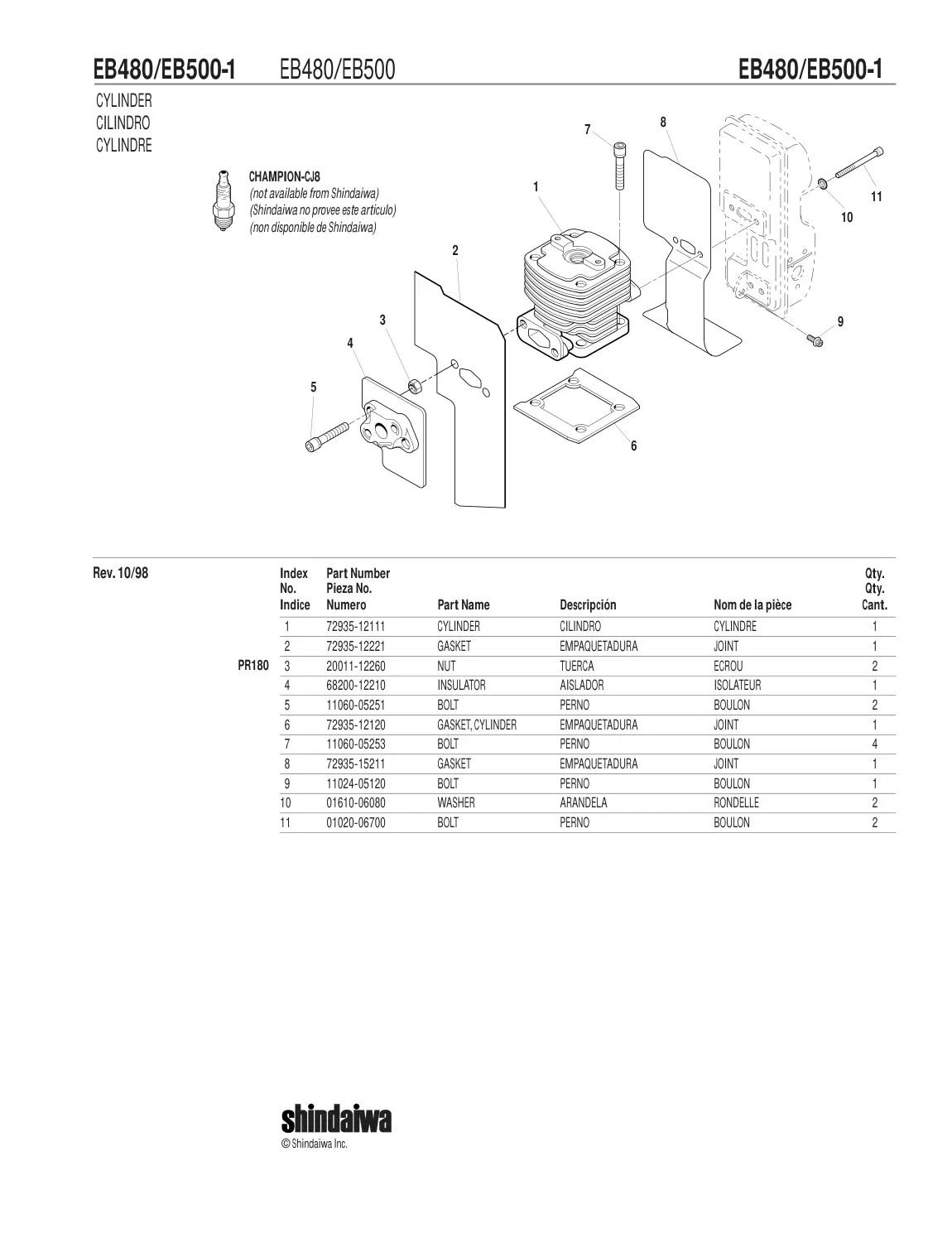

| 2 | CHAMPION-CJ8 | 1 | CYLINDER | 72935-12111 | 72935-12111-Online |
| 2 | CHAMPION-CJ8 | 10 | WASHER | 01610-06080 | 01610-06080-Online |
| 2 | CHAMPION-CJ8 | 11 | BOLT | 01020-06700 | 01020-06700-Online |
| 2 | CHAMPION-CJ8 | 2 | GASKET | 72935-12221 | 72935-12221-Online |
| 2 | CHAMPION-CJ8 | 3 | NUT | 20011-12260 | 20011-12260-Online |
| 2 | CHAMPION-CJ8 | 4 | INSULATOR | 68200-12210 | 68200-12210-Online |
| 2 | CHAMPION-CJ8 | 5 | BOLT | 11060-05251 | 11060-05251-Online |
| 2 | CHAMPION-CJ8 | 6 | GASKET, CYLINDER | 72935-12120 | 72935-12120-Online |
| 2 | CHAMPION-CJ8 | 7 | BOLT | 11060-05253 | 11060-05253-Online |
| 2 | CHAMPION-CJ8 | 8 | GASKET | 72935-15211 | 72935-15211-Online |
| 2 | CHAMPION-CJ8 | 9 | BOLT | 11024-05120 | 11024-05120-Online |

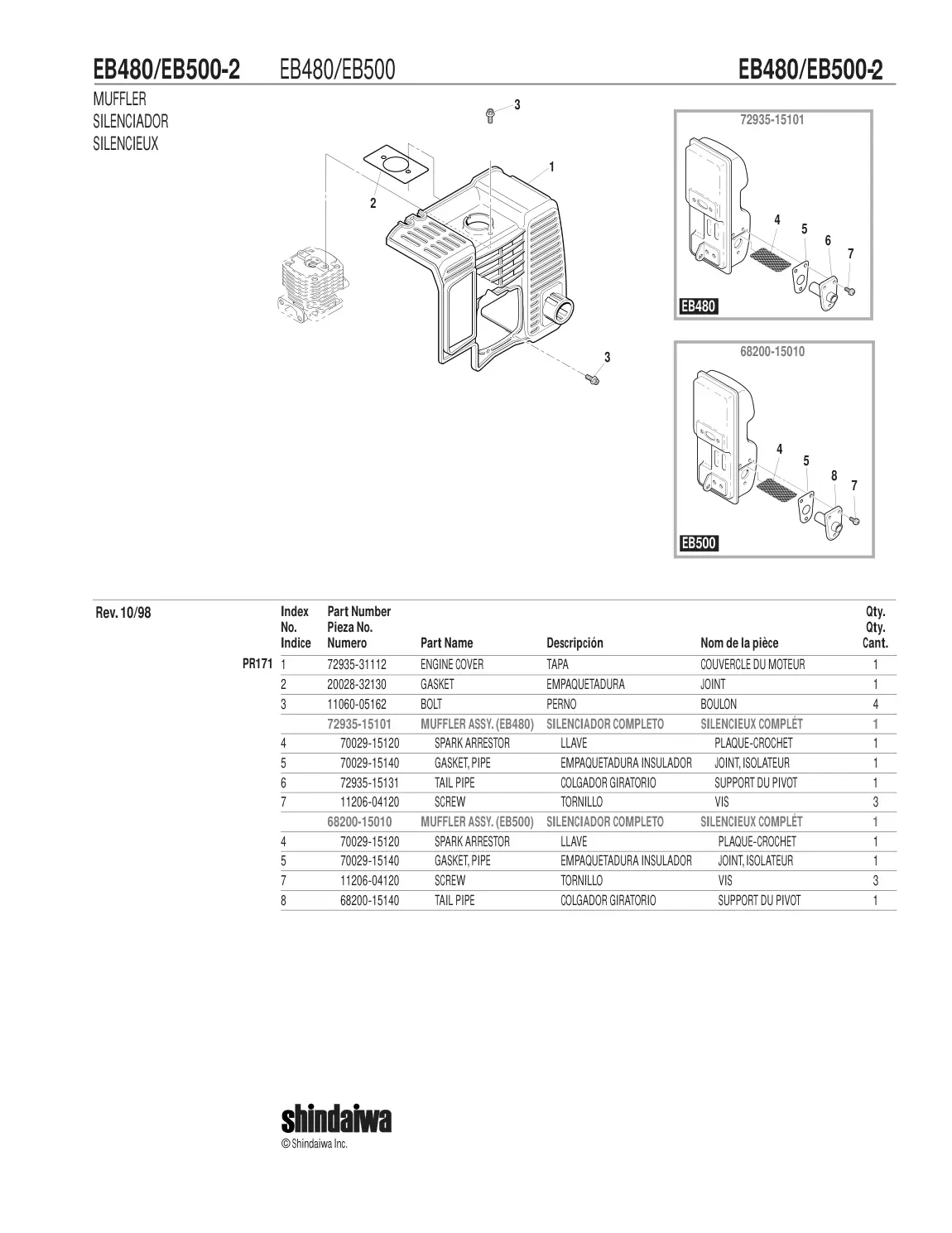

| 3 | MUFFLER | 1 | ENGINE COVER | 72935-31112 | 72935-31112-Online |
| 3 | MUFFLER | 2 | GASKET | 20028-32130 | 20028-32130-Online |
| 3 | MUFFLER | 3 | BOLT | 11060-05162 | 11060-05162-Online |
| 3 | MUFFLER | 3 | SILENCIADOR COMPLETO | 68200-15010 | 68200-15010-Online |
| 3 | MUFFLER | 3 | SILENCIADOR COMPLETO | EB500 | EB500-Online |
| 3 | MUFFLER | 4 | SPARK ARRESTOR | 70029-15120 | 70029-15120-Online |
| 3 | MUFFLER | 4 | SILENCIADOR COMPLETO | 72935-15101 | 72935-15101-Online |
| 3 | MUFFLER | 4 | SILENCIADOR COMPLETO | EB480 | EB480-Online |
| 3 | MUFFLER | 5 | GASKET, PIPE | 70029-15140 | 70029-15140-Online |
| 3 | MUFFLER | 6 | TAIL PIPE | 72935-15131 | 72935-15131-Online |
| 3 | MUFFLER | 7 | SCREW | 11206-04120 | 11206-04120-Online |
| 3 | MUFFLER | 8 | TAIL PIPE | 68200-15140 | 68200-15140-Online |

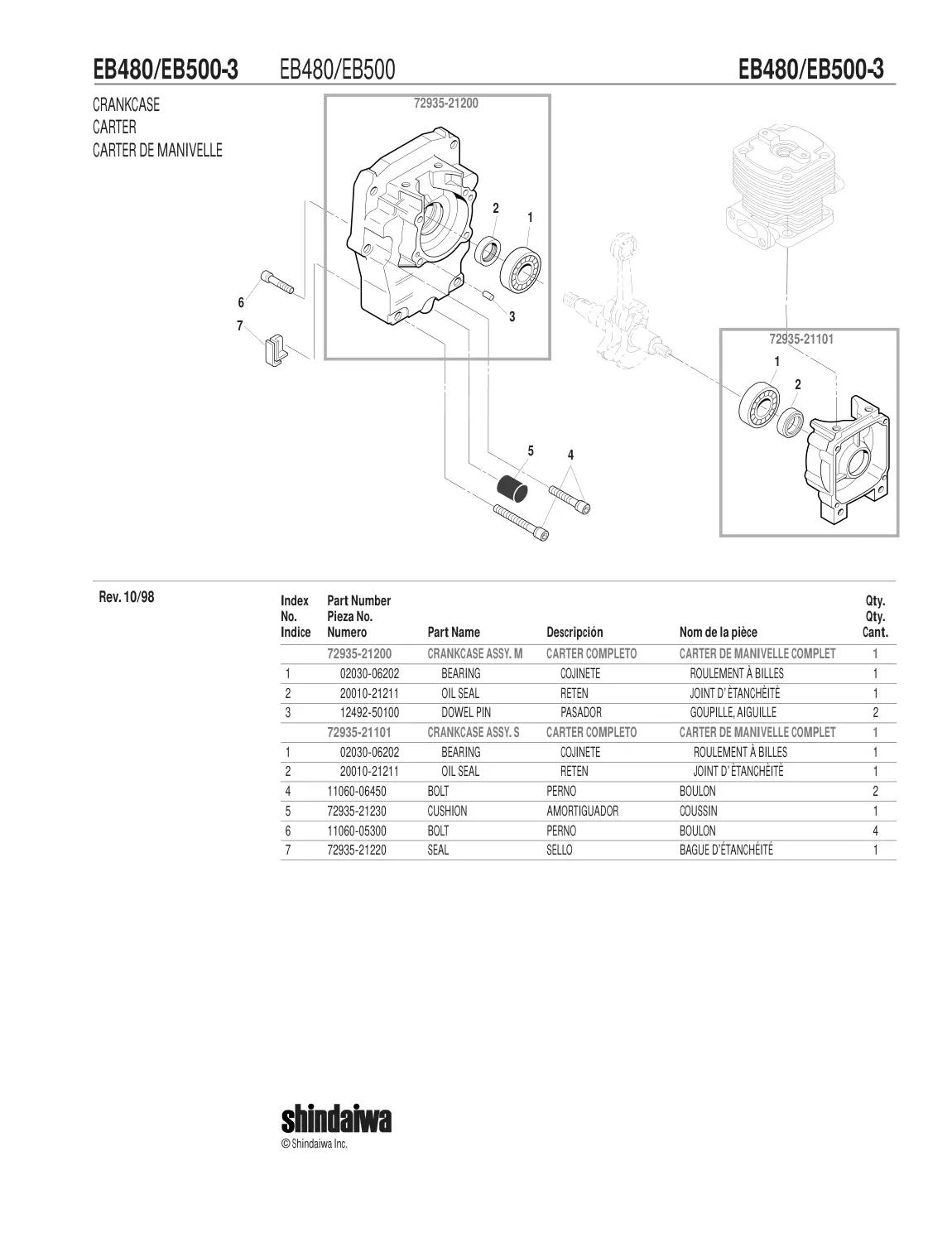

| 4 | BAGUE D’ÉTANCHÉITÉ | CRANKCASE ASSY. M | 72935-21200 | 72935-21200-Online | |
| 4 | BAGUE D’ÉTANCHÉITÉ | 1 | BEARING | 02030-06202 | 02030-06202-Online |
| 4 | BAGUE D’ÉTANCHÉITÉ | 2 | OIL SEAL | 20010-21211 | 20010-21211-Online |
| 4 | BAGUE D’ÉTANCHÉITÉ | 2 | CRANKCASE ASSY. S | 72935-21101 | 72935-21101-Online |
| 4 | BAGUE D’ÉTANCHÉITÉ | 3 | DOWEL PIN | 12492-50100 | 12492-50100-Online |
| 4 | BAGUE D’ÉTANCHÉITÉ | 4 | BOLT | 11060-06450 | 11060-06450-Online |
| 4 | BAGUE D’ÉTANCHÉITÉ | 5 | CUSHION | 72935-21230 | 72935-21230-Online |
| 4 | BAGUE D’ÉTANCHÉITÉ | 6 | BOLT | 11060-05300 | 11060-05300-Online |
| 4 | BAGUE D’ÉTANCHÉITÉ | 7 | SEAL | 72935-21220 | 72935-21220-Online |

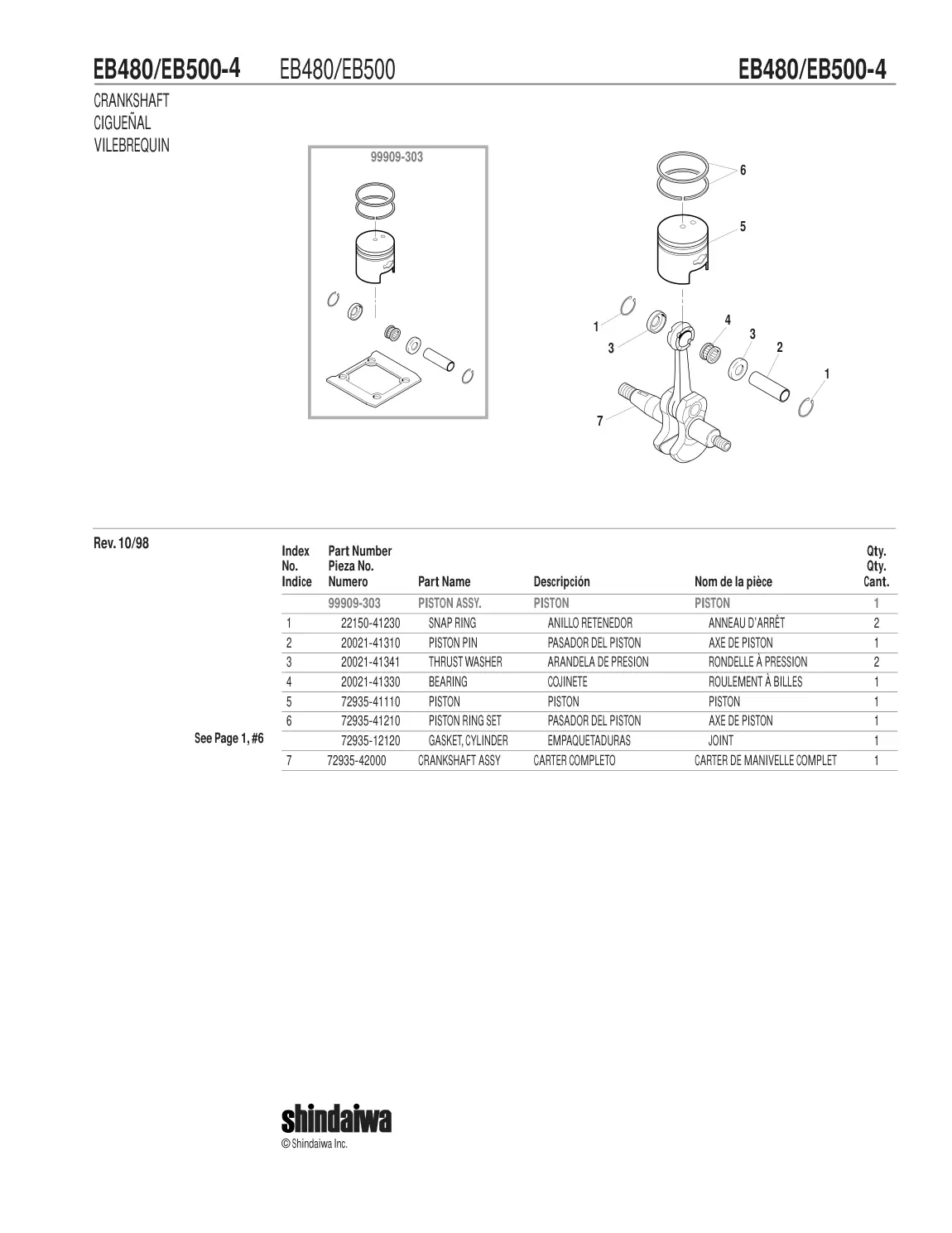

| 5 | VILEBREQUIN | PISTON ASSY. | 99909-303 | 99909-303-Online | |
| 5 | VILEBREQUIN | 1 | SNAP RING | 22150-41230 | 22150-41230-Online |
| 5 | VILEBREQUIN | 1 | GASKET, CYLINDER | 72935-12120 | 72935-12120-Online |
| 5 | VILEBREQUIN | 2 | PISTON PIN | 20021-41310 | 20021-41310-Online |
| 5 | VILEBREQUIN | 3 | THRUST WASHER | 20021-41341 | 20021-41341-Online |
| 5 | VILEBREQUIN | 4 | BEARING | 20021-41330 | 20021-41330-Online |
| 5 | VILEBREQUIN | 5 | PISTON | 72935-41110 | 72935-41110-Online |
| 5 | VILEBREQUIN | 6 | PISTON RING SET | 72935-41210 | 72935-41210-Online |
| 5 | VILEBREQUIN | 7 | CRANKSHAFT ASSY | 72935-42000 | 72935-42000-Online |

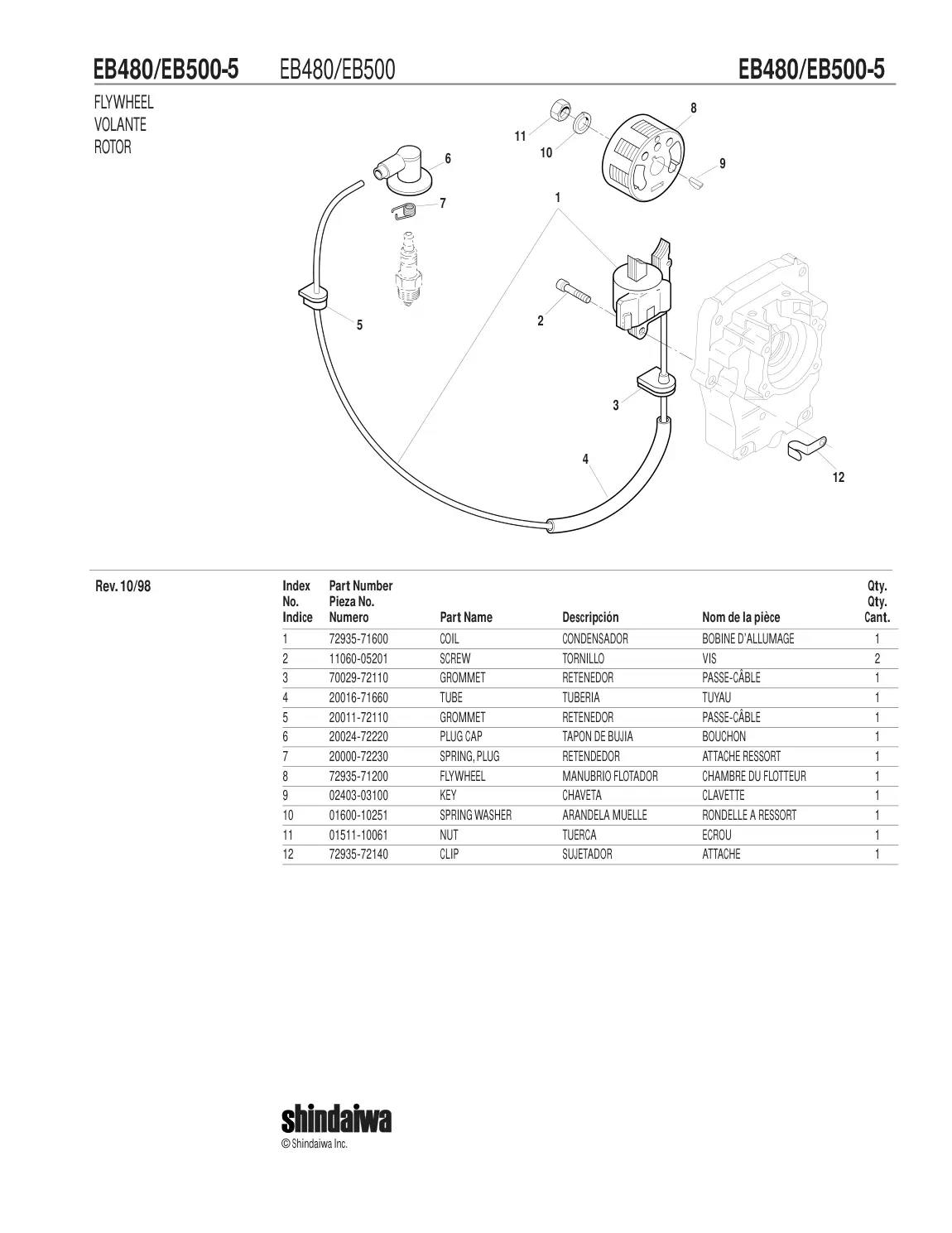

| 6 | ROTOR | 1 | COIL | 72935-71600 | 72935-71600-Online |
| 6 | ROTOR | 10 | SPRING WASHER | 01600-10251 | 01600-10251-Online |
| 6 | ROTOR | 11 | NUT | 01511-10061 | 01511-10061-Online |
| 6 | ROTOR | 12 | CLIP | 72935-72140 | 72935-72140-Online |
| 6 | ROTOR | 2 | SCREW | 11060-05201 | 11060-05201-Online |
| 6 | ROTOR | 3 | GROMMET | 70029-72110 | 70029-72110-Online |
| 6 | ROTOR | 4 | TUBE | 20016-71660 | 20016-71660-Online |
| 6 | ROTOR | 5 | GROMMET | 20011-72110 | 20011-72110-Online |
| 6 | ROTOR | 6 | PLUG CAP | 20024-72220 | 20024-72220-Online |
| 6 | ROTOR | 7 | SPRING, PLUG | 20000-72230 | 20000-72230-Online |
| 6 | ROTOR | 8 | FLYWHEEL | 72935-71200 | 72935-71200-Online |
| 6 | ROTOR | 9 | KEY | 02403-03100 | 02403-03100-Online |

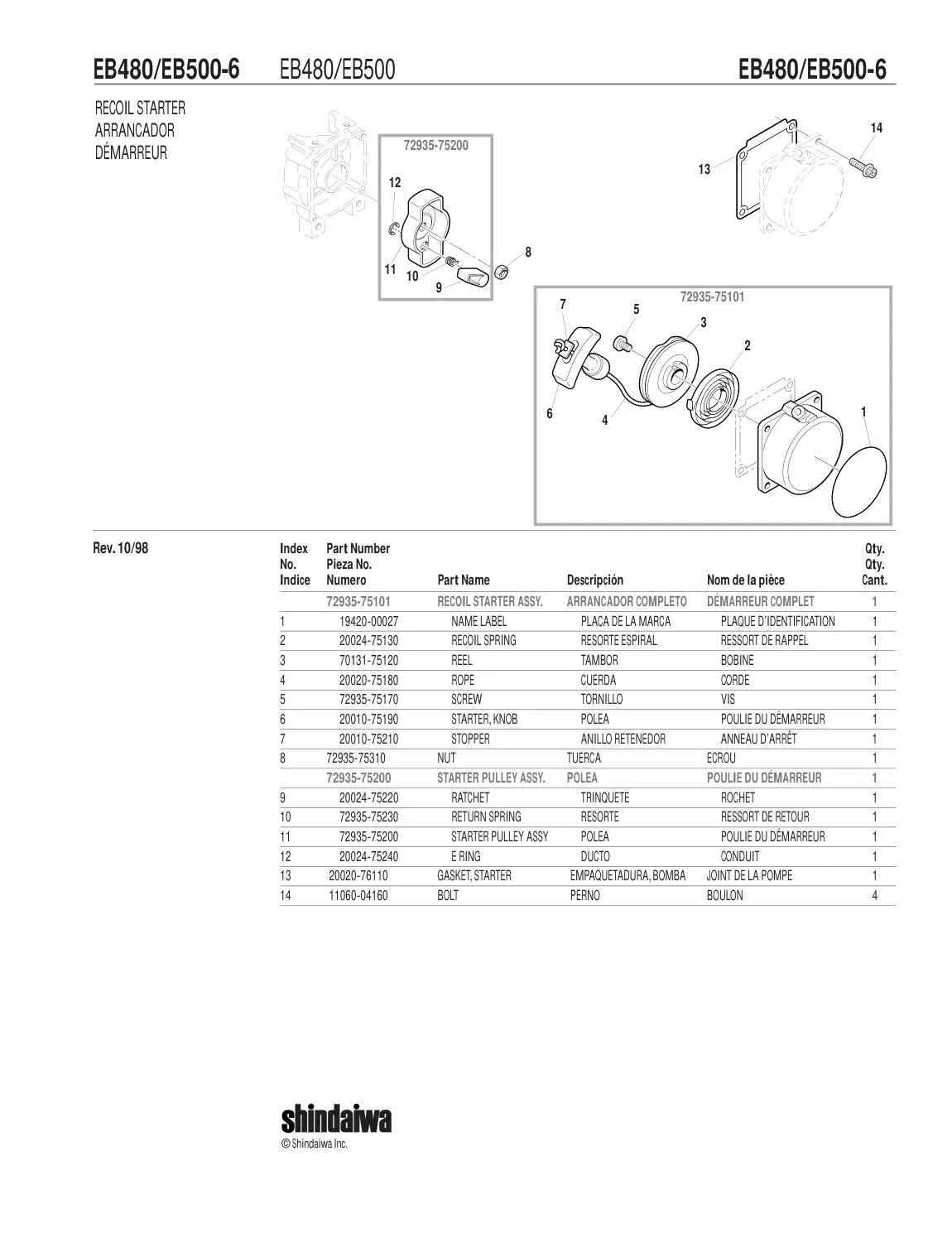

| 7 | DÉMARREUR | RECOIL STARTER ASSY. | 72935-75101 | 72935-75101-Online | |
| 7 | DÉMARREUR | 1 | NAME LABEL | 19420-00027 | 19420-00027-Online |
| 7 | DÉMARREUR | 1 | STARTER PULLEY ASSY. | 72935-75200 | 72935-75200-Online |
| 7 | DÉMARREUR | 10 | RETURN SPRING | 72935-75230 | 72935-75230-Online |
| 7 | DÉMARREUR | 11 | STARTER PULLEY ASSY | 72935-75200 | 72935-75200-Online |
| 7 | DÉMARREUR | 12 | E RING | 20024-75240 | 20024-75240-Online |
| 7 | DÉMARREUR | 13 | GASKET, STARTER | 20020-76110 | 20020-76110-Online |
| 7 | DÉMARREUR | 14 | BOLT | 11060-04160 | 11060-04160-Online |
| 7 | DÉMARREUR | 2 | RECOIL SPRING | 20024-75130 | 20024-75130-Online |
| 7 | DÉMARREUR | 3 | REEL | 70131-75120 | 70131-75120-Online |
| 7 | DÉMARREUR | 4 | ROPE | 20020-75180 | 20020-75180-Online |
| 7 | DÉMARREUR | 5 | SCREW | 72935-75170 | 72935-75170-Online |
| 7 | DÉMARREUR | 6 | STARTER, KNOB | 20010-75190 | 20010-75190-Online |
| 7 | DÉMARREUR | 7 | STOPPER | 20010-75210 | 20010-75210-Online |
| 7 | DÉMARREUR | 8 | NUT | 72935-75310 | 72935-75310-Online |
| 7 | DÉMARREUR | 9 | RATCHET | 20024-75220 | 20024-75220-Online |

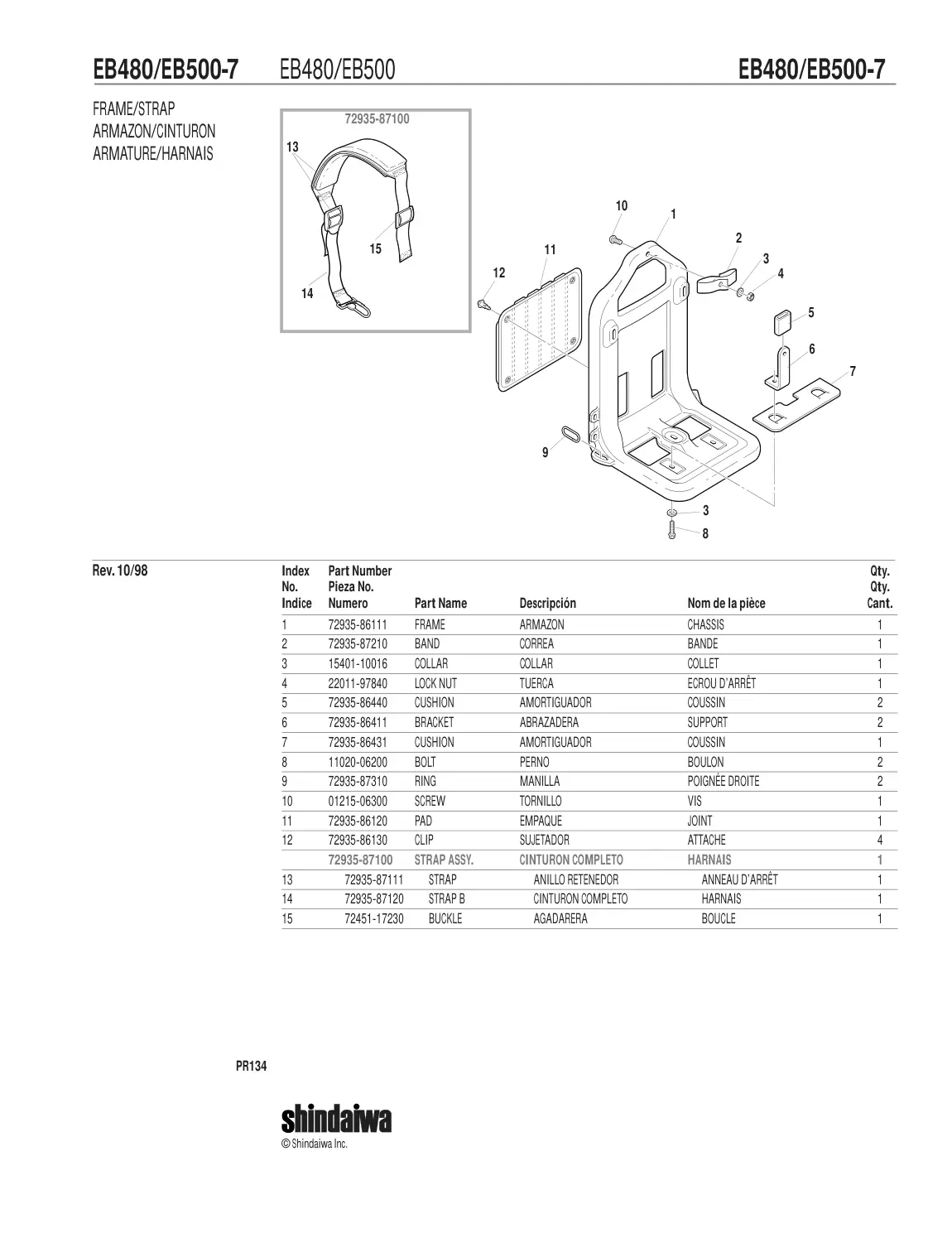

| 8 | ARMATURE/HARNAIS | 10 | SCREW | 01215-06300 | 01215-06300-Online |
| 8 | ARMATURE/HARNAIS | 12 | CLIP | 72935-86130 | 72935-86130-Online |
| 8 | ARMATURE/HARNAIS | 14 | STRAP B | 72935-87120 | 72935-87120-Online |
| 8 | ARMATURE/HARNAIS | 15 | BUCKLE | 72451-17230 | 72451-17230-Online |
| 8 | ARMATURE/HARNAIS | 2 | BAND | 72935-87210 | 72935-87210-Online |
| 8 | ARMATURE/HARNAIS | 3 | COLLAR | 15401-10016 | 15401-10016-Online |
| 8 | ARMATURE/HARNAIS | 4 | LOCK NUT | 22011-97840 | 22011-97840-Online |
| 8 | ARMATURE/HARNAIS | 4 | STRAP ASSY. | 72935-87100 | 72935-87100-Online |
| 8 | ARMATURE/HARNAIS | 5 | CUSHION | 72935-86440 | 72935-86440-Online |
| 8 | ARMATURE/HARNAIS | 6 | BRACKET | 72935-86411 | 72935-86411-Online |
| 8 | ARMATURE/HARNAIS | 7 | CUSHION | 72935-86431 | 72935-86431-Online |
| 8 | ARMATURE/HARNAIS | 8 | BOLT | 11020-06200 | 11020-06200-Online |
| 8 | ARMATURE/HARNAIS | 9 | RING | 72935-87310 | 72935-87310-Online |

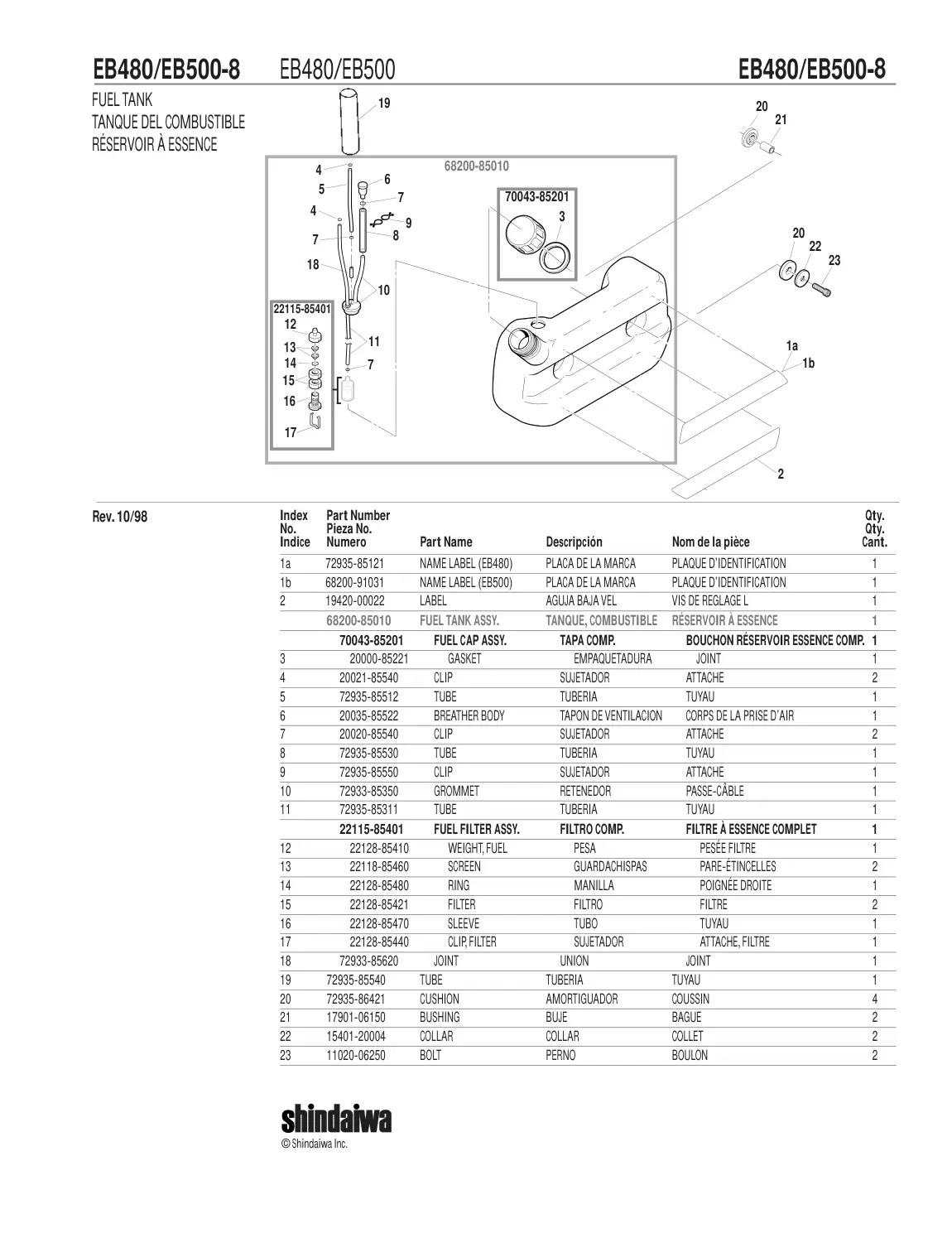

| 9 | FUEL TANK | PLACA DE LA MARCA | 72935-85121 | 72935-85121-Online | |
| 9 | FUEL TANK | PLACA DE LA MARCA | EB480 | EB480-Online | |
| 9 | FUEL TANK | 1 | FUEL FILTER ASSY. | 22115-85401 | 22115-85401-Online |
| 9 | FUEL TANK | 1 | FUEL TANK ASSY. | 68200-85010 | 68200-85010-Online |
| 9 | FUEL TANK | 1 | PLACA DE LA MARCA | 68200-91031 | 68200-91031-Online |
| 9 | FUEL TANK | 1 | FUEL CAP ASSY. | 70043-85201 | 70043-85201-Online |
| 9 | FUEL TANK | 1 | PLACA DE LA MARCA | EB500 | EB500-Online |
| 9 | FUEL TANK | 10 | GROMMET | 72933-85350 | 72933-85350-Online |
| 9 | FUEL TANK | 11 | TUBE | 72935-85311 | 72935-85311-Online |
| 9 | FUEL TANK | 12 | WEIGHT, FUEL | 22128-85410 | 22128-85410-Online |
| 9 | FUEL TANK | 13 | SCREEN | 22118-85460 | 22118-85460-Online |
| 9 | FUEL TANK | 14 | RING | 22128-85480 | 22128-85480-Online |
| 9 | FUEL TANK | 15 | FILTER | 22128-85421 | 22128-85421-Online |
| 9 | FUEL TANK | 16 | SLEEVE | 22128-85470 | 22128-85470-Online |
| 9 | FUEL TANK | 17 | CLIP, FILTER | 22128-85440 | 22128-85440-Online |
| 9 | FUEL TANK | 18 | JOINT | 72933-85620 | 72933-85620-Online |
| 9 | FUEL TANK | 19 | TUBE | 72935-85540 | 72935-85540-Online |
| 9 | FUEL TANK | 2 | LABEL | 19420-00022 | 19420-00022-Online |
| 9 | FUEL TANK | 20 | CUSHION | 72935-86421 | 72935-86421-Online |
| 9 | FUEL TANK | 21 | BUSHING | 17901-06150 | 17901-06150-Online |
| 9 | FUEL TANK | 22 | COLLAR | 15401-20004 | 15401-20004-Online |
| 9 | FUEL TANK | 23 | BOLT | 11020-06250 | 11020-06250-Online |
| 9 | FUEL TANK | 3 | GASKET | 20000-85221 | 20000-85221-Online |
| 9 | FUEL TANK | 4 | CLIP | 20021-85540 | 20021-85540-Online |
| 9 | FUEL TANK | 5 | TUBE | 72935-85512 | 72935-85512-Online |
| 9 | FUEL TANK | 6 | BREATHER BODY | 20035-85522 | 20035-85522-Online |
| 9 | FUEL TANK | 7 | CLIP | 20020-85540 | 20020-85540-Online |
| 9 | FUEL TANK | 8 | TUBE | 72935-85530 | 72935-85530-Online |
| 9 | FUEL TANK | 9 | CLIP | 72935-85550 | 72935-85550-Online |

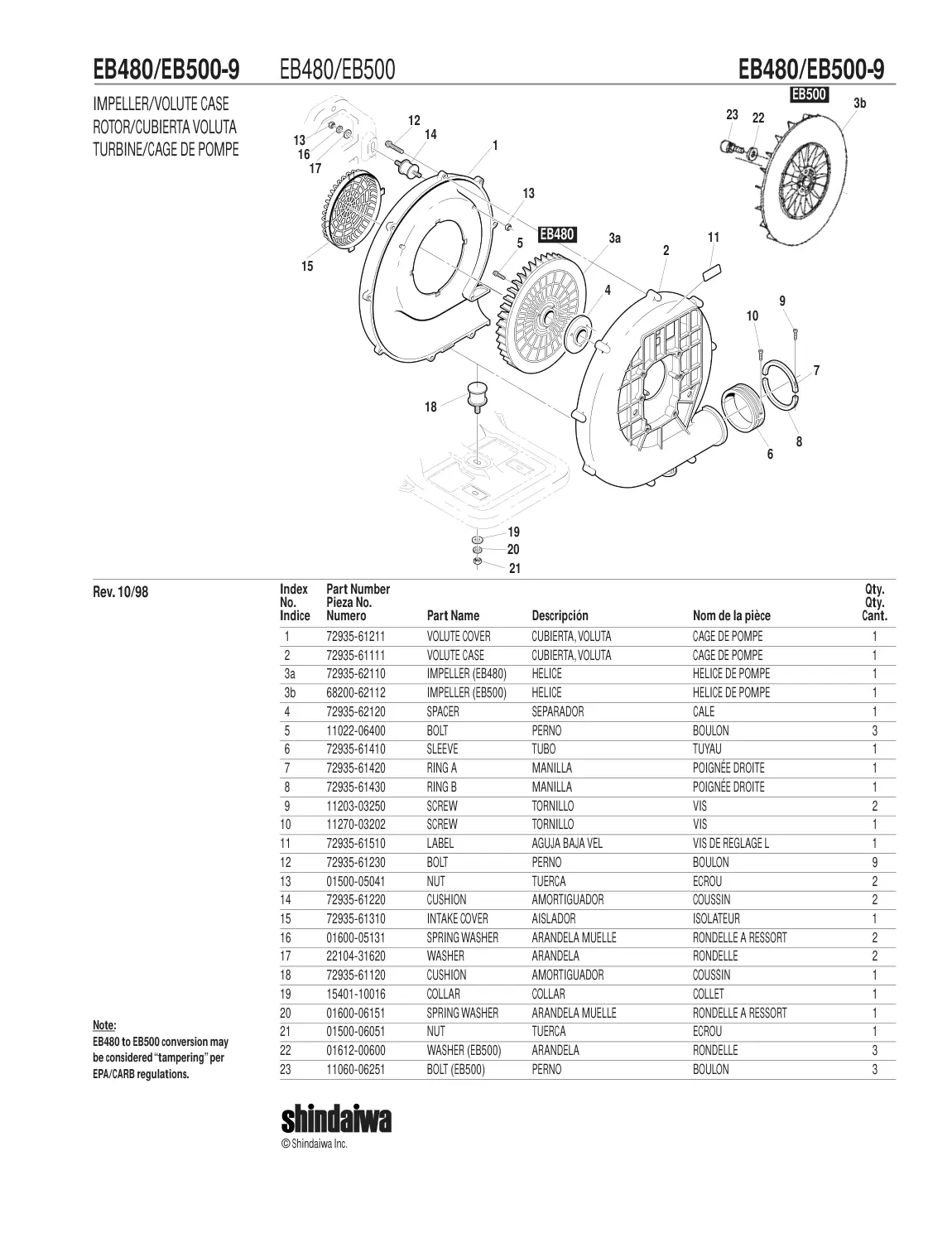

| 10 | ROTOR/CUBIERTA VOLUTA | 1 | HELICE | 68200-62112 | 68200-62112-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 1 | VOLUTE COVER | 72935-61211 | 72935-61211-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 1 | HELICE | 72935-62110 | 72935-62110-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 1 | HELICE | EB480 | EB480-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 1 | HELICE | EB500 | EB500-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 10 | SCREW | 11270-03202 | 11270-03202-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 11 | LABEL | 72935-61510 | 72935-61510-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 12 | BOLT | 72935-61230 | 72935-61230-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 13 | NUT | 01500-05041 | 01500-05041-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 14 | CUSHION | 72935-61220 | 72935-61220-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 15 | INTAKE COVER | 72935-61310 | 72935-61310-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 16 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 17 | WASHER | 22104-31620 | 22104-31620-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 18 | CUSHION | 72935-61120 | 72935-61120-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 19 | COLLAR | 15401-10016 | 15401-10016-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 2 | VOLUTE CASE | 72935-61111 | 72935-61111-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 20 | SPRING WASHER | 01600-06151 | 01600-06151-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 21 | NUT | 01500-06051 | 01500-06051-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 22 | ARANDELA | 01612-00600 | 01612-00600-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 22 | ARANDELA | EB500 | EB500-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 4 | SPACER | 72935-62120 | 72935-62120-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 5 | BOLT | 11022-06400 | 11022-06400-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 6 | SLEEVE | 72935-61410 | 72935-61410-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 7 | RING A | 72935-61420 | 72935-61420-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 7 | be considered “tampering” per | EB480 | EB480-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 7 | conversion may | EB500 | EB500-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 8 | RING B | 72935-61430 | 72935-61430-Online |
| 10 | ROTOR/CUBIERTA VOLUTA | 9 | SCREW | 11203-03250 | 11203-03250-Online |

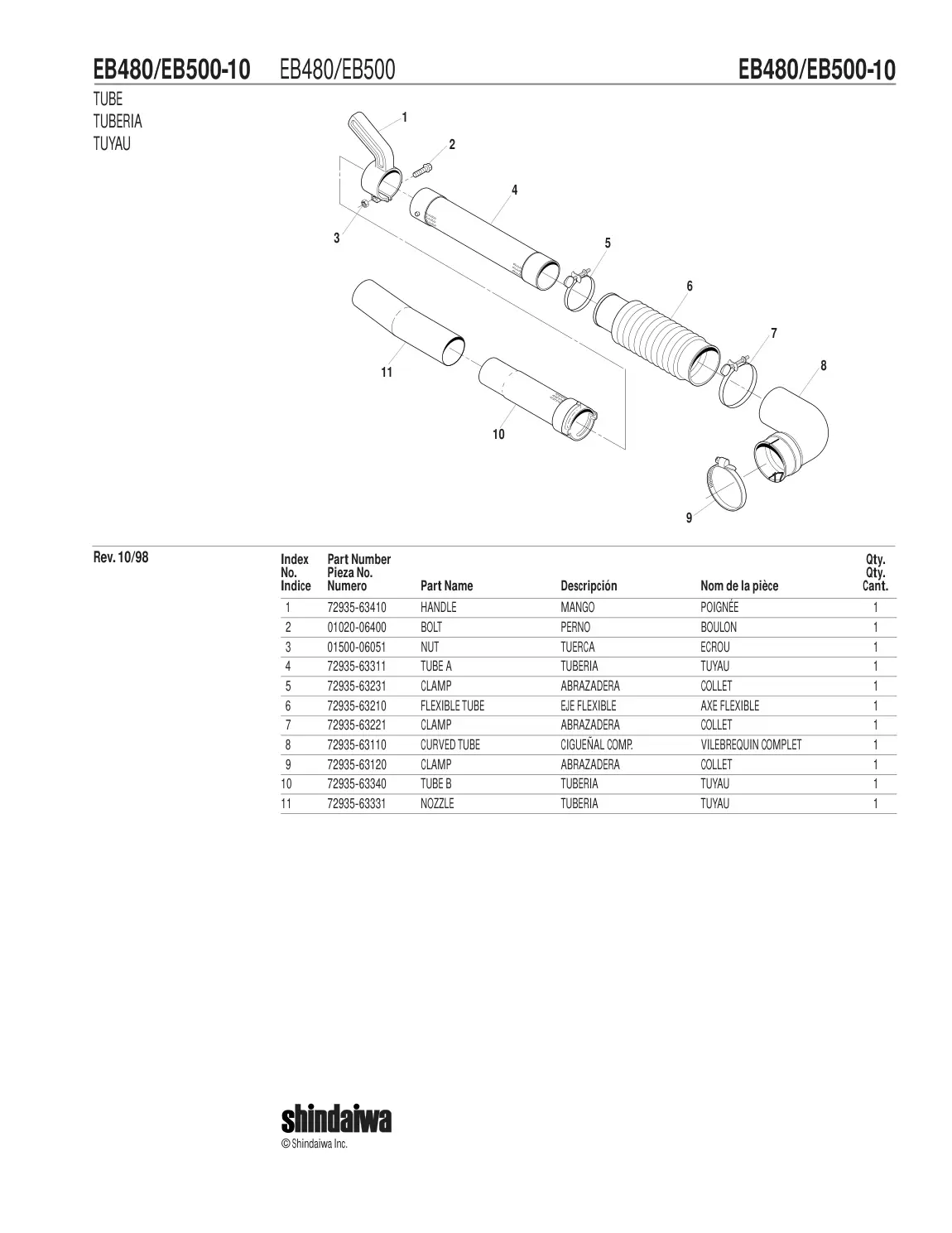

| 11 | TUYAU | 1 | HANDLE | 72935-63410 | 72935-63410-Online |
| 11 | TUYAU | 10 | TUBE B | 72935-63340 | 72935-63340-Online |
| 11 | TUYAU | 11 | NOZZLE | 72935-63331 | 72935-63331-Online |
| 11 | TUYAU | 2 | BOLT | 01020-06400 | 01020-06400-Online |
| 11 | TUYAU | 3 | NUT | 01500-06051 | 01500-06051-Online |
| 11 | TUYAU | 4 | TUBE A | 72935-63311 | 72935-63311-Online |
| 11 | TUYAU | 6 | FLEXIBLE TUBE | 72935-63210 | 72935-63210-Online |
| 11 | TUYAU | 8 | CURVED TUBE | 72935-63110 | 72935-63110-Online |

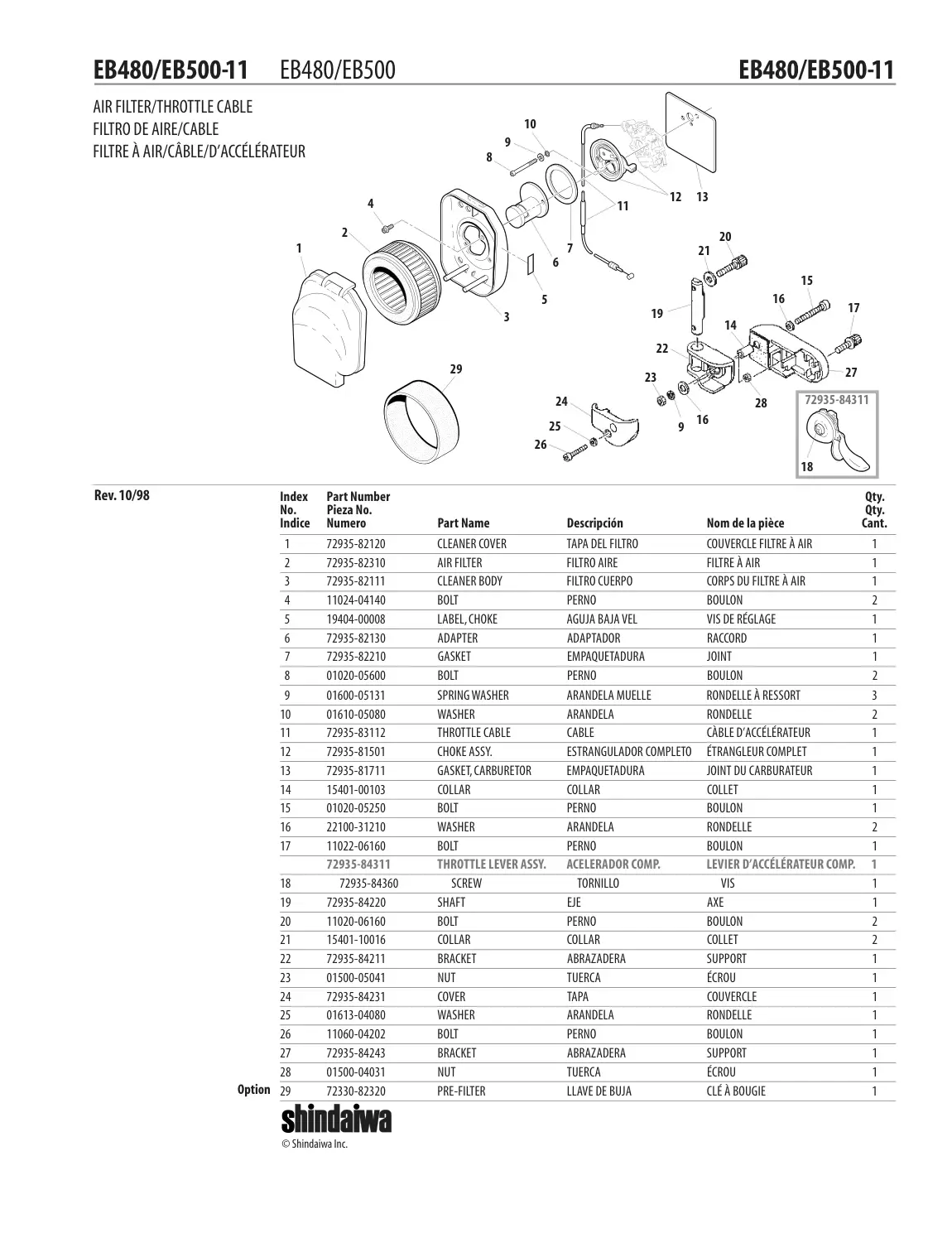

| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | BOLT | 01228-53927 | 01228-53927-Online | |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | BOLT | 02248-53927 | 02248-53927-Online | |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 1 | CLEANER COVER | 72935-82120 | 72935-82120-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 1 | THROTTLE LEVER ASSY. | 72935-84311 | 72935-84311-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 10 | WASHER | 01610-05080 | 01610-05080-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 11 | THROTTLE CABLE | 72935-83112 | 72935-83112-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 12 | CHOKE ASSY. | 72935-81501 | 72935-81501-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 13 | GASKET, CARBURETOR | 72935-81711 | 72935-81711-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 14 | COLLAR | 15401-00103 | 15401-00103-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 15 | BOLT | 01020-05250 | 01020-05250-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 16 | WASHER | 22100-31210 | 22100-31210-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 17 | BOLT | 11022-06160 | 11022-06160-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 18 | Option | 72935-84311 | 72935-84311-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 18 | SCREW | 72935-84360 | 72935-84360-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 2 | AIR FILTER | 72935-82310 | 72935-82310-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 20 | BOLT | 11020-06160 | 11020-06160-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 21 | COLLAR | 15401-10016 | 15401-10016-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 22 | BRACKET | 72935-84211 | 72935-84211-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 23 | NUT | 01500-05041 | 01500-05041-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 24 | COVER | 72935-84231 | 72935-84231-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 25 | WASHER | 01613-04080 | 01613-04080-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 26 | BOLT | 11060-04202 | 11060-04202-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 27 | BRACKET | 72935-84243 | 72935-84243-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 28 | NUT | 01500-04031 | 01500-04031-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 29 | PRE-FILTER | 72330-82320 | 72330-82320-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 3 | CLEANER BODY | 72935-82111 | 72935-82111-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 4 | BOLT | 11024-04140 | 11024-04140-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 5 | LABEL, CHOKE | 19404-00008 | 19404-00008-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 6 | ADAPTER | 72935-82130 | 72935-82130-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 8 | BOLT | 01020-05600 | 01020-05600-Online |
| 12 | FILTRE À AIR/CÂBLE/D’ACCÉLÉRATEUR | 9 | SPRING WASHER | 01600-05131 | 01600-05131-Online |

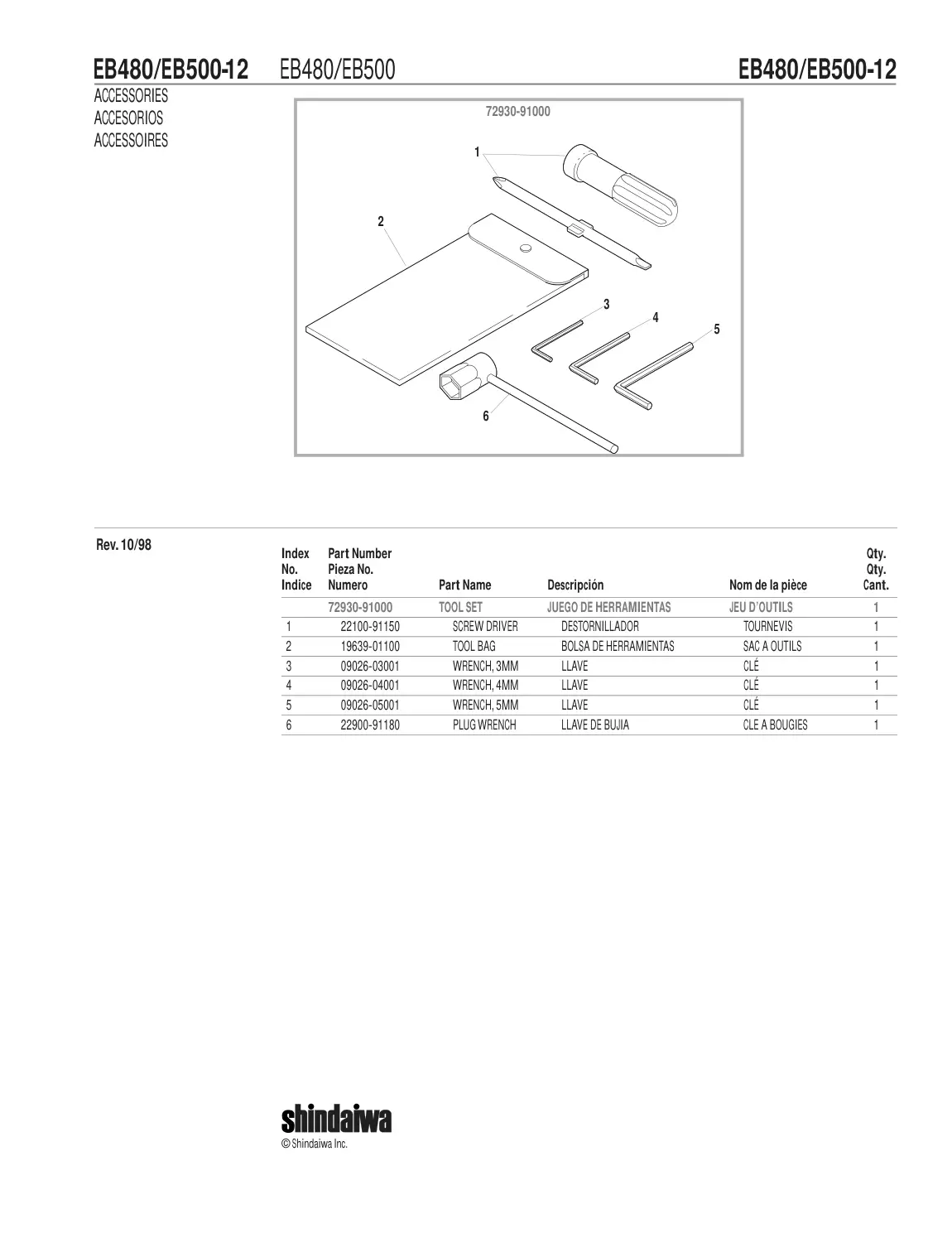

| 13 | CLE A BOUGIES | TOOL SET | 72930-91000 | 72930-91000-Online | |
| 13 | CLE A BOUGIES | 1 | SCREW DRIVER | 22100-91150 | 22100-91150-Online |
| 13 | CLE A BOUGIES | 2 | TOOL BAG | 19639-01100 | 19639-01100-Online |
| 13 | CLE A BOUGIES | 3 | WRENCH, 3MM | 09026-03001 | 09026-03001-Online |
| 13 | CLE A BOUGIES | 4 | WRENCH, 4MM | 09026-04001 | 09026-04001-Online |
| 13 | CLE A BOUGIES | 5 | WRENCH, 5MM | 09026-05001 | 09026-05001-Online |
| 13 | CLE A BOUGIES | 6 | PLUG WRENCH | 22900-91180 | 22900-91180-Online |
| 14 | WYJ-147 | 21 | (KIT) | 99909-159 | 99909-159-Online |

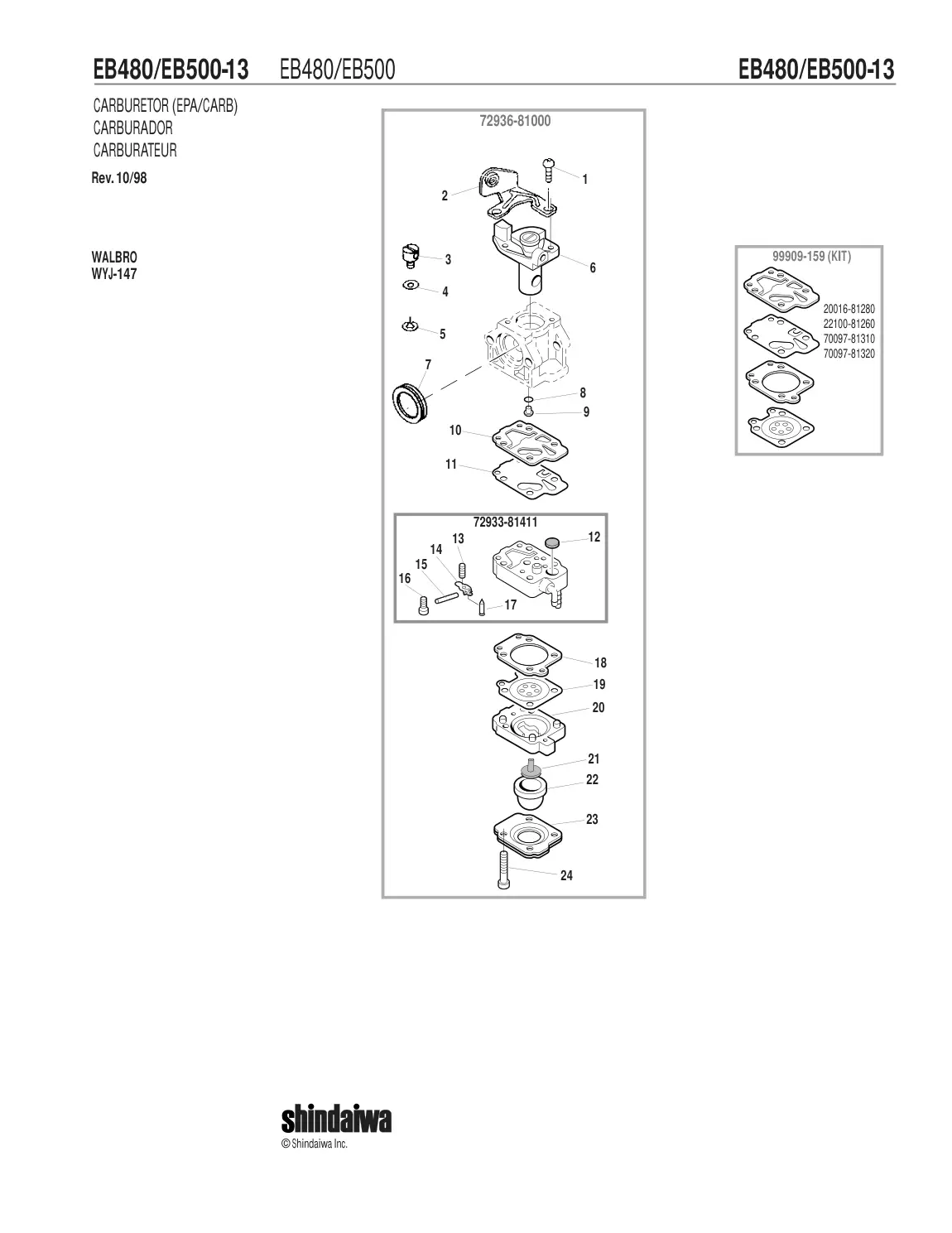

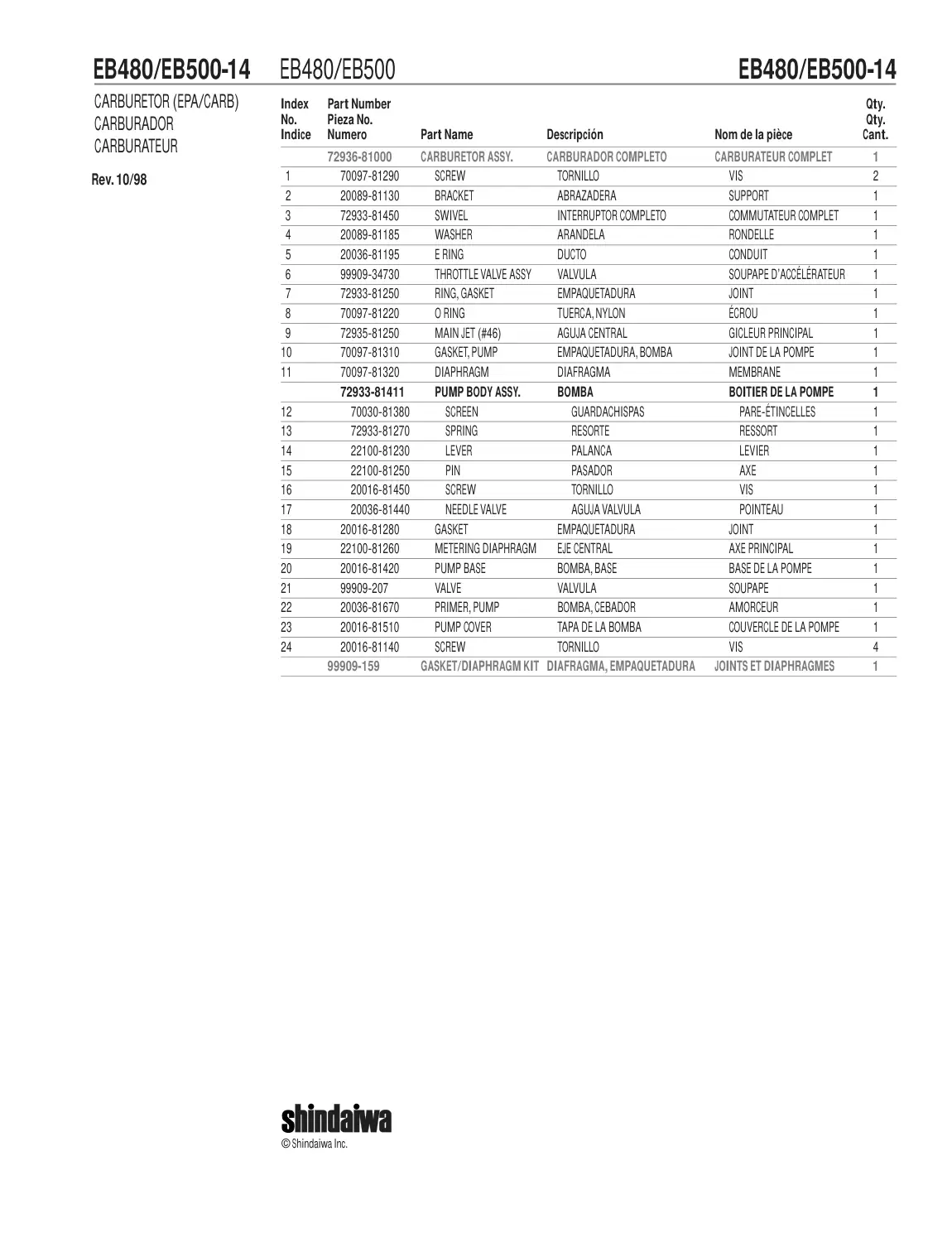

| 15 | JOINTS ET DIAPHRAGMES | CARBURETOR ASSY. | 72936-81000 | 72936-81000-Online | |
| 15 | JOINTS ET DIAPHRAGMES | 1 | SCREW | 70097-81290 | 70097-81290-Online |
| 15 | JOINTS ET DIAPHRAGMES | 1 | PUMP BODY ASSY. | 72933-81411 | 72933-81411-Online |
| 15 | JOINTS ET DIAPHRAGMES | 10 | GASKET, PUMP | 70097-81310 | 70097-81310-Online |
| 15 | JOINTS ET DIAPHRAGMES | 11 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 15 | JOINTS ET DIAPHRAGMES | 12 | SCREEN | 70030-81380 | 70030-81380-Online |
| 15 | JOINTS ET DIAPHRAGMES | 13 | SPRING | 72933-81270 | 72933-81270-Online |
| 15 | JOINTS ET DIAPHRAGMES | 14 | LEVER | 22100-81230 | 22100-81230-Online |
| 15 | JOINTS ET DIAPHRAGMES | 15 | PIN | 22100-81250 | 22100-81250-Online |
| 15 | JOINTS ET DIAPHRAGMES | 16 | SCREW | 20016-81450 | 20016-81450-Online |
| 15 | JOINTS ET DIAPHRAGMES | 17 | NEEDLE VALVE | 20036-81440 | 20036-81440-Online |
| 15 | JOINTS ET DIAPHRAGMES | 18 | GASKET | 20016-81280 | 20016-81280-Online |
| 15 | JOINTS ET DIAPHRAGMES | 19 | METERING DIAPHRAGM | 22100-81260 | 22100-81260-Online |
| 15 | JOINTS ET DIAPHRAGMES | 2 | BRACKET | 20089-81130 | 20089-81130-Online |
| 15 | JOINTS ET DIAPHRAGMES | 20 | PUMP BASE | 20016-81420 | 20016-81420-Online |
| 15 | JOINTS ET DIAPHRAGMES | 21 | VALVE | 99909-207 | 99909-207-Online |
| 15 | JOINTS ET DIAPHRAGMES | 22 | PRIMER, PUMP | 20036-81670 | 20036-81670-Online |
| 15 | JOINTS ET DIAPHRAGMES | 23 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 15 | JOINTS ET DIAPHRAGMES | 24 | SCREW | 20016-81140 | 20016-81140-Online |
| 15 | JOINTS ET DIAPHRAGMES | 3 | SWIVEL | 72933-81450 | 72933-81450-Online |
| 15 | JOINTS ET DIAPHRAGMES | 4 | WASHER | 20089-81185 | 20089-81185-Online |
| 15 | JOINTS ET DIAPHRAGMES | 4 | GASKET/DIAPHRAGM KIT DIAFRAGMA, EMPAQUETADURA | 99909-159 | 99909-159-Online |
| 15 | JOINTS ET DIAPHRAGMES | 5 | E RING | 20036-81195 | 20036-81195-Online |
| 15 | JOINTS ET DIAPHRAGMES | 6 | THROTTLE VALVE ASSY | 99909-34730 | 99909-34730-Online |
| 15 | JOINTS ET DIAPHRAGMES | 7 | RING, GASKET | 72933-81250 | 72933-81250-Online |
| 15 | JOINTS ET DIAPHRAGMES | 8 | O RING | 70097-81220 | 70097-81220-Online |
| 15 | JOINTS ET DIAPHRAGMES | 9 | MAIN JET (#46) | 72935-81250 | 72935-81250-Online |

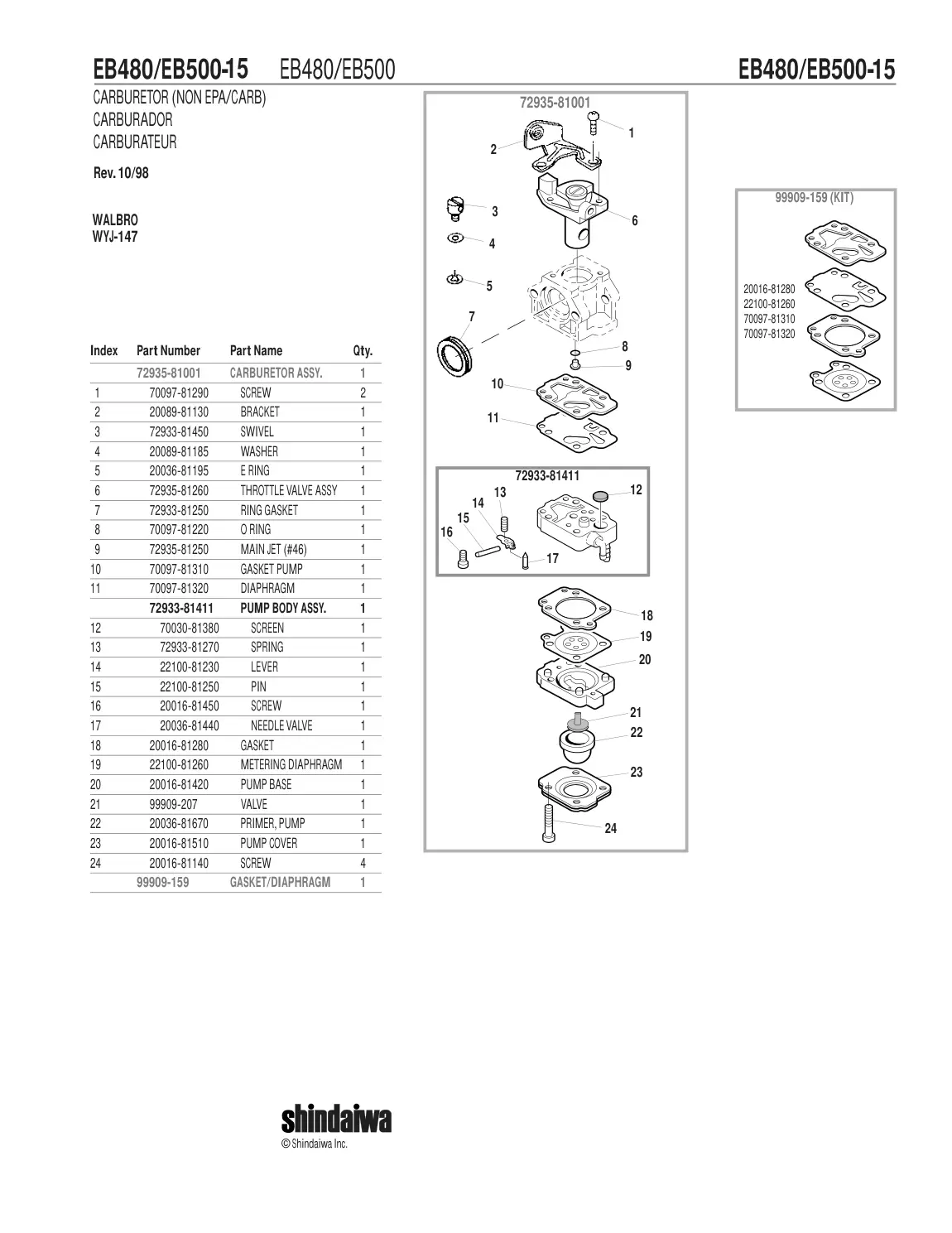

| 16 | WYJ-147 | 1 | SCREW | 70097-81290 | 70097-81290-Online |
| 16 | WYJ-147 | 1 | PUMP BODY ASSY. | 72933-81411 | 72933-81411-Online |
| 16 | WYJ-147 | 10 | GASKET PUMP | 70097-81310 | 70097-81310-Online |
| 16 | WYJ-147 | 11 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 16 | WYJ-147 | 12 | SCREEN | 70030-81380 | 70030-81380-Online |
| 16 | WYJ-147 | 13 | SPRING | 72933-81270 | 72933-81270-Online |
| 16 | WYJ-147 | 14 | LEVER | 22100-81230 | 22100-81230-Online |
| 16 | WYJ-147 | 15 | PIN | 22100-81250 | 22100-81250-Online |
| 16 | WYJ-147 | 16 | SCREW | 20016-81450 | 20016-81450-Online |
| 16 | WYJ-147 | 17 | NEEDLE VALVE | 20036-81440 | 20036-81440-Online |
| 16 | WYJ-147 | 18 | GASKET | 20016-81280 | 20016-81280-Online |
| 16 | WYJ-147 | 19 | METERING DIAPHRAGM | 22100-81260 | 22100-81260-Online |
| 16 | WYJ-147 | 2 | BRACKET | 20089-81130 | 20089-81130-Online |
| 16 | WYJ-147 | 20 | PUMP BASE | 20016-81420 | 20016-81420-Online |
| 16 | WYJ-147 | 21 | VALVE | 99909-207 | 99909-207-Online |
| 16 | WYJ-147 | 22 | PRIMER, PUMP | 20036-81670 | 20036-81670-Online |
| 16 | WYJ-147 | 23 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 16 | WYJ-147 | 24 | SCREW | 20016-81140 | 20016-81140-Online |
| 16 | WYJ-147 | 3 | SWIVEL | 72933-81450 | 72933-81450-Online |
| 16 | WYJ-147 | 4 | WASHER | 20089-81185 | 20089-81185-Online |
| 16 | WYJ-147 | 4 | GASKET/DIAPHRAGM | 99909-159 | 99909-159-Online |
| 16 | WYJ-147 | 5 | E RING | 20036-81195 | 20036-81195-Online |
| 16 | WYJ-147 | 6 | CARBURETOR ASSY. | 72935-81001 | 72935-81001-Online |
| 16 | WYJ-147 | 6 | THROTTLE VALVE ASSY | 72935-81260 | 72935-81260-Online |
| 16 | WYJ-147 | 7 | RING GASKET | 72933-81250 | 72933-81250-Online |
| 16 | WYJ-147 | 8 | O RING | 70097-81220 | 70097-81220-Online |
| 16 | WYJ-147 | 9 | MAIN JET (#46) | 72935-81250 | 72935-81250-Online |
Source file: 20111007-223_EB480_EB500.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
