Machine: EB262
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 4 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-001570 | A011-001570-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 10 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,ENGINE | A190-001670 | A190-001670-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 12 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 2 | CYLINDER | A130-002370 | A130-002370-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 3 | GASKET,CYL | V100-000860 | V100-000860-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 4 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 5 | PISTON KIT | P021-052780 | P021-052780-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 6 | RING,PISTON | A101-000010 | A101-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 7 | PIN, PISTON | 100013-35430 | 100013-35430-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 8 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 9 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |

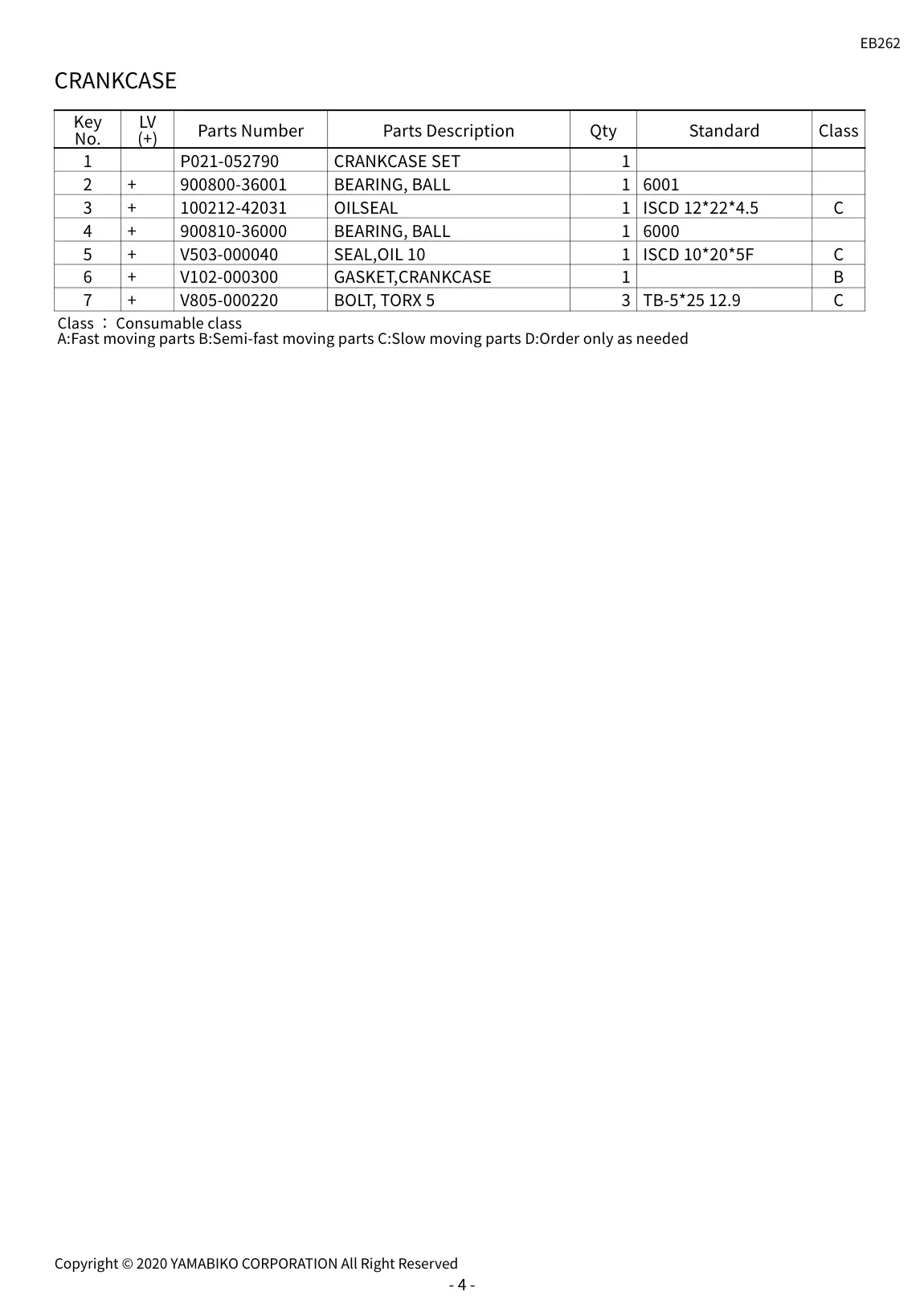

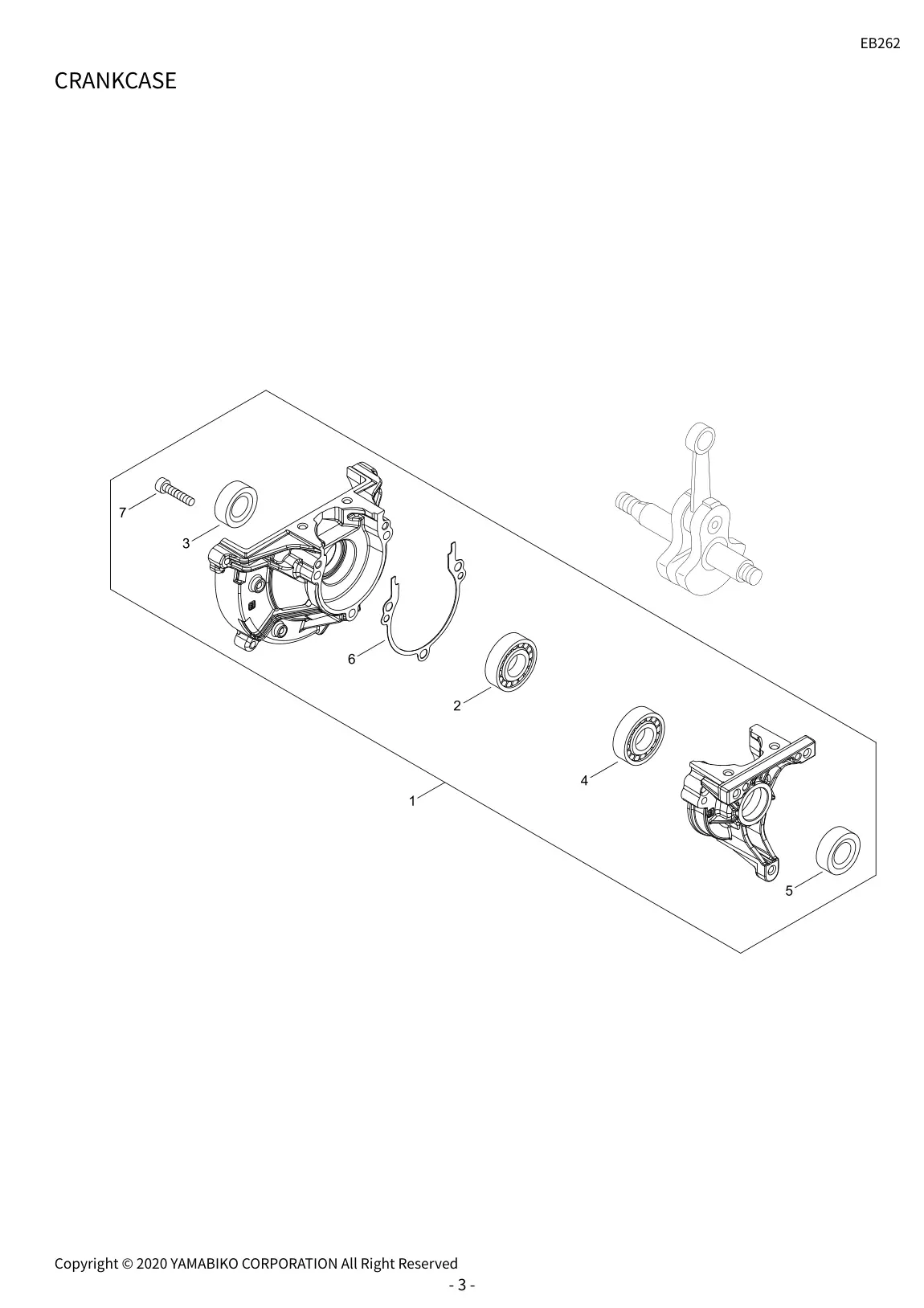

| 6 | CRANKCASE | 1 | CRANKCASE SET | P021-052790 | P021-052790-Online |
| 6 | CRANKCASE | 2 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 6 | CRANKCASE | 3 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 6 | CRANKCASE | 4 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 6 | CRANKCASE | 5 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 6 | CRANKCASE | 6 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 6 | CRANKCASE | 7 | BOLT, TORX | V805-000220 | V805-000220-Online |

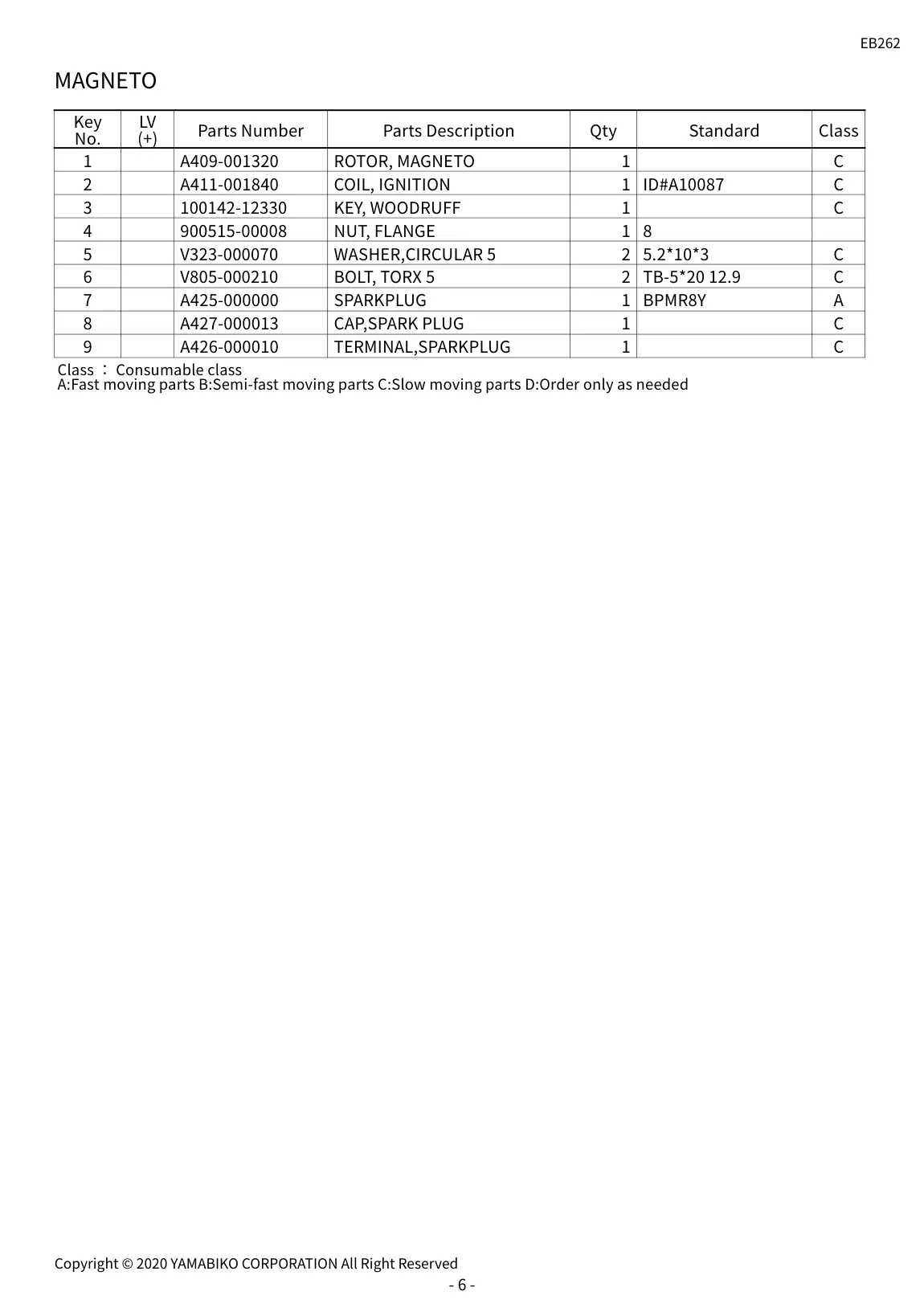

| 8 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 8 | MAGNETO | 2 | KEY, WOODRUFF | A10087 | A10087-Online |
| 8 | MAGNETO | 2 | COIL, IGNITION | A411-001840 | A411-001840-Online |
| 8 | MAGNETO | 3 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 8 | MAGNETO | 4 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 8 | MAGNETO | 5 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 8 | MAGNETO | 6 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 8 | MAGNETO | 7 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 8 | MAGNETO | 8 | CAP,SPARK PLUG | A427-000013 | A427-000013-Online |
| 8 | MAGNETO | 9 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |

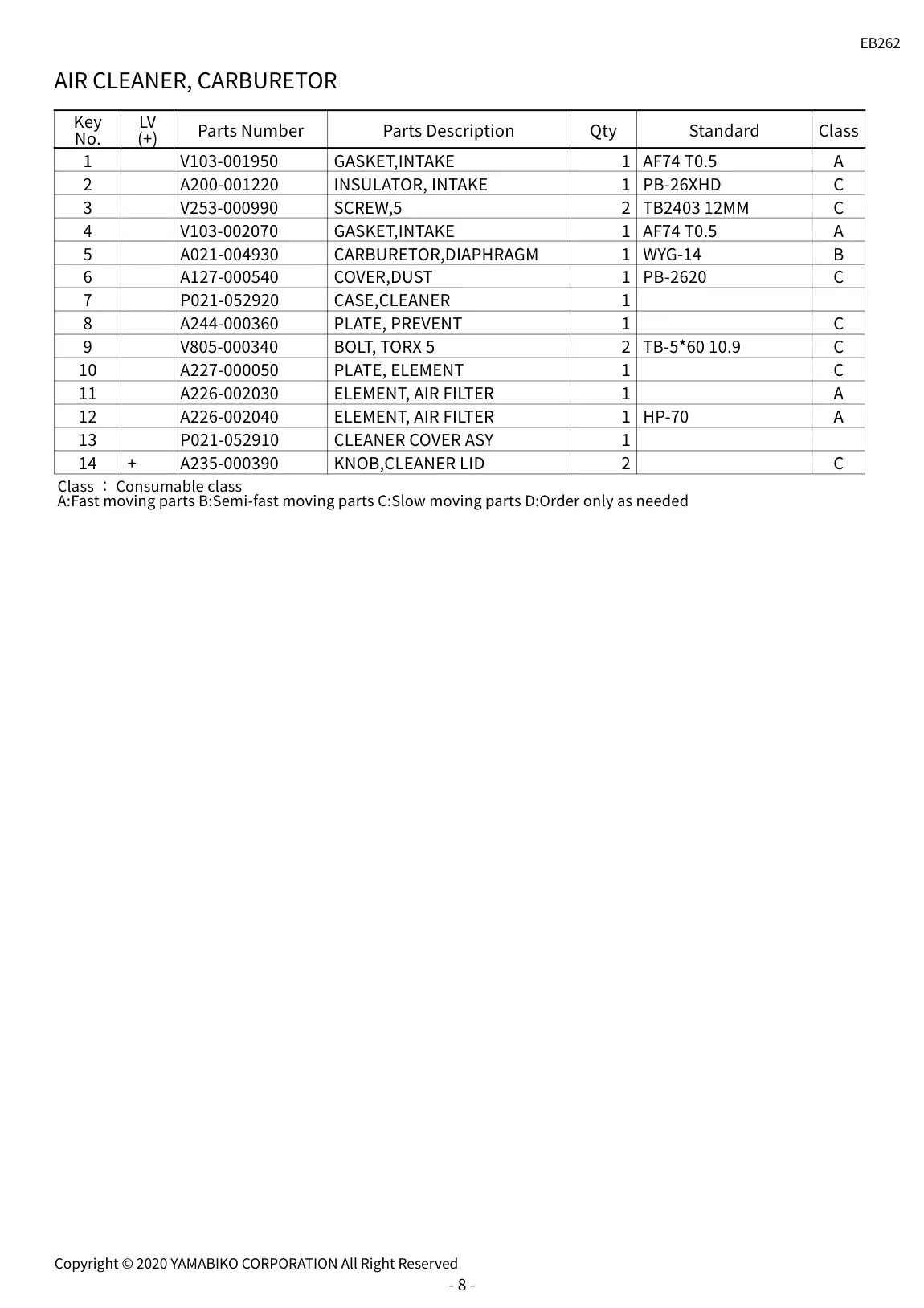

| 10 | AIR CLEANER, CARBURETOR | 1 | GASKET,INTAKE | V103-001950 | V103-001950-Online |
| 10 | AIR CLEANER, CARBURETOR | 10 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 10 | AIR CLEANER, CARBURETOR | 11 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 10 | AIR CLEANER, CARBURETOR | 12 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 10 | AIR CLEANER, CARBURETOR | 13 | CLEANER COVER ASY | P021-052910 | P021-052910-Online |
| 10 | AIR CLEANER, CARBURETOR | 14 | KNOB,CLEANER LID | A235-000390 | A235-000390-Online |
| 10 | AIR CLEANER, CARBURETOR | 2 | INSULATOR, INTAKE | A200-001220 | A200-001220-Online |
| 10 | AIR CLEANER, CARBURETOR | 3 | SCREW,5 | V253-000990 | V253-000990-Online |
| 10 | AIR CLEANER, CARBURETOR | 4 | GASKET,INTAKE | V103-002070 | V103-002070-Online |
| 10 | AIR CLEANER, CARBURETOR | 5 | CARBURETOR,DIAPHRAGM | A021-004930 | A021-004930-Online |
| 10 | AIR CLEANER, CARBURETOR | 6 | COVER,DUST | A127-000540 | A127-000540-Online |
| 10 | AIR CLEANER, CARBURETOR | 7 | CASE,CLEANER | P021-052920 | P021-052920-Online |
| 10 | AIR CLEANER, CARBURETOR | 8 | PLATE, PREVENT | A244-000360 | A244-000360-Online |
| 10 | AIR CLEANER, CARBURETOR | 9 | BOLT, TORX | V805-000340 | V805-000340-Online |

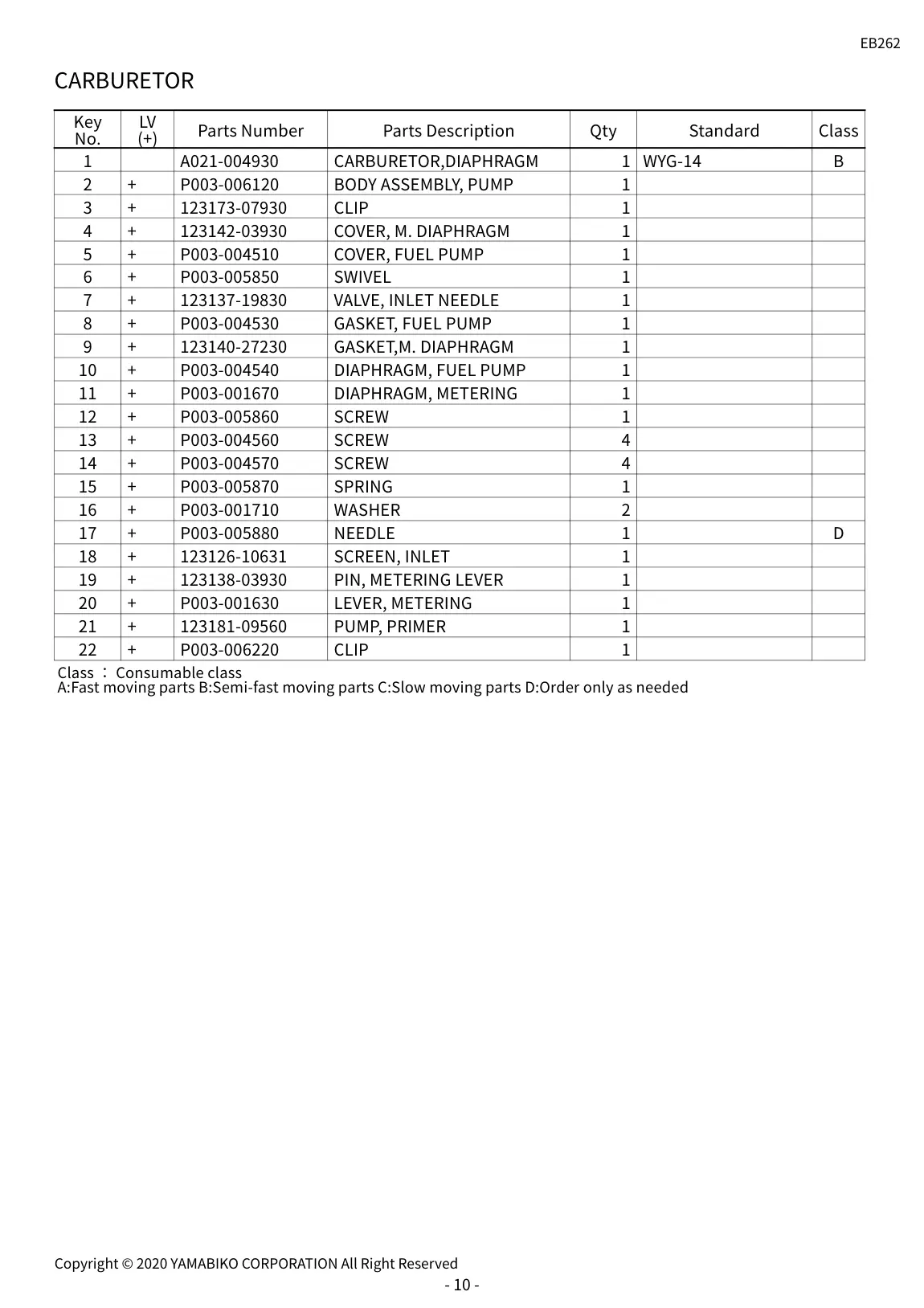

| 12 | CARBURETOR | 1 | CARBURETOR,DIAPHRAGM | A021-004930 | A021-004930-Online |
| 12 | CARBURETOR | 10 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 12 | CARBURETOR | 11 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 12 | CARBURETOR | 12 | SCREW | P003-005860 | P003-005860-Online |
| 12 | CARBURETOR | 13 | SCREW | P003-004560 | P003-004560-Online |
| 12 | CARBURETOR | 14 | SCREW | P003-004570 | P003-004570-Online |
| 12 | CARBURETOR | 15 | SPRING | P003-005870 | P003-005870-Online |
| 12 | CARBURETOR | 16 | WASHER | P003-001710 | P003-001710-Online |
| 12 | CARBURETOR | 17 | NEEDLE | P003-005880 | P003-005880-Online |
| 12 | CARBURETOR | 18 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 12 | CARBURETOR | 19 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 12 | CARBURETOR | 2 | BODY ASSEMBLY, PUMP | P003-006120 | P003-006120-Online |
| 12 | CARBURETOR | 20 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 12 | CARBURETOR | 21 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 12 | CARBURETOR | 22 | CLIP | P003-006220 | P003-006220-Online |
| 12 | CARBURETOR | 3 | CLIP | 123173-07930 | 123173-07930-Online |
| 12 | CARBURETOR | 4 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 12 | CARBURETOR | 5 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 12 | CARBURETOR | 6 | SWIVEL | P003-005850 | P003-005850-Online |
| 12 | CARBURETOR | 7 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 12 | CARBURETOR | 8 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 12 | CARBURETOR | 9 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |

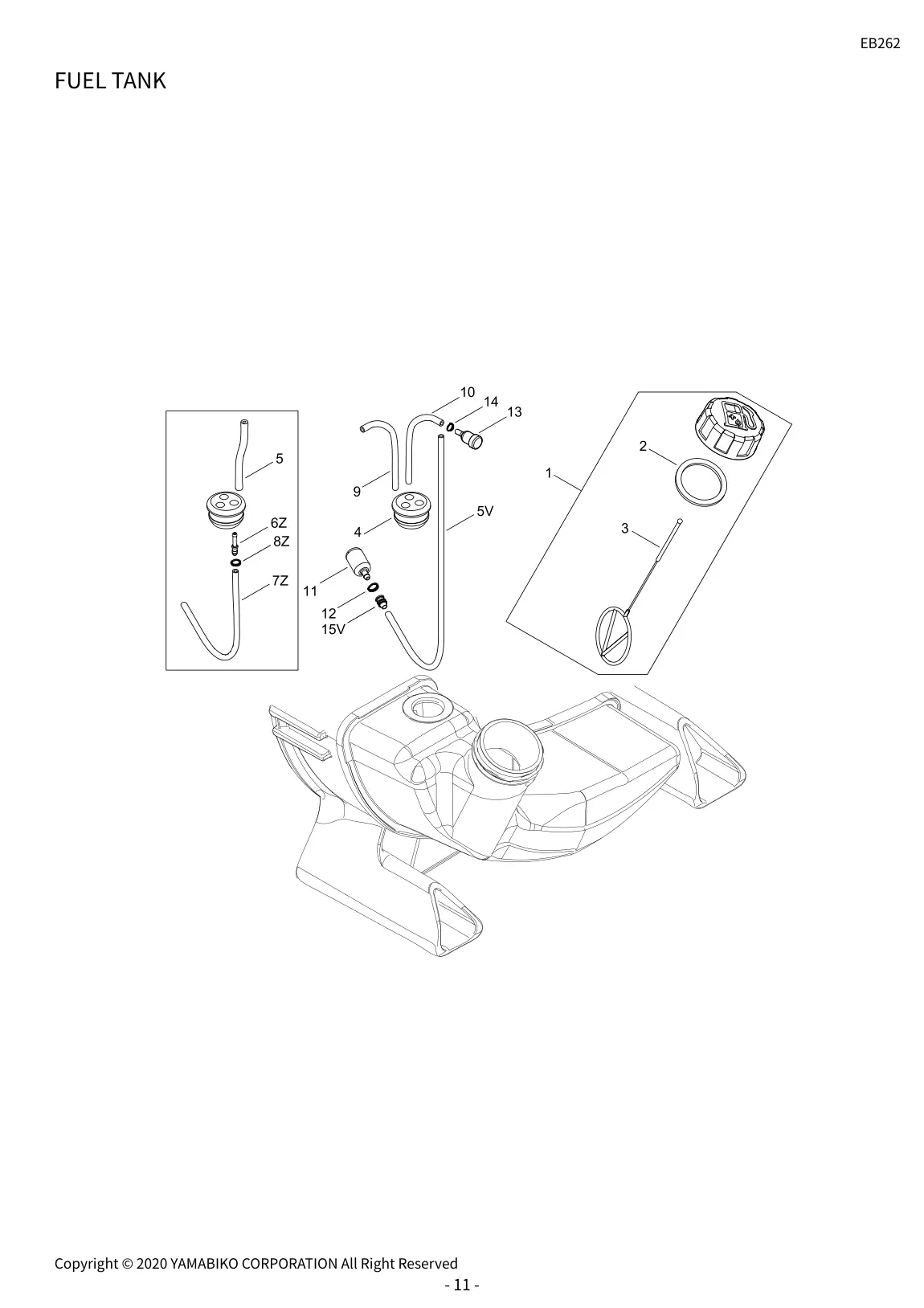

| 14 | FUEL TANK | 1 | CAP,FUER ASSY | P021-013971 | P021-013971-Online |
| 14 | FUEL TANK | 10 | PIPE | V471-005251 | V471-005251-Online |
| 14 | FUEL TANK | 11 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 14 | FUEL TANK | 12 | CLIP | V490-001240 | V490-001240-Online |
| 14 | FUEL TANK | 13 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 14 | FUEL TANK | 14 | CLIP | V490-001240 | V490-001240-Online |
| 14 | FUEL TANK | 2 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 14 | FUEL TANK | 3 | CLIP, FUEL CAP | 131051-56030 | 131051-56030-Online |
| 14 | FUEL TANK | 4 | GROMMET, FUEL | 132115-46730 | 132115-46730-Online |
| 14 | FUEL TANK | 5 | PIPE | V471-003590 | V471-003590-Online |
| 14 | FUEL TANK | 5V | PIPE | V471-002171 | V471-002171-Online |
| 14 | FUEL TANK | 6Z | JOINT,PIPE | V186-000520 | V186-000520-Online |
| 14 | FUEL TANK | 7Z | PIPE 3* 5*150 | 132010-04921 | 132010-04921-Online |
| 14 | FUEL TANK | 8Z | CLIP | V490-001240 | V490-001240-Online |
| 14 | FUEL TANK | 9 | PIPE 3*6*85 | 132010-49730 | 132010-49730-Online |

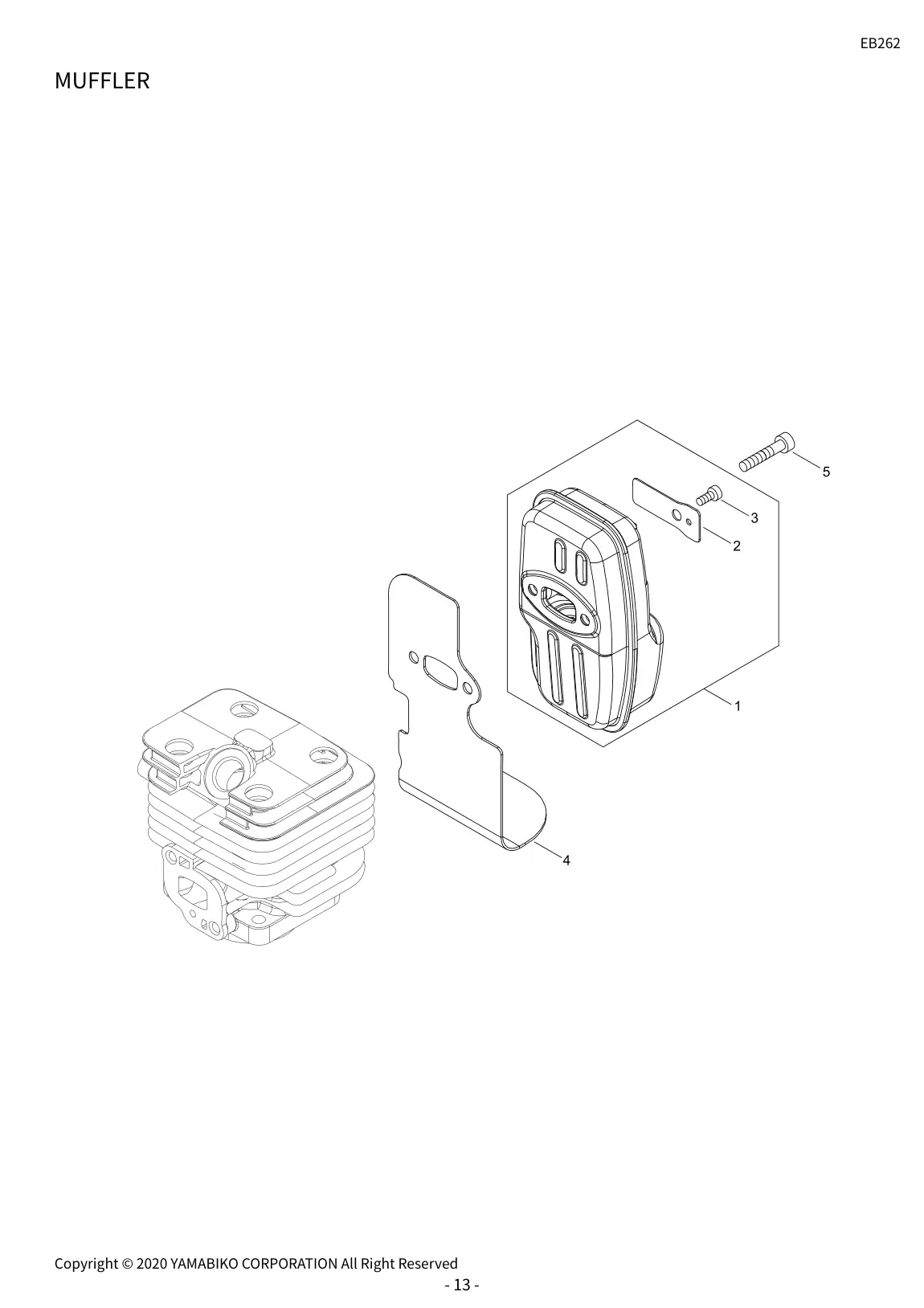

| 16 | MUFFLER | 1 | MUFFLER ASY | P021-052830 | P021-052830-Online |
| 16 | MUFFLER | 2 | SCREEN, ARRESTOR | A310-000510 | A310-000510-Online |
| 16 | MUFFLER | 3 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 16 | MUFFLER | 4 | GASKET,EXHAUST | V104-002350 | V104-002350-Online |
| 16 | MUFFLER | 5 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 18 | RECOIL STARTER, PULLY | 1 | COVER,DUST | A127-000510 | A127-000510-Online |
| 18 | RECOIL STARTER, PULLY | 10 | PULLEY,ASM STARTER | A052-000520 | A052-000520-Online |
| 18 | RECOIL STARTER, PULLY | 11 | RACHET | A514-000120 | A514-000120-Online |
| 18 | RECOIL STARTER, PULLY | 12 | SPRING, RETURN | 177234-40630 | 177234-40630-Online |
| 18 | RECOIL STARTER, PULLY | 13 | E-RING | P022-002100 | P022-002100-Online |
| 18 | RECOIL STARTER, PULLY | 14 | WASHER,CIRCULAR | V306-000620 | V306-000620-Online |
| 18 | RECOIL STARTER, PULLY | 15 | NUT 8 (3N) | 900502-00008 | 900502-00008-Online |
| 18 | RECOIL STARTER, PULLY | 16 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 18 | RECOIL STARTER, PULLY | 17 | LABEL,SHINDAIWA | X562-001150 | X562-001150-Online |
| 18 | RECOIL STARTER, PULLY | 2 | STARTER,RECOIL ASY | A051-003310 | A051-003310-Online |
| 18 | RECOIL STARTER, PULLY | 3 | STATER CASE | P022-048990 | P022-048990-Online |
| 18 | RECOIL STARTER, PULLY | 4 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 18 | RECOIL STARTER, PULLY | 5 | REEL | P022-049000 | P022-049000-Online |
| 18 | RECOIL STARTER, PULLY | 6 | SPRING, SPIRAL | P022-019680 | P022-019680-Online |
| 18 | RECOIL STARTER, PULLY | 7 | SCREW | 177236-44330 | 177236-44330-Online |
| 18 | RECOIL STARTER, PULLY | 8 | ROPE,STARTER | P022-049010 | P022-049010-Online |
| 18 | RECOIL STARTER, PULLY | 9 | GRIP, STARTER | P022-036700 | P022-036700-Online |
| 20 | FAN CASE | 1 | CASE,FAN | E103-001600 | E103-001600-Online |
| 20 | FAN CASE | 10 | COLLAR,5 | V353-000750 | V353-000750-Online |
| 20 | FAN CASE | 11 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 20 | FAN CASE | 12 | WEIGHT | C688-000070 | C688-000070-Online |
| 20 | FAN CASE | 13 | LABEL,CAUTION | X505-010760 | X505-010760-Online |
| 20 | FAN CASE | 2 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 20 | FAN CASE | 3 | FAN,BLOWER | E100-000290 | E100-000290-Online |
| 20 | FAN CASE | 4 | BOLT, TORX | V806-000010 | V806-000010-Online |
| 20 | FAN CASE | 5 | CASE,FAN | E103-001510 | E103-001510-Online |
| 20 | FAN CASE | 6 | GRID, BLOWER | E104-000270 | E104-000270-Online |
| 20 | FAN CASE | 7 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 20 | FAN CASE | 8 | HANDLE,ASM REAR | C041-000810 | C041-000810-Online |
| 20 | FAN CASE | 9 | NUT,5 | V263-000530 | V263-000530-Online |

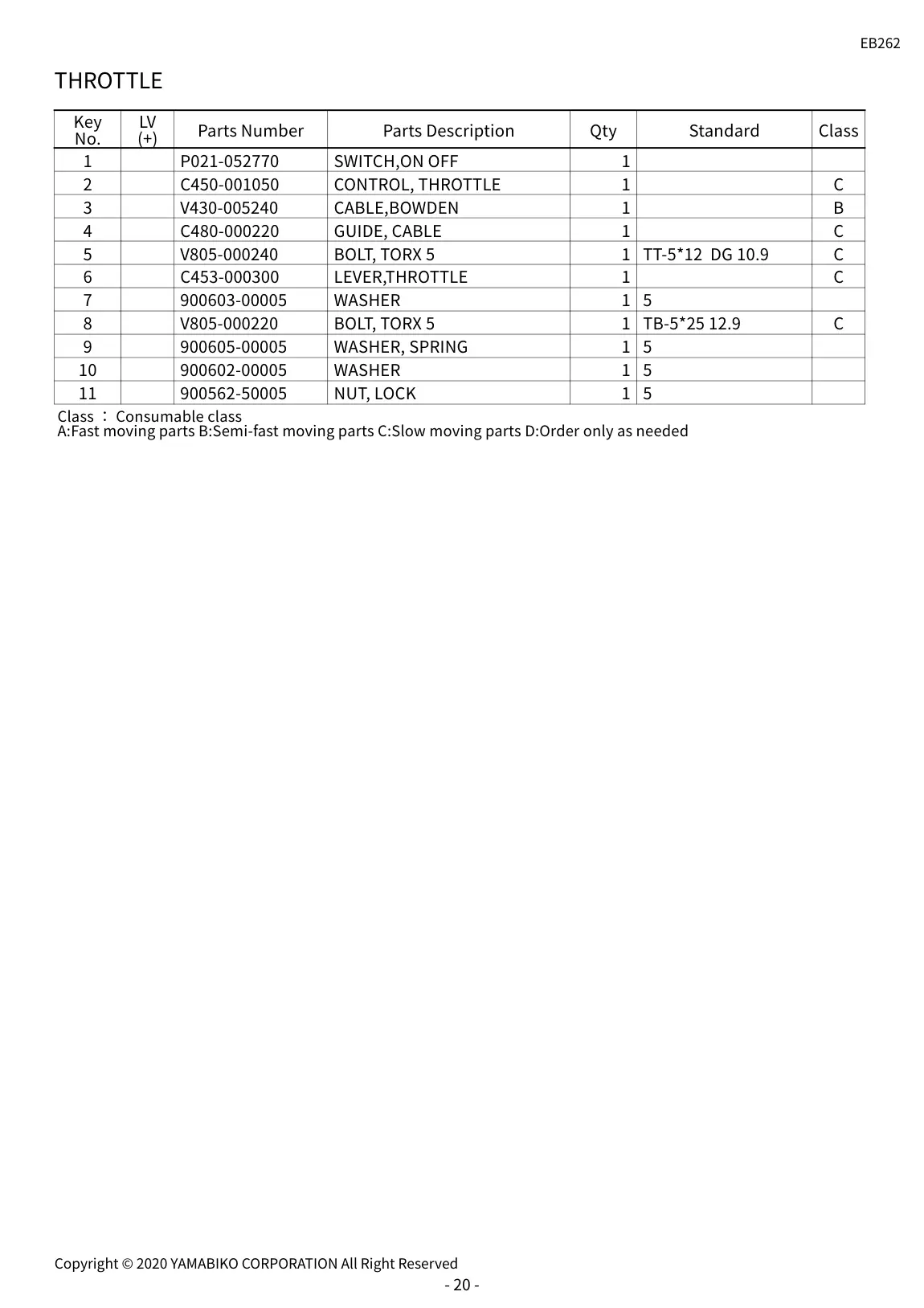

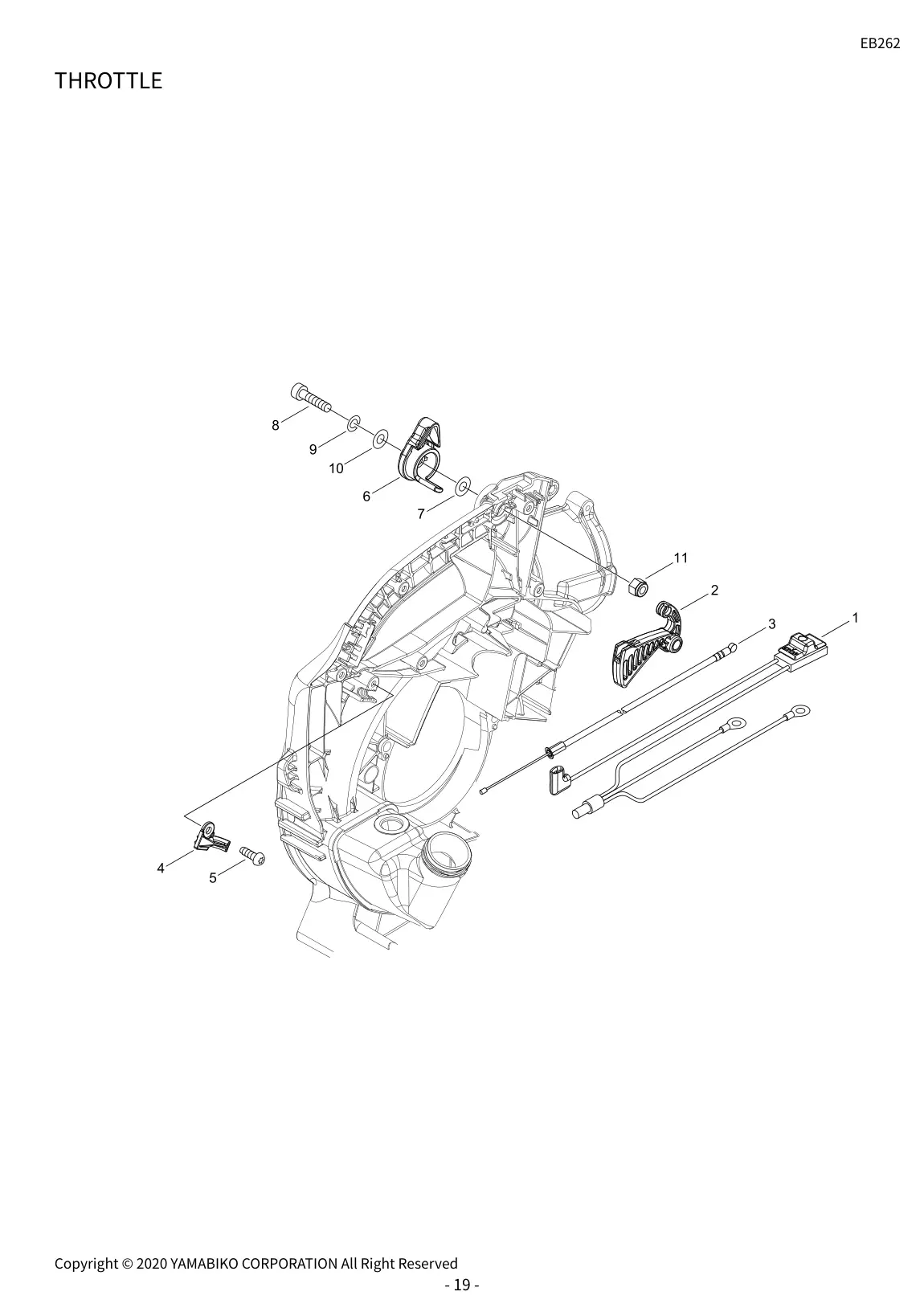

| 22 | THROTTLE | 1 | SWITCH,ON OFF | P021-052770 | P021-052770-Online |
| 22 | THROTTLE | 10 | WASHER | 900602-00005 | 900602-00005-Online |
| 22 | THROTTLE | 11 | NUT, LOCK | 900562-50005 | 900562-50005-Online |
| 22 | THROTTLE | 2 | CONTROL, THROTTLE | C450-001050 | C450-001050-Online |
| 22 | THROTTLE | 3 | CABLE,BOWDEN | V430-005240 | V430-005240-Online |
| 22 | THROTTLE | 4 | GUIDE, CABLE | C480-000220 | C480-000220-Online |
| 22 | THROTTLE | 5 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 22 | THROTTLE | 6 | LEVER,THROTTLE | C453-000300 | C453-000300-Online |
| 22 | THROTTLE | 7 | WASHER | 900603-00005 | 900603-00005-Online |
| 22 | THROTTLE | 8 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 22 | THROTTLE | 9 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 24 | PIPE | 1 | PIPE,BLOWER | E165-000951 | E165-000951-Online |
| 24 | PIPE | 2 | PIPE,BLOWER | E165-001040 | E165-001040-Online |
| 24 | PIPE | 3 | PIPE,BLOWER | E165-000980 | E165-000980-Online |

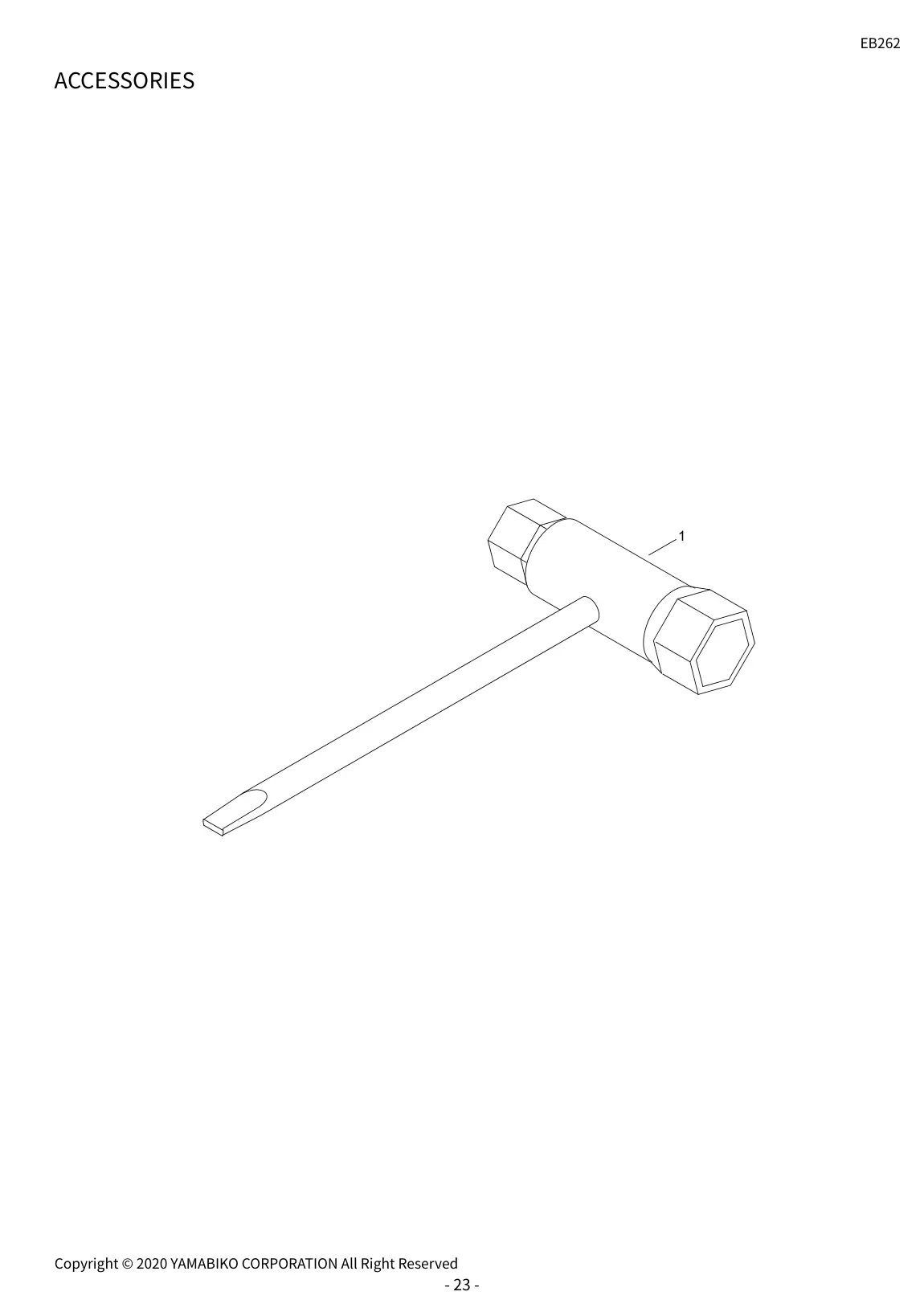

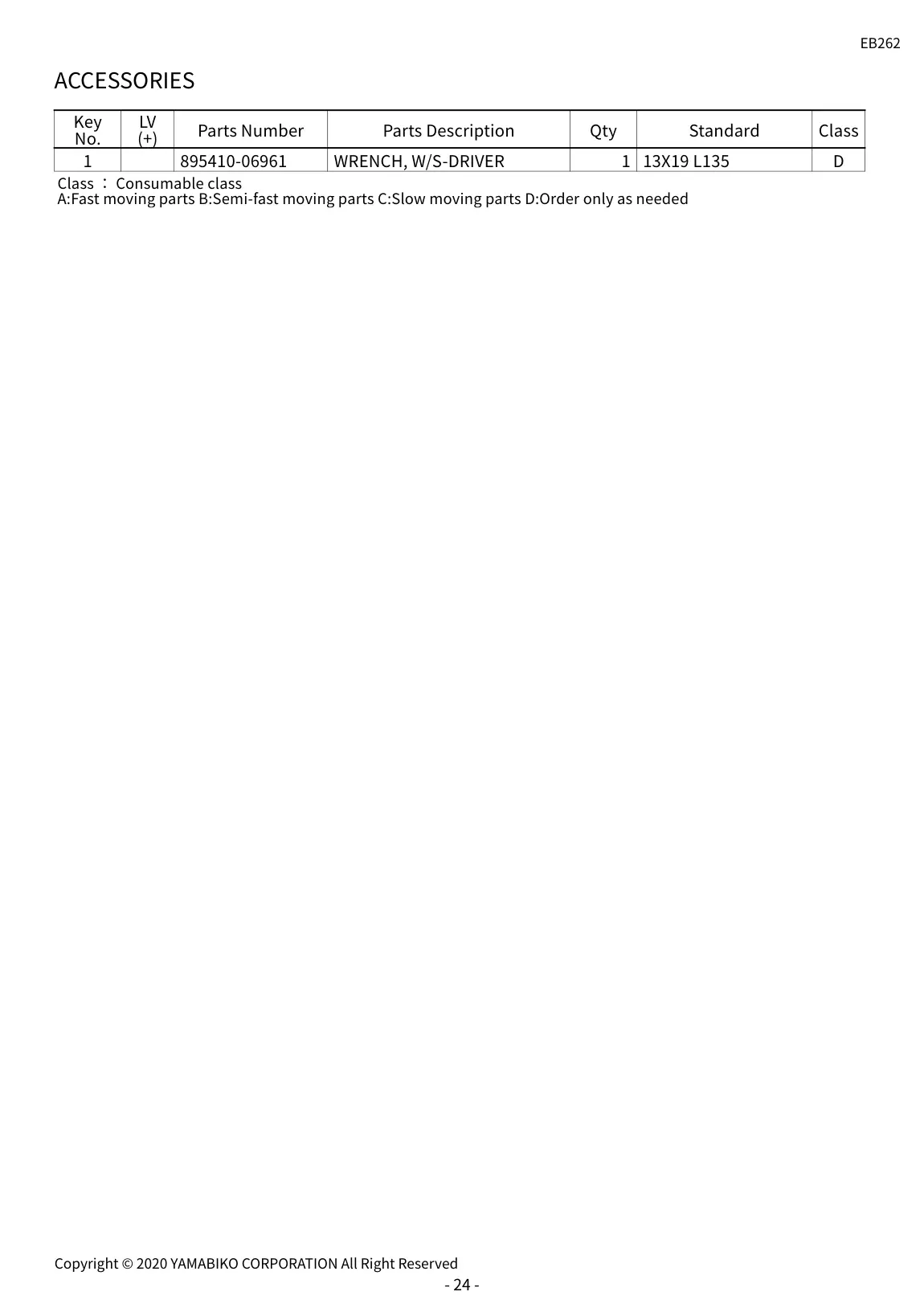

| 26 | ACCESSORIES | 1 | WRENCH, W/S-DRIVER | 895410-06961 | 895410-06961-Online |
| 27 | LABEL,SHINDAIWA | PIN, PISTON | 100013-35430 | 100013-35430-Online | |
| 27 | LABEL,SHINDAIWA | 10 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 27 | LABEL,SHINDAIWA | 10 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 27 | LABEL,SHINDAIWA | 10 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 27 | LABEL,SHINDAIWA | 10 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 27 | LABEL,SHINDAIWA | 10 | CLIP | 123173-07930 | 123173-07930-Online |
| 27 | LABEL,SHINDAIWA | 10 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 27 | LABEL,SHINDAIWA | 10 | CLIP, FUEL CAP | 131051-56030 | 131051-56030-Online |
| 27 | LABEL,SHINDAIWA | 10 | STARTER,RECOIL ASY | A051-003310 | A051-003310-Online |
| 27 | LABEL,SHINDAIWA | 10 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 27 | LABEL,SHINDAIWA | 10 | WASHER | P003-001710 | P003-001710-Online |
| 27 | LABEL,SHINDAIWA | 10 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 27 | LABEL,SHINDAIWA | 10 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 27 | LABEL,SHINDAIWA | 10 | DIAPHRAGM, FUEL | P003-004540 | P003-004540-Online |
| 27 | LABEL,SHINDAIWA | 10 | SCREW | P003-004560 | P003-004560-Online |
| 27 | LABEL,SHINDAIWA | 10 | SCREW | P003-004570 | P003-004570-Online |
| 27 | LABEL,SHINDAIWA | 10 | SWIVEL | P003-005850 | P003-005850-Online |
| 27 | LABEL,SHINDAIWA | 10 | SCREW | P003-005860 | P003-005860-Online |
| 27 | LABEL,SHINDAIWA | 10 | SPRING | P003-005870 | P003-005870-Online |
| 27 | LABEL,SHINDAIWA | 10 | NEEDLE | P003-005880 | P003-005880-Online |
| 27 | LABEL,SHINDAIWA | 10 | BODY ASSEMBLY, PUMP | P003-006120 | P003-006120-Online |
| 27 | LABEL,SHINDAIWA | 10 | CLIP | P003-006220 | P003-006220-Online |
| 27 | LABEL,SHINDAIWA | 10 | CAP,FUER ASSY | P021-013971 | P021-013971-Online |
| 27 | LABEL,SHINDAIWA | 12 | PIPE 3* 5*150 | 132010-04921 | 132010-04921-Online |
| 27 | LABEL,SHINDAIWA | 12 | PIPE 3*6*85 | 132010-49730 | 132010-49730-Online |
| 27 | LABEL,SHINDAIWA | 12 | GROMMET, FUEL | 132115-46730 | 132115-46730-Online |
| 27 | LABEL,SHINDAIWA | 12 | SPRING, RETURN | 177234-40630 | 177234-40630-Online |
| 27 | LABEL,SHINDAIWA | 12 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 27 | LABEL,SHINDAIWA | 12 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 27 | LABEL,SHINDAIWA | 12 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 27 | LABEL,SHINDAIWA | 12 | SWITCH,ON OFF | P021-052770 | P021-052770-Online |
| 27 | LABEL,SHINDAIWA | 12 | JOINT,PIPE | V186-000520 | V186-000520-Online |
| 27 | LABEL,SHINDAIWA | 12 | SCREW,5 | V253-000990 | V253-000990-Online |
| 27 | LABEL,SHINDAIWA | 12 | PIPE | V471-003590 | V471-003590-Online |
| 27 | LABEL,SHINDAIWA | 12 | PIPE | V471-005251 | V471-005251-Online |
| 27 | LABEL,SHINDAIWA | 12 | CLIP | V490-001240 | V490-001240-Online |
| 27 | LABEL,SHINDAIWA | 12 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 27 | LABEL,SHINDAIWA | 14 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 27 | LABEL,SHINDAIWA | 14 | CLEANER COVER ASY | P021-052910 | P021-052910-Online |
| 27 | LABEL,SHINDAIWA | 14 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 27 | LABEL,SHINDAIWA | 14 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 27 | LABEL,SHINDAIWA | 14 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 27 | LABEL,SHINDAIWA | 16 | SCREW | 177236-44330 | 177236-44330-Online |
| 27 | LABEL,SHINDAIWA | 16 | WRENCH, W/S-DRIVER | 895410-06961 | 895410-06961-Online |
| 27 | LABEL,SHINDAIWA | 16 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 27 | LABEL,SHINDAIWA | 16 | PULLEY,ASM STARTER | A052-000520 | A052-000520-Online |
| 27 | LABEL,SHINDAIWA | 16 | RING,PISTON | A101-000010 | A101-000010-Online |
| 27 | LABEL,SHINDAIWA | 16 | COVER,DUST | A127-000540 | A127-000540-Online |
| 27 | LABEL,SHINDAIWA | 16 | HANDLE,ASM REAR | C041-000810 | C041-000810-Online |
| 27 | LABEL,SHINDAIWA | 16 | SPRING, SPIRAL | P022-019680 | P022-019680-Online |
| 27 | LABEL,SHINDAIWA | 16 | GRIP, STARTER | P022-036700 | P022-036700-Online |
| 27 | LABEL,SHINDAIWA | 16 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 27 | LABEL,SHINDAIWA | 16 | STATER CASE | P022-048990 | P022-048990-Online |
| 27 | LABEL,SHINDAIWA | 16 | REEL | P022-049000 | P022-049000-Online |
| 27 | LABEL,SHINDAIWA | 16 | ROPE,STARTER | P022-049010 | P022-049010-Online |
| 27 | LABEL,SHINDAIWA | 16 | GASKET,CYL | V100-000860 | V100-000860-Online |
| 27 | LABEL,SHINDAIWA | 16 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 27 | LABEL,SHINDAIWA | 16 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 27 | LABEL,SHINDAIWA | 18 | CONTROL, THROTTLE | C450-001050 | C450-001050-Online |
| 27 | LABEL,SHINDAIWA | 18 | FAN,BLOWER | E100-000290 | E100-000290-Online |
| 27 | LABEL,SHINDAIWA | 18 | CASE,FAN | E103-001510 | E103-001510-Online |
| 27 | LABEL,SHINDAIWA | 18 | CASE,FAN | E103-001600 | E103-001600-Online |
| 27 | LABEL,SHINDAIWA | 18 | GRID, BLOWER | E104-000270 | E104-000270-Online |
| 27 | LABEL,SHINDAIWA | 18 | PIPE,BLOWER | E165-000951 | E165-000951-Online |
| 27 | LABEL,SHINDAIWA | 18 | WASHER,CIRCULAR | V306-000620 | V306-000620-Online |
| 27 | LABEL,SHINDAIWA | 18 | CABLE,BOWDEN | V430-005240 | V430-005240-Online |
| 27 | LABEL,SHINDAIWA | 18 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 27 | LABEL,SHINDAIWA | 18 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 27 | LABEL,SHINDAIWA | 18 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 27 | LABEL,SHINDAIWA | 18 | LABEL,CAUTION | X505-010760 | X505-010760-Online |
| 27 | LABEL,SHINDAIWA | 2 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 27 | LABEL,SHINDAIWA | 2 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 27 | LABEL,SHINDAIWA | 2 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 27 | LABEL,SHINDAIWA | 2 | CARBURETOR, | A021-004930 | A021-004930-Online |
| 27 | LABEL,SHINDAIWA | 2 | COVER,DUST | A127-000510 | A127-000510-Online |
| 27 | LABEL,SHINDAIWA | 2 | COVER,ENGINE | A190-001670 | A190-001670-Online |
| 27 | LABEL,SHINDAIWA | 2 | INSULATOR, INTAKE | A200-001220 | A200-001220-Online |
| 27 | LABEL,SHINDAIWA | 2 | CRANKCASE SET | P021-052790 | P021-052790-Online |
| 27 | LABEL,SHINDAIWA | 2 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 27 | LABEL,SHINDAIWA | 2 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 27 | LABEL,SHINDAIWA | 2 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 27 | LABEL,SHINDAIWA | 2 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 27 | LABEL,SHINDAIWA | 20 | WASHER | 900602-00005 | 900602-00005-Online |
| 27 | LABEL,SHINDAIWA | 20 | WASHER | 900603-00005 | 900603-00005-Online |
| 27 | LABEL,SHINDAIWA | 20 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 27 | LABEL,SHINDAIWA | 20 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 27 | LABEL,SHINDAIWA | 20 | LEVER,THROTTLE | C453-000300 | C453-000300-Online |
| 27 | LABEL,SHINDAIWA | 20 | GUIDE, CABLE | C480-000220 | C480-000220-Online |
| 27 | LABEL,SHINDAIWA | 20 | WEIGHT | C688-000070 | C688-000070-Online |
| 27 | LABEL,SHINDAIWA | 20 | PISTON KIT | P021-052780 | P021-052780-Online |
| 27 | LABEL,SHINDAIWA | 20 | PIPE | V471-002171 | V471-002171-Online |
| 27 | LABEL,SHINDAIWA | 20 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 27 | LABEL,SHINDAIWA | 20 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 27 | LABEL,SHINDAIWA | 22 | PIPE,BLOWER | E165-000980 | E165-000980-Online |
| 27 | LABEL,SHINDAIWA | 22 | PIPE,BLOWER | E165-001040 | E165-001040-Online |
| 27 | LABEL,SHINDAIWA | 22 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 27 | LABEL,SHINDAIWA | 24 | NUT 8 (3N) | 900502-00008 | 900502-00008-Online |
| 27 | LABEL,SHINDAIWA | 4 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 27 | LABEL,SHINDAIWA | 4 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 27 | LABEL,SHINDAIWA | 4 | CRANKSHAFT,ASY | A011-001570 | A011-001570-Online |
| 27 | LABEL,SHINDAIWA | 4 | MUFFLER ASY | P021-052830 | P021-052830-Online |
| 27 | LABEL,SHINDAIWA | 4 | GASKET,INTAKE | V103-001950 | V103-001950-Online |
| 27 | LABEL,SHINDAIWA | 4 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |
| 27 | LABEL,SHINDAIWA | 4 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 27 | LABEL,SHINDAIWA | 6 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 27 | LABEL,SHINDAIWA | 6 | NUT, LOCK | 900562-50005 | 900562-50005-Online |
| 27 | LABEL,SHINDAIWA | 6 | COIL, IGNITION | A411-001840 | A411-001840-Online |
| 27 | LABEL,SHINDAIWA | 6 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 27 | LABEL,SHINDAIWA | 6 | CAP,SPARK PLUG | A427-000013 | A427-000013-Online |
| 27 | LABEL,SHINDAIWA | 6 | RACHET | A514-000120 | A514-000120-Online |
| 27 | LABEL,SHINDAIWA | 6 | COLLAR,5 | V353-000750 | V353-000750-Online |
| 27 | LABEL,SHINDAIWA | 6 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 27 | LABEL,SHINDAIWA | 8 | CARBURETOR, | A021-004930 | A021-004930-Online |
| 27 | LABEL,SHINDAIWA | 8 | CYLINDER | A130-002370 | A130-002370-Online |
| 27 | LABEL,SHINDAIWA | 8 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 27 | LABEL,SHINDAIWA | 8 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 27 | LABEL,SHINDAIWA | 8 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 27 | LABEL,SHINDAIWA | 8 | KNOB,CLEANER LID | A235-000390 | A235-000390-Online |
| 27 | LABEL,SHINDAIWA | 8 | PLATE, PREVENT | A244-000360 | A244-000360-Online |
| 27 | LABEL,SHINDAIWA | 8 | SCREEN, ARRESTOR | A310-000510 | A310-000510-Online |
| 27 | LABEL,SHINDAIWA | 8 | CASE,CLEANER | P021-052920 | P021-052920-Online |
| 27 | LABEL,SHINDAIWA | 8 | E-RING | P022-002100 | P022-002100-Online |
| 27 | LABEL,SHINDAIWA | 8 | GASKET,INTAKE | V103-002070 | V103-002070-Online |
| 27 | LABEL,SHINDAIWA | 8 | GASKET,EXHAUST | V104-002350 | V104-002350-Online |
| 27 | LABEL,SHINDAIWA | 8 | NUT,5 | V263-000530 | V263-000530-Online |
| 27 | LABEL,SHINDAIWA | 8 | BOLT, TORX | V806-000010 | V806-000010-Online |
Source file: 20230228-349-EB262_38_38000001_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
