Illustrated Parts List
Shindaiwa SBA-PS24 Pole Pruner IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: SBA-PS24
Type: Pole Pruner
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages

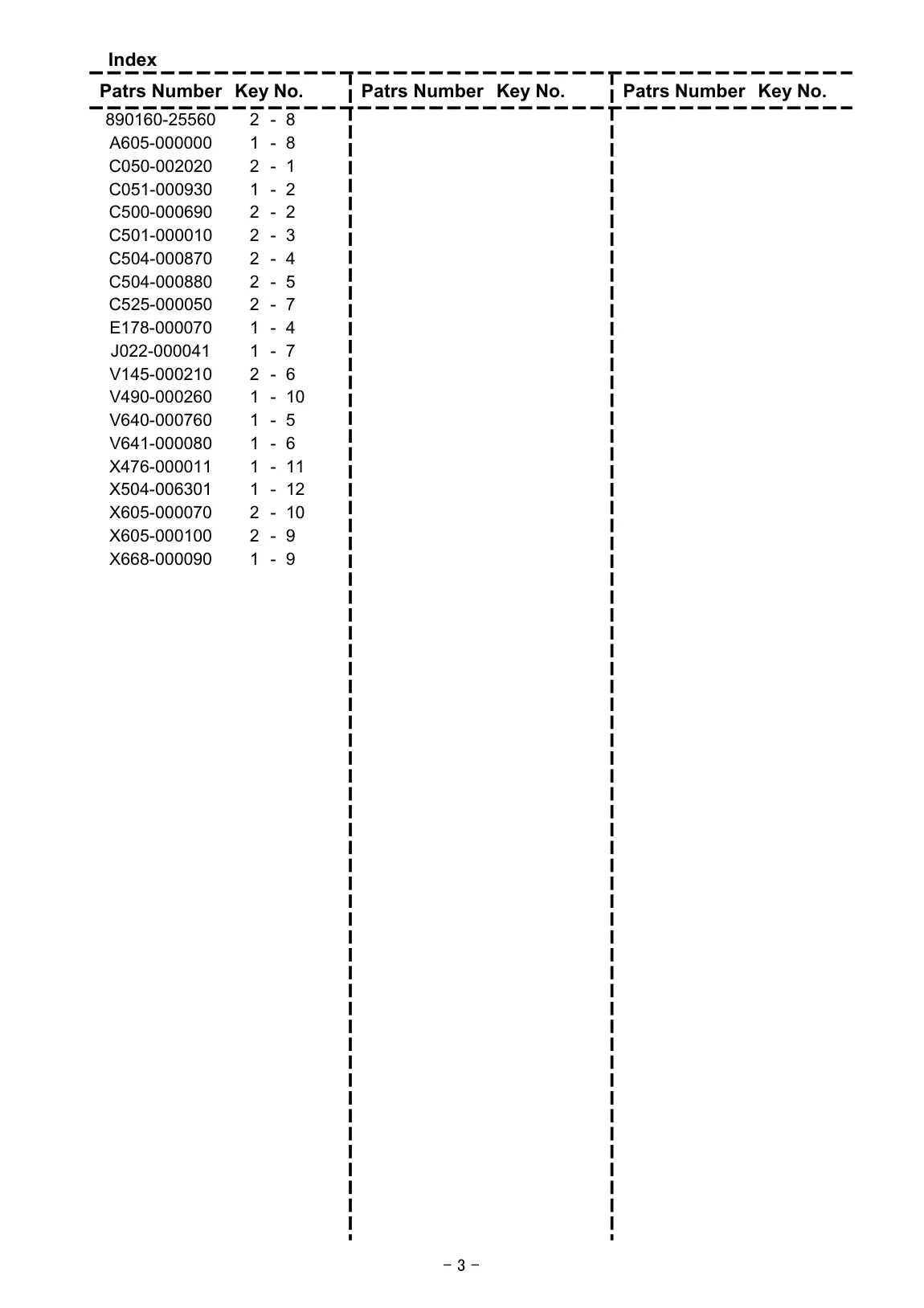

Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

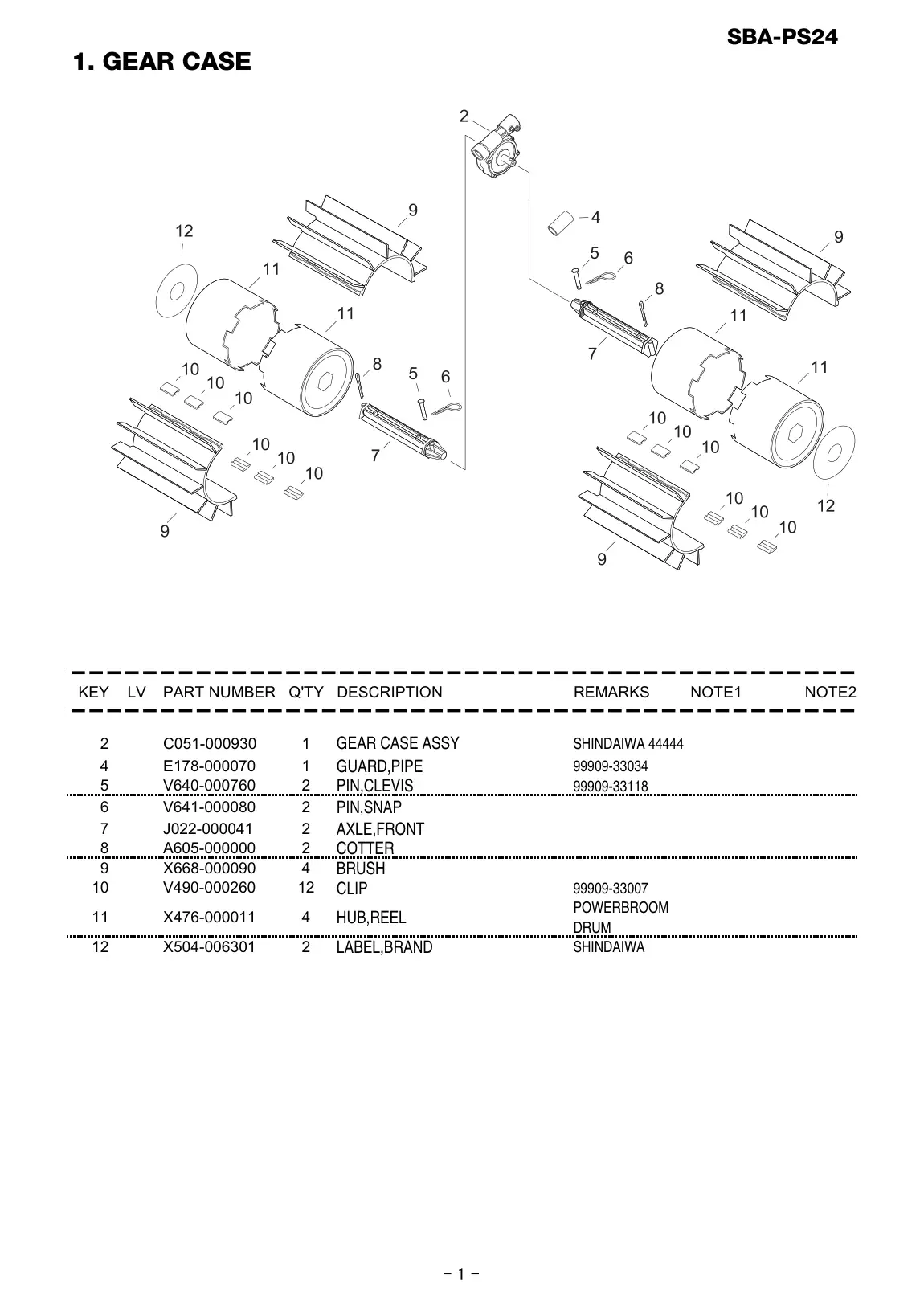

| 2 | LABEL,BRAND | 1 | GUARD,PIPE | 44444 | 44444-Online |
| 2 | LABEL,BRAND | 1 | PIN,CLEVIS | 99909-33034 | 99909-33034-Online |
| 2 | LABEL,BRAND | 10 | CLIP | V490-000260 | V490-000260-Online |
| 2 | LABEL,BRAND | 11 | HUB,REEL | X476-000011 | X476-000011-Online |
| 2 | LABEL,BRAND | 12 | HUB,REEL | 99909-33007 | 99909-33007-Online |
| 2 | LABEL,BRAND | 12 | LABEL,BRAND | X504-006301 | X504-006301-Online |
| 2 | LABEL,BRAND | 2 | PIN,SNAP | 99909-33118 | 99909-33118-Online |
| 2 | LABEL,BRAND | 2 | GEAR CASE ASSY | C051-000930 | C051-000930-Online |
| 2 | LABEL,BRAND | 4 | GUARD,PIPE | E178-000070 | E178-000070-Online |
| 2 | LABEL,BRAND | 5 | PIN,CLEVIS | V640-000760 | V640-000760-Online |
| 2 | LABEL,BRAND | 6 | PIN,SNAP | V641-000080 | V641-000080-Online |
| 2 | LABEL,BRAND | 7 | AXLE,FRONT | J022-000041 | J022-000041-Online |
| 2 | LABEL,BRAND | 8 | COTTER | A605-000000 | A605-000000-Online |

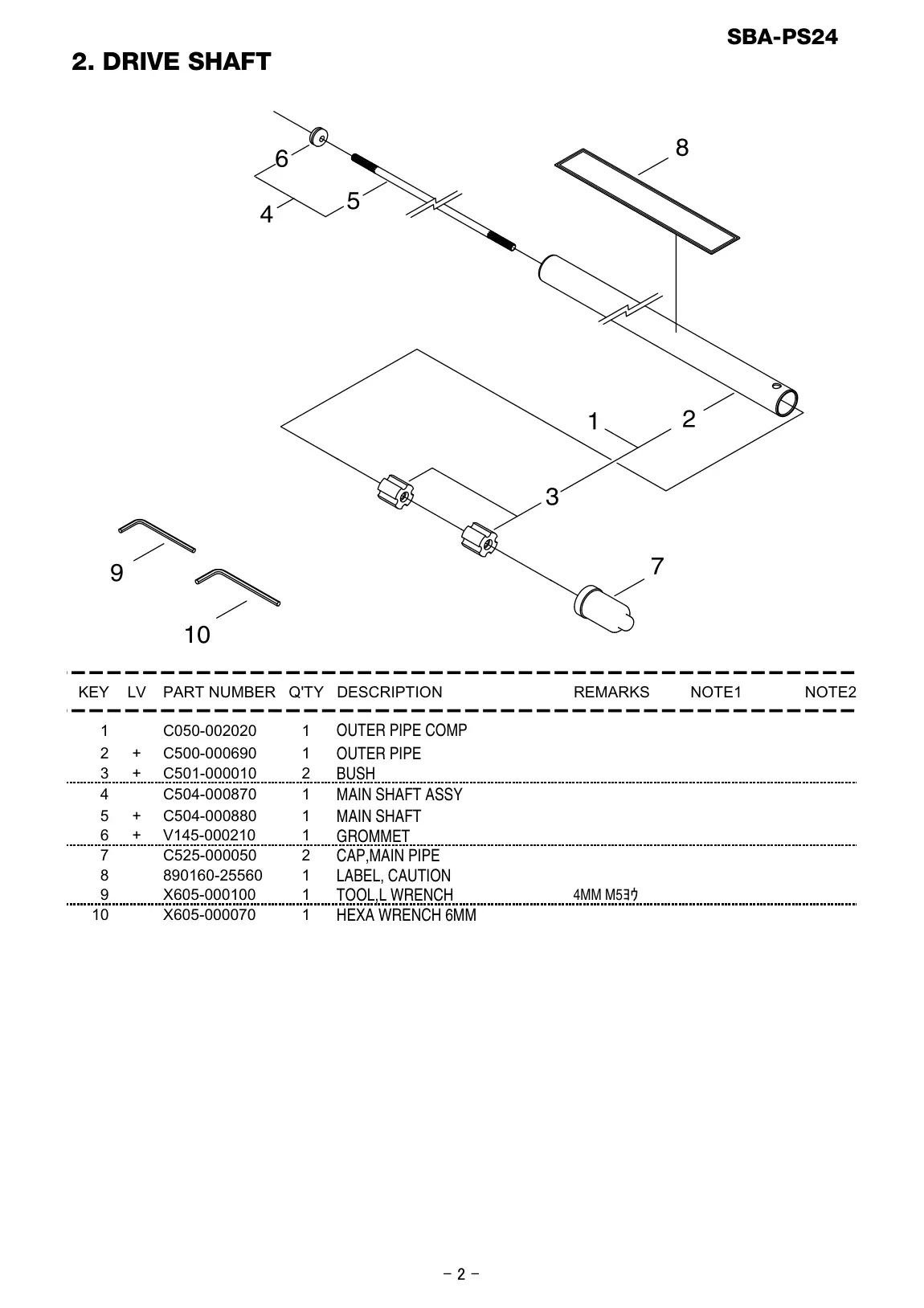

| 3 | HEXA WRENCH 6MM | 1 | OUTER PIPE COMP | C050-002020 | C050-002020-Online |
| 3 | HEXA WRENCH 6MM | 10 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 3 | HEXA WRENCH 6MM | 2 | OUTER PIPE | C500-000690 | C500-000690-Online |
| 3 | HEXA WRENCH 6MM | 4 | MAIN SHAFT ASSY | C504-000870 | C504-000870-Online |
| 3 | HEXA WRENCH 6MM | 5 | MAIN SHAFT | C504-000880 | C504-000880-Online |
| 3 | HEXA WRENCH 6MM | 6 | GROMMET | V145-000210 | V145-000210-Online |
| 3 | HEXA WRENCH 6MM | 7 | CAP,MAIN PIPE | C525-000050 | C525-000050-Online |
| 3 | HEXA WRENCH 6MM | 8 | LABEL, CAUTION | 890160-25560 | 890160-25560-Online |
| 3 | HEXA WRENCH 6MM | 9 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
Source file: 20130718-247_SBA-PS24_P016-000680-11Jb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
