Illustrated Parts List
Shindaiwa EB2510 Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB2510
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 2 | WASHER 5 | 1 | CYLINDER BLOCK SET | P021-027390 | P021-027390-Online |
| 2 | WASHER 5 | 10 | GUIDE, EXHAUST | A313-001141 | A313-001141-Online |
| 2 | WASHER 5 | 11 | SCREW,PM-SW | 91572-04006 | 91572-04006-Online |
| 2 | WASHER 5 | 12 | GASKET,EXHAUST | V104-001001 | V104-001001-Online |
| 2 | WASHER 5 | 13 | BOLT | V203-001000 | V203-001000-Online |
| 2 | WASHER 5 | 14 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 2 | WASHER 5 | 15 | WASHER | 900600-00005 | 900600-00005-Online |
| 2 | WASHER 5 | 2 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 2 | WASHER 5 | 3 | REED VALVE | A024-000050 | A024-000050-Online |
| 2 | WASHER 5 | 4 | LEAD WIRE | V485-001260 | V485-001260-Online |
| 2 | WASHER 5 | 5 | BAFFLE PLATE COMP | A209-000190 | A209-000190-Online |
| 2 | WASHER 5 | 6 | GASKET | V103-001130 | V103-001130-Online |
| 2 | WASHER 5 | 7 | SCREW,PM-SPW | 91582-05022 | 91582-05022-Online |
| 2 | WASHER 5 | 8 | MUFFLER ASY | A030-000041 | A030-000041-Online |
| 2 | WASHER 5 | 9 | SCREEN, ARRESTOR | A310-000390 | A310-000390-Online |
| 3 | PLUG WRENCH | 1 | INSULATOR | A200-000750 | A200-000750-Online |
| 3 | PLUG WRENCH | 10 | PIN, SPRING 4*8 | 900342-40008 | 900342-40008-Online |
| 3 | PLUG WRENCH | 11 | BOLT PC | V203-000450 | V203-000450-Online |
| 3 | PLUG WRENCH | 14 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 3 | PLUG WRENCH | 15 | PLUG WRENCH | X602-000100 | X602-000100-Online |
| 3 | PLUG WRENCH | 2 | VALVE,REED | A211-000030 | A211-000030-Online |
| 3 | PLUG WRENCH | 3 | STOPPER | A212-000040 | A212-000040-Online |
| 3 | PLUG WRENCH | 4 | SCREW-SW | 91341-03010 | 91341-03010-Online |
| 3 | PLUG WRENCH | 5 | COVER | A123-000000 | A123-000000-Online |
| 3 | PLUG WRENCH | 6 | GASKET | V109-000100 | V109-000100-Online |
| 3 | PLUG WRENCH | 7 | BOLT-SPW | V202-000340 | V202-000340-Online |
| 3 | PLUG WRENCH | 8 | COVER,ENGINE | A190-001021 | A190-001021-Online |
| 3 | PLUG WRENCH | 9 | GROMMET | A429-000080 | A429-000080-Online |

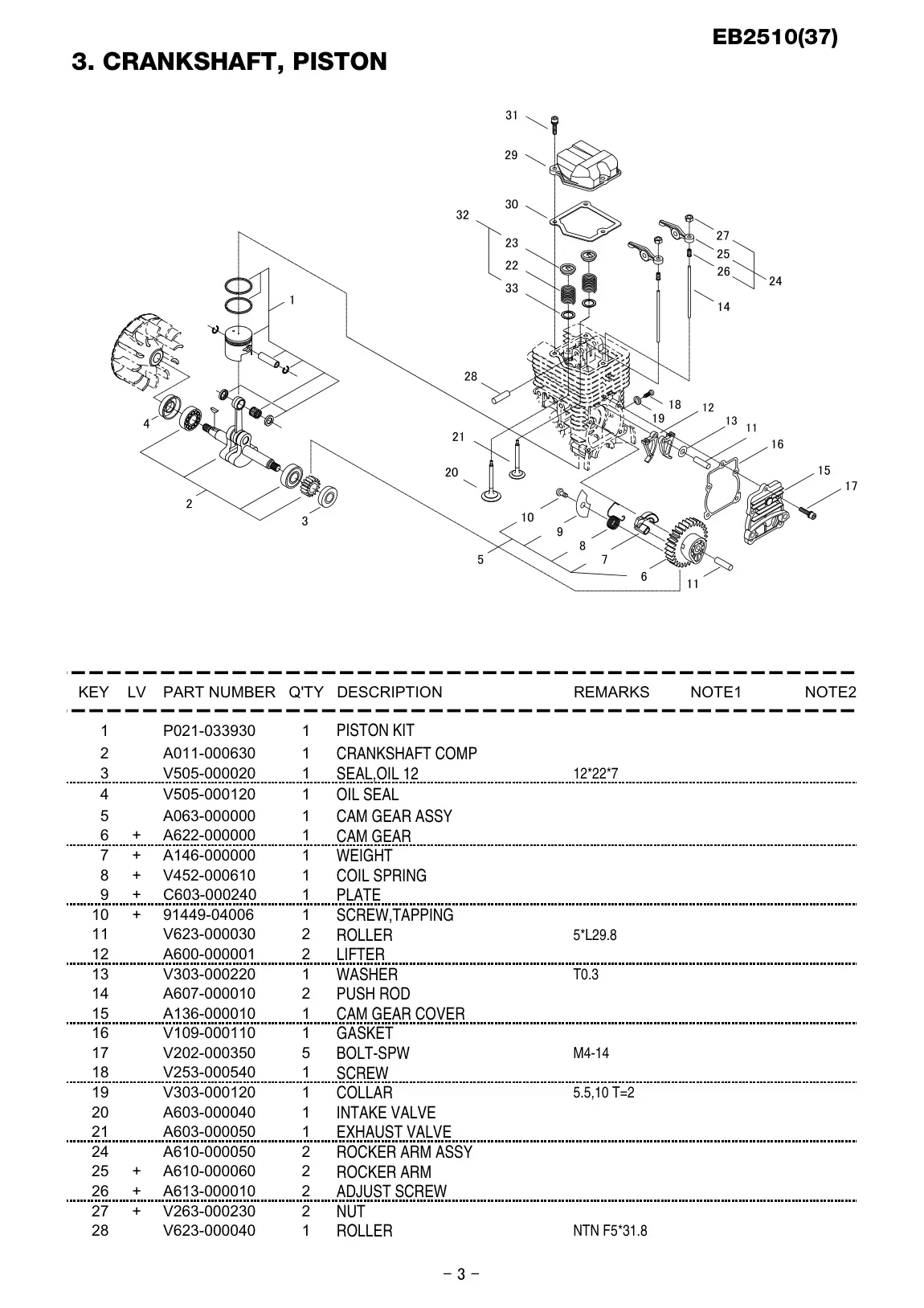

| 4 | NTN F5*31.8 | 1 | PISTON KIT | P021-033930 | P021-033930-Online |
| 4 | NTN F5*31.8 | 10 | SCREW,TAPPING | 91449-04006 | 91449-04006-Online |
| 4 | NTN F5*31.8 | 11 | ROLLER | V623-000030 | V623-000030-Online |
| 4 | NTN F5*31.8 | 12 | LIFTER | A600-000001 | A600-000001-Online |
| 4 | NTN F5*31.8 | 13 | WASHER | V303-000220 | V303-000220-Online |
| 4 | NTN F5*31.8 | 14 | PUSH ROD | A607-000010 | A607-000010-Online |
| 4 | NTN F5*31.8 | 15 | CAM GEAR COVER | A136-000010 | A136-000010-Online |
| 4 | NTN F5*31.8 | 16 | GASKET | V109-000110 | V109-000110-Online |
| 4 | NTN F5*31.8 | 17 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 4 | NTN F5*31.8 | 18 | SCREW | V253-000540 | V253-000540-Online |
| 4 | NTN F5*31.8 | 19 | COLLAR | V303-000120 | V303-000120-Online |
| 4 | NTN F5*31.8 | 2 | CRANKSHAFT COMP | A011-000630 | A011-000630-Online |
| 4 | NTN F5*31.8 | 20 | INTAKE VALVE | A603-000040 | A603-000040-Online |
| 4 | NTN F5*31.8 | 21 | EXHAUST VALVE | A603-000050 | A603-000050-Online |
| 4 | NTN F5*31.8 | 24 | ROCKER ARM ASSY | A610-000050 | A610-000050-Online |
| 4 | NTN F5*31.8 | 25 | ROCKER ARM | A610-000060 | A610-000060-Online |
| 4 | NTN F5*31.8 | 26 | ADJUST SCREW | A613-000010 | A613-000010-Online |
| 4 | NTN F5*31.8 | 27 | NUT | V263-000230 | V263-000230-Online |
| 4 | NTN F5*31.8 | 28 | ROLLER | V623-000040 | V623-000040-Online |
| 4 | NTN F5*31.8 | 3 | SEAL,OIL | V505-000020 | V505-000020-Online |
| 4 | NTN F5*31.8 | 4 | OIL SEAL | V505-000120 | V505-000120-Online |
| 4 | NTN F5*31.8 | 5 | CAM GEAR ASSY | A063-000000 | A063-000000-Online |
| 4 | NTN F5*31.8 | 6 | CAM GEAR | A622-000000 | A622-000000-Online |
| 4 | NTN F5*31.8 | 7 | WEIGHT | A146-000000 | A146-000000-Online |
| 4 | NTN F5*31.8 | 8 | COIL SPRING | V452-000610 | V452-000610-Online |
| 4 | NTN F5*31.8 | 9 | PLATE | C603-000240 | C603-000240-Online |

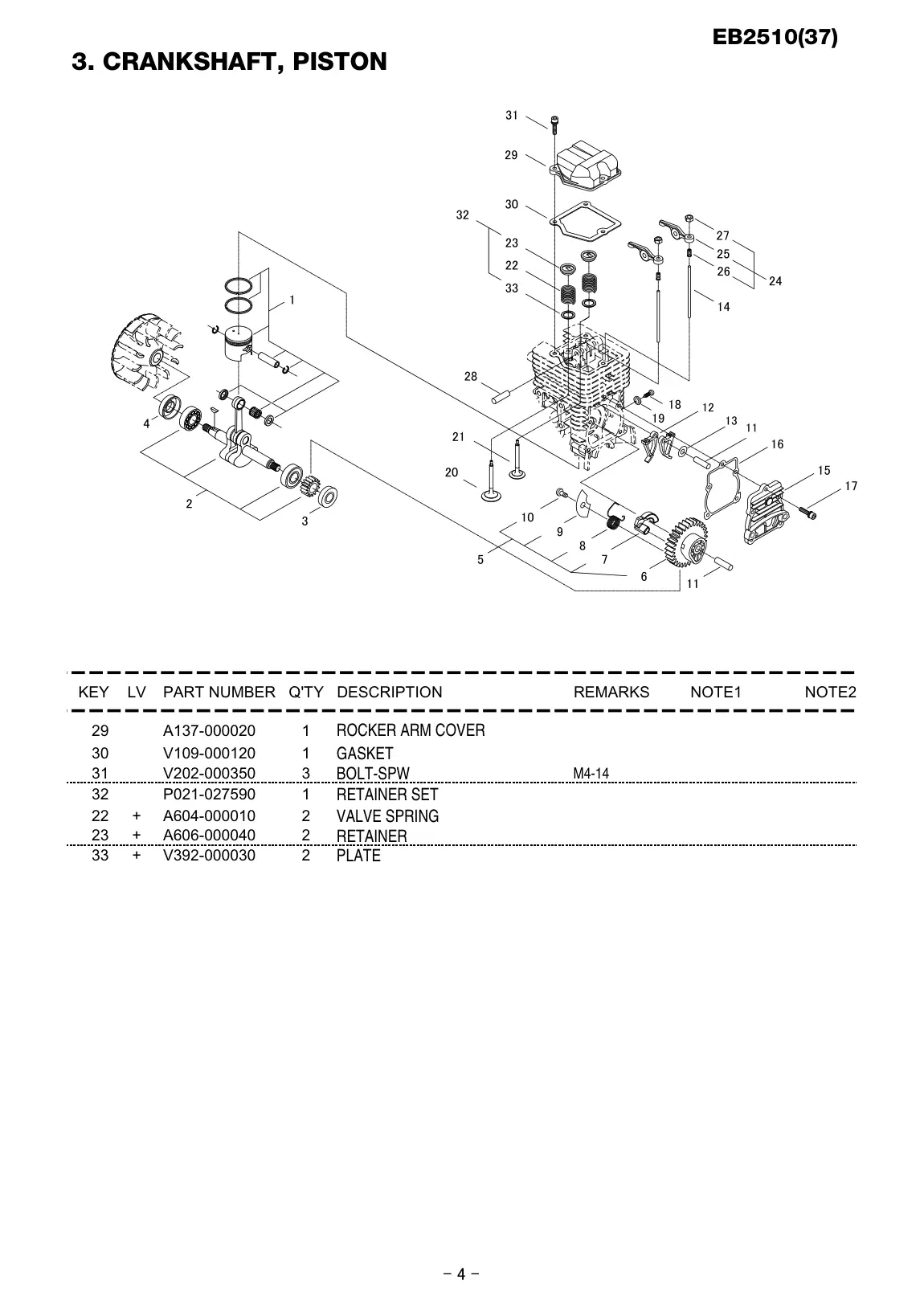

| 5 | PLATE | 22 | VALVE SPRING | A604-000010 | A604-000010-Online |
| 5 | PLATE | 23 | RETAINER | A606-000040 | A606-000040-Online |
| 5 | PLATE | 29 | ROCKER ARM COVER | A137-000020 | A137-000020-Online |
| 5 | PLATE | 30 | GASKET | V109-000120 | V109-000120-Online |
| 5 | PLATE | 31 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 5 | PLATE | 32 | RETAINER SET | P021-027590 | P021-027590-Online |
| 5 | PLATE | 33 | PLATE | V392-000030 | V392-000030-Online |
| 6 | SNAP RING | 1 | CASE,FAN | E103-000960 | E103-000960-Online |
| 6 | SNAP RING | 10 | PIN | C226-000050 | C226-000050-Online |
| 6 | SNAP RING | 11 | SCREW ADHEISIVE | V253-000250 | V253-000250-Online |
| 6 | SNAP RING | 12 | BOLT PC | V203-000450 | V203-000450-Online |
| 6 | SNAP RING | 13 | BOLT SW | V203-000530 | V203-000530-Online |
| 6 | SNAP RING | 14 | FAN | E100-000120 | E100-000120-Online |
| 6 | SNAP RING | 15 | BOLT SPW | V204-000270 | V204-000270-Online |
| 6 | SNAP RING | 16 | PIPE | E165-000420 | E165-000420-Online |
| 6 | SNAP RING | 17 | NOZZLE | E165-000430 | E165-000430-Online |
| 6 | SNAP RING | 18 | LABEL,MODEL | X543-003510 | X543-003510-Online |
| 6 | SNAP RING | 19 | LABEL CAUTION | X505-002730 | X505-002730-Online |
| 6 | SNAP RING | 2 | CASE,FAN | E103-001040 | E103-001040-Online |
| 6 | SNAP RING | 20 | SNAP RING | 92423-08000 | 92423-08000-Online |
| 6 | SNAP RING | 3 | INTAKECOVER | E104-000150 | E104-000150-Online |
| 6 | SNAP RING | 4 | LID,HANDLE | C411-000150 | C411-000150-Online |
| 6 | SNAP RING | 5 | NUT | V263-000100 | V263-000100-Online |
| 6 | SNAP RING | 6 | HANDLE | C410-000620 | C410-000620-Online |
| 6 | SNAP RING | 7 | COIL SPRING | V450-000820 | V450-000820-Online |
| 6 | SNAP RING | 8 | CUSHION | V420-002140 | V420-002140-Online |
| 6 | SNAP RING | 9 | CUSHION | V420-002150 | V420-002150-Online |

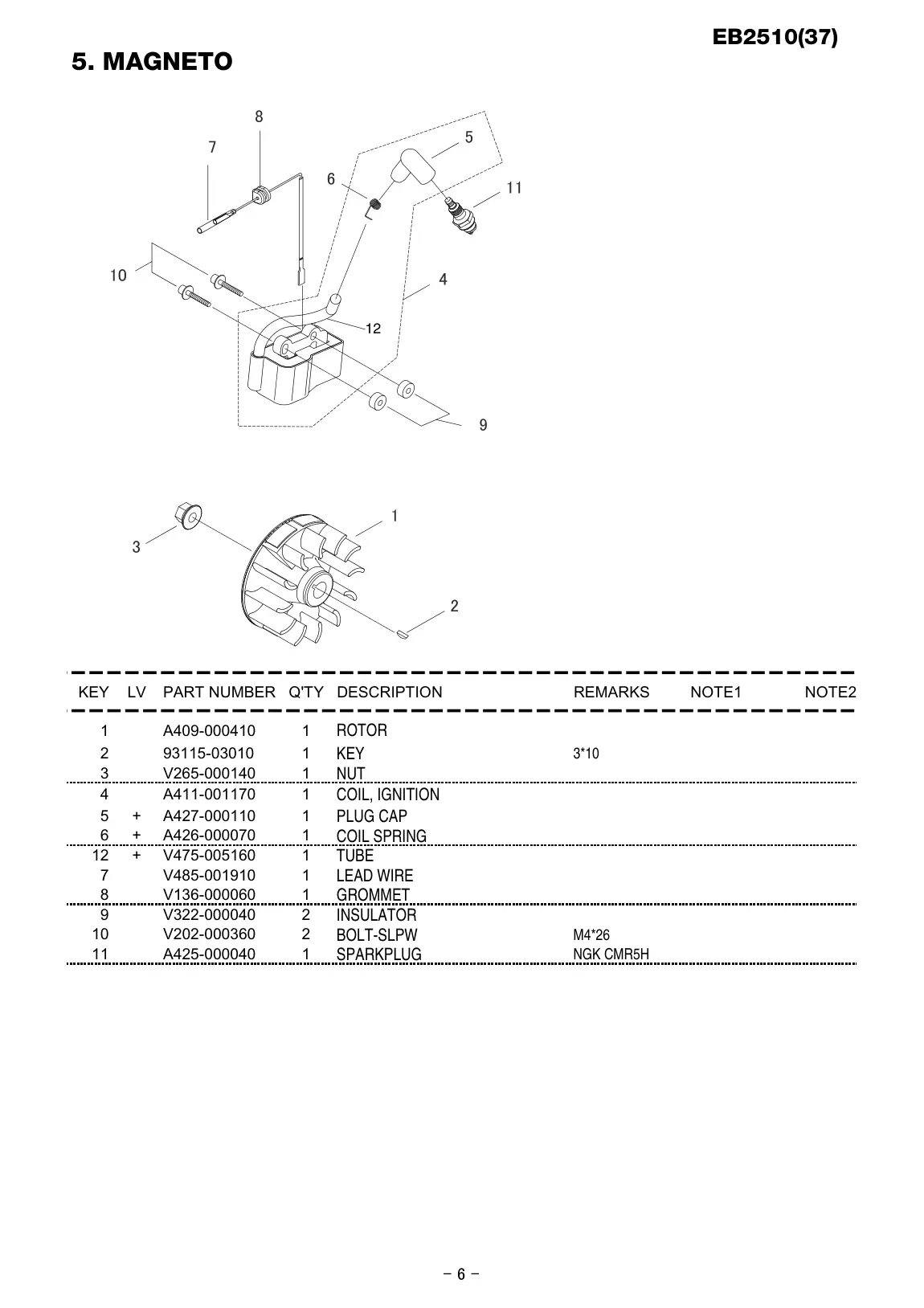

| 7 | NGK CMR5H | 10 | BOLT-SLPW | V202-000360 | V202-000360-Online |
| 7 | NGK CMR5H | 11 | SPARKPLUG | A425-000040 | A425-000040-Online |
| 7 | NGK CMR5H | 12 | TUBE | V475-005160 | V475-005160-Online |
| 7 | NGK CMR5H | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 7 | NGK CMR5H | 3 | NUT | V265-000140 | V265-000140-Online |
| 7 | NGK CMR5H | 4 | COIL, IGNITION | A411-001170 | A411-001170-Online |
| 7 | NGK CMR5H | 5 | PLUG CAP | A427-000110 | A427-000110-Online |
| 7 | NGK CMR5H | 6 | COIL SPRING | A426-000070 | A426-000070-Online |
| 7 | NGK CMR5H | 7 | LEAD WIRE | V485-001910 | V485-001910-Online |
| 7 | NGK CMR5H | 8 | GROMMET | V136-000060 | V136-000060-Online |
| 7 | NGK CMR5H | 9 | INSULATOR | V322-000040 | V322-000040-Online |
| 8 | LABEL,BRAND | 1 | STARTER,RECOIL ASY | A051-001481 | A051-001481-Online |
| 8 | LABEL,BRAND | 10 | ROPE | A509-000060 | A509-000060-Online |
| 8 | LABEL,BRAND | 11 | KNOB | A511-000090 | A511-000090-Online |
| 8 | LABEL,BRAND | 12 | STARTER PULLEY | A520-000080 | A520-000080-Online |
| 8 | LABEL,BRAND | 13 | NUT | 900503-00008 | 900503-00008-Online |
| 8 | LABEL,BRAND | 14 | BOLT SPW | V202-000180 | V202-000180-Online |
| 8 | LABEL,BRAND | 15 | LABEL,BRAND | X504-006750 | X504-006750-Online |
| 8 | LABEL,BRAND | 2 | STARTER CASE | A500-000610 | A500-000610-Online |
| 8 | LABEL,BRAND | 3 | REEL | A506-000130 | A506-000130-Online |
| 8 | LABEL,BRAND | 4 | RECOIL SPRING | A504-000050 | A504-000050-Online |
| 8 | LABEL,BRAND | 6 | WAVE WASHER | V346-000030 | V346-000030-Online |
| 8 | LABEL,BRAND | 7 | SCREW | V253-000260 | V253-000260-Online |
| 8 | LABEL,BRAND | 8 | RETAINER | A606-000000 | A606-000000-Online |
| 8 | LABEL,BRAND | 9 | WASHER | V303-000110 | V303-000110-Online |

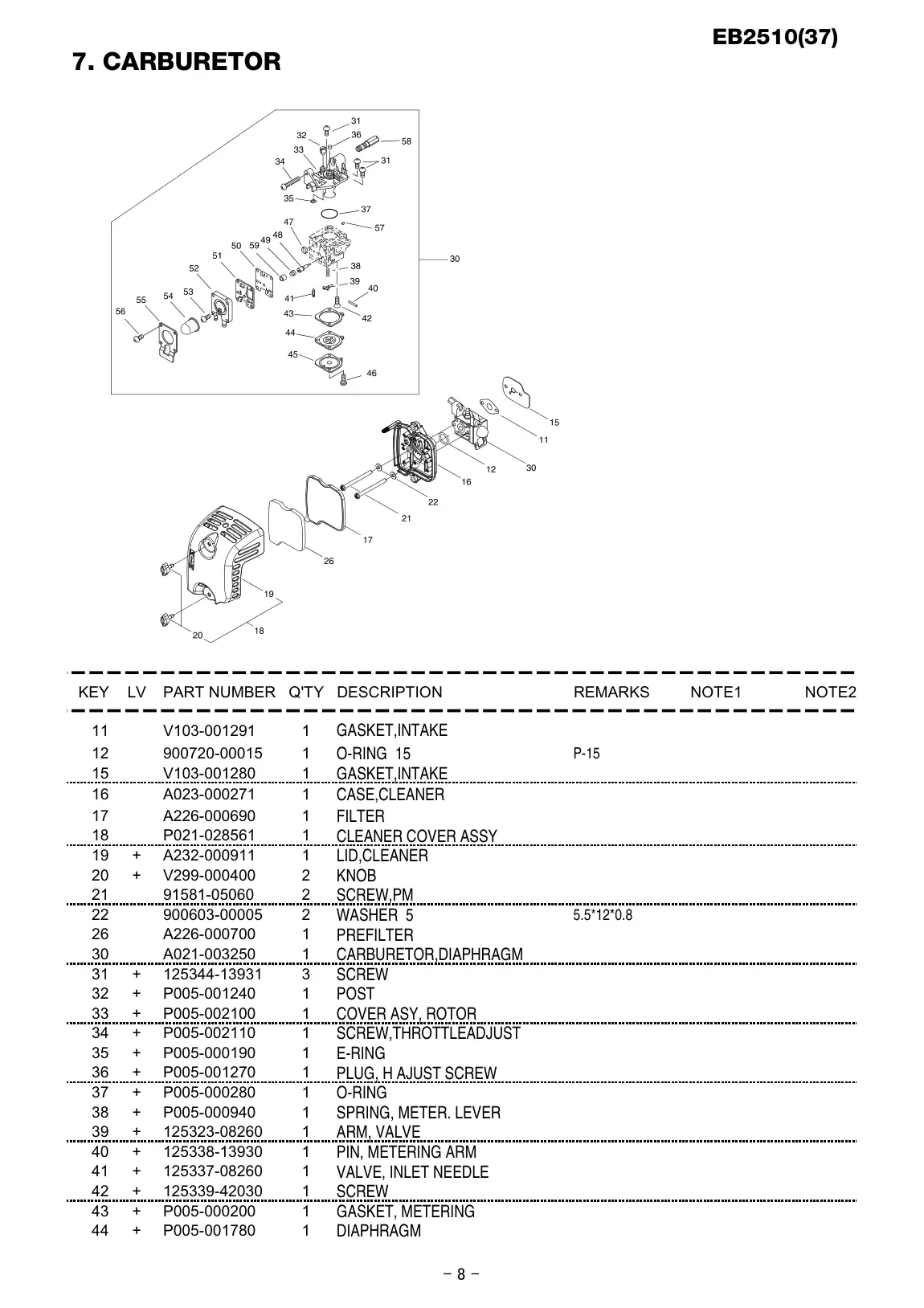

| 9 | DIAPHRAGM | 11 | GASKET,INTAKE | V103-001291 | V103-001291-Online |
| 9 | DIAPHRAGM | 12 | O-RING | 900720-00015 | 900720-00015-Online |
| 9 | DIAPHRAGM | 15 | GASKET,INTAKE | V103-001280 | V103-001280-Online |
| 9 | DIAPHRAGM | 16 | CASE,CLEANER | A023-000271 | A023-000271-Online |
| 9 | DIAPHRAGM | 17 | FILTER | A226-000690 | A226-000690-Online |
| 9 | DIAPHRAGM | 18 | CLEANER COVER ASSY | P021-028561 | P021-028561-Online |
| 9 | DIAPHRAGM | 19 | LID,CLEANER | A232-000911 | A232-000911-Online |
| 9 | DIAPHRAGM | 20 | KNOB | V299-000400 | V299-000400-Online |
| 9 | DIAPHRAGM | 21 | SCREW,PM | 91581-05060 | 91581-05060-Online |
| 9 | DIAPHRAGM | 22 | WASHER | 900603-00005 | 900603-00005-Online |
| 9 | DIAPHRAGM | 26 | PREFILTER | A226-000700 | A226-000700-Online |
| 9 | DIAPHRAGM | 30 | CARBURETOR,DIAPHRAGM | A021-003250 | A021-003250-Online |
| 9 | DIAPHRAGM | 31 | SCREW | 125344-13931 | 125344-13931-Online |
| 9 | DIAPHRAGM | 33 | COVER ASY, ROTOR | P005-002100 | P005-002100-Online |
| 9 | DIAPHRAGM | 34 | SCREW,THROTTLEADJUST | P005-002110 | P005-002110-Online |
| 9 | DIAPHRAGM | 35 | E-RING | P005-000190 | P005-000190-Online |
| 9 | DIAPHRAGM | 36 | PLUG, H AJUST SCREW | P005-001270 | P005-001270-Online |
| 9 | DIAPHRAGM | 37 | O-RING | P005-000280 | P005-000280-Online |
| 9 | DIAPHRAGM | 38 | SPRING, METER. LEVER | P005-000940 | P005-000940-Online |
| 9 | DIAPHRAGM | 39 | ARM, VALVE | 125323-08260 | 125323-08260-Online |
| 9 | DIAPHRAGM | 40 | PIN, METERING ARM | 125338-13930 | 125338-13930-Online |
| 9 | DIAPHRAGM | 41 | VALVE, INLET NEEDLE | 125337-08260 | 125337-08260-Online |
| 9 | DIAPHRAGM | 42 | SCREW | 125339-42030 | 125339-42030-Online |
| 9 | DIAPHRAGM | 43 | GASKET, METERING | P005-000200 | P005-000200-Online |
| 9 | DIAPHRAGM | 44 | DIAPHRAGM | P005-001780 | P005-001780-Online |
| 10 | PLUG, H AJUST SCREW | 45 | COVER, DIAPHRAGM | 125342-52130 | 125342-52130-Online |
| 10 | PLUG, H AJUST SCREW | 46 | SCREW | 125344-52130 | 125344-52130-Online |
| 10 | PLUG, H AJUST SCREW | 47 | STRAINER | P005-000010 | P005-000010-Online |
| 10 | PLUG, H AJUST SCREW | 48 | SCREW,MAINN MIXTURE | P005-001260 | P005-001260-Online |
| 10 | PLUG, H AJUST SCREW | 49 | RETAINER,PLUG BALL | P005-001250 | P005-001250-Online |
| 10 | PLUG, H AJUST SCREW | 50 | DIAPHRAGM, PUMP | P005-000510 | P005-000510-Online |
| 10 | PLUG, H AJUST SCREW | 51 | GASKET, PUMP | P005-000520 | P005-000520-Online |
| 10 | PLUG, H AJUST SCREW | 52 | BASE, ASY PRIMER | P005-001890 | P005-001890-Online |
| 10 | PLUG, H AJUST SCREW | 53 | SCREW | P005-000270 | P005-000270-Online |
| 10 | PLUG, H AJUST SCREW | 54 | PUMP, PRIMING | 125381-46730 | 125381-46730-Online |
| 10 | PLUG, H AJUST SCREW | 55 | RETAINER | P005-000250 | P005-000250-Online |
| 10 | PLUG, H AJUST SCREW | 56 | SCREW | P005-001900 | P005-001900-Online |
| 10 | PLUG, H AJUST SCREW | 57 | ROLLER, GUIDE | P005-001000 | P005-001000-Online |
| 10 | PLUG, H AJUST SCREW | 58 | SCREW, WIRW ADJUST | P005-002120 | P005-002120-Online |
| 10 | PLUG, H AJUST SCREW | 59 | PLUG, H AJUST SCREW | P005-001270 | P005-001270-Online |
| 11 | TANK CUSHION | 1 | FUEL TANK ASSY | P021-029591 | P021-029591-Online |
| 11 | TANK CUSHION | 10 | PIPE | V471-002350 | V471-002350-Online |
| 11 | TANK CUSHION | 11 | STRAINER, FUEL | A369-000000 | A369-000000-Online |
| 11 | TANK CUSHION | 12 | GROMMET | V470-000880 | V470-000880-Online |
| 11 | TANK CUSHION | 13 | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 11 | TANK CUSHION | 14 | JOINT,PIPE | V186-000270 | V186-000270-Online |
| 11 | TANK CUSHION | 15 | PIPE | V471-002360 | V471-002360-Online |
| 11 | TANK CUSHION | 16 | CLIP | V490-000500 | V490-000500-Online |
| 11 | TANK CUSHION | 17 | CLIP | V490-000510 | V490-000510-Online |
| 11 | TANK CUSHION | 18 | TANK CUSHION | V420-002220 | V420-002220-Online |
| 11 | TANK CUSHION | 2 | FUEL TANK | A350-001010 | A350-001010-Online |
| 11 | TANK CUSHION | 3 | CAP,FUEL | A033-000330 | A033-000330-Online |
| 11 | TANK CUSHION | 4 | FUEL CAP | A355-000180 | A355-000180-Online |
| 11 | TANK CUSHION | 5 | CHAIN CAP | V047-000000 | V047-000000-Online |
| 11 | TANK CUSHION | 7 | SCREW TAPPING | 91483-02506 | 91483-02506-Online |
| 11 | TANK CUSHION | 8 | CLIP | V490-000600 | V490-000600-Online |
| 11 | TANK CUSHION | 9 | GASKET | V107-000010 | V107-000010-Online |
| 12 | COVER | 1 | CONTROL, THROTTLE | C044-001171 | C044-001171-Online |
| 12 | COVER | 10 | PLATE | C472-000070 | C472-000070-Online |
| 12 | COVER | 11 | NYLON NUT | V264-000080 | V264-000080-Online |
| 12 | COVER | 12 | RUBBER CAP | V162-000330 | V162-000330-Online |
| 12 | COVER | 13 | SWITCH | A440-001330 | A440-001330-Online |
| 12 | COVER | 14 | CABLE,BOWDEN | V430-003330 | V430-003330-Online |
| 12 | COVER | 15 | LEAD WIRE | V485-001270 | V485-001270-Online |
| 12 | COVER | 16 | SCREW | V252-000070 | V252-000070-Online |
| 12 | COVER | 17 | ADJUSTER ASSY | C457-000010 | C457-000010-Online |
| 12 | COVER | 18 | PLUG | V162-000340 | V162-000340-Online |
| 12 | COVER | 19 | SCREW | V252-000080 | V252-000080-Online |
| 12 | COVER | 2 | HANDLE, FRONT | C400-000571 | C400-000571-Online |
| 12 | COVER | 20 | SUB LEVER | C453-000330 | C453-000330-Online |
| 12 | COVER | 21 | WASHER | V345-000010 | V345-000010-Online |
| 12 | COVER | 22 | ADJ SPRING | V453-000120 | V453-000120-Online |
| 12 | COVER | 23 | GRIP | C412-000240 | C412-000240-Online |
| 12 | COVER | 24 | GRIP | C412-000250 | C412-000250-Online |
| 12 | COVER | 25 | SCREW | V251-000030 | V251-000030-Online |
| 12 | COVER | 26 | COVER | C411-000100 | C411-000100-Online |
| 12 | COVER | 3 | HANDLE, FRONT | C400-000581 | C400-000581-Online |
| 12 | COVER | 4 | THROTTLE LEVER | C450-000450 | C450-000450-Online |
| 12 | COVER | 5 | LOCK LEVER | C453-000320 | C453-000320-Online |
| 12 | COVER | 6 | ADJUST BOLT | V204-000260 | V204-000260-Online |
| 12 | COVER | 7 | WASHER | V304-000110 | V304-000110-Online |
| 12 | COVER | 8 | ADJ SPRING | V453-000110 | V453-000110-Online |
| 12 | COVER | 9 | WASHER | V304-000120 | V304-000120-Online |
| 13 | BAND | 27 | BAND | V495-001210 | V495-001210-Online |
Source file: 20130718-322_EB2510(37)_P016-000560-11Hb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
