Illustrated Parts List
Shindaiwa EB240S Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB240S
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 2 | SCREW PM SLPW | 1 | CYLINDER | A130-001061 | A130-001061-Online |
| 2 | SCREW PM SLPW | 10 | MUFFLER | A300-000850 | A300-000850-Online |
| 2 | SCREW PM SLPW | 11 | CHAMBER | A313-001130 | A313-001130-Online |
| 2 | SCREW PM SLPW | 12 | GASKET | V104-000980 | V104-000980-Online |
| 2 | SCREW PM SLPW | 13 | SPARK ARRESTER | A310-000120 | A310-000120-Online |
| 2 | SCREW PM SLPW | 14 | GUIDE PLATE | A031-000000 | A031-000000-Online |
| 2 | SCREW PM SLPW | 15 | SCREW PM | 91574-04010 | 91574-04010-Online |
| 2 | SCREW PM SLPW | 16 | GASKET | V104-000990 | V104-000990-Online |
| 2 | SCREW PM SLPW | 17 | BOLT, H.S. 5*55 | 900105-05055 | 900105-05055-Online |
| 2 | SCREW PM SLPW | 18 | WASHER | 900600-00005 | 900600-00005-Online |
| 2 | SCREW PM SLPW | 19 | SCREW PM SLPW | 91577-05016 | 91577-05016-Online |
| 2 | SCREW PM SLPW | 2 | GASKET | V100-000480 | V100-000480-Online |
| 2 | SCREW PM SLPW | 3 | BOLT, H.S. 5*20 | 900105-05020 | 900105-05020-Online |
| 2 | SCREW PM SLPW | 5 | GASKET | V103-000560 | V103-000560-Online |
| 2 | SCREW PM SLPW | 6 | SCREW PM SLPW | 91577-05016 | 91577-05016-Online |
| 2 | SCREW PM SLPW | 7 | HOLDER | A200-000390 | A200-000390-Online |
| 2 | SCREW PM SLPW | 8 | SCREW PM SLPW | 91577-05016 | 91577-05016-Online |
| 2 | SCREW PM SLPW | 9 | MUFFLER ASSY | A030-000030 | A030-000030-Online |
| 3 | M5*20 | 1 | CRANK CASE S COMP | P021-018090 | P021-018090-Online |
| 3 | M5*20 | 10 | BOLT, H.S. 5*25 | 900105-05025 | 900105-05025-Online |
| 3 | M5*20 | 11 | ENGINE COVER | A190-000880 | A190-000880-Online |
| 3 | M5*20 | 12 | CUSHION | V420-002120 | V420-002120-Online |
| 3 | M5*20 | 13 | SCREW PM SLPW | 91577-05016 | 91577-05016-Online |
| 3 | M5*20 | 14 | SCREW | V253-000550 | V253-000550-Online |
| 3 | M5*20 | 2 | CRANK CASE S | A120-000170 | A120-000170-Online |
| 3 | M5*20 | 3 | BEARING, BALL | V592-000310 | V592-000310-Online |
| 3 | M5*20 | 4 | SEAL,OIL | V505-000140 | V505-000140-Online |
| 3 | M5*20 | 5 | CRANK CASE M COMP | P021-033400 | P021-033400-Online |
| 3 | M5*20 | 6 | CRANK CASE M | A120-000070 | A120-000070-Online |
| 3 | M5*20 | 7 | PIN F 4*8 | 900330-40080 | 900330-40080-Online |
| 3 | M5*20 | 8 | BEARING, BALL | V592-000330 | V592-000330-Online |
| 3 | M5*20 | 9 | OIL SEAL | V505-000080 | V505-000080-Online |
| 4 | CRANK SHAFT ASSY | 1 | PISTON | A100-000470 | A100-000470-Online |
| 4 | CRANK SHAFT ASSY | 2 | PISTON RING | A101-000290 | A101-000290-Online |
| 4 | CRANK SHAFT ASSY | 3 | PISTON PIN | V606-000030 | V606-000030-Online |
| 4 | CRANK SHAFT ASSY | 4 | RING,END | V580-000070 | V580-000070-Online |
| 4 | CRANK SHAFT ASSY | 5 | NEEDLE BEARING | V553-000070 | V553-000070-Online |
| 4 | CRANK SHAFT ASSY | 6 | CRANK SHAFT ASSY | A011-000620 | A011-000620-Online |
| 4 | CRANK SHAFT ASSY | 7 | PISTON SET | P021-033420 | P021-033420-Online |

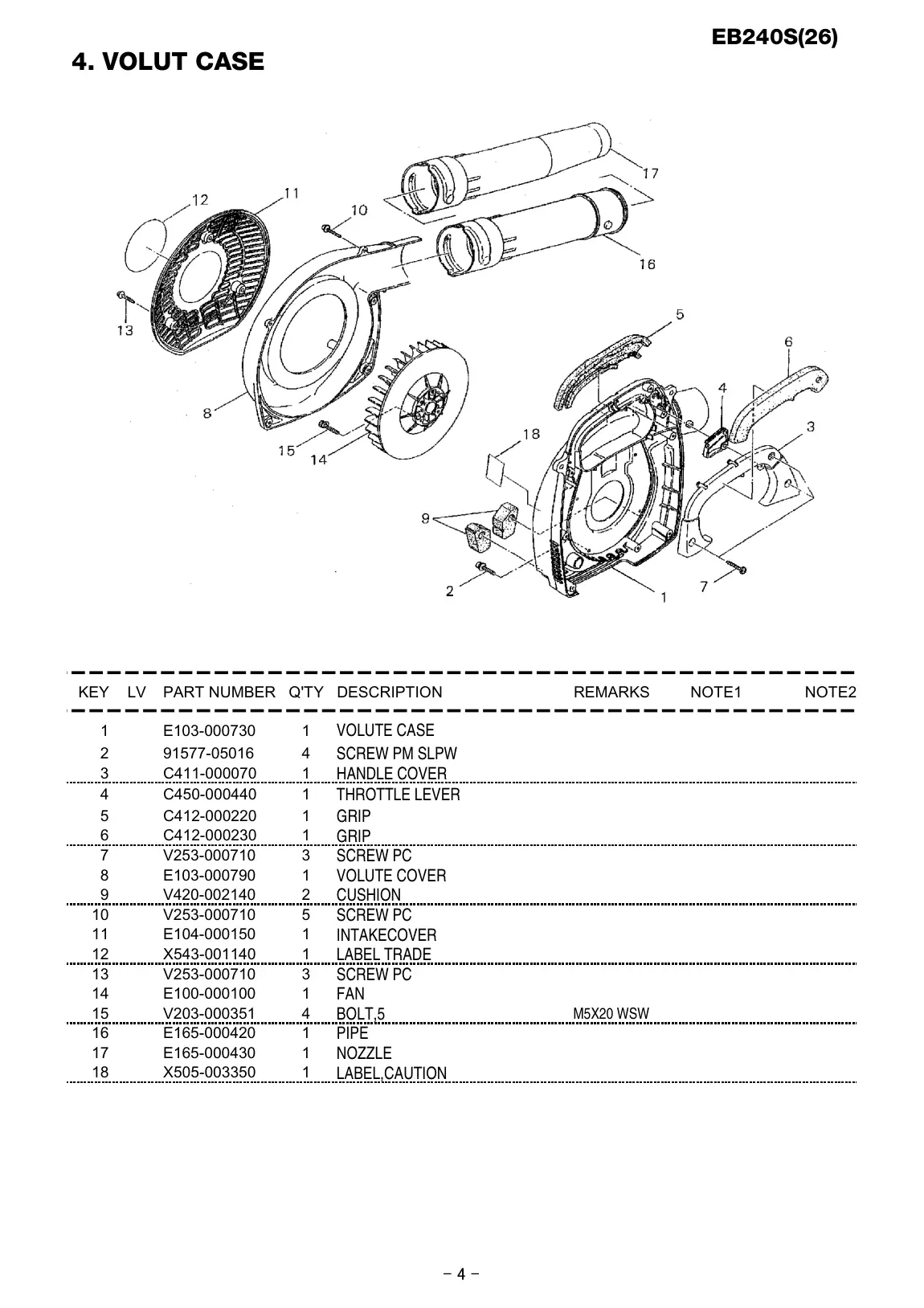

| 5 | LABEL,CAUTION | 1 | VOLUTE CASE | E103-000730 | E103-000730-Online |
| 5 | LABEL,CAUTION | 10 | SCREW PC | V253-000710 | V253-000710-Online |
| 5 | LABEL,CAUTION | 11 | INTAKECOVER | E104-000150 | E104-000150-Online |
| 5 | LABEL,CAUTION | 12 | LABEL TRADE | X543-001140 | X543-001140-Online |
| 5 | LABEL,CAUTION | 13 | SCREW PC | V253-000710 | V253-000710-Online |
| 5 | LABEL,CAUTION | 14 | FAN | E100-000100 | E100-000100-Online |
| 5 | LABEL,CAUTION | 15 | BOLT,5 | V203-000351 | V203-000351-Online |
| 5 | LABEL,CAUTION | 16 | PIPE | E165-000420 | E165-000420-Online |
| 5 | LABEL,CAUTION | 17 | NOZZLE | E165-000430 | E165-000430-Online |
| 5 | LABEL,CAUTION | 18 | LABEL,CAUTION | X505-003350 | X505-003350-Online |
| 5 | LABEL,CAUTION | 2 | SCREW PM SLPW | 91577-05016 | 91577-05016-Online |
| 5 | LABEL,CAUTION | 3 | HANDLE COVER | C411-000070 | C411-000070-Online |
| 5 | LABEL,CAUTION | 4 | THROTTLE LEVER | C450-000440 | C450-000440-Online |
| 5 | LABEL,CAUTION | 5 | GRIP | C412-000220 | C412-000220-Online |
| 5 | LABEL,CAUTION | 6 | GRIP | C412-000230 | C412-000230-Online |
| 5 | LABEL,CAUTION | 7 | SCREW PC | V253-000710 | V253-000710-Online |
| 5 | LABEL,CAUTION | 8 | VOLUTE COVER | E103-000790 | E103-000790-Online |
| 5 | LABEL,CAUTION | 9 | CUSHION | V420-002140 | V420-002140-Online |
| 6 | GROMMET | 10 | SPRING SPARK PLUG | A426-000050 | A426-000050-Online |
| 6 | GROMMET | 11 | INSULATOR | V322-000040 | V322-000040-Online |
| 6 | GROMMET | 12 | BOLT | 91113-04026 | 91113-04026-Online |
| 6 | GROMMET | 13 | PLUG, SPARK (BMR-6A) | 159010-10130 | 159010-10130-Online |
| 6 | GROMMET | 14 | SWITCH | A440-001320 | A440-001320-Online |
| 6 | GROMMET | 15 | GROMMET | V135-000080 | V135-000080-Online |
| 6 | GROMMET | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 6 | GROMMET | 3 | NUT | V265-000140 | V265-000140-Online |
| 6 | GROMMET | 4 | COIL ASSY | A411-000530 | A411-000530-Online |
| 6 | GROMMET | 5 | PLUG CAP COMP | A427-000070 | A427-000070-Online |
| 6 | GROMMET | 6 | PLUG CAP | A427-000090 | A427-000090-Online |
| 6 | GROMMET | 7 | PLUG CAP COVER | A429-000110 | A429-000110-Online |
| 6 | GROMMET | 8 | COVER BAND | V495-001440 | V495-001440-Online |
| 6 | GROMMET | 9 | SHIELD | V151-000050 | V151-000050-Online |
| 7 | SCREW PM SPW | 1 | RECOIL STARETR | P021-034871 | P021-034871-Online |
| 7 | SCREW PM SPW | 10 | ROPE | P022-034760 | P022-034760-Online |
| 7 | SCREW PM SPW | 11 | GRIP, STARTER | P022-034750 | P022-034750-Online |
| 7 | SCREW PM SPW | 12 | LABEL,BRAND | X504-006130 | X504-006130-Online |
| 7 | SCREW PM SPW | 13 | STARTER PULLEY | A520-000080 | A520-000080-Online |
| 7 | SCREW PM SPW | 14 | NUT | 900503-00008 | 900503-00008-Online |
| 7 | SCREW PM SPW | 15 | SCREW PM SPW | V252-000180 | V252-000180-Online |
| 7 | SCREW PM SPW | 2 | STARTER CASE | A500-001060 | A500-001060-Online |
| 7 | SCREW PM SPW | 3 | REEL, ROPE | P022-034780 | P022-034780-Online |
| 7 | SCREW PM SPW | 4 | SPRING, SPIRAL | P022-034790 | P022-034790-Online |
| 7 | SCREW PM SPW | 5 | PLATE,FRICTION | P022-034800 | P022-034800-Online |
| 7 | SCREW PM SPW | 6 | WASHER,WAVE | P022-034810 | P022-034810-Online |
| 7 | SCREW PM SPW | 7 | SCREW,5 | P022-034820 | P022-034820-Online |
| 7 | SCREW PM SPW | 8 | RETAINER | P022-034830 | P022-034830-Online |
| 7 | SCREW PM SPW | 9 | WASHER | P022-034840 | P022-034840-Online |
| 8 | SCREW | 1 | CARBURETOR ASSY | A021-001940 | A021-001940-Online |
| 8 | SCREW | 10 | O-RING | 123183-40630 | 123183-40630-Online |
| 8 | SCREW | 11 | BODY, AIR PURGE | 123180-05560 | 123180-05560-Online |
| 8 | SCREW | 12 | COVER, PRIMER PUMP | 123142-05560 | 123142-05560-Online |
| 8 | SCREW | 13 | PUMP, PRIMER | 123181-40630 | 123181-40630-Online |
| 8 | SCREW | 15 | METERING, DIAPHRAGM | P003-000090 | P003-000090-Online |
| 8 | SCREW | 17 | GASKET, M. DIAPHRAGM | 123140-05560 | 123140-05560-Online |
| 8 | SCREW | 18 | DIAPHRAGM, PUMP | 123112-40630 | 123112-40630-Online |
| 8 | SCREW | 19 | GASKET, PUMP | 123125-40630 | 123125-40630-Online |
| 8 | SCREW | 2 | PUMP BODY ASSY | P003-003690 | P003-003690-Online |
| 8 | SCREW | 20 | SCREW, PUMP COVER | 123110-05560 | 123110-05560-Online |
| 8 | SCREW | 21 | VALVE ASSY | 22933-81310 | 22933-81310-Online |
| 8 | SCREW | 22 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 8 | SCREW | 23 | WASHER | 123149-54230 | 123149-54230-Online |
| 8 | SCREW | 24 | CLIP | 123173-07930 | 123173-07930-Online |
| 8 | SCREW | 25 | BRACKET | P003-002590 | P003-002590-Online |
| 8 | SCREW | 26 | SCREW, ADJUSTER | 123161-56430 | 123161-56430-Online |
| 8 | SCREW | 27 | NUT, ADJUSTER | 123153-56430 | 123153-56430-Online |
| 8 | SCREW | 28 | SCREW | 123114-40630 | 123114-40630-Online |
| 8 | SCREW | 3 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 8 | SCREW | 4 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 8 | SCREW | 5 | SPRING, METER. LEVER | 123122-05560 | 123122-05560-Online |
| 8 | SCREW | 6 | SCREW, M. LEVER PIN | 123139-05560 | 123139-05560-Online |
| 8 | SCREW | 7 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 8 | SCREW | 8 | LEVER, METERING | 123123-03930 | 123123-03930-Online |
| 8 | SCREW | 9 | JET | P003-000520 | P003-000520-Online |
| 9 | THROTTLE CABLE | 29 | RING, PACKING | 123143-12110 | 123143-12110-Online |
| 9 | THROTTLE CABLE | 30 | CLEANER BODY | A225-000360 | A225-000360-Online |
| 9 | THROTTLE CABLE | 31 | SCREW PC | V253-000710 | V253-000710-Online |
| 9 | THROTTLE CABLE | 32 | CHOKE PLATE | A243-000150 | A243-000150-Online |
| 9 | THROTTLE CABLE | 33 | WASHER CARBURETOR | V303-000280 | V303-000280-Online |
| 9 | THROTTLE CABLE | 34 | CHOKE ROD | A240-000020 | A240-000020-Online |
| 9 | THROTTLE CABLE | 35 | BACK PLATE | A244-000100 | A244-000100-Online |
| 9 | THROTTLE CABLE | 36 | BOLT,5 | V203-000611 | V203-000611-Online |
| 9 | THROTTLE CABLE | 37 | GROMMET | V130-000050 | V130-000050-Online |
| 9 | THROTTLE CABLE | 38 | FILTER | A226-000490 | A226-000490-Online |
| 9 | THROTTLE CABLE | 39 | CLEANER COVER | A232-000570 | A232-000570-Online |
| 9 | THROTTLE CABLE | 40 | SCREW | A235-000210 | A235-000210-Online |
| 9 | THROTTLE CABLE | 41 | GRIP RING | V490-000450 | V490-000450-Online |
| 9 | THROTTLE CABLE | 42 | THROTTLE CABLE | V430-002510 | V430-002510-Online |
| 10 | CUSHION | 1 | FUEL TANK ASSY | A038-000020 | A038-000020-Online |
| 10 | CUSHION | 10 | FILTER A | A371-000020 | A371-000020-Online |
| 10 | CUSHION | 11 | SCREEN | K331-000030 | K331-000030-Online |
| 10 | CUSHION | 12 | CLIP FILTER | V490-000730 | V490-000730-Online |
| 10 | CUSHION | 13 | VALVE,CHECK | A356-000040 | A356-000040-Online |
| 10 | CUSHION | 14 | PIPE | V471-002330 | V471-002330-Online |
| 10 | CUSHION | 15 | PIPE | V471-002340 | V471-002340-Online |
| 10 | CUSHION | 16 | JOINT | V186-000210 | V186-000210-Online |
| 10 | CUSHION | 17 | CLIP | V490-000510 | V490-000510-Online |
| 10 | CUSHION | 18 | CUSHION | V420-002130 | V420-002130-Online |
| 10 | CUSHION | 2 | FUEL TANK | A350-001000 | A350-001000-Online |
| 10 | CUSHION | 3 | FUEL CAP SUB ASSY | A033-000070 | A033-000070-Online |
| 10 | CUSHION | 4 | GASKET | V107-000010 | V107-000010-Online |
| 10 | CUSHION | 5 | PIPE | V471-002670 | V471-002670-Online |
| 10 | CUSHION | 6 | GROMMET | V470-000890 | V470-000890-Online |
| 10 | CUSHION | 7 | CLIP | V490-000500 | V490-000500-Online |
| 10 | CUSHION | 8 | FUEL FILTER COMP | A369-000090 | A369-000090-Online |
| 10 | CUSHION | 9 | WEIGHT FUEL | C212-000000 | C212-000000-Online |
| 11 | TOOL,L WRENCH | 1 | TOOL SET | P021-021480 | P021-021480-Online |
| 11 | TOOL,L WRENCH | 2 | BAG,PACKING | X705-000100 | X705-000100-Online |
| 11 | TOOL,L WRENCH | 3 | PLUG WRENCH | X602-000150 | X602-000150-Online |
| 11 | TOOL,L WRENCH | 4 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
Source file: 20130718-466_EB240S(26)_P016-001130-12Jb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
