Illustrated Parts List
Shindaiwa 488P Chainsaw IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: 488P
Type: Chainsaw
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.

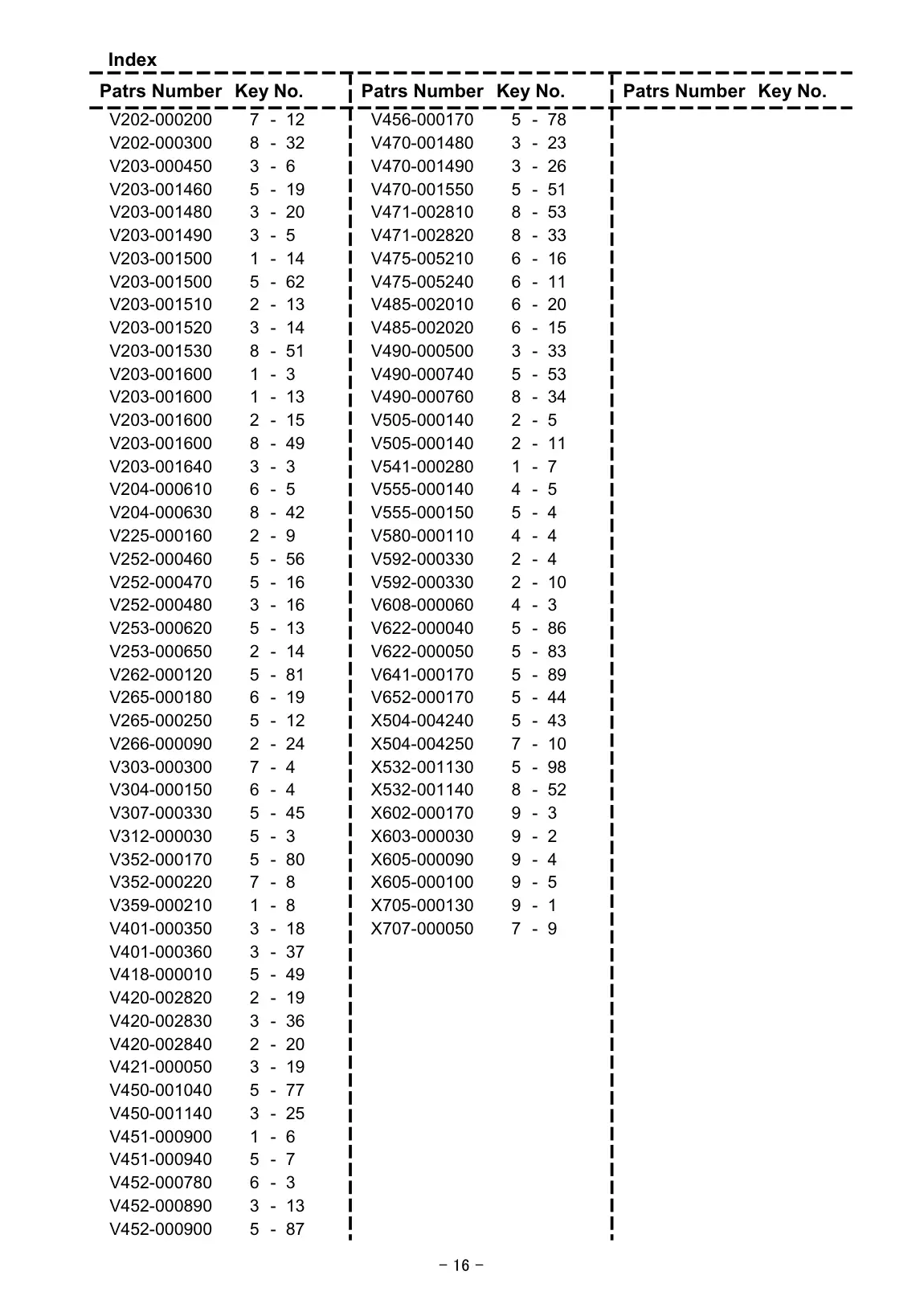

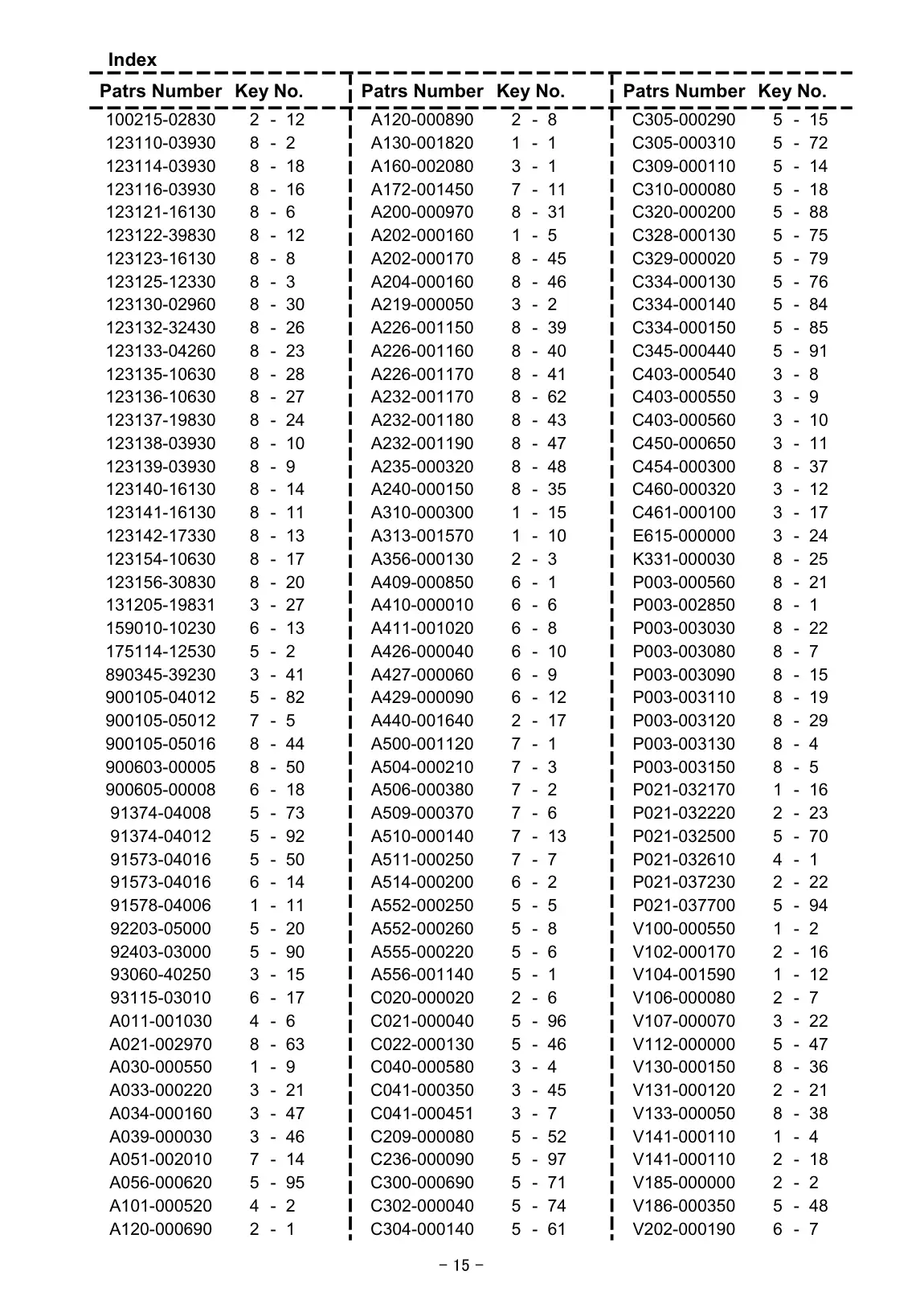

IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

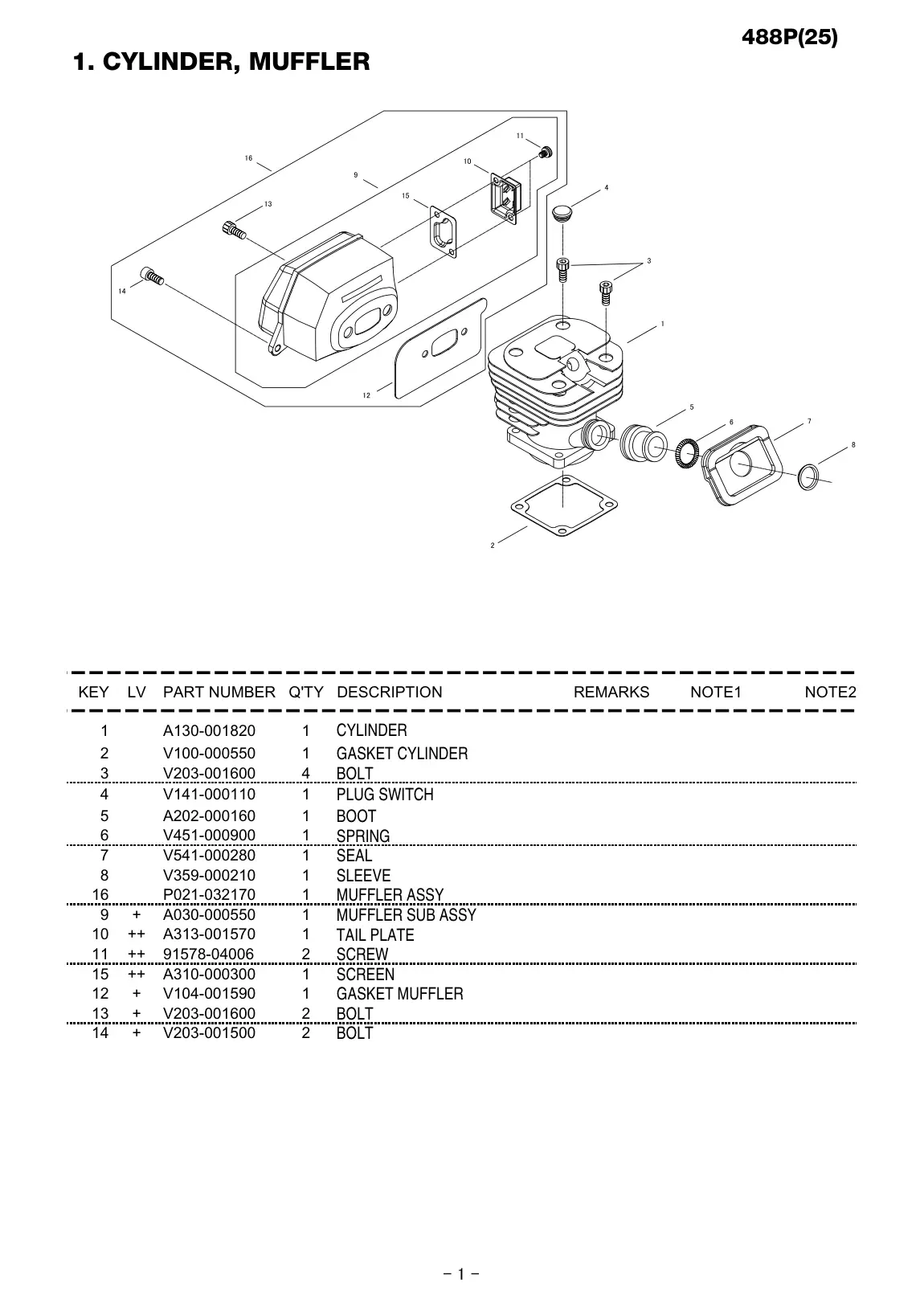

| 2 | BOLT | 1 | CYLINDER | A130-001820 | A130-001820-Online |
| 2 | BOLT | 10 | TAIL PLATE | A313-001570 | A313-001570-Online |
| 2 | BOLT | 11 | SCREW | 91578-04006 | 91578-04006-Online |
| 2 | BOLT | 12 | GASKET MUFFLER | V104-001590 | V104-001590-Online |
| 2 | BOLT | 13 | BOLT | V203-001600 | V203-001600-Online |
| 2 | BOLT | 14 | BOLT | V203-001500 | V203-001500-Online |
| 2 | BOLT | 15 | SCREEN | A310-000300 | A310-000300-Online |
| 2 | BOLT | 16 | MUFFLER ASSY | P021-032170 | P021-032170-Online |
| 2 | BOLT | 2 | GASKET CYLINDER | V100-000550 | V100-000550-Online |
| 2 | BOLT | 3 | BOLT | V203-001600 | V203-001600-Online |
| 2 | BOLT | 4 | PLUG SWITCH | V141-000110 | V141-000110-Online |
| 2 | BOLT | 6 | SPRING | V451-000900 | V451-000900-Online |
| 2 | BOLT | 7 | SEAL | V541-000280 | V541-000280-Online |
| 2 | BOLT | 8 | SLEEVE | V359-000210 | V359-000210-Online |
| 2 | BOLT | 9 | MUFFLER SUB ASSY | A030-000550 | A030-000550-Online |

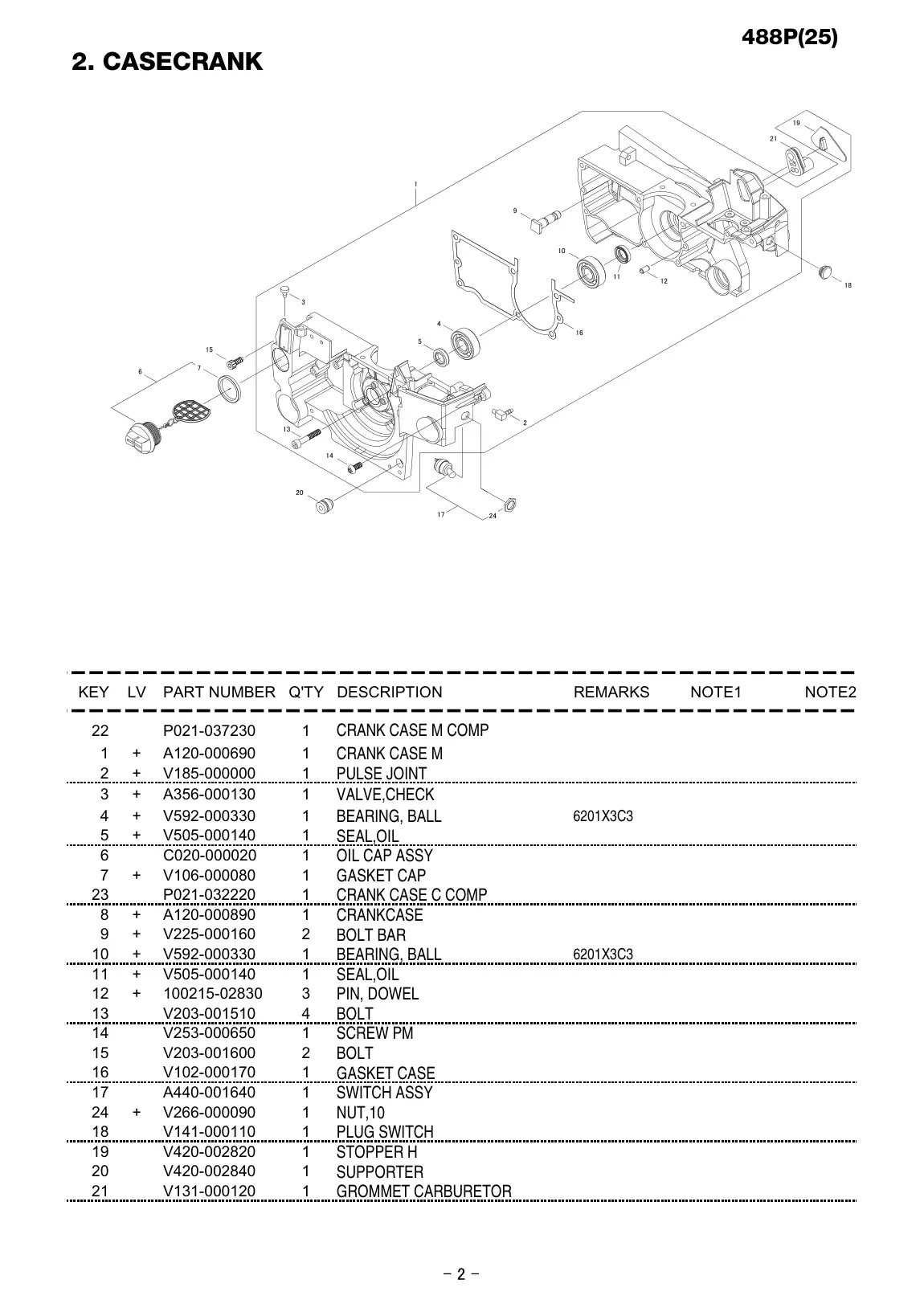

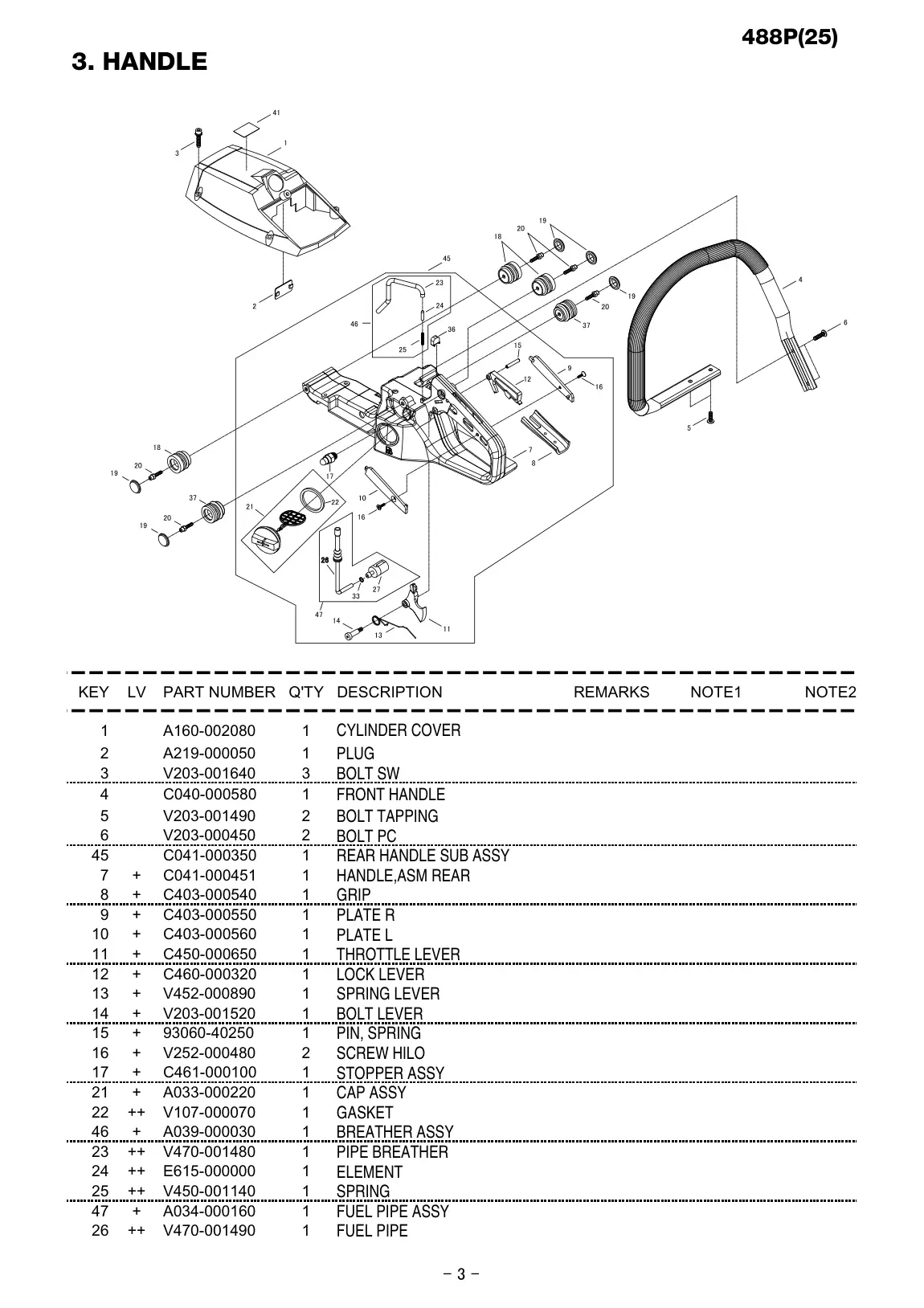

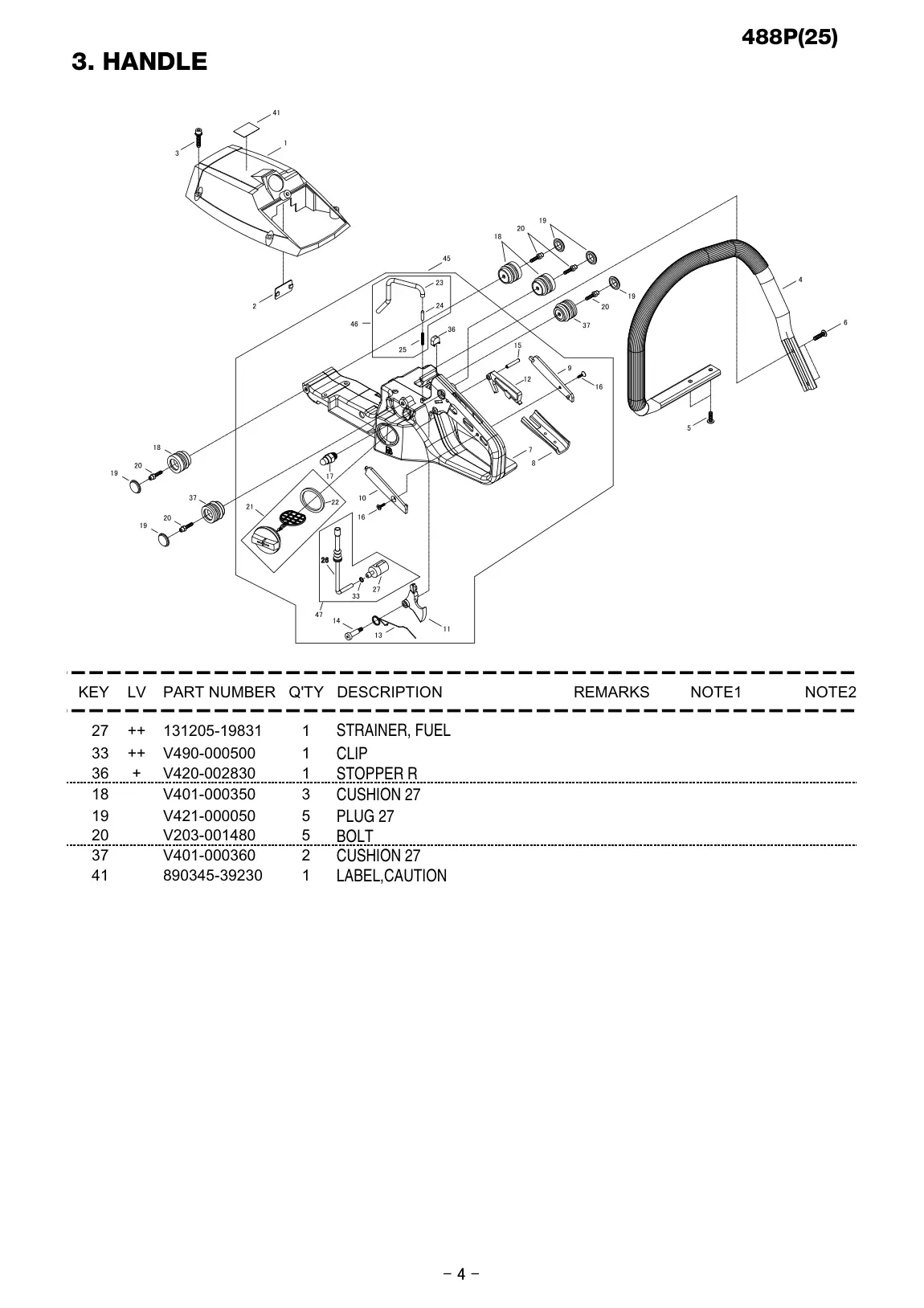

| 3 | GROMMET CARBURETOR | 1 | CRANK CASE M | A120-000690 | A120-000690-Online |
| 3 | GROMMET CARBURETOR | 10 | BEARING, BALL | V592-000330 | V592-000330-Online |
| 3 | GROMMET CARBURETOR | 11 | SEAL,OIL | V505-000140 | V505-000140-Online |
| 3 | GROMMET CARBURETOR | 12 | PIN, DOWEL | 100215-02830 | 100215-02830-Online |
| 3 | GROMMET CARBURETOR | 13 | BOLT | V203-001510 | V203-001510-Online |
| 3 | GROMMET CARBURETOR | 14 | SCREW PM | V253-000650 | V253-000650-Online |
| 3 | GROMMET CARBURETOR | 15 | BOLT | V203-001600 | V203-001600-Online |
| 3 | GROMMET CARBURETOR | 16 | GASKET CASE | V102-000170 | V102-000170-Online |
| 3 | GROMMET CARBURETOR | 17 | SWITCH ASSY | A440-001640 | A440-001640-Online |
| 3 | GROMMET CARBURETOR | 18 | PLUG SWITCH | V141-000110 | V141-000110-Online |
| 3 | GROMMET CARBURETOR | 19 | STOPPER H | V420-002820 | V420-002820-Online |
| 3 | GROMMET CARBURETOR | 2 | PULSE JOINT | V185-000000 | V185-000000-Online |
| 3 | GROMMET CARBURETOR | 20 | SUPPORTER | V420-002840 | V420-002840-Online |
| 3 | GROMMET CARBURETOR | 21 | GROMMET CARBURETOR | V131-000120 | V131-000120-Online |
| 3 | GROMMET CARBURETOR | 22 | CRANK CASE M COMP | P021-037230 | P021-037230-Online |
| 3 | GROMMET CARBURETOR | 23 | CRANK CASE C COMP | P021-032220 | P021-032220-Online |
| 3 | GROMMET CARBURETOR | 24 | NUT,10 | V266-000090 | V266-000090-Online |
| 3 | GROMMET CARBURETOR | 3 | VALVE,CHECK | A356-000130 | A356-000130-Online |
| 3 | GROMMET CARBURETOR | 4 | BEARING, BALL | V592-000330 | V592-000330-Online |
| 3 | GROMMET CARBURETOR | 5 | SEAL,OIL | V505-000140 | V505-000140-Online |
| 3 | GROMMET CARBURETOR | 6 | OIL CAP ASSY | C020-000020 | C020-000020-Online |
| 3 | GROMMET CARBURETOR | 7 | GASKET CAP | V106-000080 | V106-000080-Online |
| 3 | GROMMET CARBURETOR | 8 | CRANKCASE | A120-000890 | A120-000890-Online |
| 3 | GROMMET CARBURETOR | 9 | BOLT BAR | V225-000160 | V225-000160-Online |
| 4 | FUEL PIPE | 1 | CYLINDER COVER | A160-002080 | A160-002080-Online |
| 4 | FUEL PIPE | 10 | PLATE L | C403-000560 | C403-000560-Online |
| 4 | FUEL PIPE | 11 | THROTTLE LEVER | C450-000650 | C450-000650-Online |
| 4 | FUEL PIPE | 12 | LOCK LEVER | C460-000320 | C460-000320-Online |
| 4 | FUEL PIPE | 13 | SPRING LEVER | V452-000890 | V452-000890-Online |
| 4 | FUEL PIPE | 14 | BOLT LEVER | V203-001520 | V203-001520-Online |
| 4 | FUEL PIPE | 15 | PIN, SPRING | 93060-40250 | 93060-40250-Online |
| 4 | FUEL PIPE | 16 | SCREW HILO | V252-000480 | V252-000480-Online |
| 4 | FUEL PIPE | 17 | STOPPER ASSY | C461-000100 | C461-000100-Online |
| 4 | FUEL PIPE | 2 | PLUG | A219-000050 | A219-000050-Online |
| 4 | FUEL PIPE | 21 | CAP ASSY | A033-000220 | A033-000220-Online |
| 4 | FUEL PIPE | 22 | GASKET | V107-000070 | V107-000070-Online |
| 4 | FUEL PIPE | 23 | PIPE BREATHER | V470-001480 | V470-001480-Online |
| 4 | FUEL PIPE | 24 | ELEMENT | E615-000000 | E615-000000-Online |
| 4 | FUEL PIPE | 25 | SPRING | V450-001140 | V450-001140-Online |
| 4 | FUEL PIPE | 26 | FUEL PIPE | V470-001490 | V470-001490-Online |
| 4 | FUEL PIPE | 3 | BOLT SW | V203-001640 | V203-001640-Online |
| 4 | FUEL PIPE | 4 | FRONT HANDLE | C040-000580 | C040-000580-Online |
| 4 | FUEL PIPE | 45 | REAR HANDLE SUB ASSY | C041-000350 | C041-000350-Online |
| 4 | FUEL PIPE | 46 | BREATHER ASSY | A039-000030 | A039-000030-Online |
| 4 | FUEL PIPE | 47 | FUEL PIPE ASSY | A034-000160 | A034-000160-Online |
| 4 | FUEL PIPE | 5 | BOLT TAPPING | V203-001490 | V203-001490-Online |
| 4 | FUEL PIPE | 6 | BOLT PC | V203-000450 | V203-000450-Online |
| 4 | FUEL PIPE | 7 | HANDLE,ASM REAR | C041-000451 | C041-000451-Online |
| 4 | FUEL PIPE | 8 | GRIP | C403-000540 | C403-000540-Online |
| 4 | FUEL PIPE | 9 | PLATE R | C403-000550 | C403-000550-Online |
| 5 | LABEL,CAUTION | 18 | CUSHION | V401-000350 | V401-000350-Online |
| 5 | LABEL,CAUTION | 19 | PLUG | V421-000050 | V421-000050-Online |
| 5 | LABEL,CAUTION | 20 | BOLT | V203-001480 | V203-001480-Online |
| 5 | LABEL,CAUTION | 27 | STRAINER, FUEL | 131205-19831 | 131205-19831-Online |
| 5 | LABEL,CAUTION | 33 | CLIP | V490-000500 | V490-000500-Online |
| 5 | LABEL,CAUTION | 36 | STOPPER R | V420-002830 | V420-002830-Online |
| 5 | LABEL,CAUTION | 37 | CUSHION | V401-000360 | V401-000360-Online |
| 5 | LABEL,CAUTION | 41 | LABEL,CAUTION | 890345-39230 | 890345-39230-Online |

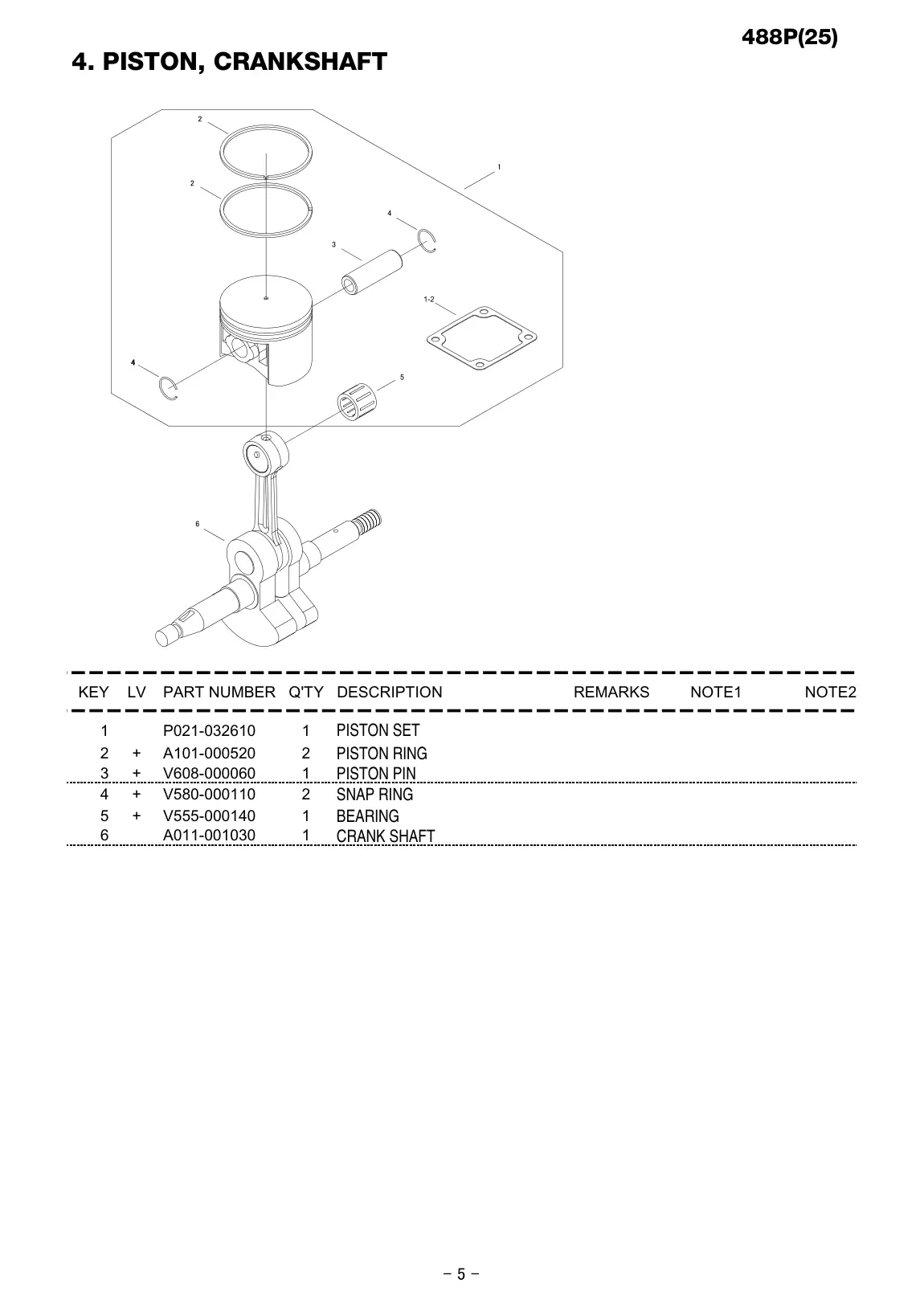

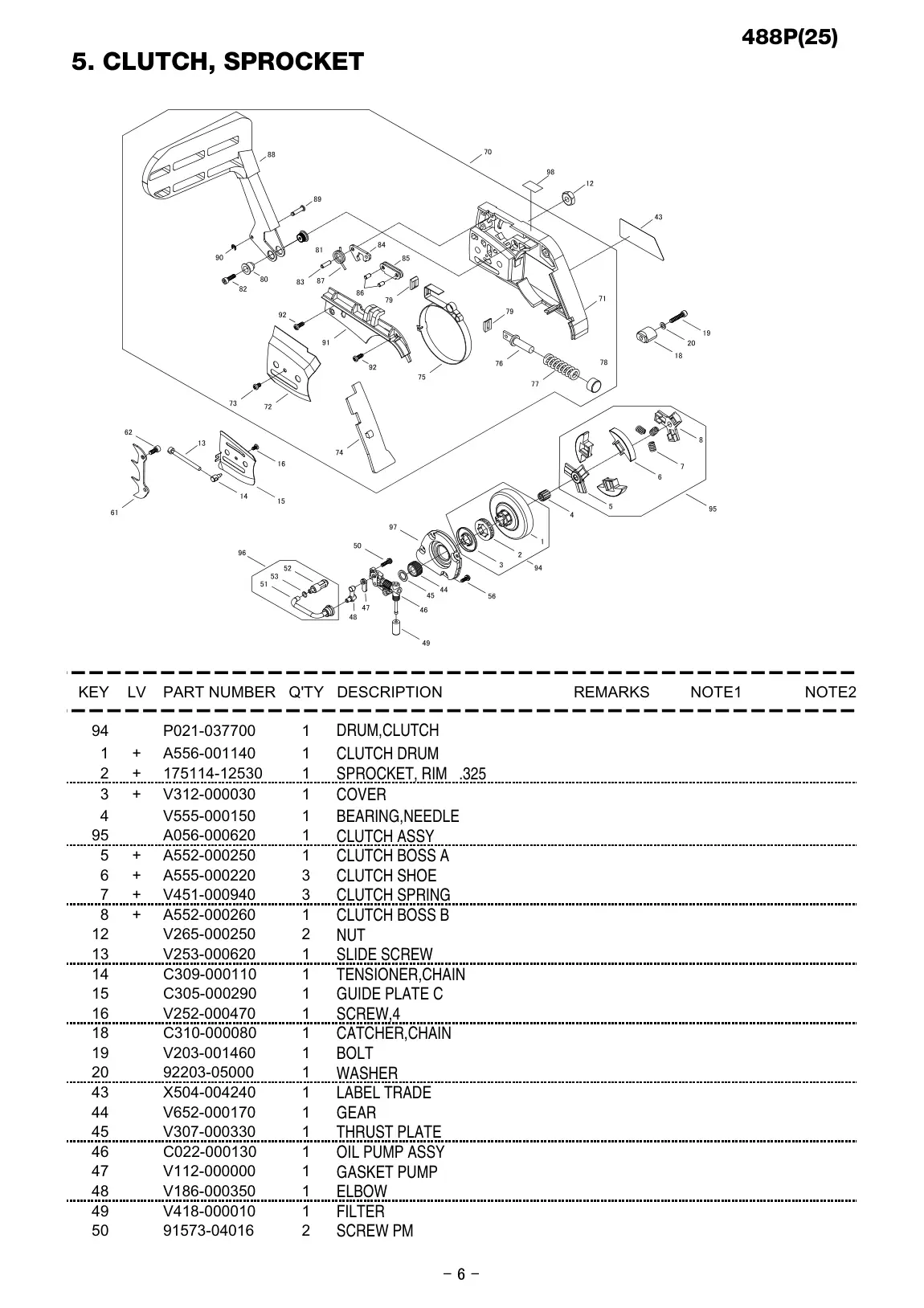

| 6 | CRANK SHAFT | 1 | PISTON SET | P021-032610 | P021-032610-Online |
| 6 | CRANK SHAFT | 2 | PISTON RING | A101-000520 | A101-000520-Online |
| 6 | CRANK SHAFT | 3 | PISTON PIN | V608-000060 | V608-000060-Online |
| 6 | CRANK SHAFT | 4 | SNAP RING | V580-000110 | V580-000110-Online |
| 6 | CRANK SHAFT | 5 | BEARING | V555-000140 | V555-000140-Online |
| 6 | CRANK SHAFT | 6 | CRANK SHAFT | A011-001030 | A011-001030-Online |
| 7 | SCREW PM | 1 | CLUTCH DRUM | A556-001140 | A556-001140-Online |
| 7 | SCREW PM | 12 | NUT | V265-000250 | V265-000250-Online |
| 7 | SCREW PM | 13 | SLIDE SCREW | V253-000620 | V253-000620-Online |
| 7 | SCREW PM | 14 | TENSIONER,CHAIN | C309-000110 | C309-000110-Online |
| 7 | SCREW PM | 15 | GUIDE PLATE C | C305-000290 | C305-000290-Online |
| 7 | SCREW PM | 16 | SCREW,4 | V252-000470 | V252-000470-Online |
| 7 | SCREW PM | 18 | CATCHER,CHAIN | C310-000080 | C310-000080-Online |
| 7 | SCREW PM | 19 | BOLT | V203-001460 | V203-001460-Online |
| 7 | SCREW PM | 2 | SPROCKET, RIM .325 | 175114-12530 | 175114-12530-Online |
| 7 | SCREW PM | 20 | WASHER | 92203-05000 | 92203-05000-Online |
| 7 | SCREW PM | 3 | COVER | V312-000030 | V312-000030-Online |
| 7 | SCREW PM | 4 | BEARING,NEEDLE | V555-000150 | V555-000150-Online |
| 7 | SCREW PM | 43 | LABEL TRADE | X504-004240 | X504-004240-Online |
| 7 | SCREW PM | 44 | GEAR | V652-000170 | V652-000170-Online |
| 7 | SCREW PM | 45 | THRUST PLATE | V307-000330 | V307-000330-Online |
| 7 | SCREW PM | 46 | OIL PUMP ASSY | C022-000130 | C022-000130-Online |
| 7 | SCREW PM | 47 | GASKET PUMP | V112-000000 | V112-000000-Online |
| 7 | SCREW PM | 49 | FILTER | V418-000010 | V418-000010-Online |
| 7 | SCREW PM | 5 | CLUTCH BOSS A | A552-000250 | A552-000250-Online |
| 7 | SCREW PM | 50 | SCREW PM | 91573-04016 | 91573-04016-Online |
| 7 | SCREW PM | 6 | CLUTCH SHOE | A555-000220 | A555-000220-Online |
| 7 | SCREW PM | 7 | CLUTCH SPRING | V451-000940 | V451-000940-Online |
| 7 | SCREW PM | 8 | CLUTCH BOSS B | A552-000260 | A552-000260-Online |
| 7 | SCREW PM | 94 | DRUM,CLUTCH | P021-037700 | P021-037700-Online |
| 7 | SCREW PM | 95 | CLUTCH ASSY | A056-000620 | A056-000620-Online |

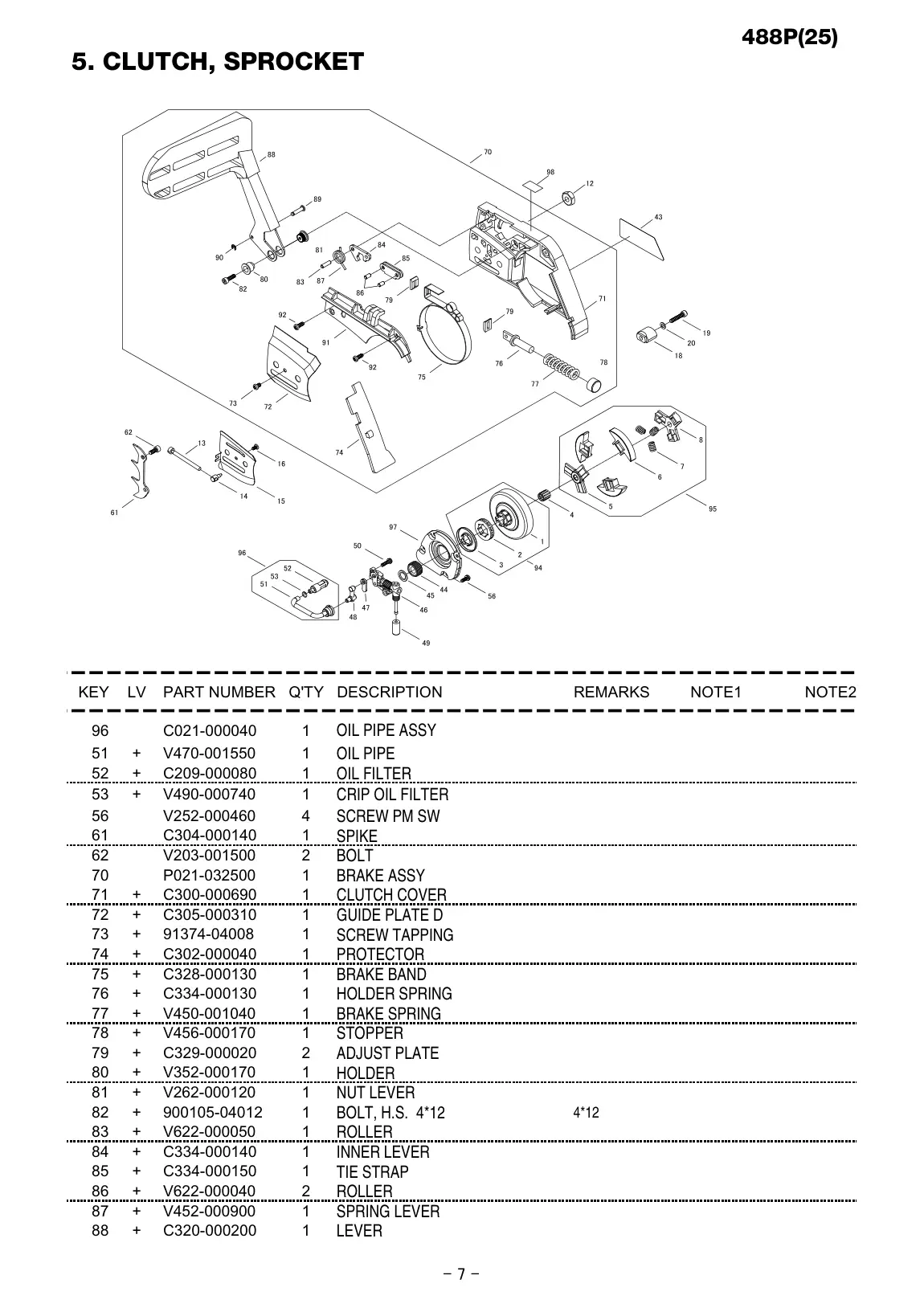

| 8 | LEVER | 51 | OIL PIPE | V470-001550 | V470-001550-Online |
| 8 | LEVER | 52 | OIL FILTER | C209-000080 | C209-000080-Online |
| 8 | LEVER | 53 | CRIP OIL FILTER | V490-000740 | V490-000740-Online |
| 8 | LEVER | 56 | SCREW PM SW | V252-000460 | V252-000460-Online |
| 8 | LEVER | 62 | BOLT | V203-001500 | V203-001500-Online |
| 8 | LEVER | 70 | BRAKE ASSY | P021-032500 | P021-032500-Online |
| 8 | LEVER | 71 | CLUTCH COVER | C300-000690 | C300-000690-Online |
| 8 | LEVER | 72 | GUIDE PLATE D | C305-000310 | C305-000310-Online |
| 8 | LEVER | 73 | SCREW TAPPING | 91374-04008 | 91374-04008-Online |
| 8 | LEVER | 74 | PROTECTOR | C302-000040 | C302-000040-Online |
| 8 | LEVER | 75 | BRAKE BAND | C328-000130 | C328-000130-Online |
| 8 | LEVER | 76 | HOLDER SPRING | C334-000130 | C334-000130-Online |
| 8 | LEVER | 77 | BRAKE SPRING | V450-001040 | V450-001040-Online |
| 8 | LEVER | 78 | STOPPER | V456-000170 | V456-000170-Online |
| 8 | LEVER | 79 | ADJUST PLATE | C329-000020 | C329-000020-Online |
| 8 | LEVER | 80 | HOLDER | V352-000170 | V352-000170-Online |
| 8 | LEVER | 81 | NUT LEVER | V262-000120 | V262-000120-Online |
| 8 | LEVER | 82 | BOLT, H.S. 4*12 | 900105-04012 | 900105-04012-Online |
| 8 | LEVER | 83 | ROLLER | V622-000050 | V622-000050-Online |
| 8 | LEVER | 84 | INNER LEVER | C334-000140 | C334-000140-Online |
| 8 | LEVER | 85 | TIE STRAP | C334-000150 | C334-000150-Online |
| 8 | LEVER | 86 | ROLLER | V622-000040 | V622-000040-Online |
| 8 | LEVER | 87 | SPRING LEVER | V452-000900 | V452-000900-Online |
| 8 | LEVER | 88 | LEVER | C320-000200 | C320-000200-Online |
| 8 | LEVER | 96 | OIL PIPE ASSY | C021-000040 | C021-000040-Online |

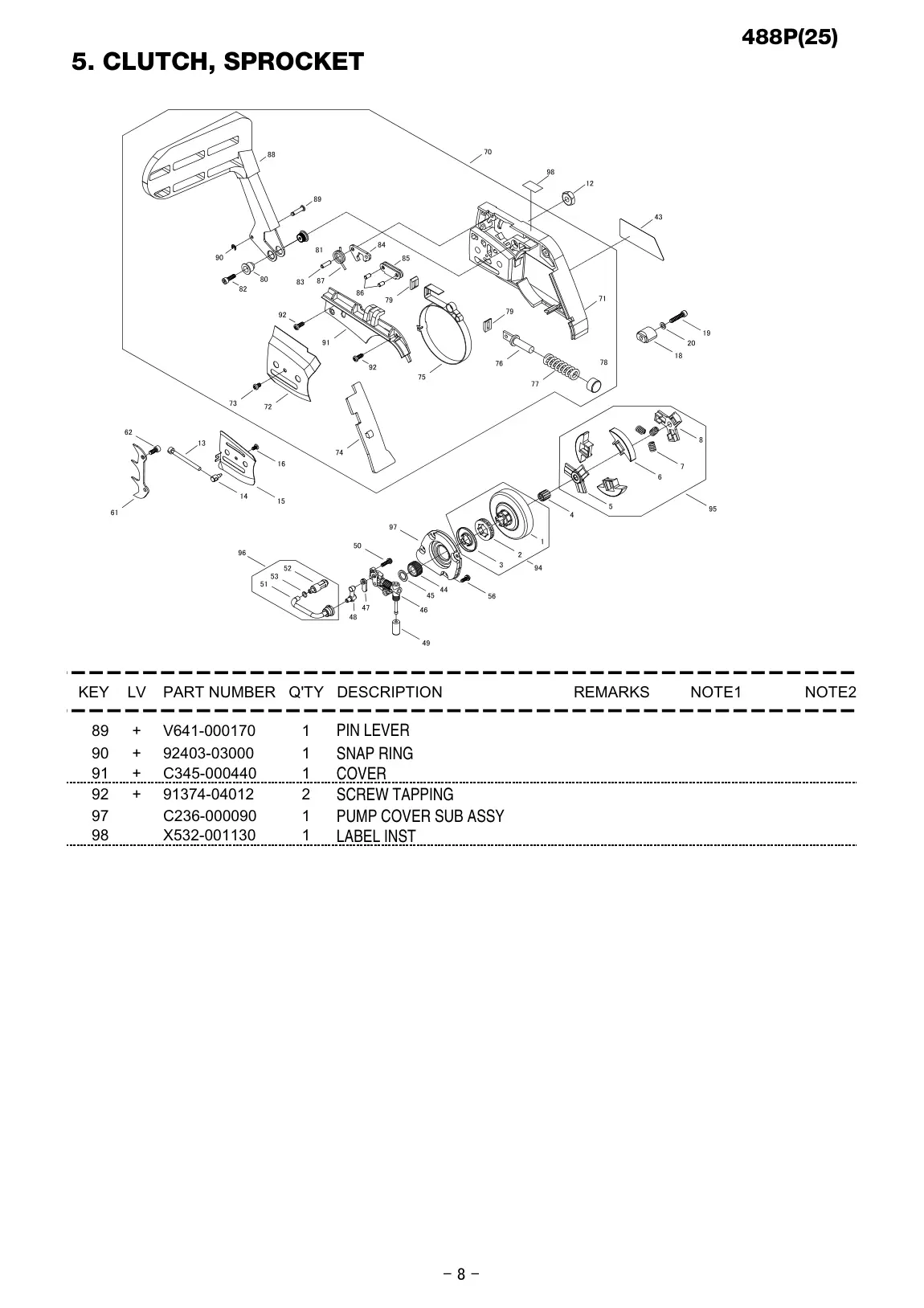

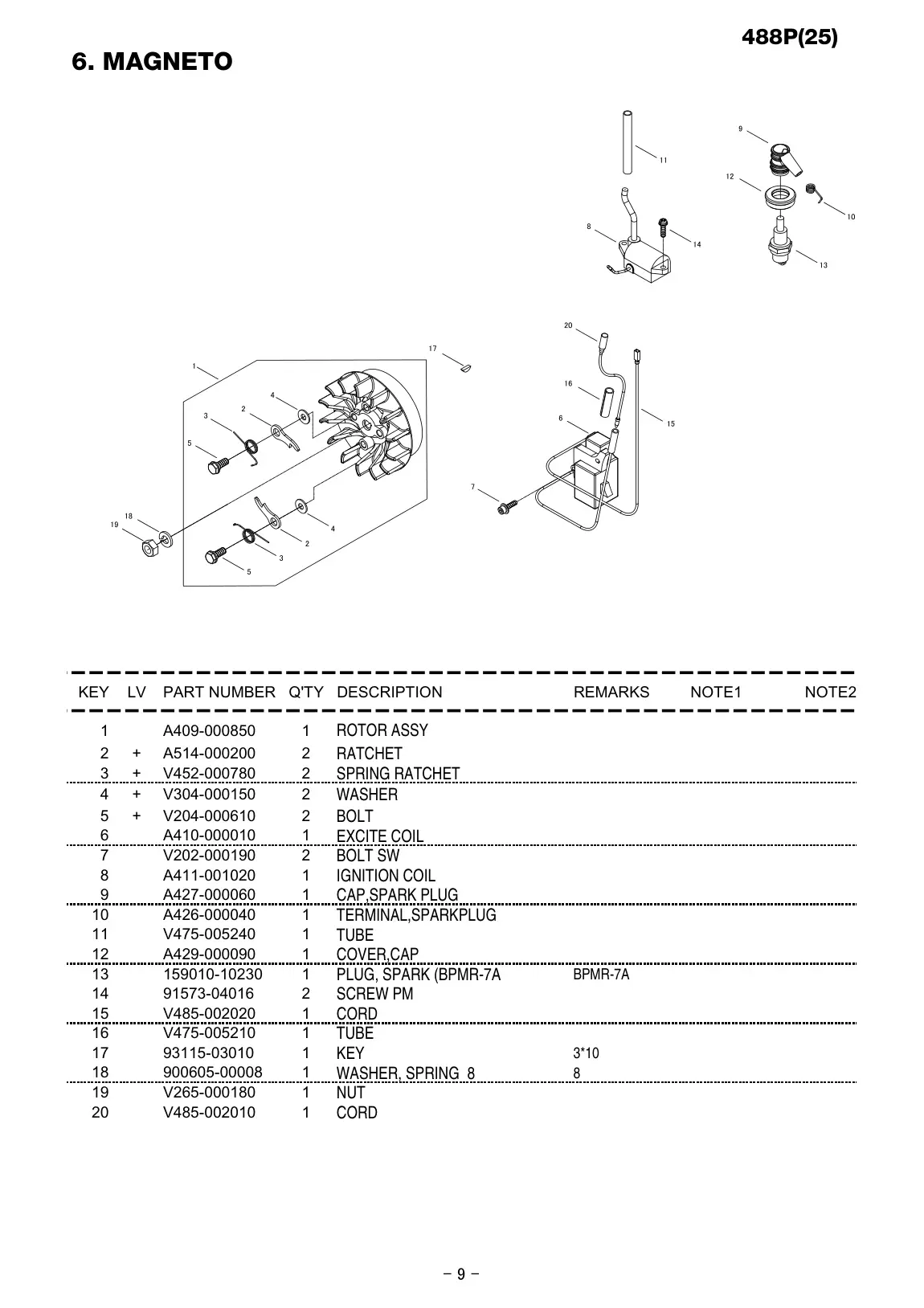

| 9 | LABEL INST | 89 | PIN LEVER | V641-000170 | V641-000170-Online |
| 9 | LABEL INST | 90 | SNAP RING | 92403-03000 | 92403-03000-Online |
| 9 | LABEL INST | 91 | COVER | C345-000440 | C345-000440-Online |
| 9 | LABEL INST | 92 | SCREW TAPPING | 91374-04012 | 91374-04012-Online |
| 9 | LABEL INST | 97 | PUMP COVER SUB ASSY | C236-000090 | C236-000090-Online |
| 9 | LABEL INST | 98 | LABEL INST | X532-001130 | X532-001130-Online |
| 10 | CORD | 1 | ROTOR ASSY | A409-000850 | A409-000850-Online |
| 10 | CORD | 10 | TERMINAL,SPARKPLUG | A426-000040 | A426-000040-Online |
| 10 | CORD | 11 | TUBE | V475-005240 | V475-005240-Online |
| 10 | CORD | 12 | COVER,CAP | A429-000090 | A429-000090-Online |
| 10 | CORD | 13 | PLUG, SPARK (BPMR-7A | 159010-10230 | 159010-10230-Online |
| 10 | CORD | 14 | SCREW PM | 91573-04016 | 91573-04016-Online |
| 10 | CORD | 16 | TUBE | V475-005210 | V475-005210-Online |
| 10 | CORD | 17 | KEY | 93115-03010 | 93115-03010-Online |
| 10 | CORD | 18 | WASHER, SPRING | 900605-00008 | 900605-00008-Online |
| 10 | CORD | 19 | NUT | V265-000180 | V265-000180-Online |
| 10 | CORD | 2 | RATCHET | A514-000200 | A514-000200-Online |
| 10 | CORD | 3 | SPRING RATCHET | V452-000780 | V452-000780-Online |
| 10 | CORD | 4 | WASHER | V304-000150 | V304-000150-Online |
| 10 | CORD | 5 | BOLT | V204-000610 | V204-000610-Online |
| 10 | CORD | 6 | EXCITE COIL | A410-000010 | A410-000010-Online |
| 10 | CORD | 7 | BOLT SW | V202-000190 | V202-000190-Online |
| 10 | CORD | 8 | IGNITION COIL | A411-001020 | A411-001020-Online |
| 10 | CORD | 9 | CAP,SPARK PLUG | A427-000060 | A427-000060-Online |

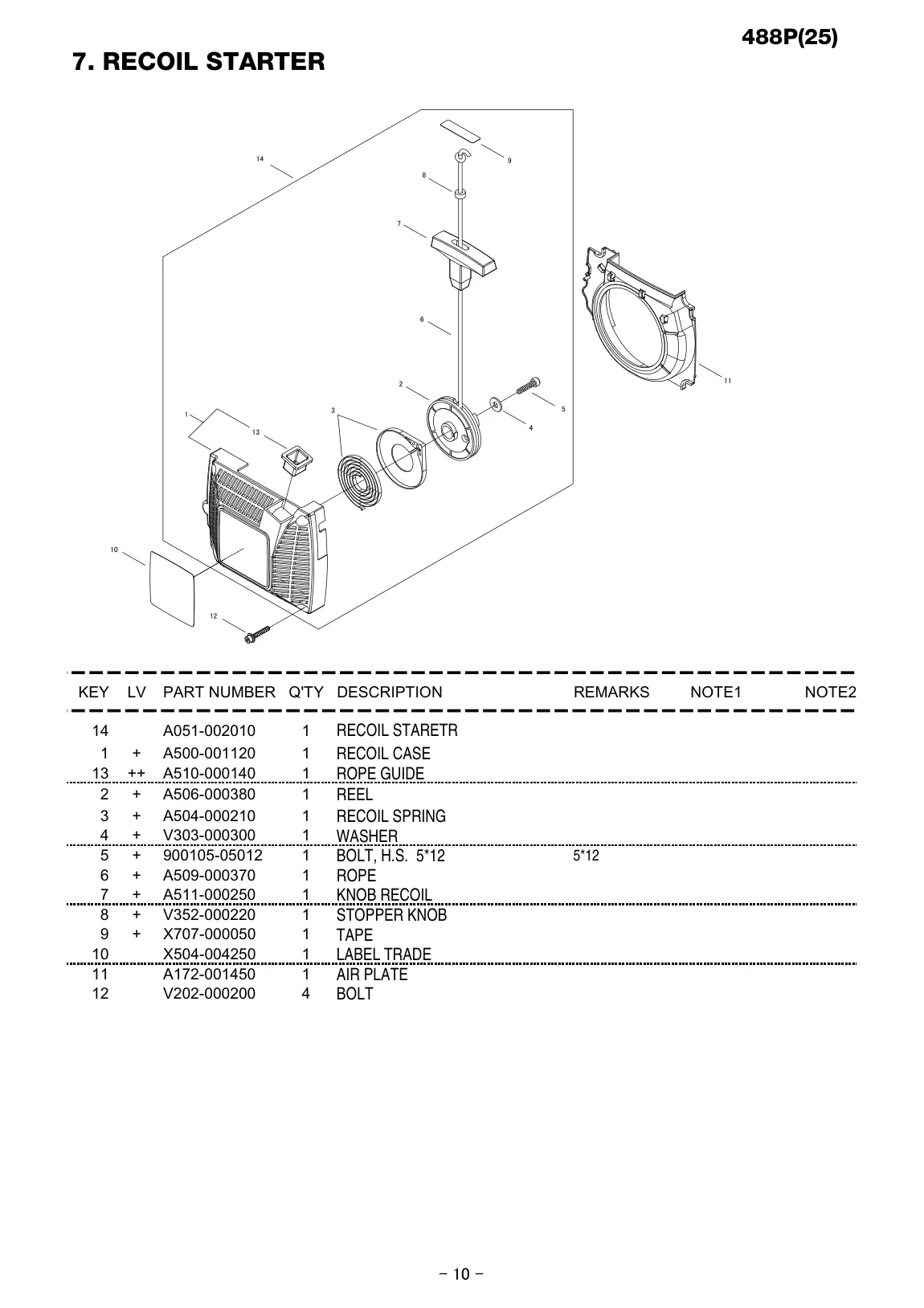

| 11 | BOLT | 1 | RECOIL CASE | A500-001120 | A500-001120-Online |
| 11 | BOLT | 10 | LABEL TRADE | X504-004250 | X504-004250-Online |
| 11 | BOLT | 11 | AIR PLATE | A172-001450 | A172-001450-Online |
| 11 | BOLT | 12 | BOLT | V202-000200 | V202-000200-Online |
| 11 | BOLT | 13 | ROPE GUIDE | A510-000140 | A510-000140-Online |
| 11 | BOLT | 14 | RECOIL STARETR | A051-002010 | A051-002010-Online |
| 11 | BOLT | 2 | REEL | A506-000380 | A506-000380-Online |
| 11 | BOLT | 3 | RECOIL SPRING | A504-000210 | A504-000210-Online |
| 11 | BOLT | 4 | WASHER | V303-000300 | V303-000300-Online |
| 11 | BOLT | 5 | BOLT, H.S. 5*12 | 900105-05012 | 900105-05012-Online |
| 11 | BOLT | 6 | ROPE | A509-000370 | A509-000370-Online |
| 11 | BOLT | 7 | KNOB RECOIL | A511-000250 | A511-000250-Online |
| 11 | BOLT | 8 | STOPPER KNOB | V352-000220 | V352-000220-Online |

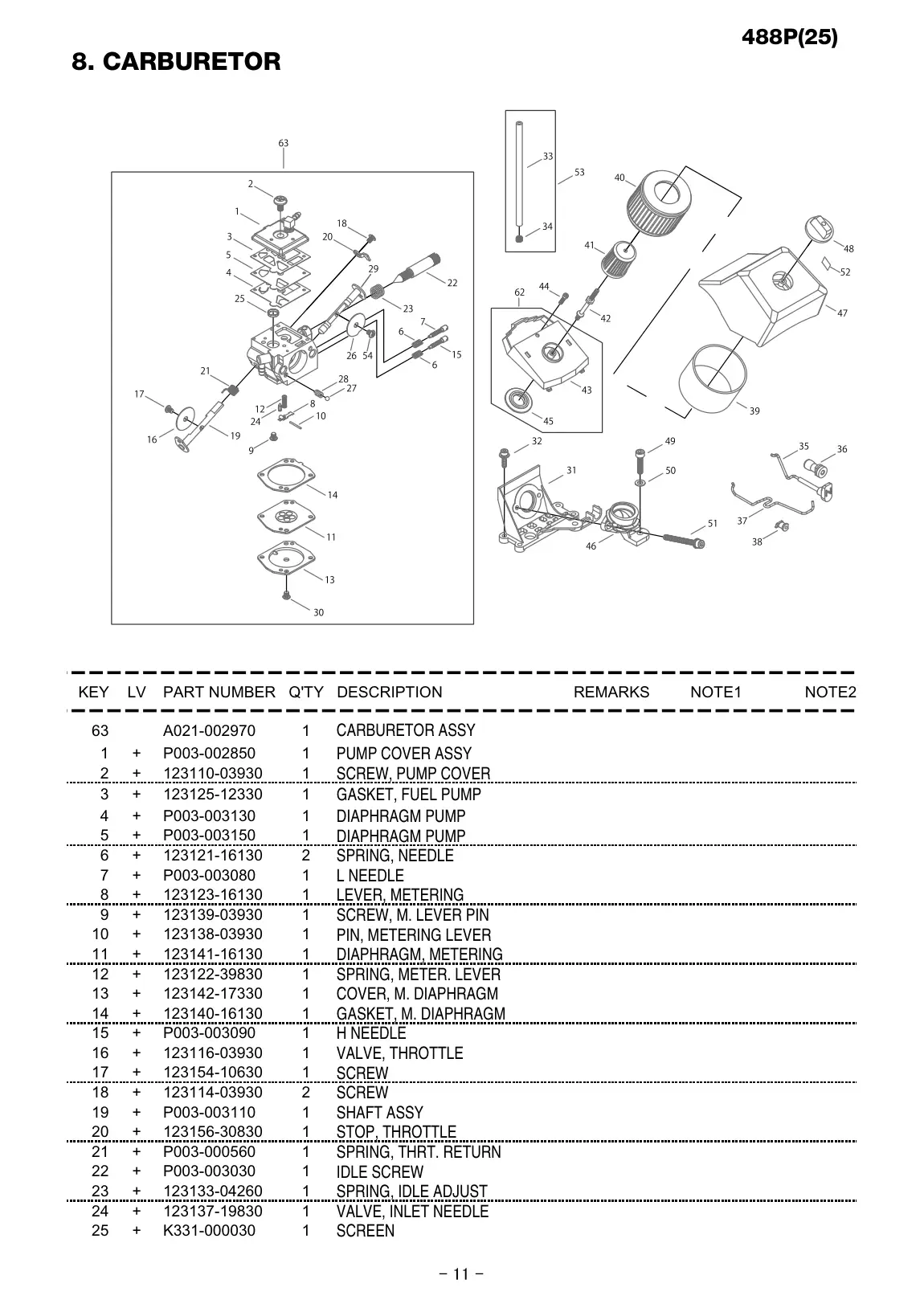

| 12 | SCREEN | 1 | PUMP COVER ASSY | P003-002850 | P003-002850-Online |
| 12 | SCREEN | 10 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 12 | SCREEN | 11 | DIAPHRAGM, METERING | 123141-16130 | 123141-16130-Online |
| 12 | SCREEN | 12 | SPRING, METER. LEVER | 123122-39830 | 123122-39830-Online |
| 12 | SCREEN | 13 | COVER, M. DIAPHRAGM | 123142-17330 | 123142-17330-Online |
| 12 | SCREEN | 14 | GASKET, M. DIAPHRAGM | 123140-16130 | 123140-16130-Online |
| 12 | SCREEN | 15 | H NEEDLE | P003-003090 | P003-003090-Online |
| 12 | SCREEN | 16 | VALVE, THROTTLE | 123116-03930 | 123116-03930-Online |
| 12 | SCREEN | 17 | SCREW | 123154-10630 | 123154-10630-Online |
| 12 | SCREEN | 18 | SCREW | 123114-03930 | 123114-03930-Online |
| 12 | SCREEN | 19 | SHAFT ASSY | P003-003110 | P003-003110-Online |
| 12 | SCREEN | 2 | SCREW, PUMP COVER | 123110-03930 | 123110-03930-Online |
| 12 | SCREEN | 20 | STOP, THROTTLE | 123156-30830 | 123156-30830-Online |
| 12 | SCREEN | 21 | SPRING, THRT. RETURN | P003-000560 | P003-000560-Online |
| 12 | SCREEN | 22 | IDLE SCREW | P003-003030 | P003-003030-Online |
| 12 | SCREEN | 23 | SPRING, IDLE ADJUST | 123133-04260 | 123133-04260-Online |
| 12 | SCREEN | 24 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 12 | SCREEN | 25 | SCREEN | K331-000030 | K331-000030-Online |
| 12 | SCREEN | 3 | GASKET, FUEL PUMP | 123125-12330 | 123125-12330-Online |
| 12 | SCREEN | 4 | DIAPHRAGM PUMP | P003-003130 | P003-003130-Online |
| 12 | SCREEN | 5 | DIAPHRAGM PUMP | P003-003150 | P003-003150-Online |
| 12 | SCREEN | 6 | SPRING, NEEDLE | 123121-16130 | 123121-16130-Online |
| 12 | SCREEN | 63 | CARBURETOR ASSY | A021-002970 | A021-002970-Online |
| 12 | SCREEN | 7 | L NEEDLE | P003-003080 | P003-003080-Online |
| 12 | SCREEN | 8 | LEVER, METERING | 123123-16130 | 123123-16130-Online |
| 12 | SCREEN | 9 | SCREW, M. LEVER PIN | 123139-03930 | 123139-03930-Online |

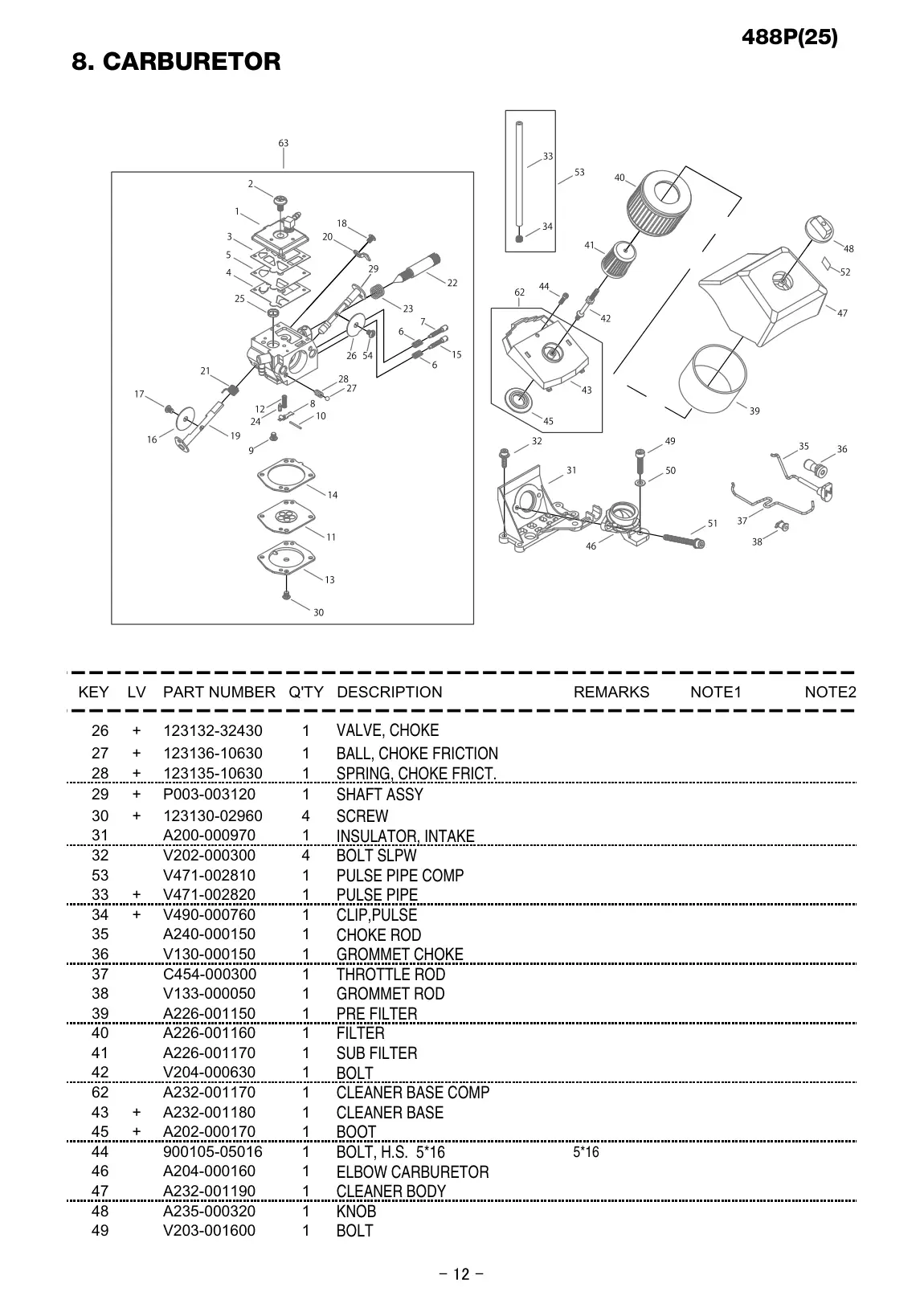

| 13 | BOLT | 26 | VALVE, CHOKE | 123132-32430 | 123132-32430-Online |
| 13 | BOLT | 27 | BALL, CHOKE FRICTION | 123136-10630 | 123136-10630-Online |
| 13 | BOLT | 28 | SPRING, CHOKE FRICT. | 123135-10630 | 123135-10630-Online |
| 13 | BOLT | 29 | SHAFT ASSY | P003-003120 | P003-003120-Online |
| 13 | BOLT | 30 | SCREW | 123130-02960 | 123130-02960-Online |
| 13 | BOLT | 31 | INSULATOR, INTAKE | A200-000970 | A200-000970-Online |
| 13 | BOLT | 32 | BOLT SLPW | V202-000300 | V202-000300-Online |
| 13 | BOLT | 33 | PULSE PIPE | V471-002820 | V471-002820-Online |
| 13 | BOLT | 34 | CLIP,PULSE | V490-000760 | V490-000760-Online |
| 13 | BOLT | 35 | CHOKE ROD | A240-000150 | A240-000150-Online |
| 13 | BOLT | 36 | GROMMET CHOKE | V130-000150 | V130-000150-Online |
| 13 | BOLT | 37 | THROTTLE ROD | C454-000300 | C454-000300-Online |
| 13 | BOLT | 38 | GROMMET ROD | V133-000050 | V133-000050-Online |
| 13 | BOLT | 39 | PRE FILTER | A226-001150 | A226-001150-Online |
| 13 | BOLT | 40 | FILTER | A226-001160 | A226-001160-Online |
| 13 | BOLT | 41 | SUB FILTER | A226-001170 | A226-001170-Online |
| 13 | BOLT | 42 | BOLT | V204-000630 | V204-000630-Online |
| 13 | BOLT | 43 | CLEANER BASE | A232-001180 | A232-001180-Online |
| 13 | BOLT | 44 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 13 | BOLT | 46 | ELBOW CARBURETOR | A204-000160 | A204-000160-Online |
| 13 | BOLT | 47 | CLEANER BODY | A232-001190 | A232-001190-Online |
| 13 | BOLT | 48 | KNOB | A235-000320 | A235-000320-Online |
| 13 | BOLT | 49 | BOLT | V203-001600 | V203-001600-Online |
| 13 | BOLT | 53 | PULSE PIPE COMP | V471-002810 | V471-002810-Online |
| 13 | BOLT | 62 | CLEANER BASE COMP | A232-001170 | A232-001170-Online |

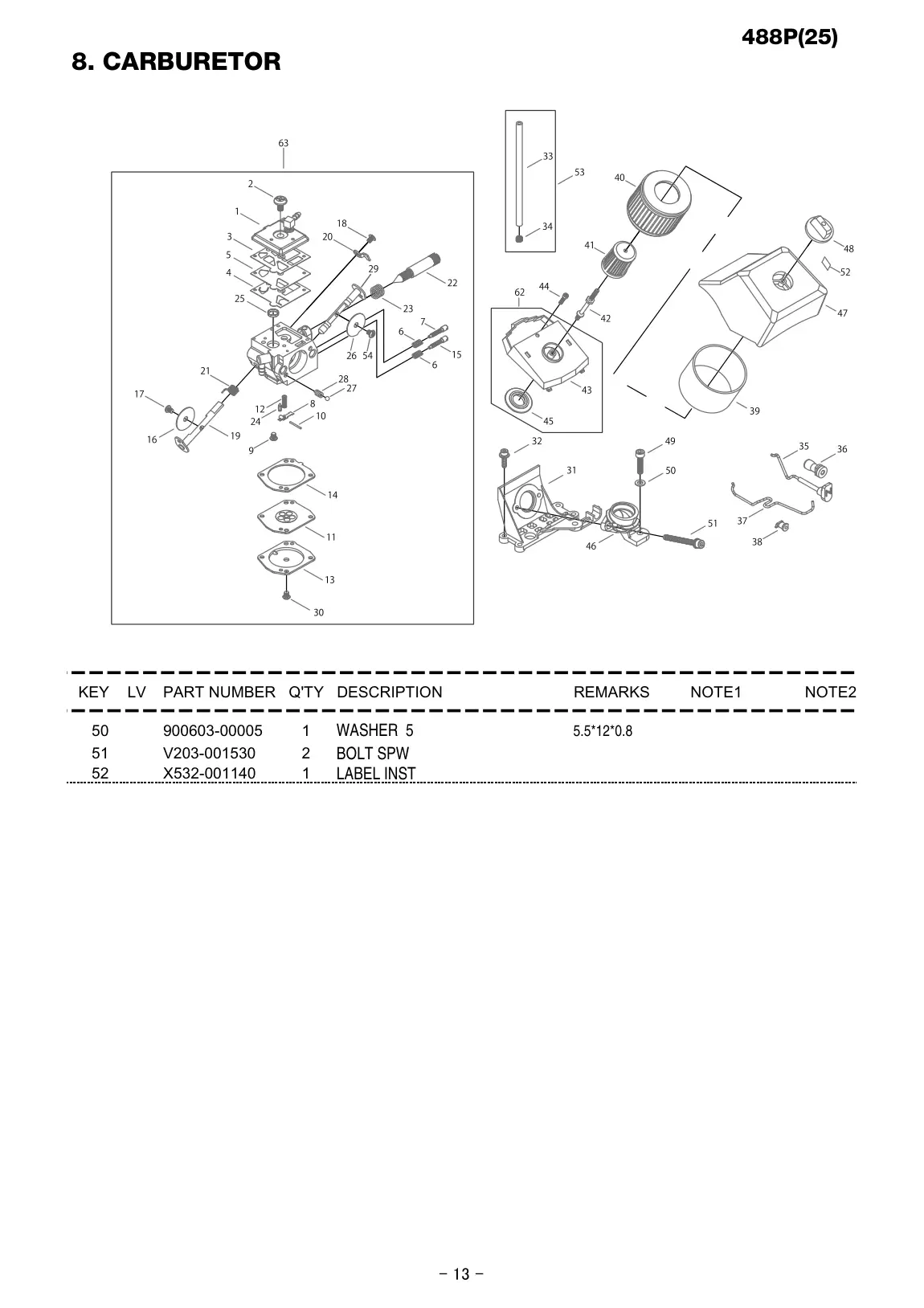

| 14 | LABEL INST | 50 | WASHER | 900603-00005 | 900603-00005-Online |
| 14 | LABEL INST | 51 | BOLT SPW | V203-001530 | V203-001530-Online |
| 14 | LABEL INST | 52 | LABEL INST | X532-001140 | X532-001140-Online |

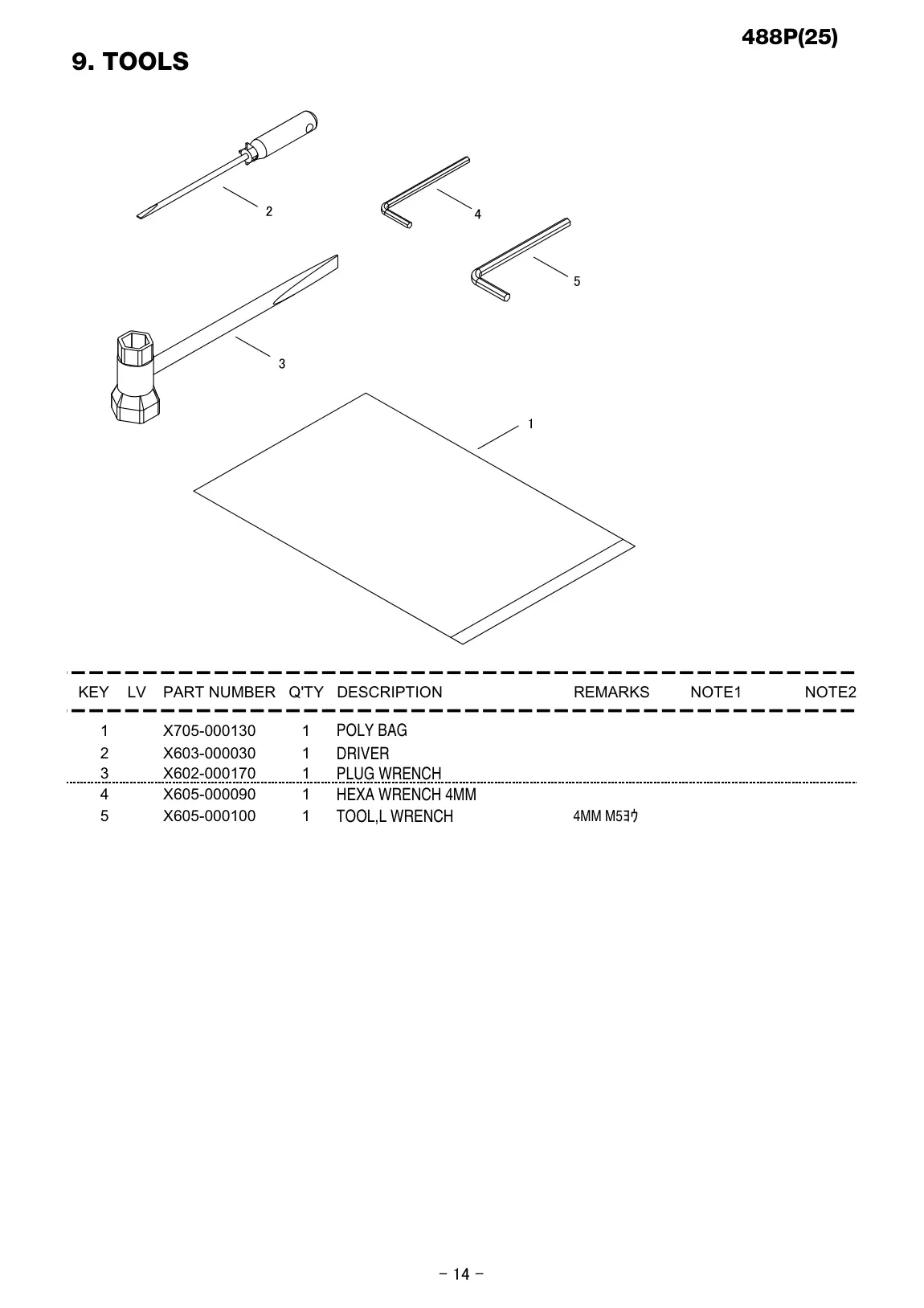

| 15 | TOOL,L WRENCH | 1 | POLY BAG | X705-000130 | X705-000130-Online |
| 15 | TOOL,L WRENCH | 2 | DRIVER | X603-000030 | X603-000030-Online |
| 15 | TOOL,L WRENCH | 3 | PLUG WRENCH | X602-000170 | X602-000170-Online |
| 15 | TOOL,L WRENCH | 4 | HEXA WRENCH 4MM | X605-000090 | X605-000090-Online |
| 15 | TOOL,L WRENCH | 5 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
Source file: 20130718-338_488P(25)_P016-000690-11Jb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
