Illustrated Parts List
Shindaiwa 451S Chainsaw IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: 451S
Type: Chainsaw
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

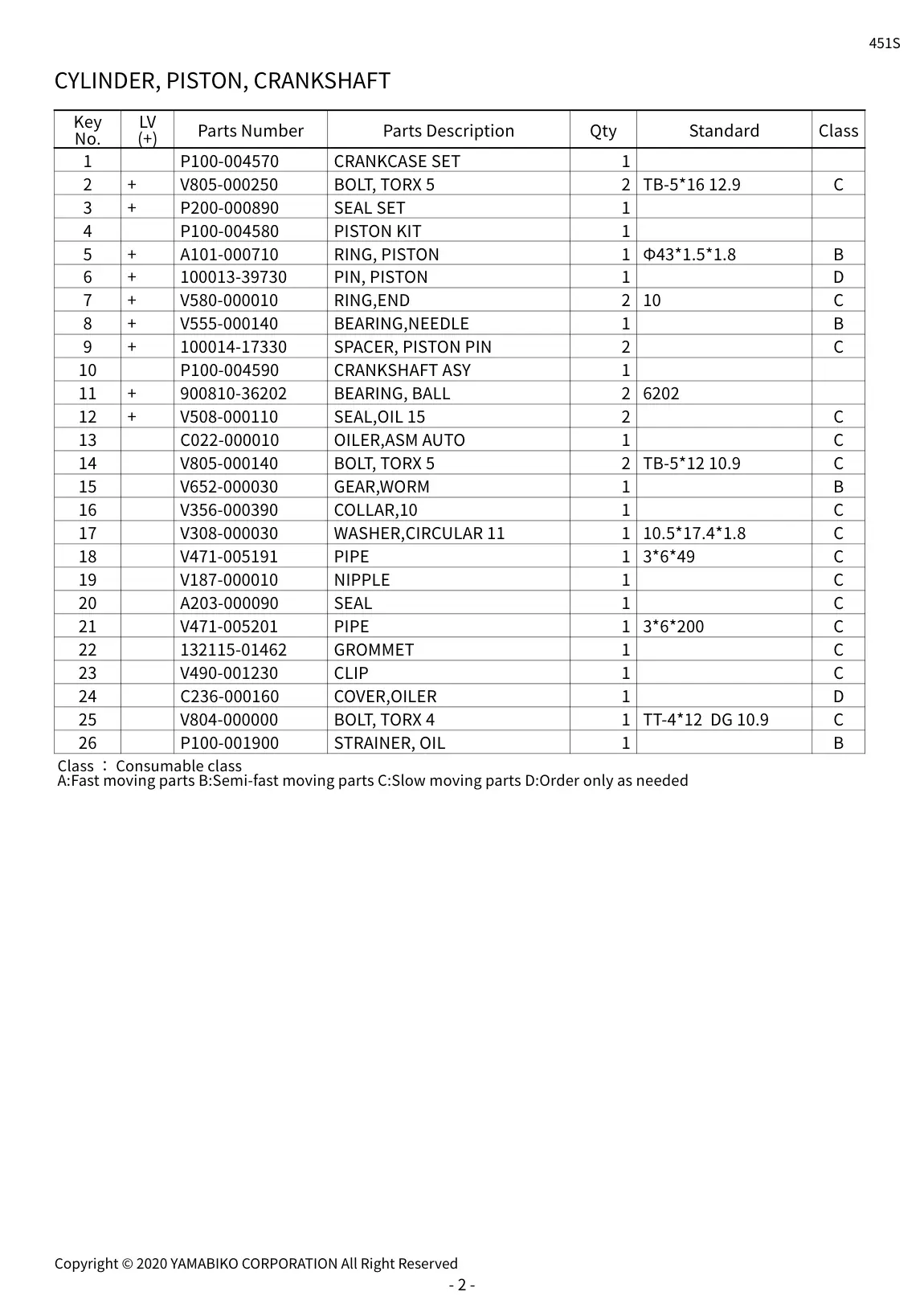

| 5 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKCASE SET | P100-004570 | P100-004570-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 10 | CRANKSHAFT ASY | P100-004590 | P100-004590-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 11 | BEARING, BALL | 900810-36202 | 900810-36202-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 12 | SEAL,OIL | V508-000110 | V508-000110-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 13 | OILER,ASM AUTO | C022-000010 | C022-000010-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 14 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 15 | GEAR,WORM | V652-000030 | V652-000030-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 16 | COLLAR,10 | V356-000390 | V356-000390-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 17 | WASHER,CIRCULAR | V308-000030 | V308-000030-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 18 | PIPE | V471-005191 | V471-005191-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 19 | NIPPLE | V187-000010 | V187-000010-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 2 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 20 | SEAL | A203-000090 | A203-000090-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 21 | PIPE | V471-005201 | V471-005201-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 22 | GROMMET | 132115-01462 | 132115-01462-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 23 | CLIP | V490-001230 | V490-001230-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 24 | COVER,OILER | C236-000160 | C236-000160-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 25 | BOLT, TORX | V804-000000 | V804-000000-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 26 | STRAINER, OIL | P100-001900 | P100-001900-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 3 | SEAL SET | P200-000890 | P200-000890-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 4 | PISTON KIT | P100-004580 | P100-004580-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 5 | RING, PISTON | A101-000710 | A101-000710-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 6 | PIN, PISTON | 100013-39730 | 100013-39730-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 7 | RING,END | V580-000010 | V580-000010-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 8 | BEARING,NEEDLE | V555-000140 | V555-000140-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 9 | SPACER, PISTON PIN | 100014-17330 | 100014-17330-Online |

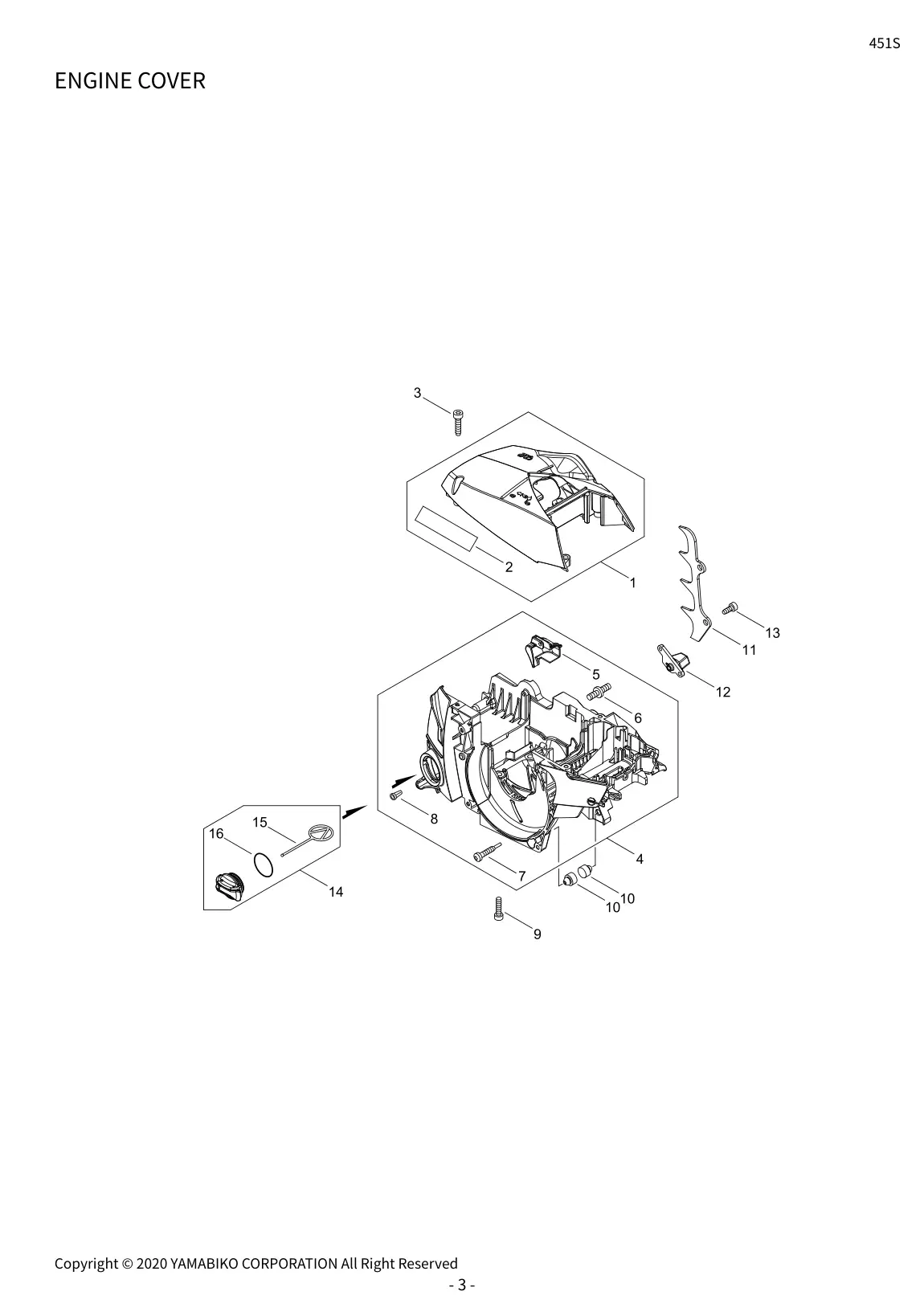

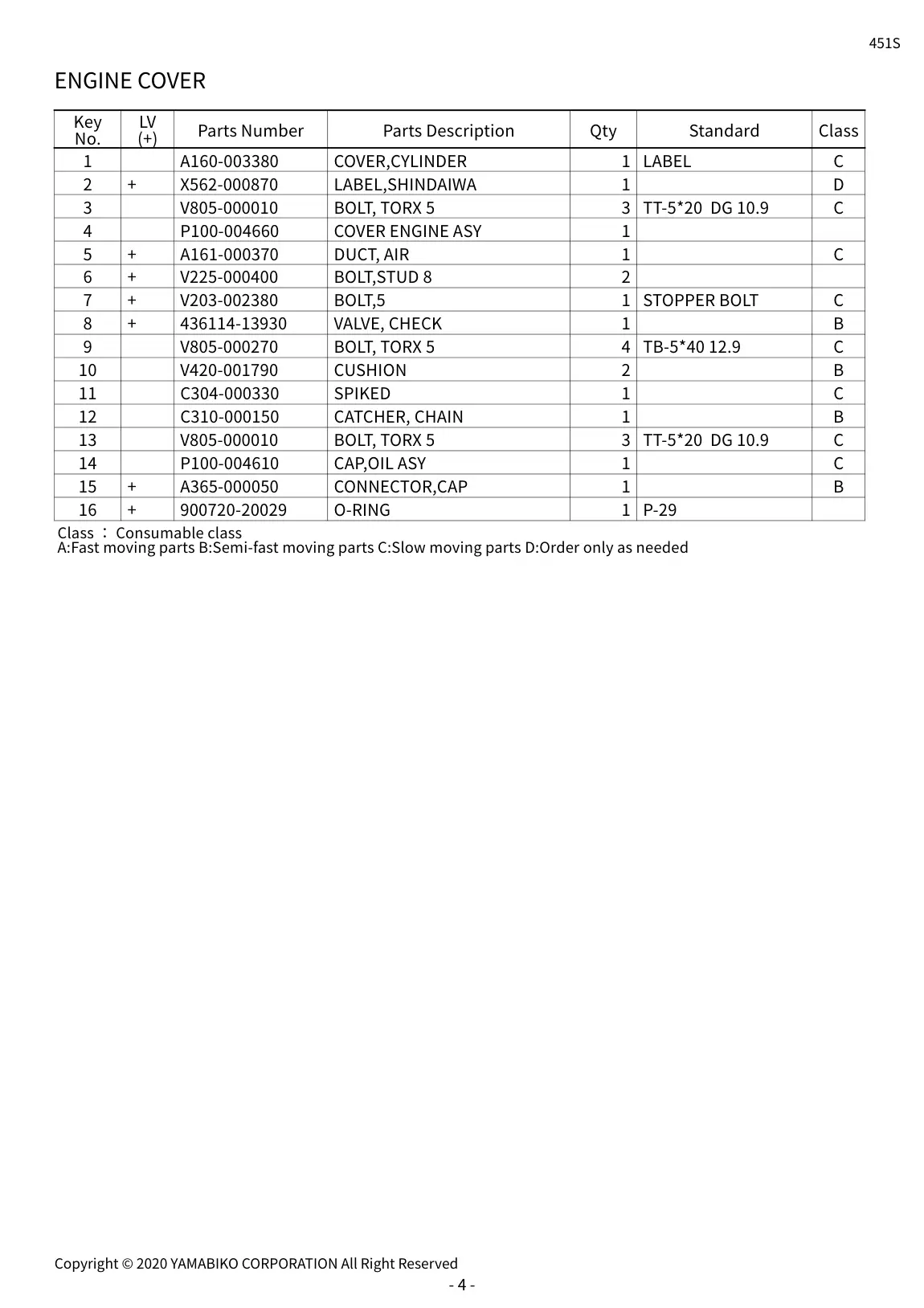

| 7 | ENGINE COVER | 1 | COVER,CYLINDER | A160-003380 | A160-003380-Online |
| 7 | ENGINE COVER | 10 | CUSHION | V420-001790 | V420-001790-Online |
| 7 | ENGINE COVER | 11 | SPIKED | C304-000330 | C304-000330-Online |
| 7 | ENGINE COVER | 12 | CATCHER, CHAIN | C310-000150 | C310-000150-Online |
| 7 | ENGINE COVER | 13 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 7 | ENGINE COVER | 14 | CAP,OIL ASY | P100-004610 | P100-004610-Online |
| 7 | ENGINE COVER | 15 | CONNECTOR,CAP | A365-000050 | A365-000050-Online |
| 7 | ENGINE COVER | 16 | O-RING | 900720-20029 | 900720-20029-Online |
| 7 | ENGINE COVER | 2 | LABEL,SHINDAIWA | X562-000870 | X562-000870-Online |
| 7 | ENGINE COVER | 3 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 7 | ENGINE COVER | 4 | COVER ENGINE ASY | P100-004660 | P100-004660-Online |
| 7 | ENGINE COVER | 5 | DUCT, AIR | A161-000370 | A161-000370-Online |
| 7 | ENGINE COVER | 6 | BOLT,STUD | V225-000400 | V225-000400-Online |
| 7 | ENGINE COVER | 7 | BOLT,5 | V203-002380 | V203-002380-Online |
| 7 | ENGINE COVER | 8 | VALVE, CHECK | 436114-13930 | 436114-13930-Online |
| 7 | ENGINE COVER | 9 | BOLT, TORX | V805-000270 | V805-000270-Online |

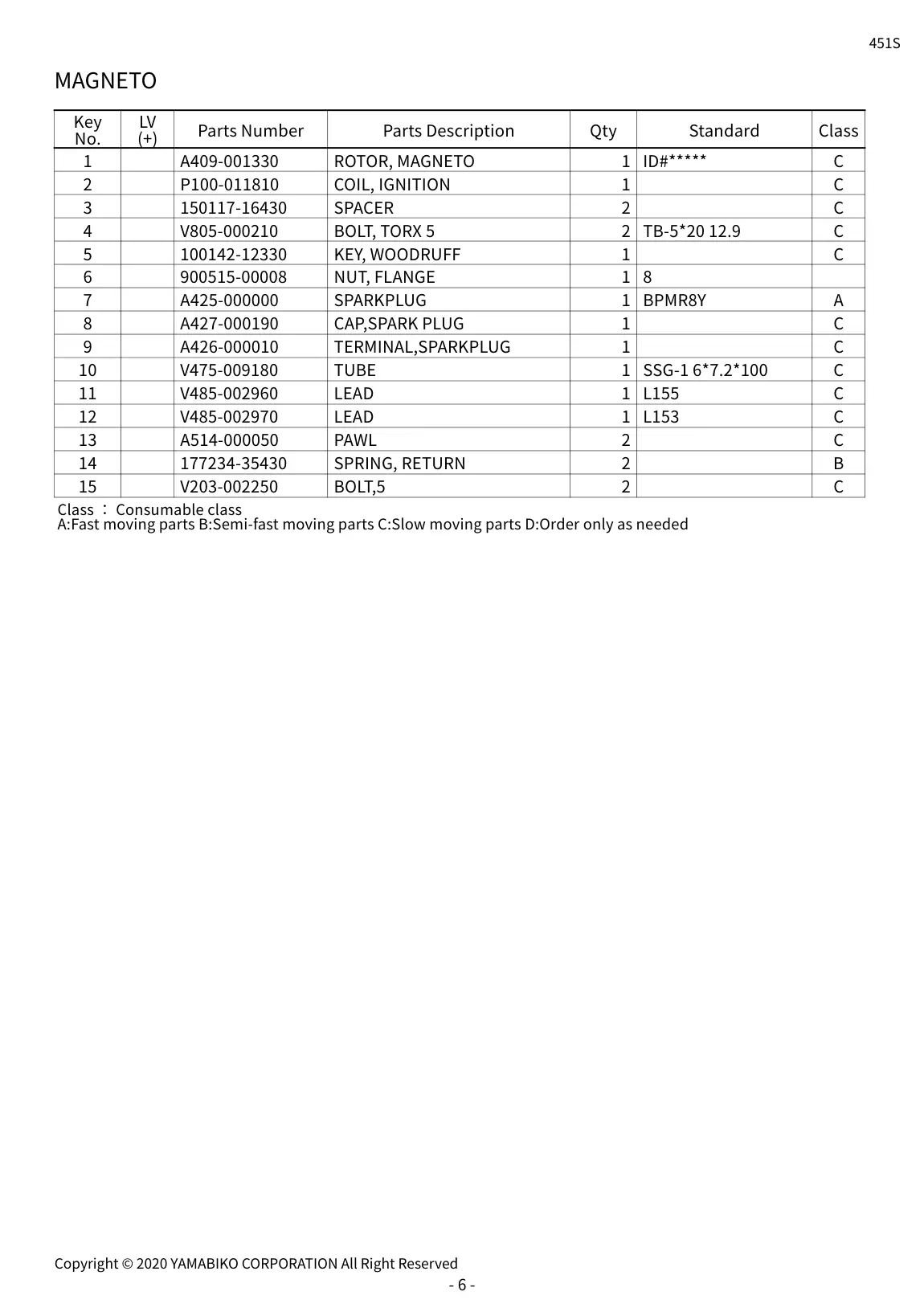

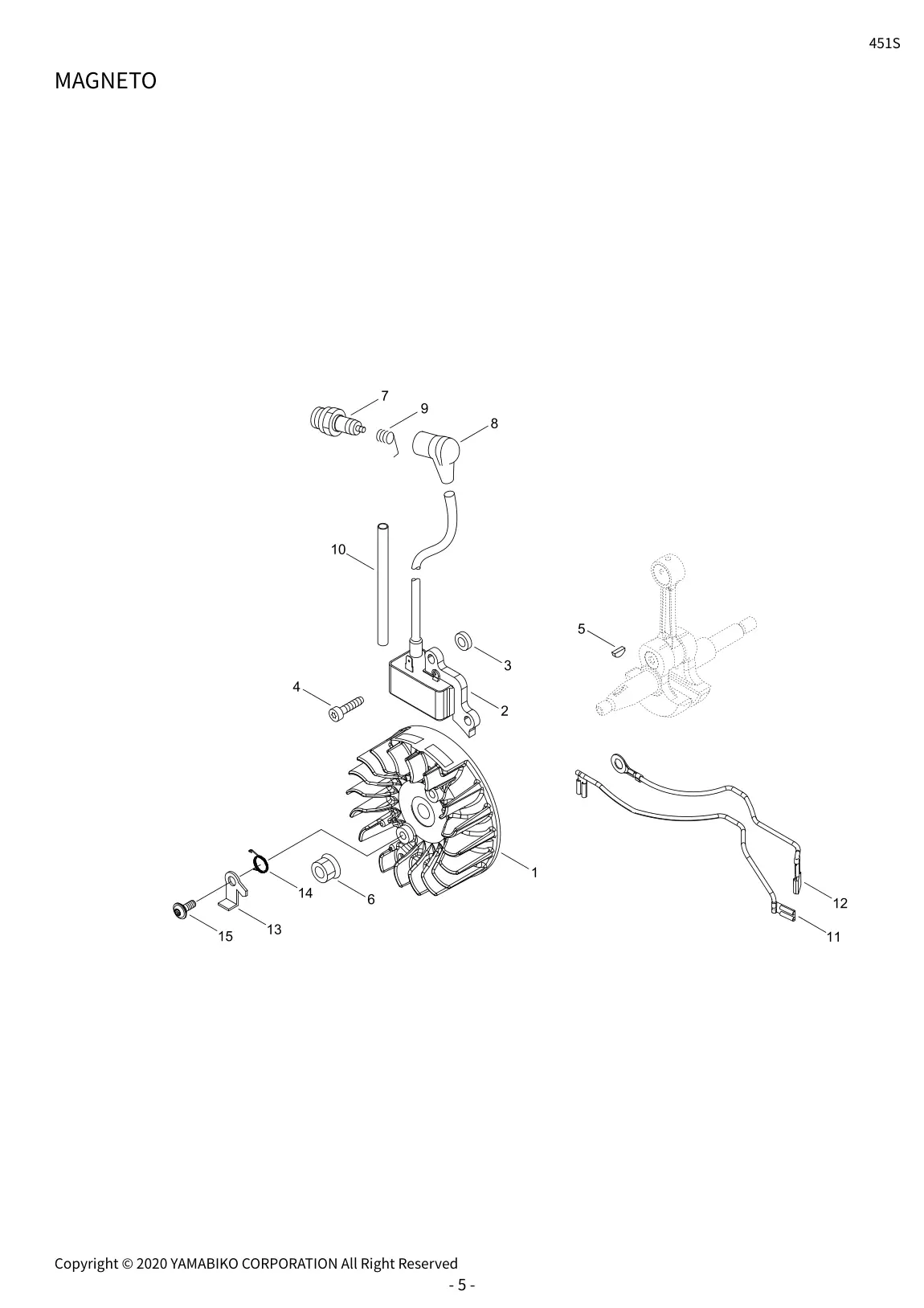

| 9 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001330 | A409-001330-Online |
| 9 | MAGNETO | 10 | TUBE | V475-009180 | V475-009180-Online |
| 9 | MAGNETO | 11 | LEAD | V485-002960 | V485-002960-Online |
| 9 | MAGNETO | 12 | LEAD | V485-002970 | V485-002970-Online |
| 9 | MAGNETO | 13 | PAWL | A514-000050 | A514-000050-Online |
| 9 | MAGNETO | 14 | SPRING, RETURN | 177234-35430 | 177234-35430-Online |
| 9 | MAGNETO | 15 | BOLT,5 | V203-002250 | V203-002250-Online |
| 9 | MAGNETO | 2 | COIL, IGNITION | P100-011810 | P100-011810-Online |
| 9 | MAGNETO | 3 | SPACER | 150117-16430 | 150117-16430-Online |
| 9 | MAGNETO | 4 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 9 | MAGNETO | 5 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 9 | MAGNETO | 6 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 9 | MAGNETO | 7 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 9 | MAGNETO | 8 | CAP,SPARK PLUG | A427-000190 | A427-000190-Online |
| 9 | MAGNETO | 9 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 11 | AIR CLEANER, CARBURETOR | 1 | CARBURETOR,DIAPHRAGM | A021-004811 | A021-004811-Online |
| 11 | AIR CLEANER, CARBURETOR | 1 | BOLT, TORX | IDYZ0007 | IDYZ0007-Online |
| 11 | AIR CLEANER, CARBURETOR | 10 | O-RING | 900724-00022 | 900724-00022-Online |
| 11 | AIR CLEANER, CARBURETOR | 11 | CASE,CLEANER | A225-000730 | A225-000730-Online |
| 11 | AIR CLEANER, CARBURETOR | 12 | DUCT, AIR | A161-000350 | A161-000350-Online |
| 11 | AIR CLEANER, CARBURETOR | 13 | DUCT, AIR | A161-000360 | A161-000360-Online |
| 11 | AIR CLEANER, CARBURETOR | 14 | ELEMENT, AIR FILTER | A226-002150 | A226-002150-Online |
| 11 | AIR CLEANER, CARBURETOR | 15 | CUSHION | V420-005260 | V420-005260-Online |
| 11 | AIR CLEANER, CARBURETOR | 16 | LID,CLEANER | A232-001950 | A232-001950-Online |
| 11 | AIR CLEANER, CARBURETOR | 17 | SPRING,FLAT | V453-000260 | V453-000260-Online |
| 11 | AIR CLEANER, CARBURETOR | 18 | BOLT, TORX | V804-000000 | V804-000000-Online |
| 11 | AIR CLEANER, CARBURETOR | 19 | KNOB,CLEANER LID | A235-000440 | A235-000440-Online |
| 11 | AIR CLEANER, CARBURETOR | 2 | BOLT, TORX | V805-000040 | V805-000040-Online |
| 11 | AIR CLEANER, CARBURETOR | 20 | RING,SNAP | V582-000280 | V582-000280-Online |
| 11 | AIR CLEANER, CARBURETOR | 21 | CUSHION | V420-005260 | V420-005260-Online |
| 11 | AIR CLEANER, CARBURETOR | 22 | LABEL,MODEL | X503-014650 | X503-014650-Online |
| 11 | AIR CLEANER, CARBURETOR | 3 | PIPE | V471-000761 | V471-000761-Online |
| 11 | AIR CLEANER, CARBURETOR | 4 | BELLOWS, INTAKE | A202-000310 | A202-000310-Online |
| 11 | AIR CLEANER, CARBURETOR | 5 | BELLOWS, INTAKE | A202-000320 | A202-000320-Online |
| 11 | AIR CLEANER, CARBURETOR | 6 | BOLT, TORX | V804-000050 | V804-000050-Online |
| 11 | AIR CLEANER, CARBURETOR | 7 | INSULATOR, INTAKE | A200-001150 | A200-001150-Online |
| 11 | AIR CLEANER, CARBURETOR | 8 | CUSHION | V420-005250 | V420-005250-Online |
| 11 | AIR CLEANER, CARBURETOR | 9 | INSULATOR, INTAKE | A200-001160 | A200-001160-Online |
| 13 | CARBURETOR | 1 | CARBURETOR,DIAPHRAGM | A021-004811 | A021-004811-Online |
| 13 | CARBURETOR | 1 | NOZZLE, CHECK VALVE | IDYZ0007 | IDYZ0007-Online |
| 13 | CARBURETOR | 10 | DIAPHRAGM, PUMP | P005-001110 | P005-001110-Online |
| 13 | CARBURETOR | 11 | GASKET, PUMP | 125325-08360 | 125325-08360-Online |
| 13 | CARBURETOR | 12 | COVER, PUMP | P005-004110 | P005-004110-Online |
| 13 | CARBURETOR | 13 | SCREW,THROTTLEADJUST | P005-004120 | P005-004120-Online |
| 13 | CARBURETOR | 14 | PIECE, FRICTION | 125378-13930 | 125378-13930-Online |
| 13 | CARBURETOR | 15 | SCREW | 125310-13930 | 125310-13930-Online |
| 13 | CARBURETOR | 16 | VALVE, INLET NEEDLE | P005-004030 | P005-004030-Online |
| 13 | CARBURETOR | 17 | SPRING, COIL | 125322-13930 | 125322-13930-Online |
| 13 | CARBURETOR | 18 | ARM, VALVE | 125323-08260 | 125323-08260-Online |
| 13 | CARBURETOR | 19 | PIN, METERING ARM | 125338-13930 | 125338-13930-Online |
| 13 | CARBURETOR | 2 | NOZZLE, CHECK VALVE | P005-004060 | P005-004060-Online |
| 13 | CARBURETOR | 20 | SCREW | P005-004130 | P005-004130-Online |
| 13 | CARBURETOR | 21 | METERING, DIAPHRAGM | P005-004300 | P005-004300-Online |
| 13 | CARBURETOR | 22 | GASKET, METERING | P005-003200 | P005-003200-Online |
| 13 | CARBURETOR | 23 | COVER, METERING | P005-003210 | P005-003210-Online |
| 13 | CARBURETOR | 24 | SCREW | P005-003840 | P005-003840-Online |
| 13 | CARBURETOR | 25 | NEEDLE | P005-004290 | P005-004290-Online |
| 13 | CARBURETOR | 26 | SCREW,IDLE MIXTURE | P005-004170 | P005-004170-Online |
| 13 | CARBURETOR | 27 | RETAINER | 125363-12820 | 125363-12820-Online |
| 13 | CARBURETOR | 28 | SHAFT, CHOKE ASY | P005-004180 | P005-004180-Online |
| 13 | CARBURETOR | 29 | LEVER, CHOKE | P005-004190 | P005-004190-Online |
| 13 | CARBURETOR | 3 | SHAFT ASY,THROTTLE | P005-004070 | P005-004070-Online |
| 13 | CARBURETOR | 30 | VALVE, CHOKE | P005-004200 | P005-004200-Online |
| 13 | CARBURETOR | 31 | SPRING, RETURN | P005-004210 | P005-004210-Online |
| 13 | CARBURETOR | 32 | SCREEN, FUEL INLET | P005-000860 | P005-000860-Online |
| 13 | CARBURETOR | 33 | PLUG, WELCH | P005-000410 | P005-000410-Online |
| 13 | CARBURETOR | 4 | LEVER, THROTTLE | P005-004080 | P005-004080-Online |
| 13 | CARBURETOR | 5 | SCREW | 125348-13930 | 125348-13930-Online |
| 13 | CARBURETOR | 6 | SPRING, RETURN | P005-004090 | P005-004090-Online |
| 13 | CARBURETOR | 7 | VALVE, THROTTLE | P005-004100 | P005-004100-Online |
| 13 | CARBURETOR | 8 | SCREW | 125314-51230 | 125314-51230-Online |
| 13 | CARBURETOR | 9 | RETAINER, SHAFT | P005-003820 | P005-003820-Online |

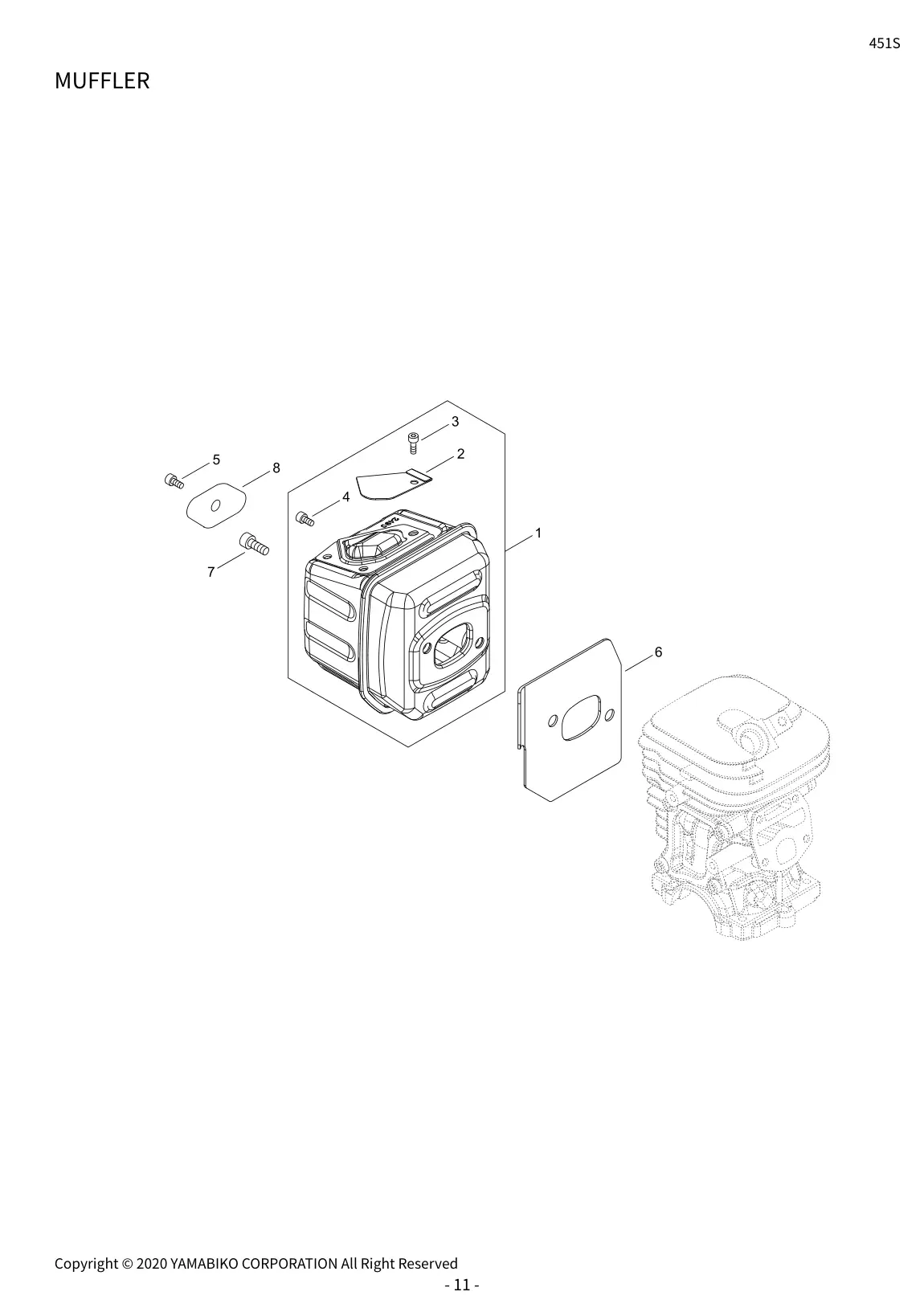

| 15 | MUFFLER | 1 | MUFFLER ASY | P100-004620 | P100-004620-Online |
| 15 | MUFFLER | 2 | SCREEN, ARRESTOR | A310-000500 | A310-000500-Online |
| 15 | MUFFLER | 3 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 15 | MUFFLER | 4 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 15 | MUFFLER | 5 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 15 | MUFFLER | 6 | GASKET,EXHAUST | V104-002340 | V104-002340-Online |
| 15 | MUFFLER | 7 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 15 | MUFFLER | 8 | STAY, MUFFLER | 145711-60631 | 145711-60631-Online |

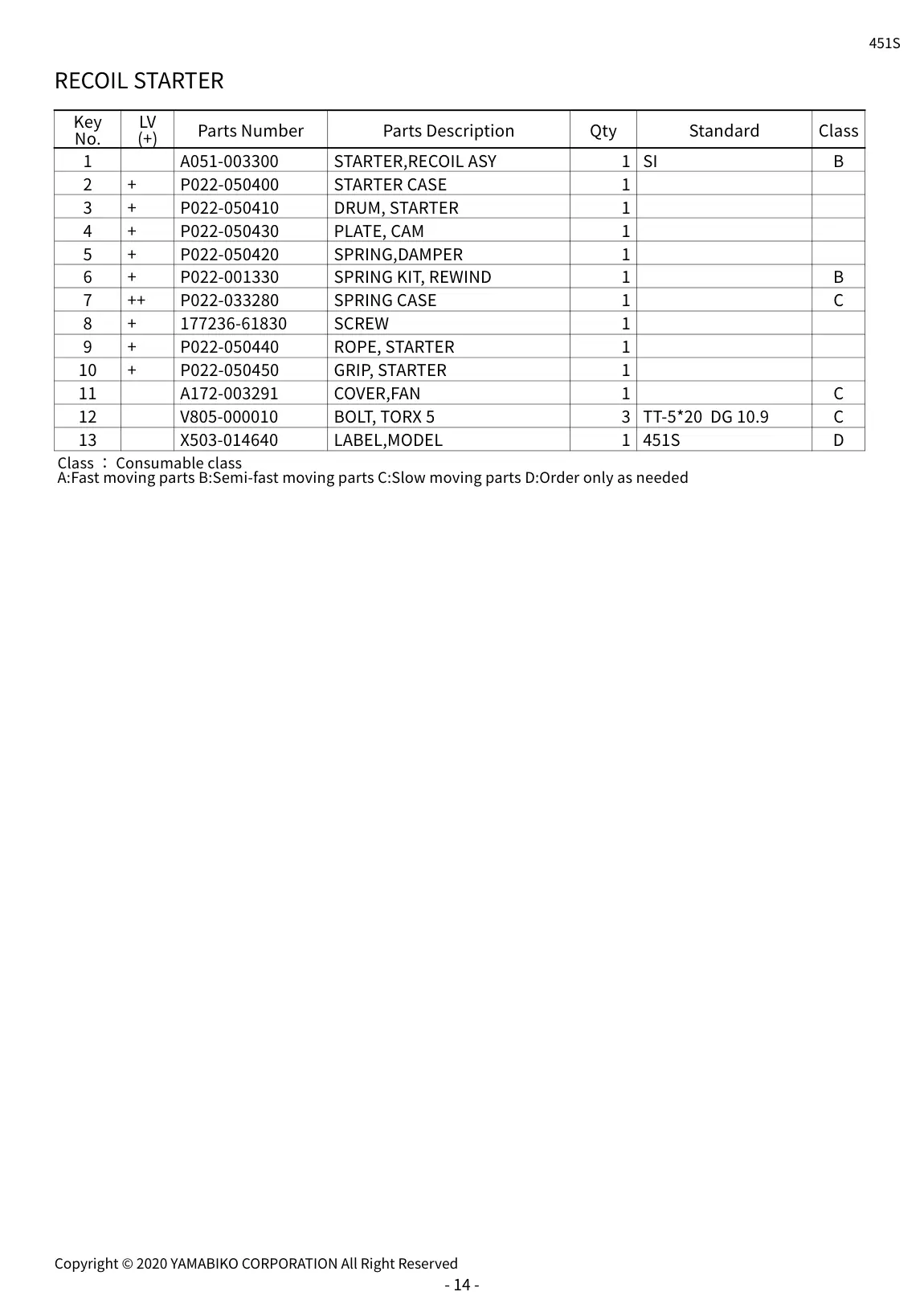

| 17 | RECOIL STARTER | 1 | STARTER,RECOIL ASY | A051-003300 | A051-003300-Online |
| 17 | RECOIL STARTER | 10 | GRIP, STARTER | P022-050450 | P022-050450-Online |
| 17 | RECOIL STARTER | 11 | COVER,FAN | A172-003291 | A172-003291-Online |
| 17 | RECOIL STARTER | 12 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 17 | RECOIL STARTER | 13 | LABEL,MODEL | X503-014640 | X503-014640-Online |
| 17 | RECOIL STARTER | 2 | STARTER CASE | P022-050400 | P022-050400-Online |
| 17 | RECOIL STARTER | 3 | DRUM, STARTER | P022-050410 | P022-050410-Online |
| 17 | RECOIL STARTER | 4 | PLATE, CAM | P022-050430 | P022-050430-Online |
| 17 | RECOIL STARTER | 5 | SPRING,DAMPER | P022-050420 | P022-050420-Online |
| 17 | RECOIL STARTER | 6 | SPRING KIT, REWIND | P022-001330 | P022-001330-Online |
| 17 | RECOIL STARTER | 7 | SPRING CASE | P022-033280 | P022-033280-Online |
| 17 | RECOIL STARTER | 8 | SCREW | 177236-61830 | 177236-61830-Online |
| 17 | RECOIL STARTER | 9 | ROPE, STARTER | P022-050440 | P022-050440-Online |

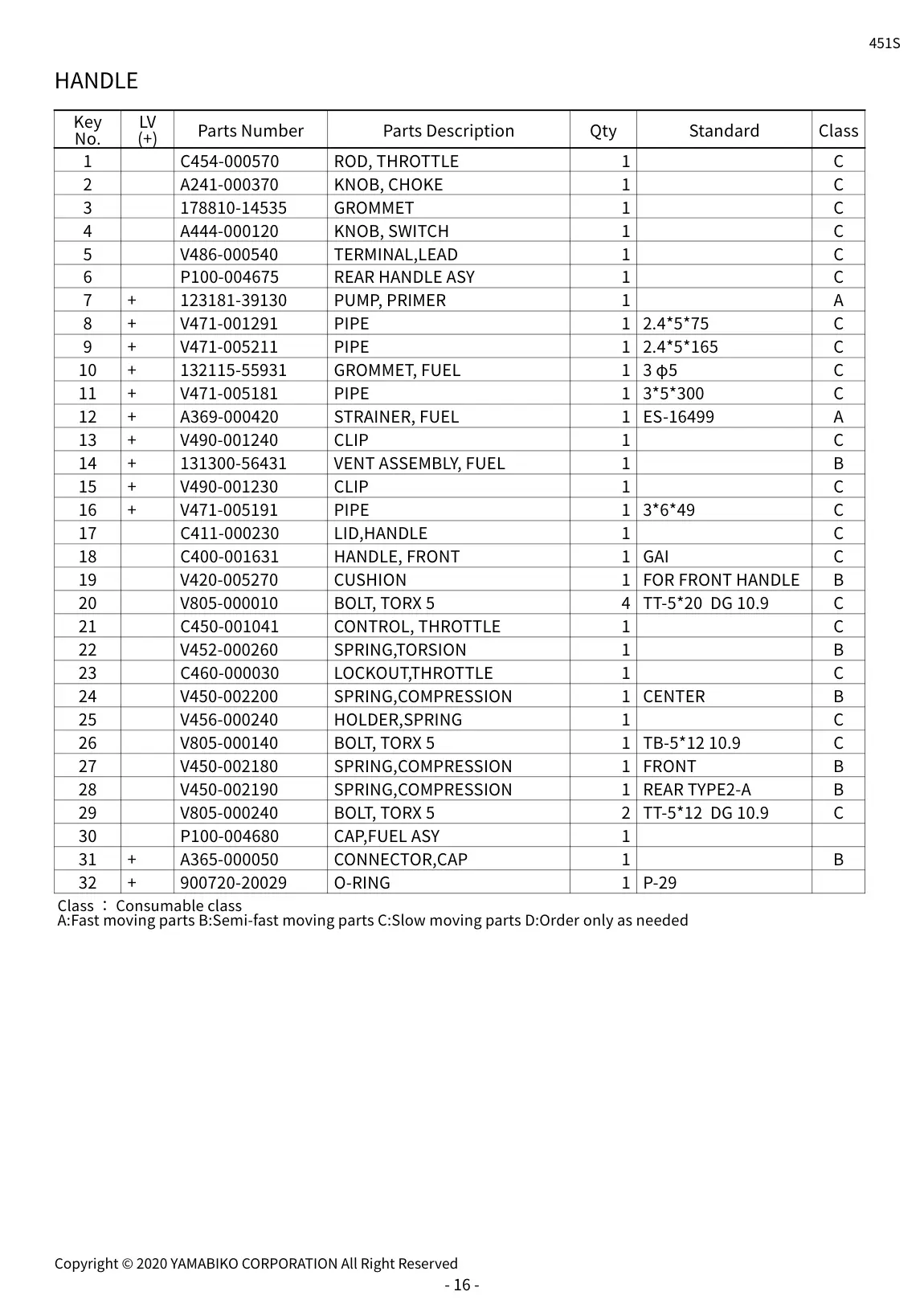

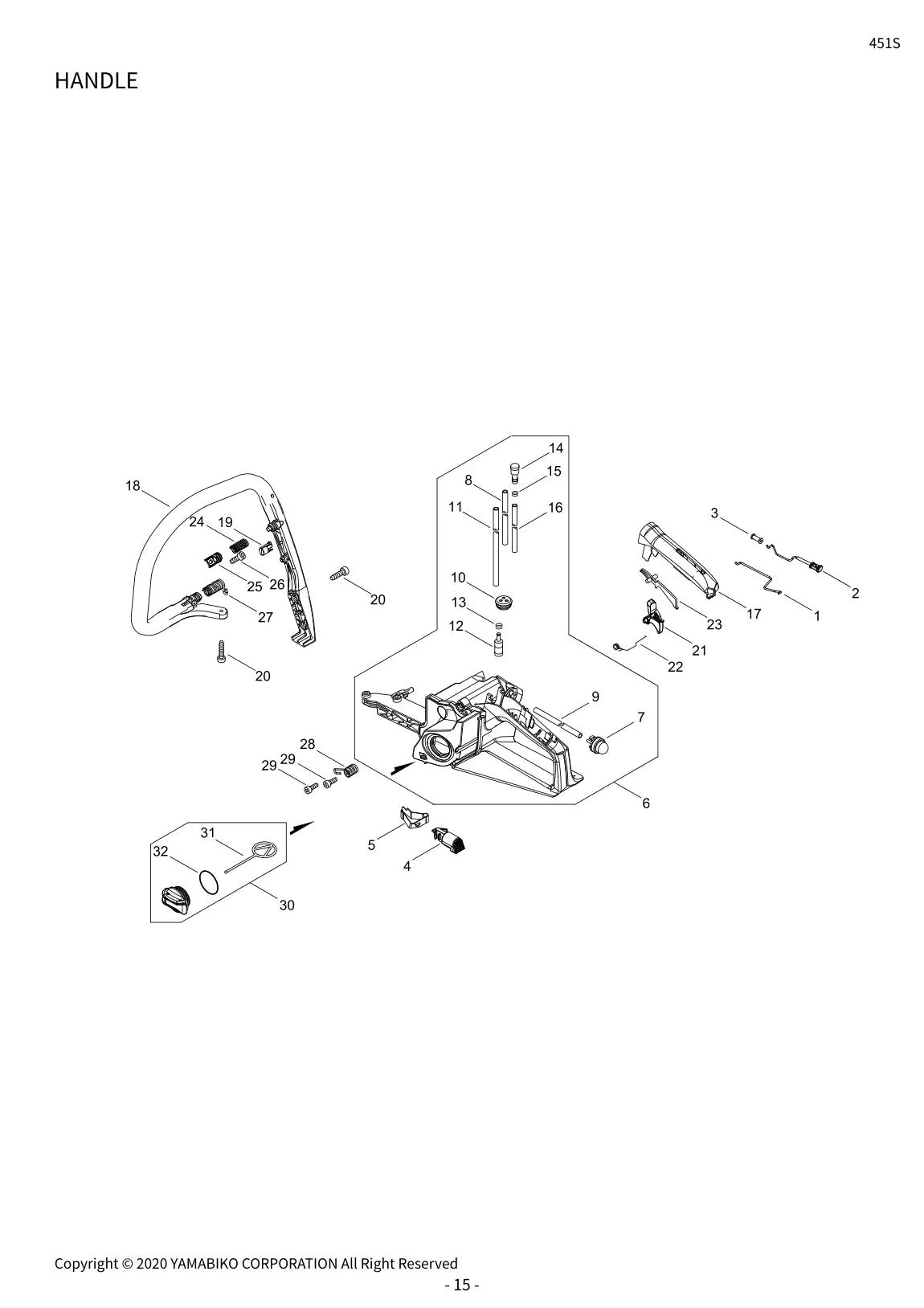

| 19 | HANDLE | 1 | ROD, THROTTLE | C454-000570 | C454-000570-Online |
| 19 | HANDLE | 10 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 19 | HANDLE | 11 | PIPE | V471-005181 | V471-005181-Online |
| 19 | HANDLE | 12 | CLIP | 16499 | 16499-Online |
| 19 | HANDLE | 12 | STRAINER, FUEL | A369-000420 | A369-000420-Online |
| 19 | HANDLE | 13 | CLIP | V490-001240 | V490-001240-Online |
| 19 | HANDLE | 14 | VENT ASSEMBLY, FUEL | 131300-56431 | 131300-56431-Online |
| 19 | HANDLE | 15 | CLIP | V490-001230 | V490-001230-Online |
| 19 | HANDLE | 16 | PIPE | V471-005191 | V471-005191-Online |
| 19 | HANDLE | 17 | LID,HANDLE | C411-000230 | C411-000230-Online |
| 19 | HANDLE | 18 | HANDLE, FRONT | C400-001631 | C400-001631-Online |
| 19 | HANDLE | 19 | CUSHION | V420-005270 | V420-005270-Online |
| 19 | HANDLE | 2 | KNOB, CHOKE | A241-000370 | A241-000370-Online |
| 19 | HANDLE | 20 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 19 | HANDLE | 21 | CONTROL, THROTTLE | C450-001041 | C450-001041-Online |
| 19 | HANDLE | 22 | SPRING,TORSION | V452-000260 | V452-000260-Online |
| 19 | HANDLE | 23 | LOCKOUT,THROTTLE | C460-000030 | C460-000030-Online |
| 19 | HANDLE | 24 | SPRING,COMPRESSION | V450-002200 | V450-002200-Online |
| 19 | HANDLE | 25 | HOLDER,SPRING | V456-000240 | V456-000240-Online |
| 19 | HANDLE | 26 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 19 | HANDLE | 27 | SPRING,COMPRESSION | V450-002180 | V450-002180-Online |
| 19 | HANDLE | 28 | SPRING,COMPRESSION | V450-002190 | V450-002190-Online |
| 19 | HANDLE | 29 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 19 | HANDLE | 3 | GROMMET | 178810-14535 | 178810-14535-Online |
| 19 | HANDLE | 30 | CAP,FUEL ASY | P100-004680 | P100-004680-Online |
| 19 | HANDLE | 31 | CONNECTOR,CAP | A365-000050 | A365-000050-Online |
| 19 | HANDLE | 32 | O-RING | 900720-20029 | 900720-20029-Online |
| 19 | HANDLE | 4 | KNOB, SWITCH | A444-000120 | A444-000120-Online |
| 19 | HANDLE | 5 | TERMINAL,LEAD | V486-000540 | V486-000540-Online |
| 19 | HANDLE | 6 | REAR HANDLE ASY | P100-004675 | P100-004675-Online |
| 19 | HANDLE | 7 | PUMP, PRIMER | 123181-39130 | 123181-39130-Online |
| 19 | HANDLE | 8 | PIPE | V471-001291 | V471-001291-Online |
| 19 | HANDLE | 9 | PIPE | V471-005211 | V471-005211-Online |

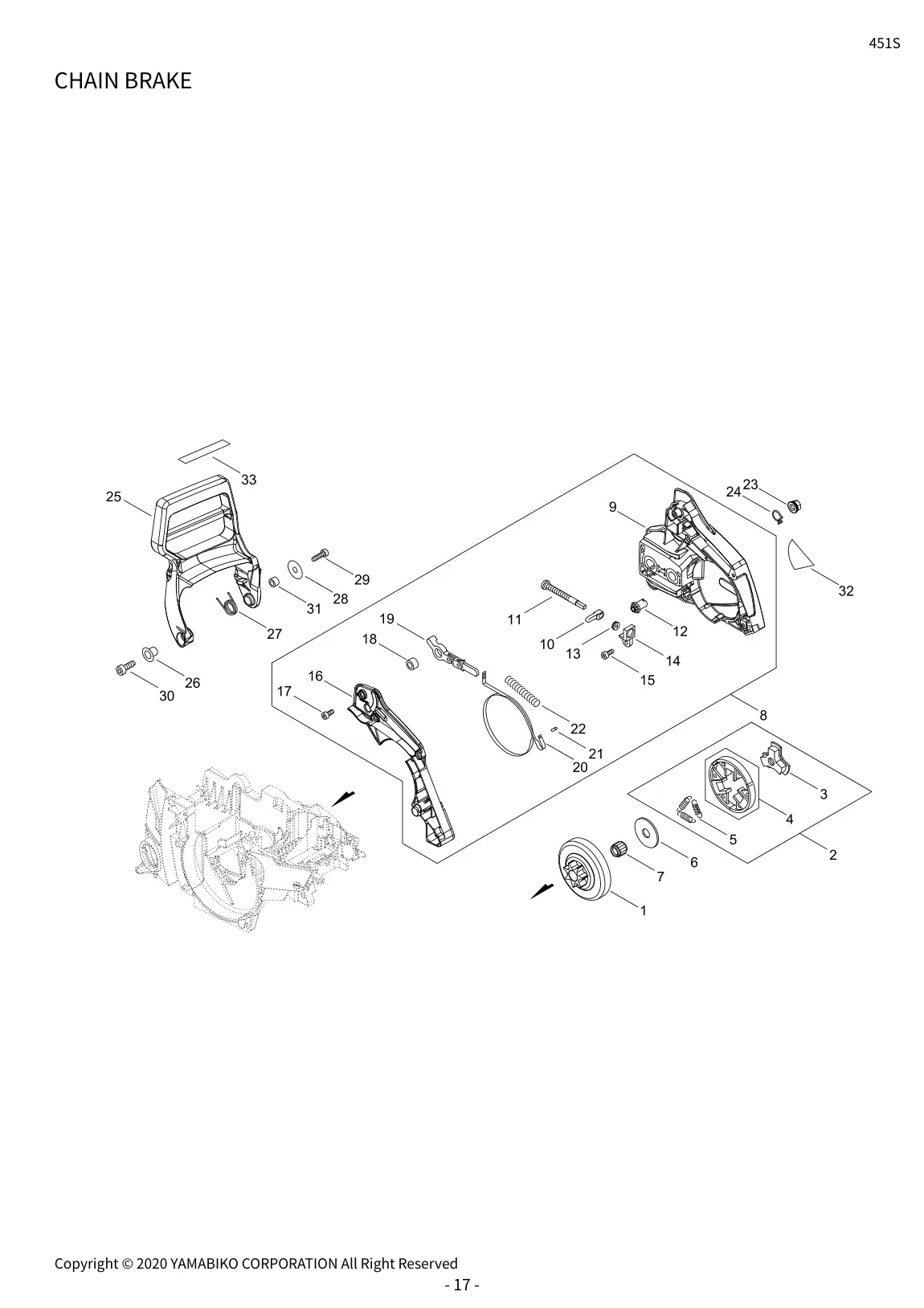

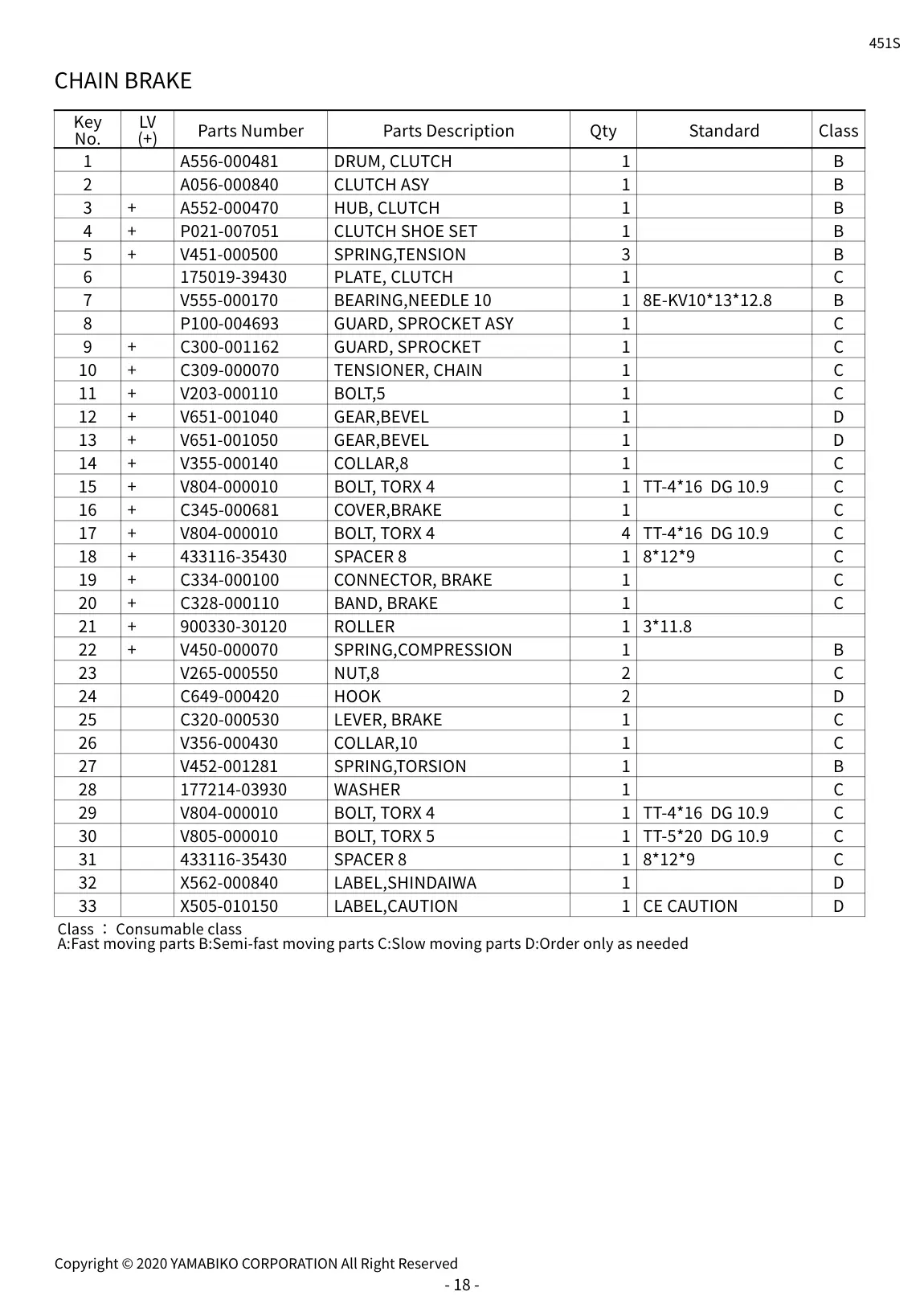

| 21 | CHAIN BRAKE | 1 | DRUM, CLUTCH | A556-000481 | A556-000481-Online |
| 21 | CHAIN BRAKE | 10 | TENSIONER, CHAIN | C309-000070 | C309-000070-Online |
| 21 | CHAIN BRAKE | 11 | BOLT,5 | V203-000110 | V203-000110-Online |
| 21 | CHAIN BRAKE | 12 | GEAR,BEVEL | V651-001040 | V651-001040-Online |
| 21 | CHAIN BRAKE | 13 | GEAR,BEVEL | V651-001050 | V651-001050-Online |
| 21 | CHAIN BRAKE | 14 | COLLAR,8 | V355-000140 | V355-000140-Online |
| 21 | CHAIN BRAKE | 15 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 21 | CHAIN BRAKE | 16 | COVER,BRAKE | C345-000681 | C345-000681-Online |
| 21 | CHAIN BRAKE | 17 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 21 | CHAIN BRAKE | 18 | SPACER | 433116-35430 | 433116-35430-Online |
| 21 | CHAIN BRAKE | 19 | CONNECTOR, BRAKE | C334-000100 | C334-000100-Online |
| 21 | CHAIN BRAKE | 2 | CLUTCH ASY | A056-000840 | A056-000840-Online |
| 21 | CHAIN BRAKE | 20 | BAND, BRAKE | C328-000110 | C328-000110-Online |
| 21 | CHAIN BRAKE | 21 | ROLLER | 900330-30120 | 900330-30120-Online |
| 21 | CHAIN BRAKE | 22 | SPRING,COMPRESSION | V450-000070 | V450-000070-Online |
| 21 | CHAIN BRAKE | 23 | NUT,8 | V265-000550 | V265-000550-Online |
| 21 | CHAIN BRAKE | 25 | LEVER, BRAKE | C320-000530 | C320-000530-Online |
| 21 | CHAIN BRAKE | 26 | COLLAR,10 | V356-000430 | V356-000430-Online |
| 21 | CHAIN BRAKE | 27 | SPRING,TORSION | V452-001281 | V452-001281-Online |
| 21 | CHAIN BRAKE | 28 | WASHER | 177214-03930 | 177214-03930-Online |
| 21 | CHAIN BRAKE | 29 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 21 | CHAIN BRAKE | 3 | HUB, CLUTCH | A552-000470 | A552-000470-Online |
| 21 | CHAIN BRAKE | 30 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 21 | CHAIN BRAKE | 31 | SPACER | 433116-35430 | 433116-35430-Online |
| 21 | CHAIN BRAKE | 32 | LABEL,SHINDAIWA | X562-000840 | X562-000840-Online |
| 21 | CHAIN BRAKE | 33 | LABEL,CAUTION | X505-010150 | X505-010150-Online |
| 21 | CHAIN BRAKE | 4 | CLUTCH SHOE SET | P021-007051 | P021-007051-Online |
| 21 | CHAIN BRAKE | 5 | SPRING,TENSION | V451-000500 | V451-000500-Online |
| 21 | CHAIN BRAKE | 6 | PLATE, CLUTCH | 175019-39430 | 175019-39430-Online |
| 21 | CHAIN BRAKE | 7 | BEARING,NEEDLE | V555-000170 | V555-000170-Online |
| 21 | CHAIN BRAKE | 8 | GUARD, SPROCKET ASY | P100-004693 | P100-004693-Online |
| 21 | CHAIN BRAKE | 9 | GUARD, SPROCKET | C300-001162 | C300-001162-Online |

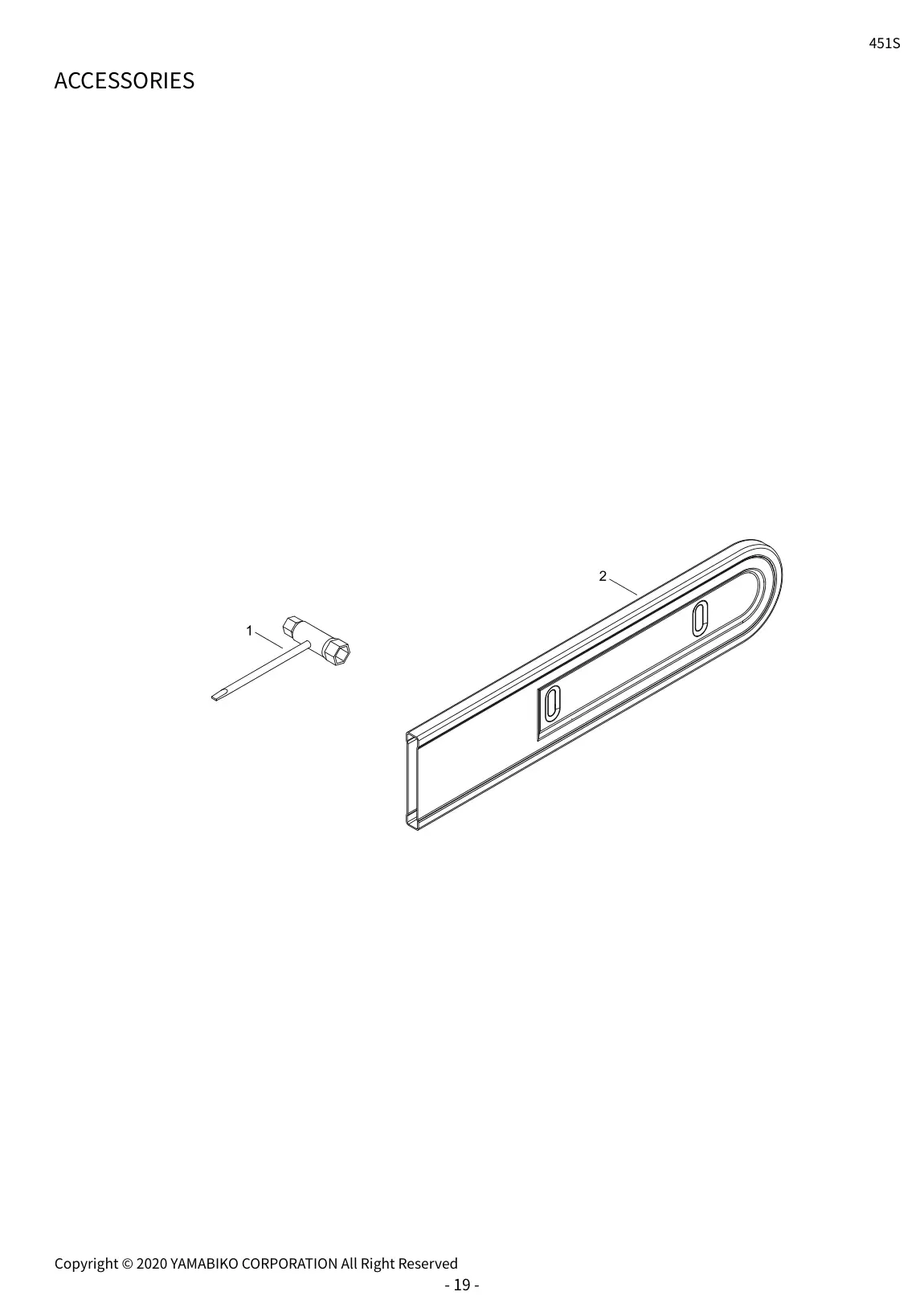

| 23 | ACCESSORIES | 1 | TOOL,WRENCH | X602-000080 | X602-000080-Online |
| 23 | ACCESSORIES | 2 | CHAIN COVER | X490-000360 | X490-000360-Online |

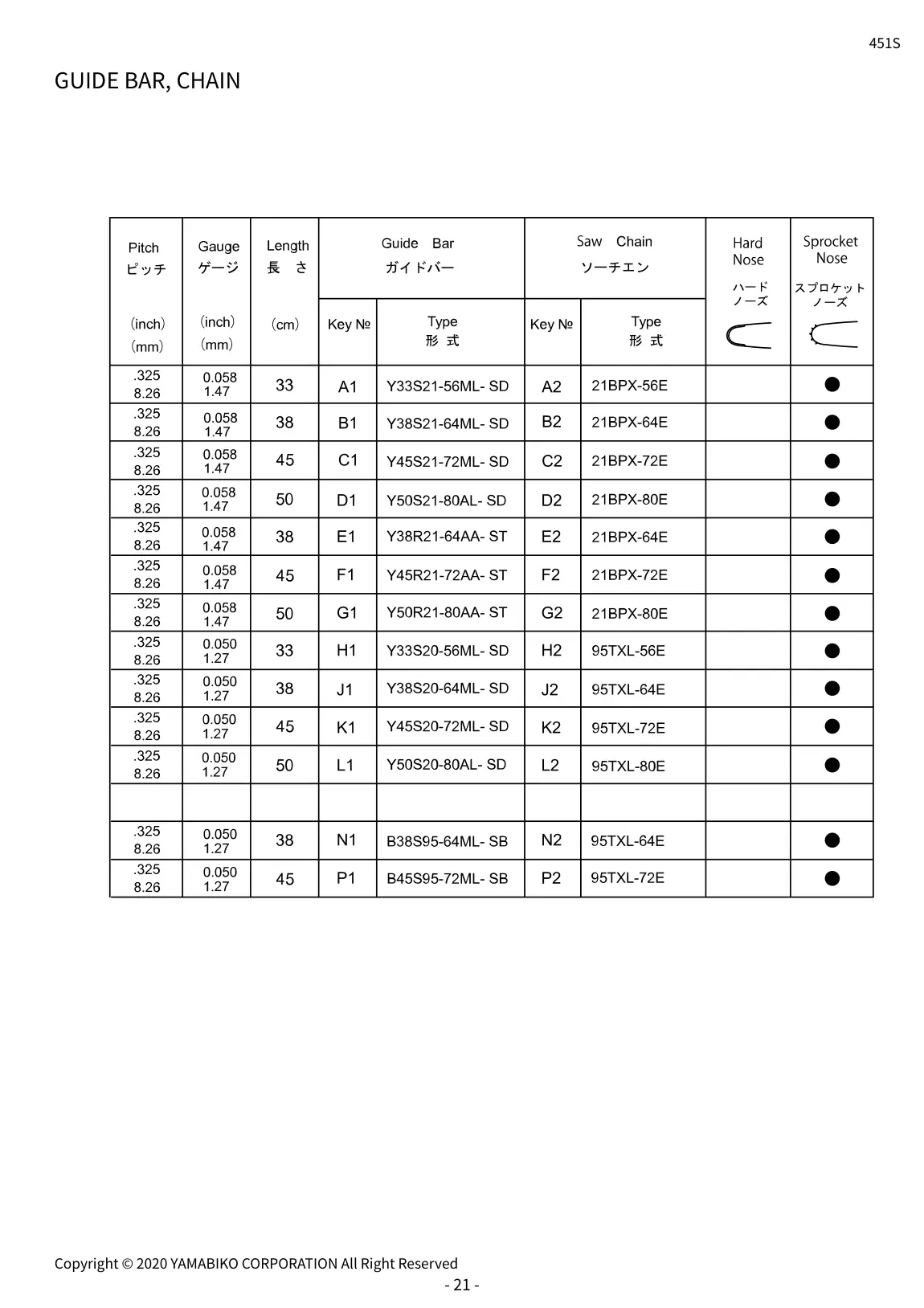

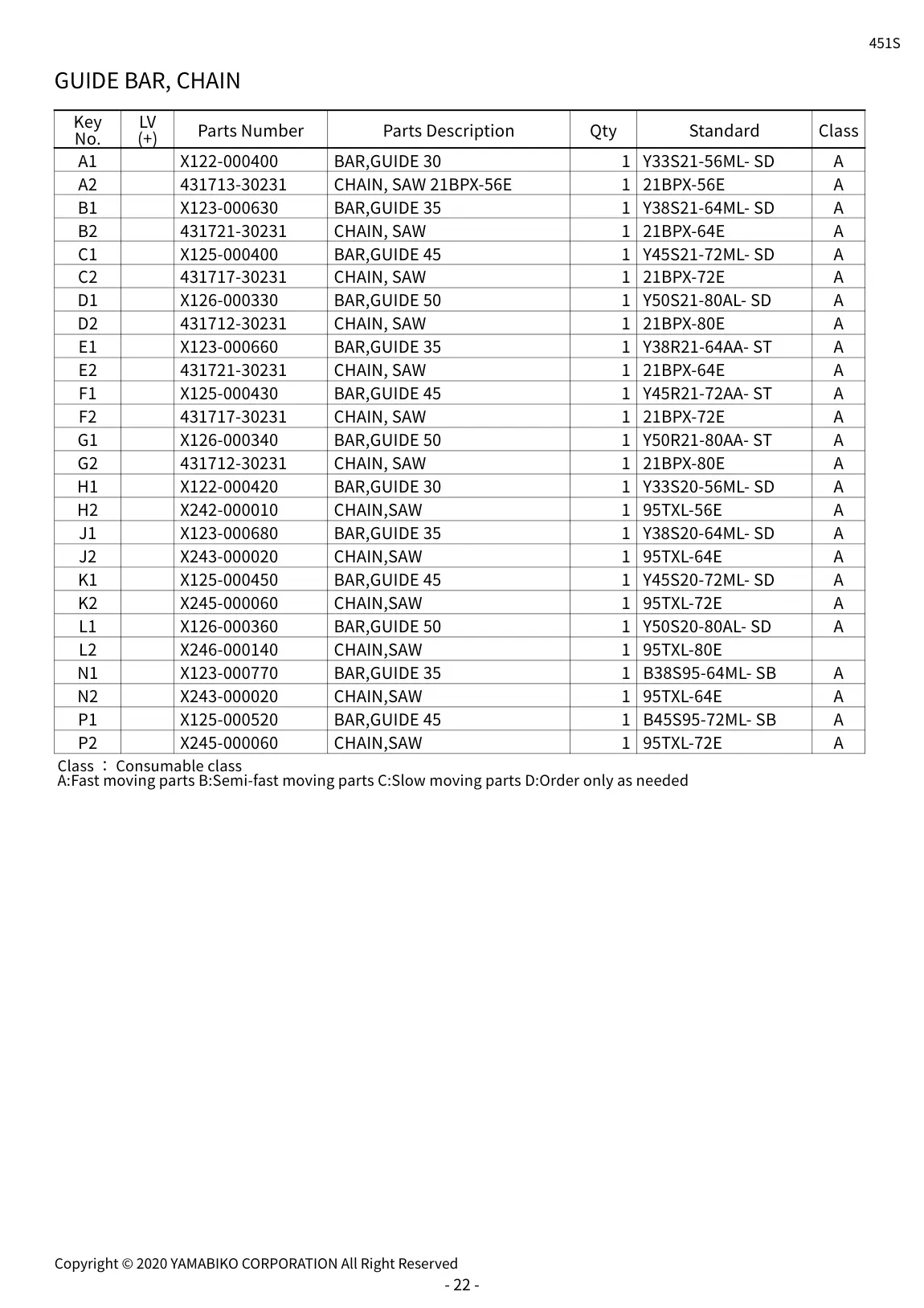

| 25 | GUIDE BAR, CHAIN | A1 | BAR,GUIDE | X122-000400 | X122-000400-Online |
| 25 | GUIDE BAR, CHAIN | A2 | CHAIN, SAW 21BPX-56E | 431713-30231 | 431713-30231-Online |
| 25 | GUIDE BAR, CHAIN | B1 | BAR,GUIDE | X123-000630 | X123-000630-Online |
| 25 | GUIDE BAR, CHAIN | B2 | CHAIN, SAW | 431721-30231 | 431721-30231-Online |
| 25 | GUIDE BAR, CHAIN | C1 | BAR,GUIDE | X125-000400 | X125-000400-Online |
| 25 | GUIDE BAR, CHAIN | C2 | CHAIN, SAW | 431717-30231 | 431717-30231-Online |
| 25 | GUIDE BAR, CHAIN | D1 | BAR,GUIDE | X126-000330 | X126-000330-Online |
| 25 | GUIDE BAR, CHAIN | D2 | CHAIN, SAW | 431712-30231 | 431712-30231-Online |
| 25 | GUIDE BAR, CHAIN | E1 | BAR,GUIDE | X123-000660 | X123-000660-Online |
| 25 | GUIDE BAR, CHAIN | E2 | CHAIN, SAW | 431721-30231 | 431721-30231-Online |
| 25 | GUIDE BAR, CHAIN | F1 | BAR,GUIDE | X125-000430 | X125-000430-Online |
| 25 | GUIDE BAR, CHAIN | F2 | CHAIN, SAW | 431717-30231 | 431717-30231-Online |
| 25 | GUIDE BAR, CHAIN | G1 | BAR,GUIDE | X126-000340 | X126-000340-Online |
| 25 | GUIDE BAR, CHAIN | G2 | CHAIN, SAW | 431712-30231 | 431712-30231-Online |
| 25 | GUIDE BAR, CHAIN | H1 | BAR,GUIDE | X122-000420 | X122-000420-Online |
| 25 | GUIDE BAR, CHAIN | H2 | CHAIN,SAW | X242-000010 | X242-000010-Online |
| 25 | GUIDE BAR, CHAIN | J1 | BAR,GUIDE | X123-000680 | X123-000680-Online |
| 25 | GUIDE BAR, CHAIN | J2 | CHAIN,SAW | X243-000020 | X243-000020-Online |
| 25 | GUIDE BAR, CHAIN | K1 | BAR,GUIDE | X125-000450 | X125-000450-Online |
| 25 | GUIDE BAR, CHAIN | K2 | CHAIN,SAW | X245-000060 | X245-000060-Online |
| 25 | GUIDE BAR, CHAIN | L1 | BAR,GUIDE | X126-000360 | X126-000360-Online |
| 25 | GUIDE BAR, CHAIN | L2 | CHAIN,SAW | X246-000140 | X246-000140-Online |
| 25 | GUIDE BAR, CHAIN | N1 | BAR,GUIDE | X123-000770 | X123-000770-Online |
| 25 | GUIDE BAR, CHAIN | N2 | CHAIN,SAW | X243-000020 | X243-000020-Online |
| 25 | GUIDE BAR, CHAIN | P1 | BAR,GUIDE | X125-000520 | X125-000520-Online |
| 25 | GUIDE BAR, CHAIN | P2 | CHAIN,SAW | X245-000060 | X245-000060-Online |

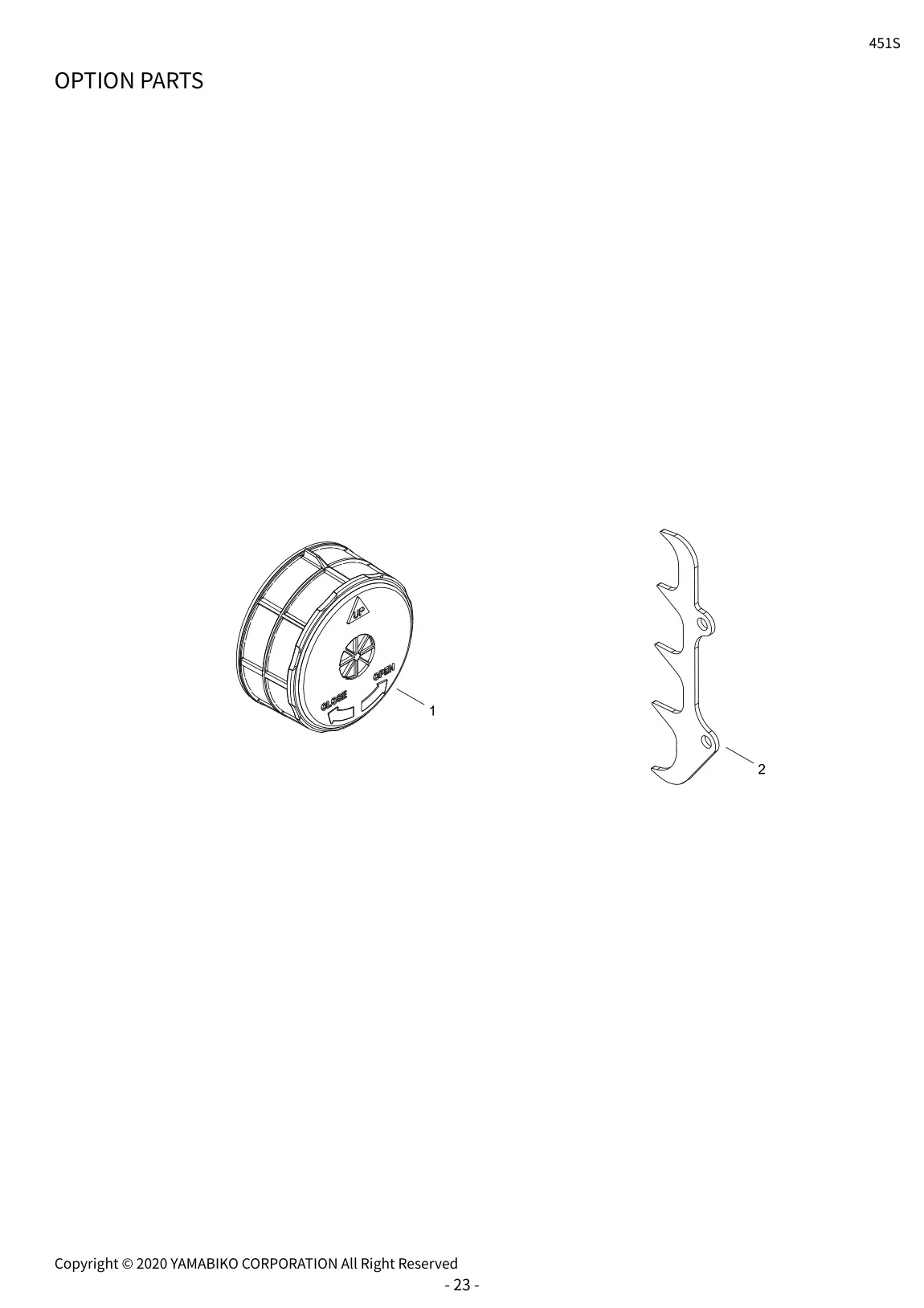

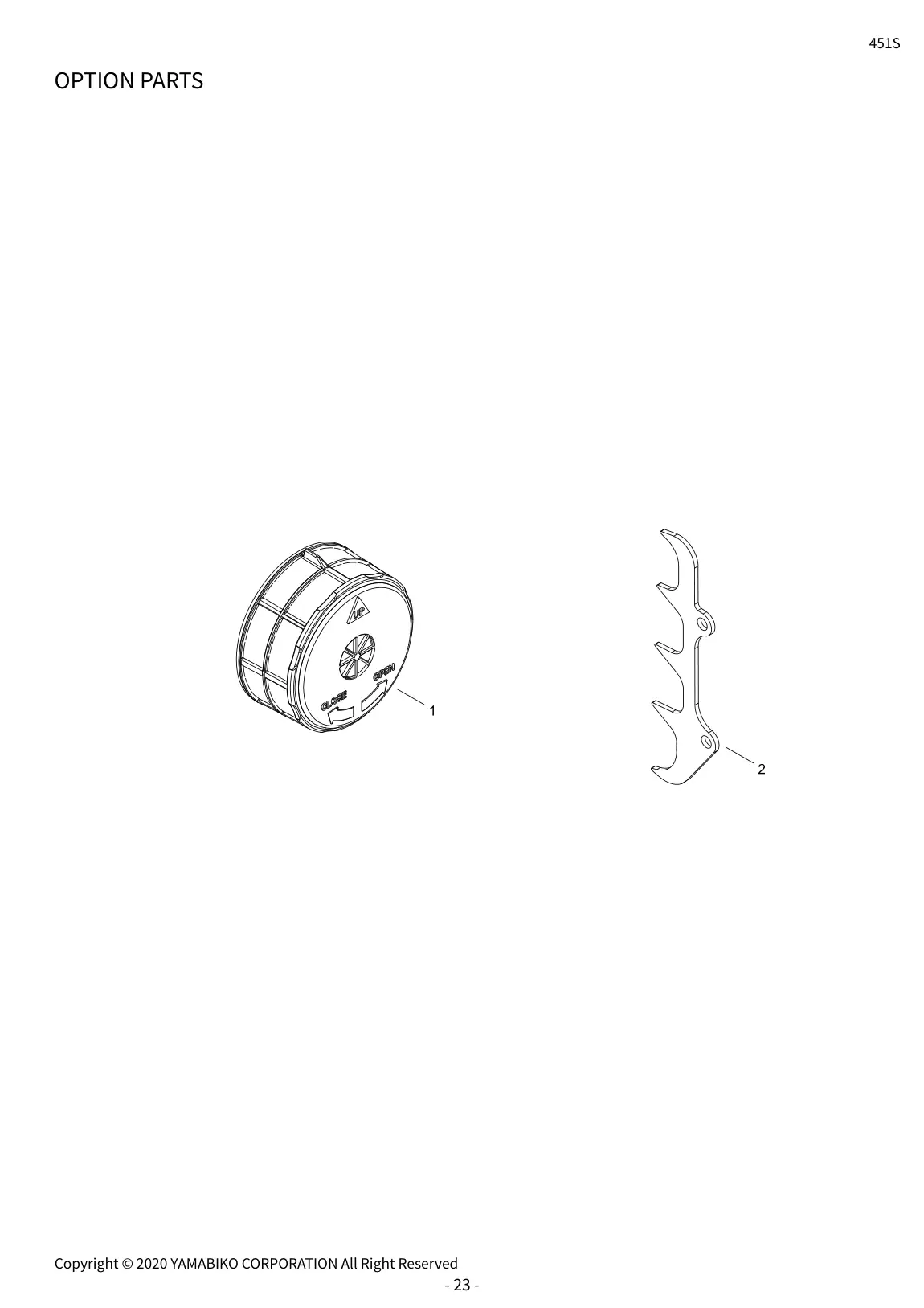

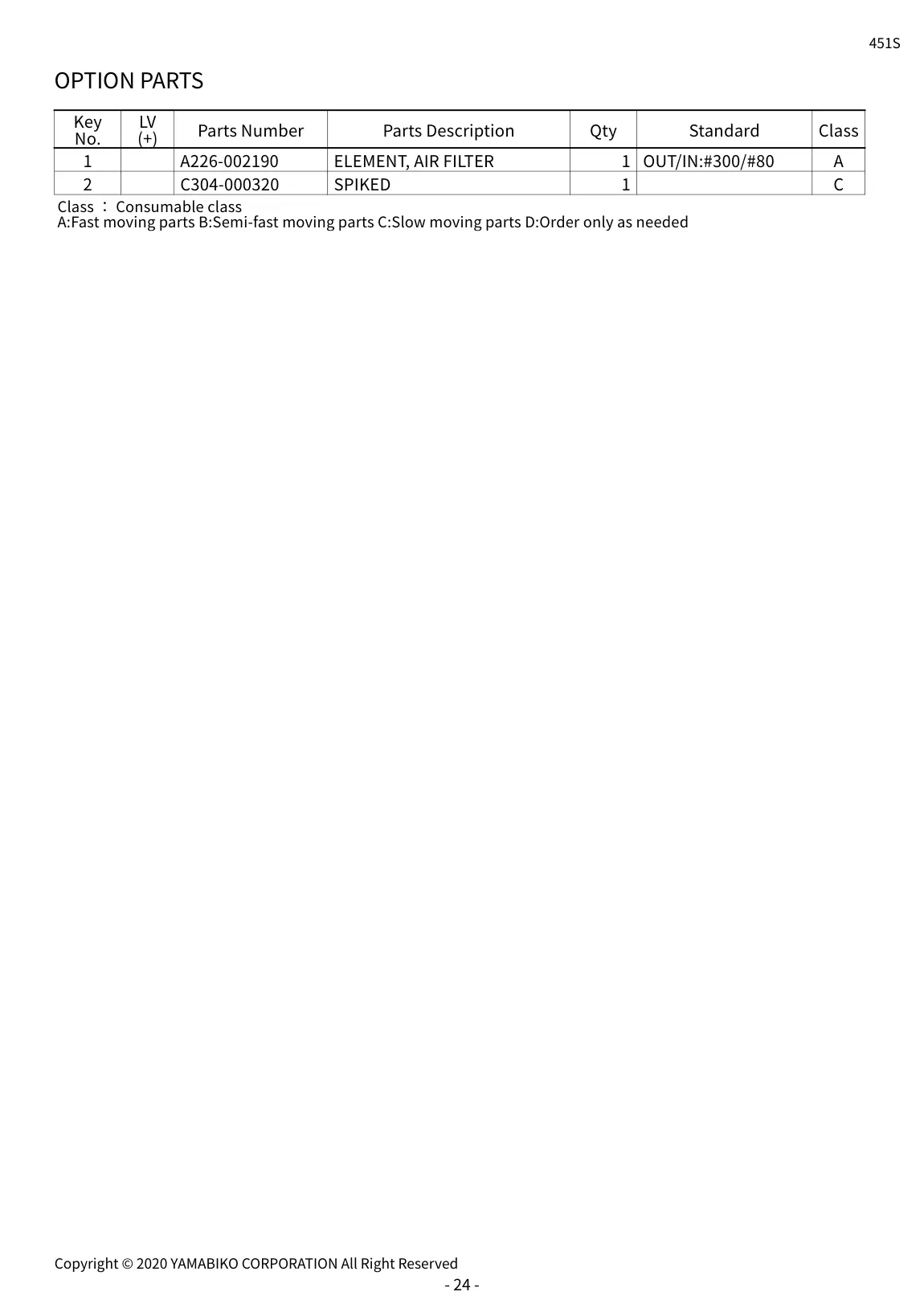

| 27 | OPTION PARTS | 1 | ELEMENT, AIR FILTER | A226-002190 | A226-002190-Online |
| 27 | OPTION PARTS | 2 | SPIKED | C304-000320 | C304-000320-Online |

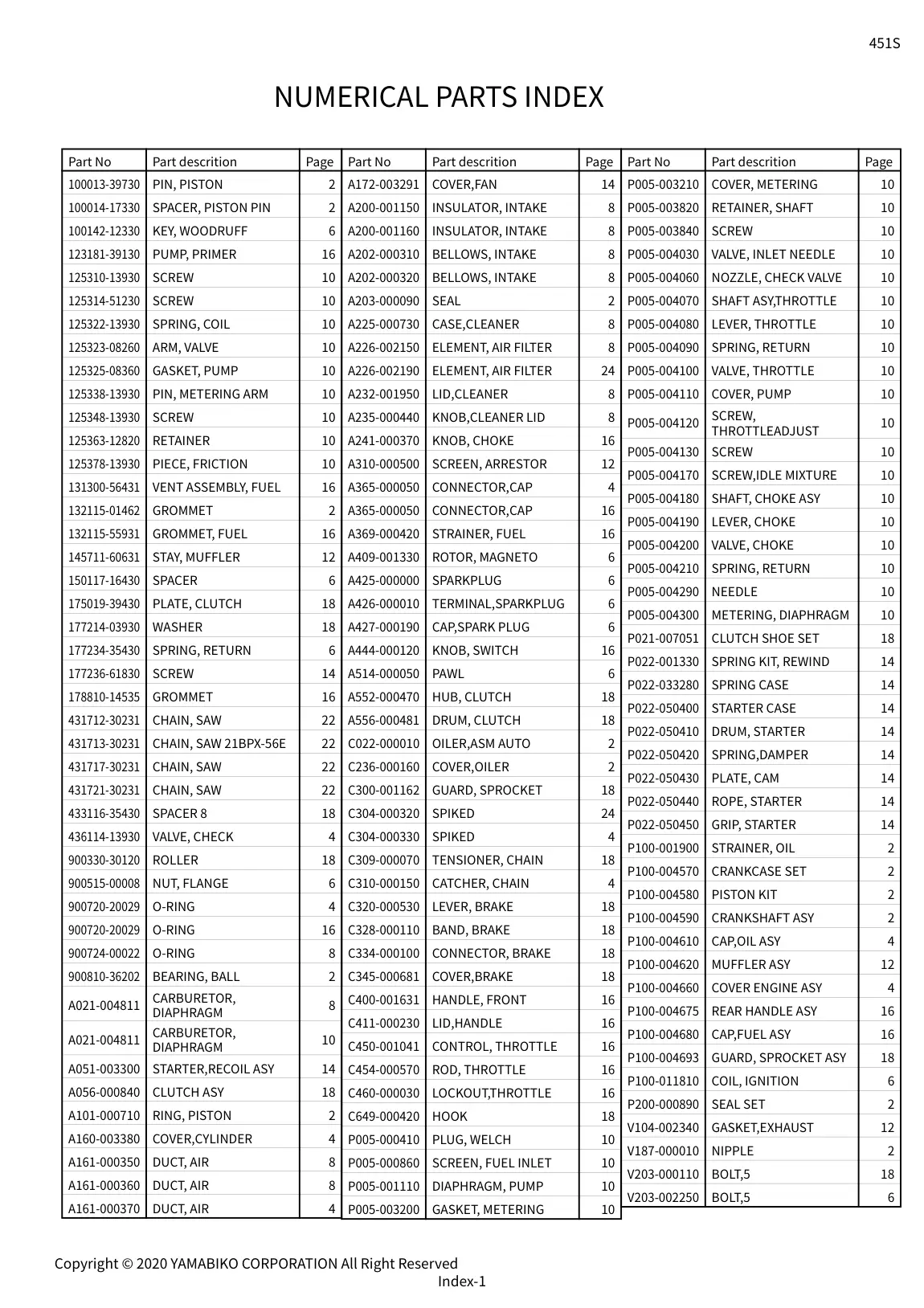

| 28 | BOLT,5 | PIN, PISTON | 100013-39730 | 100013-39730-Online | |
| 28 | BOLT,5 | 10 | SCREW | 125314-51230 | 125314-51230-Online |
| 28 | BOLT,5 | 10 | SPRING, COIL | 125322-13930 | 125322-13930-Online |
| 28 | BOLT,5 | 10 | ARM, VALVE | 125323-08260 | 125323-08260-Online |
| 28 | BOLT,5 | 10 | GASKET, PUMP | 125325-08360 | 125325-08360-Online |
| 28 | BOLT,5 | 10 | PIN, METERING ARM | 125338-13930 | 125338-13930-Online |
| 28 | BOLT,5 | 10 | SCREW | 125348-13930 | 125348-13930-Online |
| 28 | BOLT,5 | 10 | RETAINER | 125363-12820 | 125363-12820-Online |
| 28 | BOLT,5 | 10 | PIECE, FRICTION | 125378-13930 | 125378-13930-Online |
| 28 | BOLT,5 | 10 | VENT ASSEMBLY, FUEL | 131300-56431 | 131300-56431-Online |
| 28 | BOLT,5 | 10 | STARTER,RECOIL ASY | A051-003300 | A051-003300-Online |
| 28 | BOLT,5 | 10 | SCREEN, FUEL INLET | P005-000860 | P005-000860-Online |
| 28 | BOLT,5 | 10 | DIAPHRAGM, PUMP | P005-001110 | P005-001110-Online |
| 28 | BOLT,5 | 10 | GASKET, METERING | P005-003200 | P005-003200-Online |
| 28 | BOLT,5 | 10 | COVER, METERING | P005-003210 | P005-003210-Online |
| 28 | BOLT,5 | 10 | RETAINER, SHAFT | P005-003820 | P005-003820-Online |
| 28 | BOLT,5 | 10 | SCREW | P005-003840 | P005-003840-Online |
| 28 | BOLT,5 | 10 | VALVE, INLET NEEDLE | P005-004030 | P005-004030-Online |
| 28 | BOLT,5 | 10 | NOZZLE, CHECK VALVE | P005-004060 | P005-004060-Online |
| 28 | BOLT,5 | 10 | SHAFT ASY,THROTTLE | P005-004070 | P005-004070-Online |
| 28 | BOLT,5 | 10 | LEVER, THROTTLE | P005-004080 | P005-004080-Online |
| 28 | BOLT,5 | 10 | SPRING, RETURN | P005-004090 | P005-004090-Online |
| 28 | BOLT,5 | 10 | VALVE, THROTTLE | P005-004100 | P005-004100-Online |
| 28 | BOLT,5 | 10 | COVER, PUMP | P005-004110 | P005-004110-Online |
| 28 | BOLT,5 | 10 | SCREW, | P005-004120 | P005-004120-Online |
| 28 | BOLT,5 | 10 | SCREW | P005-004130 | P005-004130-Online |
| 28 | BOLT,5 | 10 | SCREW,IDLE MIXTURE | P005-004170 | P005-004170-Online |
| 28 | BOLT,5 | 10 | SHAFT, CHOKE ASY | P005-004180 | P005-004180-Online |
| 28 | BOLT,5 | 10 | LEVER, CHOKE | P005-004190 | P005-004190-Online |
| 28 | BOLT,5 | 10 | VALVE, CHOKE | P005-004200 | P005-004200-Online |
| 28 | BOLT,5 | 10 | SPRING, RETURN | P005-004210 | P005-004210-Online |
| 28 | BOLT,5 | 10 | NEEDLE | P005-004290 | P005-004290-Online |
| 28 | BOLT,5 | 10 | METERING, DIAPHRAGM | P005-004300 | P005-004300-Online |
| 28 | BOLT,5 | 10 | CLUTCH SHOE SET | P021-007051 | P021-007051-Online |
| 28 | BOLT,5 | 12 | SPACER | 150117-16430 | 150117-16430-Online |
| 28 | BOLT,5 | 12 | CONNECTOR,CAP | A365-000050 | A365-000050-Online |
| 28 | BOLT,5 | 12 | COVER ENGINE ASY | P100-004660 | P100-004660-Online |
| 28 | BOLT,5 | 12 | NIPPLE | V187-000010 | V187-000010-Online |
| 28 | BOLT,5 | 14 | GROMMET | 178810-14535 | 178810-14535-Online |
| 28 | BOLT,5 | 14 | CLUTCH ASY | A056-000840 | A056-000840-Online |
| 28 | BOLT,5 | 14 | INSULATOR, INTAKE | A200-001150 | A200-001150-Online |
| 28 | BOLT,5 | 14 | SPRING CASE | P022-033280 | P022-033280-Online |
| 28 | BOLT,5 | 14 | STARTER CASE | P022-050400 | P022-050400-Online |
| 28 | BOLT,5 | 14 | DRUM, STARTER | P022-050410 | P022-050410-Online |
| 28 | BOLT,5 | 14 | SPRING,DAMPER | P022-050420 | P022-050420-Online |
| 28 | BOLT,5 | 14 | PLATE, CAM | P022-050430 | P022-050430-Online |
| 28 | BOLT,5 | 14 | ROPE, STARTER | P022-050440 | P022-050440-Online |
| 28 | BOLT,5 | 14 | GRIP, STARTER | P022-050450 | P022-050450-Online |
| 28 | BOLT,5 | 14 | STRAINER, OIL | P100-001900 | P100-001900-Online |
| 28 | BOLT,5 | 16 | SCREW | 125310-13930 | 125310-13930-Online |
| 28 | BOLT,5 | 16 | GROMMET | 132115-01462 | 132115-01462-Online |
| 28 | BOLT,5 | 16 | STAY, MUFFLER | 145711-60631 | 145711-60631-Online |
| 28 | BOLT,5 | 16 | CHAIN, SAW | 431712-30231 | 431712-30231-Online |
| 28 | BOLT,5 | 16 | O-RING | 900724-00022 | 900724-00022-Online |
| 28 | BOLT,5 | 16 | SCREEN, ARRESTOR | A310-000500 | A310-000500-Online |
| 28 | BOLT,5 | 16 | STRAINER, FUEL | A369-000420 | A369-000420-Online |
| 28 | BOLT,5 | 16 | ROTOR, MAGNETO | A409-001330 | A409-001330-Online |
| 28 | BOLT,5 | 16 | PAWL | A514-000050 | A514-000050-Online |
| 28 | BOLT,5 | 16 | LID,HANDLE | C411-000230 | C411-000230-Online |
| 28 | BOLT,5 | 16 | CONTROL, THROTTLE | C450-001041 | C450-001041-Online |
| 28 | BOLT,5 | 16 | ROD, THROTTLE | C454-000570 | C454-000570-Online |
| 28 | BOLT,5 | 16 | LOCKOUT,THROTTLE | C460-000030 | C460-000030-Online |
| 28 | BOLT,5 | 16 | CAP,FUEL ASY | P100-004680 | P100-004680-Online |
| 28 | BOLT,5 | 16 | GUARD, SPROCKET ASY | P100-004693 | P100-004693-Online |
| 28 | BOLT,5 | 18 | WASHER | 177214-03930 | 177214-03930-Online |
| 28 | BOLT,5 | 18 | SPRING, RETURN | 177234-35430 | 177234-35430-Online |
| 28 | BOLT,5 | 18 | VALVE, CHECK | 436114-13930 | 436114-13930-Online |
| 28 | BOLT,5 | 18 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 28 | BOLT,5 | 18 | RING, PISTON | A101-000710 | A101-000710-Online |
| 28 | BOLT,5 | 18 | DRUM, CLUTCH | A556-000481 | A556-000481-Online |
| 28 | BOLT,5 | 18 | OILER,ASM AUTO | C022-000010 | C022-000010-Online |
| 28 | BOLT,5 | 18 | SPIKED | C304-000320 | C304-000320-Online |
| 28 | BOLT,5 | 18 | CATCHER, CHAIN | C310-000150 | C310-000150-Online |
| 28 | BOLT,5 | 18 | BAND, BRAKE | C328-000110 | C328-000110-Online |
| 28 | BOLT,5 | 18 | CONNECTOR, BRAKE | C334-000100 | C334-000100-Online |
| 28 | BOLT,5 | 18 | COVER,BRAKE | C345-000681 | C345-000681-Online |
| 28 | BOLT,5 | 18 | HANDLE, FRONT | C400-001631 | C400-001631-Online |
| 28 | BOLT,5 | 18 | PLUG, WELCH | P005-000410 | P005-000410-Online |
| 28 | BOLT,5 | 18 | SPRING KIT, REWIND | P022-001330 | P022-001330-Online |
| 28 | BOLT,5 | 18 | COIL, IGNITION | P100-011810 | P100-011810-Online |
| 28 | BOLT,5 | 18 | BOLT,5 | V203-002250 | V203-002250-Online |
| 28 | BOLT,5 | 2 | SPACER, PISTON PIN | 100014-17330 | 100014-17330-Online |
| 28 | BOLT,5 | 2 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 28 | BOLT,5 | 2 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 28 | BOLT,5 | 2 | CARBURETOR, | A021-004811 | A021-004811-Online |
| 28 | BOLT,5 | 2 | COVER,CYLINDER | A160-003380 | A160-003380-Online |
| 28 | BOLT,5 | 2 | CASE,CLEANER | A225-000730 | A225-000730-Online |
| 28 | BOLT,5 | 2 | COVER,OILER | C236-000160 | C236-000160-Online |
| 28 | BOLT,5 | 2 | GUARD, SPROCKET | C300-001162 | C300-001162-Online |
| 28 | BOLT,5 | 2 | CRANKCASE SET | P100-004570 | P100-004570-Online |
| 28 | BOLT,5 | 2 | PISTON KIT | P100-004580 | P100-004580-Online |
| 28 | BOLT,5 | 2 | CRANKSHAFT ASY | P100-004590 | P100-004590-Online |
| 28 | BOLT,5 | 2 | CAP,OIL ASY | P100-004610 | P100-004610-Online |
| 28 | BOLT,5 | 2 | GASKET,EXHAUST | V104-002340 | V104-002340-Online |
| 28 | BOLT,5 | 2 | BOLT,5 | V203-000110 | V203-000110-Online |
| 28 | BOLT,5 | 22 | CHAIN, SAW 21BPX-56E | 431713-30231 | 431713-30231-Online |
| 28 | BOLT,5 | 22 | CHAIN, SAW | 431717-30231 | 431717-30231-Online |
| 28 | BOLT,5 | 22 | CHAIN, SAW | 431721-30231 | 431721-30231-Online |
| 28 | BOLT,5 | 22 | SPACER | 433116-35430 | 433116-35430-Online |
| 28 | BOLT,5 | 24 | LID,CLEANER | A232-001950 | A232-001950-Online |
| 28 | BOLT,5 | 24 | SPIKED | C304-000330 | C304-000330-Online |
| 28 | BOLT,5 | 4 | ROLLER | 900330-30120 | 900330-30120-Online |
| 28 | BOLT,5 | 4 | O-RING | 900720-20029 | 900720-20029-Online |
| 28 | BOLT,5 | 4 | DUCT, AIR | A161-000350 | A161-000350-Online |
| 28 | BOLT,5 | 4 | COVER,FAN | A172-003291 | A172-003291-Online |
| 28 | BOLT,5 | 4 | CONNECTOR,CAP | A365-000050 | A365-000050-Online |
| 28 | BOLT,5 | 4 | TENSIONER, CHAIN | C309-000070 | C309-000070-Online |
| 28 | BOLT,5 | 4 | LEVER, BRAKE | C320-000530 | C320-000530-Online |
| 28 | BOLT,5 | 4 | MUFFLER ASY | P100-004620 | P100-004620-Online |
| 28 | BOLT,5 | 4 | REAR HANDLE ASY | P100-004675 | P100-004675-Online |
| 28 | BOLT,5 | 6 | PUMP, PRIMER | 123181-39130 | 123181-39130-Online |
| 28 | BOLT,5 | 6 | PLATE, CLUTCH | 175019-39430 | 175019-39430-Online |
| 28 | BOLT,5 | 6 | SCREW | 177236-61830 | 177236-61830-Online |
| 28 | BOLT,5 | 6 | O-RING | 900720-20029 | 900720-20029-Online |
| 28 | BOLT,5 | 6 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 28 | BOLT,5 | 6 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 28 | BOLT,5 | 6 | CAP,SPARK PLUG | A427-000190 | A427-000190-Online |
| 28 | BOLT,5 | 6 | KNOB, SWITCH | A444-000120 | A444-000120-Online |
| 28 | BOLT,5 | 6 | HUB, CLUTCH | A552-000470 | A552-000470-Online |
| 28 | BOLT,5 | 6 | SEAL SET | P200-000890 | P200-000890-Online |
| 28 | BOLT,5 | 8 | BEARING, BALL | 900810-36202 | 900810-36202-Online |
| 28 | BOLT,5 | 8 | CARBURETOR, | A021-004811 | A021-004811-Online |
| 28 | BOLT,5 | 8 | DUCT, AIR | A161-000360 | A161-000360-Online |
| 28 | BOLT,5 | 8 | DUCT, AIR | A161-000370 | A161-000370-Online |
| 28 | BOLT,5 | 8 | INSULATOR, INTAKE | A200-001160 | A200-001160-Online |
| 28 | BOLT,5 | 8 | BELLOWS, INTAKE | A202-000310 | A202-000310-Online |
| 28 | BOLT,5 | 8 | BELLOWS, INTAKE | A202-000320 | A202-000320-Online |
| 28 | BOLT,5 | 8 | SEAL | A203-000090 | A203-000090-Online |
| 28 | BOLT,5 | 8 | ELEMENT, AIR FILTER | A226-002150 | A226-002150-Online |
| 28 | BOLT,5 | 8 | ELEMENT, AIR FILTER | A226-002190 | A226-002190-Online |
| 28 | BOLT,5 | 8 | KNOB,CLEANER LID | A235-000440 | A235-000440-Online |
| 28 | BOLT,5 | 8 | KNOB, CHOKE | A241-000370 | A241-000370-Online |

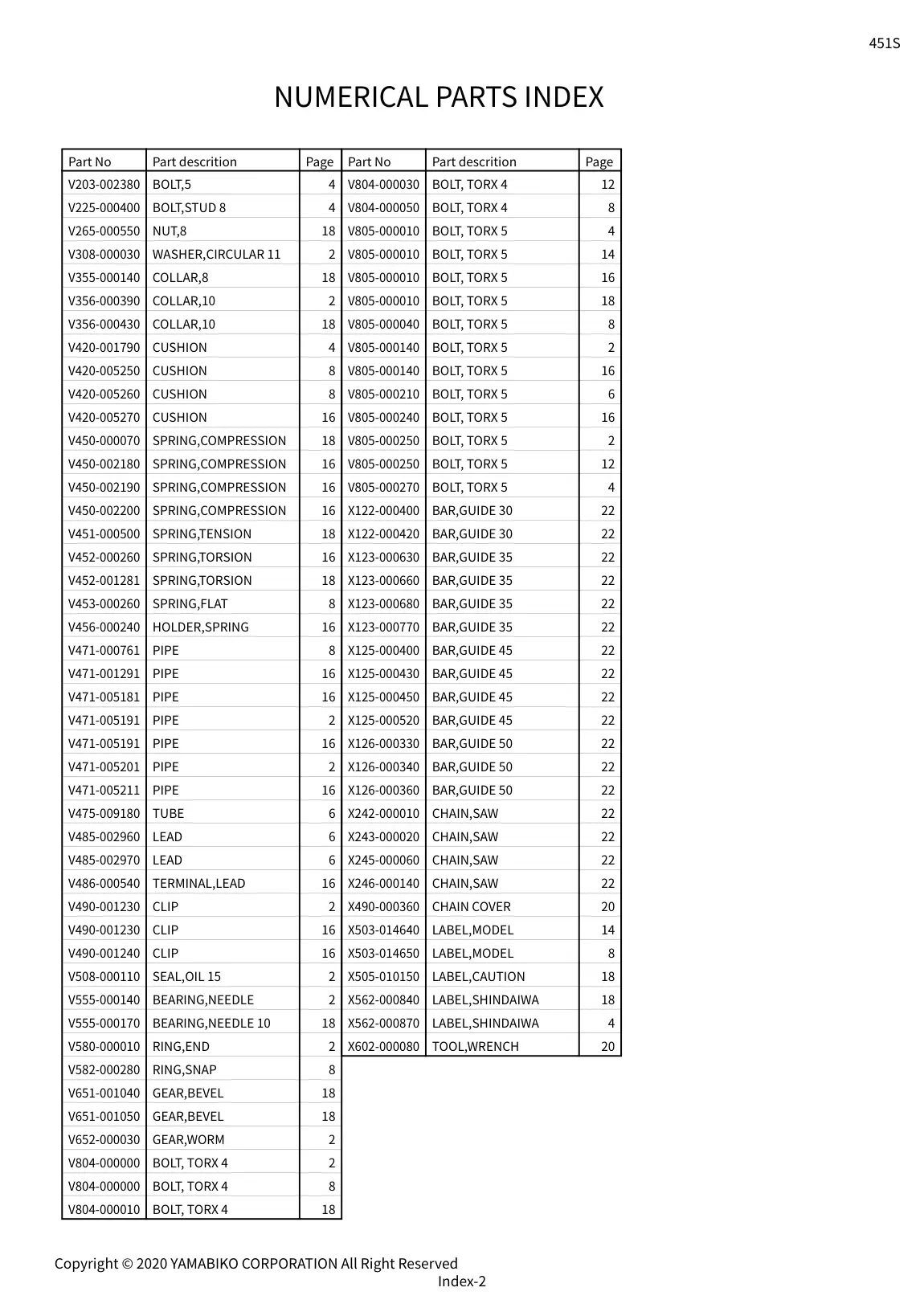

| 29 | TOOL,WRENCH | BOLT,5 | V203-002380 | V203-002380-Online | |
| 29 | TOOL,WRENCH | 12 | BOLT, TORX | V804-000050 | V804-000050-Online |
| 29 | TOOL,WRENCH | 12 | BOLT, TORX | V805-000270 | V805-000270-Online |
| 29 | TOOL,WRENCH | 14 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 29 | TOOL,WRENCH | 14 | LABEL,MODEL | X503-014650 | X503-014650-Online |
| 29 | TOOL,WRENCH | 16 | SPRING,COMPRESSION | V450-000070 | V450-000070-Online |
| 29 | TOOL,WRENCH | 16 | SPRING,COMPRESSION | V450-002190 | V450-002190-Online |
| 29 | TOOL,WRENCH | 16 | SPRING,COMPRESSION | V450-002200 | V450-002200-Online |
| 29 | TOOL,WRENCH | 16 | SPRING,TENSION | V451-000500 | V451-000500-Online |
| 29 | TOOL,WRENCH | 16 | SPRING,TORSION | V452-001281 | V452-001281-Online |
| 29 | TOOL,WRENCH | 16 | PIPE | V471-000761 | V471-000761-Online |
| 29 | TOOL,WRENCH | 16 | PIPE | V471-005181 | V471-005181-Online |
| 29 | TOOL,WRENCH | 16 | PIPE | V471-005191 | V471-005191-Online |
| 29 | TOOL,WRENCH | 16 | PIPE | V471-005201 | V471-005201-Online |
| 29 | TOOL,WRENCH | 16 | TUBE | V475-009180 | V475-009180-Online |
| 29 | TOOL,WRENCH | 16 | CLIP | V490-001230 | V490-001230-Online |
| 29 | TOOL,WRENCH | 16 | CLIP | V490-001240 | V490-001240-Online |
| 29 | TOOL,WRENCH | 16 | SEAL,OIL | V508-000110 | V508-000110-Online |
| 29 | TOOL,WRENCH | 16 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 29 | TOOL,WRENCH | 16 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 29 | TOOL,WRENCH | 16 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 29 | TOOL,WRENCH | 18 | WASHER,CIRCULAR | V308-000030 | V308-000030-Online |
| 29 | TOOL,WRENCH | 18 | COLLAR,10 | V356-000390 | V356-000390-Online |
| 29 | TOOL,WRENCH | 18 | CUSHION | V420-001790 | V420-001790-Online |
| 29 | TOOL,WRENCH | 18 | SPRING,COMPRESSION | V450-002180 | V450-002180-Online |
| 29 | TOOL,WRENCH | 18 | SPRING,TORSION | V452-000260 | V452-000260-Online |
| 29 | TOOL,WRENCH | 18 | SPRING,FLAT | V453-000260 | V453-000260-Online |
| 29 | TOOL,WRENCH | 18 | RING,END | V580-000010 | V580-000010-Online |
| 29 | TOOL,WRENCH | 18 | GEAR,BEVEL | V651-001050 | V651-001050-Online |
| 29 | TOOL,WRENCH | 18 | GEAR,WORM | V652-000030 | V652-000030-Online |
| 29 | TOOL,WRENCH | 18 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 29 | TOOL,WRENCH | 18 | BOLT, TORX | V805-000040 | V805-000040-Online |
| 29 | TOOL,WRENCH | 18 | LABEL,SHINDAIWA | X562-000840 | X562-000840-Online |
| 29 | TOOL,WRENCH | 18 | LABEL,SHINDAIWA | X562-000870 | X562-000870-Online |
| 29 | TOOL,WRENCH | 2 | COLLAR,8 | V355-000140 | V355-000140-Online |
| 29 | TOOL,WRENCH | 2 | COLLAR,10 | V356-000430 | V356-000430-Online |
| 29 | TOOL,WRENCH | 2 | PIPE | V471-005191 | V471-005191-Online |
| 29 | TOOL,WRENCH | 2 | PIPE | V471-005211 | V471-005211-Online |
| 29 | TOOL,WRENCH | 2 | CLIP | V490-001230 | V490-001230-Online |
| 29 | TOOL,WRENCH | 2 | BEARING,NEEDLE | V555-000140 | V555-000140-Online |
| 29 | TOOL,WRENCH | 2 | BEARING,NEEDLE | V555-000170 | V555-000170-Online |
| 29 | TOOL,WRENCH | 2 | RING,SNAP | V582-000280 | V582-000280-Online |
| 29 | TOOL,WRENCH | 2 | BOLT, TORX | V804-000000 | V804-000000-Online |
| 29 | TOOL,WRENCH | 2 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 29 | TOOL,WRENCH | 2 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 29 | TOOL,WRENCH | 20 | LABEL,MODEL | X503-014640 | X503-014640-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X122-000420 | X122-000420-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X123-000630 | X123-000630-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X123-000660 | X123-000660-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X123-000680 | X123-000680-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X123-000770 | X123-000770-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X125-000400 | X125-000400-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X125-000430 | X125-000430-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X125-000450 | X125-000450-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X125-000520 | X125-000520-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X126-000330 | X126-000330-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X126-000340 | X126-000340-Online |
| 29 | TOOL,WRENCH | 22 | BAR,GUIDE | X126-000360 | X126-000360-Online |
| 29 | TOOL,WRENCH | 22 | CHAIN,SAW | X242-000010 | X242-000010-Online |
| 29 | TOOL,WRENCH | 22 | CHAIN,SAW | X243-000020 | X243-000020-Online |
| 29 | TOOL,WRENCH | 22 | CHAIN,SAW | X245-000060 | X245-000060-Online |
| 29 | TOOL,WRENCH | 22 | CHAIN,SAW | X246-000140 | X246-000140-Online |
| 29 | TOOL,WRENCH | 22 | CHAIN COVER | X490-000360 | X490-000360-Online |
| 29 | TOOL,WRENCH | 4 | BOLT,STUD | V225-000400 | V225-000400-Online |
| 29 | TOOL,WRENCH | 4 | NUT,8 | V265-000550 | V265-000550-Online |
| 29 | TOOL,WRENCH | 4 | CUSHION | V420-005250 | V420-005250-Online |
| 29 | TOOL,WRENCH | 4 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 29 | TOOL,WRENCH | 4 | BAR,GUIDE | X122-000400 | X122-000400-Online |
| 29 | TOOL,WRENCH | 4 | TOOL,WRENCH | X602-000080 | X602-000080-Online |
| 29 | TOOL,WRENCH | 6 | LEAD | V485-002960 | V485-002960-Online |
| 29 | TOOL,WRENCH | 6 | LEAD | V485-002970 | V485-002970-Online |
| 29 | TOOL,WRENCH | 6 | TERMINAL,LEAD | V486-000540 | V486-000540-Online |
| 29 | TOOL,WRENCH | 6 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 29 | TOOL,WRENCH | 8 | CUSHION | V420-005260 | V420-005260-Online |
| 29 | TOOL,WRENCH | 8 | CUSHION | V420-005270 | V420-005270-Online |
| 29 | TOOL,WRENCH | 8 | HOLDER,SPRING | V456-000240 | V456-000240-Online |
| 29 | TOOL,WRENCH | 8 | PIPE | V471-001291 | V471-001291-Online |
| 29 | TOOL,WRENCH | 8 | GEAR,BEVEL | V651-001040 | V651-001040-Online |
| 29 | TOOL,WRENCH | 8 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 29 | TOOL,WRENCH | 8 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 29 | TOOL,WRENCH | 8 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 29 | TOOL,WRENCH | 8 | LABEL,CAUTION | X505-010150 | X505-010150-Online |
Source file: 20230606-38-451S_38_00000001_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
