Illustrated Parts List
Shindaiwa C2510 EC2 Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: C2510 EC2
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

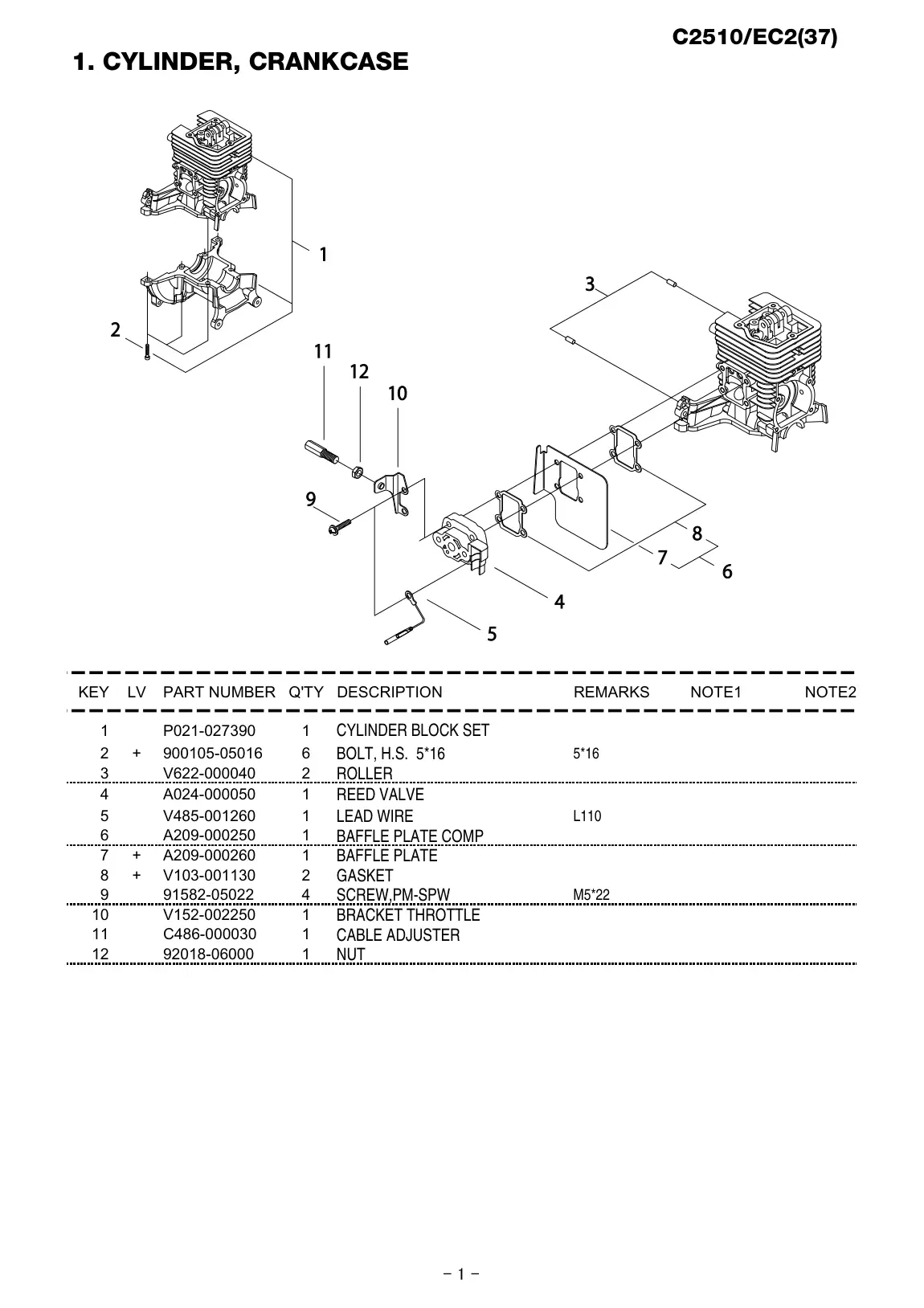

| 2 | NUT | 1 | CYLINDER BLOCK SET | P021-027390 | P021-027390-Online |
| 2 | NUT | 10 | BRACKET THROTTLE | V152-002250 | V152-002250-Online |
| 2 | NUT | 11 | CABLE ADJUSTER | C486-000030 | C486-000030-Online |
| 2 | NUT | 12 | NUT | 92018-06000 | 92018-06000-Online |
| 2 | NUT | 2 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 2 | NUT | 3 | ROLLER | V622-000040 | V622-000040-Online |
| 2 | NUT | 4 | REED VALVE | A024-000050 | A024-000050-Online |
| 2 | NUT | 5 | LEAD WIRE | V485-001260 | V485-001260-Online |
| 2 | NUT | 6 | BAFFLE PLATE COMP | A209-000250 | A209-000250-Online |
| 2 | NUT | 7 | BAFFLE PLATE | A209-000260 | A209-000260-Online |
| 2 | NUT | 8 | GASKET | V103-001130 | V103-001130-Online |
| 2 | NUT | 9 | SCREW,PM-SPW | 91582-05022 | 91582-05022-Online |

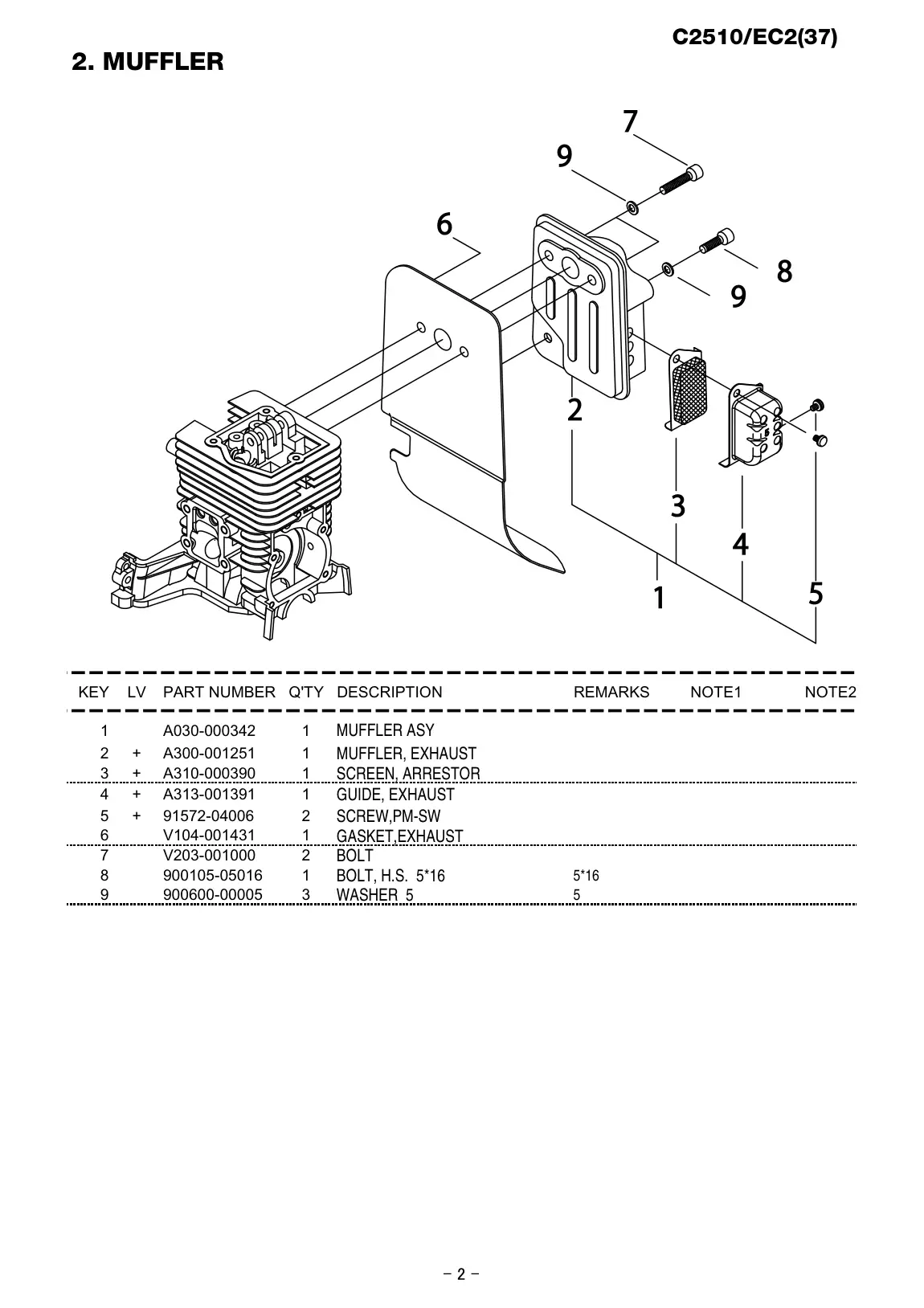

| 3 | WASHER 5 | 1 | MUFFLER ASY | A030-000342 | A030-000342-Online |
| 3 | WASHER 5 | 2 | MUFFLER, EXHAUST | A300-001251 | A300-001251-Online |
| 3 | WASHER 5 | 3 | SCREEN, ARRESTOR | A310-000390 | A310-000390-Online |
| 3 | WASHER 5 | 4 | GUIDE, EXHAUST | A313-001391 | A313-001391-Online |
| 3 | WASHER 5 | 5 | SCREW,PM-SW | 91572-04006 | 91572-04006-Online |
| 3 | WASHER 5 | 6 | GASKET,EXHAUST | V104-001431 | V104-001431-Online |
| 3 | WASHER 5 | 7 | BOLT | V203-001000 | V203-001000-Online |
| 3 | WASHER 5 | 8 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 3 | WASHER 5 | 9 | WASHER | 900600-00005 | 900600-00005-Online |

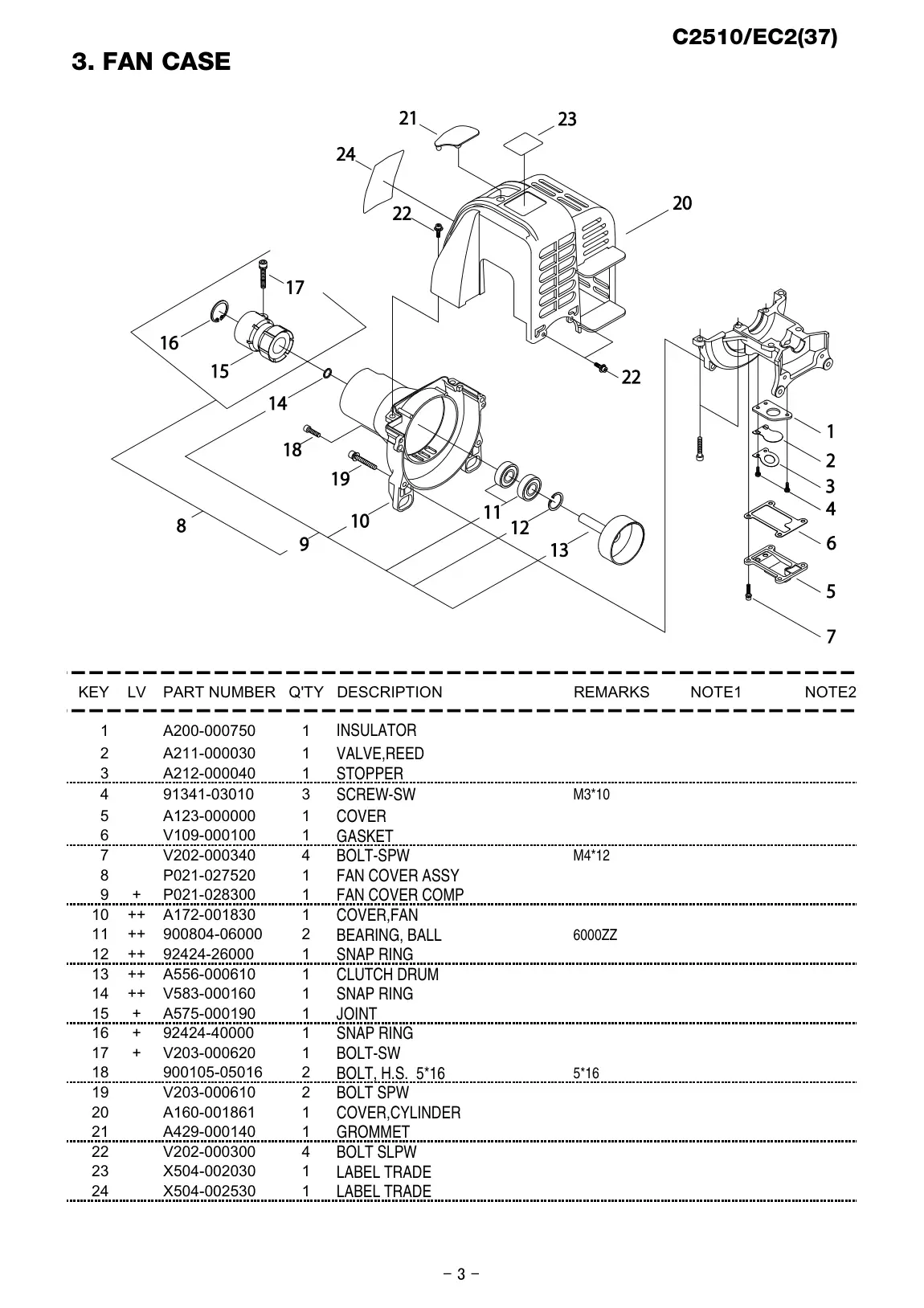

| 4 | LABEL TRADE | 1 | INSULATOR | A200-000750 | A200-000750-Online |
| 4 | LABEL TRADE | 10 | COVER,FAN | A172-001830 | A172-001830-Online |
| 4 | LABEL TRADE | 11 | BEARING, BALL | 900804-06000 | 900804-06000-Online |
| 4 | LABEL TRADE | 12 | SNAP RING | 92424-26000 | 92424-26000-Online |
| 4 | LABEL TRADE | 13 | CLUTCH DRUM | A556-000610 | A556-000610-Online |
| 4 | LABEL TRADE | 14 | SNAP RING | V583-000160 | V583-000160-Online |
| 4 | LABEL TRADE | 15 | JOINT | A575-000190 | A575-000190-Online |
| 4 | LABEL TRADE | 16 | SNAP RING | 92424-40000 | 92424-40000-Online |
| 4 | LABEL TRADE | 17 | BOLT-SW | V203-000620 | V203-000620-Online |
| 4 | LABEL TRADE | 18 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 4 | LABEL TRADE | 19 | BOLT SPW | V203-000610 | V203-000610-Online |
| 4 | LABEL TRADE | 2 | VALVE,REED | A211-000030 | A211-000030-Online |
| 4 | LABEL TRADE | 20 | COVER,CYLINDER | A160-001861 | A160-001861-Online |
| 4 | LABEL TRADE | 21 | GROMMET | A429-000140 | A429-000140-Online |
| 4 | LABEL TRADE | 22 | BOLT SLPW | V202-000300 | V202-000300-Online |
| 4 | LABEL TRADE | 23 | LABEL TRADE | X504-002030 | X504-002030-Online |
| 4 | LABEL TRADE | 24 | LABEL TRADE | X504-002530 | X504-002530-Online |
| 4 | LABEL TRADE | 3 | STOPPER | A212-000040 | A212-000040-Online |
| 4 | LABEL TRADE | 4 | SCREW-SW | 91341-03010 | 91341-03010-Online |
| 4 | LABEL TRADE | 5 | COVER | A123-000000 | A123-000000-Online |
| 4 | LABEL TRADE | 6 | GASKET | V109-000100 | V109-000100-Online |
| 4 | LABEL TRADE | 7 | BOLT-SPW | V202-000340 | V202-000340-Online |
| 4 | LABEL TRADE | 8 | FAN COVER ASSY | P021-027520 | P021-027520-Online |
| 4 | LABEL TRADE | 9 | FAN COVER COMP | P021-028300 | P021-028300-Online |
| 5 | THRUST WASHER | 1 | CRANKSHAFT COMP | A011-000630 | A011-000630-Online |
| 5 | THRUST WASHER | 10 | THRUST WASHER | V392-000020 | V392-000020-Online |
| 5 | THRUST WASHER | 2 | SEAL,OIL | V505-000020 | V505-000020-Online |
| 5 | THRUST WASHER | 3 | OIL SEAL | V505-000120 | V505-000120-Online |
| 5 | THRUST WASHER | 4 | PISTON KIT | P021-033930 | P021-033930-Online |
| 5 | THRUST WASHER | 5 | PISTON | A100-000710 | A100-000710-Online |
| 5 | THRUST WASHER | 6 | PISTON RING | A101-000390 | A101-000390-Online |
| 5 | THRUST WASHER | 7 | PISTON PIN | V607-000040 | V607-000040-Online |
| 5 | THRUST WASHER | 8 | SNAP RING | V580-000090 | V580-000090-Online |
| 5 | THRUST WASHER | 9 | NEEDLE BEARING | V554-000010 | V554-000010-Online |
| 6 | ROCKER ARM COVER | 1 | CAM GEAR ASSY | A063-000000 | A063-000000-Online |
| 6 | ROCKER ARM COVER | 10 | PUSH ROD | A607-000010 | A607-000010-Online |
| 6 | ROCKER ARM COVER | 11 | CAM GEAR COVER | A136-000010 | A136-000010-Online |
| 6 | ROCKER ARM COVER | 12 | GASKET | V109-000110 | V109-000110-Online |
| 6 | ROCKER ARM COVER | 13 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 6 | ROCKER ARM COVER | 14 | SCREW | V253-000540 | V253-000540-Online |
| 6 | ROCKER ARM COVER | 15 | COLLAR | V303-000120 | V303-000120-Online |
| 6 | ROCKER ARM COVER | 16 | INTAKE VALVE | A603-000040 | A603-000040-Online |
| 6 | ROCKER ARM COVER | 17 | EXHAUST VALVE | A603-000050 | A603-000050-Online |
| 6 | ROCKER ARM COVER | 18 | RETAINER | A606-000040 | A606-000040-Online |
| 6 | ROCKER ARM COVER | 19 | PLATE | V392-000030 | V392-000030-Online |
| 6 | ROCKER ARM COVER | 2 | CAM GEAR | A622-000000 | A622-000000-Online |
| 6 | ROCKER ARM COVER | 20 | VALVE SPRING | A604-000010 | A604-000010-Online |
| 6 | ROCKER ARM COVER | 21 | ROCKER ARM ASSY | A610-000050 | A610-000050-Online |
| 6 | ROCKER ARM COVER | 22 | ROCKER ARM | A610-000060 | A610-000060-Online |
| 6 | ROCKER ARM COVER | 23 | ADJUST SCREW | A613-000010 | A613-000010-Online |
| 6 | ROCKER ARM COVER | 24 | NUT | V263-000230 | V263-000230-Online |
| 6 | ROCKER ARM COVER | 25 | ROLLER | V623-000040 | V623-000040-Online |
| 6 | ROCKER ARM COVER | 26 | ROCKER ARM COVER | A137-000020 | A137-000020-Online |
| 6 | ROCKER ARM COVER | 3 | WEIGHT | A146-000000 | A146-000000-Online |
| 6 | ROCKER ARM COVER | 4 | COIL SPRING | V452-000610 | V452-000610-Online |
| 6 | ROCKER ARM COVER | 5 | PLATE | C603-000240 | C603-000240-Online |
| 6 | ROCKER ARM COVER | 6 | SCREW,TAPPING | 91449-04006 | 91449-04006-Online |
| 6 | ROCKER ARM COVER | 7 | ROLLER | V623-000030 | V623-000030-Online |
| 6 | ROCKER ARM COVER | 8 | LIFTER | A600-000001 | A600-000001-Online |
| 6 | ROCKER ARM COVER | 9 | WASHER | V303-000220 | V303-000220-Online |
| 7 | M4-14 | 27 | GASKET | V109-000120 | V109-000120-Online |
| 7 | M4-14 | 28 | BOLT-SPW | V202-000350 | V202-000350-Online |

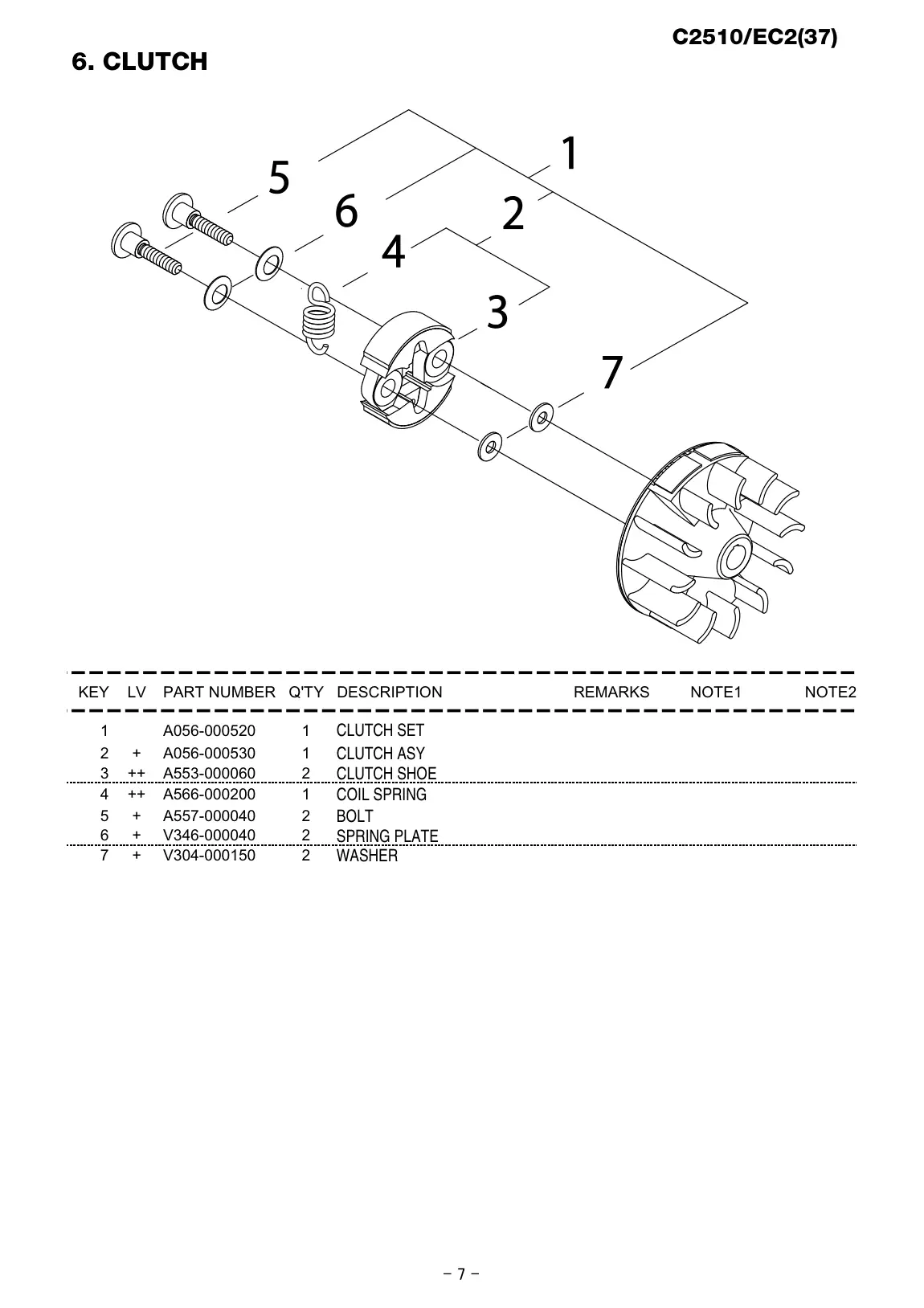

| 8 | WASHER | 1 | CLUTCH SET | A056-000520 | A056-000520-Online |
| 8 | WASHER | 2 | CLUTCH ASY | A056-000530 | A056-000530-Online |
| 8 | WASHER | 3 | CLUTCH SHOE | A553-000060 | A553-000060-Online |
| 8 | WASHER | 4 | COIL SPRING | A566-000200 | A566-000200-Online |
| 8 | WASHER | 5 | BOLT | A557-000040 | A557-000040-Online |
| 8 | WASHER | 6 | SPRING PLATE | V346-000040 | V346-000040-Online |
| 8 | WASHER | 7 | WASHER | V304-000150 | V304-000150-Online |
| 9 | NGK CMR5H | 10 | BOLT-SLPW | V202-000360 | V202-000360-Online |
| 9 | NGK CMR5H | 11 | SPARKPLUG | A425-000040 | A425-000040-Online |
| 9 | NGK CMR5H | 12 | TUBE | V475-005160 | V475-005160-Online |
| 9 | NGK CMR5H | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 9 | NGK CMR5H | 3 | NUT | V265-000140 | V265-000140-Online |
| 9 | NGK CMR5H | 4 | COIL ASSY | A411-000890 | A411-000890-Online |
| 9 | NGK CMR5H | 5 | PLUG CAP | A427-000110 | A427-000110-Online |
| 9 | NGK CMR5H | 6 | COIL SPRING | A426-000070 | A426-000070-Online |
| 9 | NGK CMR5H | 7 | LEAD WIRE | V485-001910 | V485-001910-Online |
| 9 | NGK CMR5H | 8 | GROMMET | V136-000100 | V136-000100-Online |
| 9 | NGK CMR5H | 9 | INSULATOR | V322-000040 | V322-000040-Online |
| 10 | LABEL TRADE | 1 | STARTER,RECOIL | A051-001491 | A051-001491-Online |
| 10 | LABEL TRADE | 10 | ROPE | A509-000060 | A509-000060-Online |
| 10 | LABEL TRADE | 11 | KNOB | A511-000090 | A511-000090-Online |
| 10 | LABEL TRADE | 12 | STARTER PULLEY | A520-000080 | A520-000080-Online |
| 10 | LABEL TRADE | 13 | NUT | 900503-00008 | 900503-00008-Online |
| 10 | LABEL TRADE | 14 | BOLT SLPW | V202-000300 | V202-000300-Online |
| 10 | LABEL TRADE | 15 | LABEL TRADE | X504-003080 | X504-003080-Online |
| 10 | LABEL TRADE | 2 | STARTER CASE | A500-000620 | A500-000620-Online |
| 10 | LABEL TRADE | 3 | REEL | A506-000130 | A506-000130-Online |
| 10 | LABEL TRADE | 4 | RECOIL SPRING | A504-000050 | A504-000050-Online |
| 10 | LABEL TRADE | 6 | WAVE WASHER | V346-000030 | V346-000030-Online |
| 10 | LABEL TRADE | 7 | SCREW | V253-000260 | V253-000260-Online |
| 10 | LABEL TRADE | 8 | RETAINER | A606-000000 | A606-000000-Online |
| 10 | LABEL TRADE | 9 | WASHER | V303-000110 | V303-000110-Online |
| 11 | GASKET, PUMP | CARBURETOR ASSY | A021-002740 | A021-002740-Online | |
| 11 | GASKET, PUMP | 10 | PUMP, PRIMER | 123181-40630 | 123181-40630-Online |
| 11 | GASKET, PUMP | 11 | SCREW, PUMP COVER | 123110-05560 | 123110-05560-Online |
| 11 | GASKET, PUMP | 12 | O-RING | 900720-00015 | 900720-00015-Online |
| 11 | GASKET, PUMP | 16 | LEVER, METERING | 123123-03930 | 123123-03930-Online |
| 11 | GASKET, PUMP | 17 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 11 | GASKET, PUMP | 18 | SPRING, METER. LEVER | 123122-05560 | 123122-05560-Online |
| 11 | GASKET, PUMP | 19 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 11 | GASKET, PUMP | 2 | VALVE,THROTTLE | P003-003950 | P003-003950-Online |
| 11 | GASKET, PUMP | 20 | SCREW, M. LEVER PIN | 123139-05560 | 123139-05560-Online |
| 11 | GASKET, PUMP | 21 | MAIN JET | P003-003440 | P003-003440-Online |
| 11 | GASKET, PUMP | 22 | O-RING | 123183-40630 | 123183-40630-Online |
| 11 | GASKET, PUMP | 23 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 11 | GASKET, PUMP | 24 | METERING, DIAPHRAGM | P003-000090 | P003-000090-Online |
| 11 | GASKET, PUMP | 25 | GASKET, M. DIAPHRAGM | 123140-05560 | 123140-05560-Online |
| 11 | GASKET, PUMP | 26 | DIAPHRAGM, PUMP | 123112-40630 | 123112-40630-Online |
| 11 | GASKET, PUMP | 27 | GASKET, PUMP | 123125-40630 | 123125-40630-Online |
| 11 | GASKET, PUMP | 3 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 11 | GASKET, PUMP | 4 | WASHER | 123149-54230 | 123149-54230-Online |
| 11 | GASKET, PUMP | 5 | CLIP | 123173-07930 | 123173-07930-Online |
| 11 | GASKET, PUMP | 6 | SCREW | 123114-44330 | 123114-44330-Online |
| 11 | GASKET, PUMP | 7 | BODY ASSEMBLY, PUMP | P003-000510 | P003-000510-Online |
| 11 | GASKET, PUMP | 8 | BODY, AIR PURGE | 123180-05560 | 123180-05560-Online |
| 11 | GASKET, PUMP | 9 | COVER, PRIMER PUMP | 123142-05560 | 123142-05560-Online |
| 12 | GASKET | 1 | CASE,CLEANER | A023-000300 | A023-000300-Online |
| 12 | GASKET | 10 | GASKET | V103-001140 | V103-001140-Online |
| 12 | GASKET | 2 | FILTER | A226-000690 | A226-000690-Online |
| 12 | GASKET | 3 | CLEANER COVER ASSY | P021-028521 | P021-028521-Online |
| 12 | GASKET | 4 | LID,CLEANER | A232-000901 | A232-000901-Online |
| 12 | GASKET | 5 | KNOB | V299-000400 | V299-000400-Online |
| 12 | GASKET | 6 | SCREW,PM | 91581-05060 | 91581-05060-Online |
| 12 | GASKET | 7 | WASHER | 900603-00005 | 900603-00005-Online |
| 12 | GASKET | 8 | PREFILTER | A226-000700 | A226-000700-Online |
| 12 | GASKET | 9 | CARBURETOR ASSY | A021-002740 | A021-002740-Online |
| 13 | BOLT SPW | 10 | JOINT | V186-000210 | V186-000210-Online |
| 13 | BOLT SPW | 11 | PIPE | V471-002360 | V471-002360-Online |
| 13 | BOLT SPW | 12 | CLIP | V490-000500 | V490-000500-Online |
| 13 | BOLT SPW | 13 | CLIP | V490-000510 | V490-000510-Online |
| 13 | BOLT SPW | 14 | TANK CUSHION | V420-002220 | V420-002220-Online |
| 13 | BOLT SPW | 15 | TANK GUARD | A175-000220 | A175-000220-Online |
| 13 | BOLT SPW | 16 | BOLT SPW | V203-000350 | V203-000350-Online |
| 13 | BOLT SPW | 2 | FUEL TANK | A350-001010 | A350-001010-Online |
| 13 | BOLT SPW | 3 | CAP,FUEL | A033-000330 | A033-000330-Online |
| 13 | BOLT SPW | 4 | FUEL CAP | A355-000180 | A355-000180-Online |
| 13 | BOLT SPW | 5 | GASKET | V107-000010 | V107-000010-Online |
| 13 | BOLT SPW | 6 | PIPE | V471-002350 | V471-002350-Online |
| 13 | BOLT SPW | 7 | FUEL FILTER | A369-000070 | A369-000070-Online |
| 13 | BOLT SPW | 8 | GROMMET | V470-000880 | V470-000880-Online |
| 13 | BOLT SPW | 9 | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 14 | BOLT | 1 | GEAR CASE SUB ASSY | C051-000680 | C051-000680-Online |
| 14 | BOLT | 10 | BEVEL GEAR | V651-000690 | V651-000690-Online |
| 14 | BOLT | 11 | COLLAR | V356-000480 | V356-000480-Online |
| 14 | BOLT | 12 | PINION SET | V651-000700 | V651-000700-Online |
| 14 | BOLT | 13 | BEARING, BALL | 900800-00608 | 900800-00608-Online |
| 14 | BOLT | 14 | BEARING, BALL | 900804-00608 | 900804-00608-Online |
| 14 | BOLT | 15 | RING | 92411-08000 | 92411-08000-Online |
| 14 | BOLT | 16 | SNAP RING | 92424-22000 | 92424-22000-Online |
| 14 | BOLT | 17 | BOLT SPW | V203-000590 | V203-000590-Online |
| 14 | BOLT | 18 | BOLT SPW | V203-000600 | V203-000600-Online |
| 14 | BOLT | 19 | SHIM | V340-000300 | V340-000300-Online |
| 14 | BOLT | 2 | GEAR CASE | C531-000710 | C531-000710-Online |
| 14 | BOLT | 20 | WASHER | 900603-00005 | 900603-00005-Online |
| 14 | BOLT | 21 | NUT | 900500-00005 | 900500-00005-Online |
| 14 | BOLT | 22 | LOWER CLAMP | C551-000150 | C551-000150-Online |
| 14 | BOLT | 23 | HOLDER A | C535-000510 | C535-000510-Online |
| 14 | BOLT | 24 | HOLDER | C535-000680 | C535-000680-Online |
| 14 | BOLT | 25 | BOLT GUARD | C535-000690 | C535-000690-Online |
| 14 | BOLT | 26 | BOLT | V216-000040 | V216-000040-Online |
| 14 | BOLT | 3 | BEARING, BALL | 900812-00626 | 900812-00626-Online |
| 14 | BOLT | 4 | BEARING, BALL | 900800-06000 | 900800-06000-Online |
| 14 | BOLT | 5 | OIL SEAL | V509-000000 | V509-000000-Online |
| 14 | BOLT | 6 | SNAP RING | 92424-26000 | 92424-26000-Online |
| 14 | BOLT | 7 | BOLT | 91030-06010 | 91030-06010-Online |
| 14 | BOLT | 8 | GASKET | V304-000180 | V304-000180-Online |
| 14 | BOLT | 9 | GEAR SHAFT | C534-000680 | C534-000680-Online |

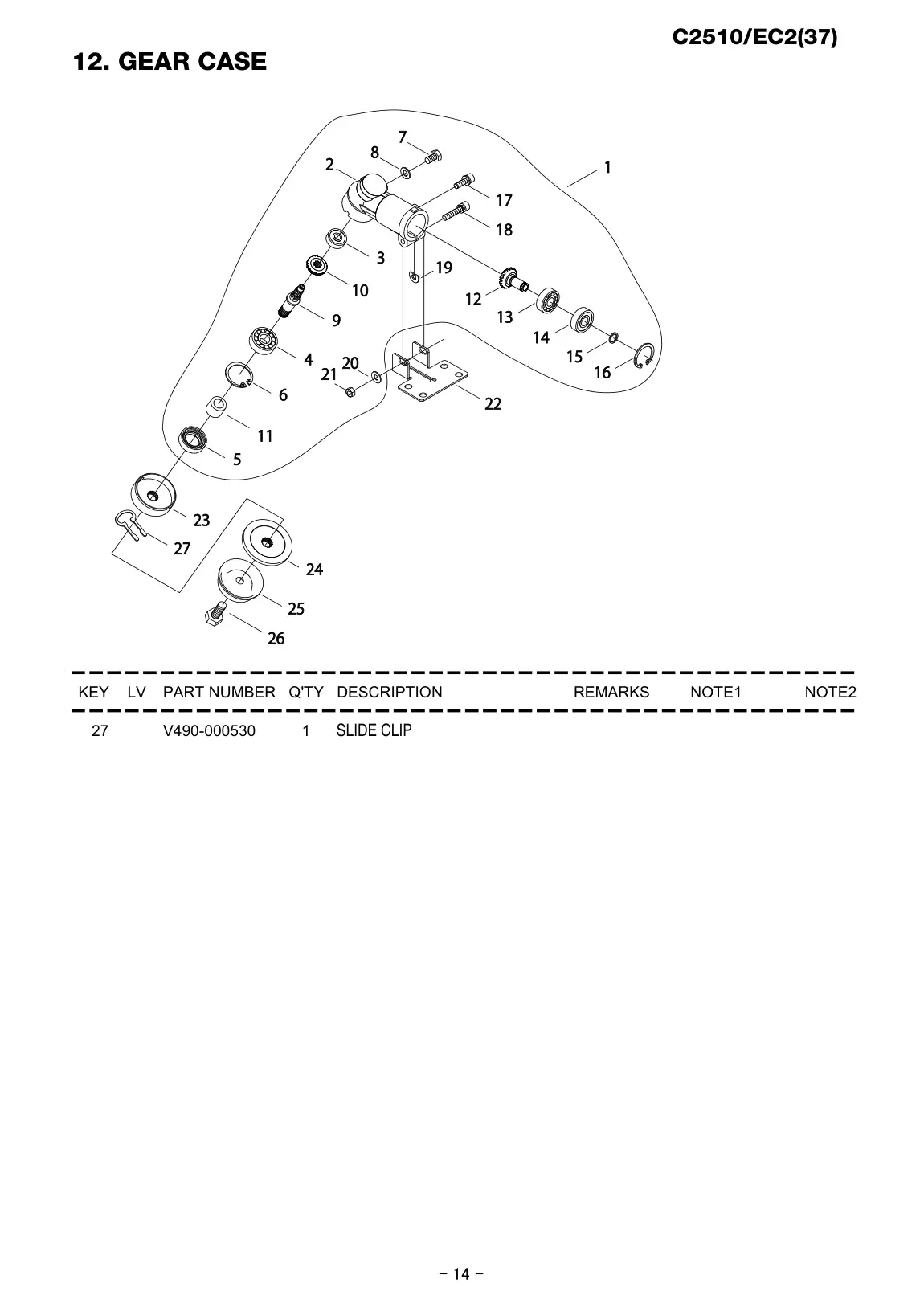

| 15 | SLIDE CLIP | 27 | SLIDE CLIP | V490-000530 | V490-000530-Online |
| 16 | BOLT SPW | 1 | GUARD SET | P021-028900 | P021-028900-Online |
| 16 | BOLT SPW | 2 | GUARD | C550-000430 | C550-000430-Online |
| 16 | BOLT SPW | 3 | SUB GUARD ASSY | P021-028450 | P021-028450-Online |
| 16 | BOLT SPW | 4 | CUTTER | C554-000040 | C554-000040-Online |
| 16 | BOLT SPW | 5 | BOLT SW | V203-000720 | V203-000720-Online |
| 16 | BOLT SPW | 6 | NUT | V263-000130 | V263-000130-Online |
| 16 | BOLT SPW | 7 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 16 | BOLT SPW | 8 | SPACER | V375-000340 | V375-000340-Online |
| 16 | BOLT SPW | 9 | BOLT SPW | V203-000610 | V203-000610-Online |

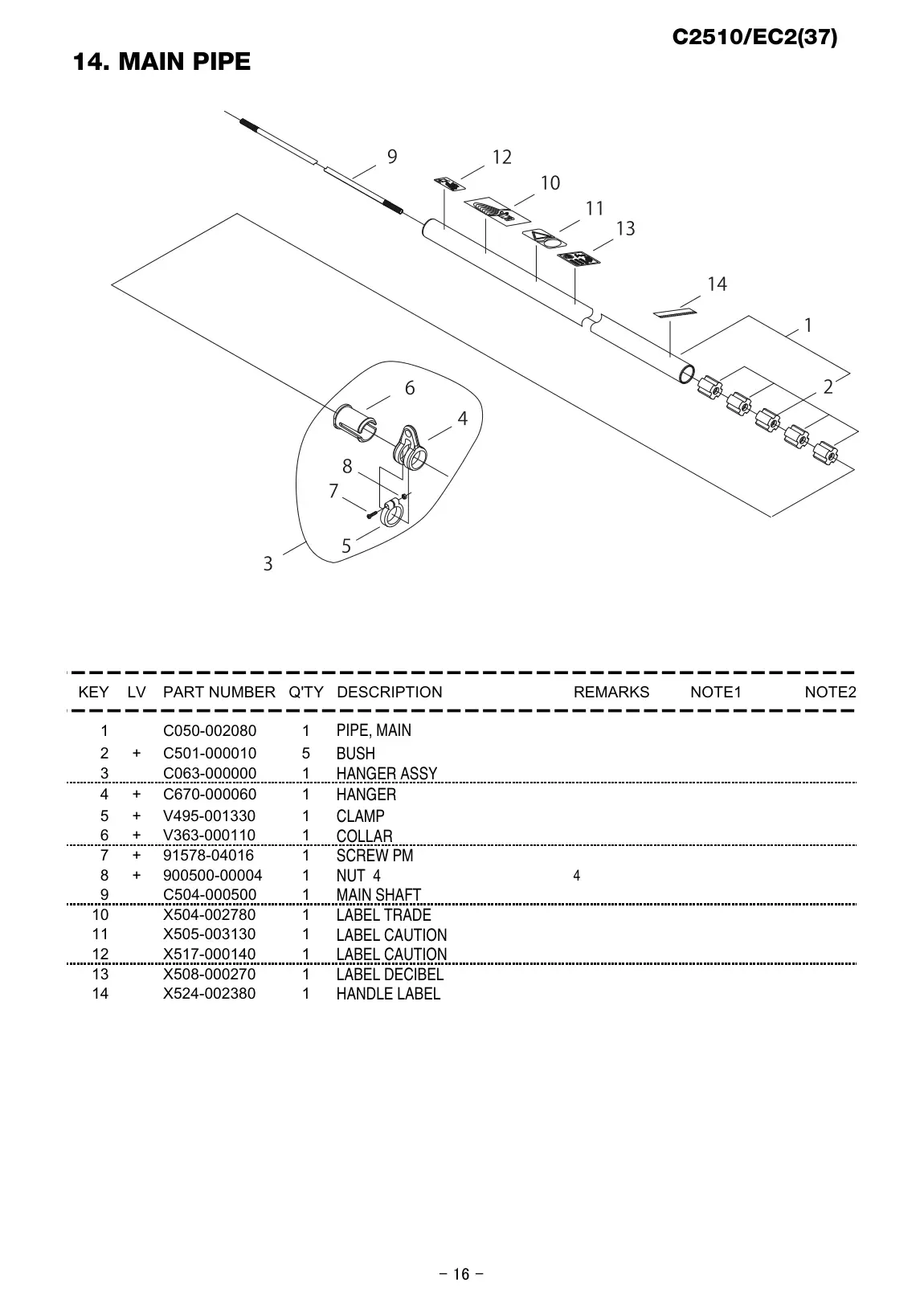

| 17 | HANDLE LABEL | 1 | PIPE, MAIN | C050-002080 | C050-002080-Online |
| 17 | HANDLE LABEL | 10 | LABEL TRADE | X504-002780 | X504-002780-Online |
| 17 | HANDLE LABEL | 11 | LABEL CAUTION | X505-003130 | X505-003130-Online |
| 17 | HANDLE LABEL | 12 | LABEL CAUTION | X517-000140 | X517-000140-Online |
| 17 | HANDLE LABEL | 13 | LABEL DECIBEL | X508-000270 | X508-000270-Online |
| 17 | HANDLE LABEL | 14 | HANDLE LABEL | X524-002380 | X524-002380-Online |
| 17 | HANDLE LABEL | 3 | HANGER ASSY | C063-000000 | C063-000000-Online |
| 17 | HANDLE LABEL | 4 | HANGER | C670-000060 | C670-000060-Online |
| 17 | HANDLE LABEL | 6 | COLLAR | V363-000110 | V363-000110-Online |
| 17 | HANDLE LABEL | 7 | SCREW PM | 91578-04016 | 91578-04016-Online |
| 17 | HANDLE LABEL | 8 | NUT | 900500-00004 | 900500-00004-Online |
| 17 | HANDLE LABEL | 9 | MAIN SHAFT | C504-000500 | C504-000500-Online |
| 18 | SCREW TAPPING | 1 | THROTTLE LEVER | C044-000670 | C044-000670-Online |
| 18 | SCREW TAPPING | 10 | SPRING | V452-000540 | V452-000540-Online |
| 18 | SCREW TAPPING | 11 | BOLT, H.S. 6*20 | 900105-06020 | 900105-06020-Online |
| 18 | SCREW TAPPING | 12 | NUT | V264-000140 | V264-000140-Online |
| 18 | SCREW TAPPING | 13 | SCREW PM | 91580-05035 | 91580-05035-Online |
| 18 | SCREW TAPPING | 14 | NUT | V263-000190 | V263-000190-Online |
| 18 | SCREW TAPPING | 15 | SCREW TAPPING | V252-000190 | V252-000190-Online |
| 18 | SCREW TAPPING | 2 | BODY RIGHT | C401-000210 | C401-000210-Online |
| 18 | SCREW TAPPING | 3 | BODY LEFT | C401-000220 | C401-000220-Online |
| 18 | SCREW TAPPING | 4 | LEVER | C450-000530 | C450-000530-Online |
| 18 | SCREW TAPPING | 5 | LOCK LEVER | C460-000210 | C460-000210-Online |
| 18 | SCREW TAPPING | 6 | BUTTON | C461-000050 | C461-000050-Online |
| 18 | SCREW TAPPING | 8 | THROTTLE CABLE COMP | V043-000430 | V043-000430-Online |
| 18 | SCREW TAPPING | 9 | RETURN SPRING | V452-000530 | V452-000530-Online |

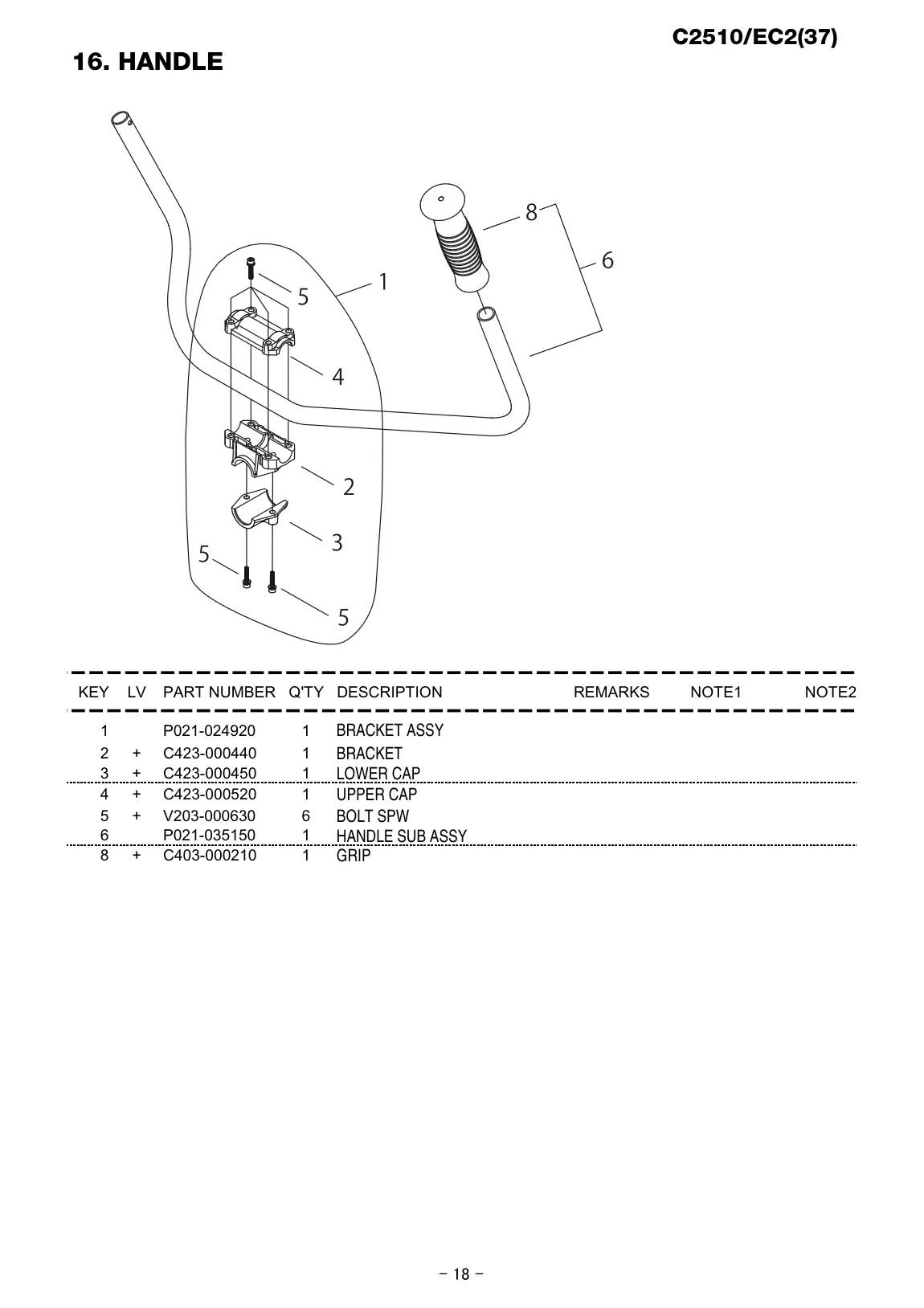

| 19 | GRIP | 1 | BRACKET ASSY | P021-024920 | P021-024920-Online |
| 19 | GRIP | 2 | BRACKET | C423-000440 | C423-000440-Online |
| 19 | GRIP | 3 | LOWER CAP | C423-000450 | C423-000450-Online |
| 19 | GRIP | 4 | UPPER CAP | C423-000520 | C423-000520-Online |
| 19 | GRIP | 5 | BOLT SPW | V203-000630 | V203-000630-Online |
| 19 | GRIP | 6 | HANDLE SUB ASSY | P021-035150 | P021-035150-Online |
| 19 | GRIP | 8 | GRIP | C403-000210 | C403-000210-Online |
| 20 | HOOK | 1 | STRAP ASSY | C062-000400 | C062-000400-Online |
| 20 | HOOK | 3 | PROTECTOR | C644-000080 | C644-000080-Online |

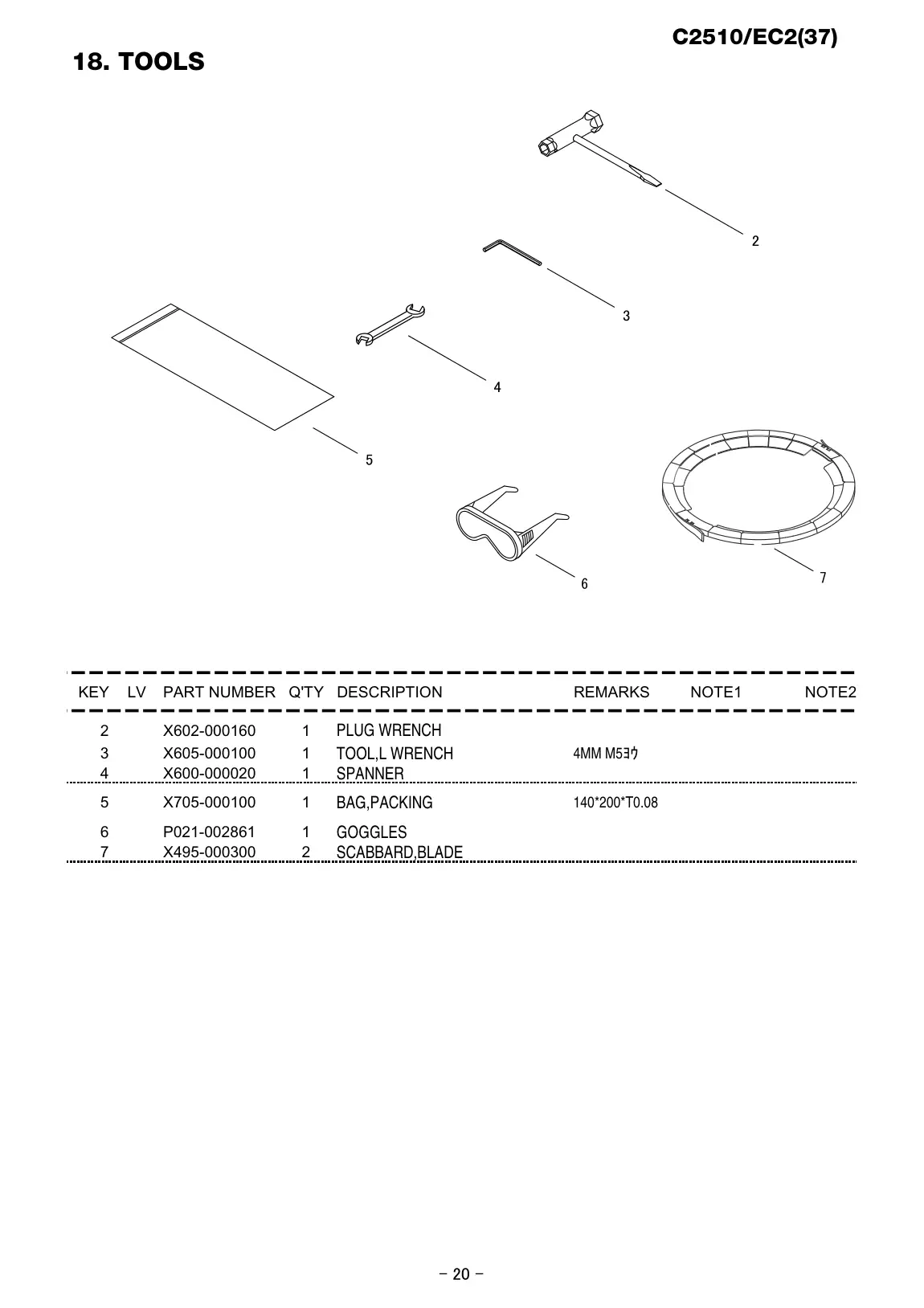

| 21 | SCABBARD,BLADE | 2 | PLUG WRENCH | X602-000160 | X602-000160-Online |
| 21 | SCABBARD,BLADE | 3 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 21 | SCABBARD,BLADE | 4 | SPANNER | X600-000020 | X600-000020-Online |
| 21 | SCABBARD,BLADE | 5 | BAG,PACKING | X705-000100 | X705-000100-Online |
| 21 | SCABBARD,BLADE | 6 | GOGGLES | P021-002861 | P021-002861-Online |
| 21 | SCABBARD,BLADE | 7 | SCABBARD,BLADE | X495-000300 | X495-000300-Online |
Source file: 20130718-586_C2510_EC2(37)_P016-000310-11Eb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
