Shindaiwa C230 USA Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: C230 USA
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

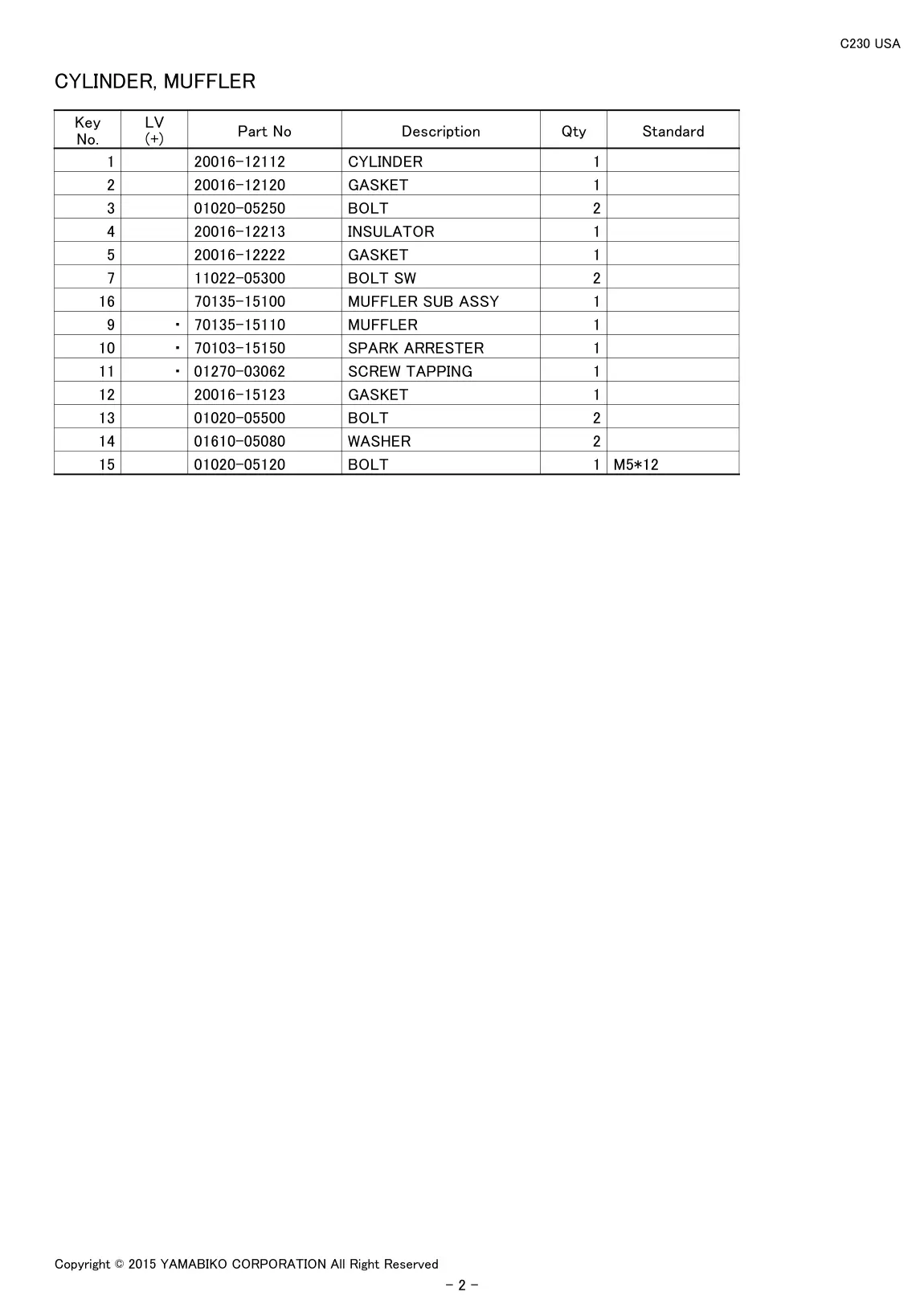

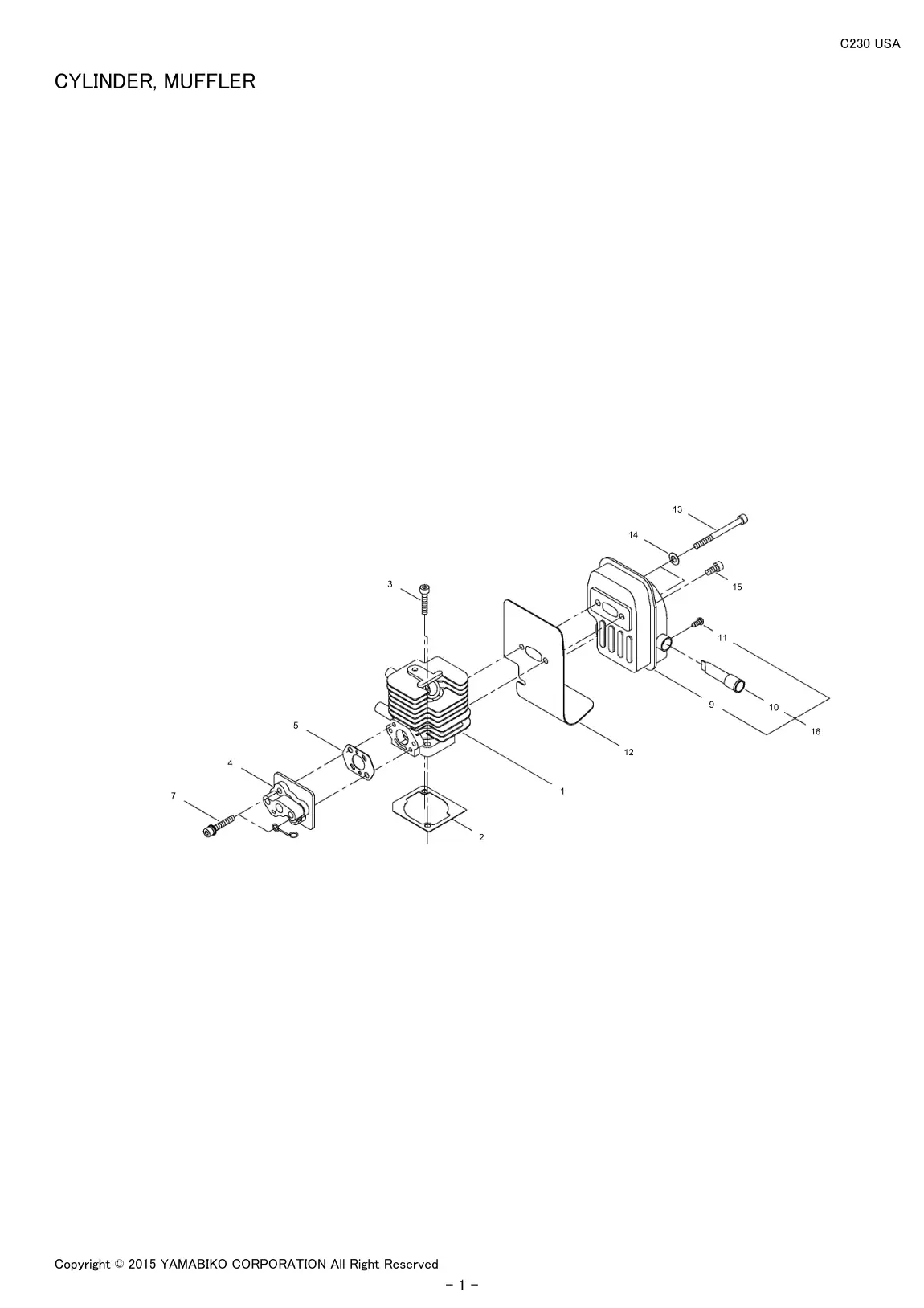

| 4 | CYLINDER, MUFFLER | 1 | CYLINDER | 20016-12112 | 20016-12112-Online |
| 4 | CYLINDER, MUFFLER | 10 | SPARK ARRESTER | 70103-15150 | 70103-15150-Online |
| 4 | CYLINDER, MUFFLER | 11 | SCREW TAPPING | 01270-03062 | 01270-03062-Online |
| 4 | CYLINDER, MUFFLER | 12 | GASKET | 20016-15123 | 20016-15123-Online |
| 4 | CYLINDER, MUFFLER | 13 | BOLT | 01020-05500 | 01020-05500-Online |
| 4 | CYLINDER, MUFFLER | 14 | WASHER | 01610-05080 | 01610-05080-Online |
| 4 | CYLINDER, MUFFLER | 15 | BOLT | 01020-05120 | 01020-05120-Online |
| 4 | CYLINDER, MUFFLER | 16 | MUFFLER SUB ASSY | 70135-15100 | 70135-15100-Online |
| 4 | CYLINDER, MUFFLER | 2 | GASKET | 20016-12120 | 20016-12120-Online |
| 4 | CYLINDER, MUFFLER | 3 | BOLT | 01020-05250 | 01020-05250-Online |
| 4 | CYLINDER, MUFFLER | 4 | INSULATOR | 20016-12213 | 20016-12213-Online |
| 4 | CYLINDER, MUFFLER | 5 | GASKET | 20016-12222 | 20016-12222-Online |
| 4 | CYLINDER, MUFFLER | 7 | BOLT SW | 11022-05300 | 11022-05300-Online |
| 4 | CYLINDER, MUFFLER | 9 | MUFFLER | 70135-15110 | 70135-15110-Online |

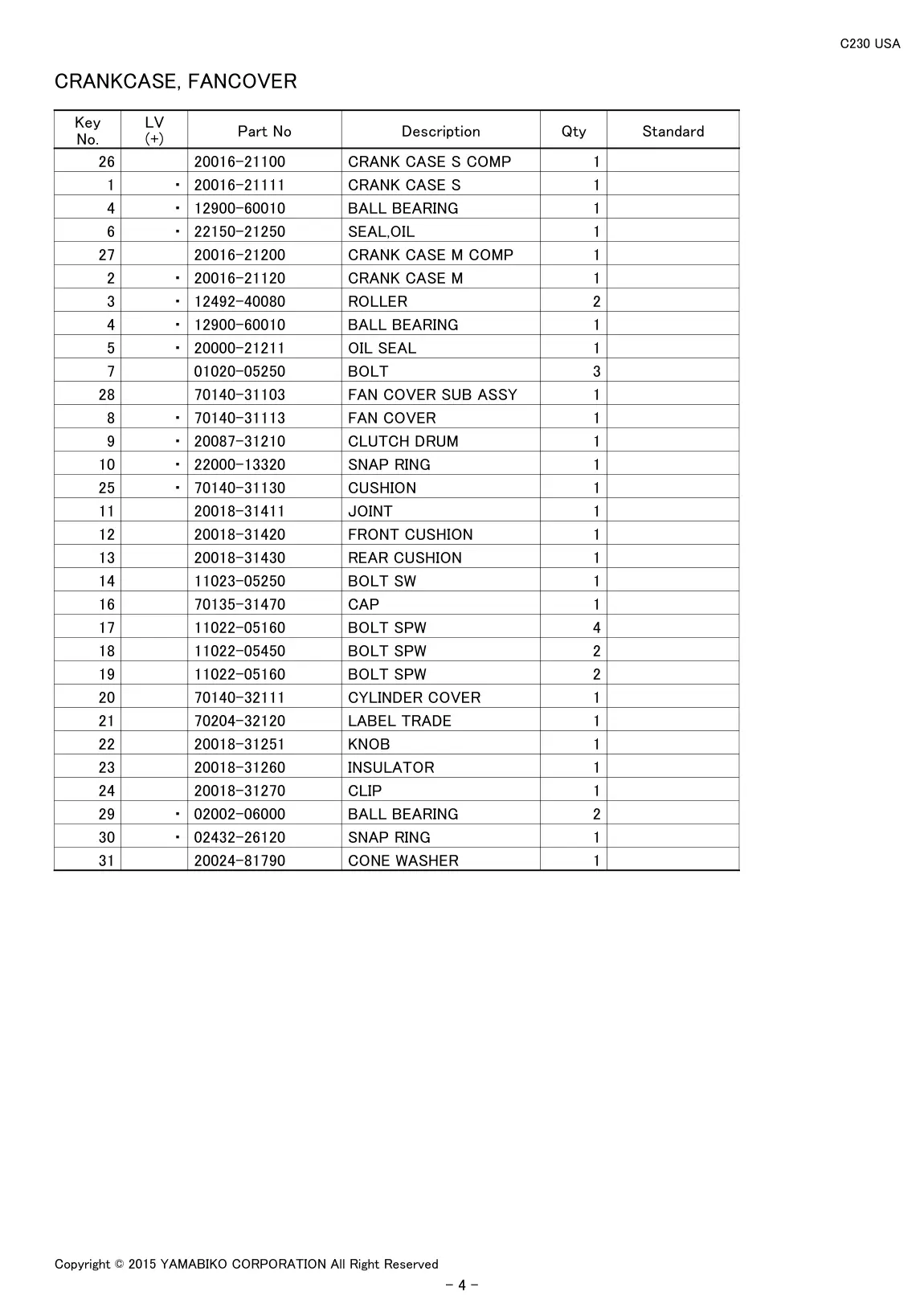

| 6 | CRANKCASE, FANCOVER | 1 | CRANK CASE S | 20016-21111 | 20016-21111-Online |
| 6 | CRANKCASE, FANCOVER | 10 | SNAP RING | 22000-13320 | 22000-13320-Online |
| 6 | CRANKCASE, FANCOVER | 11 | JOINT | 20018-31411 | 20018-31411-Online |
| 6 | CRANKCASE, FANCOVER | 12 | FRONT CUSHION | 20018-31420 | 20018-31420-Online |
| 6 | CRANKCASE, FANCOVER | 13 | REAR CUSHION | 20018-31430 | 20018-31430-Online |
| 6 | CRANKCASE, FANCOVER | 14 | BOLT SW | 11023-05250 | 11023-05250-Online |
| 6 | CRANKCASE, FANCOVER | 16 | CAP | 70135-31470 | 70135-31470-Online |
| 6 | CRANKCASE, FANCOVER | 17 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 6 | CRANKCASE, FANCOVER | 18 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 6 | CRANKCASE, FANCOVER | 19 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 6 | CRANKCASE, FANCOVER | 2 | CRANK CASE M | 20016-21120 | 20016-21120-Online |
| 6 | CRANKCASE, FANCOVER | 20 | CYLINDER COVER | 70140-32111 | 70140-32111-Online |
| 6 | CRANKCASE, FANCOVER | 21 | LABEL TRADE | 70204-32120 | 70204-32120-Online |
| 6 | CRANKCASE, FANCOVER | 22 | KNOB | 20018-31251 | 20018-31251-Online |
| 6 | CRANKCASE, FANCOVER | 23 | INSULATOR | 20018-31260 | 20018-31260-Online |
| 6 | CRANKCASE, FANCOVER | 24 | CLIP | 20018-31270 | 20018-31270-Online |
| 6 | CRANKCASE, FANCOVER | 25 | CUSHION | 70140-31130 | 70140-31130-Online |
| 6 | CRANKCASE, FANCOVER | 26 | CRANK CASE S COMP | 20016-21100 | 20016-21100-Online |
| 6 | CRANKCASE, FANCOVER | 27 | CRANK CASE M COMP | 20016-21200 | 20016-21200-Online |
| 6 | CRANKCASE, FANCOVER | 28 | FAN COVER SUB ASSY | 70140-31103 | 70140-31103-Online |
| 6 | CRANKCASE, FANCOVER | 29 | BALL BEARING | 02002-06000 | 02002-06000-Online |
| 6 | CRANKCASE, FANCOVER | 3 | ROLLER | 12492-40080 | 12492-40080-Online |
| 6 | CRANKCASE, FANCOVER | 30 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 6 | CRANKCASE, FANCOVER | 31 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 6 | CRANKCASE, FANCOVER | 4 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 6 | CRANKCASE, FANCOVER | 5 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 6 | CRANKCASE, FANCOVER | 6 | SEAL,OIL | 22150-21250 | 22150-21250-Online |
| 6 | CRANKCASE, FANCOVER | 7 | BOLT | 01020-05250 | 01020-05250-Online |
| 6 | CRANKCASE, FANCOVER | 8 | FAN COVER | 70140-31113 | 70140-31113-Online |
| 6 | CRANKCASE, FANCOVER | 9 | CLUTCH DRUM | 20087-31210 | 20087-31210-Online |
| 8 | CRANKSHAFT, CLUTCH | 1 | PISTON | 20075-41111 | 20075-41111-Online |
| 8 | CRANKSHAFT, CLUTCH | 10 | COIL SPRING | 37013-51310 | 37013-51310-Online |
| 8 | CRANKSHAFT, CLUTCH | 11 | WASHER | 22100-71430 | 22100-71430-Online |
| 8 | CRANKSHAFT, CLUTCH | 12 | SPRING PLATE | 20087-51231 | 20087-51231-Online |
| 8 | CRANKSHAFT, CLUTCH | 13 | CLUTCH SHOE ASSY | 70140-51102 | 70140-51102-Online |
| 8 | CRANKSHAFT, CLUTCH | 14 | GASKET | 20016-12120 | 20016-12120-Online |
| 8 | CRANKSHAFT, CLUTCH | 15 | PISTON SET | 70234-98011 | 70234-98011-Online |
| 8 | CRANKSHAFT, CLUTCH | 16 | PISTON SET | 70234-98310 | 70234-98310-Online |
| 8 | CRANKSHAFT, CLUTCH | 2 | PISTON RING | 20000-41210 | 20000-41210-Online |
| 8 | CRANKSHAFT, CLUTCH | 3 | PISTON PIN | 20075-41310 | 20075-41310-Online |
| 8 | CRANKSHAFT, CLUTCH | 4 | RING,END | 70030-41320 | 70030-41320-Online |
| 8 | CRANKSHAFT, CLUTCH | 5 | NEEDLE BEARING | 37013-41230 | 37013-41230-Online |
| 8 | CRANKSHAFT, CLUTCH | 6 | THRUST WASHER | 37013-41240 | 37013-41240-Online |
| 8 | CRANKSHAFT, CLUTCH | 7 | CRANK SHAFT ASSY | 20016-42002 | 20016-42002-Online |
| 8 | CRANKSHAFT, CLUTCH | 8 | CLUTCH SHOE | 70140-51113 | 70140-51113-Online |
| 8 | CRANKSHAFT, CLUTCH | 9 | BOLT | 20087-51210 | 20087-51210-Online |

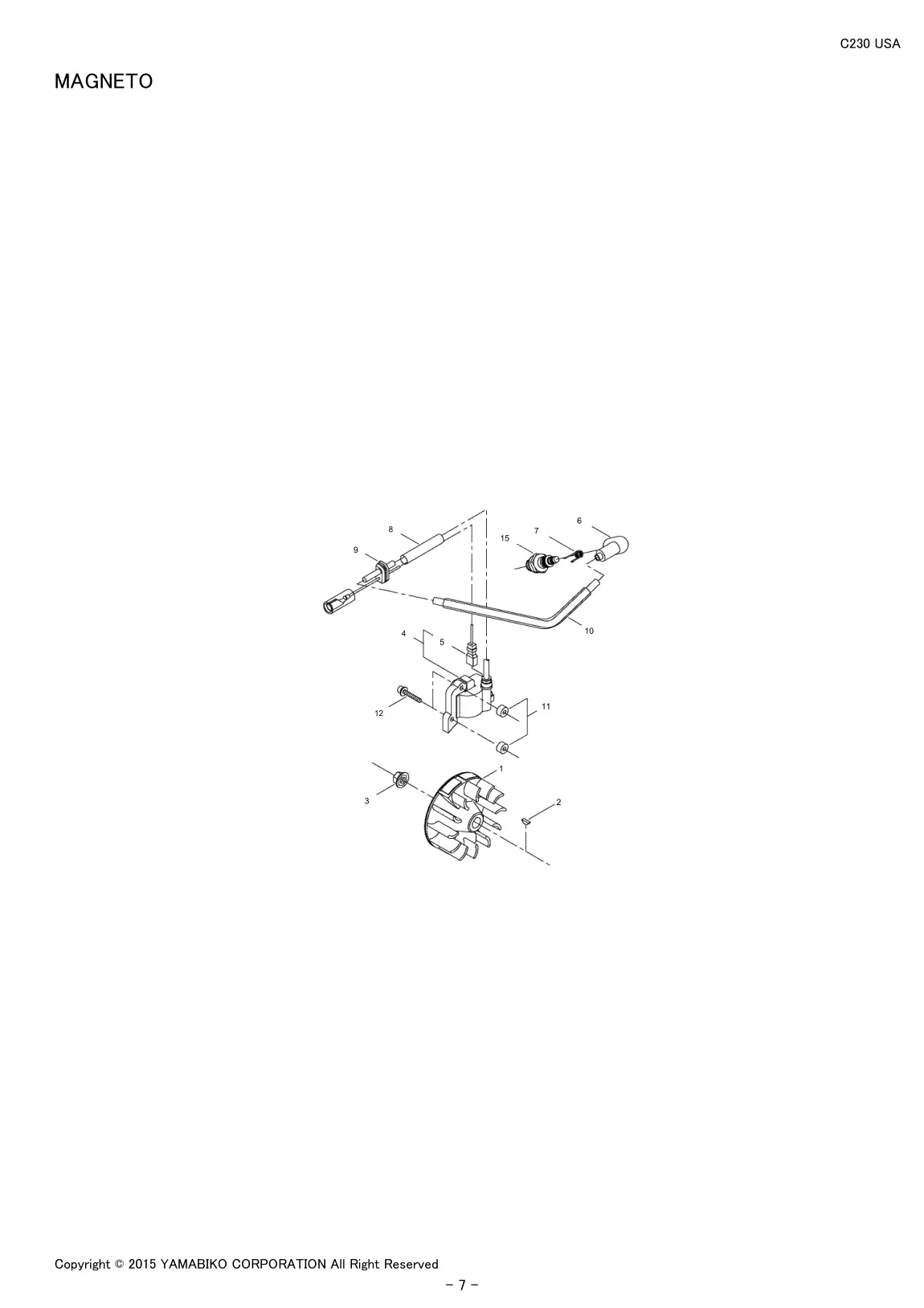

| 10 | MAGNETO | 10 | TUBE | 20016-71660 | 20016-71660-Online |
| 10 | MAGNETO | 11 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 10 | MAGNETO | 12 | BOLT | 11024-04261 | 11024-04261-Online |
| 10 | MAGNETO | 2 | KEY | 02403-03100 | 02403-03100-Online |
| 10 | MAGNETO | 3 | NUT | 20035-71220 | 20035-71220-Online |
| 10 | MAGNETO | 4 | COIL ASSY | 20016-71601 | 20016-71601-Online |
| 10 | MAGNETO | 6 | PLUG CAP | 22102-72220 | 22102-72220-Online |
| 10 | MAGNETO | 7 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 10 | MAGNETO | 8 | TUBE | 20016-71651 | 20016-71651-Online |
| 10 | MAGNETO | 9 | GROMMET | 20010-72110 | 20010-72110-Online |

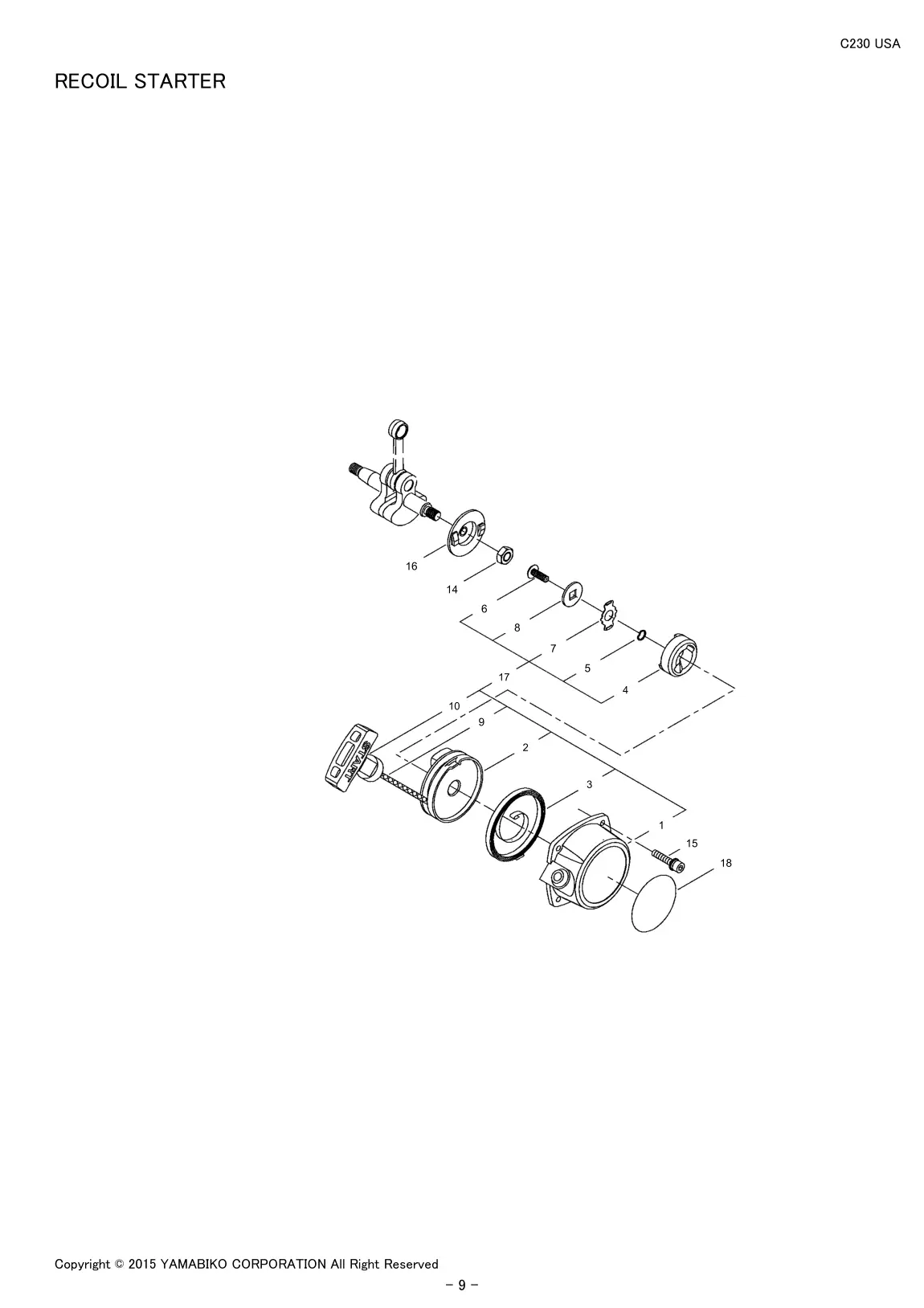

| 12 | RECOIL STARTER | 1 | STARTER CASE | 70064-75110 | 70064-75110-Online |
| 12 | RECOIL STARTER | 10 | KNOB | 32004-75150 | 32004-75150-Online |
| 12 | RECOIL STARTER | 14 | NUT | 01511-08051 | 01511-08051-Online |
| 12 | RECOIL STARTER | 15 | BOLT ADHESIVE | 11060-04122 | 11060-04122-Online |
| 12 | RECOIL STARTER | 16 | STARTER PULLEY | 70064-75310 | 70064-75310-Online |
| 12 | RECOIL STARTER | 17 | RECOIL STARETR | 72933-75900 | 72933-75900-Online |
| 12 | RECOIL STARTER | 18 | NAME PLATE | 70117-75311 | 70117-75311-Online |
| 12 | RECOIL STARTER | 2 | REEL | 72933-75120 | 72933-75120-Online |
| 12 | RECOIL STARTER | 3 | RECOIL SPRING | 70064-75130 | 70064-75130-Online |
| 12 | RECOIL STARTER | 5 | WAVE WASHER | 70064-75150 | 70064-75150-Online |
| 12 | RECOIL STARTER | 6 | SCREW | 72933-75160 | 72933-75160-Online |
| 12 | RECOIL STARTER | 7 | RETAINER | 72933-75170 | 72933-75170-Online |
| 12 | RECOIL STARTER | 8 | WASHER | 72933-75180 | 72933-75180-Online |
| 12 | RECOIL STARTER | 9 | ROPE | 70064-75190 | 70064-75190-Online |

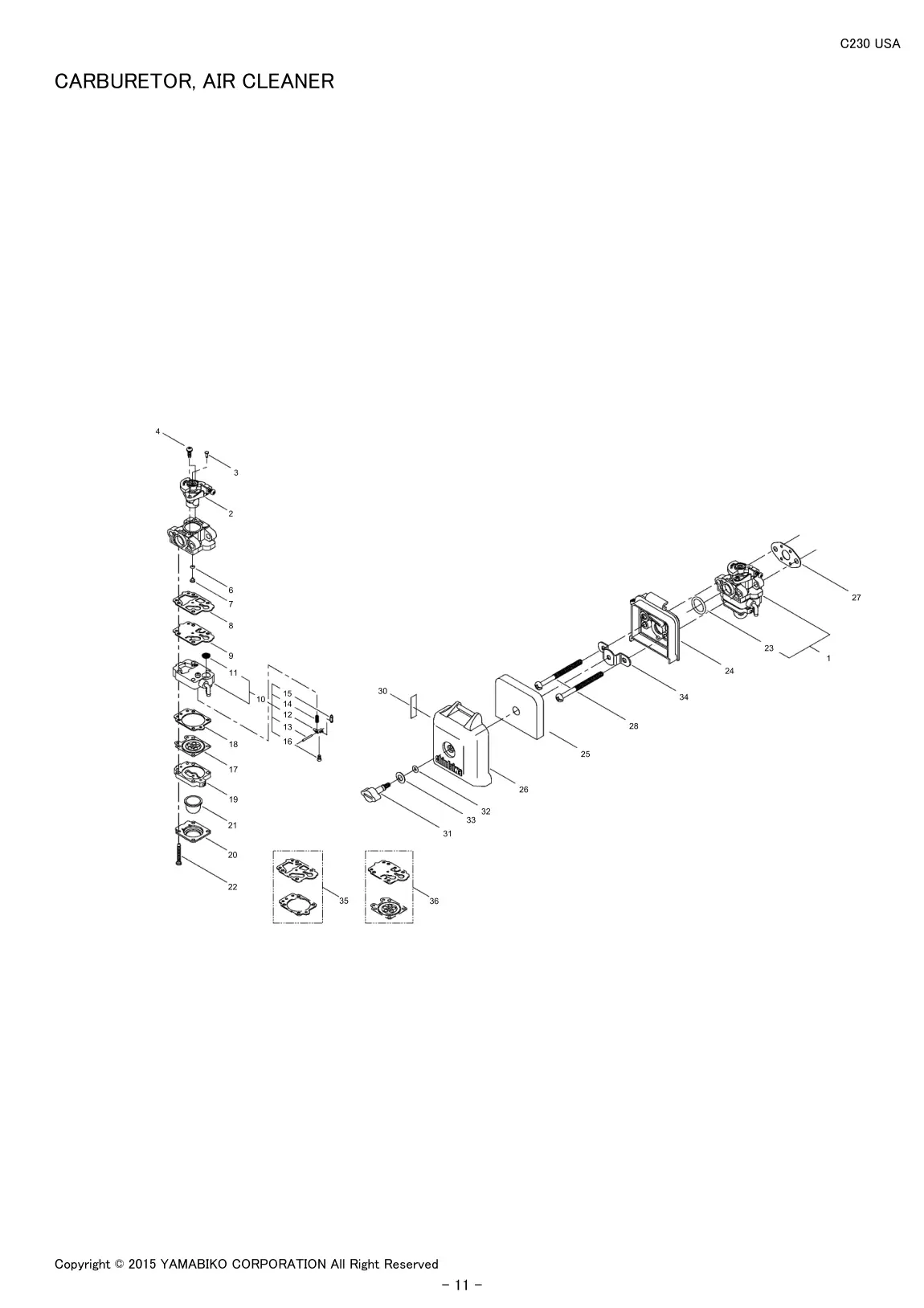

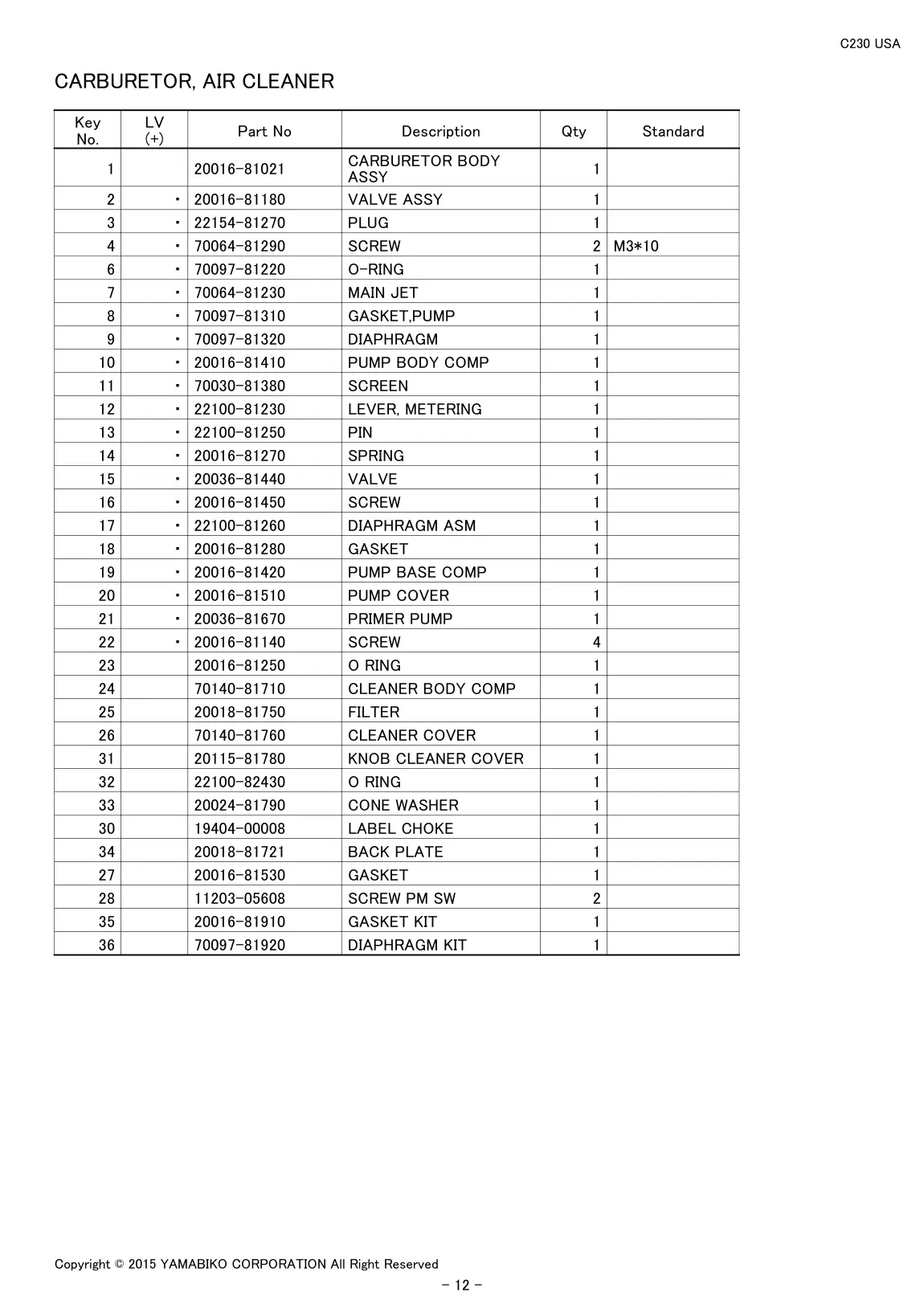

| 14 | CARBURETOR, AIR CLEANER | 1 | CARBURETOR BODY | 20016-81021 | 20016-81021-Online |
| 14 | CARBURETOR, AIR CLEANER | 10 | PUMP BODY COMP | 20016-81410 | 20016-81410-Online |
| 14 | CARBURETOR, AIR CLEANER | 11 | SCREEN | 70030-81380 | 70030-81380-Online |
| 14 | CARBURETOR, AIR CLEANER | 12 | LEVER, METERING | 22100-81230 | 22100-81230-Online |
| 14 | CARBURETOR, AIR CLEANER | 13 | PIN | 22100-81250 | 22100-81250-Online |
| 14 | CARBURETOR, AIR CLEANER | 14 | SPRING | 20016-81270 | 20016-81270-Online |
| 14 | CARBURETOR, AIR CLEANER | 15 | VALVE | 20036-81440 | 20036-81440-Online |
| 14 | CARBURETOR, AIR CLEANER | 16 | SCREW | 20016-81450 | 20016-81450-Online |
| 14 | CARBURETOR, AIR CLEANER | 17 | DIAPHRAGM ASM | 22100-81260 | 22100-81260-Online |
| 14 | CARBURETOR, AIR CLEANER | 18 | GASKET | 20016-81280 | 20016-81280-Online |
| 14 | CARBURETOR, AIR CLEANER | 19 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 14 | CARBURETOR, AIR CLEANER | 2 | VALVE ASSY | 20016-81180 | 20016-81180-Online |
| 14 | CARBURETOR, AIR CLEANER | 20 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 14 | CARBURETOR, AIR CLEANER | 21 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 14 | CARBURETOR, AIR CLEANER | 22 | SCREW | 20016-81140 | 20016-81140-Online |
| 14 | CARBURETOR, AIR CLEANER | 23 | O RING | 20016-81250 | 20016-81250-Online |
| 14 | CARBURETOR, AIR CLEANER | 24 | CLEANER BODY COMP | 70140-81710 | 70140-81710-Online |
| 14 | CARBURETOR, AIR CLEANER | 25 | FILTER | 20018-81750 | 20018-81750-Online |
| 14 | CARBURETOR, AIR CLEANER | 26 | CLEANER COVER | 70140-81760 | 70140-81760-Online |
| 14 | CARBURETOR, AIR CLEANER | 27 | GASKET | 20016-81530 | 20016-81530-Online |
| 14 | CARBURETOR, AIR CLEANER | 28 | SCREW PM SW | 11203-05608 | 11203-05608-Online |
| 14 | CARBURETOR, AIR CLEANER | 3 | PLUG | 22154-81270 | 22154-81270-Online |
| 14 | CARBURETOR, AIR CLEANER | 30 | LABEL CHOKE | 19404-00008 | 19404-00008-Online |
| 14 | CARBURETOR, AIR CLEANER | 31 | KNOB CLEANER COVER | 20115-81780 | 20115-81780-Online |
| 14 | CARBURETOR, AIR CLEANER | 32 | O RING | 22100-82430 | 22100-82430-Online |
| 14 | CARBURETOR, AIR CLEANER | 33 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 14 | CARBURETOR, AIR CLEANER | 34 | BACK PLATE | 20018-81721 | 20018-81721-Online |
| 14 | CARBURETOR, AIR CLEANER | 35 | GASKET KIT | 20016-81910 | 20016-81910-Online |
| 14 | CARBURETOR, AIR CLEANER | 36 | DIAPHRAGM KIT | 70097-81920 | 70097-81920-Online |
| 14 | CARBURETOR, AIR CLEANER | 4 | SCREW | 70064-81290 | 70064-81290-Online |
| 14 | CARBURETOR, AIR CLEANER | 6 | O-RING | 70097-81220 | 70097-81220-Online |
| 14 | CARBURETOR, AIR CLEANER | 7 | MAIN JET | 70064-81230 | 70064-81230-Online |
| 14 | CARBURETOR, AIR CLEANER | 8 | GASKET,PUMP | 70097-81310 | 70097-81310-Online |
| 14 | CARBURETOR, AIR CLEANER | 9 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 16 | FUEL TANK | 1 | FUEL TANK | 20016-85112 | 20016-85112-Online |
| 16 | FUEL TANK | 10 | TANK CUSHION | 20024-86120 | 20024-86120-Online |
| 16 | FUEL TANK | 11 | TANK GUARD | 62902-85320 | 62902-85320-Online |
| 16 | FUEL TANK | 12 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 16 | FUEL TANK | 13 | VALVE | 20035-85522 | 20035-85522-Online |
| 16 | FUEL TANK | 14 | JOINT,PIPE | 20087-85340 | 20087-85340-Online |
| 16 | FUEL TANK | 15 | VALVE HOLDER | 20016-12310 | 20016-12310-Online |
| 16 | FUEL TANK | 16 | CLIP | 37013-85310 | 37013-85310-Online |
| 16 | FUEL TANK | 17 | FUEL TANK ASSY | 20016-85003 | 20016-85003-Online |
| 16 | FUEL TANK | 18 | FUEL CAP SUB ASSY | 70043-85201 | 70043-85201-Online |
| 16 | FUEL TANK | 19 | CLIP | 20020-85540 | 20020-85540-Online |
| 16 | FUEL TANK | 2 | FUEL CAP | 70168-85210 | 70168-85210-Online |
| 16 | FUEL TANK | 3 | GASKET | 20000-85221 | 20000-85221-Online |
| 16 | FUEL TANK | 5 | FUEL PIPE | 20016-85310 | 20016-85310-Online |
| 16 | FUEL TANK | 6 | CLIP | 20020-85540 | 20020-85540-Online |
| 16 | FUEL TANK | 7 | FUEL FILTER | 20016-85400 | 20016-85400-Online |
| 16 | FUEL TANK | 8 | PIPE | 20089-83311 | 20089-83311-Online |

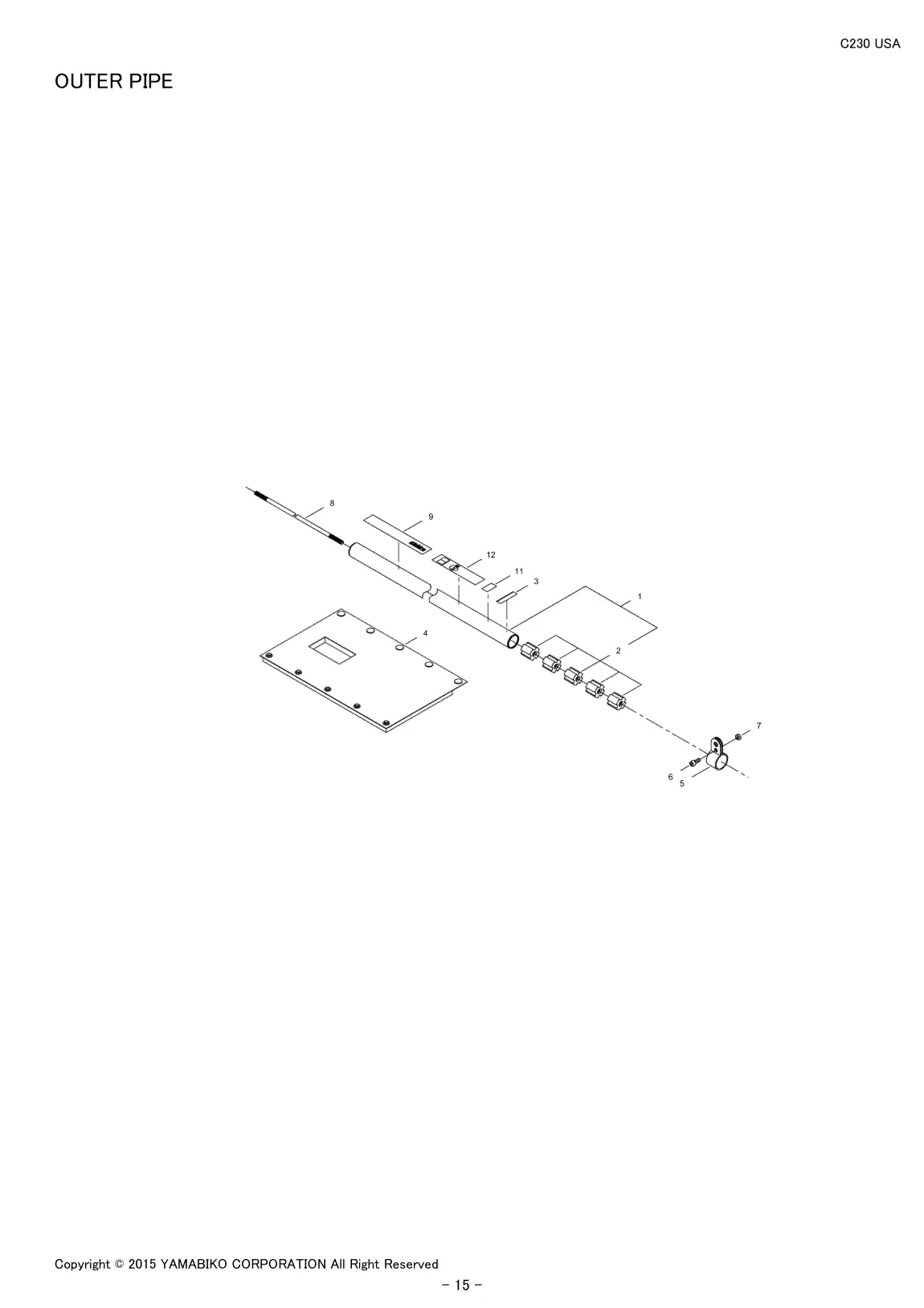

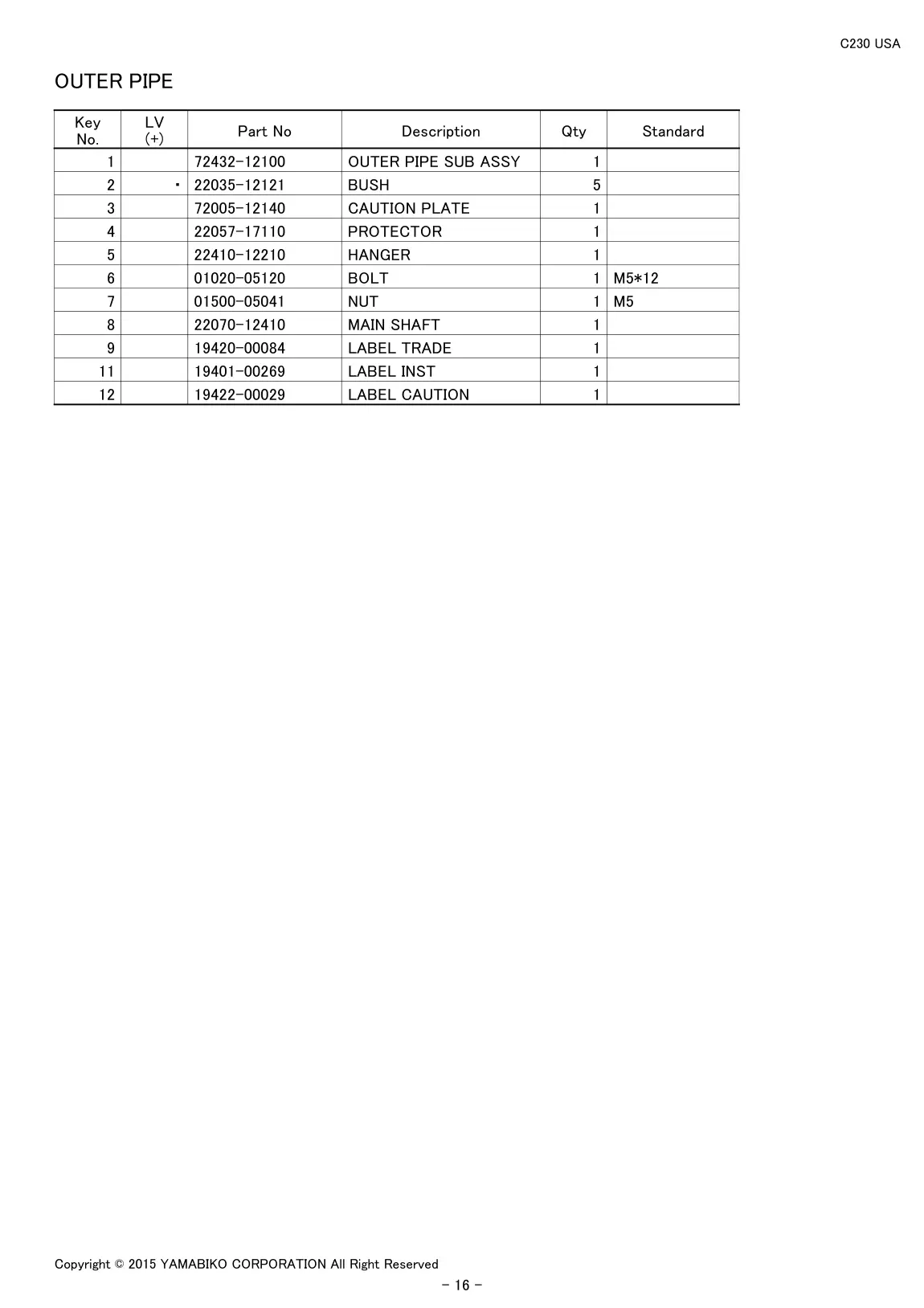

| 18 | OUTER PIPE | 1 | OUTER PIPE SUB ASSY | 72432-12100 | 72432-12100-Online |
| 18 | OUTER PIPE | 11 | LABEL INST | 19401-00269 | 19401-00269-Online |
| 18 | OUTER PIPE | 12 | LABEL CAUTION | 19422-00029 | 19422-00029-Online |
| 18 | OUTER PIPE | 3 | CAUTION PLATE | 72005-12140 | 72005-12140-Online |
| 18 | OUTER PIPE | 4 | PROTECTOR | 22057-17110 | 22057-17110-Online |
| 18 | OUTER PIPE | 5 | HANGER | 22410-12210 | 22410-12210-Online |
| 18 | OUTER PIPE | 6 | BOLT | 01020-05120 | 01020-05120-Online |
| 18 | OUTER PIPE | 7 | NUT | 01500-05041 | 01500-05041-Online |
| 18 | OUTER PIPE | 8 | MAIN SHAFT | 22070-12410 | 22070-12410-Online |
| 18 | OUTER PIPE | 9 | LABEL TRADE | 19420-00084 | 19420-00084-Online |

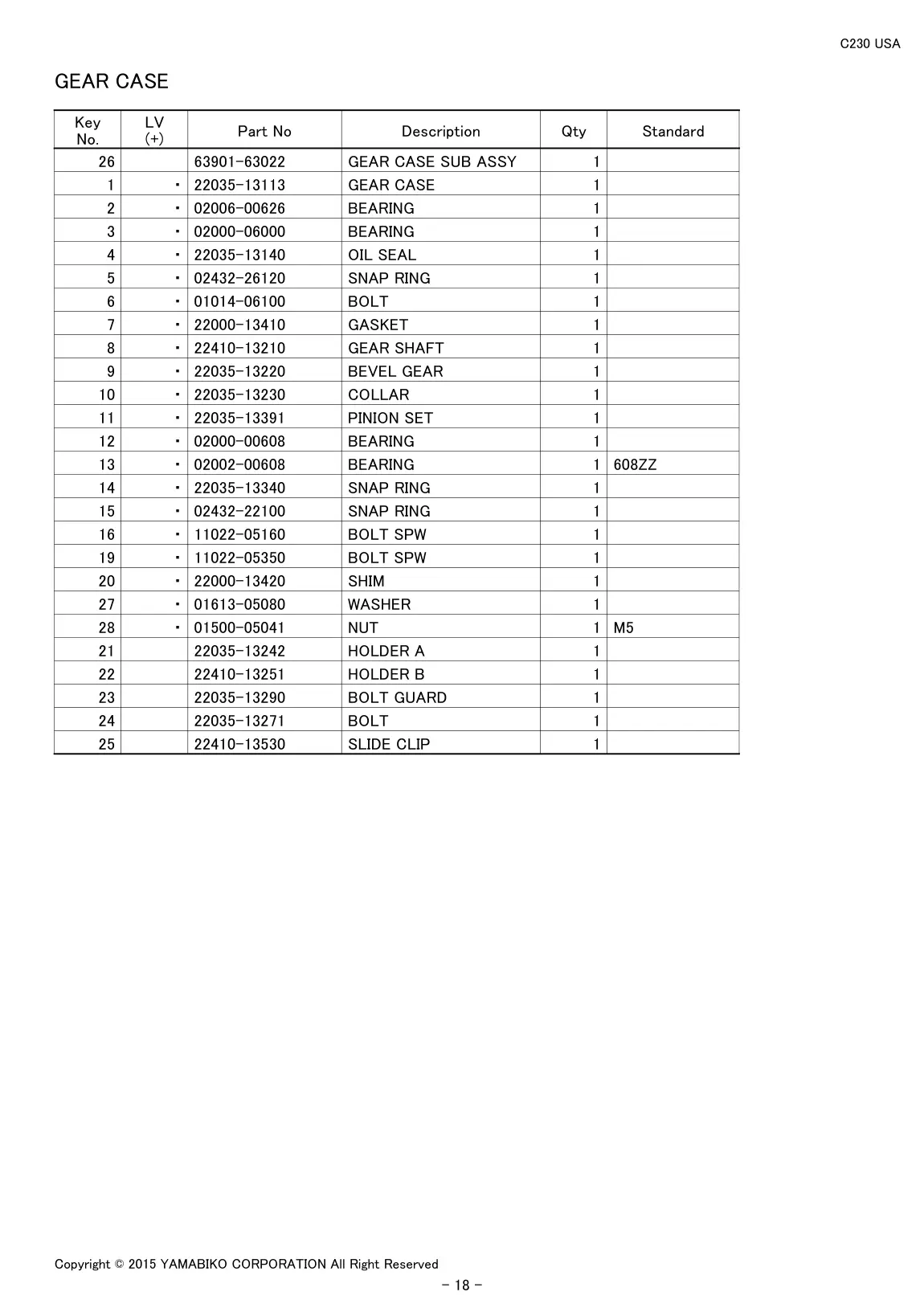

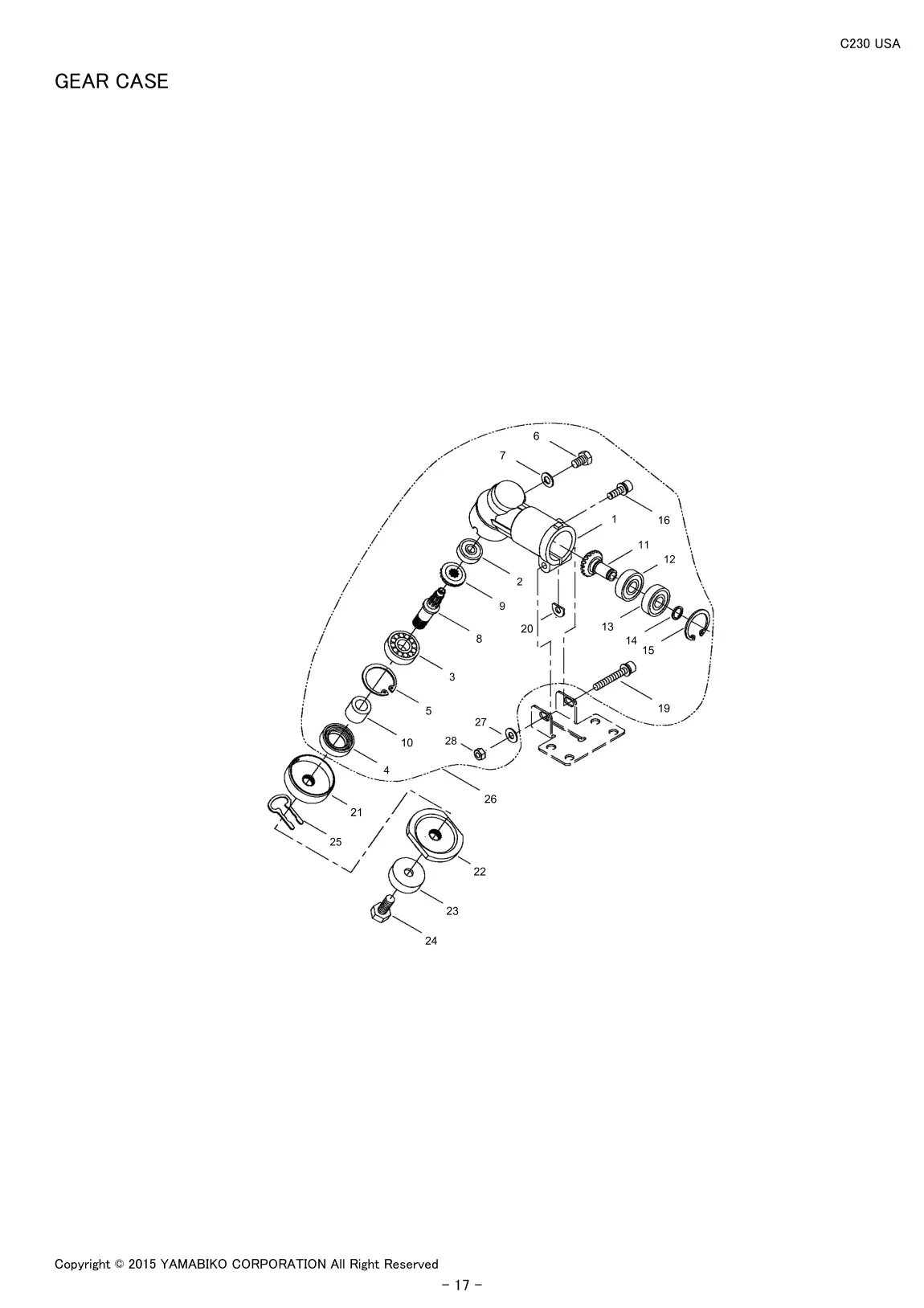

| 20 | GEAR CASE | 1 | GEAR CASE | 22035-13113 | 22035-13113-Online |
| 20 | GEAR CASE | 10 | COLLAR | 22035-13230 | 22035-13230-Online |
| 20 | GEAR CASE | 11 | PINION SET | 22035-13391 | 22035-13391-Online |
| 20 | GEAR CASE | 12 | BEARING | 02000-00608 | 02000-00608-Online |
| 20 | GEAR CASE | 13 | BEARING | 02002-00608 | 02002-00608-Online |
| 20 | GEAR CASE | 14 | SNAP RING | 22035-13340 | 22035-13340-Online |
| 20 | GEAR CASE | 15 | SNAP RING | 02432-22100 | 02432-22100-Online |
| 20 | GEAR CASE | 16 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 20 | GEAR CASE | 19 | BOLT SPW | 11022-05350 | 11022-05350-Online |
| 20 | GEAR CASE | 2 | BEARING | 02006-00626 | 02006-00626-Online |
| 20 | GEAR CASE | 20 | SHIM | 22000-13420 | 22000-13420-Online |
| 20 | GEAR CASE | 21 | HOLDER A | 22035-13242 | 22035-13242-Online |
| 20 | GEAR CASE | 22 | HOLDER B | 22410-13251 | 22410-13251-Online |
| 20 | GEAR CASE | 23 | BOLT GUARD | 22035-13290 | 22035-13290-Online |
| 20 | GEAR CASE | 24 | BOLT | 22035-13271 | 22035-13271-Online |
| 20 | GEAR CASE | 25 | SLIDE CLIP | 22410-13530 | 22410-13530-Online |
| 20 | GEAR CASE | 26 | GEAR CASE SUB ASSY | 63901-63022 | 63901-63022-Online |
| 20 | GEAR CASE | 27 | WASHER | 01613-05080 | 01613-05080-Online |
| 20 | GEAR CASE | 28 | NUT | 01500-05041 | 01500-05041-Online |
| 20 | GEAR CASE | 3 | BEARING | 02000-06000 | 02000-06000-Online |
| 20 | GEAR CASE | 4 | OIL SEAL | 22035-13140 | 22035-13140-Online |
| 20 | GEAR CASE | 5 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 20 | GEAR CASE | 6 | BOLT | 01014-06100 | 01014-06100-Online |
| 20 | GEAR CASE | 7 | GASKET | 22000-13410 | 22000-13410-Online |
| 20 | GEAR CASE | 8 | GEAR SHAFT | 22410-13210 | 22410-13210-Online |
| 20 | GEAR CASE | 9 | BEVEL GEAR | 22035-13220 | 22035-13220-Online |

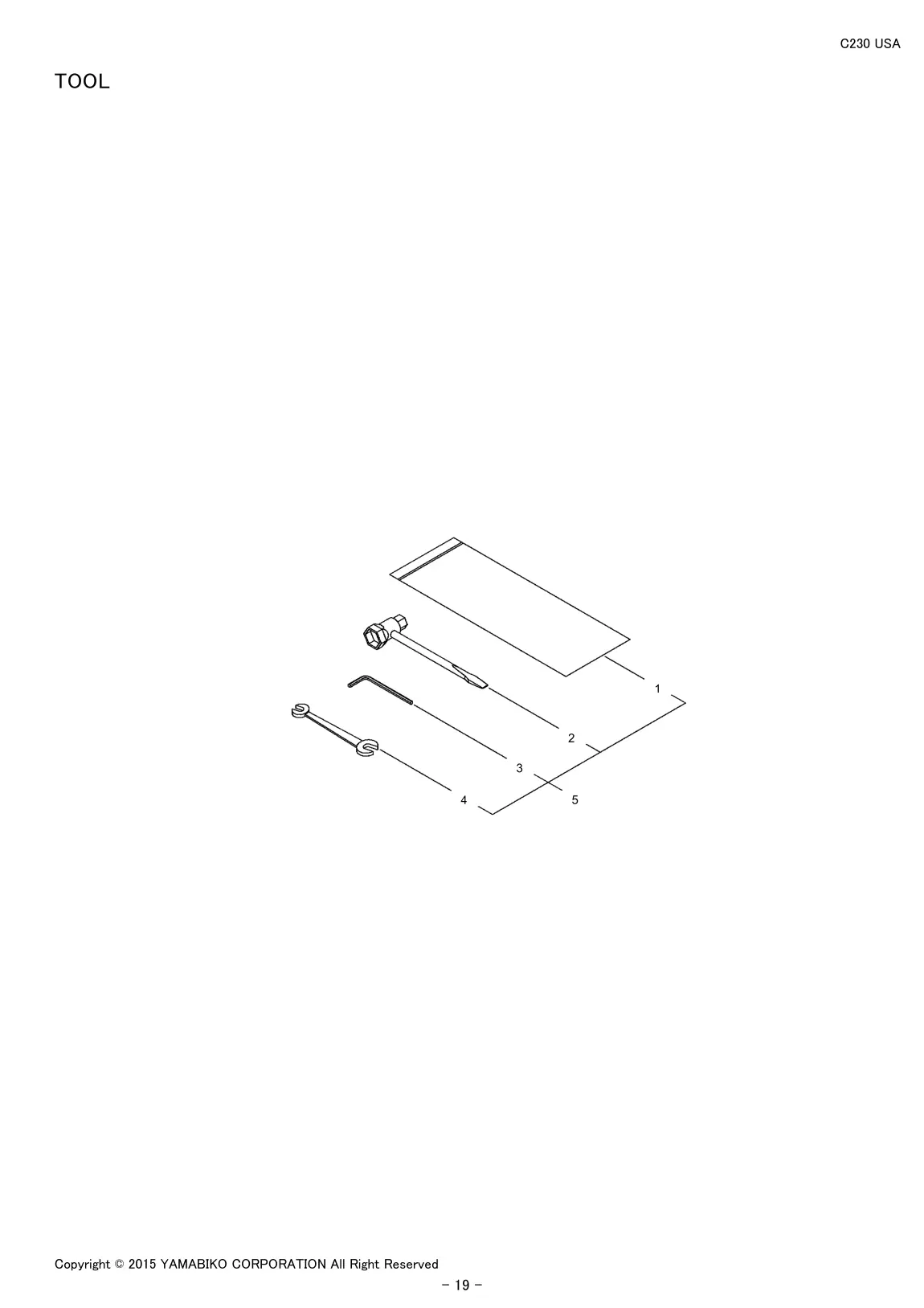

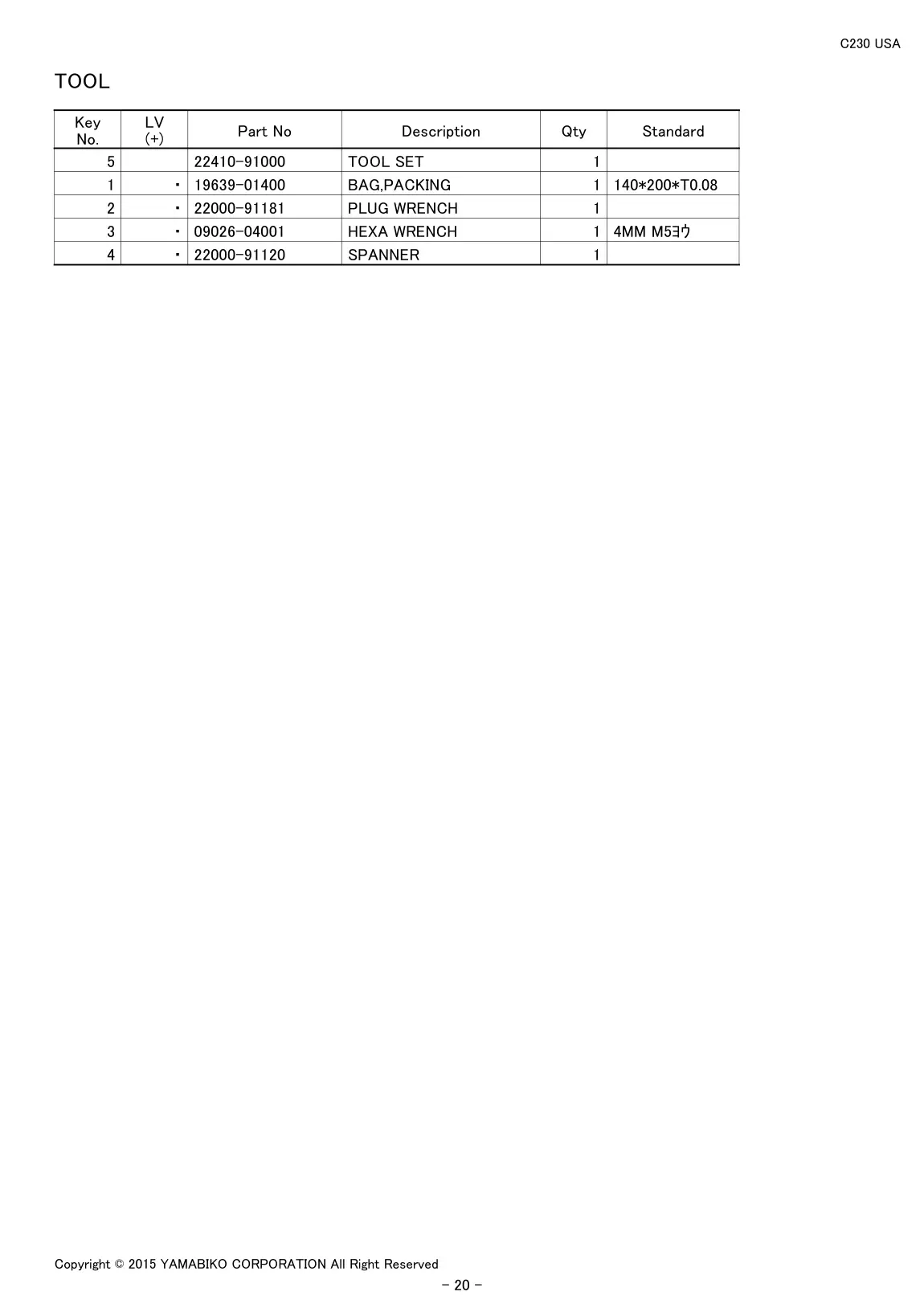

| 22 | TOOL | 1 | BAG,PACKING | 19639-01400 | 19639-01400-Online |
| 22 | TOOL | 2 | PLUG WRENCH | 22000-91181 | 22000-91181-Online |
| 22 | TOOL | 3 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 22 | TOOL | 4 | SPANNER | 22000-91120 | 22000-91120-Online |
| 22 | TOOL | 5 | TOOL SET | 22410-91000 | 22410-91000-Online |

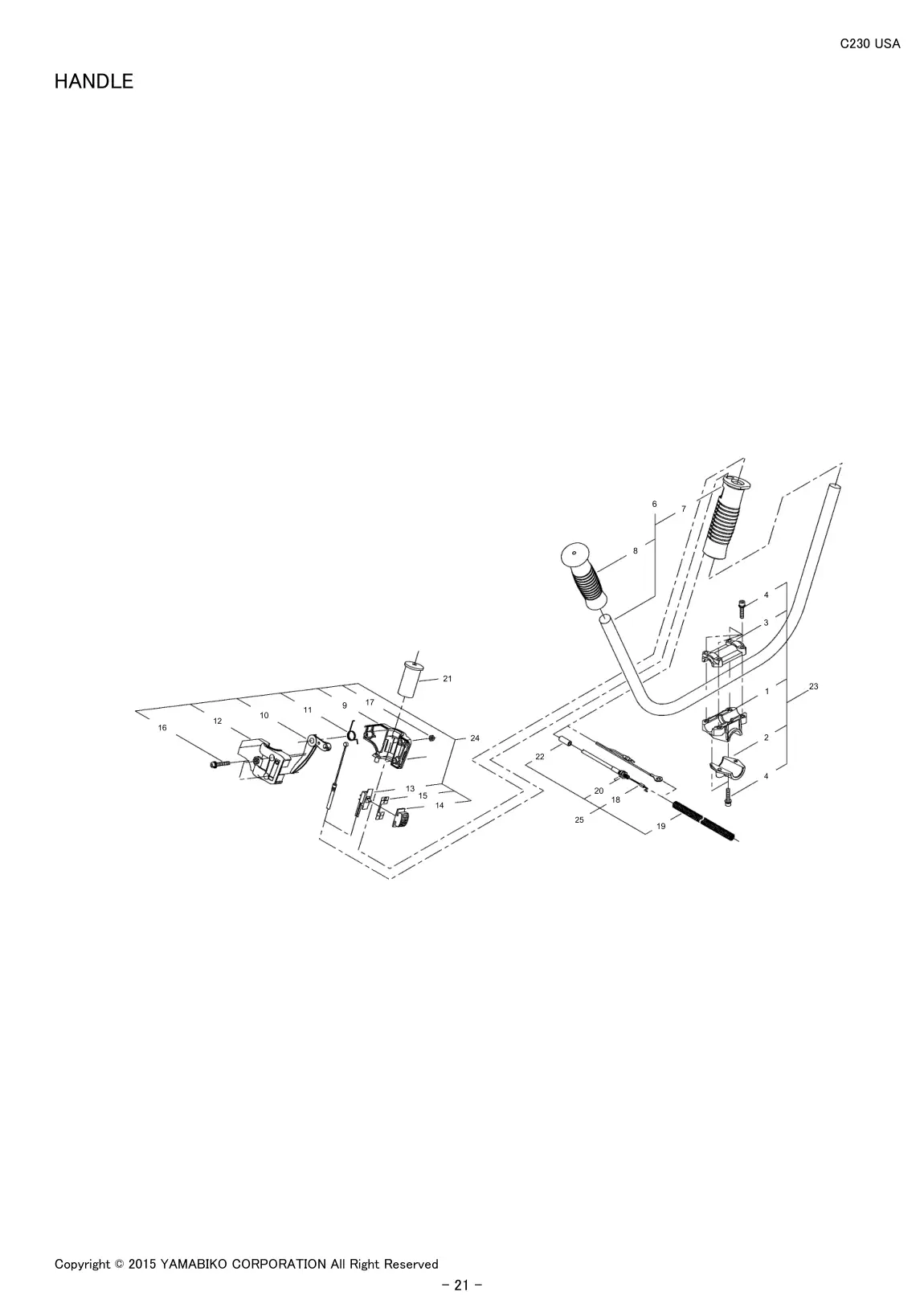

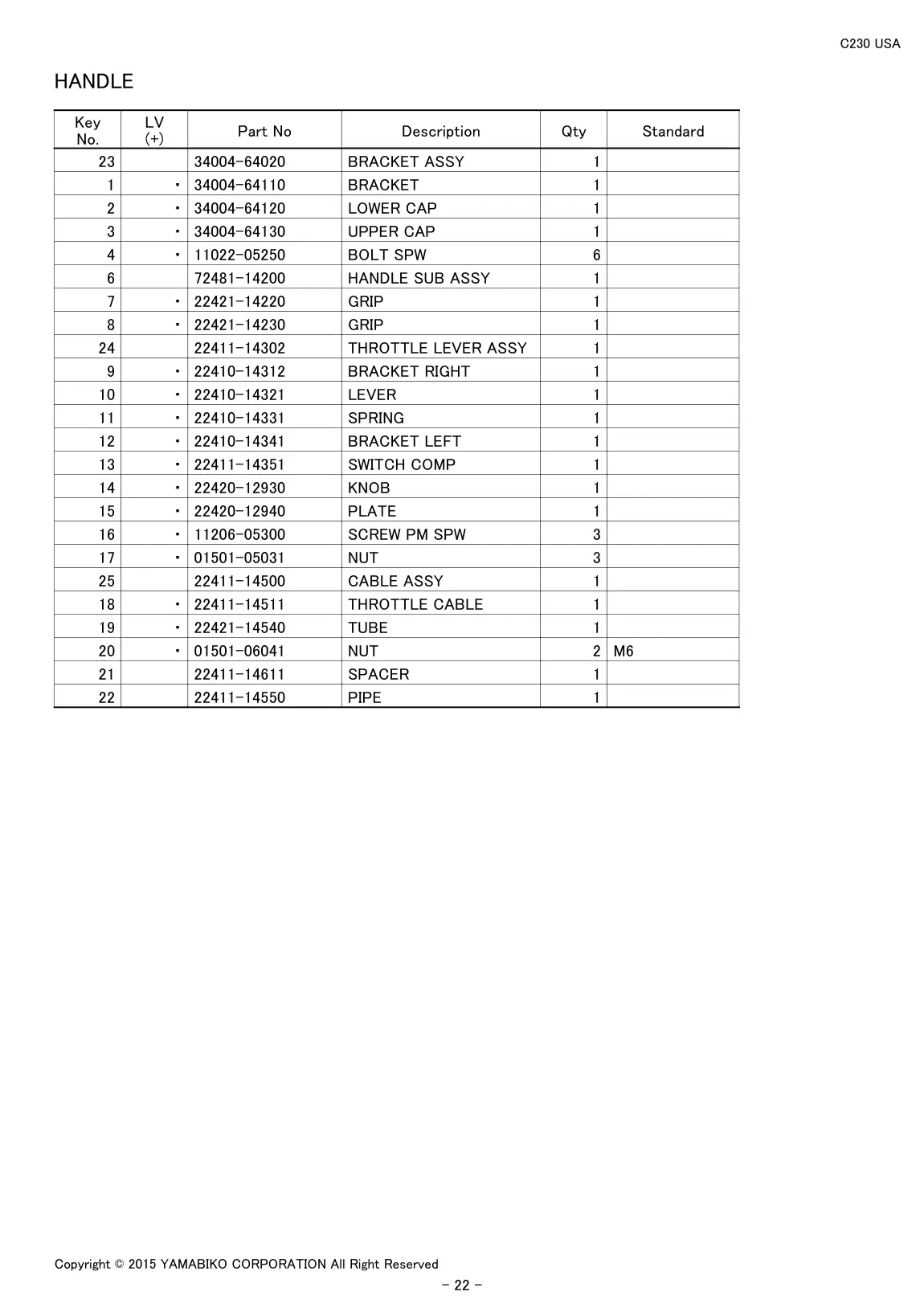

| 24 | HANDLE | 1 | BRACKET | 34004-64110 | 34004-64110-Online |
| 24 | HANDLE | 10 | LEVER | 22410-14321 | 22410-14321-Online |
| 24 | HANDLE | 11 | SPRING | 22410-14331 | 22410-14331-Online |
| 24 | HANDLE | 12 | BRACKET LEFT | 22410-14341 | 22410-14341-Online |
| 24 | HANDLE | 13 | SWITCH COMP | 22411-14351 | 22411-14351-Online |
| 24 | HANDLE | 14 | KNOB | 22420-12930 | 22420-12930-Online |
| 24 | HANDLE | 15 | PLATE | 22420-12940 | 22420-12940-Online |
| 24 | HANDLE | 16 | SCREW PM SPW | 11206-05300 | 11206-05300-Online |
| 24 | HANDLE | 17 | NUT | 01501-05031 | 01501-05031-Online |
| 24 | HANDLE | 18 | THROTTLE CABLE | 22411-14511 | 22411-14511-Online |
| 24 | HANDLE | 19 | TUBE | 22421-14540 | 22421-14540-Online |
| 24 | HANDLE | 2 | LOWER CAP | 34004-64120 | 34004-64120-Online |
| 24 | HANDLE | 20 | NUT | 01501-06041 | 01501-06041-Online |
| 24 | HANDLE | 21 | SPACER | 22411-14611 | 22411-14611-Online |
| 24 | HANDLE | 22 | PIPE | 22411-14550 | 22411-14550-Online |
| 24 | HANDLE | 23 | BRACKET ASSY | 34004-64020 | 34004-64020-Online |
| 24 | HANDLE | 24 | THROTTLE LEVER ASSY | 22411-14302 | 22411-14302-Online |
| 24 | HANDLE | 25 | CABLE ASSY | 22411-14500 | 22411-14500-Online |
| 24 | HANDLE | 3 | UPPER CAP | 34004-64130 | 34004-64130-Online |
| 24 | HANDLE | 4 | BOLT SPW | 11022-05250 | 11022-05250-Online |
| 24 | HANDLE | 6 | HANDLE SUB ASSY | 72481-14200 | 72481-14200-Online |
| 24 | HANDLE | 7 | GRIP | 22421-14220 | 22421-14220-Online |
| 24 | HANDLE | 8 | GRIP | 22421-14230 | 22421-14230-Online |
| 24 | HANDLE | 9 | BRACKET RIGHT | 22410-14312 | 22410-14312-Online |

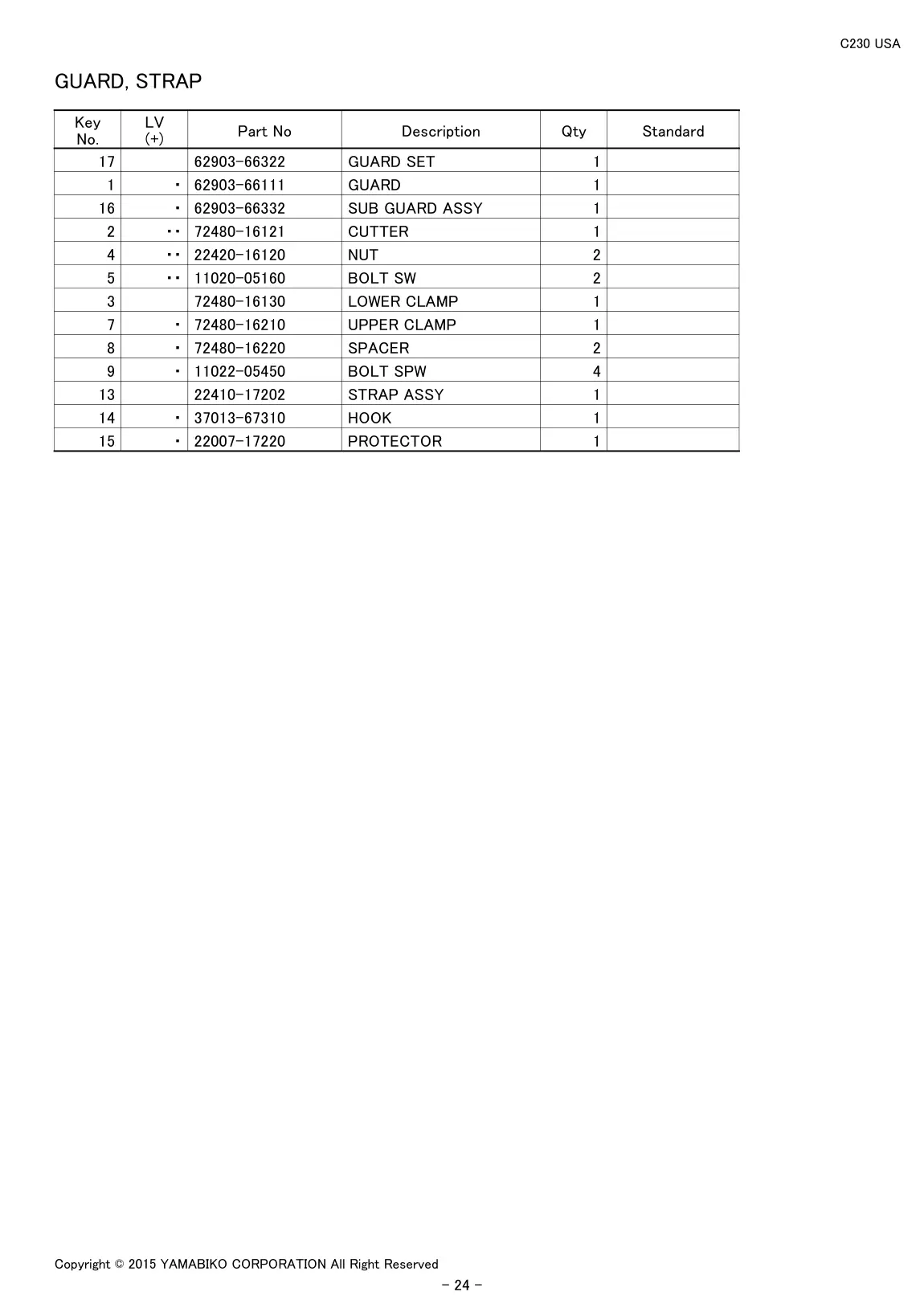

| 26 | GUARD, STRAP | 1 | GUARD | 62903-66111 | 62903-66111-Online |
| 26 | GUARD, STRAP | 13 | STRAP ASSY | 22410-17202 | 22410-17202-Online |
| 26 | GUARD, STRAP | 15 | PROTECTOR | 22007-17220 | 22007-17220-Online |
| 26 | GUARD, STRAP | 16 | SUB GUARD ASSY | 62903-66332 | 62903-66332-Online |
| 26 | GUARD, STRAP | 17 | GUARD SET | 62903-66322 | 62903-66322-Online |
| 26 | GUARD, STRAP | 2 | CUTTER | 72480-16121 | 72480-16121-Online |
| 26 | GUARD, STRAP | 3 | LOWER CLAMP | 72480-16130 | 72480-16130-Online |
| 26 | GUARD, STRAP | 4 | NUT | 22420-16120 | 22420-16120-Online |
| 26 | GUARD, STRAP | 5 | BOLT SW | 11020-05160 | 11020-05160-Online |
| 26 | GUARD, STRAP | 7 | UPPER CLAMP | 72480-16210 | 72480-16210-Online |
| 26 | GUARD, STRAP | 8 | SPACER | 72480-16220 | 72480-16220-Online |
| 26 | GUARD, STRAP | 9 | BOLT SPW | 11022-05450 | 11022-05450-Online |

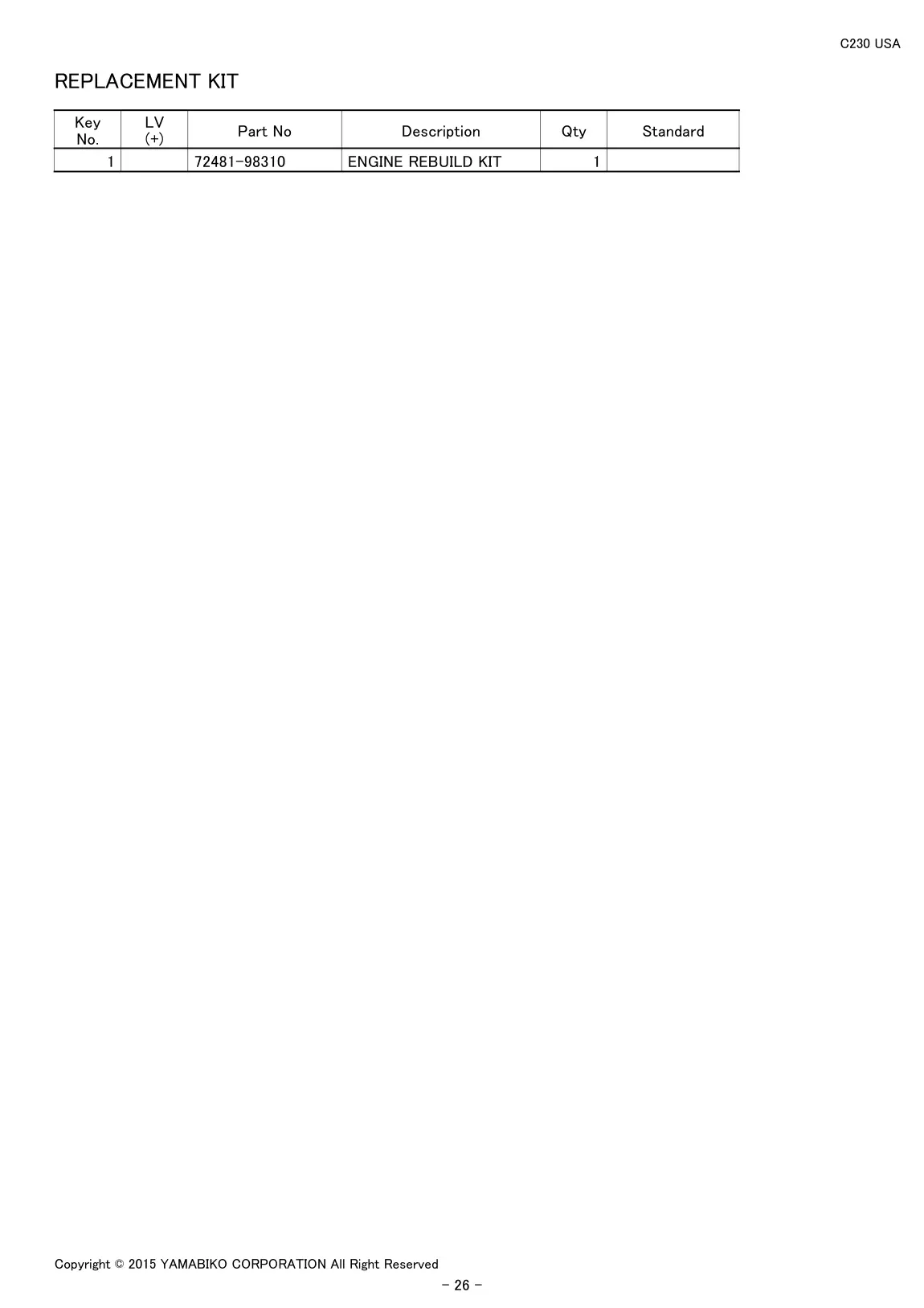

| 28 | REPLACEMENT KIT | 1 | ENGINE REBUILD KIT | 72481-98310 | 72481-98310-Online |
| 29 | HANGER | BOLT | 01014-06100 | 01014-06100-Online | |
| 29 | HANGER | 10 | WASHER | 01610-05080 | 01610-05080-Online |
| 29 | HANGER | 10 | SCREW PM SW | 11203-05608 | 11203-05608-Online |
| 29 | HANGER | 12 | SCREW PM SPW | 11206-05300 | 11206-05300-Online |
| 29 | HANGER | 12 | LABEL TRADE | 19420-00084 | 19420-00084-Online |
| 29 | HANGER | 12 | SCREW | 20016-81140 | 20016-81140-Online |
| 29 | HANGER | 12 | VALVE ASSY | 20016-81180 | 20016-81180-Online |
| 29 | HANGER | 12 | O RING | 20016-81250 | 20016-81250-Online |
| 29 | HANGER | 12 | SPRING | 20016-81270 | 20016-81270-Online |
| 29 | HANGER | 12 | GASKET | 20016-81280 | 20016-81280-Online |
| 29 | HANGER | 12 | PUMP BODY COMP | 20016-81410 | 20016-81410-Online |
| 29 | HANGER | 12 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 29 | HANGER | 12 | SCREW | 20016-81450 | 20016-81450-Online |
| 29 | HANGER | 12 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 29 | HANGER | 12 | GASKET | 20016-81530 | 20016-81530-Online |
| 29 | HANGER | 12 | GASKET KIT | 20016-81910 | 20016-81910-Online |
| 29 | HANGER | 12 | FUEL TANK ASSY | 20016-85003 | 20016-85003-Online |
| 29 | HANGER | 12 | FILTER | 20018-81750 | 20018-81750-Online |
| 29 | HANGER | 12 | CLIP | 20020-85540 | 20020-85540-Online |
| 29 | HANGER | 12 | TANK CUSHION | 20024-86120 | 20024-86120-Online |
| 29 | HANGER | 12 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 29 | HANGER | 12 | PISTON | 20075-41111 | 20075-41111-Online |
| 29 | HANGER | 12 | SNAP RING | 22000-13320 | 22000-13320-Online |
| 29 | HANGER | 12 | PIN | 22100-81250 | 22100-81250-Online |
| 29 | HANGER | 12 | DIAPHRAGM ASM | 22100-81260 | 22100-81260-Online |
| 29 | HANGER | 12 | O RING | 22100-82430 | 22100-82430-Online |
| 29 | HANGER | 12 | PLUG CAP | 22102-72220 | 22102-72220-Online |
| 29 | HANGER | 14 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 29 | HANGER | 14 | GROMMET | 20010-72110 | 20010-72110-Online |
| 29 | HANGER | 14 | GASKET | 20016-15123 | 20016-15123-Online |
| 29 | HANGER | 14 | FUEL TANK | 20016-85112 | 20016-85112-Online |
| 29 | HANGER | 14 | FUEL PIPE | 20016-85310 | 20016-85310-Online |
| 29 | HANGER | 14 | FUEL FILTER | 20016-85400 | 20016-85400-Online |
| 29 | HANGER | 14 | KNOB | 20018-31251 | 20018-31251-Online |
| 29 | HANGER | 14 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 29 | HANGER | 14 | NUT | 20035-71220 | 20035-71220-Online |
| 29 | HANGER | 14 | VALVE | 20036-81440 | 20036-81440-Online |
| 29 | HANGER | 14 | PIPE | 20089-83311 | 20089-83311-Online |
| 29 | HANGER | 14 | KNOB CLEANER COVER | 20115-81780 | 20115-81780-Online |
| 29 | HANGER | 16 | BOLT | 01020-05250 | 01020-05250-Online |
| 29 | HANGER | 16 | NUT | 01500-05041 | 01500-05041-Online |
| 29 | HANGER | 16 | LABEL CHOKE | 19404-00008 | 19404-00008-Online |
| 29 | HANGER | 16 | LABEL CAUTION | 19422-00029 | 19422-00029-Online |
| 29 | HANGER | 16 | BAG,PACKING | 19639-01400 | 19639-01400-Online |
| 29 | HANGER | 16 | GEAR CASE | 22035-13113 | 22035-13113-Online |
| 29 | HANGER | 16 | MAIN SHAFT | 22070-12410 | 22070-12410-Online |
| 29 | HANGER | 16 | WASHER | 22100-71430 | 22100-71430-Online |
| 29 | HANGER | 18 | BOLT | 01020-05120 | 01020-05120-Online |
| 29 | HANGER | 18 | NUT | 01501-05031 | 01501-05031-Online |
| 29 | HANGER | 18 | BEARING | 02000-00608 | 02000-00608-Online |
| 29 | HANGER | 18 | BEARING | 02000-06000 | 02000-06000-Online |
| 29 | HANGER | 18 | BEARING | 02002-00608 | 02002-00608-Online |
| 29 | HANGER | 18 | BALL BEARING | 02002-06000 | 02002-06000-Online |
| 29 | HANGER | 18 | KEY | 02403-03100 | 02403-03100-Online |
| 29 | HANGER | 18 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 29 | HANGER | 18 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 29 | HANGER | 18 | BOLT SPW | 11022-05250 | 11022-05250-Online |
| 29 | HANGER | 18 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 29 | HANGER | 18 | SHIM | 22000-13420 | 22000-13420-Online |
| 29 | HANGER | 18 | SPANNER | 22000-91120 | 22000-91120-Online |
| 29 | HANGER | 18 | OIL SEAL | 22035-13140 | 22035-13140-Online |
| 29 | HANGER | 18 | BEVEL GEAR | 22035-13220 | 22035-13220-Online |
| 29 | HANGER | 18 | COLLAR | 22035-13230 | 22035-13230-Online |
| 29 | HANGER | 18 | HOLDER A | 22035-13242 | 22035-13242-Online |
| 29 | HANGER | 18 | BOLT | 22035-13271 | 22035-13271-Online |
| 29 | HANGER | 18 | BOLT GUARD | 22035-13290 | 22035-13290-Online |
| 29 | HANGER | 18 | SNAP RING | 22035-13340 | 22035-13340-Online |
| 29 | HANGER | 18 | PINION SET | 22035-13391 | 22035-13391-Online |
| 29 | HANGER | 18 | PROTECTOR | 22057-17110 | 22057-17110-Online |
| 29 | HANGER | 2 | BOLT | 01020-05120 | 01020-05120-Online |
| 29 | HANGER | 2 | BOLT | 01020-05250 | 01020-05250-Online |
| 29 | HANGER | 2 | SCREW TAPPING | 01270-03062 | 01270-03062-Online |
| 29 | HANGER | 2 | NUT | 01500-05041 | 01500-05041-Online |
| 29 | HANGER | 2 | WASHER | 01613-05080 | 01613-05080-Online |
| 29 | HANGER | 2 | BOLT SPW | 11022-05350 | 11022-05350-Online |
| 29 | HANGER | 2 | GASKET | 20016-12120 | 20016-12120-Online |
| 29 | HANGER | 2 | GASKET | 20016-12222 | 20016-12222-Online |
| 29 | HANGER | 2 | VALVE HOLDER | 20016-12310 | 20016-12310-Online |
| 29 | HANGER | 2 | CRANK CASE S COMP | 20016-21100 | 20016-21100-Online |
| 29 | HANGER | 20 | BOLT SW | 11020-05160 | 11020-05160-Online |
| 29 | HANGER | 20 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 29 | HANGER | 20 | PLUG WRENCH | 22000-91181 | 22000-91181-Online |
| 29 | HANGER | 20 | PROTECTOR | 22007-17220 | 22007-17220-Online |
| 29 | HANGER | 22 | NUT | 01501-06041 | 01501-06041-Online |
| 29 | HANGER | 22 | NUT | 01511-08051 | 01511-08051-Online |
| 29 | HANGER | 22 | BOLT SW | 11022-05300 | 11022-05300-Online |
| 29 | HANGER | 22 | ROLLER | 12492-40080 | 12492-40080-Online |
| 29 | HANGER | 24 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 29 | HANGER | 24 | BOLT SW | 11023-05250 | 11023-05250-Online |
| 29 | HANGER | 4 | BOLT | 01020-05500 | 01020-05500-Online |
| 29 | HANGER | 4 | BEARING | 02006-00626 | 02006-00626-Online |
| 29 | HANGER | 4 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 29 | HANGER | 4 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 29 | HANGER | 4 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 29 | HANGER | 4 | BOLT | 11024-04261 | 11024-04261-Online |
| 29 | HANGER | 4 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 29 | HANGER | 4 | LABEL INST | 19401-00269 | 19401-00269-Online |
| 29 | HANGER | 4 | PISTON RING | 20000-41210 | 20000-41210-Online |
| 29 | HANGER | 4 | CRANK CASE S | 20016-21111 | 20016-21111-Online |
| 29 | HANGER | 4 | CRANK CASE M | 20016-21120 | 20016-21120-Online |
| 29 | HANGER | 4 | CRANK CASE M COMP | 20016-21200 | 20016-21200-Online |
| 29 | HANGER | 4 | CRANK SHAFT ASSY | 20016-42002 | 20016-42002-Online |
| 29 | HANGER | 4 | INSULATOR | 20018-31260 | 20018-31260-Online |
| 29 | HANGER | 4 | CLIP | 20018-31270 | 20018-31270-Online |
| 29 | HANGER | 4 | JOINT | 20018-31411 | 20018-31411-Online |
| 29 | HANGER | 4 | FRONT CUSHION | 20018-31420 | 20018-31420-Online |
| 29 | HANGER | 4 | REAR CUSHION | 20018-31430 | 20018-31430-Online |
| 29 | HANGER | 4 | BACK PLATE | 20018-81721 | 20018-81721-Online |
| 29 | HANGER | 4 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 29 | HANGER | 4 | BOLT | 20087-51210 | 20087-51210-Online |
| 29 | HANGER | 4 | GASKET | 22000-13410 | 22000-13410-Online |
| 29 | HANGER | 4 | PLUG | 22154-81270 | 22154-81270-Online |
| 29 | HANGER | 6 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |

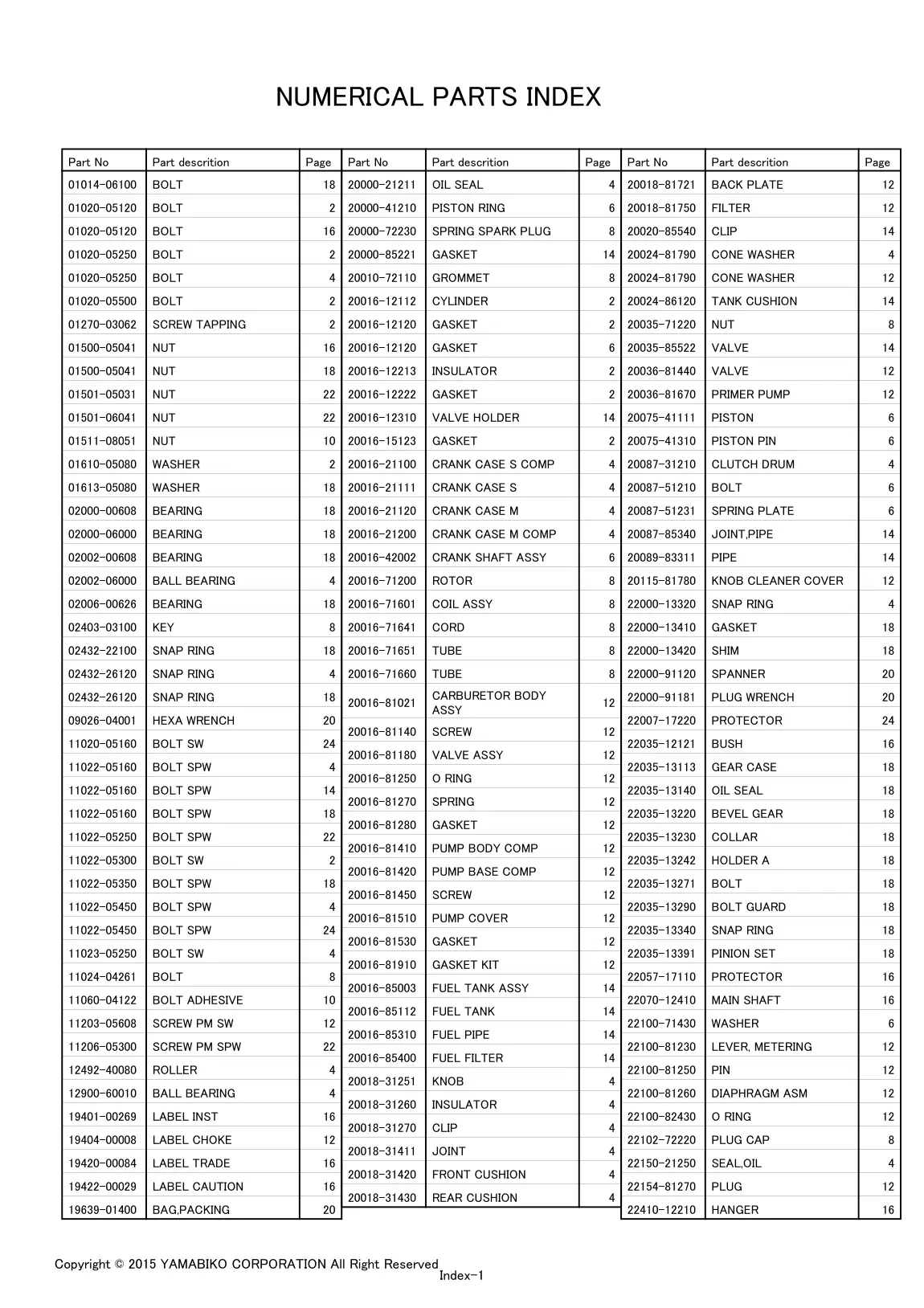

| 29 | HANGER | 6 | INSULATOR | 20016-12213 | 20016-12213-Online |
| 29 | HANGER | 6 | PISTON PIN | 20075-41310 | 20075-41310-Online |
| 29 | HANGER | 6 | CLUTCH DRUM | 20087-31210 | 20087-31210-Online |
| 29 | HANGER | 6 | SPRING PLATE | 20087-51231 | 20087-51231-Online |
| 29 | HANGER | 6 | JOINT,PIPE | 20087-85340 | 20087-85340-Online |
| 29 | HANGER | 6 | LEVER, METERING | 22100-81230 | 22100-81230-Online |
| 29 | HANGER | 8 | SNAP RING | 02432-22100 | 02432-22100-Online |
| 29 | HANGER | 8 | BOLT ADHESIVE | 11060-04122 | 11060-04122-Online |
| 29 | HANGER | 8 | GASKET | 20000-85221 | 20000-85221-Online |
| 29 | HANGER | 8 | CYLINDER | 20016-12112 | 20016-12112-Online |
| 29 | HANGER | 8 | COIL ASSY | 20016-71601 | 20016-71601-Online |
| 29 | HANGER | 8 | TUBE | 20016-71651 | 20016-71651-Online |
| 29 | HANGER | 8 | TUBE | 20016-71660 | 20016-71660-Online |
| 29 | HANGER | 8 | CARBURETOR BODY | 20016-81021 | 20016-81021-Online |
| 29 | HANGER | 8 | VALVE | 20035-85522 | 20035-85522-Online |
| 29 | HANGER | 8 | SEAL,OIL | 22150-21250 | 22150-21250-Online |

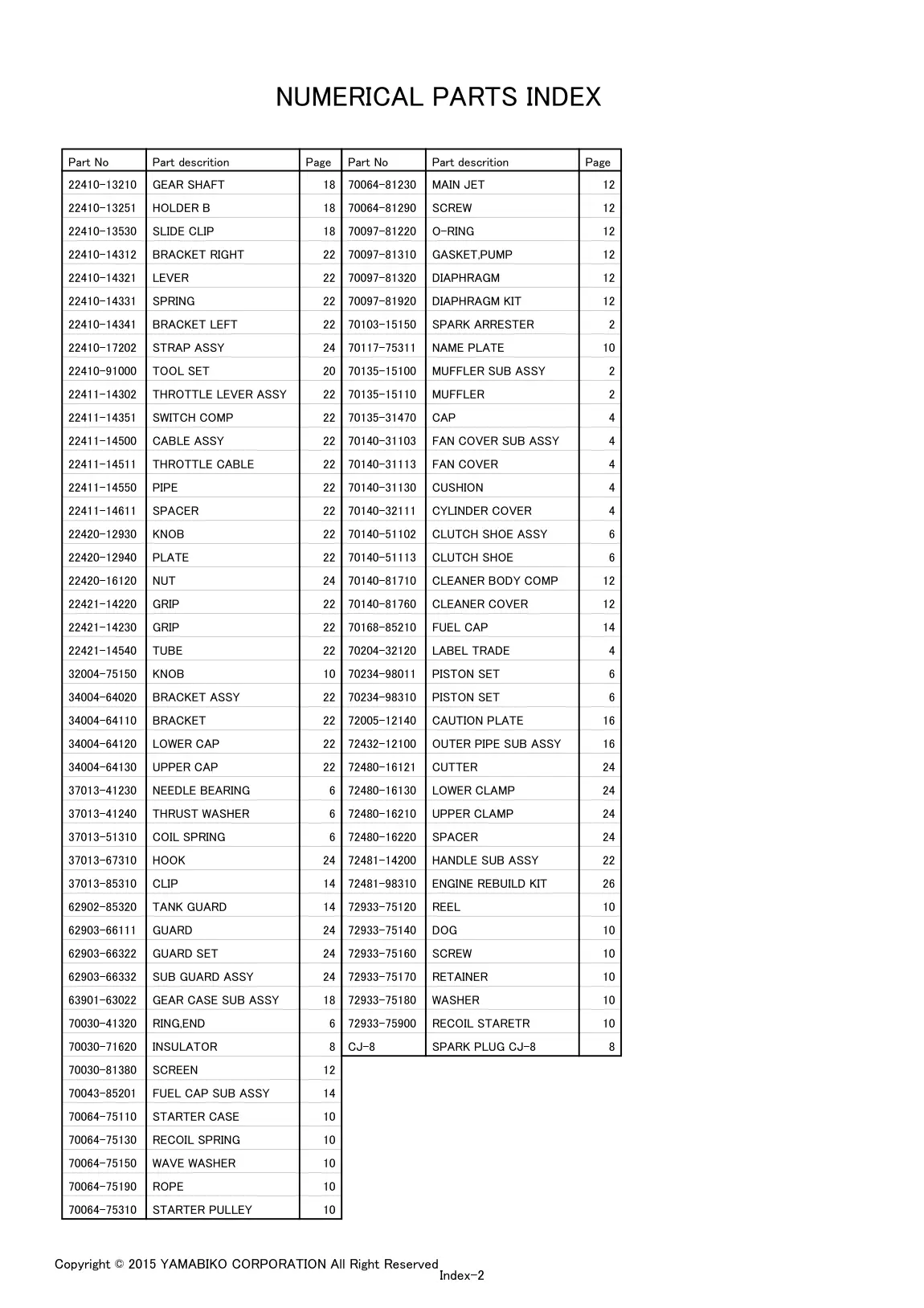

| 30 | SPARK PLUG CJ-8 | GEAR SHAFT | 22410-13210 | 22410-13210-Online | |
| 30 | SPARK PLUG CJ-8 | 10 | BRACKET ASSY | 34004-64020 | 34004-64020-Online |
| 30 | SPARK PLUG CJ-8 | 10 | RECOIL SPRING | 70064-75130 | 70064-75130-Online |
| 30 | SPARK PLUG CJ-8 | 10 | WAVE WASHER | 70064-75150 | 70064-75150-Online |
| 30 | SPARK PLUG CJ-8 | 10 | ROPE | 70064-75190 | 70064-75190-Online |
| 30 | SPARK PLUG CJ-8 | 10 | STARTER PULLEY | 70064-75310 | 70064-75310-Online |
| 30 | SPARK PLUG CJ-8 | 10 | MAIN JET | 70064-81230 | 70064-81230-Online |
| 30 | SPARK PLUG CJ-8 | 10 | MUFFLER SUB ASSY | 70135-15100 | 70135-15100-Online |
| 30 | SPARK PLUG CJ-8 | 10 | SCREW | 72933-75160 | 72933-75160-Online |
| 30 | SPARK PLUG CJ-8 | 10 | RETAINER | 72933-75170 | 72933-75170-Online |
| 30 | SPARK PLUG CJ-8 | 10 | WASHER | 72933-75180 | 72933-75180-Online |
| 30 | SPARK PLUG CJ-8 | 10 | RECOIL STARETR | 72933-75900 | 72933-75900-Online |
| 30 | SPARK PLUG CJ-8 | 12 | FUEL CAP SUB ASSY | 70043-85201 | 70043-85201-Online |
| 30 | SPARK PLUG CJ-8 | 12 | SCREW | 70064-81290 | 70064-81290-Online |
| 30 | SPARK PLUG CJ-8 | 12 | O-RING | 70097-81220 | 70097-81220-Online |
| 30 | SPARK PLUG CJ-8 | 12 | GASKET,PUMP | 70097-81310 | 70097-81310-Online |
| 30 | SPARK PLUG CJ-8 | 12 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 30 | SPARK PLUG CJ-8 | 12 | DIAPHRAGM KIT | 70097-81920 | 70097-81920-Online |
| 30 | SPARK PLUG CJ-8 | 12 | SPARK ARRESTER | 70103-15150 | 70103-15150-Online |
| 30 | SPARK PLUG CJ-8 | 12 | CLEANER COVER | 70140-81760 | 70140-81760-Online |
| 30 | SPARK PLUG CJ-8 | 12 | FUEL CAP | 70168-85210 | 70168-85210-Online |
| 30 | SPARK PLUG CJ-8 | 14 | TANK GUARD | 62902-85320 | 62902-85320-Online |
| 30 | SPARK PLUG CJ-8 | 14 | GUARD | 62903-66111 | 62903-66111-Online |
| 30 | SPARK PLUG CJ-8 | 14 | STARTER CASE | 70064-75110 | 70064-75110-Online |
| 30 | SPARK PLUG CJ-8 | 14 | LABEL TRADE | 70204-32120 | 70204-32120-Online |
| 30 | SPARK PLUG CJ-8 | 16 | OUTER PIPE SUB ASSY | 72432-12100 | 72432-12100-Online |
| 30 | SPARK PLUG CJ-8 | 16 | CUTTER | 72480-16121 | 72480-16121-Online |
| 30 | SPARK PLUG CJ-8 | 18 | HOLDER B | 22410-13251 | 22410-13251-Online |
| 30 | SPARK PLUG CJ-8 | 18 | SLIDE CLIP | 22410-13530 | 22410-13530-Online |
| 30 | SPARK PLUG CJ-8 | 18 | BRACKET RIGHT | 22410-14312 | 22410-14312-Online |
| 30 | SPARK PLUG CJ-8 | 18 | RING,END | 70030-41320 | 70030-41320-Online |
| 30 | SPARK PLUG CJ-8 | 2 | NAME PLATE | 70117-75311 | 70117-75311-Online |
| 30 | SPARK PLUG CJ-8 | 2 | MUFFLER | 70135-15110 | 70135-15110-Online |
| 30 | SPARK PLUG CJ-8 | 2 | CAP | 70135-31470 | 70135-31470-Online |
| 30 | SPARK PLUG CJ-8 | 20 | THROTTLE LEVER ASSY | 22411-14302 | 22411-14302-Online |
| 30 | SPARK PLUG CJ-8 | 22 | LEVER | 22410-14321 | 22410-14321-Online |
| 30 | SPARK PLUG CJ-8 | 22 | SPRING | 22410-14331 | 22410-14331-Online |
| 30 | SPARK PLUG CJ-8 | 22 | BRACKET LEFT | 22410-14341 | 22410-14341-Online |
| 30 | SPARK PLUG CJ-8 | 22 | STRAP ASSY | 22410-17202 | 22410-17202-Online |
| 30 | SPARK PLUG CJ-8 | 22 | SWITCH COMP | 22411-14351 | 22411-14351-Online |
| 30 | SPARK PLUG CJ-8 | 22 | CABLE ASSY | 22411-14500 | 22411-14500-Online |
| 30 | SPARK PLUG CJ-8 | 22 | THROTTLE CABLE | 22411-14511 | 22411-14511-Online |
| 30 | SPARK PLUG CJ-8 | 22 | PIPE | 22411-14550 | 22411-14550-Online |
| 30 | SPARK PLUG CJ-8 | 22 | SPACER | 22411-14611 | 22411-14611-Online |
| 30 | SPARK PLUG CJ-8 | 22 | KNOB | 22420-12930 | 22420-12930-Online |
| 30 | SPARK PLUG CJ-8 | 22 | PLATE | 22420-12940 | 22420-12940-Online |
| 30 | SPARK PLUG CJ-8 | 22 | NUT | 22420-16120 | 22420-16120-Online |
| 30 | SPARK PLUG CJ-8 | 22 | GRIP | 22421-14230 | 22421-14230-Online |
| 30 | SPARK PLUG CJ-8 | 22 | TUBE | 22421-14540 | 22421-14540-Online |
| 30 | SPARK PLUG CJ-8 | 22 | KNOB | 32004-75150 | 32004-75150-Online |
| 30 | SPARK PLUG CJ-8 | 22 | BRACKET | 34004-64110 | 34004-64110-Online |
| 30 | SPARK PLUG CJ-8 | 22 | LOWER CAP | 34004-64120 | 34004-64120-Online |
| 30 | SPARK PLUG CJ-8 | 22 | UPPER CAP | 34004-64130 | 34004-64130-Online |
| 30 | SPARK PLUG CJ-8 | 22 | NEEDLE BEARING | 37013-41230 | 37013-41230-Online |
| 30 | SPARK PLUG CJ-8 | 22 | ENGINE REBUILD KIT | 72481-98310 | 72481-98310-Online |
| 30 | SPARK PLUG CJ-8 | 24 | TOOL SET | 22410-91000 | 22410-91000-Online |
| 30 | SPARK PLUG CJ-8 | 24 | GRIP | 22421-14220 | 22421-14220-Online |
| 30 | SPARK PLUG CJ-8 | 24 | CLIP | 37013-85310 | 37013-85310-Online |
| 30 | SPARK PLUG CJ-8 | 24 | GUARD SET | 62903-66322 | 62903-66322-Online |
| 30 | SPARK PLUG CJ-8 | 24 | SUB GUARD ASSY | 62903-66332 | 62903-66332-Online |
| 30 | SPARK PLUG CJ-8 | 24 | GEAR CASE SUB ASSY | 63901-63022 | 63901-63022-Online |
| 30 | SPARK PLUG CJ-8 | 24 | LOWER CLAMP | 72480-16130 | 72480-16130-Online |
| 30 | SPARK PLUG CJ-8 | 24 | UPPER CLAMP | 72480-16210 | 72480-16210-Online |
| 30 | SPARK PLUG CJ-8 | 24 | SPACER | 72480-16220 | 72480-16220-Online |
| 30 | SPARK PLUG CJ-8 | 24 | HANDLE SUB ASSY | 72481-14200 | 72481-14200-Online |
| 30 | SPARK PLUG CJ-8 | 26 | REEL | 72933-75120 | 72933-75120-Online |
| 30 | SPARK PLUG CJ-8 | 4 | FAN COVER SUB ASSY | 70140-31103 | 70140-31103-Online |
| 30 | SPARK PLUG CJ-8 | 4 | FAN COVER | 70140-31113 | 70140-31113-Online |
| 30 | SPARK PLUG CJ-8 | 4 | CUSHION | 70140-31130 | 70140-31130-Online |
| 30 | SPARK PLUG CJ-8 | 4 | CYLINDER COVER | 70140-32111 | 70140-32111-Online |
| 30 | SPARK PLUG CJ-8 | 4 | CLUTCH SHOE ASSY | 70140-51102 | 70140-51102-Online |
| 30 | SPARK PLUG CJ-8 | 4 | PISTON SET | 70234-98011 | 70234-98011-Online |
| 30 | SPARK PLUG CJ-8 | 6 | THRUST WASHER | 37013-41240 | 37013-41240-Online |
| 30 | SPARK PLUG CJ-8 | 6 | COIL SPRING | 37013-51310 | 37013-51310-Online |
| 30 | SPARK PLUG CJ-8 | 6 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 30 | SPARK PLUG CJ-8 | 6 | CLUTCH SHOE | 70140-51113 | 70140-51113-Online |
| 30 | SPARK PLUG CJ-8 | 6 | CLEANER BODY COMP | 70140-81710 | 70140-81710-Online |
| 30 | SPARK PLUG CJ-8 | 6 | PISTON SET | 70234-98310 | 70234-98310-Online |
| 30 | SPARK PLUG CJ-8 | 6 | CAUTION PLATE | 72005-12140 | 72005-12140-Online |
| 30 | SPARK PLUG CJ-8 | 8 | SCREEN | 70030-81380 | 70030-81380-Online |
Source file: 20200226-451_C230_USA_AA_00000000_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
