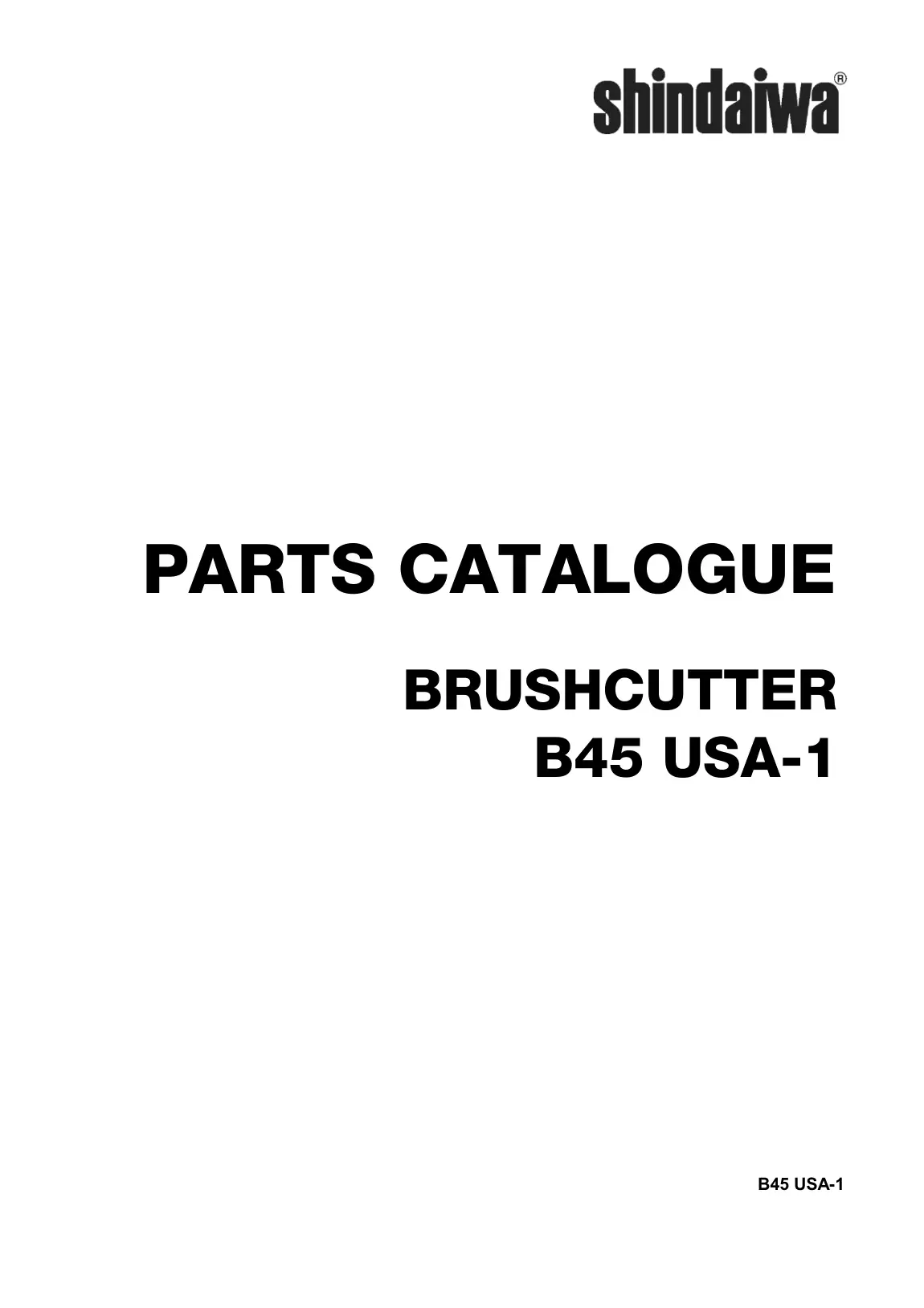

Shindaiwa B45 USA-1 B45 USA-1 Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: B45 USA-1 B45 USA-1
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages

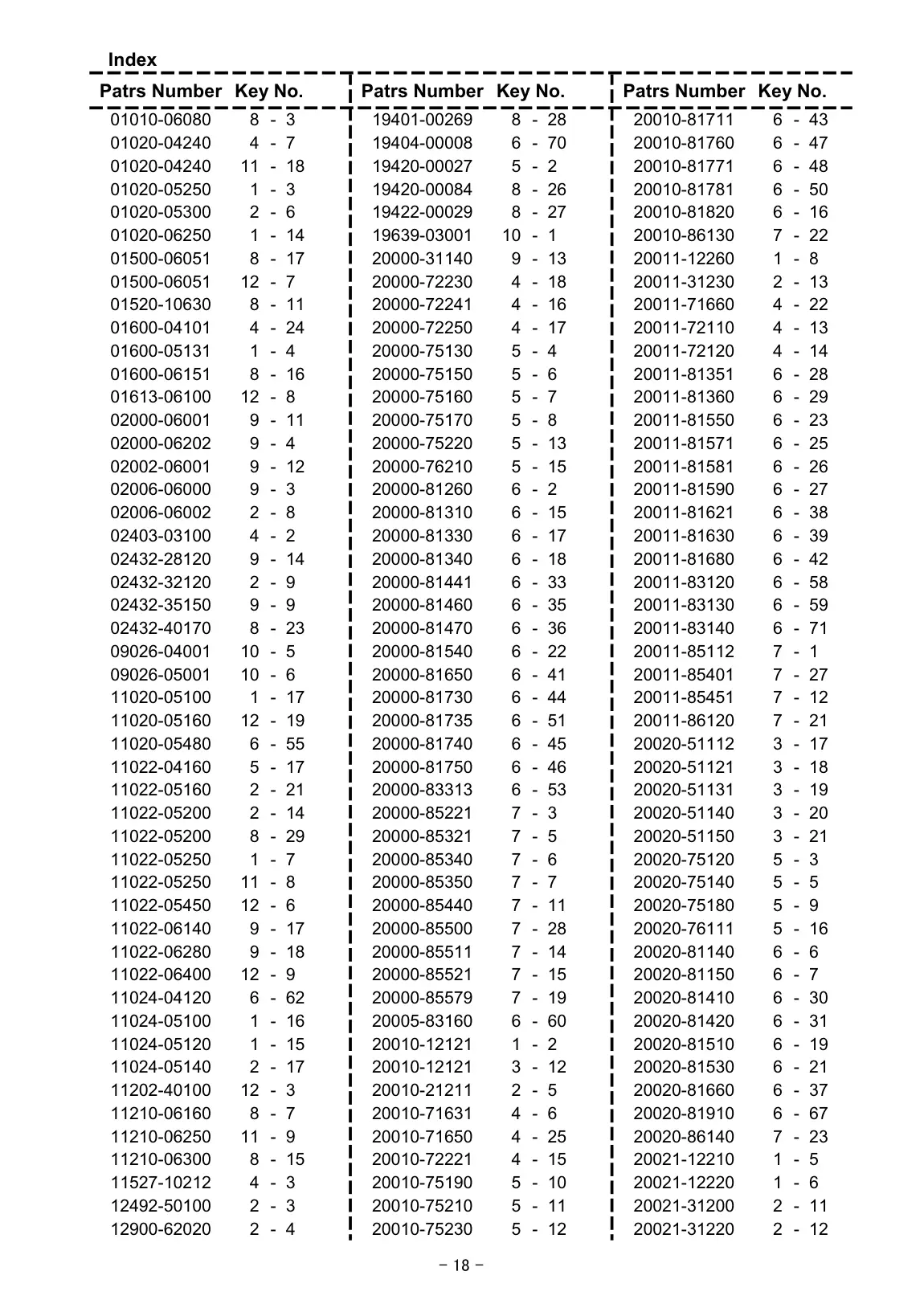

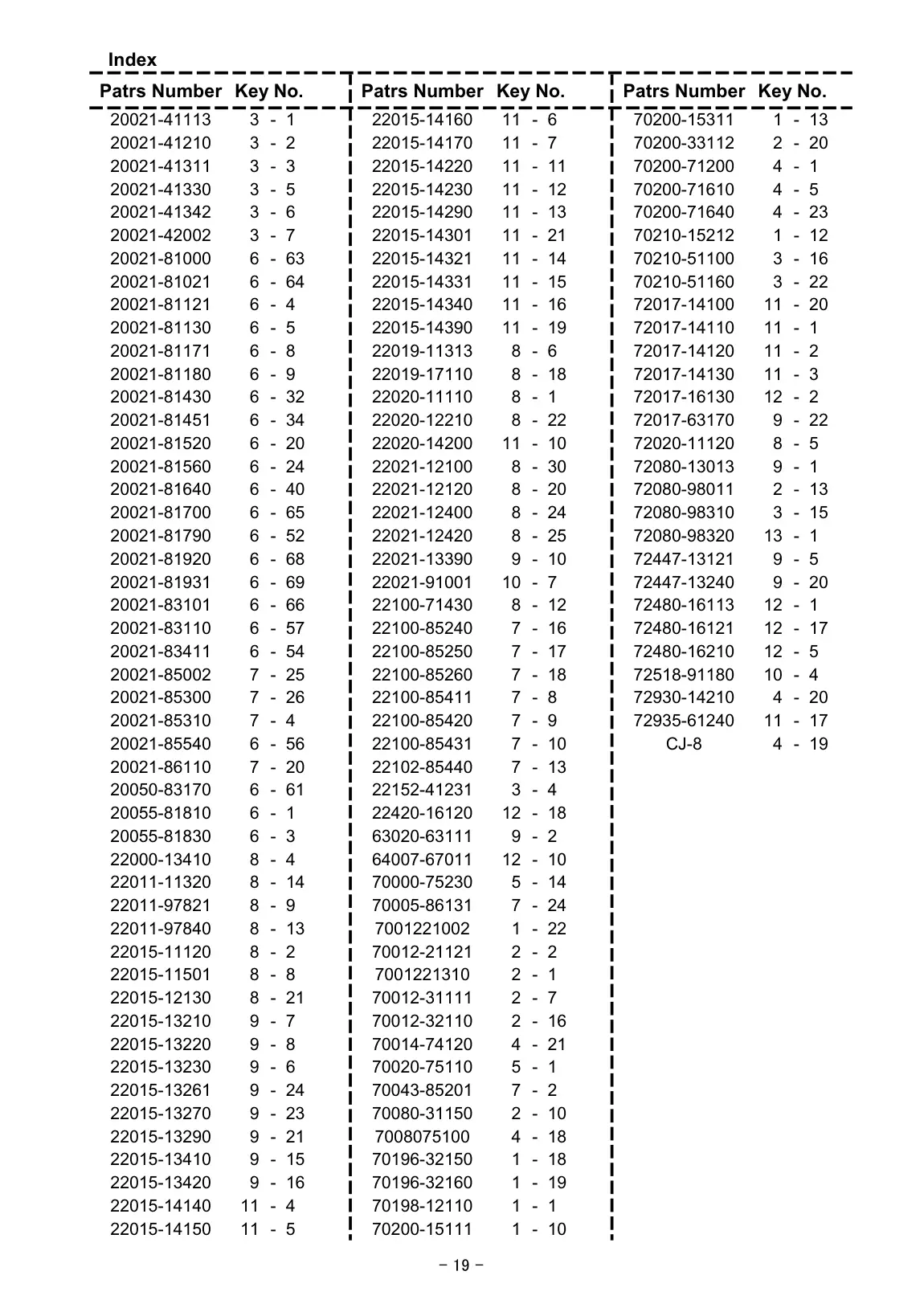

Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

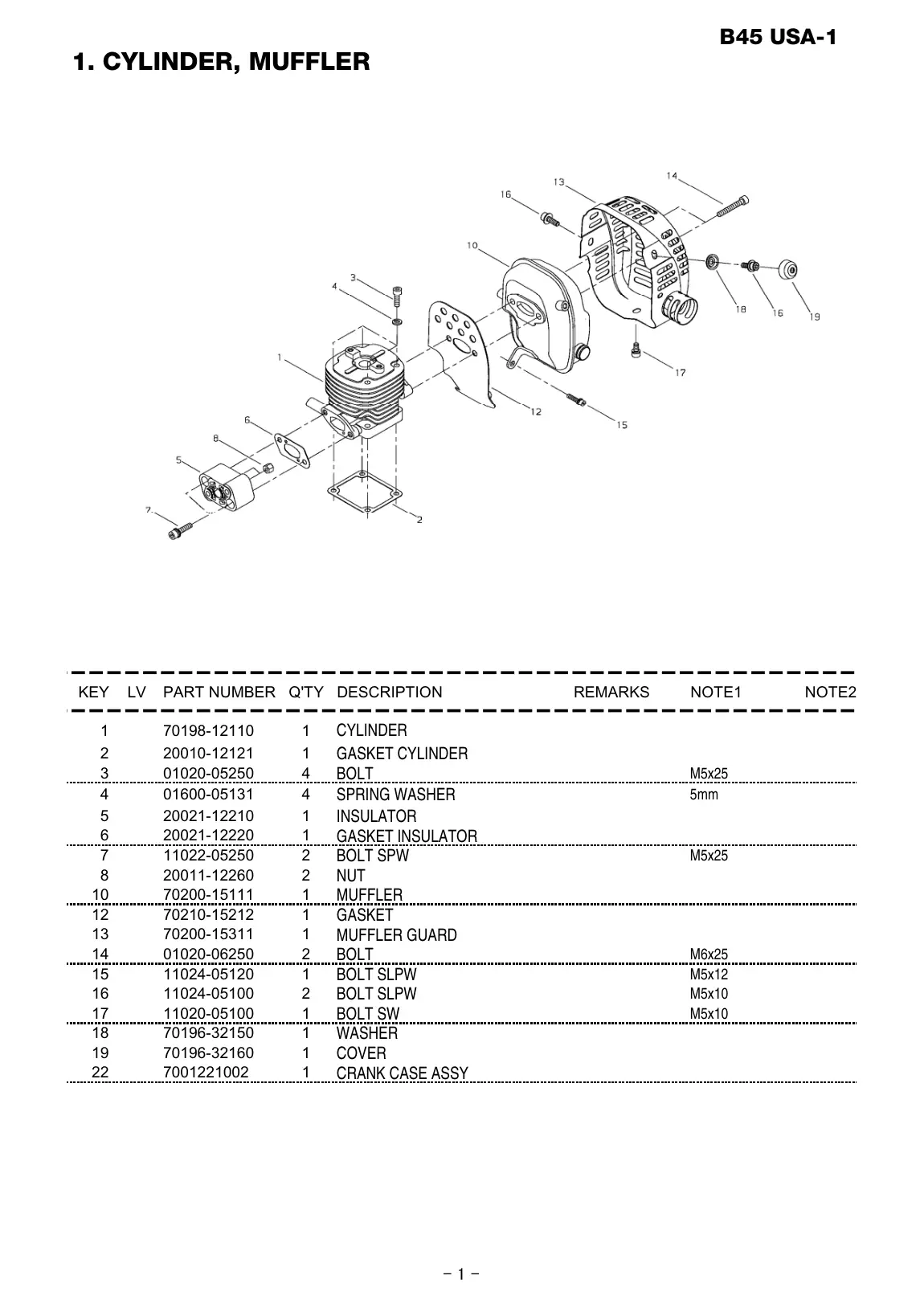

| 2 | CRANK CASE ASSY | 1 | CYLINDER | 70198-12110 | 70198-12110-Online |
| 2 | CRANK CASE ASSY | 10 | MUFFLER | 70200-15111 | 70200-15111-Online |
| 2 | CRANK CASE ASSY | 12 | GASKET | 70210-15212 | 70210-15212-Online |
| 2 | CRANK CASE ASSY | 13 | MUFFLER GUARD | 70200-15311 | 70200-15311-Online |
| 2 | CRANK CASE ASSY | 14 | BOLT | 01020-06250 | 01020-06250-Online |
| 2 | CRANK CASE ASSY | 15 | BOLT SLPW | 11024-05120 | 11024-05120-Online |
| 2 | CRANK CASE ASSY | 16 | BOLT SLPW | 11024-05100 | 11024-05100-Online |
| 2 | CRANK CASE ASSY | 17 | BOLT SW | 11020-05100 | 11020-05100-Online |
| 2 | CRANK CASE ASSY | 18 | WASHER | 70196-32150 | 70196-32150-Online |
| 2 | CRANK CASE ASSY | 19 | COVER | 70196-32160 | 70196-32160-Online |
| 2 | CRANK CASE ASSY | 2 | GASKET CYLINDER | 20010-12121 | 20010-12121-Online |
| 2 | CRANK CASE ASSY | 22 | CRANK CASE ASSY | 7001221002 | 7001221002-Online |
| 2 | CRANK CASE ASSY | 3 | BOLT | 01020-05250 | 01020-05250-Online |
| 2 | CRANK CASE ASSY | 4 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 2 | CRANK CASE ASSY | 5 | INSULATOR | 20021-12210 | 20021-12210-Online |
| 2 | CRANK CASE ASSY | 6 | GASKET INSULATOR | 20021-12220 | 20021-12220-Online |
| 2 | CRANK CASE ASSY | 7 | BOLT SPW | 11022-05250 | 11022-05250-Online |
| 2 | CRANK CASE ASSY | 8 | NUT | 20011-12260 | 20011-12260-Online |
| 3 | PISTON SET | 1 | CRANK CASE S | 7001221310 | 7001221310-Online |
| 3 | PISTON SET | 10 | LABEL TRADE | 70080-31150 | 70080-31150-Online |
| 3 | PISTON SET | 11 | CLUTCH DRUM SET | 20021-31200 | 20021-31200-Online |
| 3 | PISTON SET | 12 | SNAP RING | 20021-31220 | 20021-31220-Online |
| 3 | PISTON SET | 13 | SNAP RING | 20011-31230 | 20011-31230-Online |
| 3 | PISTON SET | 13 | PISTON SET | 72080-98011 | 72080-98011-Online |
| 3 | PISTON SET | 14 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 3 | PISTON SET | 16 | CYLINDER COVER | 70012-32110 | 70012-32110-Online |
| 3 | PISTON SET | 17 | BOLT SLPW | 11024-05140 | 11024-05140-Online |
| 3 | PISTON SET | 2 | CRANK CASE M | 70012-21121 | 70012-21121-Online |
| 3 | PISTON SET | 21 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 3 | PISTON SET | 3 | ROLLER | 12492-50100 | 12492-50100-Online |
| 3 | PISTON SET | 4 | BEARING | 12900-62020 | 12900-62020-Online |
| 3 | PISTON SET | 5 | OIL SEAL | 20010-21211 | 20010-21211-Online |
| 3 | PISTON SET | 6 | BOLT | 01020-05300 | 01020-05300-Online |
| 3 | PISTON SET | 7 | FAN COVER | 70012-31111 | 70012-31111-Online |
| 3 | PISTON SET | 8 | BEARING | 02006-06002 | 02006-06002-Online |
| 3 | PISTON SET | 9 | SNAP RING | 02432-32120 | 02432-32120-Online |
| 4 | SCREW FLAT | 1 | PISTON | 20021-41113 | 20021-41113-Online |
| 4 | SCREW FLAT | 12 | GASKET CYLINDER | 20010-12121 | 20010-12121-Online |
| 4 | SCREW FLAT | 15 | PISTON SET | 72080-98310 | 72080-98310-Online |
| 4 | SCREW FLAT | 16 | CLUTCH SHOE ASSY | 70210-51100 | 70210-51100-Online |
| 4 | SCREW FLAT | 17 | CLUTCH BOSS | 20020-51112 | 20020-51112-Online |
| 4 | SCREW FLAT | 18 | CLUTCH SHOE | 20020-51121 | 20020-51121-Online |
| 4 | SCREW FLAT | 19 | SPRING | 20020-51131 | 20020-51131-Online |
| 4 | SCREW FLAT | 2 | PISTON RING | 20021-41210 | 20021-41210-Online |
| 4 | SCREW FLAT | 20 | PLATE | 20020-51140 | 20020-51140-Online |
| 4 | SCREW FLAT | 21 | CLUTCH BOLT | 20020-51150 | 20020-51150-Online |
| 4 | SCREW FLAT | 22 | SCREW FLAT | 70210-51160 | 70210-51160-Online |
| 4 | SCREW FLAT | 3 | PISTON PIN | 20021-41311 | 20021-41311-Online |
| 4 | SCREW FLAT | 4 | SNAP RING | 22152-41231 | 22152-41231-Online |
| 4 | SCREW FLAT | 5 | BEARING SE | 20021-41330 | 20021-41330-Online |
| 4 | SCREW FLAT | 6 | THRUST WASHER | 20021-41342 | 20021-41342-Online |
| 4 | SCREW FLAT | 7 | CRANK SHAFT ASSY | 20021-42002 | 20021-42002-Online |

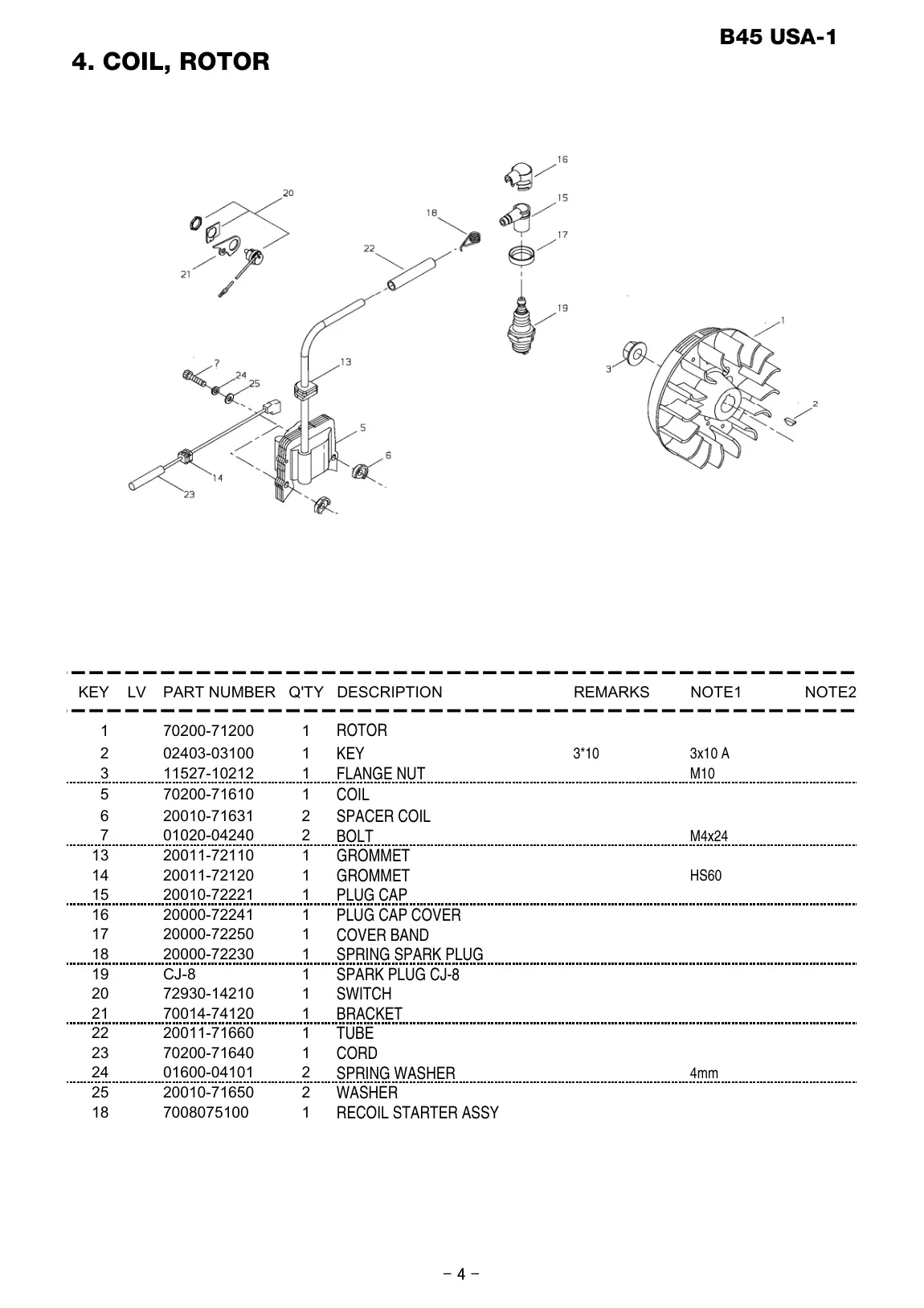

| 5 | RECOIL STARTER ASSY | KEY | 30503 | 30503-Online | |
| 5 | RECOIL STARTER ASSY | 13 | GROMMET | 20011-72110 | 20011-72110-Online |
| 5 | RECOIL STARTER ASSY | 14 | GROMMET | 20011-72120 | 20011-72120-Online |
| 5 | RECOIL STARTER ASSY | 15 | PLUG CAP | 20010-72221 | 20010-72221-Online |
| 5 | RECOIL STARTER ASSY | 16 | PLUG CAP COVER | 20000-72241 | 20000-72241-Online |
| 5 | RECOIL STARTER ASSY | 17 | COVER BAND | 20000-72250 | 20000-72250-Online |
| 5 | RECOIL STARTER ASSY | 18 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 5 | RECOIL STARTER ASSY | 18 | RECOIL STARTER ASSY | 7008075100 | 7008075100-Online |
| 5 | RECOIL STARTER ASSY | 2 | KEY | 02403-03100 | 02403-03100-Online |
| 5 | RECOIL STARTER ASSY | 20 | SWITCH | 72930-14210 | 72930-14210-Online |
| 5 | RECOIL STARTER ASSY | 21 | BRACKET | 70014-74120 | 70014-74120-Online |
| 5 | RECOIL STARTER ASSY | 22 | TUBE | 20011-71660 | 20011-71660-Online |
| 5 | RECOIL STARTER ASSY | 24 | SPRING WASHER | 01600-04101 | 01600-04101-Online |
| 5 | RECOIL STARTER ASSY | 25 | WASHER | 20010-71650 | 20010-71650-Online |
| 5 | RECOIL STARTER ASSY | 3 | FLANGE NUT | 11527-10212 | 11527-10212-Online |
| 5 | RECOIL STARTER ASSY | 5 | COIL | 70200-71610 | 70200-71610-Online |
| 5 | RECOIL STARTER ASSY | 6 | SPACER COIL | 20010-71631 | 20010-71631-Online |
| 5 | RECOIL STARTER ASSY | 7 | BOLT | 01020-04240 | 01020-04240-Online |

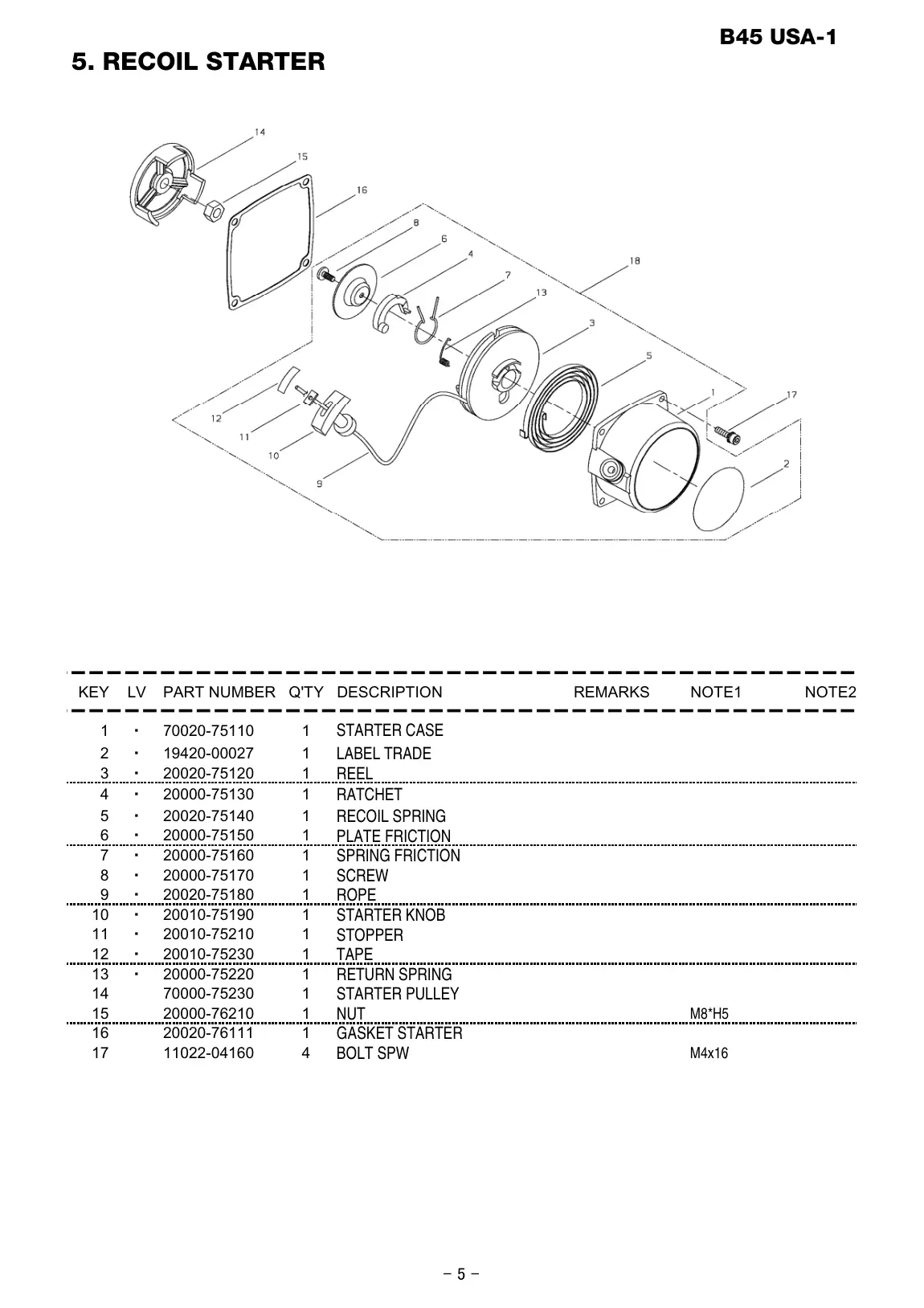

| 6 | BOLT SPW | 1 | STARTER CASE | 70020-75110 | 70020-75110-Online |
| 6 | BOLT SPW | 10 | STARTER KNOB | 20010-75190 | 20010-75190-Online |
| 6 | BOLT SPW | 11 | STOPPER | 20010-75210 | 20010-75210-Online |
| 6 | BOLT SPW | 13 | RETURN SPRING | 20000-75220 | 20000-75220-Online |
| 6 | BOLT SPW | 14 | STARTER PULLEY | 70000-75230 | 70000-75230-Online |
| 6 | BOLT SPW | 15 | NUT | 20000-76210 | 20000-76210-Online |
| 6 | BOLT SPW | 16 | GASKET STARTER | 20020-76111 | 20020-76111-Online |
| 6 | BOLT SPW | 17 | BOLT SPW | 11022-04160 | 11022-04160-Online |
| 6 | BOLT SPW | 2 | LABEL TRADE | 19420-00027 | 19420-00027-Online |
| 6 | BOLT SPW | 3 | REEL | 20020-75120 | 20020-75120-Online |
| 6 | BOLT SPW | 4 | RATCHET | 20000-75130 | 20000-75130-Online |
| 6 | BOLT SPW | 5 | RECOIL SPRING | 20020-75140 | 20020-75140-Online |
| 6 | BOLT SPW | 6 | PLATE FRICTION | 20000-75150 | 20000-75150-Online |
| 6 | BOLT SPW | 7 | SPRING FRICTION | 20000-75160 | 20000-75160-Online |
| 6 | BOLT SPW | 8 | SCREW | 20000-75170 | 20000-75170-Online |
| 6 | BOLT SPW | 9 | ROPE | 20020-75180 | 20020-75180-Online |
| 7 | SPRING | 1 | LOCK NUT | 20000-81260 | 20000-81260-Online |
| 7 | SPRING | 1 | SLOW STOP SCREW | 20000-81310 | 20000-81310-Online |
| 7 | SPRING | 1 | SLOW AIR SCREW | 20000-81330 | 20000-81330-Online |
| 7 | SPRING | 1 | SPRING | 20000-81340 | 20000-81340-Online |
| 7 | SPRING | 1 | SCREW | 20000-81540 | 20000-81540-Online |
| 7 | SPRING | 1 | SPRING | 20010-81820 | 20010-81820-Online |
| 7 | SPRING | 1 | ADJUST SCREW | 20011-81351 | 20011-81351-Online |
| 7 | SPRING | 1 | SPRING | 20011-81360 | 20011-81360-Online |
| 7 | SPRING | 1 | SPRING | 20011-81571 | 20011-81571-Online |
| 7 | SPRING | 1 | SCREW | 20011-81581 | 20011-81581-Online |
| 7 | SPRING | 1 | COLLAR | 20011-81590 | 20011-81590-Online |
| 7 | SPRING | 1 | SPRING | 20020-81140 | 20020-81140-Online |
| 7 | SPRING | 1 | SPRING RECIEVE | 20020-81150 | 20020-81150-Online |
| 7 | SPRING | 1 | GASKET | 20020-81510 | 20020-81510-Online |
| 7 | SPRING | 1 | COVER DIAPHRAGM | 20020-81530 | 20020-81530-Online |
| 7 | SPRING | 1 | BODY CAP | 20021-81121 | 20021-81121-Online |
| 7 | SPRING | 1 | CAP | 20021-81130 | 20021-81130-Online |
| 7 | SPRING | 1 | JET NEEDLE | 20021-81171 | 20021-81171-Online |
| 7 | SPRING | 1 | THROTTLE VALVE | 20021-81180 | 20021-81180-Online |
| 7 | SPRING | 1 | DIAPHRAGM | 20021-81520 | 20021-81520-Online |
| 7 | SPRING | 1 | TICKLER LEVER | 20021-81560 | 20021-81560-Online |
| 7 | SPRING | 1 | CABLE ADJUSTER | 20055-81810 | 20055-81810-Online |
| 7 | SPRING | 1 | ADJUST PIPE | 20055-81830 | 20055-81830-Online |
| 7 | SPRING | 4 | ORVER FLOW VALVE | 20011-81550 | 20011-81550-Online |

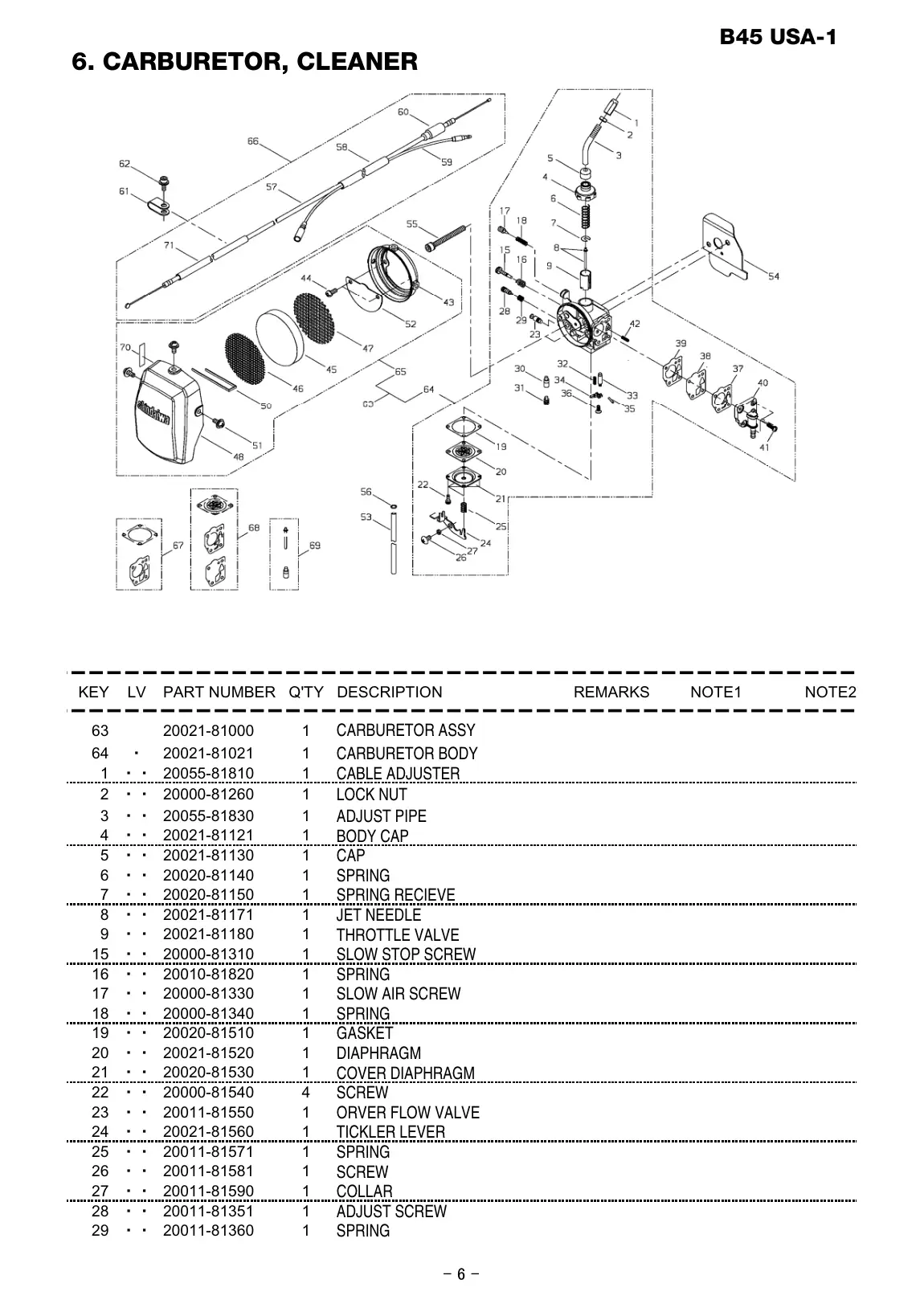

| 7 | SPRING | 63 | CARBURETOR ASSY | 20021-81000 | 20021-81000-Online |
| 7 | SPRING | 64 | CARBURETOR BODY | 20021-81021 | 20021-81021-Online |

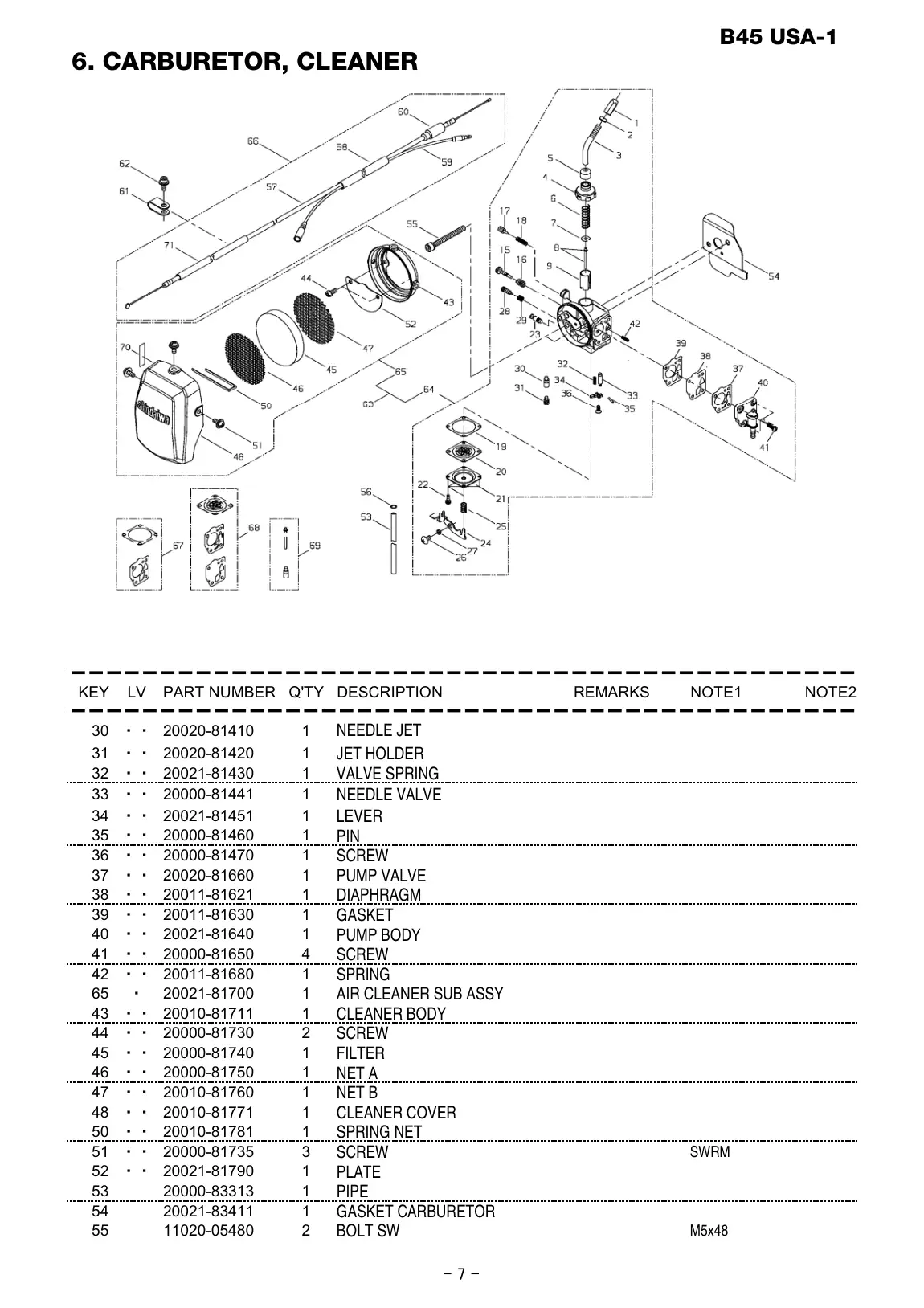

| 8 | BOLT SW | NEEDLE JET | 20020-81410 | 20020-81410-Online | |
| 8 | BOLT SW | 1 | NEEDLE VALVE | 20000-81441 | 20000-81441-Online |
| 8 | BOLT SW | 1 | PIN | 20000-81460 | 20000-81460-Online |
| 8 | BOLT SW | 1 | SCREW | 20000-81470 | 20000-81470-Online |
| 8 | BOLT SW | 1 | SCREW | 20000-81650 | 20000-81650-Online |
| 8 | BOLT SW | 1 | SCREW | 20000-81730 | 20000-81730-Online |
| 8 | BOLT SW | 1 | SCREW | 20000-81735 | 20000-81735-Online |
| 8 | BOLT SW | 1 | NET A | 20000-81750 | 20000-81750-Online |
| 8 | BOLT SW | 1 | CLEANER BODY | 20010-81711 | 20010-81711-Online |
| 8 | BOLT SW | 1 | NET B | 20010-81760 | 20010-81760-Online |
| 8 | BOLT SW | 1 | CLEANER COVER | 20010-81771 | 20010-81771-Online |
| 8 | BOLT SW | 1 | SPRING NET | 20010-81781 | 20010-81781-Online |
| 8 | BOLT SW | 1 | DIAPHRAGM | 20011-81621 | 20011-81621-Online |
| 8 | BOLT SW | 1 | GASKET | 20011-81630 | 20011-81630-Online |
| 8 | BOLT SW | 1 | JET HOLDER | 20020-81420 | 20020-81420-Online |
| 8 | BOLT SW | 1 | PUMP VALVE | 20020-81660 | 20020-81660-Online |
| 8 | BOLT SW | 1 | VALVE SPRING | 20021-81430 | 20021-81430-Online |
| 8 | BOLT SW | 1 | LEVER | 20021-81451 | 20021-81451-Online |
| 8 | BOLT SW | 1 | PUMP BODY | 20021-81640 | 20021-81640-Online |
| 8 | BOLT SW | 2 | FILTER | 20000-81740 | 20000-81740-Online |
| 8 | BOLT SW | 3 | PLATE | 20021-81790 | 20021-81790-Online |
| 8 | BOLT SW | 4 | SPRING | 20011-81680 | 20011-81680-Online |
| 8 | BOLT SW | 53 | PIPE | 20000-83313 | 20000-83313-Online |
| 8 | BOLT SW | 54 | GASKET CARBURETOR | 20021-83411 | 20021-83411-Online |
| 8 | BOLT SW | 55 | BOLT SW | 11020-05480 | 11020-05480-Online |
| 8 | BOLT SW | 65 | AIR CLEANER SUB ASSY | 20021-81700 | 20021-81700-Online |

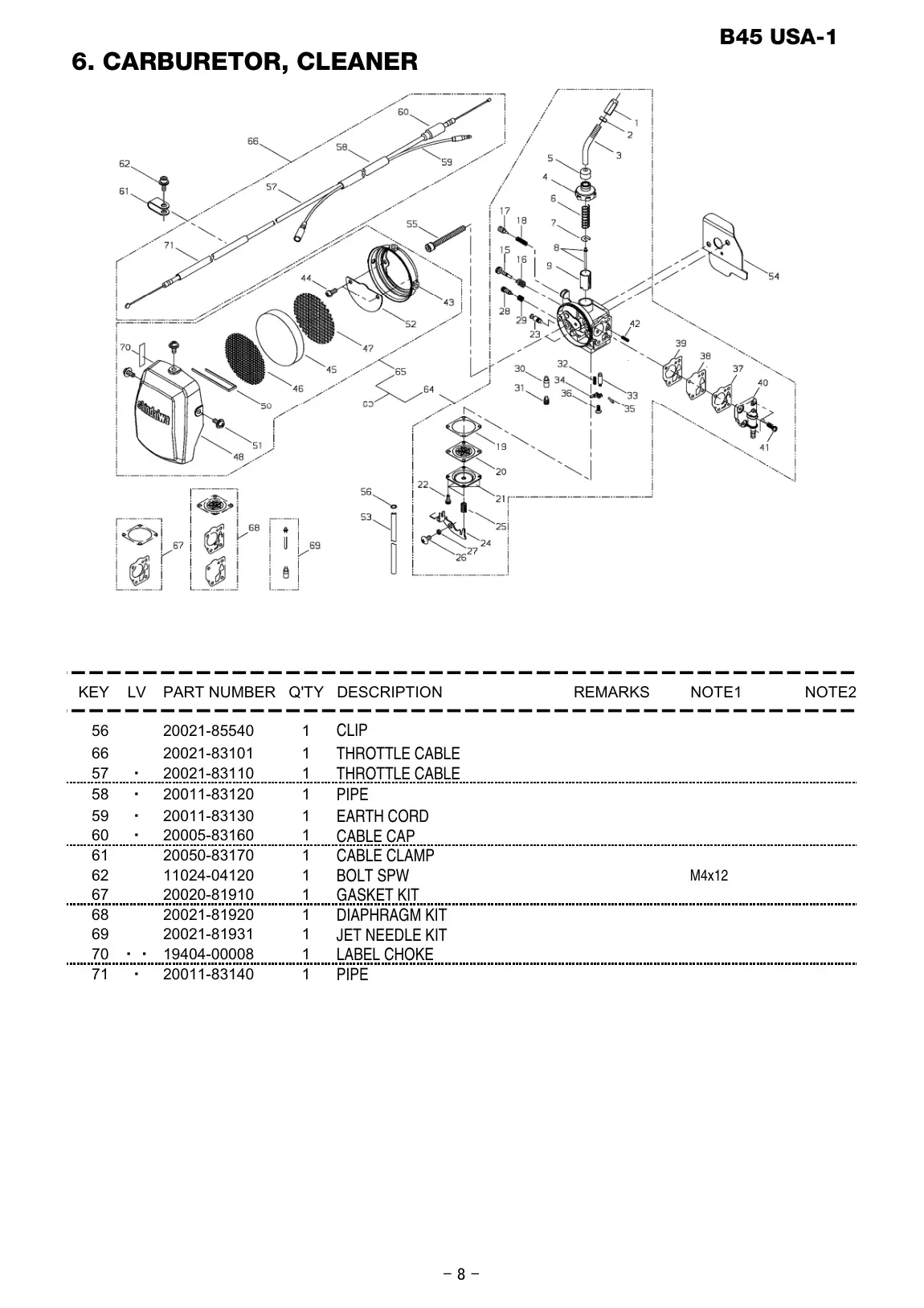

| 9 | PIPE | 1 | LABEL CHOKE | 19404-00008 | 19404-00008-Online |
| 9 | PIPE | 56 | CLIP | 20021-85540 | 20021-85540-Online |
| 9 | PIPE | 57 | THROTTLE CABLE | 20021-83110 | 20021-83110-Online |
| 9 | PIPE | 58 | PIPE | 20011-83120 | 20011-83120-Online |
| 9 | PIPE | 59 | EARTH CORD | 20011-83130 | 20011-83130-Online |
| 9 | PIPE | 60 | CABLE CAP | 20005-83160 | 20005-83160-Online |
| 9 | PIPE | 61 | CABLE CLAMP | 20050-83170 | 20050-83170-Online |
| 9 | PIPE | 62 | BOLT SPW | 11024-04120 | 11024-04120-Online |
| 9 | PIPE | 66 | THROTTLE CABLE | 20021-83101 | 20021-83101-Online |
| 9 | PIPE | 67 | GASKET KIT | 20020-81910 | 20020-81910-Online |
| 9 | PIPE | 68 | DIAPHRAGM KIT | 20021-81920 | 20021-81920-Online |
| 9 | PIPE | 69 | JET NEEDLE KIT | 20021-81931 | 20021-81931-Online |
| 9 | PIPE | 71 | PIPE | 20011-83140 | 20011-83140-Online |
| 10 | CUSHION | 1 | GASKET | 20000-85221 | 20000-85221-Online |
| 10 | CUSHION | 1 | JOINT PIPE | 20000-85321 | 20000-85321-Online |
| 10 | CUSHION | 1 | CLAMP A | 20000-85340 | 20000-85340-Online |
| 10 | CUSHION | 1 | CLAMP B | 20000-85350 | 20000-85350-Online |
| 10 | CUSHION | 1 | CHECK VALVE | 20000-85440 | 20000-85440-Online |
| 10 | CUSHION | 1 | CAP BREATHER | 20000-85511 | 20000-85511-Online |
| 10 | CUSHION | 1 | HOLDER VALVE | 20000-85521 | 20000-85521-Online |
| 10 | CUSHION | 1 | FUEL TANK | 20011-85112 | 20011-85112-Online |
| 10 | CUSHION | 1 | SUCTION PIPE | 20011-85451 | 20011-85451-Online |
| 10 | CUSHION | 1 | FUEL PIPE | 20021-85310 | 20021-85310-Online |
| 10 | CUSHION | 1 | RETAINER FUEL | 22100-85240 | 22100-85240-Online |
| 10 | CUSHION | 1 | WASHER FUEL | 22100-85250 | 22100-85250-Online |
| 10 | CUSHION | 1 | VALVE FUEL | 22100-85260 | 22100-85260-Online |
| 10 | CUSHION | 1 | WEIGHT FUEL | 22100-85411 | 22100-85411-Online |
| 10 | CUSHION | 1 | FILTER A | 22100-85420 | 22100-85420-Online |
| 10 | CUSHION | 1 | FILTER B | 22100-85431 | 22100-85431-Online |
| 10 | CUSHION | 1 | CLIP | 22102-85440 | 22102-85440-Online |
| 10 | CUSHION | 1 | CLAMP B | SUS304-WR | SUS304-WR-Online |
| 10 | CUSHION | 1 | FUEL FILTER SUB ASSY | SUS304-WR | SUS304-WR-Online |
| 10 | CUSHION | 19 | GROMMET BREATHER | 20000-85579 | 20000-85579-Online |
| 10 | CUSHION | 2 | FUEL CAP SUB ASSY | 70043-85201 | 70043-85201-Online |
| 10 | CUSHION | 20 | BRACKET S | 20021-86110 | 20021-86110-Online |
| 10 | CUSHION | 21 | BRACKET M | 20011-86120 | 20011-86120-Online |
| 10 | CUSHION | 22 | CUSHION | 20010-86130 | 20010-86130-Online |
| 10 | CUSHION | 25 | FUEL TANK ASSY | 20021-85002 | 20021-85002-Online |
| 10 | CUSHION | 26 | FUEL PIPE SUB ASSY | 20021-85300 | 20021-85300-Online |
| 10 | CUSHION | 27 | FUEL FILTER SUB ASSY | 20011-85401 | 20011-85401-Online |
| 10 | CUSHION | 28 | BREATHER SUB ASSY | 20000-85500 | 20000-85500-Online |

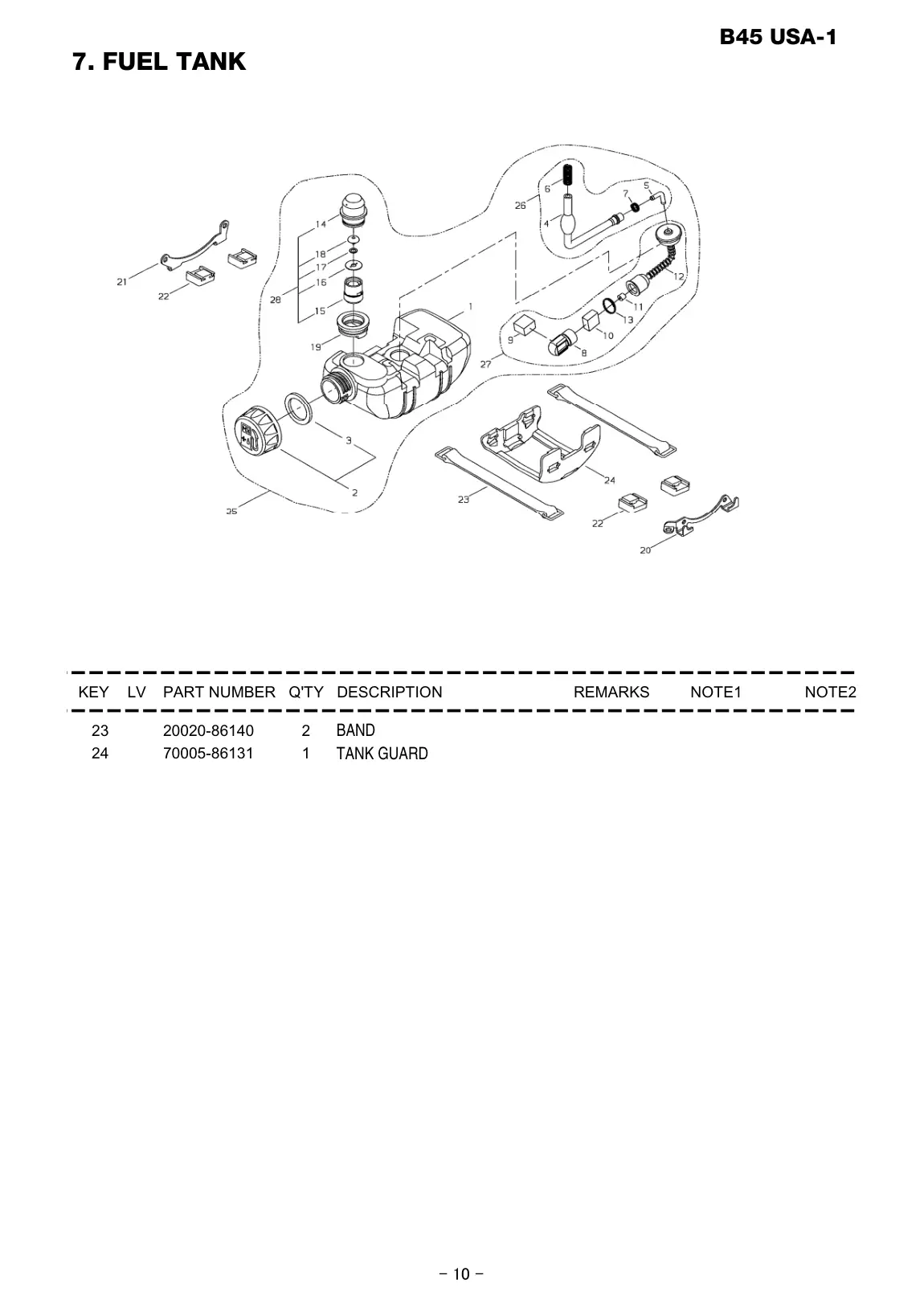

| 11 | TANK GUARD | 23 | BAND | 20020-86140 | 20020-86140-Online |
| 11 | TANK GUARD | 24 | TANK GUARD | 70005-86131 | 70005-86131-Online |

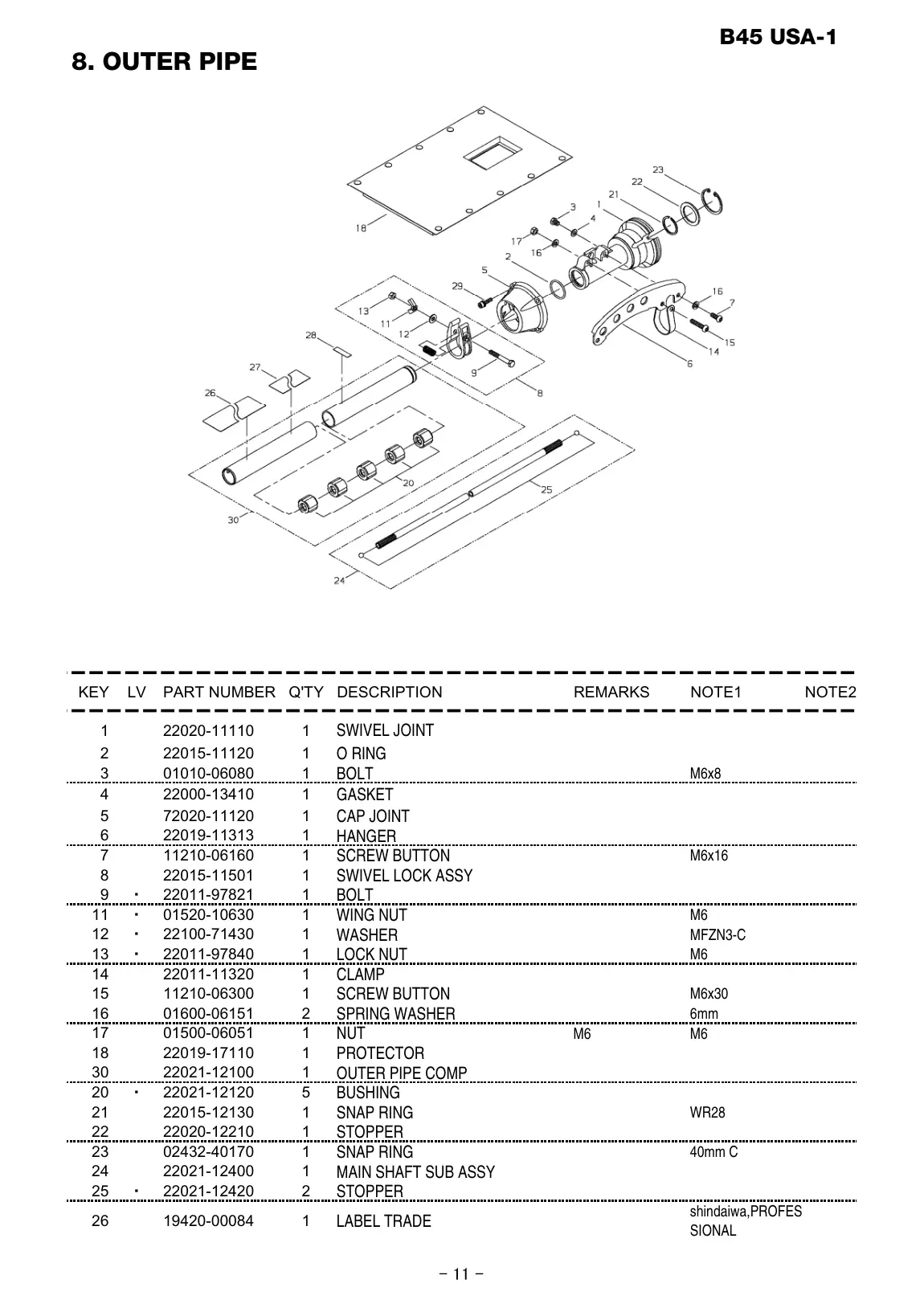

| 12 | SIONAL | 1 | SWIVEL JOINT | 22020-11110 | 22020-11110-Online |
| 12 | SIONAL | 11 | WING NUT | 01520-10630 | 01520-10630-Online |
| 12 | SIONAL | 12 | WASHER | 22100-71430 | 22100-71430-Online |
| 12 | SIONAL | 13 | LOCK NUT | 22011-97840 | 22011-97840-Online |
| 12 | SIONAL | 15 | SCREW BUTTON | 11210-06300 | 11210-06300-Online |
| 12 | SIONAL | 16 | SPRING WASHER | 01600-06151 | 01600-06151-Online |
| 12 | SIONAL | 17 | NUT | 01500-06051 | 01500-06051-Online |
| 12 | SIONAL | 18 | PROTECTOR | 22019-17110 | 22019-17110-Online |
| 12 | SIONAL | 2 | O RING | 22015-11120 | 22015-11120-Online |
| 12 | SIONAL | 20 | BUSHING | 22021-12120 | 22021-12120-Online |
| 12 | SIONAL | 21 | SNAP RING | 22015-12130 | 22015-12130-Online |
| 12 | SIONAL | 22 | STOPPER | 22020-12210 | 22020-12210-Online |
| 12 | SIONAL | 23 | SNAP RING | 02432-40170 | 02432-40170-Online |
| 12 | SIONAL | 24 | MAIN SHAFT SUB ASSY | 22021-12400 | 22021-12400-Online |
| 12 | SIONAL | 25 | STOPPER | 22021-12420 | 22021-12420-Online |
| 12 | SIONAL | 26 | LABEL TRADE | 19420-00084 | 19420-00084-Online |
| 12 | SIONAL | 3 | BOLT | 01010-06080 | 01010-06080-Online |
| 12 | SIONAL | 30 | OUTER PIPE COMP | 22021-12100 | 22021-12100-Online |
| 12 | SIONAL | 4 | GASKET | 22000-13410 | 22000-13410-Online |
| 12 | SIONAL | 5 | CAP JOINT | 72020-11120 | 72020-11120-Online |
| 12 | SIONAL | 6 | HANGER | 22019-11313 | 22019-11313-Online |
| 12 | SIONAL | 7 | SCREW BUTTON | 11210-06160 | 11210-06160-Online |
| 12 | SIONAL | 8 | SWIVEL LOCK ASSY | 22015-11501 | 22015-11501-Online |
| 12 | SIONAL | 9 | BOLT | 22011-97821 | 22011-97821-Online |

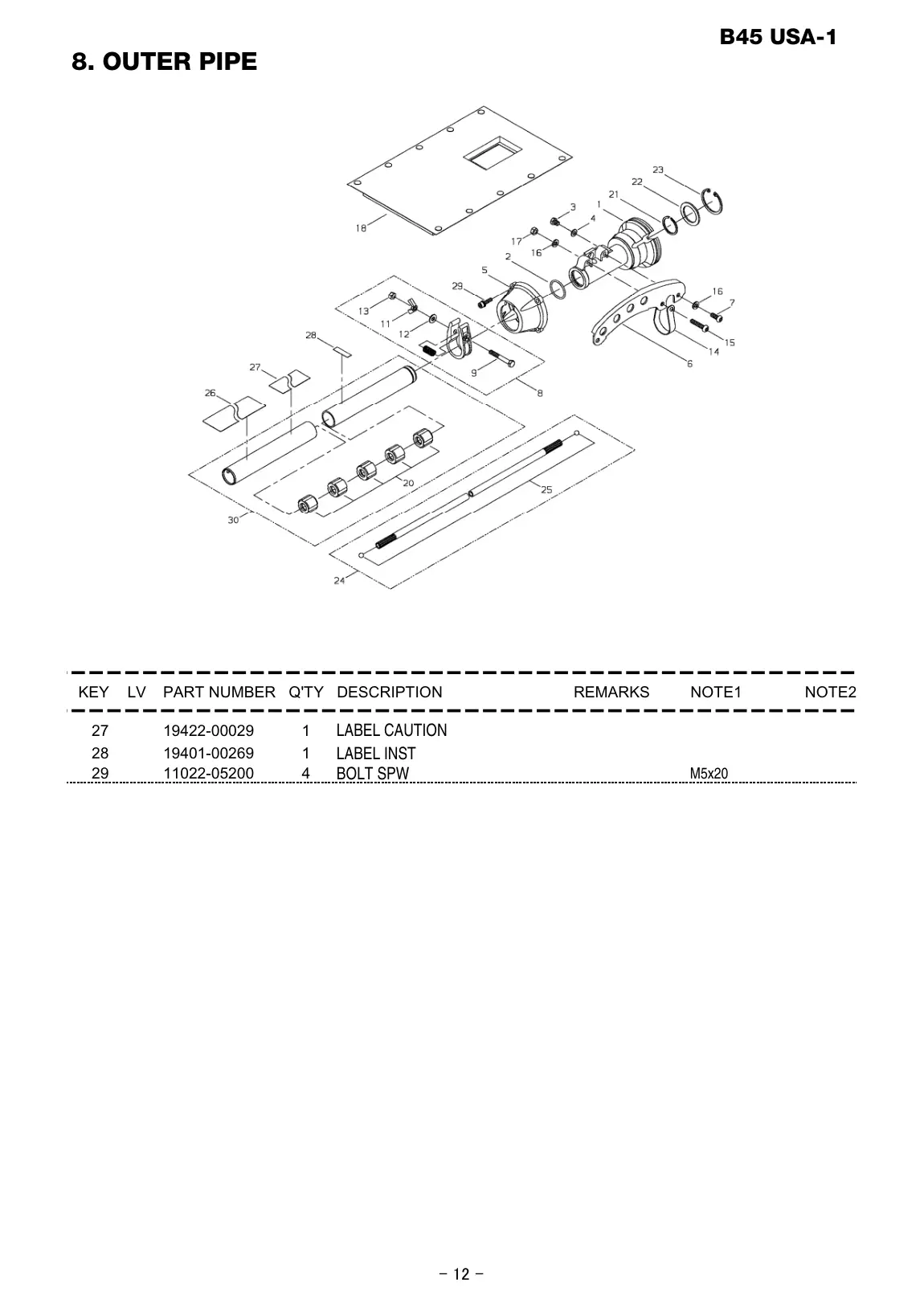

| 13 | BOLT SPW | 27 | LABEL CAUTION | 19422-00029 | 19422-00029-Online |
| 13 | BOLT SPW | 28 | LABEL INST | 19401-00269 | 19401-00269-Online |
| 13 | BOLT SPW | 29 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 14 | BOLT | 1 | GEAR CASE SUB ASSY | 72080-13013 | 72080-13013-Online |
| 14 | BOLT | 10 | PINION SET | 22021-13390 | 22021-13390-Online |
| 14 | BOLT | 11 | BEARING | 02000-06001 | 02000-06001-Online |
| 14 | BOLT | 12 | BEARING | 02002-06001 | 02002-06001-Online |
| 14 | BOLT | 13 | SNAP RING | 20000-31140 | 20000-31140-Online |
| 14 | BOLT | 14 | SNAP RING | 02432-28120 | 02432-28120-Online |
| 14 | BOLT | 15 | BOLT | 22015-13410 | 22015-13410-Online |
| 14 | BOLT | 16 | GASKET | 22015-13420 | 22015-13420-Online |
| 14 | BOLT | 17 | BOLT SPW | 11022-06140 | 11022-06140-Online |
| 14 | BOLT | 18 | BOLT SPW | 11022-06280 | 11022-06280-Online |
| 14 | BOLT | 2 | GEAR CASE | 63020-63111 | 63020-63111-Online |
| 14 | BOLT | 20 | HOLDER A | 72447-13240 | 72447-13240-Online |
| 14 | BOLT | 21 | SLIDE PIN | 22015-13290 | 22015-13290-Online |
| 14 | BOLT | 22 | HOLDER | 72017-63170 | 72017-63170-Online |
| 14 | BOLT | 23 | BOLT GUARD | 22015-13270 | 22015-13270-Online |
| 14 | BOLT | 24 | BOLT | 22015-13261 | 22015-13261-Online |
| 14 | BOLT | 3 | BEARING | 02006-06000 | 02006-06000-Online |
| 14 | BOLT | 4 | BEARING | 02000-06202 | 02000-06202-Online |
| 14 | BOLT | 5 | OIL SEAL | 72447-13121 | 72447-13121-Online |
| 14 | BOLT | 6 | COLLAR | 22015-13230 | 22015-13230-Online |
| 14 | BOLT | 7 | GEAR SHAFT | 22015-13210 | 22015-13210-Online |
| 14 | BOLT | 8 | BEVEL GEAR | 22015-13220 | 22015-13220-Online |
| 14 | BOLT | 9 | SNAP RING | 02432-35150 | 02432-35150-Online |

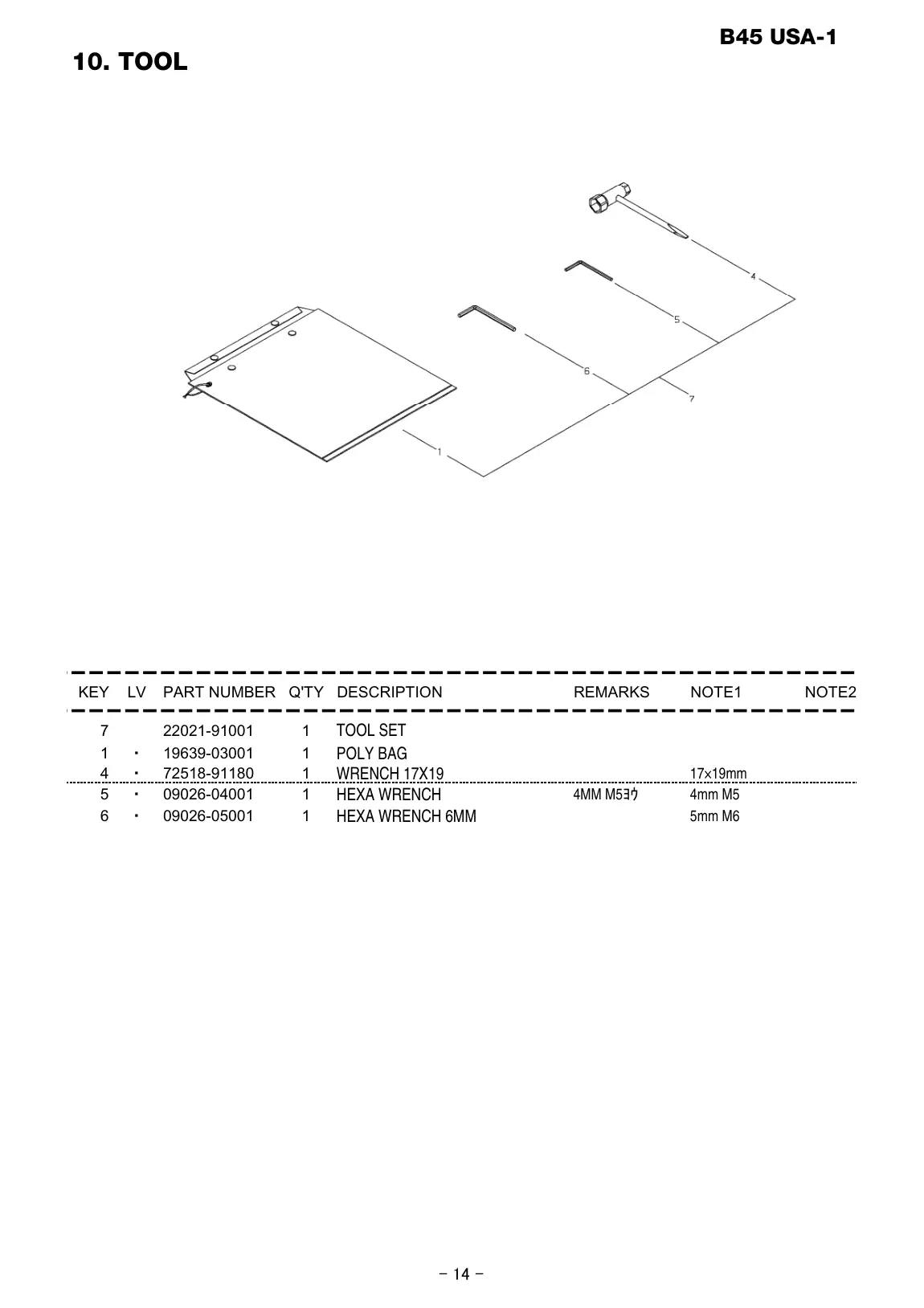

| 15 | HEXA WRENCH 6MM | 1 | POLY BAG | 19639-03001 | 19639-03001-Online |
| 15 | HEXA WRENCH 6MM | 4 | WRENCH 17X19 | 72518-91180 | 72518-91180-Online |
| 15 | HEXA WRENCH 6MM | 5 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 15 | HEXA WRENCH 6MM | 6 | HEXA WRENCH 6MM | 09026-05001 | 09026-05001-Online |
| 15 | HEXA WRENCH 6MM | 7 | TOOL SET | 22021-91001 | 22021-91001-Online |
| 16 | M4*0.7 | 1 | HANDLE BRACKET | 72017-14110 | 72017-14110-Online |
| 16 | M4*0.7 | 10 | HANDLE COMP | 22020-14200 | 22020-14200-Online |
| 16 | M4*0.7 | 11 | RIGHT GRIP | 22015-14220 | 22015-14220-Online |
| 16 | M4*0.7 | 12 | LEFT GRIP | 22015-14230 | 22015-14230-Online |
| 16 | M4*0.7 | 13 | CABLE HOLDER | 22015-14290 | 22015-14290-Online |
| 16 | M4*0.7 | 14 | LEVER STOPPER | 22015-14321 | 22015-14321-Online |
| 16 | M4*0.7 | 15 | LEVER | 22015-14331 | 22015-14331-Online |
| 16 | M4*0.7 | 16 | BOLT | 22015-14340 | 22015-14340-Online |
| 16 | M4*0.7 | 17 | LOCK NUT | 72935-61240 | 72935-61240-Online |
| 16 | M4*0.7 | 18 | BOLT | 01020-04240 | 01020-04240-Online |
| 16 | M4*0.7 | 19 | NYLON NUT | 22015-14390 | 22015-14390-Online |
| 16 | M4*0.7 | 2 | LOWER CAP | 72017-14120 | 72017-14120-Online |
| 16 | M4*0.7 | 20 | BRACKET SUB ASSY | 72017-14100 | 72017-14100-Online |
| 16 | M4*0.7 | 21 | LEVER COMP | 22015-14301 | 22015-14301-Online |
| 16 | M4*0.7 | 3 | UPPER CAP | 72017-14130 | 72017-14130-Online |
| 16 | M4*0.7 | 4 | LOWER CLAMP | 22015-14140 | 22015-14140-Online |
| 16 | M4*0.7 | 5 | UPPER CLAMP | 22015-14150 | 22015-14150-Online |
| 16 | M4*0.7 | 6 | LOWER CUSHION | 22015-14160 | 22015-14160-Online |
| 16 | M4*0.7 | 7 | UPPER CUSHION | 22015-14170 | 22015-14170-Online |
| 16 | M4*0.7 | 8 | BOLT SPW | 11022-05250 | 11022-05250-Online |
| 16 | M4*0.7 | 9 | SCREW BUTTON | 11210-06250 | 11210-06250-Online |
| 17 | BOLT SW | 1 | GUARD | 72480-16113 | 72480-16113-Online |
| 17 | BOLT SW | 10 | HARNESS ASSY | 64007-67011 | 64007-67011-Online |
| 17 | BOLT SW | 17 | CUTTER | 72480-16121 | 72480-16121-Online |
| 17 | BOLT SW | 18 | NUT | 22420-16120 | 22420-16120-Online |
| 17 | BOLT SW | 19 | BOLT SW | 11020-05160 | 11020-05160-Online |
| 17 | BOLT SW | 2 | LOWER CLAMP | 72017-16130 | 72017-16130-Online |
| 17 | BOLT SW | 3 | SCREW HILO 4X10 | 11202-40100 | 11202-40100-Online |
| 17 | BOLT SW | 5 | UPPER CLAMP | 72480-16210 | 72480-16210-Online |
| 17 | BOLT SW | 6 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 17 | BOLT SW | 7 | NUT | 01500-06051 | 01500-06051-Online |
| 17 | BOLT SW | 8 | WASHER | 01613-06100 | 01613-06100-Online |
| 17 | BOLT SW | 9 | BOLT SPW | 11022-06400 | 11022-06400-Online |
| 18 | ENGINE REBUILD KIT | 1 | ENGINE REBUILD KIT | 72080-98320 | 72080-98320-Online |
Source file: 20130718-671_B45_USA-1_B45_USA-1_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
