Illustrated Parts List
Shindaiwa AH2510 EC2 AH2510 EC2 Hedge Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: AH2510 EC2 AH2510 EC2
Type: Hedge Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 2 | NUT | 1 | CYLINDER BLOCK SET | 60908-98330 | 60908-98330-Online |
| 2 | NUT | 10 | BRACKET THROTTLE | 62901-83310 | 62901-83310-Online |
| 2 | NUT | 11 | CABLE ADJUSTER | 62902-83310 | 62902-83310-Online |
| 2 | NUT | 12 | NUT | 01501-06048 | 01501-06048-Online |
| 2 | NUT | 2 | BOLT | 01020-05160 | 01020-05160-Online |
| 2 | NUT | 3 | ROLLER | 12492-40080 | 12492-40080-Online |
| 2 | NUT | 4 | REED VALVE | 62902-12310 | 62902-12310-Online |
| 2 | NUT | 5 | LEAD WIRE | 14350-01101 | 14350-01101-Online |
| 2 | NUT | 6 | BAFFLE PLATE COMP | 62902-12320 | 62902-12320-Online |
| 2 | NUT | 7 | BAFFLE PLATE | 62901-12320 | 62901-12320-Online |
| 2 | NUT | 8 | GASKET | 62901-12220 | 62901-12220-Online |
| 2 | NUT | 9 | SCREW,PM-SPW | 11206-05225 | 11206-05225-Online |
| 3 | WASHER | 1 | MUFFLER ASSY | 62907-15011 | 62907-15011-Online |
| 3 | WASHER | 2 | MUFFLER | 62907-15111 | 62907-15111-Online |
| 3 | WASHER | 3 | SCREEN | 62902-15131 | 62902-15131-Online |
| 3 | WASHER | 4 | TAIL PLATE | 62907-15161 | 62907-15161-Online |
| 3 | WASHER | 5 | SCREW,PM-SW | 11204-04060 | 11204-04060-Online |
| 3 | WASHER | 6 | GASKET | 62901-15210 | 62901-15210-Online |
| 3 | WASHER | 7 | BOLT | 62901-15310 | 62901-15310-Online |
| 3 | WASHER | 8 | BOLT | 01020-05160 | 01020-05160-Online |
| 3 | WASHER | 9 | WASHER | 01610-05080 | 01610-05080-Online |
| 4 | LABEL TRADE | 1 | INSULATOR | 62901-21320 | 62901-21320-Online |
| 4 | LABEL TRADE | 10 | FAN COVER | 62901-31112 | 62901-31112-Online |
| 4 | LABEL TRADE | 11 | BALL BEARING | 02002-06000 | 02002-06000-Online |
| 4 | LABEL TRADE | 12 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 4 | LABEL TRADE | 13 | CLUTCH DRUM | 62100-31210 | 62100-31210-Online |
| 4 | LABEL TRADE | 14 | SNAP RING | 22000-13320 | 22000-13320-Online |
| 4 | LABEL TRADE | 15 | JOINT | 20087-31411 | 20087-31411-Online |
| 4 | LABEL TRADE | 16 | SNAP RING | 02432-40170 | 02432-40170-Online |
| 4 | LABEL TRADE | 17 | BOLT-SW | 11020-05220 | 11020-05220-Online |
| 4 | LABEL TRADE | 18 | BOLT | 01020-05160 | 01020-05160-Online |
| 4 | LABEL TRADE | 19 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 4 | LABEL TRADE | 2 | VALVE | 72320-83121 | 72320-83121-Online |
| 4 | LABEL TRADE | 20 | CYLINDER COVER | 62901-32111 | 62901-32111-Online |
| 4 | LABEL TRADE | 21 | GROMMET | 62901-32312 | 62901-32312-Online |
| 4 | LABEL TRADE | 22 | BOLT SLPW | 11024-04160 | 11024-04160-Online |
| 4 | LABEL TRADE | 23 | LABEL TRADE | 62640-91320 | 62640-91320-Online |
| 4 | LABEL TRADE | 24 | LABEL TRADE | 19420-00106 | 19420-00106-Online |
| 4 | LABEL TRADE | 3 | STOPPER | 72320-83132 | 72320-83132-Online |
| 4 | LABEL TRADE | 4 | SCREW-SW | 01211-03100 | 01211-03100-Online |
| 4 | LABEL TRADE | 5 | COVER | 62901-21120 | 62901-21120-Online |
| 4 | LABEL TRADE | 6 | GASKET | 62901-21130 | 62901-21130-Online |
| 4 | LABEL TRADE | 7 | BOLT-SPW | 11022-04120 | 11022-04120-Online |
| 4 | LABEL TRADE | 8 | FAN COVER ASSY | 60902-98023 | 60902-98023-Online |
| 4 | LABEL TRADE | 9 | FAN COVER COMP | 62901-31013 | 62901-31013-Online |
| 5 | OIL SEAL | 1 | PISTON SET | 62902-41310 | 62902-41310-Online |
| 5 | OIL SEAL | 2 | CRANKSHAFT COMP | 62902-42020 | 62902-42020-Online |
| 5 | OIL SEAL | 3 | OIL SEAL | 62901-42260 | 62901-42260-Online |
| 5 | OIL SEAL | 4 | OIL SEAL | 62901-42270 | 62901-42270-Online |
| 6 | ROCKER ARM COVER | 1 | CAM GEAR ASSY | 62905-43011 | 62905-43011-Online |
| 6 | ROCKER ARM COVER | 10 | PUSH ROD | 62908-43220 | 62908-43220-Online |
| 6 | ROCKER ARM COVER | 11 | CAM GEAR COVER | 62901-43330 | 62901-43330-Online |
| 6 | ROCKER ARM COVER | 12 | GASKET | 62901-43240 | 62901-43240-Online |
| 6 | ROCKER ARM COVER | 13 | BOLT-SPW | 11022-04140 | 11022-04140-Online |
| 6 | ROCKER ARM COVER | 14 | SCREW | 62901-43310 | 62901-43310-Online |
| 6 | ROCKER ARM COVER | 15 | COLLAR | 15401-10028 | 15401-10028-Online |
| 6 | ROCKER ARM COVER | 16 | INTAKE VALVE | 62902-44111 | 62902-44111-Online |
| 6 | ROCKER ARM COVER | 17 | EXHAUST VALVE | 62902-44121 | 62902-44121-Online |
| 6 | ROCKER ARM COVER | 18 | RETAINER | 62908-44140 | 62908-44140-Online |
| 6 | ROCKER ARM COVER | 19 | PLATE | 62908-44310 | 62908-44310-Online |
| 6 | ROCKER ARM COVER | 2 | CAM GEAR | 62902-43310 | 62902-43310-Online |
| 6 | ROCKER ARM COVER | 20 | VALVE SPRING | 62901-44130 | 62901-44130-Online |
| 6 | ROCKER ARM COVER | 21 | ROCKER ARM ASSY | 62907-44010 | 62907-44010-Online |
| 6 | ROCKER ARM COVER | 22 | ROCKER ARM | 62901-44210 | 62901-44210-Online |
| 6 | ROCKER ARM COVER | 23 | ADJUST SCREW | 62907-44220 | 62907-44220-Online |
| 6 | ROCKER ARM COVER | 24 | NUT | 62901-44231 | 62901-44231-Online |
| 6 | ROCKER ARM COVER | 25 | ROLLER | 12492-50310 | 12492-50310-Online |
| 6 | ROCKER ARM COVER | 26 | ROCKER ARM COVER | 62901-44241 | 62901-44241-Online |
| 6 | ROCKER ARM COVER | 3 | WEIGHT | 62907-43120 | 62907-43120-Online |
| 6 | ROCKER ARM COVER | 4 | COIL SPRING | 17520-08900 | 17520-08900-Online |
| 6 | ROCKER ARM COVER | 5 | PLATE | 62905-43131 | 62905-43131-Online |
| 6 | ROCKER ARM COVER | 6 | SCREW,TAPPING | 01280-04062 | 01280-04062-Online |
| 6 | ROCKER ARM COVER | 7 | ROLLER | 12492-50290 | 12492-50290-Online |
| 6 | ROCKER ARM COVER | 8 | LIFTER | 62907-43210 | 62907-43210-Online |
| 6 | ROCKER ARM COVER | 9 | WASHER | 11620-10000 | 11620-10000-Online |
| 7 | M4-14 | 27 | GASKET | 62901-44250 | 62901-44250-Online |
| 7 | M4-14 | 28 | BOLT-SPW | 11022-04140 | 11022-04140-Online |
| 8 | WASHER | 1 | CLUTCH SET | 62901-51012 | 62901-51012-Online |
| 8 | WASHER | 1 | CLUTCH SHOE | 70140-51113 | 70140-51113-Online |
| 8 | WASHER | 2 | CLUTCH SHOE-A | 62901-51022 | 62901-51022-Online |
| 8 | WASHER | 2 | COIL SPRING | 62901-51310 | 62901-51310-Online |
| 8 | WASHER | 5 | BOLT | 20087-51210 | 20087-51210-Online |
| 8 | WASHER | 6 | SPRING PLATE | 20087-51231 | 20087-51231-Online |
| 8 | WASHER | 7 | WASHER | 22100-71430 | 22100-71430-Online |
| 9 | CMR5H | 10 | BOLT-SLPW | 11024-04265 | 11024-04265-Online |
| 9 | CMR5H | 2 | KEY | 02403-03100 | 02403-03100-Online |
| 9 | CMR5H | 3 | NUT | 20035-71220 | 20035-71220-Online |
| 9 | CMR5H | 4 | COIL ASSY | 62905-71310 | 62905-71310-Online |
| 9 | CMR5H | 5 | PLUG CAP | 62905-71250 | 62905-71250-Online |
| 9 | CMR5H | 6 | COIL SPRING | 62905-71320 | 62905-71320-Online |
| 9 | CMR5H | 7 | LEAD WIRE | 14350-02001 | 14350-02001-Online |
| 9 | CMR5H | 8 | GROMMET | 62901-71310 | 62901-71310-Online |
| 9 | CMR5H | 9 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 10 | LABEL TRADE | 1 | RECOIL STARTER ASSY | 62901-75012 | 62901-75012-Online |
| 10 | LABEL TRADE | 10 | ROPE | 32004-75140 | 32004-75140-Online |
| 10 | LABEL TRADE | 11 | KNOB | 32004-75150 | 32004-75150-Online |
| 10 | LABEL TRADE | 12 | STARTER PULLEY | 70064-75310 | 70064-75310-Online |
| 10 | LABEL TRADE | 13 | NUT | 01511-08051 | 01511-08051-Online |
| 10 | LABEL TRADE | 14 | BOLT SLPW | 11024-04160 | 11024-04160-Online |
| 10 | LABEL TRADE | 15 | LABEL TRADE | 19420-00070 | 19420-00070-Online |
| 10 | LABEL TRADE | 2 | STARTER CASE | 62901-75111 | 62901-75111-Online |
| 10 | LABEL TRADE | 3 | REEL | 62901-75120 | 62901-75120-Online |
| 10 | LABEL TRADE | 4 | RECOIL SPRING | 70064-75130 | 70064-75130-Online |
| 10 | LABEL TRADE | 6 | WAVE WASHER | 70064-75150 | 70064-75150-Online |
| 10 | LABEL TRADE | 7 | SCREW | 72933-75160 | 72933-75160-Online |
| 10 | LABEL TRADE | 8 | RETAINER | 72933-75170 | 72933-75170-Online |
| 10 | LABEL TRADE | 9 | WASHER | 72933-75180 | 72933-75180-Online |
| 11 | GASKET | 1 | CARBURETOR ASSY | 62908-81011 | 62908-81011-Online |
| 11 | GASKET | 10 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 11 | GASKET | 11 | SCREW | 20016-81140 | 20016-81140-Online |
| 11 | GASKET | 12 | O RING | 20016-81250 | 20016-81250-Online |
| 11 | GASKET | 13 | GASKRT | 60902-98030 | 60902-98030-Online |
| 11 | GASKET | 14 | VALVE SET | 60908-98360 | 60908-98360-Online |
| 11 | GASKET | 15 | GASKET | 62901-81211 | 62901-81211-Online |
| 11 | GASKET | 2 | VALVE | 62908-81311 | 62908-81311-Online |
| 11 | GASKET | 3 | SWIVEL | 72933-81450 | 72933-81450-Online |
| 11 | GASKET | 4 | WASHER | 20089-81185 | 20089-81185-Online |
| 11 | GASKET | 5 | E RING | 20036-81195 | 20036-81195-Online |
| 11 | GASKET | 6 | SCREW | 70064-81290 | 70064-81290-Online |
| 11 | GASKET | 7 | PUMP BODY ASSY | 37013-81350 | 37013-81350-Online |
| 11 | GASKET | 8 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 11 | GASKET | 9 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 12 | PREFILTER | 1 | CLEANER BODY ASSY | 62908-82010 | 62908-82010-Online |
| 12 | PREFILTER | 2 | FILTER | 62908-82120 | 62908-82120-Online |
| 12 | PREFILTER | 3 | CLEANER COVER ASSY | 62908-82030 | 62908-82030-Online |
| 12 | PREFILTER | 4 | CLEANER COVER | 62908-82130 | 62908-82130-Online |
| 12 | PREFILTER | 5 | KNOB | 62901-82330 | 62901-82330-Online |
| 12 | PREFILTER | 6 | SCREW,PM | 11203-05605 | 11203-05605-Online |
| 12 | PREFILTER | 7 | WASHER | 01613-05080 | 01613-05080-Online |
| 12 | PREFILTER | 8 | PREFILTER | 62908-82310 | 62908-82310-Online |
| 13 | BOLT SPW | 1 | GASKET | 20000-85221 | 20000-85221-Online |
| 13 | BOLT SPW | 1 | FUEL TANK ASSY | 68906-85310 | 68906-85310-Online |
| 13 | BOLT SPW | 1 | FUEL CAP | 70168-85210 | 70168-85210-Online |
| 13 | BOLT SPW | 10 | JOINT | 72933-85620 | 72933-85620-Online |
| 13 | BOLT SPW | 11 | PIPE | 68906-85320 | 68906-85320-Online |
| 13 | BOLT SPW | 12 | CLIP | 20020-85540 | 20020-85540-Online |
| 13 | BOLT SPW | 13 | CLIP | 37013-85310 | 37013-85310-Online |
| 13 | BOLT SPW | 14 | TANK CUSHION | 62901-85220 | 62901-85220-Online |
| 13 | BOLT SPW | 15 | TANK GUARD | 62902-85320 | 62902-85320-Online |
| 13 | BOLT SPW | 16 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 13 | BOLT SPW | 2 | FUEL TANK | 62901-85110 | 62901-85110-Online |
| 13 | BOLT SPW | 3 | FUEL CAP ASSY | 70168-85201 | 70168-85201-Online |
| 13 | BOLT SPW | 6 | PIPE | 62901-85310 | 62901-85310-Online |
| 13 | BOLT SPW | 7 | FUEL FILTER | 20016-85400 | 20016-85400-Online |
| 13 | BOLT SPW | 8 | GROMMET | 20112-85351 | 20112-85351-Online |
| 13 | BOLT SPW | 9 | VALVE | 22197-33960 | 22197-33960-Online |
| 14 | GEAR CASE UPPER | 1 | GEAR CASE COMP | 63840-61011 | 63840-61011-Online |
| 14 | GEAR CASE UPPER | 1 | SHAFT | 63840-61320 | 63840-61320-Online |
| 14 | GEAR CASE UPPER | 1 | MAIN SHAFT | 68120-61320 | 68120-61320-Online |
| 14 | GEAR CASE UPPER | 10 | CASE COVER | 68120-61120 | 68120-61120-Online |
| 14 | GEAR CASE UPPER | 11 | COVER | 63840-61340 | 63840-61340-Online |
| 14 | GEAR CASE UPPER | 12 | BEVEL GEAR | 63840-61350 | 63840-61350-Online |
| 14 | GEAR CASE UPPER | 13 | COLLAR | 15401-11010 | 15401-11010-Online |
| 14 | GEAR CASE UPPER | 14 | WASHER | 01613-06100 | 01613-06100-Online |
| 14 | GEAR CASE UPPER | 15 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 14 | GEAR CASE UPPER | 16 | NUT | 63840-61370 | 63840-61370-Online |
| 14 | GEAR CASE UPPER | 17 | PIN | 02421-16150 | 02421-16150-Online |
| 14 | GEAR CASE UPPER | 18 | CAM GEAR | 68120-61130 | 68120-61130-Online |
| 14 | GEAR CASE UPPER | 19 | COLLAR | 15401-10025 | 15401-10025-Online |
| 14 | GEAR CASE UPPER | 2 | GEAR CASE | 63840-61111 | 63840-61111-Online |
| 14 | GEAR CASE UPPER | 20 | ROD | 68120-61170 | 68120-61170-Online |
| 14 | GEAR CASE UPPER | 21 | PLATE | 68120-61331 | 68120-61331-Online |
| 14 | GEAR CASE UPPER | 22 | PACKING | 68120-61340 | 68120-61340-Online |
| 14 | GEAR CASE UPPER | 23 | GASKET | 68120-61351 | 68120-61351-Online |
| 14 | GEAR CASE UPPER | 24 | GREASE NIPPLE | 20870-61640 | 20870-61640-Online |
| 14 | GEAR CASE UPPER | 25 | BOLT | 01020-04100 | 01020-04100-Online |
| 14 | GEAR CASE UPPER | 26 | GEAR CASE UPPER | 63840-63310 | 63840-63310-Online |
| 14 | GEAR CASE UPPER | 5 | PINION SHAFT | 63840-61330 | 63840-61330-Online |
| 14 | GEAR CASE UPPER | 6 | BEARING | 02000-06001 | 02000-06001-Online |
| 14 | GEAR CASE UPPER | 7 | BEARING | 02002-06001 | 02002-06001-Online |
| 14 | GEAR CASE UPPER | 8 | SNAP RING | 02430-12100 | 02430-12100-Online |
| 14 | GEAR CASE UPPER | 9 | SNAP RING | 02432-28120 | 02432-28120-Online |
| 15 | SCREW TRUSS | 27 | BEVEL PINION | 63840-63320 | 63840-63320-Online |
| 15 | SCREW TRUSS | 28 | BEARING | 02000-00609 | 02000-00609-Online |
| 15 | SCREW TRUSS | 29 | BEARING | 02002-00609 | 02002-00609-Online |
| 15 | SCREW TRUSS | 30 | SNAP RING | 22420-13350 | 22420-13350-Online |
| 15 | SCREW TRUSS | 31 | SNAP RING | 02432-24120 | 02432-24120-Online |
| 15 | SCREW TRUSS | 32 | O RING | 02304-03150 | 02304-03150-Online |
| 15 | SCREW TRUSS | 33 | SHIM | 22000-13420 | 22000-13420-Online |
| 15 | SCREW TRUSS | 34 | BOLT SW | 11023-05250 | 11023-05250-Online |
| 15 | SCREW TRUSS | 35 | BOLT | 01020-05120 | 01020-05120-Online |
| 15 | SCREW TRUSS | 36 | HOLDER | 68120-62331 | 68120-62331-Online |
| 15 | SCREW TRUSS | 37 | FLANGE NUT | 11526-05212 | 11526-05212-Online |
| 15 | SCREW TRUSS | 38 | LOCK NUT | 22011-97840 | 22011-97840-Online |
| 15 | SCREW TRUSS | 39 | ADJUST PLATE | 63840-66310 | 63840-66310-Online |
| 15 | SCREW TRUSS | 40 | BOLT | 01020-05120 | 01020-05120-Online |
| 15 | SCREW TRUSS | 41 | LOCK LEVER | 63840-66320 | 63840-66320-Online |
| 15 | SCREW TRUSS | 42 | SAFTY LEVER | 63840-66330 | 63840-66330-Online |
| 15 | SCREW TRUSS | 43 | PIN RATCHET | 22106-71441 | 22106-71441-Online |
| 15 | SCREW TRUSS | 44 | COIL SPRING | 17520-18601 | 17520-18601-Online |
| 15 | SCREW TRUSS | 45 | HANDLE | 63840-66350 | 63840-66350-Online |
| 15 | SCREW TRUSS | 46 | SCREW TRUSS | 01215-06208 | 01215-06208-Online |
| 16 | BLADE COVER | 1 | CUTTER ASSY | 38121-62010 | 38121-62010-Online |
| 16 | BLADE COVER | 2 | GUIDE BAR | 18501-50000 | 18501-50000-Online |
| 16 | BLADE COVER | 3 | BLADE | 18500-50102 | 18500-50102-Online |
| 16 | BLADE COVER | 4 | BOLT | 20870-62110 | 20870-62110-Online |
| 16 | BLADE COVER | 5 | WASHER | 20870-62131 | 20870-62131-Online |
| 16 | BLADE COVER | 6 | LOCK NUT | 22011-97840 | 22011-97840-Online |
| 16 | BLADE COVER | 7 | BLADE COVER | 19601-01506 | 19601-01506-Online |
| 17 | LABEL CAUTION | 1 | OUTER PIPE COMP | 63845-64310 | 63845-64310-Online |
| 17 | LABEL CAUTION | 11 | COLLAR | 33008-62321 | 33008-62321-Online |
| 17 | LABEL CAUTION | 12 | SCREW PM | 11203-04160 | 11203-04160-Online |
| 17 | LABEL CAUTION | 13 | NUT | 01500-04031 | 01500-04031-Online |
| 17 | LABEL CAUTION | 14 | MAIN SHAFT | 22070-12410 | 22070-12410-Online |
| 17 | LABEL CAUTION | 15 | GRIP | 63901-62142 | 63901-62142-Online |
| 17 | LABEL CAUTION | 16 | LABEL TRADE | 19420-00084 | 19420-00084-Online |
| 17 | LABEL CAUTION | 17 | LABEL CAUTION | 19402-00314 | 19402-00314-Online |
| 17 | LABEL CAUTION | 2 | OUTER PIPE SUB ASSY | 72432-12100 | 72432-12100-Online |
| 17 | LABEL CAUTION | 4 | GRIP | 63840-64331 | 63840-64331-Online |
| 17 | LABEL CAUTION | 5 | PROTECTOR | 63840-64340 | 63840-64340-Online |
| 17 | LABEL CAUTION | 6 | SCREW PM SLPW | 11207-05300 | 11207-05300-Online |
| 17 | LABEL CAUTION | 7 | NUT | 01500-05041 | 01500-05041-Online |
| 17 | LABEL CAUTION | 8 | HANGER ASSY | 33008-62340 | 33008-62340-Online |
| 17 | LABEL CAUTION | 9 | HANGER | 33008-62151 | 33008-62151-Online |
| 18 | TUBE | 1 | THROTTLE LEVER ASSY | 63904-62020 | 63904-62020-Online |
| 18 | TUBE | 10 | SCREW TAPPING | 63880-65360 | 63880-65360-Online |
| 18 | TUBE | 11 | SCREW PM SPW | 11206-05201 | 11206-05201-Online |
| 18 | TUBE | 12 | NUT | 01501-05030 | 01501-05030-Online |
| 18 | TUBE | 13 | PLUG | 63880-65411 | 63880-65411-Online |
| 18 | TUBE | 14 | BUTTON | 70871-65170 | 70871-65170-Online |
| 18 | TUBE | 15 | COIL SPRING | 70871-65180 | 70871-65180-Online |
| 18 | TUBE | 16 | THROTTLE CABLE | 63901-62173 | 63901-62173-Online |
| 18 | TUBE | 17 | TUBE | 63901-62440 | 63901-62440-Online |
| 18 | TUBE | 2 | BODY RIGHT | 72549-62320 | 72549-62320-Online |
| 18 | TUBE | 3 | BODY LEFT | 63002-62330 | 63002-62330-Online |
| 18 | TUBE | 4 | LEVER | 63002-62340 | 63002-62340-Online |
| 18 | TUBE | 5 | LOCK LEVER | 63901-62352 | 63901-62352-Online |
| 18 | TUBE | 6 | HOLDER | 63002-62350 | 63002-62350-Online |
| 18 | TUBE | 7 | COIL SPRING | 63880-65350 | 63880-65350-Online |
| 18 | TUBE | 8 | COIL SPRING | 63901-62370 | 63901-62370-Online |
| 18 | TUBE | 9 | SWITCH | 63901-62380 | 63901-62380-Online |
| 19 | HOOK | 1 | STRAP ASSY | 22421-17202 | 22421-17202-Online |
| 19 | HOOK | 3 | PROTECTOR | 22007-17220 | 22007-17220-Online |

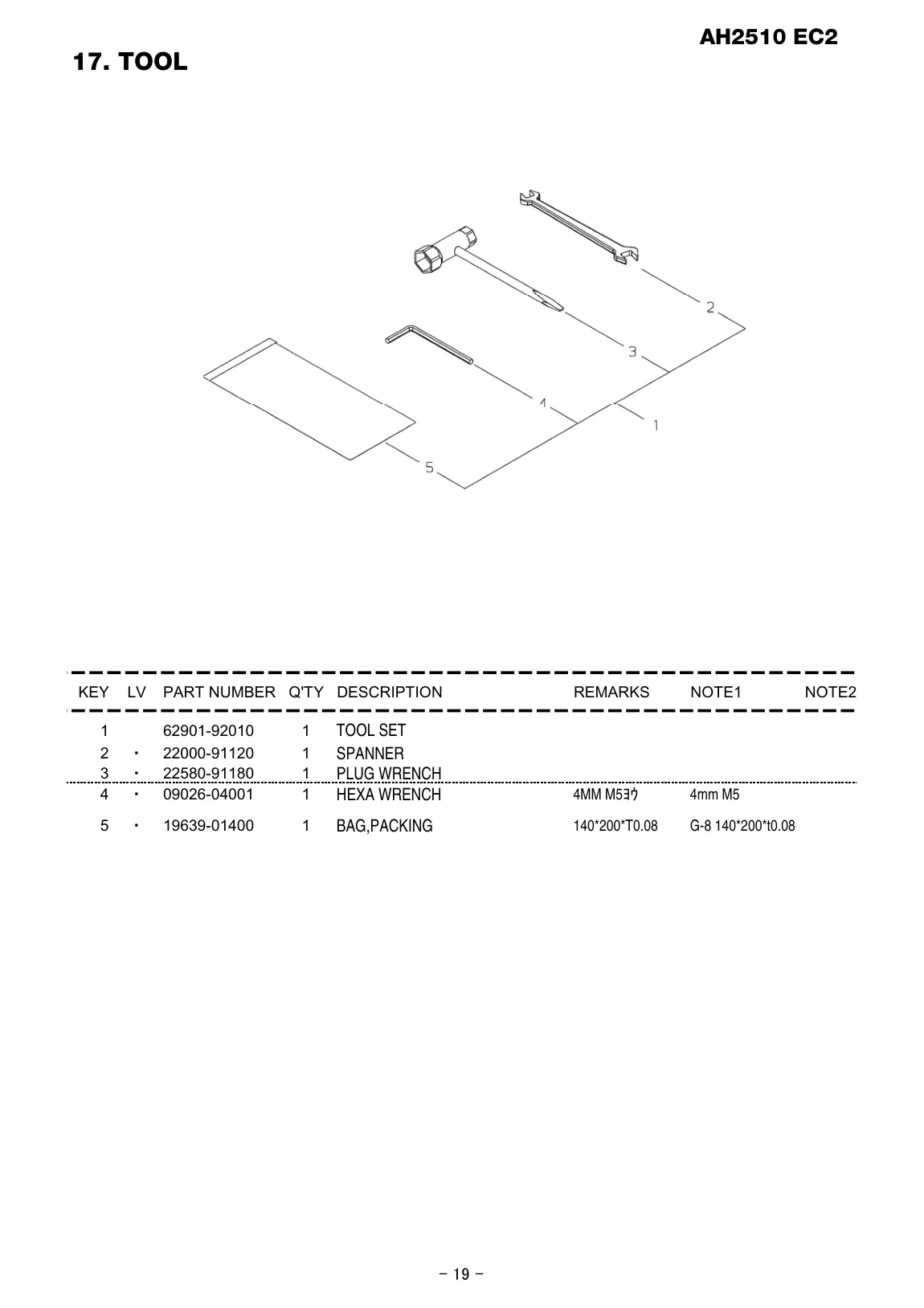

| 20 | 140*200*T0.08 | 1 | TOOL SET | 62901-92010 | 62901-92010-Online |
| 20 | 140*200*T0.08 | 2 | SPANNER | 22000-91120 | 22000-91120-Online |
| 20 | 140*200*T0.08 | 3 | PLUG WRENCH | 22580-91180 | 22580-91180-Online |
| 20 | 140*200*T0.08 | 4 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 20 | 140*200*T0.08 | 5 | BAG,PACKING | 19639-01400 | 19639-01400-Online |
| 21 | SHORT BLOCK | 1 | SHORT BLOCK | 60908-98380 | 60908-98380-Online |
Source file: 20130718-920_AH2510_EC2_AH2510_EC2_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
