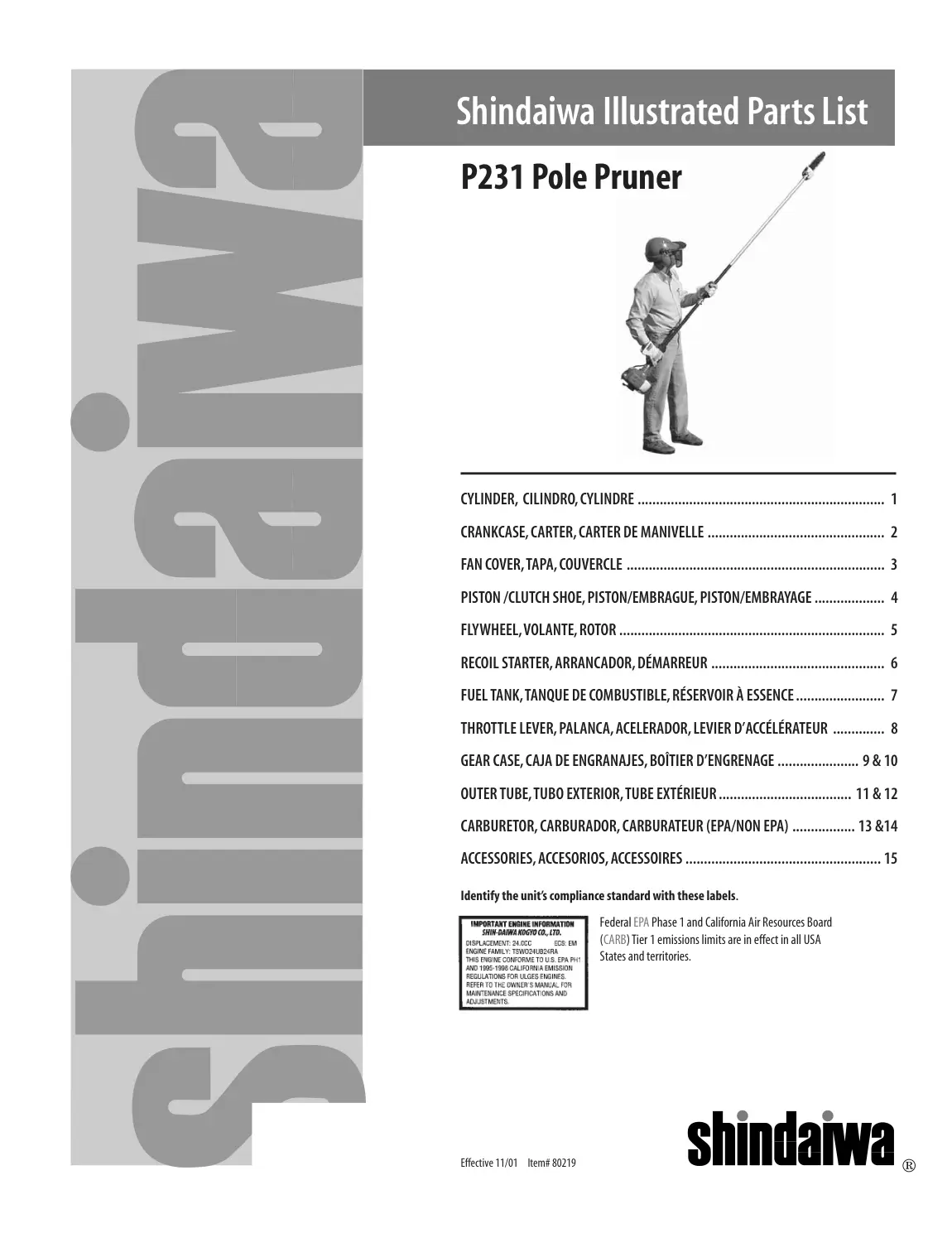

Illustrated Parts List
Shindaiwa P231 Pole Pruner IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: P231
Type: Pole Pruner
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

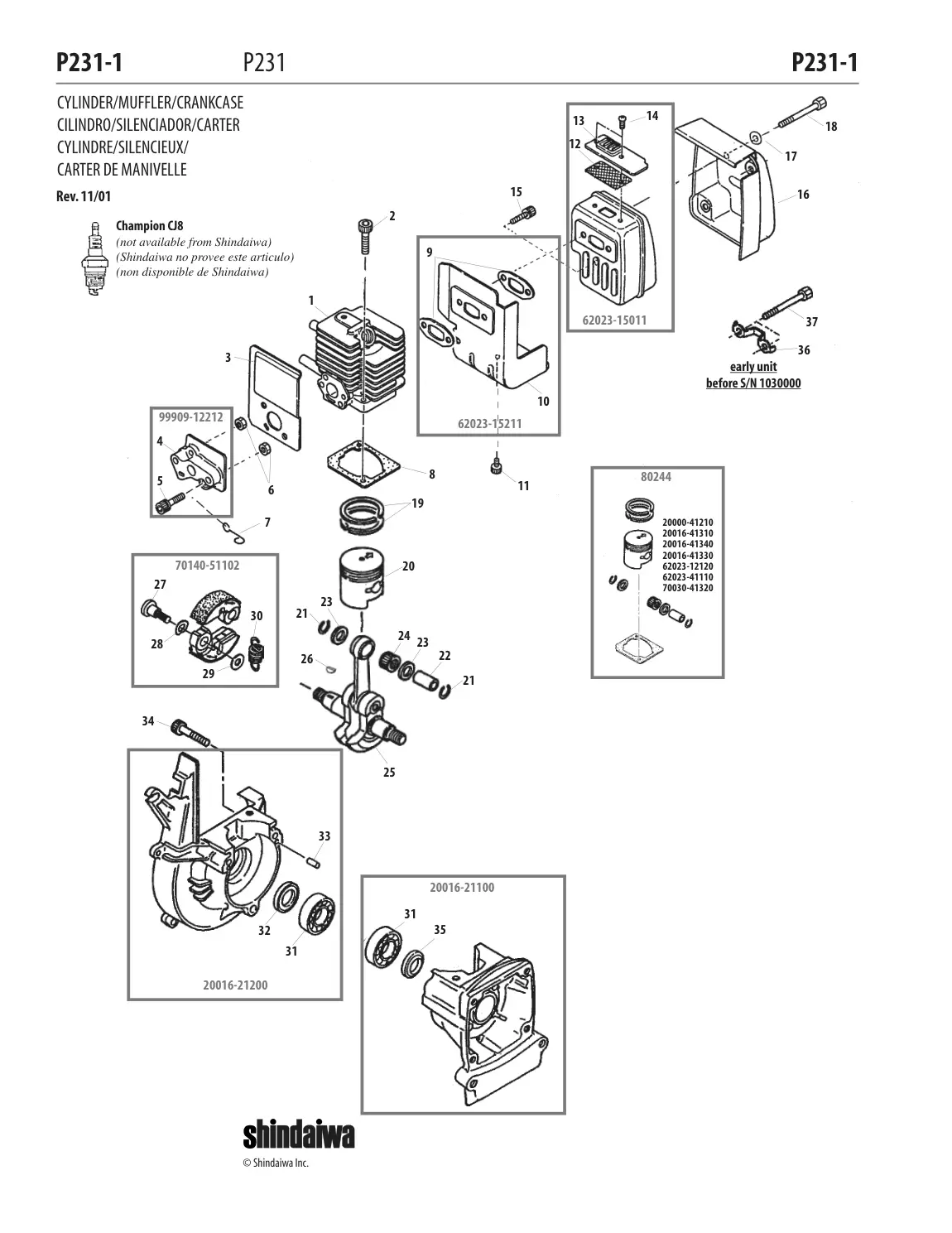

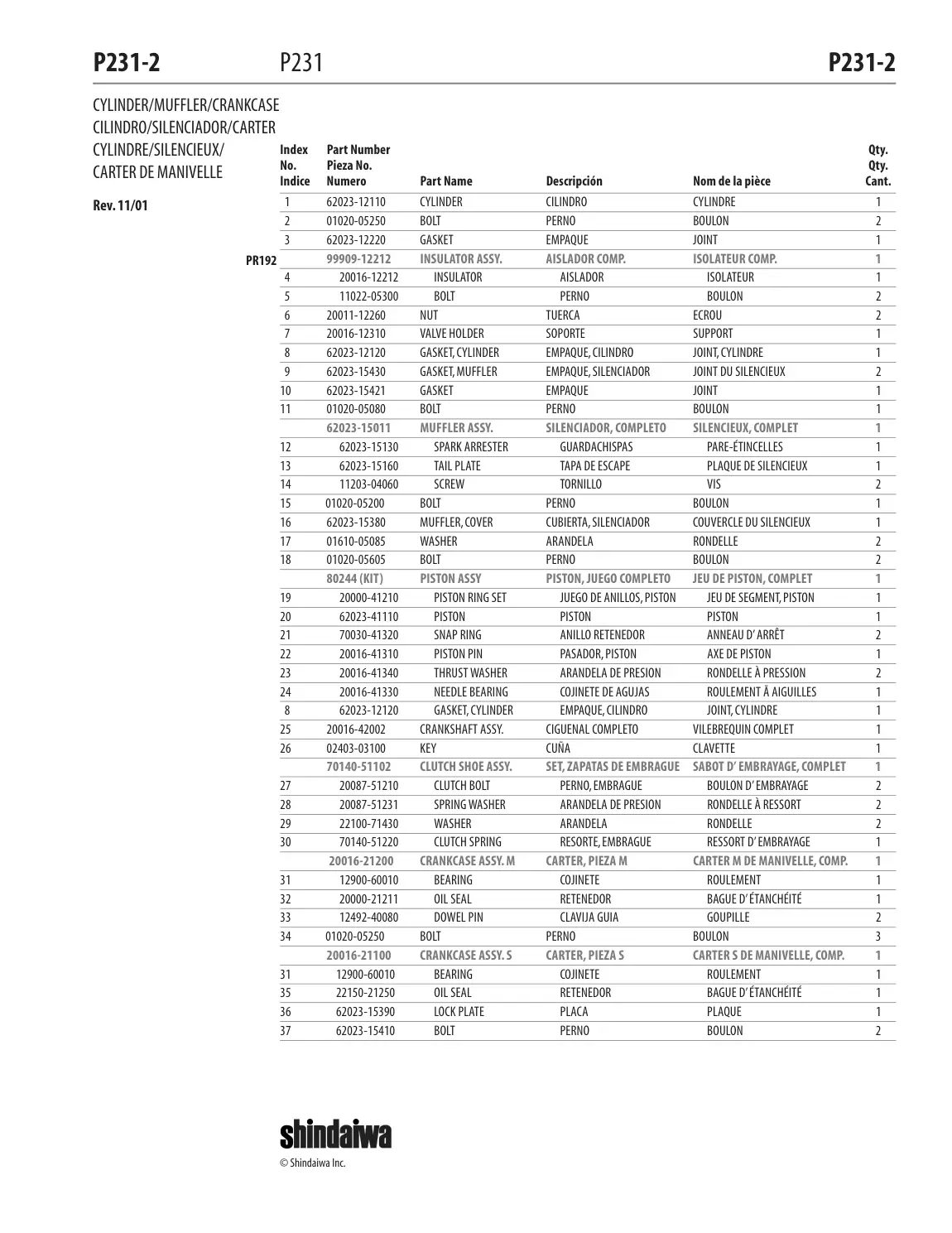

| 2 | CYLINDER/MUFFLER/CRANKCASE | 7 | early unit | 62023-15211 | 62023-15211-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | CRANKCASE ASSY. M | 20016-21200 | 20016-21200-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | CYLINDER | 62023-12110 | 62023-12110-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | MUFFLER ASSY. | 62023-15011 | 62023-15011-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | CLUTCH SHOE ASSY. | 70140-51102 | 70140-51102-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | INSULATOR ASSY. | 99909-12212 | 99909-12212-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 10 | GASKET | 62023-15421 | 62023-15421-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 11 | BOLT | 01020-05080 | 01020-05080-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 12 | SPARK ARRESTER | 62023-15130 | 62023-15130-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 13 | TAIL PLATE | 62023-15160 | 62023-15160-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 14 | SCREW | 11203-04060 | 11203-04060-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 15 | BOLT | 01020-05200 | 01020-05200-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 16 | MUFFLER, COVER | 62023-15380 | 62023-15380-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 17 | WASHER | 01610-05085 | 01610-05085-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 18 | BOLT | 01020-05605 | 01020-05605-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 19 | PISTON RING SET | 20000-41210 | 20000-41210-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 2 | BOLT | 01020-05250 | 01020-05250-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 2 | (KIT) | 80244 | 80244-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 20 | PISTON | 62023-41110 | 62023-41110-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 21 | SNAP RING | 70030-41320 | 70030-41320-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 22 | PISTON PIN | 20016-41310 | 20016-41310-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 23 | THRUST WASHER | 20016-41340 | 20016-41340-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 24 | NEEDLE BEARING | 20016-41330 | 20016-41330-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 25 | CRANKSHAFT ASSY. | 20016-42002 | 20016-42002-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 26 | KEY | 02403-03100 | 02403-03100-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 27 | CLUTCH BOLT | 20087-51210 | 20087-51210-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 28 | SPRING WASHER | 20087-51231 | 20087-51231-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 29 | WASHER | 22100-71430 | 22100-71430-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 3 | CRANKCASE ASSY. S | 20016-21100 | 20016-21100-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 3 | GASKET | 62023-12220 | 62023-12220-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 30 | CLUTCH SPRING | 70140-51220 | 70140-51220-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 31 | BEARING | 12900-60010 | 12900-60010-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 32 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 33 | DOWEL PIN | 12492-40080 | 12492-40080-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 34 | BOLT | 01020-05250 | 01020-05250-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 35 | OIL SEAL | 22150-21250 | 22150-21250-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 36 | LOCK PLATE | 62023-15390 | 62023-15390-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 37 | BOLT | 62023-15410 | 62023-15410-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 4 | INSULATOR | 20016-12212 | 20016-12212-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 5 | BOLT | 11022-05300 | 11022-05300-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 6 | NUT | 20011-12260 | 20011-12260-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 7 | VALVE HOLDER | 20016-12310 | 20016-12310-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 8 | GASKET, CYLINDER | 62023-12120 | 62023-12120-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 9 | GASKET, MUFFLER | 62023-15430 | 62023-15430-Online |

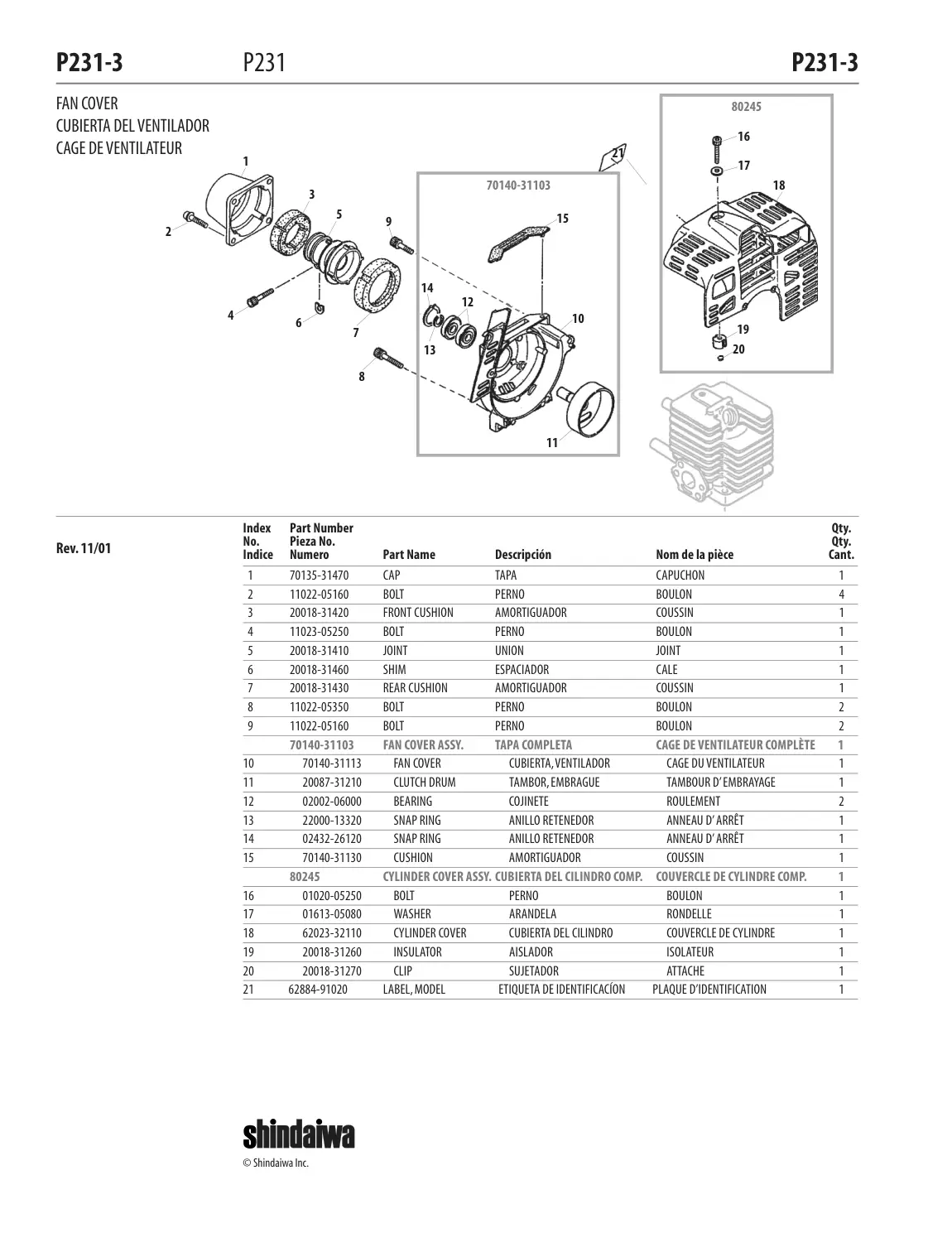

| 4 | CUBIERTA DEL VENTILADOR | 1 | CAP | 70135-31470 | 70135-31470-Online |
| 4 | CUBIERTA DEL VENTILADOR | 1 | CYLINDER COVER ASSY. CUBIERTA DEL CILINDRO COMP. | 80245 | 80245-Online |
| 4 | CUBIERTA DEL VENTILADOR | 10 | FAN COVER | 70140-31113 | 70140-31113-Online |
| 4 | CUBIERTA DEL VENTILADOR | 11 | CLUTCH DRUM | 20087-31210 | 20087-31210-Online |
| 4 | CUBIERTA DEL VENTILADOR | 12 | BEARING | 02002-06000 | 02002-06000-Online |
| 4 | CUBIERTA DEL VENTILADOR | 13 | SNAP RING | 22000-13320 | 22000-13320-Online |
| 4 | CUBIERTA DEL VENTILADOR | 14 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 4 | CUBIERTA DEL VENTILADOR | 15 | CUSHION | 70140-31130 | 70140-31130-Online |
| 4 | CUBIERTA DEL VENTILADOR | 16 | BOLT | 01020-05250 | 01020-05250-Online |
| 4 | CUBIERTA DEL VENTILADOR | 17 | WASHER | 01613-05080 | 01613-05080-Online |
| 4 | CUBIERTA DEL VENTILADOR | 18 | CYLINDER COVER | 62023-32110 | 62023-32110-Online |
| 4 | CUBIERTA DEL VENTILADOR | 19 | INSULATOR | 20018-31260 | 20018-31260-Online |
| 4 | CUBIERTA DEL VENTILADOR | 2 | BOLT | 11022-05160 | 11022-05160-Online |
| 4 | CUBIERTA DEL VENTILADOR | 2 | FAN COVER ASSY. | 70140-31103 | 70140-31103-Online |
| 4 | CUBIERTA DEL VENTILADOR | 20 | CLIP | 20018-31270 | 20018-31270-Online |
| 4 | CUBIERTA DEL VENTILADOR | 21 | LABEL, MODEL | 62884-91020 | 62884-91020-Online |
| 4 | CUBIERTA DEL VENTILADOR | 3 | FRONT CUSHION | 20018-31420 | 20018-31420-Online |
| 4 | CUBIERTA DEL VENTILADOR | 4 | BOLT | 11023-05250 | 11023-05250-Online |
| 4 | CUBIERTA DEL VENTILADOR | 5 | JOINT | 20018-31410 | 20018-31410-Online |
| 4 | CUBIERTA DEL VENTILADOR | 6 | SHIM | 20018-31460 | 20018-31460-Online |
| 4 | CUBIERTA DEL VENTILADOR | 7 | REAR CUSHION | 20018-31430 | 20018-31430-Online |
| 4 | CUBIERTA DEL VENTILADOR | 8 | BOLT | 11022-05350 | 11022-05350-Online |
| 4 | CUBIERTA DEL VENTILADOR | 9 | BOLT | 11022-05160 | 11022-05160-Online |

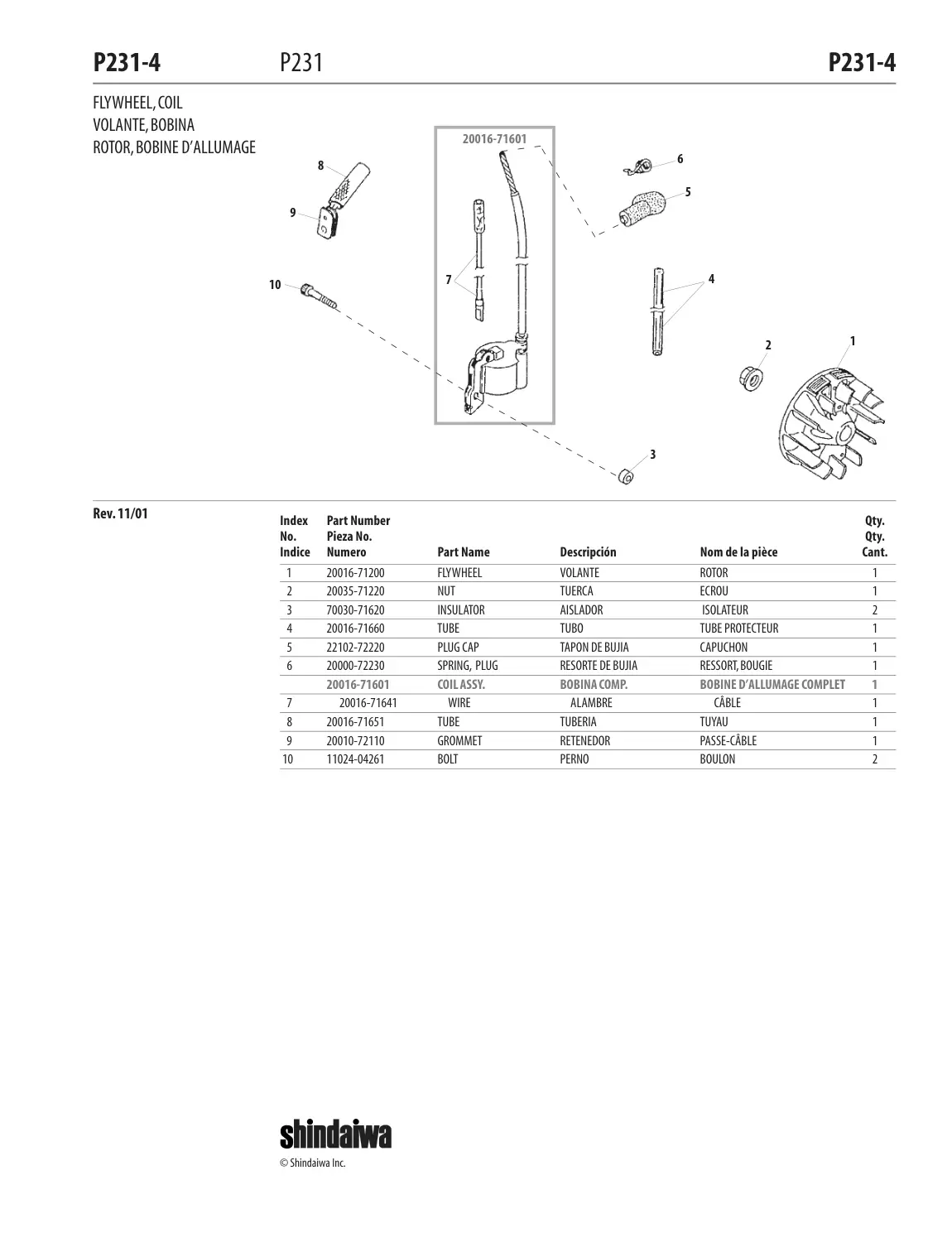

| 5 | PERNO | 1 | FLYWHEEL | 20016-71200 | 20016-71200-Online |
| 5 | PERNO | 1 | COIL ASSY. | 20016-71601 | 20016-71601-Online |
| 5 | PERNO | 10 | BOLT | 11024-04261 | 11024-04261-Online |
| 5 | PERNO | 2 | NUT | 20035-71220 | 20035-71220-Online |
| 5 | PERNO | 3 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 5 | PERNO | 4 | TUBE | 20016-71660 | 20016-71660-Online |
| 5 | PERNO | 5 | PLUG CAP | 22102-72220 | 22102-72220-Online |
| 5 | PERNO | 6 | SPRING, PLUG | 20000-72230 | 20000-72230-Online |
| 5 | PERNO | 7 | WIRE | 20016-71641 | 20016-71641-Online |
| 5 | PERNO | 8 | TUBE | 20016-71651 | 20016-71651-Online |
| 5 | PERNO | 9 | GROMMET | 20010-72110 | 20010-72110-Online |

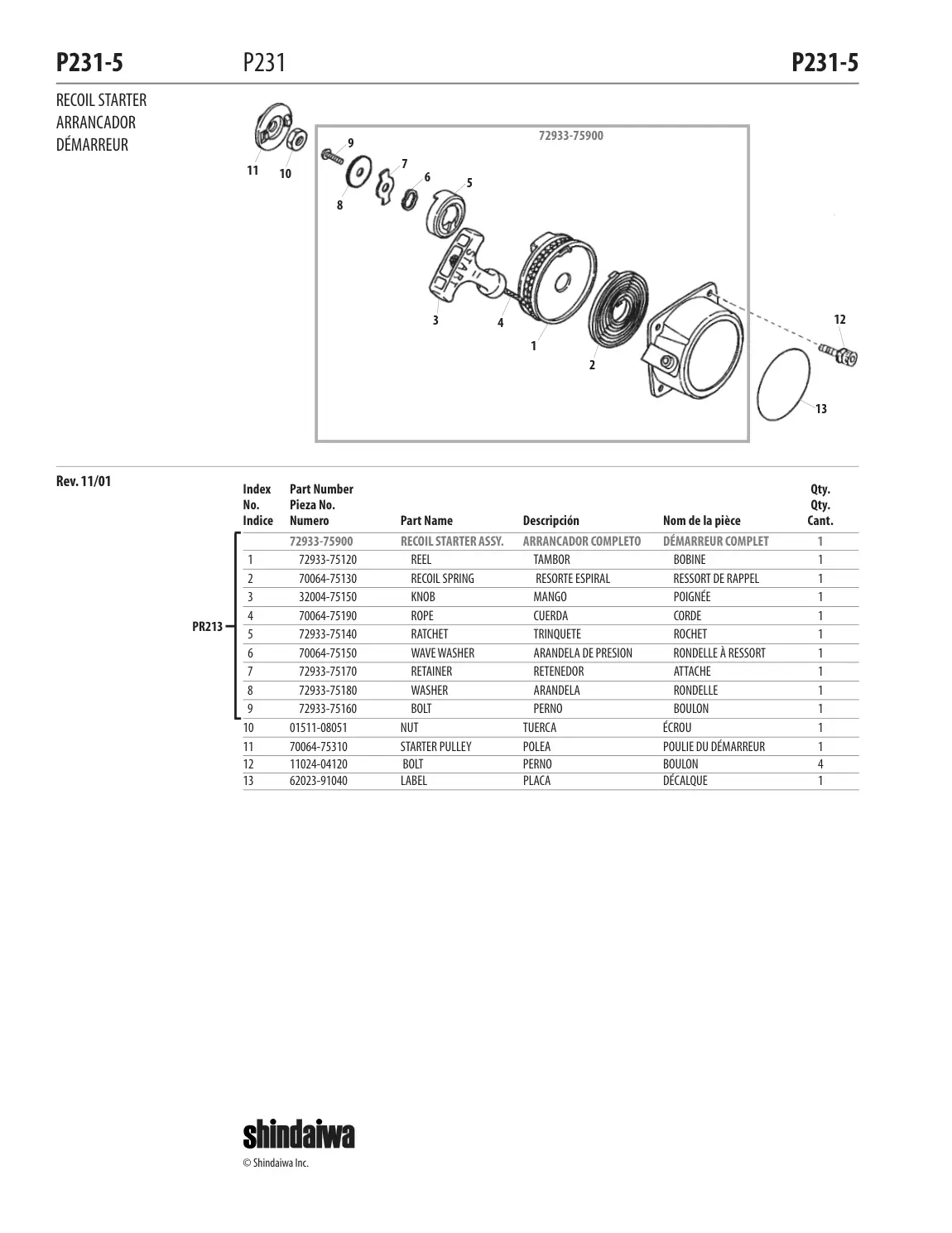

| 6 | PLACA | RECOIL STARTER | 72933-75900 | 72933-75900-Online | |
| 6 | PLACA | RECOIL STARTER ASSY. | 72933-75900 | 72933-75900-Online | |
| 6 | PLACA | 1 | REEL | 72933-75120 | 72933-75120-Online |
| 6 | PLACA | 10 | NUT | 01511-08051 | 01511-08051-Online |
| 6 | PLACA | 11 | STARTER PULLEY | 70064-75310 | 70064-75310-Online |
| 6 | PLACA | 12 | BOLT | 11024-04120 | 11024-04120-Online |
| 6 | PLACA | 13 | LABEL | 62023-91040 | 62023-91040-Online |
| 6 | PLACA | 2 | RECOIL SPRING | 70064-75130 | 70064-75130-Online |
| 6 | PLACA | 3 | KNOB | 32004-75150 | 32004-75150-Online |
| 6 | PLACA | 4 | ROPE | 70064-75190 | 70064-75190-Online |
| 6 | PLACA | 5 | RATCHET | 72933-75140 | 72933-75140-Online |
| 6 | PLACA | 6 | WAVE WASHER | 70064-75150 | 70064-75150-Online |
| 6 | PLACA | 7 | RETAINER | 72933-75170 | 72933-75170-Online |
| 6 | PLACA | 8 | WASHER | 72933-75180 | 72933-75180-Online |
| 6 | PLACA | 9 | BOLT | 72933-75160 | 72933-75160-Online |

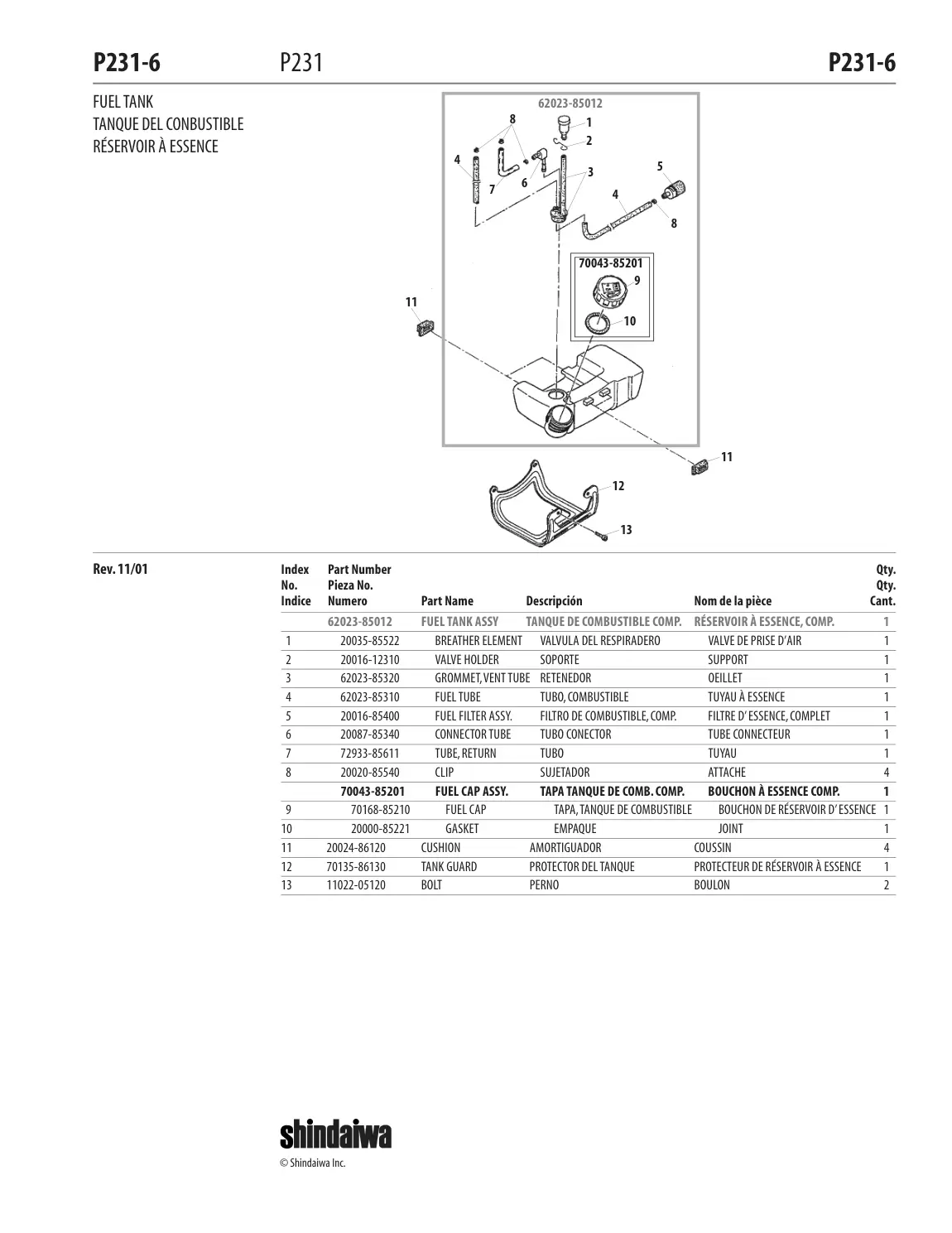

| 7 | PERNO | FUEL TANK ASSY | 62023-85012 | 62023-85012-Online | |
| 7 | PERNO | 1 | BREATHER ELEMENT | 20035-85522 | 20035-85522-Online |
| 7 | PERNO | 10 | GASKET | 20000-85221 | 20000-85221-Online |
| 7 | PERNO | 11 | CUSHION | 20024-86120 | 20024-86120-Online |
| 7 | PERNO | 12 | TANK GUARD | 70135-86130 | 70135-86130-Online |
| 7 | PERNO | 13 | BOLT | 11022-05120 | 11022-05120-Online |
| 7 | PERNO | 2 | VALVE HOLDER | 20016-12310 | 20016-12310-Online |
| 7 | PERNO | 3 | GROMMET, VENT TUBE RETENEDOR | 62023-85320 | 62023-85320-Online |
| 7 | PERNO | 4 | FUEL TUBE | 62023-85310 | 62023-85310-Online |
| 7 | PERNO | 4 | FUEL CAP ASSY. | 70043-85201 | 70043-85201-Online |
| 7 | PERNO | 5 | FUEL FILTER ASSY. | 20016-85400 | 20016-85400-Online |
| 7 | PERNO | 6 | CONNECTOR TUBE | 20087-85340 | 20087-85340-Online |
| 7 | PERNO | 7 | TUBE, RETURN | 72933-85611 | 72933-85611-Online |
| 7 | PERNO | 8 | CLIP | 20020-85540 | 20020-85540-Online |
| 7 | PERNO | 9 | FUEL CAP | 70168-85210 | 70168-85210-Online |

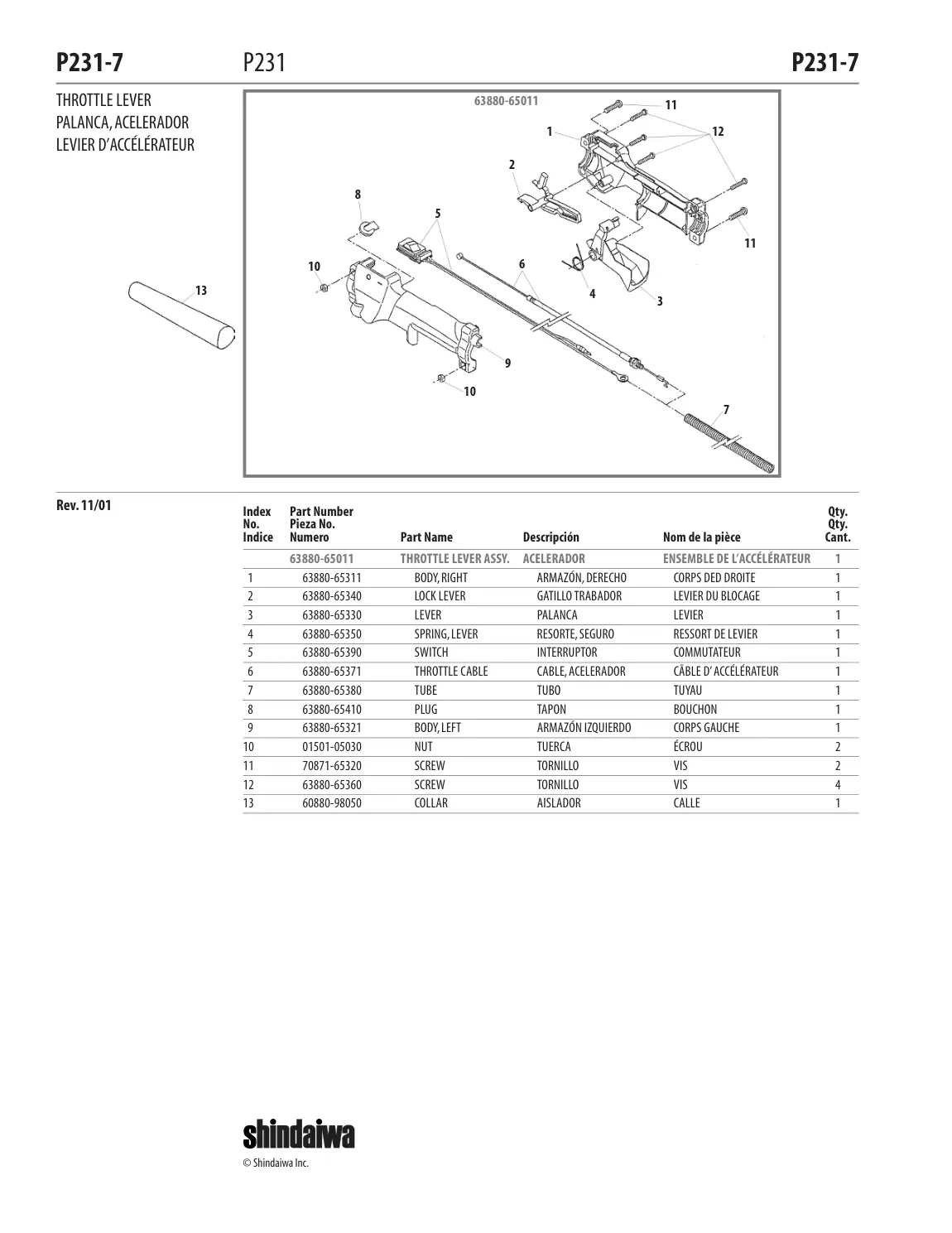

| 8 | CALLE | THROTTLE LEVER ASSY. | 63880-65011 | 63880-65011-Online | |
| 8 | CALLE | 1 | BODY, RIGHT | 63880-65311 | 63880-65311-Online |
| 8 | CALLE | 10 | NUT | 01501-05030 | 01501-05030-Online |
| 8 | CALLE | 11 | SCREW | 70871-65320 | 70871-65320-Online |
| 8 | CALLE | 12 | SCREW | 63880-65360 | 63880-65360-Online |
| 8 | CALLE | 13 | COLLAR | 60880-98050 | 60880-98050-Online |
| 8 | CALLE | 2 | LOCK LEVER | 63880-65340 | 63880-65340-Online |
| 8 | CALLE | 3 | LEVER | 63880-65330 | 63880-65330-Online |
| 8 | CALLE | 4 | SPRING, LEVER | 63880-65350 | 63880-65350-Online |
| 8 | CALLE | 5 | SWITCH | 63880-65390 | 63880-65390-Online |
| 8 | CALLE | 6 | THROTTLE CABLE | 63880-65371 | 63880-65371-Online |
| 8 | CALLE | 7 | TUBE | 63880-65380 | 63880-65380-Online |
| 8 | CALLE | 8 | PLUG | 63880-65410 | 63880-65410-Online |
| 8 | CALLE | 9 | BODY, LEFT | 63880-65321 | 63880-65321-Online |

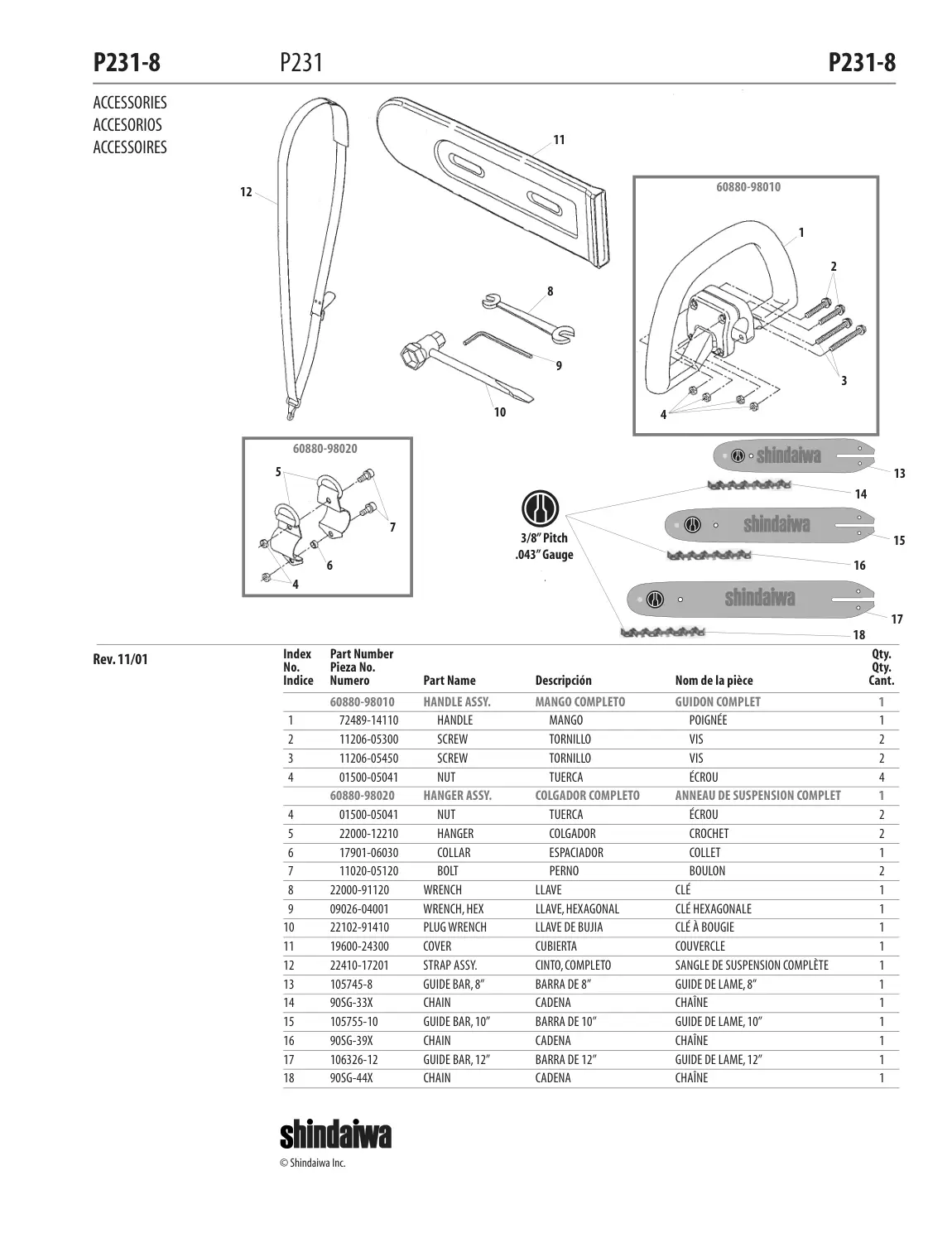

| 9 | ACCESSORIES | HANDLE ASSY. | 60880-98010 | 60880-98010-Online | |
| 9 | ACCESSORIES | 1 | HANDLE | 72489-14110 | 72489-14110-Online |
| 9 | ACCESSORIES | 10 | PLUG WRENCH | 22102-91410 | 22102-91410-Online |
| 9 | ACCESSORIES | 11 | COVER | 19600-24300 | 19600-24300-Online |
| 9 | ACCESSORIES | 12 | STRAP ASSY. | 22410-17201 | 22410-17201-Online |
| 9 | ACCESSORIES | 13 | GUIDE BAR, 8” | 105745 | 105745-Online |
| 9 | ACCESSORIES | 15 | GUIDE BAR, 10” | 105755-10 | 105755-10-Online |
| 9 | ACCESSORIES | 17 | GUIDE BAR, 12” | 106326-12 | 106326-12-Online |
| 9 | ACCESSORIES | 2 | SCREW | 11206-05300 | 11206-05300-Online |
| 9 | ACCESSORIES | 3 | SCREW | 11206-05450 | 11206-05450-Online |
| 9 | ACCESSORIES | 4 | NUT | 01500-05041 | 01500-05041-Online |
| 9 | ACCESSORIES | 4 | HANGER ASSY. | 60880-98020 | 60880-98020-Online |
| 9 | ACCESSORIES | 5 | HANGER | 22000-12210 | 22000-12210-Online |
| 9 | ACCESSORIES | 6 | COLLAR | 17901-06030 | 17901-06030-Online |
| 9 | ACCESSORIES | 7 | BOLT | 11020-05120 | 11020-05120-Online |
| 9 | ACCESSORIES | 8 | WRENCH | 22000-91120 | 22000-91120-Online |
| 9 | ACCESSORIES | 9 | WRENCH, HEX | 09026-04001 | 09026-04001-Online |

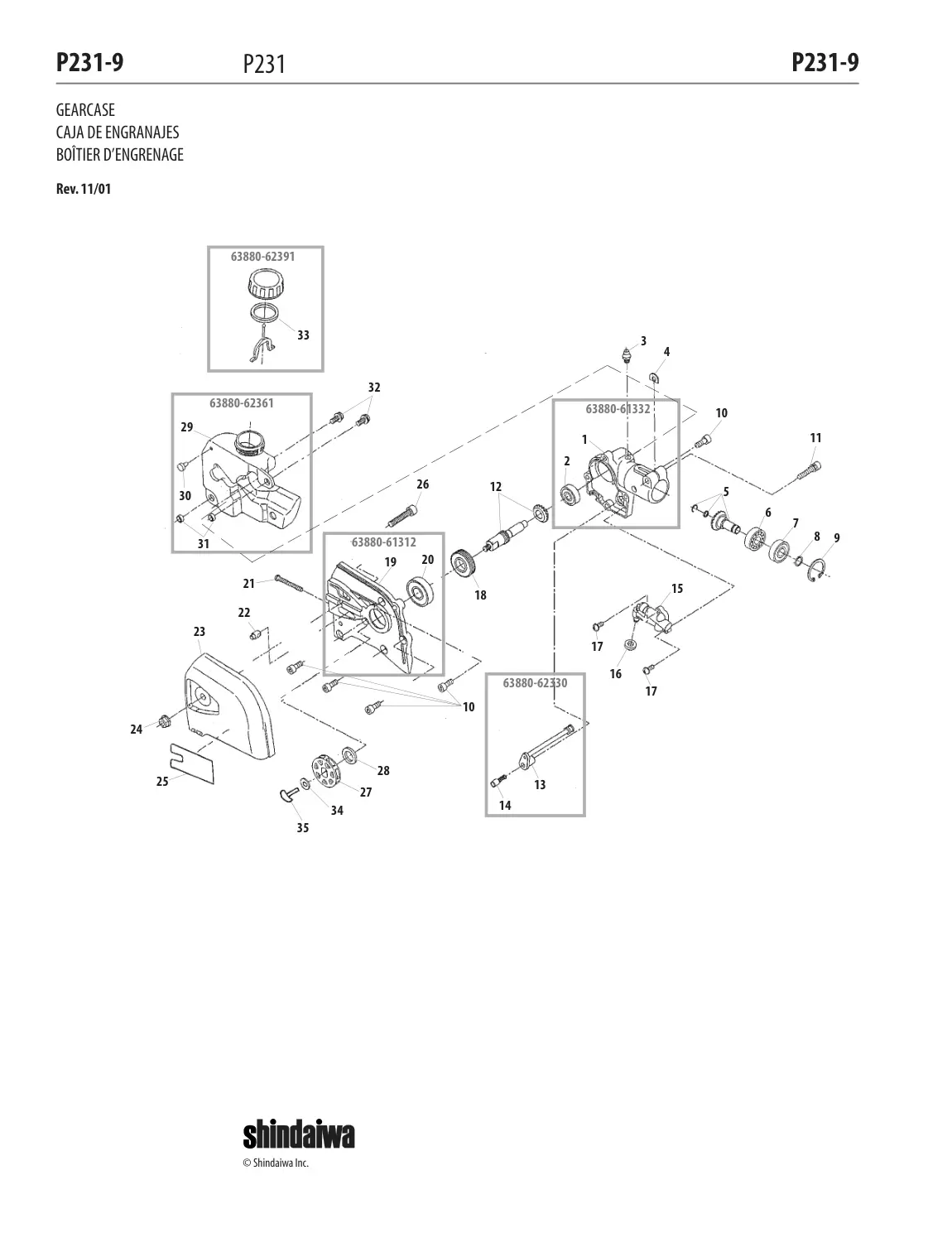

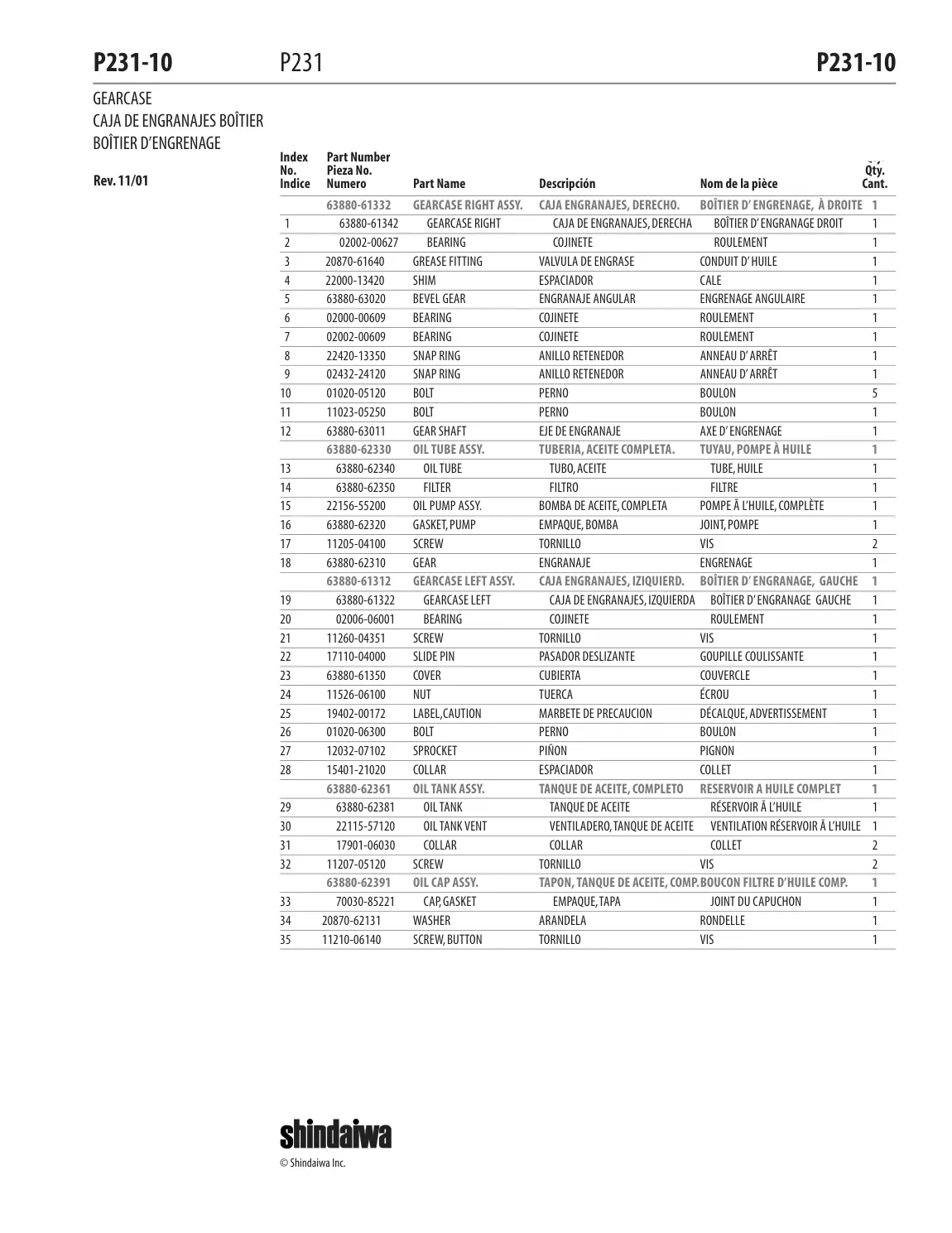

| 11 | GEARCASE | GEARCASE RIGHT ASSY. | 63880-61332 | 63880-61332-Online | |
| 11 | GEARCASE | 1 | GEARCASE LEFT ASSY. | 63880-61312 | 63880-61312-Online |
| 11 | GEARCASE | 1 | GEARCASE RIGHT | 63880-61342 | 63880-61342-Online |
| 11 | GEARCASE | 1 | OIL TUBE ASSY. | 63880-62330 | 63880-62330-Online |
| 11 | GEARCASE | 1 | OIL TANK ASSY. | 63880-62361 | 63880-62361-Online |
| 11 | GEARCASE | 10 | BOLT | 01020-05120 | 01020-05120-Online |
| 11 | GEARCASE | 11 | BOLT | 11023-05250 | 11023-05250-Online |
| 11 | GEARCASE | 12 | GEAR SHAFT | 63880-63011 | 63880-63011-Online |
| 11 | GEARCASE | 13 | OIL TUBE | 63880-62340 | 63880-62340-Online |
| 11 | GEARCASE | 14 | FILTER | 63880-62350 | 63880-62350-Online |
| 11 | GEARCASE | 15 | OIL PUMP ASSY. | 22156-55200 | 22156-55200-Online |
| 11 | GEARCASE | 16 | GASKET, PUMP | 63880-62320 | 63880-62320-Online |
| 11 | GEARCASE | 17 | SCREW | 11205-04100 | 11205-04100-Online |
| 11 | GEARCASE | 18 | GEAR | 63880-62310 | 63880-62310-Online |
| 11 | GEARCASE | 19 | GEARCASE LEFT | 63880-61322 | 63880-61322-Online |
| 11 | GEARCASE | 2 | BEARING | 02002-00627 | 02002-00627-Online |
| 11 | GEARCASE | 2 | OIL CAP ASSY. | 63880-62391 | 63880-62391-Online |
| 11 | GEARCASE | 20 | BEARING | 02006-06001 | 02006-06001-Online |
| 11 | GEARCASE | 21 | SCREW | 11260-04351 | 11260-04351-Online |
| 11 | GEARCASE | 22 | SLIDE PIN | 17110-04000 | 17110-04000-Online |
| 11 | GEARCASE | 23 | COVER | 63880-61350 | 63880-61350-Online |
| 11 | GEARCASE | 24 | NUT | 11526-06100 | 11526-06100-Online |
| 11 | GEARCASE | 25 | LABEL,CAUTION | 19402-00172 | 19402-00172-Online |
| 11 | GEARCASE | 26 | BOLT | 01020-06300 | 01020-06300-Online |
| 11 | GEARCASE | 27 | SPROCKET | 12032-07102 | 12032-07102-Online |
| 11 | GEARCASE | 28 | COLLAR | 15401-21020 | 15401-21020-Online |
| 11 | GEARCASE | 29 | OIL TANK | 63880-62381 | 63880-62381-Online |
| 11 | GEARCASE | 3 | GREASE FITTING | 20870-61640 | 20870-61640-Online |
| 11 | GEARCASE | 30 | OIL TANK VENT | 22115-57120 | 22115-57120-Online |
| 11 | GEARCASE | 31 | COLLAR | 17901-06030 | 17901-06030-Online |
| 11 | GEARCASE | 32 | SCREW | 11207-05120 | 11207-05120-Online |
| 11 | GEARCASE | 33 | CAP, GASKET | 70030-85221 | 70030-85221-Online |
| 11 | GEARCASE | 34 | WASHER | 20870-62131 | 20870-62131-Online |
| 11 | GEARCASE | 35 | SCREW, BUTTON | 11210-06140 | 11210-06140-Online |
| 11 | GEARCASE | 4 | SHIM | 22000-13420 | 22000-13420-Online |
| 11 | GEARCASE | 5 | BEVEL GEAR | 63880-63020 | 63880-63020-Online |
| 11 | GEARCASE | 6 | BEARING | 02000-00609 | 02000-00609-Online |
| 11 | GEARCASE | 7 | BEARING | 02002-00609 | 02002-00609-Online |
| 11 | GEARCASE | 8 | SNAP RING | 22420-13350 | 22420-13350-Online |
| 11 | GEARCASE | 9 | SNAP RING | 02432-24120 | 02432-24120-Online |

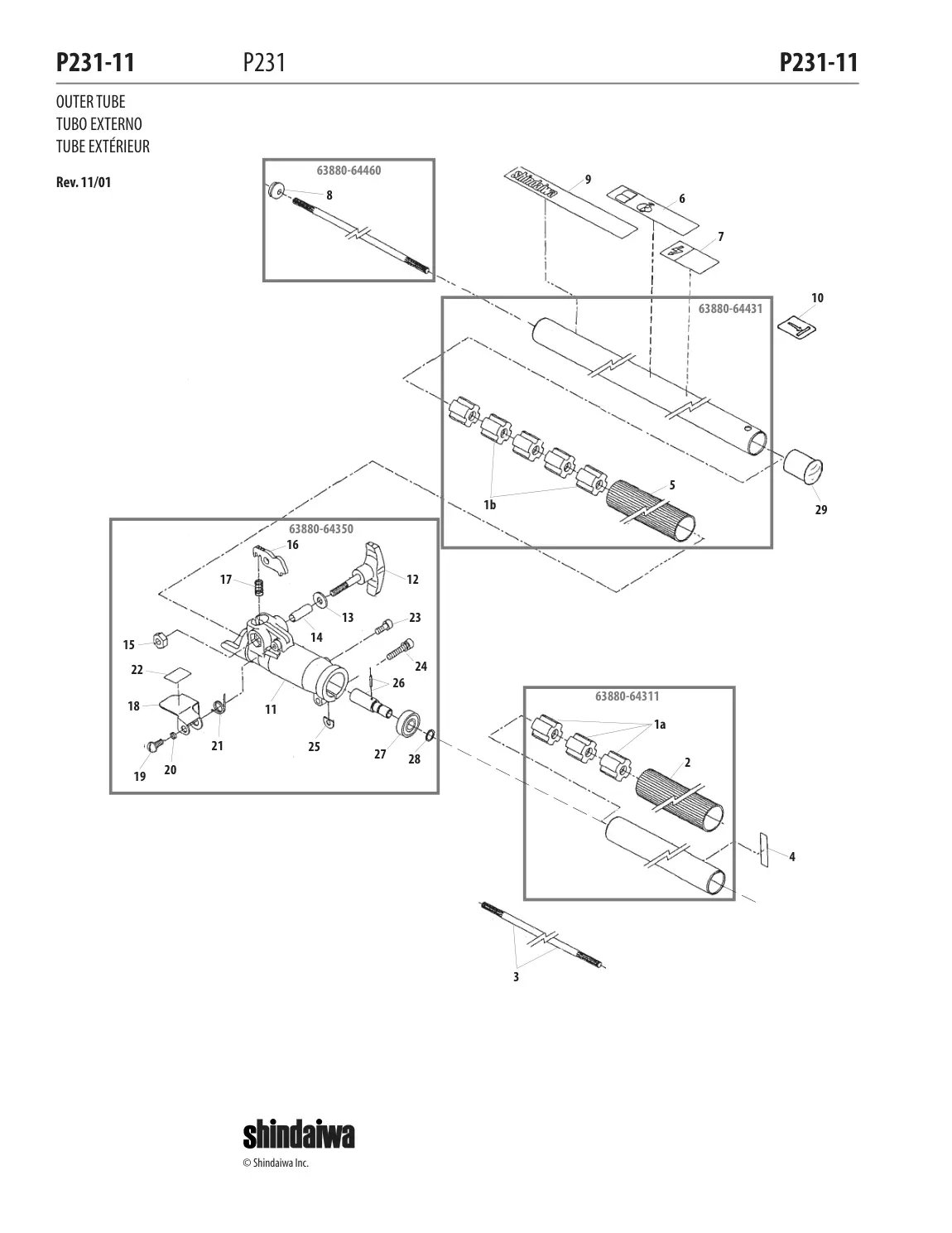

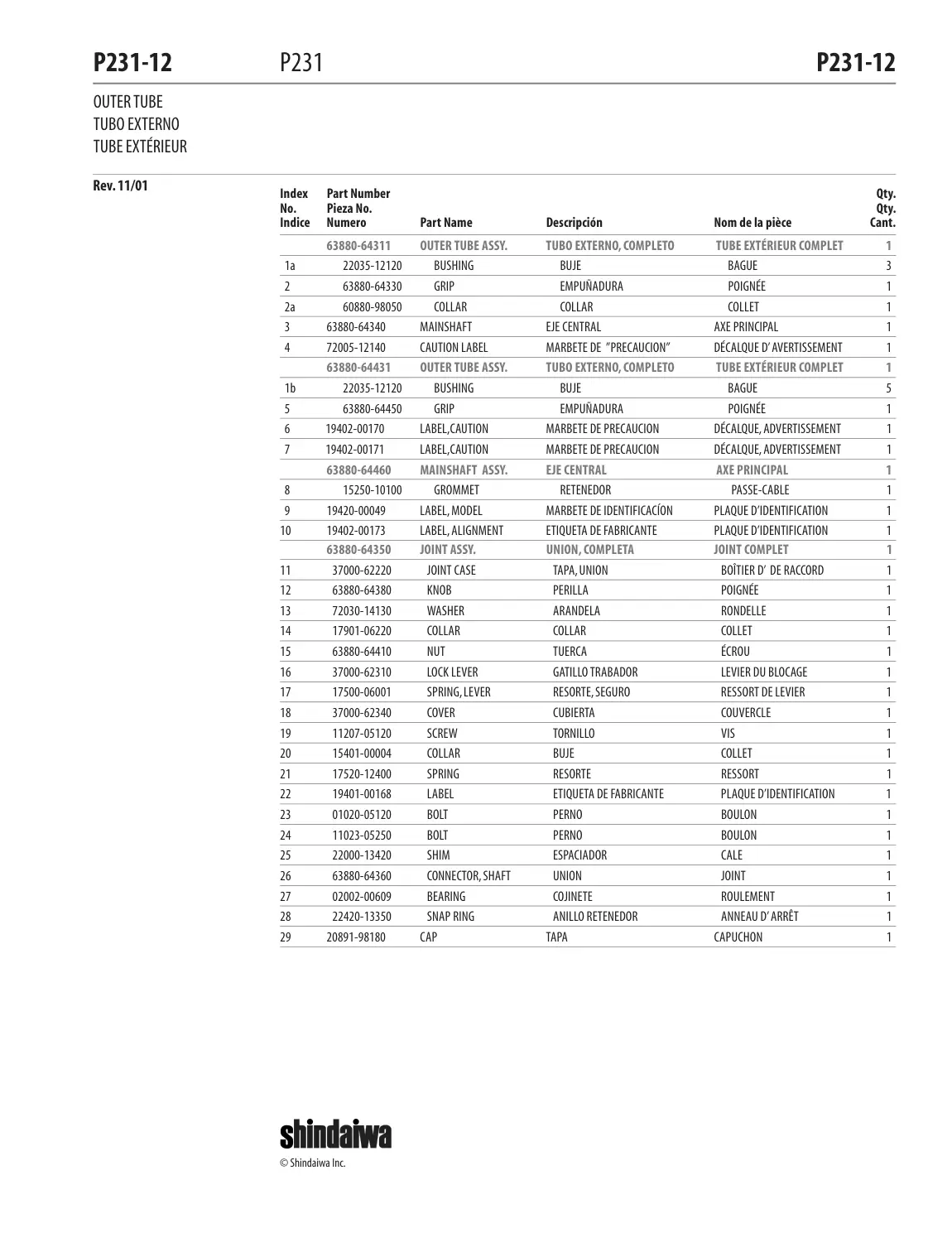

| 13 | CAPUCHON | OUTER TUBE ASSY. | 63880-64311 | 63880-64311-Online | |
| 13 | CAPUCHON | 1 | BUSHING | 22035-12120 | 22035-12120-Online |
| 13 | CAPUCHON | 1 | COLLAR | 60880-98050 | 60880-98050-Online |
| 13 | CAPUCHON | 1 | JOINT ASSY. | 63880-64350 | 63880-64350-Online |
| 13 | CAPUCHON | 1 | OUTER TUBE ASSY. | 63880-64431 | 63880-64431-Online |
| 13 | CAPUCHON | 1 | MAINSHAFT ASSY. | 63880-64460 | 63880-64460-Online |
| 13 | CAPUCHON | 10 | LABEL, ALIGNMENT | 19402-00173 | 19402-00173-Online |
| 13 | CAPUCHON | 11 | JOINT CASE | 37000-62220 | 37000-62220-Online |
| 13 | CAPUCHON | 12 | KNOB | 63880-64380 | 63880-64380-Online |
| 13 | CAPUCHON | 13 | WASHER | 72030-14130 | 72030-14130-Online |
| 13 | CAPUCHON | 14 | COLLAR | 17901-06220 | 17901-06220-Online |
| 13 | CAPUCHON | 15 | NUT | 63880-64410 | 63880-64410-Online |
| 13 | CAPUCHON | 16 | LOCK LEVER | 37000-62310 | 37000-62310-Online |
| 13 | CAPUCHON | 17 | SPRING, LEVER | 17500-06001 | 17500-06001-Online |
| 13 | CAPUCHON | 18 | COVER | 37000-62340 | 37000-62340-Online |
| 13 | CAPUCHON | 19 | SCREW | 11207-05120 | 11207-05120-Online |
| 13 | CAPUCHON | 2 | GRIP | 63880-64330 | 63880-64330-Online |
| 13 | CAPUCHON | 20 | COLLAR | 15401-00004 | 15401-00004-Online |
| 13 | CAPUCHON | 21 | SPRING | 17520-12400 | 17520-12400-Online |
| 13 | CAPUCHON | 22 | LABEL | 19401-00168 | 19401-00168-Online |
| 13 | CAPUCHON | 23 | BOLT | 01020-05120 | 01020-05120-Online |
| 13 | CAPUCHON | 24 | BOLT | 11023-05250 | 11023-05250-Online |
| 13 | CAPUCHON | 25 | SHIM | 22000-13420 | 22000-13420-Online |
| 13 | CAPUCHON | 26 | CONNECTOR, SHAFT | 63880-64360 | 63880-64360-Online |
| 13 | CAPUCHON | 27 | BEARING | 02002-00609 | 02002-00609-Online |
| 13 | CAPUCHON | 28 | SNAP RING | 22420-13350 | 22420-13350-Online |
| 13 | CAPUCHON | 29 | CAP | 20891-98180 | 20891-98180-Online |
| 13 | CAPUCHON | 3 | MAINSHAFT | 63880-64340 | 63880-64340-Online |
| 13 | CAPUCHON | 4 | CAUTION LABEL | 72005-12140 | 72005-12140-Online |
| 13 | CAPUCHON | 5 | GRIP | 63880-64450 | 63880-64450-Online |
| 13 | CAPUCHON | 6 | LABEL,CAUTION | 19402-00170 | 19402-00170-Online |
| 13 | CAPUCHON | 7 | LABEL,CAUTION | 19402-00171 | 19402-00171-Online |
| 13 | CAPUCHON | 8 | GROMMET | 15250-10100 | 15250-10100-Online |
| 13 | CAPUCHON | 9 | LABEL, MODEL | 19420-00049 | 19420-00049-Online |

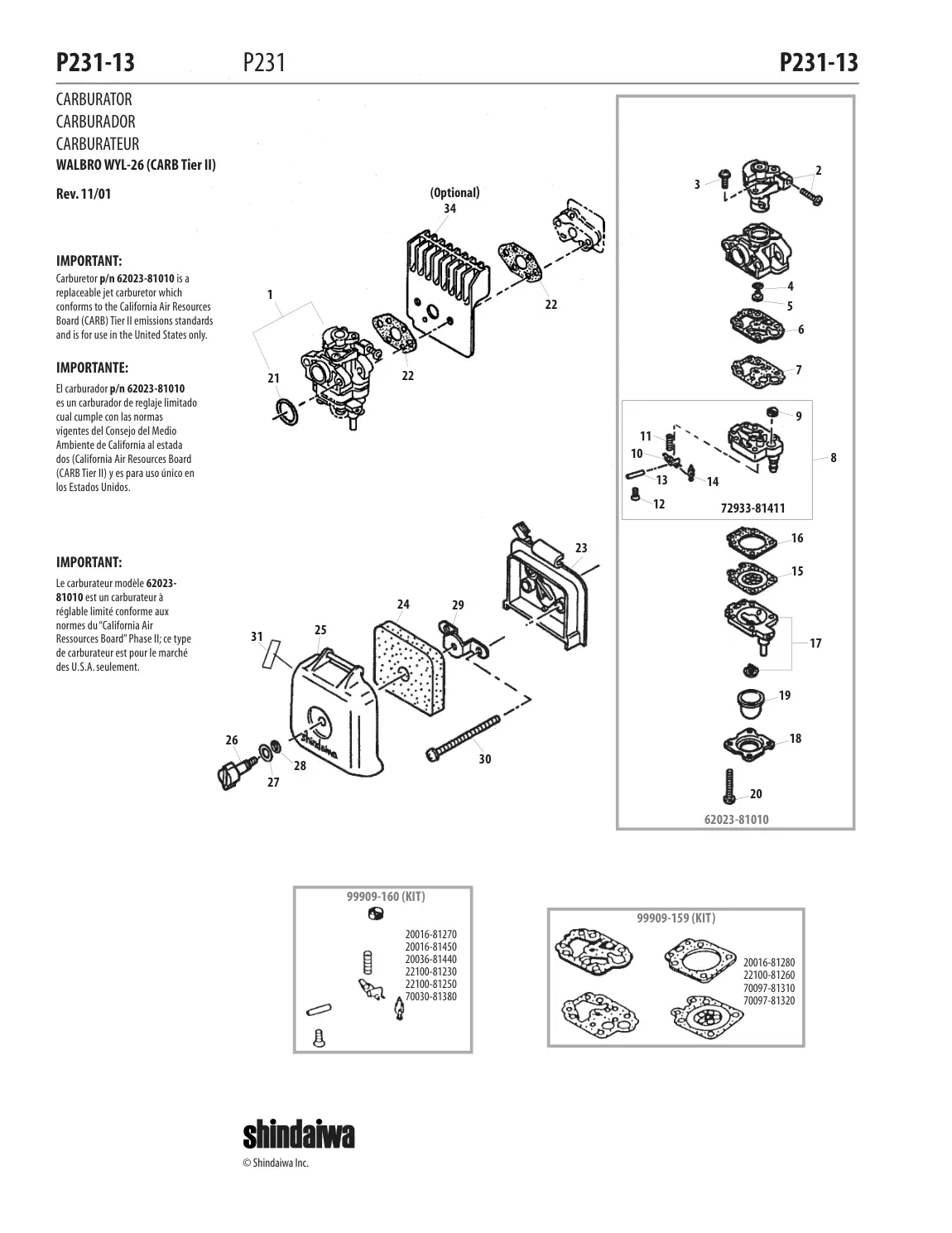

| 14 | WALBRO WYL-26 (CARB Tier II) | réglable limité conforme aux | 62023 | 62023-Online | |
| 14 | WALBRO WYL-26 (CARB Tier II) | est un carburateur à | 81010 | 81010-Online | |
| 14 | WALBRO WYL-26 (CARB Tier II) | (KIT) | 99909-159 | 99909-159-Online | |
| 14 | WALBRO WYL-26 (CARB Tier II) | (KIT) | 99909-160 | 99909-160-Online | |

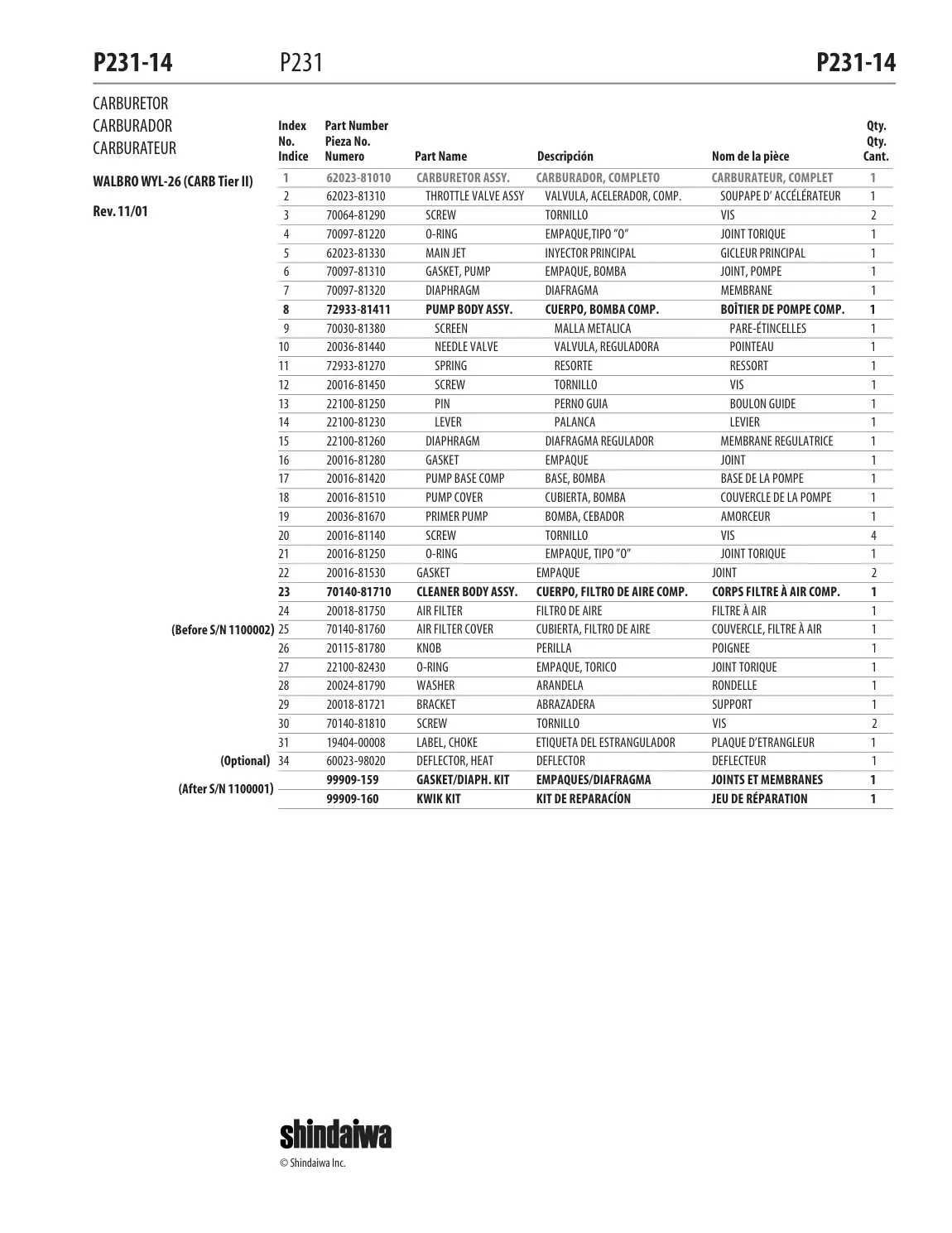

| 15 | JEU DE RÉPARATION | LABEL, CHOKE | 01818-04107 | 01818-04107-Online | |
| 15 | JEU DE RÉPARATION | 1 | CARBURETOR ASSY. | 62023-81010 | 62023-81010-Online |
| 15 | JEU DE RÉPARATION | 1 | GASKET/DIAPH. KIT | 99909-159 | 99909-159-Online |
| 15 | JEU DE RÉPARATION | 1 | KWIK KIT | 99909-160 | 99909-160-Online |
| 15 | JEU DE RÉPARATION | 10 | NEEDLE VALVE | 20036-81440 | 20036-81440-Online |
| 15 | JEU DE RÉPARATION | 11 | SPRING | 72933-81270 | 72933-81270-Online |
| 15 | JEU DE RÉPARATION | 12 | SCREW | 20016-81450 | 20016-81450-Online |
| 15 | JEU DE RÉPARATION | 13 | PIN | 22100-81250 | 22100-81250-Online |
| 15 | JEU DE RÉPARATION | 14 | LEVER | 22100-81230 | 22100-81230-Online |
| 15 | JEU DE RÉPARATION | 15 | DIAPHRAGM | 22100-81260 | 22100-81260-Online |
| 15 | JEU DE RÉPARATION | 16 | GASKET | 20016-81280 | 20016-81280-Online |
| 15 | JEU DE RÉPARATION | 17 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 15 | JEU DE RÉPARATION | 18 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 15 | JEU DE RÉPARATION | 19 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 15 | JEU DE RÉPARATION | 2 | THROTTLE VALVE ASSY VALVULA, ACELERADOR, COMP. | 62023-81310 | 62023-81310-Online |
| 15 | JEU DE RÉPARATION | 20 | SCREW | 20016-81140 | 20016-81140-Online |
| 15 | JEU DE RÉPARATION | 21 | O-RING | 20016-81250 | 20016-81250-Online |
| 15 | JEU DE RÉPARATION | 22 | GASKET | 20016-81530 | 20016-81530-Online |
| 15 | JEU DE RÉPARATION | 24 | AIR FILTER | 20018-81750 | 20018-81750-Online |
| 15 | JEU DE RÉPARATION | 25 | AIR FILTER COVER | 70140-81760 | 70140-81760-Online |
| 15 | JEU DE RÉPARATION | 26 | KNOB | 20115-81780 | 20115-81780-Online |
| 15 | JEU DE RÉPARATION | 27 | O-RING | 22100-82430 | 22100-82430-Online |
| 15 | JEU DE RÉPARATION | 28 | WASHER | 20024-81790 | 20024-81790-Online |
| 15 | JEU DE RÉPARATION | 29 | BRACKET | 20018-81721 | 20018-81721-Online |
| 15 | JEU DE RÉPARATION | 3 | SCREW | 70064-81290 | 70064-81290-Online |
| 15 | JEU DE RÉPARATION | 31 | LABEL, CHOKE | 19404-00008 | 19404-00008-Online |
| 15 | JEU DE RÉPARATION | 34 | DEFLECTOR, HEAT | 60023-98020 | 60023-98020-Online |
| 15 | JEU DE RÉPARATION | 4 | O-RING | 70097-81220 | 70097-81220-Online |
| 15 | JEU DE RÉPARATION | 5 | MAIN JET | 62023-81330 | 62023-81330-Online |
| 15 | JEU DE RÉPARATION | 6 | GASKET, PUMP | 70097-81310 | 70097-81310-Online |
| 15 | JEU DE RÉPARATION | 7 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 15 | JEU DE RÉPARATION | 8 | PUMP BODY ASSY. | 72933-81411 | 72933-81411-Online |
| 15 | JEU DE RÉPARATION | 9 | SCREEN | 70030-81380 | 70030-81380-Online |
Source file: 20140806-33_P231.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
