Shindaiwa PB270 Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: PB270
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

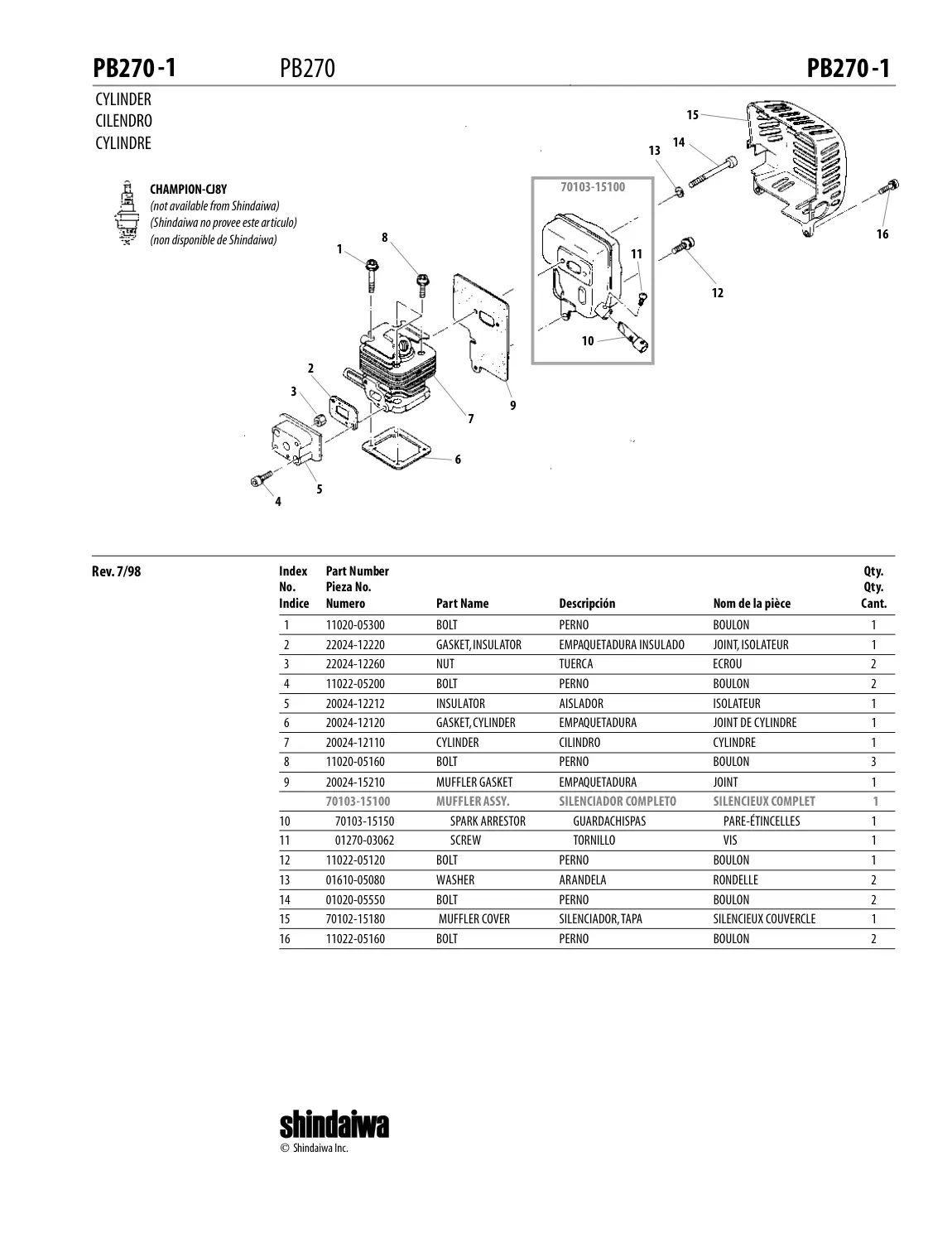

| 2 | CHAMPION-CJ8Y | 1 | BOLT | 11020-05300 | 11020-05300-Online |
| 2 | CHAMPION-CJ8Y | 1 | MUFFLER ASSY. | 70103-15100 | 70103-15100-Online |
| 2 | CHAMPION-CJ8Y | 10 | SPARK ARRESTOR | 70103-15150 | 70103-15150-Online |
| 2 | CHAMPION-CJ8Y | 11 | SCREW | 01270-03062 | 01270-03062-Online |
| 2 | CHAMPION-CJ8Y | 12 | BOLT | 11022-05120 | 11022-05120-Online |
| 2 | CHAMPION-CJ8Y | 13 | WASHER | 01610-05080 | 01610-05080-Online |
| 2 | CHAMPION-CJ8Y | 14 | BOLT | 01020-05550 | 01020-05550-Online |
| 2 | CHAMPION-CJ8Y | 15 | MUFFLER COVER | 70102-15180 | 70102-15180-Online |
| 2 | CHAMPION-CJ8Y | 16 | BOLT | 11022-05160 | 11022-05160-Online |
| 2 | CHAMPION-CJ8Y | 2 | GASKET, INSULATOR | 22024-12220 | 22024-12220-Online |
| 2 | CHAMPION-CJ8Y | 3 | NUT | 22024-12260 | 22024-12260-Online |
| 2 | CHAMPION-CJ8Y | 4 | BOLT | 11022-05200 | 11022-05200-Online |
| 2 | CHAMPION-CJ8Y | 5 | INSULATOR | 20024-12212 | 20024-12212-Online |
| 2 | CHAMPION-CJ8Y | 6 | GASKET, CYLINDER | 20024-12120 | 20024-12120-Online |
| 2 | CHAMPION-CJ8Y | 7 | CYLINDER | 20024-12110 | 20024-12110-Online |
| 2 | CHAMPION-CJ8Y | 8 | BOLT | 11020-05160 | 11020-05160-Online |
| 2 | CHAMPION-CJ8Y | 9 | MUFFLER GASKET | 20024-15210 | 20024-15210-Online |

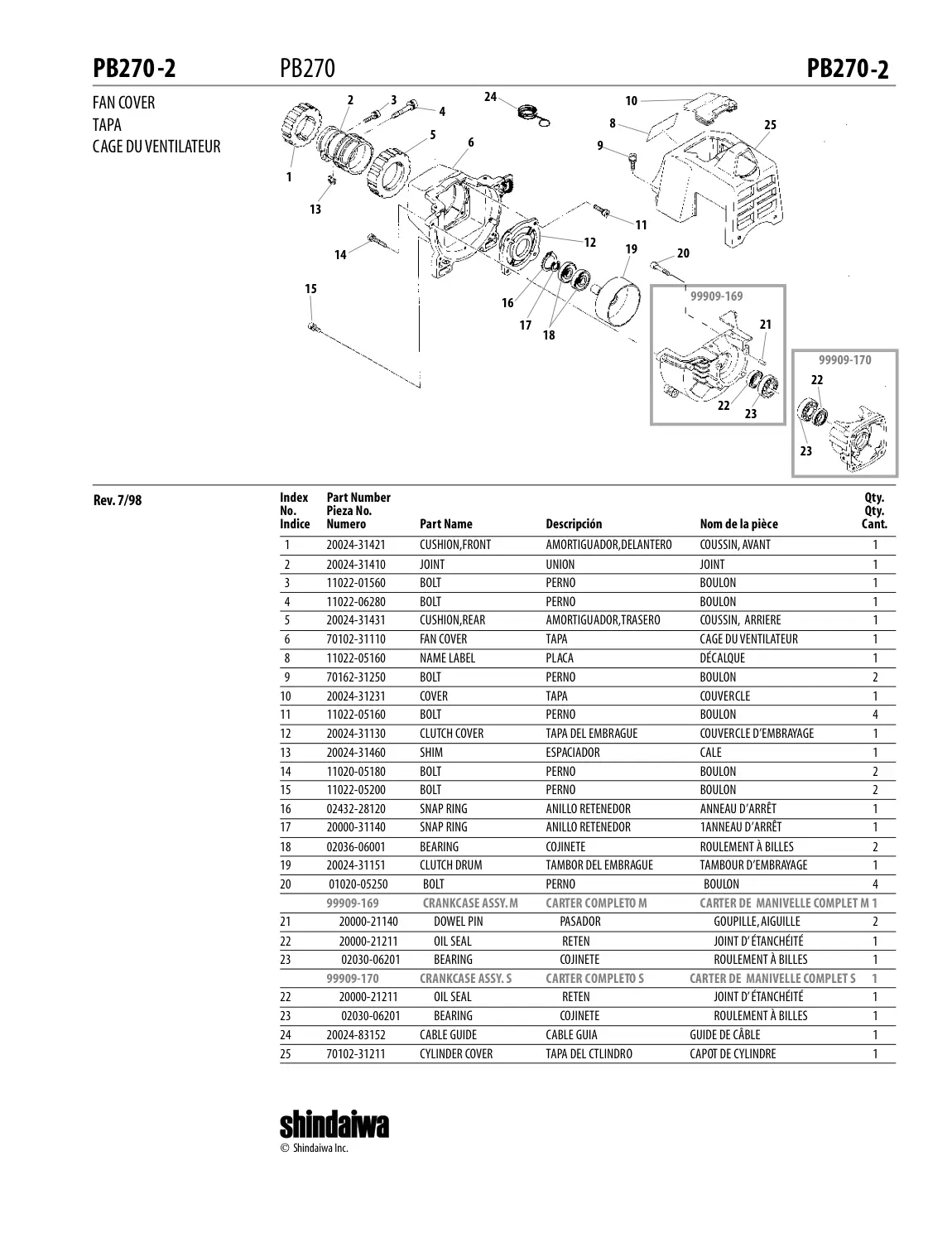

| 3 | FAN COVER | 1 | CUSHION,FRONT | 20024-31421 | 20024-31421-Online |
| 3 | FAN COVER | 1 | CRANKCASE ASSY. S | 99909-170 | 99909-170-Online |
| 3 | FAN COVER | 10 | COVER | 20024-31231 | 20024-31231-Online |
| 3 | FAN COVER | 11 | BOLT | 11022-05160 | 11022-05160-Online |
| 3 | FAN COVER | 12 | CLUTCH COVER | 20024-31130 | 20024-31130-Online |
| 3 | FAN COVER | 13 | SHIM | 20024-31460 | 20024-31460-Online |
| 3 | FAN COVER | 14 | BOLT | 11020-05180 | 11020-05180-Online |
| 3 | FAN COVER | 15 | BOLT | 11022-05200 | 11022-05200-Online |
| 3 | FAN COVER | 16 | SNAP RING | 02432-28120 | 02432-28120-Online |
| 3 | FAN COVER | 17 | SNAP RING | 20000-31140 | 20000-31140-Online |
| 3 | FAN COVER | 18 | BEARING | 02036-06001 | 02036-06001-Online |
| 3 | FAN COVER | 19 | CLUTCH DRUM | 20024-31151 | 20024-31151-Online |
| 3 | FAN COVER | 2 | JOINT | 20024-31410 | 20024-31410-Online |
| 3 | FAN COVER | 20 | BOLT | 01020-05250 | 01020-05250-Online |
| 3 | FAN COVER | 21 | DOWEL PIN | 20000-21140 | 20000-21140-Online |
| 3 | FAN COVER | 22 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 3 | FAN COVER | 23 | BEARING | 02030-06201 | 02030-06201-Online |
| 3 | FAN COVER | 24 | CABLE GUIDE | 20024-83152 | 20024-83152-Online |
| 3 | FAN COVER | 25 | CYLINDER COVER | 70102-31211 | 70102-31211-Online |
| 3 | FAN COVER | 3 | BOLT | 11022-01560 | 11022-01560-Online |
| 3 | FAN COVER | 4 | BOLT | 11022-06280 | 11022-06280-Online |
| 3 | FAN COVER | 4 | CRANKCASE ASSY. M | 99909-169 | 99909-169-Online |
| 3 | FAN COVER | 5 | CUSHION,REAR | 20024-31431 | 20024-31431-Online |
| 3 | FAN COVER | 6 | FAN COVER | 70102-31110 | 70102-31110-Online |
| 3 | FAN COVER | 8 | NAME LABEL | 11022-05160 | 11022-05160-Online |
| 3 | FAN COVER | 9 | BOLT | 70162-31250 | 70162-31250-Online |

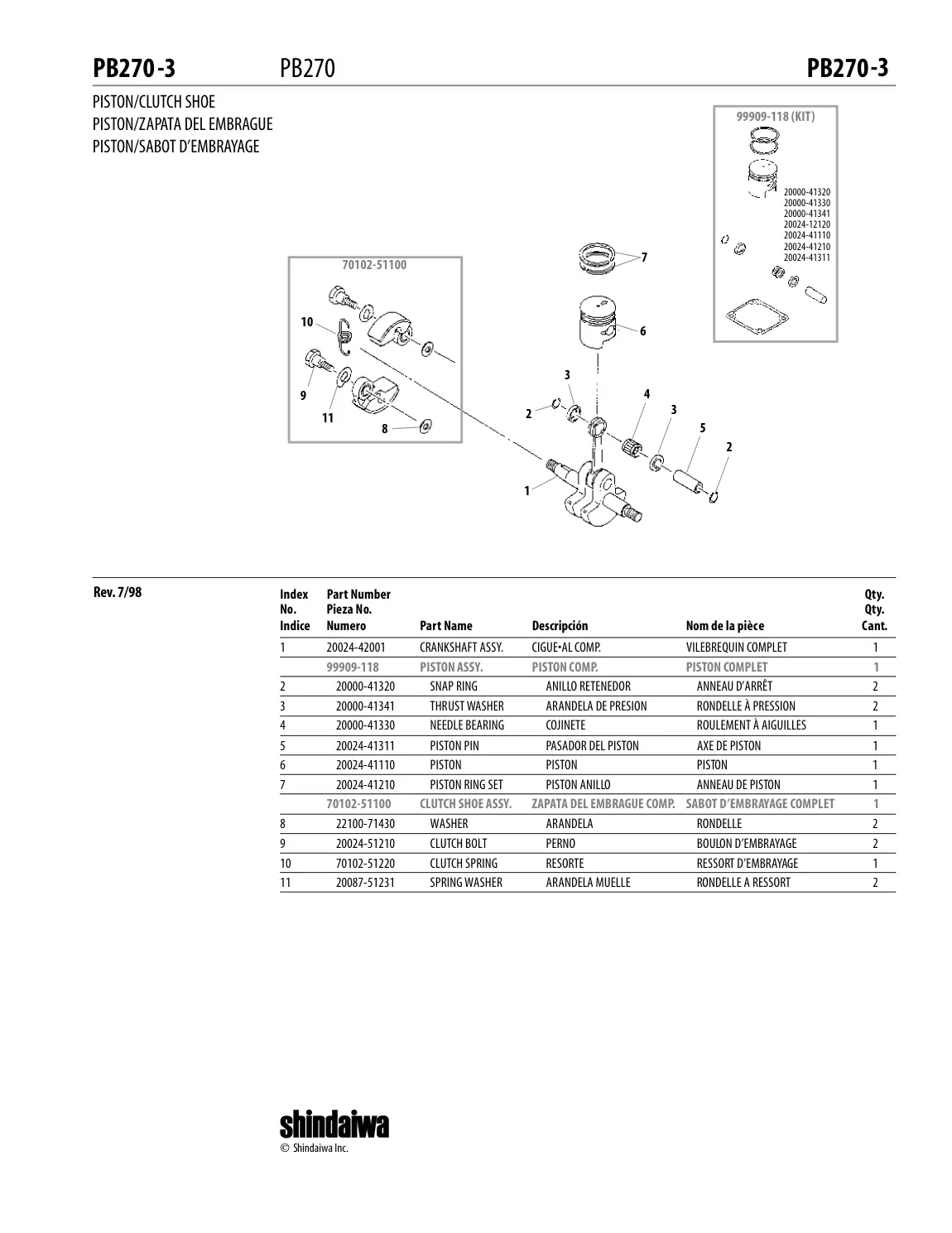

| 4 | PISTON/SABOT D’EMBRAYAGE | (KIT) | 99909-118 | 99909-118-Online | |
| 4 | PISTON/SABOT D’EMBRAYAGE | 1 | CRANKSHAFT ASSY. | 20024-42001 | 20024-42001-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 1 | CLUTCH SHOE ASSY. | 70102-51100 | 70102-51100-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 1 | PISTON ASSY. | 99909-118 | 99909-118-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 10 | CLUTCH SPRING | 70102-51220 | 70102-51220-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 11 | SPRING WASHER | 20087-51231 | 20087-51231-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 2 | SNAP RING | 20000-41320 | 20000-41320-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 3 | THRUST WASHER | 20000-41341 | 20000-41341-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 4 | NEEDLE BEARING | 20000-41330 | 20000-41330-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 5 | PISTON PIN | 20024-41311 | 20024-41311-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 6 | PISTON | 20024-41110 | 20024-41110-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 7 | PISTON RING SET | 20024-41210 | 20024-41210-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 8 | WASHER | 22100-71430 | 22100-71430-Online |
| 4 | PISTON/SABOT D’EMBRAYAGE | 9 | CLUTCH BOLT | 20024-51210 | 20024-51210-Online |

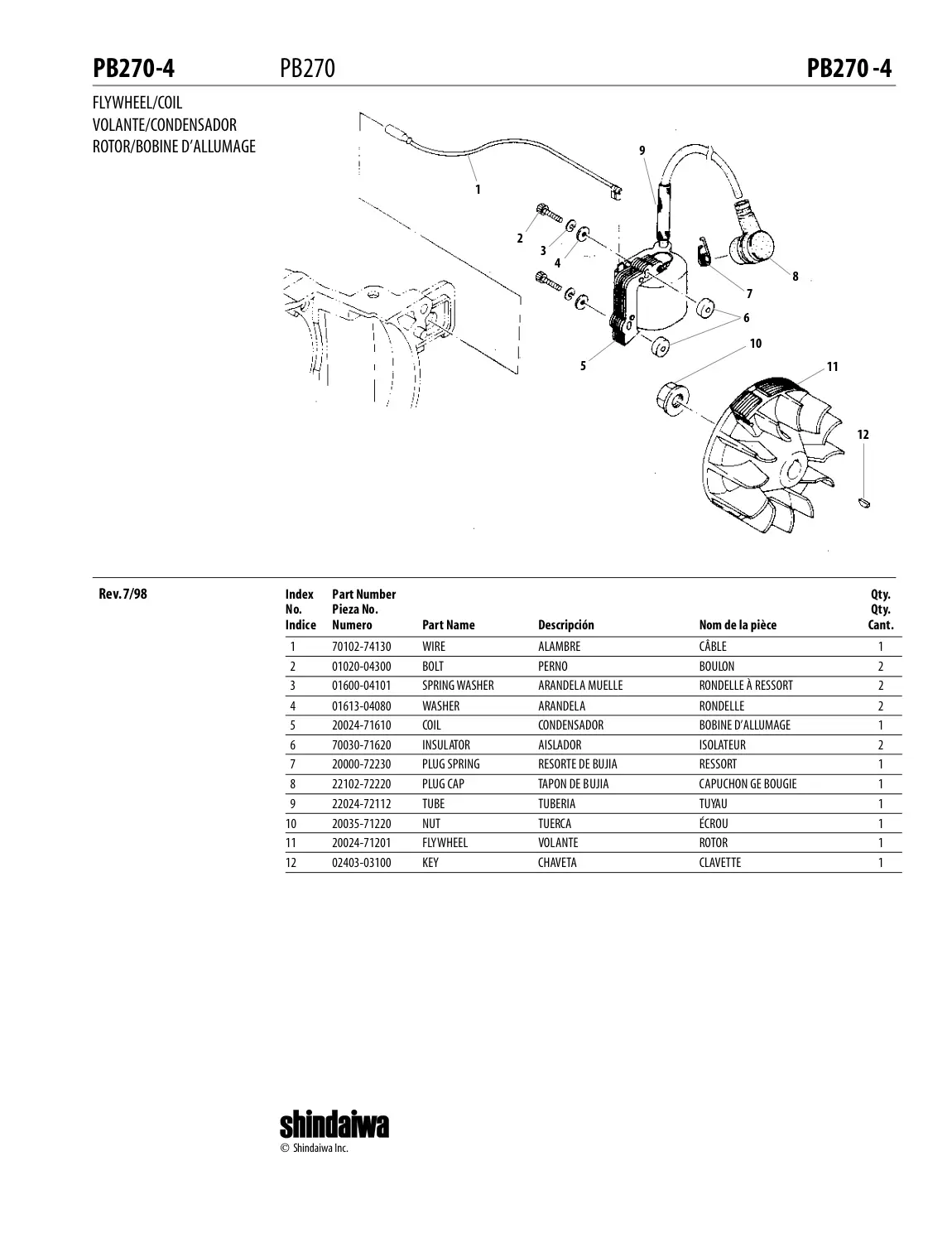

| 5 | ROTOR/BOBINE D’ALLUMAGE | 1 | WIRE | 70102-74130 | 70102-74130-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 10 | NUT | 20035-71220 | 20035-71220-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 11 | FLYWHEEL | 20024-71201 | 20024-71201-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 12 | KEY | 02403-03100 | 02403-03100-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 2 | BOLT | 01020-04300 | 01020-04300-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 3 | SPRING WASHER | 01600-04101 | 01600-04101-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 4 | WASHER | 01613-04080 | 01613-04080-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 5 | COIL | 20024-71610 | 20024-71610-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 6 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 7 | PLUG SPRING | 20000-72230 | 20000-72230-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 8 | PLUG CAP | 22102-72220 | 22102-72220-Online |
| 5 | ROTOR/BOBINE D’ALLUMAGE | 9 | TUBE | 22024-72112 | 22024-72112-Online |
| 6 | DÉMARREUR | RECOIL STARTER ASSY | 70162-75100 | 70162-75100-Online | |
| 6 | DÉMARREUR | 1 | KNOB | 20024-75190 | 20024-75190-Online |
| 6 | DÉMARREUR | 1 | STARTER PULLEY SUB ASSY | 20024-75200 | 20024-75200-Online |
| 6 | DÉMARREUR | 10 | RATCHET | 20024-75220 | 20024-75220-Online |
| 6 | DÉMARREUR | 11 | RETURN SPRING | 20024-75230 | 20024-75230-Online |
| 6 | DÉMARREUR | 12 | STARTER PULLEY | 20024-75210 | 20024-75210-Online |
| 6 | DÉMARREUR | 13 | NUT | 20035-43230 | 20035-43230-Online |
| 6 | DÉMARREUR | 14 | BOLT | 11022-05160 | 11022-05160-Online |
| 6 | DÉMARREUR | 15 | BOLT | 11022-05250 | 11022-05250-Online |
| 6 | DÉMARREUR | 2 | DAMPER | 20024-75180 | 20024-75180-Online |
| 6 | DÉMARREUR | 3 | SCREW | 20035-75170 | 20035-75170-Online |
| 6 | DÉMARREUR | 4 | WASHER | 20024-75140 | 20024-75140-Online |
| 6 | DÉMARREUR | 5 | REEL | 20024-75120 | 20024-75120-Online |
| 6 | DÉMARREUR | 6 | ROPE | 20024-75160 | 20024-75160-Online |
| 6 | DÉMARREUR | 7 | RECOIL SPRING | 20024-75130 | 20024-75130-Online |
| 6 | DÉMARREUR | 8 | LABEL | 19420-00026 | 19420-00026-Online |
| 6 | DÉMARREUR | 9 | E-RING | 20024-75240 | 20024-75240-Online |

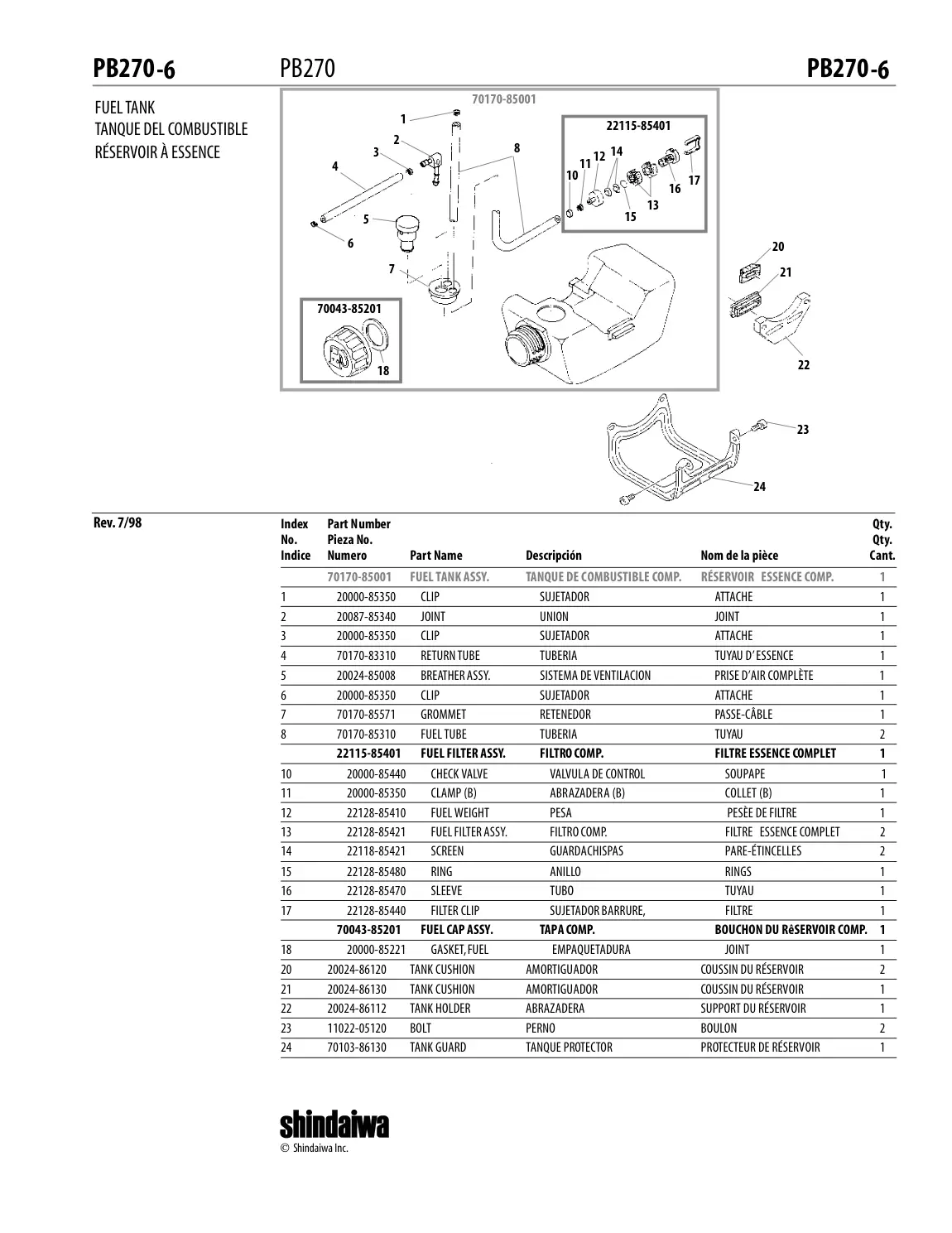

| 7 | FUEL TANK | FUEL TANK ASSY. | 70170-85001 | 70170-85001-Online | |
| 7 | FUEL TANK | 1 | CLIP | 20000-85350 | 20000-85350-Online |
| 7 | FUEL TANK | 1 | FUEL CAP ASSY. | 70043-85201 | 70043-85201-Online |
| 7 | FUEL TANK | 10 | CHECK VALVE | 20000-85440 | 20000-85440-Online |
| 7 | FUEL TANK | 11 | CLAMP (B) | 20000-85350 | 20000-85350-Online |
| 7 | FUEL TANK | 12 | FUEL WEIGHT | 22128-85410 | 22128-85410-Online |
| 7 | FUEL TANK | 13 | FUEL FILTER ASSY. | 22128-85421 | 22128-85421-Online |
| 7 | FUEL TANK | 14 | SCREEN | 22118-85421 | 22118-85421-Online |
| 7 | FUEL TANK | 15 | RING | 22128-85480 | 22128-85480-Online |
| 7 | FUEL TANK | 16 | SLEEVE | 22128-85470 | 22128-85470-Online |
| 7 | FUEL TANK | 17 | FILTER CLIP | 22128-85440 | 22128-85440-Online |
| 7 | FUEL TANK | 18 | GASKET, FUEL | 20000-85221 | 20000-85221-Online |
| 7 | FUEL TANK | 2 | JOINT | 20087-85340 | 20087-85340-Online |
| 7 | FUEL TANK | 2 | FUEL FILTER ASSY. | 22115-85401 | 22115-85401-Online |
| 7 | FUEL TANK | 20 | TANK CUSHION | 20024-86120 | 20024-86120-Online |
| 7 | FUEL TANK | 21 | TANK CUSHION | 20024-86130 | 20024-86130-Online |
| 7 | FUEL TANK | 22 | TANK HOLDER | 20024-86112 | 20024-86112-Online |
| 7 | FUEL TANK | 23 | BOLT | 11022-05120 | 11022-05120-Online |
| 7 | FUEL TANK | 24 | TANK GUARD | 70103-86130 | 70103-86130-Online |
| 7 | FUEL TANK | 3 | CLIP | 20000-85350 | 20000-85350-Online |
| 7 | FUEL TANK | 4 | RETURN TUBE | 70170-83310 | 70170-83310-Online |
| 7 | FUEL TANK | 5 | BREATHER ASSY. | 20024-85008 | 20024-85008-Online |
| 7 | FUEL TANK | 6 | CLIP | 20000-85350 | 20000-85350-Online |
| 7 | FUEL TANK | 7 | GROMMET | 70170-85571 | 70170-85571-Online |
| 7 | FUEL TANK | 8 | FUEL TUBE | 70170-85310 | 70170-85310-Online |

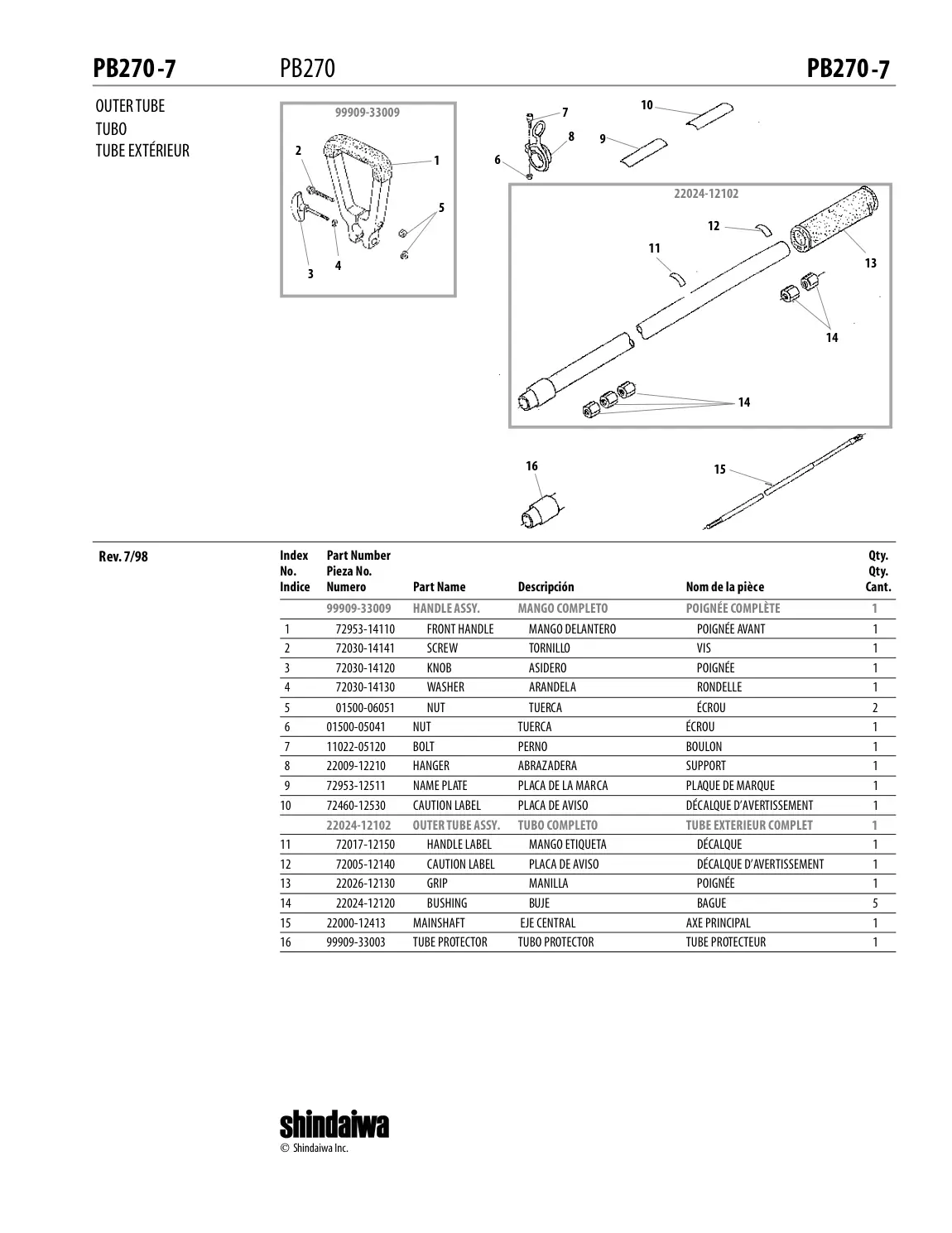

| 8 | OUTER TUBE | HANDLE ASSY. | 99909-33009 | 99909-33009-Online | |
| 8 | OUTER TUBE | 1 | OUTER TUBE ASSY. | 22024-12102 | 22024-12102-Online |
| 8 | OUTER TUBE | 1 | FRONT HANDLE | 72953-14110 | 72953-14110-Online |
| 8 | OUTER TUBE | 10 | CAUTION LABEL | 72460-12530 | 72460-12530-Online |
| 8 | OUTER TUBE | 11 | HANDLE LABEL | 72017-12150 | 72017-12150-Online |
| 8 | OUTER TUBE | 12 | CAUTION LABEL | 72005-12140 | 72005-12140-Online |
| 8 | OUTER TUBE | 13 | GRIP | 22026-12130 | 22026-12130-Online |
| 8 | OUTER TUBE | 14 | BUSHING | 22024-12120 | 22024-12120-Online |
| 8 | OUTER TUBE | 15 | MAINSHAFT | 22000-12413 | 22000-12413-Online |
| 8 | OUTER TUBE | 16 | TUBE PROTECTOR | 99909-33003 | 99909-33003-Online |
| 8 | OUTER TUBE | 2 | SCREW | 72030-14141 | 72030-14141-Online |
| 8 | OUTER TUBE | 3 | KNOB | 72030-14120 | 72030-14120-Online |
| 8 | OUTER TUBE | 4 | WASHER | 72030-14130 | 72030-14130-Online |
| 8 | OUTER TUBE | 5 | NUT | 01500-06051 | 01500-06051-Online |
| 8 | OUTER TUBE | 6 | NUT | 01500-05041 | 01500-05041-Online |
| 8 | OUTER TUBE | 7 | BOLT | 11022-05120 | 11022-05120-Online |
| 8 | OUTER TUBE | 8 | HANGER | 22009-12210 | 22009-12210-Online |
| 8 | OUTER TUBE | 9 | NAME PLATE | 72953-12511 | 72953-12511-Online |

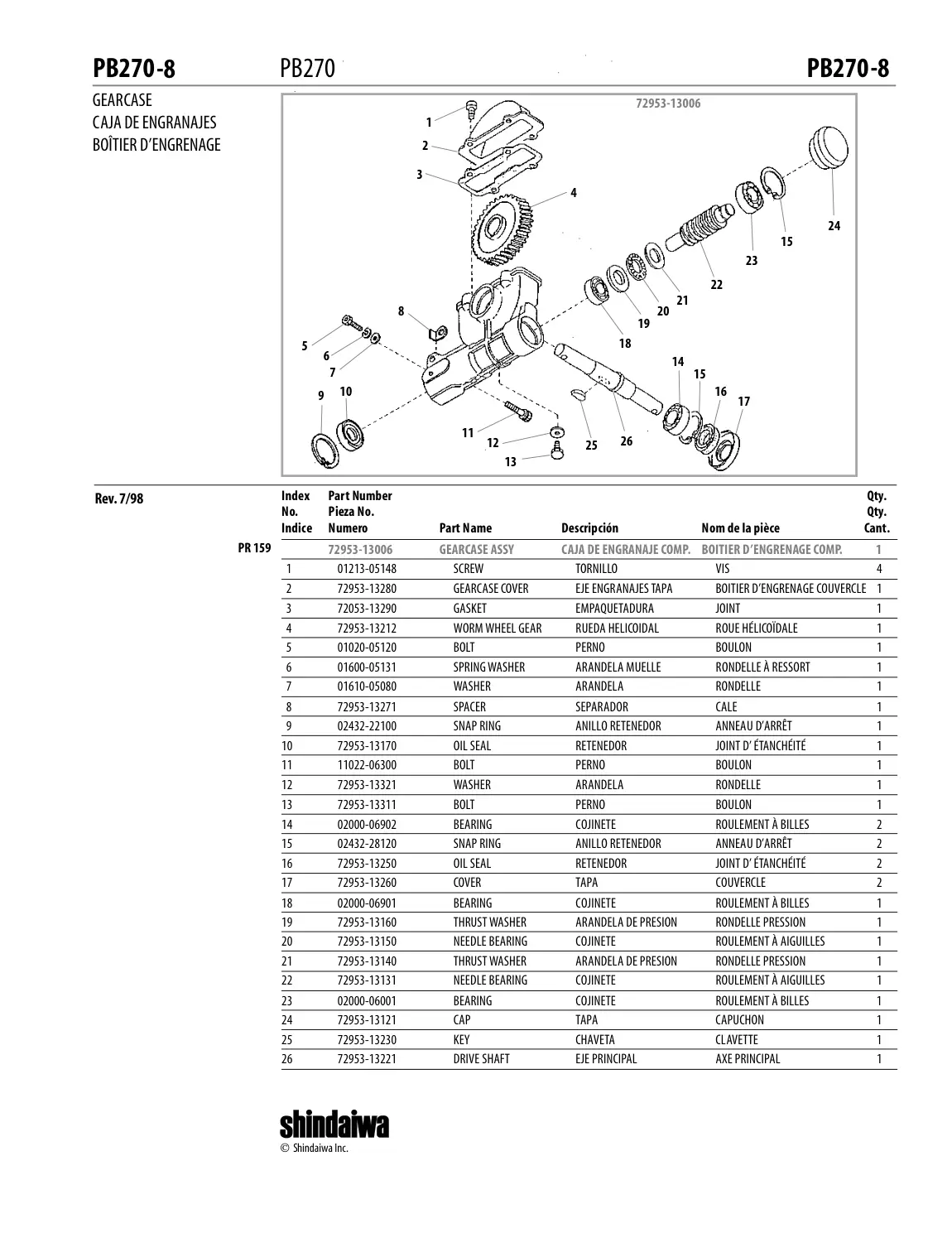

| 9 | PR 159 | GEARCASE ASSY | 72953-13006 | 72953-13006-Online | |
| 9 | PR 159 | 1 | SCREW | 01213-05148 | 01213-05148-Online |
| 9 | PR 159 | 10 | OIL SEAL | 72953-13170 | 72953-13170-Online |
| 9 | PR 159 | 11 | BOLT | 11022-06300 | 11022-06300-Online |
| 9 | PR 159 | 12 | WASHER | 72953-13321 | 72953-13321-Online |
| 9 | PR 159 | 13 | BOLT | 72953-13311 | 72953-13311-Online |
| 9 | PR 159 | 14 | BEARING | 02000-06902 | 02000-06902-Online |
| 9 | PR 159 | 15 | SNAP RING | 02432-28120 | 02432-28120-Online |
| 9 | PR 159 | 16 | OIL SEAL | 72953-13250 | 72953-13250-Online |
| 9 | PR 159 | 17 | COVER | 72953-13260 | 72953-13260-Online |
| 9 | PR 159 | 18 | BEARING | 02000-06901 | 02000-06901-Online |
| 9 | PR 159 | 19 | THRUST WASHER | 72953-13160 | 72953-13160-Online |
| 9 | PR 159 | 2 | GEARCASE COVER | 72953-13280 | 72953-13280-Online |
| 9 | PR 159 | 20 | NEEDLE BEARING | 72953-13150 | 72953-13150-Online |
| 9 | PR 159 | 21 | THRUST WASHER | 72953-13140 | 72953-13140-Online |
| 9 | PR 159 | 22 | NEEDLE BEARING | 72953-13131 | 72953-13131-Online |
| 9 | PR 159 | 23 | BEARING | 02000-06001 | 02000-06001-Online |
| 9 | PR 159 | 24 | CAP | 72953-13121 | 72953-13121-Online |
| 9 | PR 159 | 25 | KEY | 72953-13230 | 72953-13230-Online |
| 9 | PR 159 | 26 | DRIVE SHAFT | 72953-13221 | 72953-13221-Online |
| 9 | PR 159 | 3 | GASKET | 72053-13290 | 72053-13290-Online |
| 9 | PR 159 | 4 | WORM WHEEL GEAR | 72953-13212 | 72953-13212-Online |
| 9 | PR 159 | 5 | BOLT | 01020-05120 | 01020-05120-Online |
| 9 | PR 159 | 6 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 9 | PR 159 | 7 | WASHER | 01610-05080 | 01610-05080-Online |
| 9 | PR 159 | 8 | SPACER | 72953-13271 | 72953-13271-Online |
| 9 | PR 159 | 9 | SNAP RING | 02432-22100 | 02432-22100-Online |

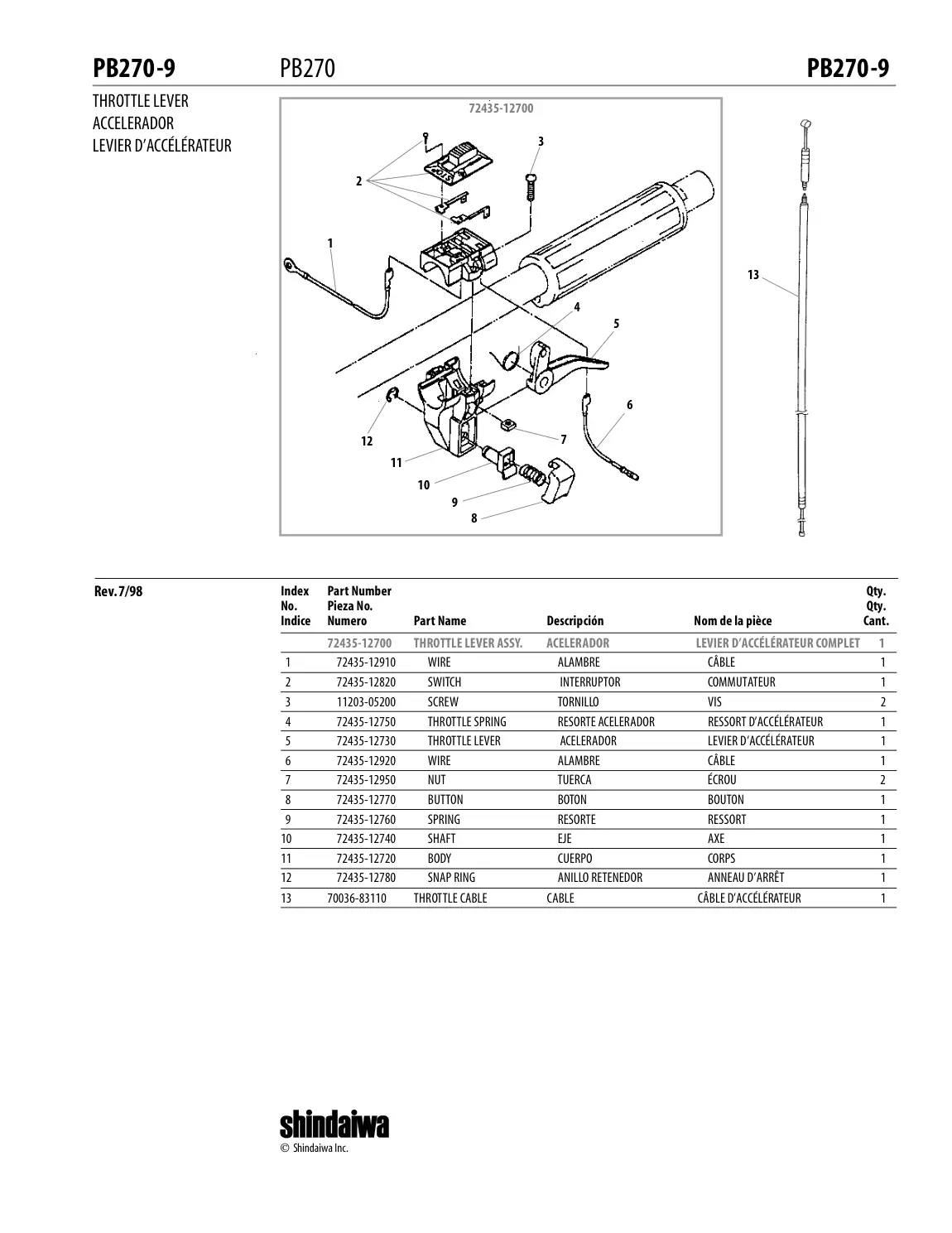

| 10 | LEVIER D’ACCÉLÉRATEUR | THROTTLE LEVER ASSY. | 72435-12700 | 72435-12700-Online | |
| 10 | LEVIER D’ACCÉLÉRATEUR | 1 | WIRE | 72435-12910 | 72435-12910-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 10 | SHAFT | 72435-12740 | 72435-12740-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 12 | SNAP RING | 72435-12780 | 72435-12780-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 13 | THROTTLE CABLE | 70036-83110 | 70036-83110-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 2 | SWITCH | 72435-12820 | 72435-12820-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 3 | SCREW | 11203-05200 | 11203-05200-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 4 | THROTTLE SPRING | 72435-12750 | 72435-12750-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 5 | THROTTLE LEVER | 72435-12730 | 72435-12730-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 6 | WIRE | 72435-12920 | 72435-12920-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 7 | NUT | 72435-12950 | 72435-12950-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 8 | BUTTON | 72435-12770 | 72435-12770-Online |
| 10 | LEVIER D’ACCÉLÉRATEUR | 9 | SPRING | 72435-12760 | 72435-12760-Online |

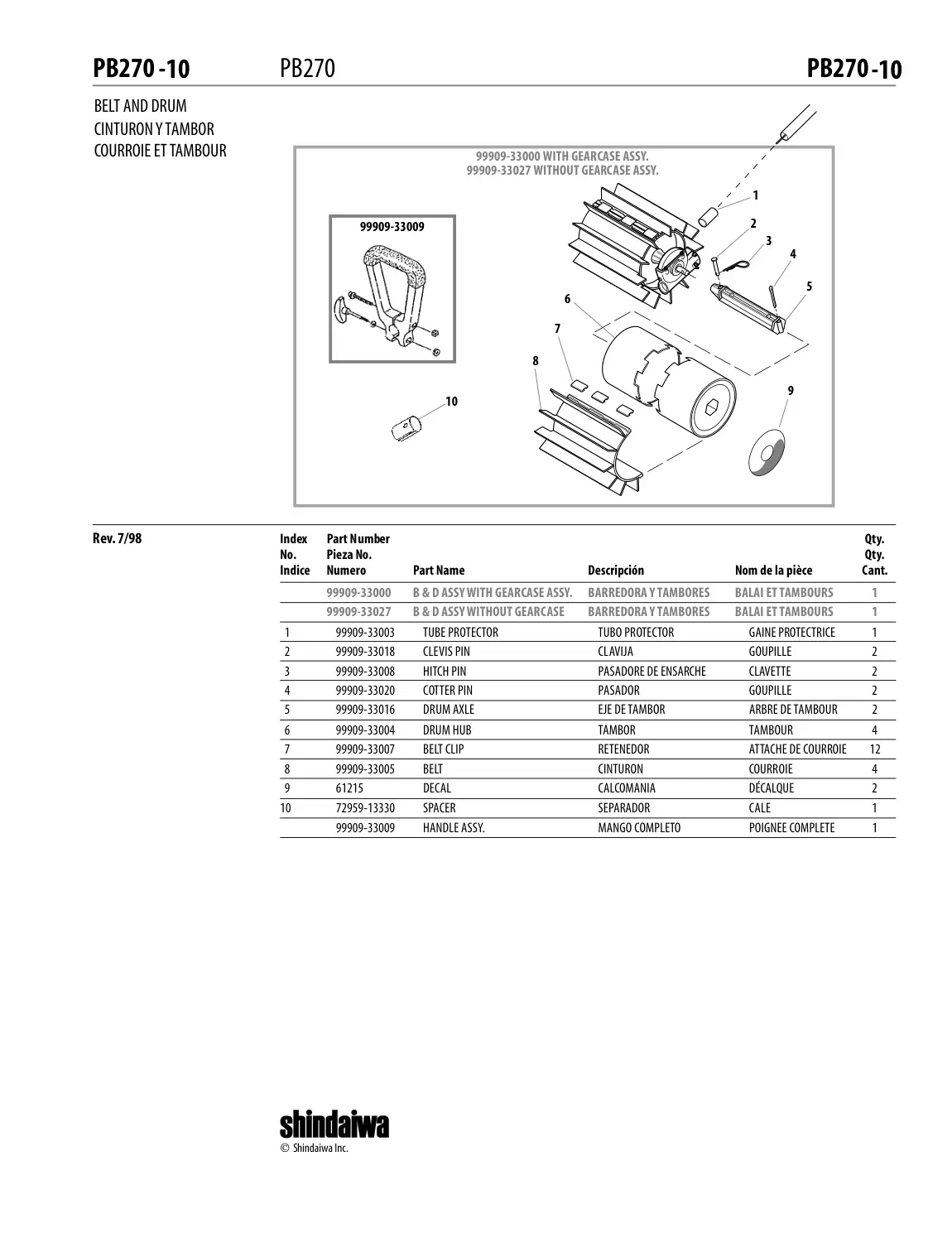

| 11 | COURROIE ET TAMBOUR | B & D ASSY WITH GEARCASE ASSY. | 99909-33000 | 99909-33000-Online | |
| 11 | COURROIE ET TAMBOUR | 1 | WITH GEARCASE ASSY. | 99909-33000 | 99909-33000-Online |
| 11 | COURROIE ET TAMBOUR | 1 | TUBE PROTECTOR | 99909-33003 | 99909-33003-Online |
| 11 | COURROIE ET TAMBOUR | 1 | HANDLE ASSY. | 99909-33009 | 99909-33009-Online |
| 11 | COURROIE ET TAMBOUR | 1 | B & D ASSY WITHOUT GEARCASE | 99909-33027 | 99909-33027-Online |
| 11 | COURROIE ET TAMBOUR | 1 | WITHOUT GEARCASE ASSY. | 99909-33027 | 99909-33027-Online |
| 11 | COURROIE ET TAMBOUR | 10 | SPACER | 72959-13330 | 72959-13330-Online |
| 11 | COURROIE ET TAMBOUR | 2 | CLEVIS PIN | 99909-33018 | 99909-33018-Online |
| 11 | COURROIE ET TAMBOUR | 3 | HITCH PIN | 99909-33008 | 99909-33008-Online |
| 11 | COURROIE ET TAMBOUR | 4 | COTTER PIN | 99909-33020 | 99909-33020-Online |
| 11 | COURROIE ET TAMBOUR | 5 | DRUM AXLE | 99909-33016 | 99909-33016-Online |
| 11 | COURROIE ET TAMBOUR | 6 | DRUM HUB | 99909-33004 | 99909-33004-Online |
| 11 | COURROIE ET TAMBOUR | 7 | BELT CLIP | 99909-33007 | 99909-33007-Online |

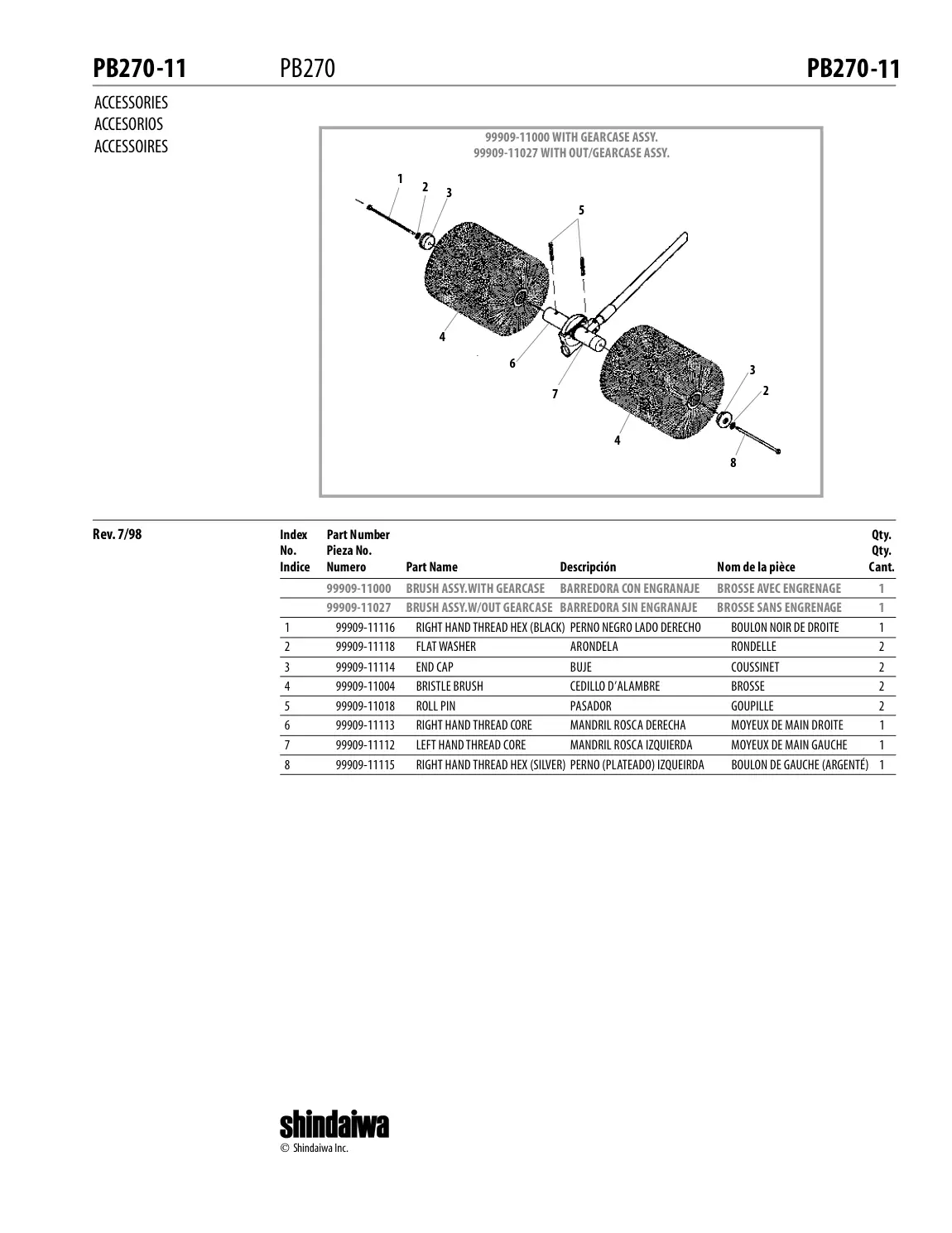

| 12 | ACCESSORIES | BRUSH ASSY.WITH GEARCASE | 99909-11000 | 99909-11000-Online | |
| 12 | ACCESSORIES | WITH GEARCASE ASSY. | 99909-11000 | 99909-11000-Online | |
| 12 | ACCESSORIES | WITH OUT/GEARCASE ASSY. | 99909-11027 | 99909-11027-Online | |
| 12 | ACCESSORIES | 1 | BRUSH ASSY.W/OUT GEARCASE BARREDORA SIN ENGRANAJE | 99909-11027 | 99909-11027-Online |
| 12 | ACCESSORIES | 1 | RIGHT HAND THREAD HEX (BLACK) PERNO NEGRO LADO DERECHO | 99909-11116 | 99909-11116-Online |
| 12 | ACCESSORIES | 2 | FLAT WASHER | 99909-11118 | 99909-11118-Online |
| 12 | ACCESSORIES | 3 | END CAP | 99909-11114 | 99909-11114-Online |
| 12 | ACCESSORIES | 4 | BRISTLE BRUSH | 99909-11004 | 99909-11004-Online |
| 12 | ACCESSORIES | 5 | ROLL PIN | 99909-11018 | 99909-11018-Online |
| 12 | ACCESSORIES | 6 | RIGHT HAND THREAD CORE | 99909-11113 | 99909-11113-Online |
| 12 | ACCESSORIES | 7 | LEFT HAND THREAD CORE | 99909-11112 | 99909-11112-Online |
| 12 | ACCESSORIES | 8 | RIGHT HAND THREAD HEX (SILVER) PERNO (PLATEADO) IZQUEIRDA | 99909-11115 | 99909-11115-Online |

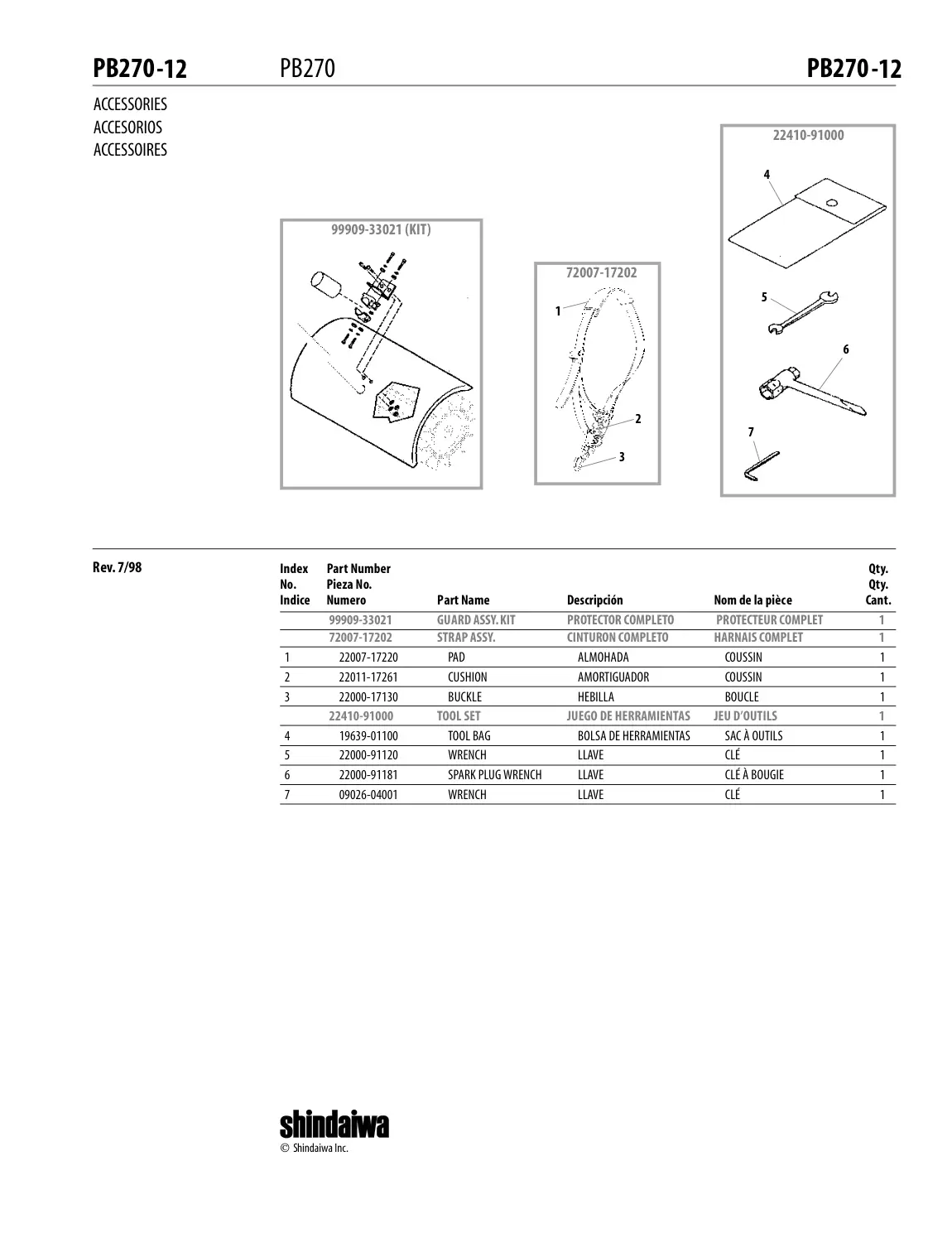

| 13 | CLÉ | GUARD ASSY. KIT | 99909-33021 | 99909-33021-Online | |
| 13 | CLÉ | 1 | TOOL SET | 22410-91000 | 22410-91000-Online |
| 13 | CLÉ | 1 | STRAP ASSY. | 72007-17202 | 72007-17202-Online |
| 13 | CLÉ | 2 | CUSHION | 22011-17261 | 22011-17261-Online |
| 13 | CLÉ | 3 | BUCKLE | 22000-17130 | 22000-17130-Online |
| 13 | CLÉ | 4 | TOOL BAG | 19639-01100 | 19639-01100-Online |
| 13 | CLÉ | 5 | WRENCH | 22000-91120 | 22000-91120-Online |
| 13 | CLÉ | 5 | (KIT) | 99909-33021 | 99909-33021-Online |
| 13 | CLÉ | 6 | SPARK PLUG WRENCH | 22000-91181 | 22000-91181-Online |
| 13 | CLÉ | 7 | WRENCH | 09026-04001 | 09026-04001-Online |

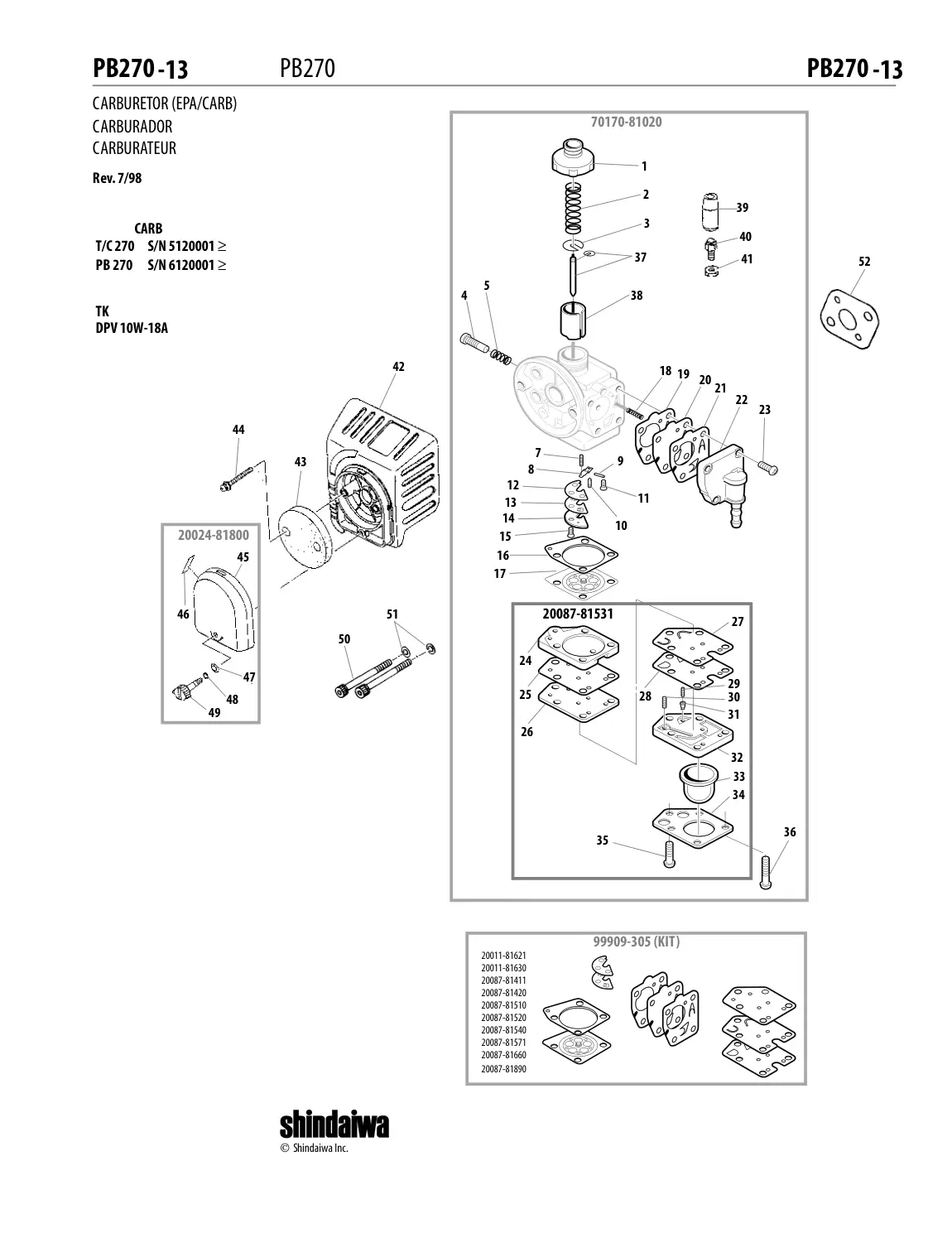

| 14 | DPV 10W-18A | 9 | (KIT) | 99909-305 | 99909-305-Online |

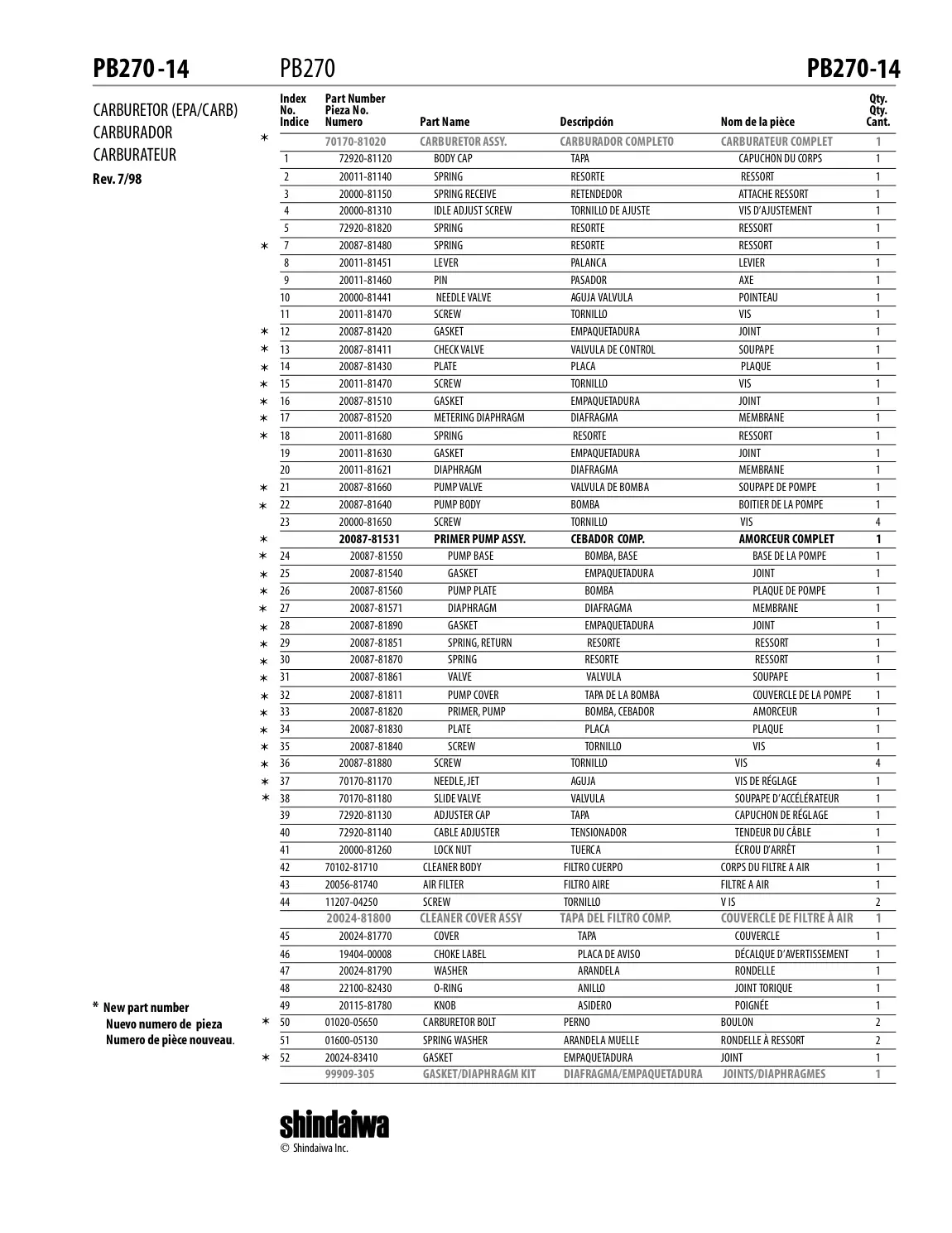

| 15 | JOINTS/DIAPHRAGMES | CARBURETOR ASSY. | 70170-81020 | 70170-81020-Online | |
| 15 | JOINTS/DIAPHRAGMES | 1 | BODY CAP | 72920-81120 | 72920-81120-Online |
| 15 | JOINTS/DIAPHRAGMES | 1 | GASKET/DIAPHRAGM KIT | 99909-305 | 99909-305-Online |
| 15 | JOINTS/DIAPHRAGMES | 10 | NEEDLE VALVE | 20000-81441 | 20000-81441-Online |
| 15 | JOINTS/DIAPHRAGMES | 11 | SCREW | 20011-81470 | 20011-81470-Online |
| 15 | JOINTS/DIAPHRAGMES | 12 | GASKET | 20087-81420 | 20087-81420-Online |
| 15 | JOINTS/DIAPHRAGMES | 13 | CHECK VALVE | 20087-81411 | 20087-81411-Online |
| 15 | JOINTS/DIAPHRAGMES | 14 | PLATE | 20087-81430 | 20087-81430-Online |
| 15 | JOINTS/DIAPHRAGMES | 15 | SCREW | 20011-81470 | 20011-81470-Online |
| 15 | JOINTS/DIAPHRAGMES | 16 | GASKET | 20087-81510 | 20087-81510-Online |
| 15 | JOINTS/DIAPHRAGMES | 17 | METERING DIAPHRAGM | 20087-81520 | 20087-81520-Online |
| 15 | JOINTS/DIAPHRAGMES | 18 | SPRING | 20011-81680 | 20011-81680-Online |
| 15 | JOINTS/DIAPHRAGMES | 19 | GASKET | 20011-81630 | 20011-81630-Online |
| 15 | JOINTS/DIAPHRAGMES | 2 | SPRING | 20011-81140 | 20011-81140-Online |
| 15 | JOINTS/DIAPHRAGMES | 2 | CLEANER COVER ASSY | 20024-81800 | 20024-81800-Online |
| 15 | JOINTS/DIAPHRAGMES | 20 | DIAPHRAGM | 20011-81621 | 20011-81621-Online |
| 15 | JOINTS/DIAPHRAGMES | 21 | PUMP VALVE | 20087-81660 | 20087-81660-Online |
| 15 | JOINTS/DIAPHRAGMES | 22 | PUMP BODY | 20087-81640 | 20087-81640-Online |
| 15 | JOINTS/DIAPHRAGMES | 23 | SCREW | 20000-81650 | 20000-81650-Online |
| 15 | JOINTS/DIAPHRAGMES | 24 | PUMP BASE | 20087-81550 | 20087-81550-Online |
| 15 | JOINTS/DIAPHRAGMES | 25 | GASKET | 20087-81540 | 20087-81540-Online |
| 15 | JOINTS/DIAPHRAGMES | 26 | PUMP PLATE | 20087-81560 | 20087-81560-Online |
| 15 | JOINTS/DIAPHRAGMES | 27 | DIAPHRAGM | 20087-81571 | 20087-81571-Online |
| 15 | JOINTS/DIAPHRAGMES | 28 | GASKET | 20087-81890 | 20087-81890-Online |
| 15 | JOINTS/DIAPHRAGMES | 29 | SPRING, RETURN | 20087-81851 | 20087-81851-Online |
| 15 | JOINTS/DIAPHRAGMES | 3 | SPRING RECEIVE | 20000-81150 | 20000-81150-Online |
| 15 | JOINTS/DIAPHRAGMES | 30 | SPRING | 20087-81870 | 20087-81870-Online |
| 15 | JOINTS/DIAPHRAGMES | 31 | VALVE | 20087-81861 | 20087-81861-Online |
| 15 | JOINTS/DIAPHRAGMES | 32 | PUMP COVER | 20087-81811 | 20087-81811-Online |
| 15 | JOINTS/DIAPHRAGMES | 33 | PRIMER, PUMP | 20087-81820 | 20087-81820-Online |
| 15 | JOINTS/DIAPHRAGMES | 34 | PLATE | 20087-81830 | 20087-81830-Online |
| 15 | JOINTS/DIAPHRAGMES | 35 | SCREW | 20087-81840 | 20087-81840-Online |
| 15 | JOINTS/DIAPHRAGMES | 36 | SCREW | 20087-81880 | 20087-81880-Online |
| 15 | JOINTS/DIAPHRAGMES | 37 | NEEDLE, JET | 70170-81170 | 70170-81170-Online |
| 15 | JOINTS/DIAPHRAGMES | 38 | SLIDE VALVE | 70170-81180 | 70170-81180-Online |
| 15 | JOINTS/DIAPHRAGMES | 39 | ADJUSTER CAP | 72920-81130 | 72920-81130-Online |
| 15 | JOINTS/DIAPHRAGMES | 4 | IDLE ADJUST SCREW | 20000-81310 | 20000-81310-Online |
| 15 | JOINTS/DIAPHRAGMES | 4 | PRIMER PUMP ASSY. | 20087-81531 | 20087-81531-Online |
| 15 | JOINTS/DIAPHRAGMES | 40 | CABLE ADJUSTER | 72920-81140 | 72920-81140-Online |
| 15 | JOINTS/DIAPHRAGMES | 41 | LOCK NUT | 20000-81260 | 20000-81260-Online |
| 15 | JOINTS/DIAPHRAGMES | 42 | CLEANER BODY | 70102-81710 | 70102-81710-Online |
| 15 | JOINTS/DIAPHRAGMES | 43 | AIR FILTER | 20056-81740 | 20056-81740-Online |
| 15 | JOINTS/DIAPHRAGMES | 44 | SCREW | 11207-04250 | 11207-04250-Online |
| 15 | JOINTS/DIAPHRAGMES | 45 | COVER | 20024-81770 | 20024-81770-Online |
| 15 | JOINTS/DIAPHRAGMES | 46 | CHOKE LABEL | 19404-00008 | 19404-00008-Online |
| 15 | JOINTS/DIAPHRAGMES | 47 | WASHER | 20024-81790 | 20024-81790-Online |
| 15 | JOINTS/DIAPHRAGMES | 48 | O-RING | 22100-82430 | 22100-82430-Online |
| 15 | JOINTS/DIAPHRAGMES | 49 | KNOB | 20115-81780 | 20115-81780-Online |
| 15 | JOINTS/DIAPHRAGMES | 5 | SPRING | 72920-81820 | 72920-81820-Online |
| 15 | JOINTS/DIAPHRAGMES | 50 | CARBURETOR BOLT | 01020-05650 | 01020-05650-Online |
| 15 | JOINTS/DIAPHRAGMES | 51 | SPRING WASHER | 01600-05130 | 01600-05130-Online |
| 15 | JOINTS/DIAPHRAGMES | 52 | GASKET | 20024-83410 | 20024-83410-Online |
| 15 | JOINTS/DIAPHRAGMES | 7 | SPRING | 20087-81480 | 20087-81480-Online |
| 15 | JOINTS/DIAPHRAGMES | 8 | LEVER | 20011-81451 | 20011-81451-Online |
| 15 | JOINTS/DIAPHRAGMES | 9 | PIN | 20011-81460 | 20011-81460-Online |

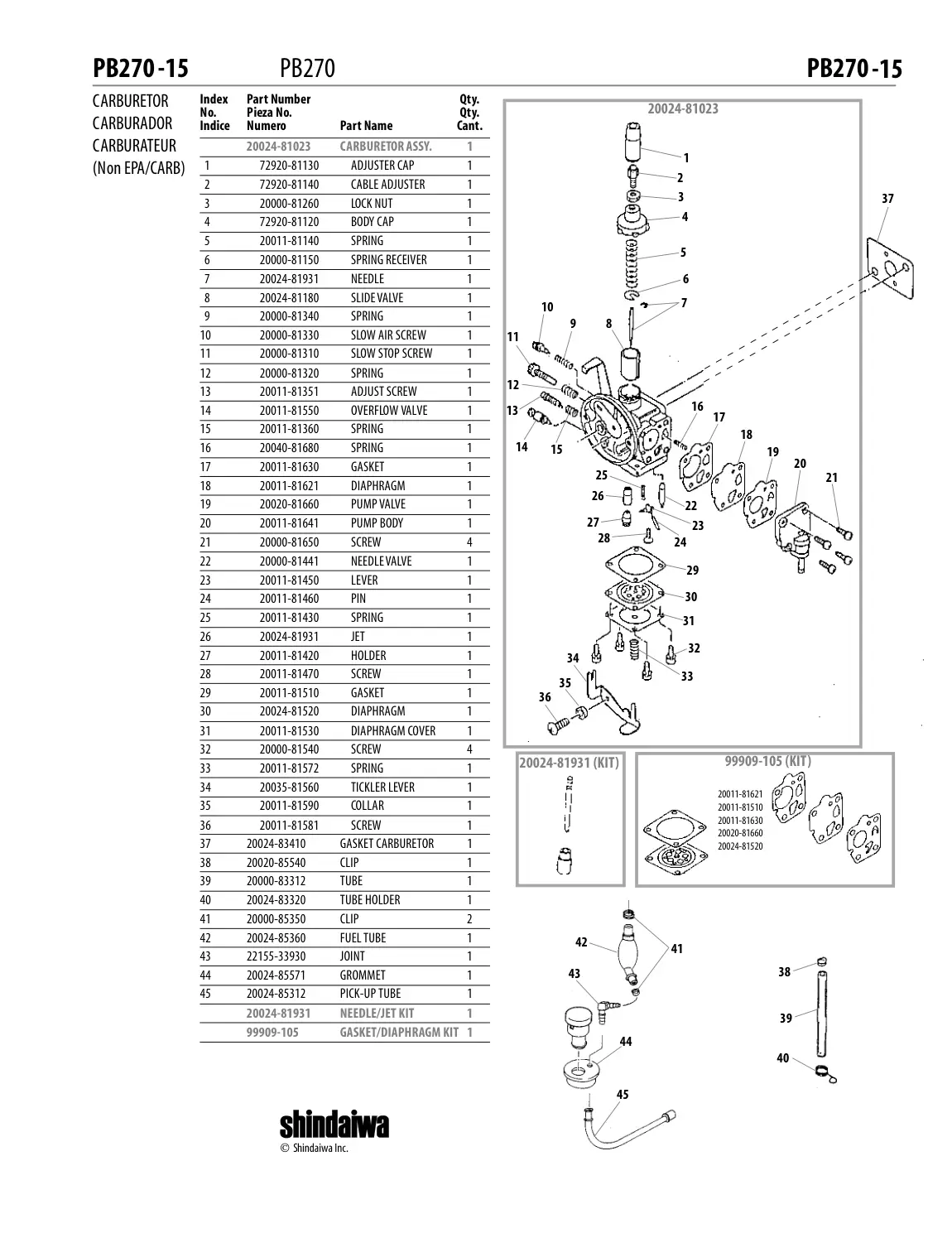

| 16 | GASKET/DIAPHRAGM KIT 1 | CARBURETOR ASSY. | 20024-81023 | 20024-81023-Online | |
| 16 | GASKET/DIAPHRAGM KIT 1 | 1 | (KIT) | 20024-81931 | 20024-81931-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 1 | NEEDLE/JET KIT | 20024-81931 | 20024-81931-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 1 | ADJUSTER CAP | 72920-81130 | 72920-81130-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 1 | (KIT) | 99909-105 | 99909-105-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 1 | GASKET/DIAPHRAGM KIT | 99909-105 | 99909-105-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 10 | SLOW AIR SCREW | 20000-81330 | 20000-81330-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 11 | SLOW STOP SCREW | 20000-81310 | 20000-81310-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 12 | SPRING | 20000-81320 | 20000-81320-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 13 | ADJUST SCREW | 20011-81351 | 20011-81351-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 14 | OVERFLOW VALVE | 20011-81550 | 20011-81550-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 15 | SPRING | 20011-81360 | 20011-81360-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 16 | SPRING | 20040-81680 | 20040-81680-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 17 | GASKET | 20011-81630 | 20011-81630-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 18 | DIAPHRAGM | 20011-81621 | 20011-81621-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 19 | PUMP VALVE | 20020-81660 | 20020-81660-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 2 | CABLE ADJUSTER | 72920-81140 | 72920-81140-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 20 | PUMP BODY | 20011-81641 | 20011-81641-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 21 | SCREW | 20000-81650 | 20000-81650-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 22 | NEEDLE VALVE | 20000-81441 | 20000-81441-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 23 | LEVER | 20011-81450 | 20011-81450-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 24 | PIN | 20011-81460 | 20011-81460-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 25 | SPRING | 20011-81430 | 20011-81430-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 26 | JET | 20024-81931 | 20024-81931-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 27 | HOLDER | 20011-81420 | 20011-81420-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 28 | SCREW | 20011-81470 | 20011-81470-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 29 | GASKET | 20011-81510 | 20011-81510-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 3 | LOCK NUT | 20000-81260 | 20000-81260-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 30 | DIAPHRAGM | 20024-81520 | 20024-81520-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 31 | DIAPHRAGM COVER | 20011-81530 | 20011-81530-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 32 | SCREW | 20000-81540 | 20000-81540-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 33 | SPRING | 20011-81572 | 20011-81572-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 34 | TICKLER LEVER | 20035-81560 | 20035-81560-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 35 | COLLAR | 20011-81590 | 20011-81590-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 36 | SCREW | 20011-81581 | 20011-81581-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 37 | GASKET CARBURETOR | 20024-83410 | 20024-83410-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 38 | CLIP | 20020-85540 | 20020-85540-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 39 | TUBE | 20000-83312 | 20000-83312-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 4 | BODY CAP | 72920-81120 | 72920-81120-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 40 | TUBE HOLDER | 20024-83320 | 20024-83320-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 41 | CLIP | 20000-85350 | 20000-85350-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 42 | FUEL TUBE | 20024-85360 | 20024-85360-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 43 | JOINT | 22155-33930 | 22155-33930-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 44 | GROMMET | 20024-85571 | 20024-85571-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 45 | PICK-UP TUBE | 20024-85312 | 20024-85312-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 5 | SPRING | 20011-81140 | 20011-81140-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 6 | SPRING RECEIVER | 20000-81150 | 20000-81150-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 7 | NEEDLE | 20024-81931 | 20024-81931-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 8 | SLIDE VALVE | 20024-81180 | 20024-81180-Online |
| 16 | GASKET/DIAPHRAGM KIT 1 | 9 | SPRING | 20000-81340 | 20000-81340-Online |
Source file: 20111008-561_PB270.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
