Shindaiwa T262TXS Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: T262TXS
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 4 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-001460 | A011-001460-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 10 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,CYLINDER | A160-003290 | A160-003290-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 12 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 13 | LABEL,SHINDAIWA | X562-000650 | X562-000650-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 2 | CYLINDER | A130-002330 | A130-002330-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 3 | GASKET,CYL | V100-000840 | V100-000840-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 4 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 5 | PISTON KIT | P021-050840 | P021-050840-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 6 | RING,PISTON | A101-000010 | A101-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 7 | PIN, PISTON | 100013-35430 | 100013-35430-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 8 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 9 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |
| 6 | CRANKCASE | 1 | CRANKCASE KIT | P021-050850 | P021-050850-Online |
| 6 | CRANKCASE | 2 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 6 | CRANKCASE | 3 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 6 | CRANKCASE | 4 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 6 | CRANKCASE | 5 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 6 | CRANKCASE | 6 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 6 | CRANKCASE | 7 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 8 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 8 | MAGNETO | 10 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 8 | MAGNETO | 11 | CAP,SPARK PLUG | A427-000220 | A427-000220-Online |
| 8 | MAGNETO | 12 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 8 | MAGNETO | 13 | LEAD | V485-002880 | V485-002880-Online |
| 8 | MAGNETO | 2 | COIL, IGNITION | A411-001710 | A411-001710-Online |
| 8 | MAGNETO | 3 | TUBE | V475-007540 | V475-007540-Online |
| 8 | MAGNETO | 4 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 8 | MAGNETO | 5 | CONNECTOR | C152-001030 | C152-001030-Online |
| 8 | MAGNETO | 6 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 8 | MAGNETO | 7 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 8 | MAGNETO | 8 | BUSHING | 156110-04920 | 156110-04920-Online |
| 8 | MAGNETO | 9 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 10 | CLUTCH | 1 | ARM,CLUTCH SET | P100-002270 | P100-002270-Online |
| 10 | CLUTCH | 10 | DRUM, CLUTCH | A556-001750 | A556-001750-Online |
| 10 | CLUTCH | 11 | CIRCLIP | 900702-00028 | 900702-00028-Online |
| 10 | CLUTCH | 12 | CIRCLIP | 900701-00012 | 900701-00012-Online |
| 10 | CLUTCH | 13 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 10 | CLUTCH | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 10 | CLUTCH | 16 | FIXTURE, MAIN PIPE | A575-000690 | A575-000690-Online |
| 10 | CLUTCH | 17 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 10 | CLUTCH | 18 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 10 | CLUTCH | 2 | SPRING,TENSION | V451-001390 | V451-001390-Online |
| 10 | CLUTCH | 3 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 10 | CLUTCH | 4 | WASHER | 175049-56030 | 175049-56030-Online |
| 10 | CLUTCH | 5 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 10 | CLUTCH | 6 | FAN COVER ASY | P021-051001 | P021-051001-Online |
| 10 | CLUTCH | 7 | COVER,FAN | A172-003141 | A172-003141-Online |
| 10 | CLUTCH | 8 | PIN F 4*8 | 900330-40080 | 900330-40080-Online |
| 10 | CLUTCH | 9 | BEARING, BALL | 900807-06001 | 900807-06001-Online |
| 12 | AIR CLEANER, CARBURETOR | 1 | BELLOWS, INTAKE | A202-000300 | A202-000300-Online |
| 12 | AIR CLEANER, CARBURETOR | 10 | GASKET,INTAKE | V103-001900 | V103-001900-Online |
| 12 | AIR CLEANER, CARBURETOR | 11 | CLEANER CASE ASY | P021-051160 | P021-051160-Online |
| 12 | AIR CLEANER, CARBURETOR | 12 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 12 | AIR CLEANER, CARBURETOR | 13 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 12 | AIR CLEANER, CARBURETOR | 14 | LID,CLEANER ASY | P100-003600 | P100-003600-Online |
| 12 | AIR CLEANER, CARBURETOR | 15 | KNOB,FASTENER | V299-000640 | V299-000640-Online |
| 12 | AIR CLEANER, CARBURETOR | 16 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 12 | AIR CLEANER, CARBURETOR | 17 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 12 | AIR CLEANER, CARBURETOR | 18 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 12 | AIR CLEANER, CARBURETOR | 19 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 12 | AIR CLEANER, CARBURETOR | 2 | HOLDER, BELLOWS | A206-000040 | A206-000040-Online |
| 12 | AIR CLEANER, CARBURETOR | 20 | LABEL | X524-001901 | X524-001901-Online |
| 12 | AIR CLEANER, CARBURETOR | 3 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 12 | AIR CLEANER, CARBURETOR | 4 | PLATE, INSULATOR | A209-001010 | A209-001010-Online |
| 12 | AIR CLEANER, CARBURETOR | 5 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 12 | AIR CLEANER, CARBURETOR | 6 | BOLT, TORX | V855-000000 | V855-000000-Online |
| 12 | AIR CLEANER, CARBURETOR | 7 | PLATE, INSULATOR | A209-001000 | A209-001000-Online |
| 12 | AIR CLEANER, CARBURETOR | 8 | GASKET,INTAKE | V103-001890 | V103-001890-Online |
| 12 | AIR CLEANER, CARBURETOR | 9 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 14 | CARBURETOR | 1 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 14 | CARBURETOR | 10 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 14 | CARBURETOR | 11 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 14 | CARBURETOR | 12 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 14 | CARBURETOR | 13 | SCREW | P003-005860 | P003-005860-Online |
| 14 | CARBURETOR | 14 | SCREW | P003-004560 | P003-004560-Online |
| 14 | CARBURETOR | 15 | SCREW | P003-004570 | P003-004570-Online |
| 14 | CARBURETOR | 16 | SPRING | P003-005870 | P003-005870-Online |
| 14 | CARBURETOR | 17 | WASHER | P003-001710 | P003-001710-Online |
| 14 | CARBURETOR | 18 | NEEDLE | P003-005880 | P003-005880-Online |
| 14 | CARBURETOR | 19 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 14 | CARBURETOR | 2 | BODY ASSEMBLY, PUMP | P003-006260 | P003-006260-Online |
| 14 | CARBURETOR | 20 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 14 | CARBURETOR | 21 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 14 | CARBURETOR | 22 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 14 | CARBURETOR | 23 | CLIP | P003-005890 | P003-005890-Online |
| 14 | CARBURETOR | 24 | SCREW | 123114-40630 | 123114-40630-Online |
| 14 | CARBURETOR | 25 | PLATE | P003-005900 | P003-005900-Online |
| 14 | CARBURETOR | 3 | CLIP | 123173-07930 | 123173-07930-Online |
| 14 | CARBURETOR | 4 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 14 | CARBURETOR | 5 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 14 | CARBURETOR | 6 | VALVE, THROTTLE | P003-006140 | P003-006140-Online |
| 14 | CARBURETOR | 7 | SWIVEL | P003-005850 | P003-005850-Online |
| 14 | CARBURETOR | 8 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 14 | CARBURETOR | 9 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 16 | FUEL TANK | 1 | TANK, FUEL | A350-002350 | A350-002350-Online |
| 16 | FUEL TANK | 10 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 16 | FUEL TANK | 11 | CLIP | V490-001230 | V490-001230-Online |
| 16 | FUEL TANK | 12 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 16 | FUEL TANK | 13 | CLIP | V490-001240 | V490-001240-Online |
| 16 | FUEL TANK | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 16 | FUEL TANK | 16 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 16 | FUEL TANK | 17 | WASHER | 900602-00005 | 900602-00005-Online |
| 16 | FUEL TANK | 2 | FUEL CAP ASY | P021-035680 | P021-035680-Online |
| 16 | FUEL TANK | 3 | GASKET, FUEL CAP | 131016-55830 | 131016-55830-Online |
| 16 | FUEL TANK | 4 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 16 | FUEL TANK | 5 | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |
| 16 | FUEL TANK | 6 | PIPE | V471-001230 | V471-001230-Online |
| 16 | FUEL TANK | 7 | PIPE 3*6* | 132010-06530 | 132010-06530-Online |
| 16 | FUEL TANK | 8 | PIPE | 132012-56030 | 132012-56030-Online |
| 16 | FUEL TANK | 9 | JOINT,PIPE | V186-000500 | V186-000500-Online |
| 18 | MUFFLER | 1 | MUFFLER ASY | P021-050900 | P021-050900-Online |
| 18 | MUFFLER | 2 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 18 | MUFFLER | 3 | GUIDE, EXHAUST | A313-002060 | A313-002060-Online |
| 18 | MUFFLER | 4 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 18 | MUFFLER | 5 | GASKET,EXHAUST | V104-002300 | V104-002300-Online |
| 18 | MUFFLER | 6 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 18 | MUFFLER | 7 | GASKET,EXHAUST | V104-002310 | V104-002310-Online |
| 18 | MUFFLER | 8 | COVER,MUFFLER | A320-001200 | A320-001200-Online |
| 18 | MUFFLER | 9 | BOLT, TORX | V805-000140 | V805-000140-Online |

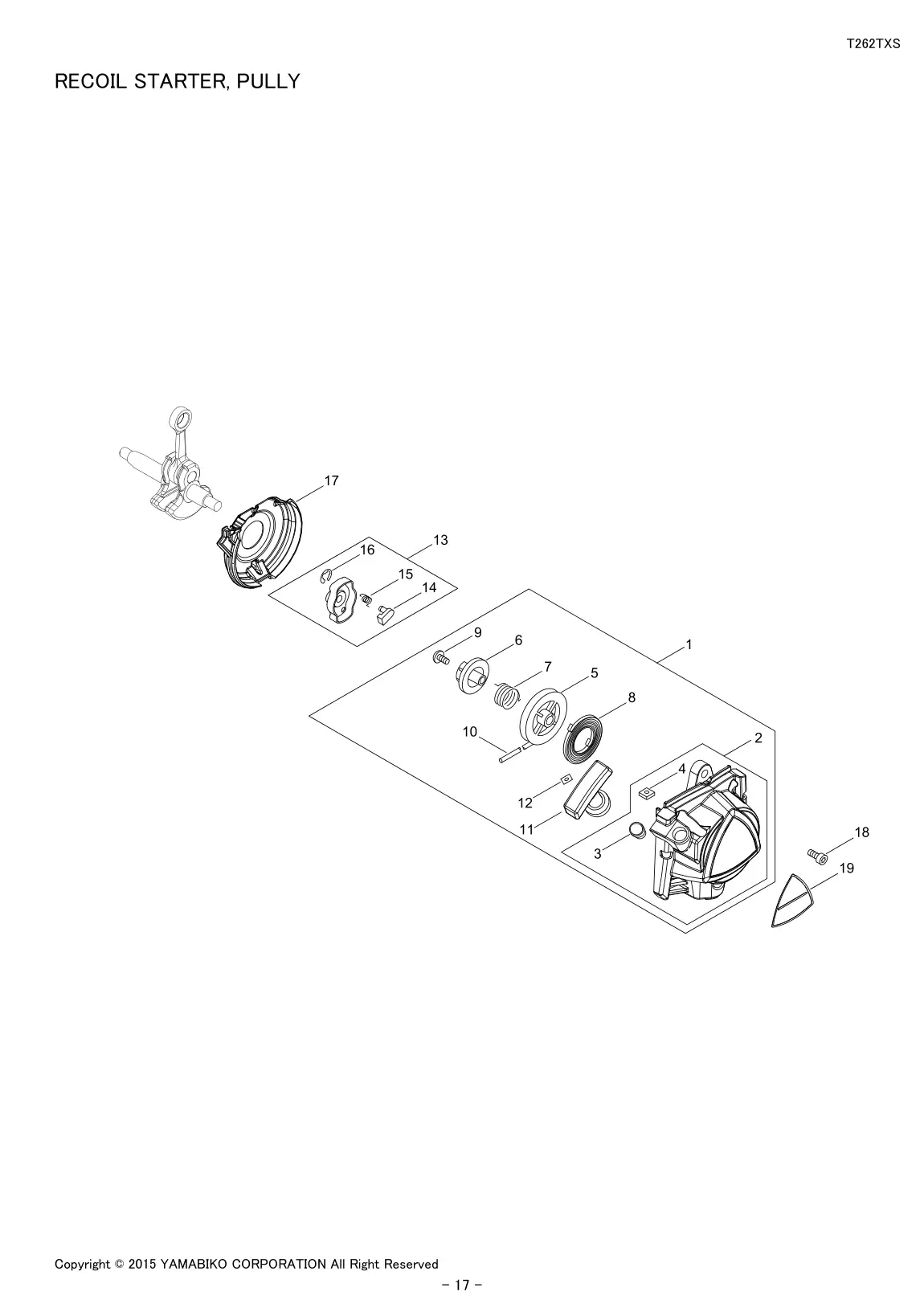

| 20 | RECOIL STARTER, PULLY | 1 | STARTER,RECOIL ASY | A051-003220 | A051-003220-Online |
| 20 | RECOIL STARTER, PULLY | 10 | ROPE, STARTER | P022-022110 | P022-022110-Online |
| 20 | RECOIL STARTER, PULLY | 11 | GRIP, STARTER | 177228-27030 | 177228-27030-Online |
| 20 | RECOIL STARTER, PULLY | 12 | STOPPER, ROPE | P022-037670 | P022-037670-Online |
| 20 | RECOIL STARTER, PULLY | 13 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 20 | RECOIL STARTER, PULLY | 14 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 20 | RECOIL STARTER, PULLY | 15 | SPRING, RETURN | P022-006510 | P022-006510-Online |
| 20 | RECOIL STARTER, PULLY | 16 | E-RING | P022-002100 | P022-002100-Online |
| 20 | RECOIL STARTER, PULLY | 17 | COVER,DUST | A127-000470 | A127-000470-Online |
| 20 | RECOIL STARTER, PULLY | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 20 | RECOIL STARTER, PULLY | 19 | LABEL,SHINDAIWA | X562-000640 | X562-000640-Online |
| 20 | RECOIL STARTER, PULLY | 2 | STATER CASE | P022-043670 | P022-043670-Online |
| 20 | RECOIL STARTER, PULLY | 3 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 20 | RECOIL STARTER, PULLY | 4 | NUT | 900565-00005 | 900565-00005-Online |
| 20 | RECOIL STARTER, PULLY | 5 | DRUM, STARTER | P022-033320 | P022-033320-Online |
| 20 | RECOIL STARTER, PULLY | 6 | PLATE, CAM | P022-033310 | P022-033310-Online |
| 20 | RECOIL STARTER, PULLY | 7 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 20 | RECOIL STARTER, PULLY | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 20 | RECOIL STARTER, PULLY | 9 | SCREW | 177236-61830 | 177236-61830-Online |
| 22 | GEAR CASE, SHIELD | 1 | GEAR CASE ASY | P021-051190 | P021-051190-Online |
| 22 | GEAR CASE, SHIELD | 10 | CIRCLIP | 900702-00022 | 900702-00022-Online |
| 22 | GEAR CASE, SHIELD | 11 | CIRCLIP | 900706-00012 | 900706-00012-Online |
| 22 | GEAR CASE, SHIELD | 12 | CIRCLIP | 900706-00010 | 900706-00010-Online |
| 22 | GEAR CASE, SHIELD | 13 | CIRCLIP | 900701-00009 | 900701-00009-Online |
| 22 | GEAR CASE, SHIELD | 14 | FIXTURE, BLADE | C535-000920 | C535-000920-Online |
| 22 | GEAR CASE, SHIELD | 15 | FIXTURE, BLADE | C535-000930 | C535-000930-Online |
| 22 | GEAR CASE, SHIELD | 16 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 22 | GEAR CASE, SHIELD | 17 | O-RING | 900720-00012 | 900720-00012-Online |
| 22 | GEAR CASE, SHIELD | 18 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 22 | GEAR CASE, SHIELD | 19 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 22 | GEAR CASE, SHIELD | 2 | GEAR SET, BEVEL | V000-000110 | V000-000110-Online |
| 22 | GEAR CASE, SHIELD | 20 | NUT | 610320-52130 | 610320-52130-Online |
| 22 | GEAR CASE, SHIELD | 21 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 22 | GEAR CASE, SHIELD | 22 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 22 | GEAR CASE, SHIELD | 23 | WASHER | 900603-50008 | 900603-50008-Online |
| 22 | GEAR CASE, SHIELD | 24 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 22 | GEAR CASE, SHIELD | 25 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 22 | GEAR CASE, SHIELD | 26 | SHIELD BLADE ASY | P021-050820 | P021-050820-Online |
| 22 | GEAR CASE, SHIELD | 27 | NUT | 900565-00005 | 900565-00005-Online |
| 22 | GEAR CASE, SHIELD | 28 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 22 | GEAR CASE, SHIELD | 29 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 22 | GEAR CASE, SHIELD | 3 | SHAFT, GEAR | C534-000940 | C534-000940-Online |
| 22 | GEAR CASE, SHIELD | 30 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 22 | GEAR CASE, SHIELD | 31 | SCREW | 91316-04010 | 91316-04010-Online |
| 22 | GEAR CASE, SHIELD | 32 | BOLT, TORX | V805-000260 | V805-000260-Online |
| 22 | GEAR CASE, SHIELD | 33 | SHIELD ASY, BLADE | P021-042900 | P021-042900-Online |
| 22 | GEAR CASE, SHIELD | 34 | NUT,5 | V263-000020 | V263-000020-Online |
| 22 | GEAR CASE, SHIELD | 35 | KNIFE, CORD | C554-000030 | C554-000030-Online |
| 22 | GEAR CASE, SHIELD | 36 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 22 | GEAR CASE, SHIELD | 37 | LABEL,EYE CATCHER | X530-000550 | X530-000550-Online |
| 22 | GEAR CASE, SHIELD | 38 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 22 | GEAR CASE, SHIELD | 4 | BEARING, BALL | 900810-00629 | 900810-00629-Online |
| 22 | GEAR CASE, SHIELD | 5 | BEARING, BALL | 900812-06302 | 900812-06302-Online |
| 22 | GEAR CASE, SHIELD | 6 | BEARING, BALL | 900855-06900 | 900855-06900-Online |
| 22 | GEAR CASE, SHIELD | 7 | BEARING, BALL 6900Z | 900858-06900 | 900858-06900-Online |
| 22 | GEAR CASE, SHIELD | 8 | WASHER,CIRCULAR | V313-000090 | V313-000090-Online |
| 22 | GEAR CASE, SHIELD | 9 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 24 | MAIN PIPE, HANDLE | 1 | MAIN PIPE ASY | P021-049000 | P021-049000-Online |
| 24 | MAIN PIPE, HANDLE | 10 | FRONT HANDLE ASY | P021-050970 | P021-050970-Online |
| 24 | MAIN PIPE, HANDLE | 11 | HANDLE,FRONT | C400-000220 | C400-000220-Online |
| 24 | MAIN PIPE, HANDLE | 12 | BRACET, HANDLE | 351643-51730 | 351643-51730-Online |
| 24 | MAIN PIPE, HANDLE | 13 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 24 | MAIN PIPE, HANDLE | 14 | NUT | 900500-00005 | 900500-00005-Online |
| 24 | MAIN PIPE, HANDLE | 2 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 24 | MAIN PIPE, HANDLE | 3 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 24 | MAIN PIPE, HANDLE | 4 | SHAFT,DRIVE | C504-000050 | C504-000050-Online |
| 24 | MAIN PIPE, HANDLE | 5 | BAND | V495-001010 | V495-001010-Online |
| 24 | MAIN PIPE, HANDLE | 6 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 24 | MAIN PIPE, HANDLE | 7 | HANGER,HARNESS | C624-000020 | C624-000020-Online |
| 24 | MAIN PIPE, HANDLE | 8 | COLLAR,24 | V363-000320 | V363-000320-Online |
| 24 | MAIN PIPE, HANDLE | 9 | SCREW 4*25 | 900253-04025 | 900253-04025-Online |
| 26 | THROTTLE | 1 | THROTTLE ASY | P100-003850 | P100-003850-Online |
| 26 | THROTTLE | 10 | LATCH,THROTTLE | C461-000110 | C461-000110-Online |
| 26 | THROTTLE | 11 | SPRING,TORSION | V452-000120 | V452-000120-Online |
| 26 | THROTTLE | 12 | SWITCH, ON OFF | A440-002800 | A440-002800-Online |
| 26 | THROTTLE | 13 | TUBE | V475-008930 | V475-008930-Online |
| 26 | THROTTLE | 14 | CABLE,BOWDEN | V430-004940 | V430-004940-Online |
| 26 | THROTTLE | 15 | NUT 6 (3N) | 900502-00006 | 900502-00006-Online |
| 26 | THROTTLE | 16 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 26 | THROTTLE | 17 | CUSHION | V420-000960 | V420-000960-Online |
| 26 | THROTTLE | 18 | HANDLE FIXTURE ASY | P021-050990 | P021-050990-Online |
| 26 | THROTTLE | 19 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 26 | THROTTLE | 2 | TRIGGER,THROTTLE | C450-000780 | C450-000780-Online |
| 26 | THROTTLE | 3 | SPRING, THR. RETURN | 178043-42230 | 178043-42230-Online |
| 26 | THROTTLE | 4 | LOCKOUT,THROTTLE | C460-000370 | C460-000370-Online |
| 26 | THROTTLE | 5 | LATCH,THROTTLE | C461-000000 | C461-000000-Online |
| 26 | THROTTLE | 6 | SPRING, THR. LOCK | 178013-52630 | 178013-52630-Online |
| 26 | THROTTLE | 7 | BOLT, TORX | V805-000060 | V805-000060-Online |
| 26 | THROTTLE | 8 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 26 | THROTTLE | 9 | NUT | 900500-00005 | 900500-00005-Online |
| 28 | ACCESSORIES | 1 | CUTTER,ASM LINE | X047-001180 | X047-001180-Online |
| 28 | ACCESSORIES | 2 | HARNESS, SHOULDER | 301001-46732 | 301001-46732-Online |
| 28 | ACCESSORIES | 2 | WRENCH, SPCKET | L1550 | L1550-Online |
| 28 | ACCESSORIES | 2 | WRENCH, SPCKET | L1910 | L1910-Online |
| 28 | ACCESSORIES | 3 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 28 | ACCESSORIES | 4 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 28 | ACCESSORIES | 5 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 28 | ACCESSORIES | 6 | GOGGLE | X690-000080 | X690-000080-Online |
| 30 | NYLON LINE CUTTER | 1 | CUTTER,ASM LINE | X047-001180 | X047-001180-Online |
| 30 | NYLON LINE CUTTER | 2 | HOUSING | P022-035000 | P022-035000-Online |
| 30 | NYLON LINE CUTTER | 3 | COVER | P022-010410 | P022-010410-Online |
| 30 | NYLON LINE CUTTER | 4 | BOBBIN | P022-010400 | P022-010400-Online |
| 30 | NYLON LINE CUTTER | 5 | NUT | P022-023180 | P022-023180-Online |
| 30 | NYLON LINE CUTTER | 6 | NYLON CODE | P022-010380 | P022-010380-Online |
| 30 | NYLON LINE CUTTER | 7 | EYELET | P022-000710 | P022-000710-Online |
| 30 | NYLON LINE CUTTER | 8 | SPRING | P022-010370 | P022-010370-Online |
| 31 | STARTER | PIN, PISTON | 100013 | 100013-Online | |
| 31 | STARTER | 10 | LABEL,CAUTION | 890617 | 890617-Online |
| 31 | STARTER | 10 | CARBURETOR, | A021-00 | A021-00-Online |
| 31 | STARTER | 12 | SCREEN, INLET | 123126 | 123126-Online |
| 31 | STARTER | 12 | VALVE, INLET | 123137 | 123137-Online |
| 31 | STARTER | 12 | PIN, METERING | 123138 | 123138-Online |
| 31 | STARTER | 12 | GASKET,M. | 123140 | 123140-Online |
| 31 | STARTER | 12 | COVER, M. | 123142 | 123142-Online |
| 31 | STARTER | 12 | CLIP | 123173 | 123173-Online |
| 31 | STARTER | 12 | PUMP, PRIMER | 123181 | 123181-Online |
| 31 | STARTER | 12 | GASKET, FUEL CAP | 131016 | 131016-Online |
| 31 | STARTER | 12 | STARTER,RECOIL | A051-00 | A051-00-Online |
| 31 | STARTER | 14 | PIPE 3*6* | 132010 | 132010-Online |
| 31 | STARTER | 14 | PIPE | 132012 | 132012-Online |
| 31 | STARTER | 14 | GROMMET, FUEL | 132115 | 132115-Online |
| 31 | STARTER | 14 | SCREEN, MUFFLER | 145862 | 145862-Online |
| 31 | STARTER | 14 | WASHER | 900603 | 900603-Online |
| 31 | STARTER | 16 | BUSHING | 156110 | 156110-Online |
| 31 | STARTER | 18 | GRIP, STARTER | 177228 | 177228-Online |
| 31 | STARTER | 18 | SCREW | 177236 | 177236-Online |
| 31 | STARTER | 18 | SPRING, THR. LOCK | 178013 | 178013-Online |
| 31 | STARTER | 18 | NUT | 900565 | 900565-Online |
| 31 | STARTER | 18 | PULLEY,ASM | A052-00 | A052-00-Online |
| 31 | STARTER | 2 | SPACER, PISTON | 100014 | 100014-Online |
| 31 | STARTER | 2 | CIRCLIP, PISTON | 100015 | 100015-Online |
| 31 | STARTER | 2 | KEY, WOODRUFF | 100142 | 100142-Online |
| 31 | STARTER | 2 | CARBURETOR, | A021-00 | A021-00-Online |
| 31 | STARTER | 20 | NUT | 610320 | 610320-Online |
| 31 | STARTER | 20 | PLATE, CUP | 610352 | 610352-Online |
| 31 | STARTER | 20 | BOLT 8* | 610434 | 610434-Online |
| 31 | STARTER | 20 | PLATE, COVER | 699229 | 699229-Online |
| 31 | STARTER | 20 | LABEL, CAUTION | 890152 | 890152-Online |
| 31 | STARTER | 20 | NUT | 900565 | 900565-Online |
| 31 | STARTER | 20 | WASHER | 900602 | 900602-Online |
| 31 | STARTER | 20 | CIRCLIP | 900701 | 900701-Online |
| 31 | STARTER | 20 | CIRCLIP | 900702 | 900702-Online |
| 31 | STARTER | 20 | CIRCLIP | 900706 | 900706-Online |
| 31 | STARTER | 20 | O-RING | 900720 | 900720-Online |
| 31 | STARTER | 20 | BEARING, BALL | 900800 | 900800-Online |
| 31 | STARTER | 20 | BEARING, BALL | 900810 | 900810-Online |
| 31 | STARTER | 20 | BEARING, BALL | 900855 | 900855-Online |
| 31 | STARTER | 20 | BEARING, BALL | 900858 | 900858-Online |
| 31 | STARTER | 20 | SCREW | 91316-04 | 91316-04-Online |
| 31 | STARTER | 20 | CRANKSHAFT,ASY | A011-00 | A011-00-Online |
| 31 | STARTER | 22 | PLATE, ADAPTER | 610314 | 610314-Online |
| 31 | STARTER | 22 | LABEL, CHOKE | 890332 | 890332-Online |
| 31 | STARTER | 22 | WRENCH, SPCKET | 895415 | 895415-Online |
| 31 | STARTER | 22 | PIN F 4*8 | 900330 | 900330-Online |
| 31 | STARTER | 22 | NUT | 900500 | 900500-Online |
| 31 | STARTER | 24 | SPRING, THR. | 178043 | 178043-Online |
| 31 | STARTER | 24 | HARNESS, | 301001 | 301001-Online |
| 31 | STARTER | 24 | NUT 6 (3N) | 900502 | 900502-Online |
| 31 | STARTER | 24 | NUT, FLANGE | 900515 | 900515-Online |
| 31 | STARTER | 24 | NUT, LOCK | 900562 | 900562-Online |
| 31 | STARTER | 26 | BRACET, HANDLE | 351643 | 351643-Online |
| 31 | STARTER | 26 | SCREW 4*25 | 900253 | 900253-Online |
| 31 | STARTER | 4 | SCREW | 123114 | 123114-Online |
| 31 | STARTER | 4 | BEARING, BALL | 900807 | 900807-Online |
| 31 | STARTER | 4 | BEARING, BALL | 900812 | 900812-Online |
| 31 | STARTER | 6 | OILSEAL | 100212 | 100212-Online |
| 31 | STARTER | 6 | SHAFT, CLUTCH | 175046 | 175046-Online |
| 31 | STARTER | 6 | NUT, FLANGE | 900518 | 900518-Online |
| 31 | STARTER | 8 | WASHER (I) | 175048 | 175048-Online |
| 31 | STARTER | 8 | WASHER | 175049 | 175049-Online |
| 31 | STARTER | 8 | SPRING, REWIND | 177220 | 177220-Online |
| 31 | STARTER | 8 | NUT | 900500 | 900500-Online |
| 31 | STARTER | 8 | CIRCLIP | 900702 | 900702-Online |
| 31 | STARTER | 8 | BEARING, BALL | 900810 | 900810-Online |
| 32 | EYELET | RING,PISTON | A101-00 | A101-00-Online | |
| 32 | EYELET | 10 | HOLDER, BELLOWS | A206-00 | A206-00-Online |
| 32 | EYELET | 10 | PLATE, INSULATOR | A209-00 | A209-00-Online |
| 32 | EYELET | 10 | ELEMENT, AIR | A226-00 | A226-00-Online |
| 32 | EYELET | 10 | PLATE, ELEMENT | A227-00 | A227-00-Online |
| 32 | EYELET | 10 | PLATE,PREVENT | A244-00 | A244-00-Online |
| 32 | EYELET | 10 | GUIDE, EXHAUST | A313-00 | A313-00-Online |
| 32 | EYELET | 10 | GEAR CASE ASY | P021-05 | P021-05-Online |
| 32 | EYELET | 12 | DIAPHRAGM, | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | WASHER | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | COVER, FUEL | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | GASKET, FUEL | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | DIAPHRAGM, FUEL | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | SCREW | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | SWIVEL | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | SPRING | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | NEEDLE | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | CLIP | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | PLATE | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | VALVE, THROTTLE | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | BODY ASSEMBLY, | P003-00 | P003-00-Online |
| 32 | EYELET | 12 | FUEL CAP ASY | P021-03 | P021-03-Online |
| 32 | EYELET | 14 | BELLOWS, INTAKE | A202-00 | A202-00-Online |
| 32 | EYELET | 14 | VALVE,CHECK | A356-00 | A356-00-Online |
| 32 | EYELET | 14 | CONNECTOR,CAP | A365-00 | A365-00-Online |
| 32 | EYELET | 14 | STRAINER, FUEL | A369-00 | A369-00-Online |
| 32 | EYELET | 14 | ROTOR, MAGNETO | A409-00 | A409-00-Online |
| 32 | EYELET | 14 | SHIELD ASY, | P021-04 | P021-04-Online |
| 32 | EYELET | 16 | COVER,MUFFLER | A320-00 | A320-00-Online |
| 32 | EYELET | 16 | TANK, FUEL | A350-00 | A350-00-Online |
| 32 | EYELET | 16 | FRONT HANDLE | P021-05 | P021-05-Online |
| 32 | EYELET | 18 | CYLINDER | A130-00 | A130-00-Online |
| 32 | EYELET | 2 | COVER,DUST | A127-00 | A127-00-Online |
| 32 | EYELET | 2 | COVER,CYLINDER | A160-00 | A160-00-Online |
| 32 | EYELET | 2 | COVER,FAN | A172-00 | A172-00-Online |
| 32 | EYELET | 2 | CRANKCASE KIT | P021-05 | P021-05-Online |
| 32 | EYELET | 20 | FIXTURE, BLADE | C535-00 | C535-00-Online |
| 32 | EYELET | 20 | SHIELD, BLADE | C550-00 | C550-00-Online |
| 32 | EYELET | 20 | PLATE, SHIELD | C552-00 | C552-00-Online |
| 32 | EYELET | 20 | KNIFE, CORD | C554-00 | C554-00-Online |
| 32 | EYELET | 20 | HANGER,HARNESS | C624-00 | C624-00-Online |
| 32 | EYELET | 20 | MAIN PIPE ASY | P021-04 | P021-04-Online |
| 32 | EYELET | 20 | PISTON KIT | P021-05 | P021-05-Online |
| 32 | EYELET | 20 | EYELET | P022-00 | P022-00-Online |
| 32 | EYELET | 22 | TRIGGER, | C450-00 | C450-00-Online |
| 32 | EYELET | 22 | SHAFT, GEAR | C534-00 | C534-00-Online |
| 32 | EYELET | 22 | LEVER, METERING | P003-00 | P003-00-Online |
| 32 | EYELET | 22 | SHIELD BLADE ASY | P021-05 | P021-05-Online |
| 32 | EYELET | 22 | HANDLE FIXTURE | P021-05 | P021-05-Online |
| 32 | EYELET | 24 | DRUM, CLUTCH | A556-00 | A556-00-Online |
| 32 | EYELET | 24 | LOCKOUT, | C460-00 | C460-00-Online |
| 32 | EYELET | 24 | LATCH,THROTTLE | C461-00 | C461-00-Online |
| 32 | EYELET | 24 | SHAFT,DRIVE | C504-00 | C504-00-Online |
| 32 | EYELET | 24 | FAN COVER ASY | P021-05 | P021-05-Online |
| 32 | EYELET | 4 | MUFFLER ASY | P021-05 | P021-05-Online |
| 32 | EYELET | 6 | COIL, IGNITION | A411-00 | A411-00-Online |
| 32 | EYELET | 6 | TERMINAL, | A426-00 | A426-00-Online |
| 32 | EYELET | 6 | CAP,SPARK PLUG | A427-00 | A427-00-Online |
| 32 | EYELET | 6 | SWITCH, ON OFF | A440-00 | A440-00-Online |
| 32 | EYELET | 6 | HANDLE,FRONT | C400-00 | C400-00-Online |
| 32 | EYELET | 8 | SPARKPLUG | A425-00 | A425-00-Online |
| 32 | EYELET | 8 | FIXTURE, MAIN | A575-00 | A575-00-Online |
| 32 | EYELET | 8 | CONNECTOR | C152-00 | C152-00-Online |
| 32 | EYELET | 8 | CLEANER CASE | P021-05 | P021-05-Online |
| 33 | CUTTER,ASM LINE | E-RING | P022-00 | P022-00-Online | |
| 33 | CUTTER,ASM LINE | 10 | THROTTLE ASY | P100-00 | P100-00-Online |
| 33 | CUTTER,ASM LINE | 10 | GASKET,INTAKE | V103-00 | V103-00-Online |
| 33 | CUTTER,ASM LINE | 10 | GASKET,EXHAUST | V104-00 | V104-00-Online |
| 33 | CUTTER,ASM LINE | 10 | WASHER,CIRCULAR | V313-00 | V313-00-Online |
| 33 | CUTTER,ASM LINE | 10 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 10 | BOLT, TORX | V806-00 | V806-00-Online |
| 33 | CUTTER,ASM LINE | 10 | CUTTER,ASM LINE | X047-00 | X047-00-Online |
| 33 | CUTTER,ASM LINE | 14 | NUT,5 | V263-00 | V263-00-Online |
| 33 | CUTTER,ASM LINE | 14 | TUBE | V475-00 | V475-00-Online |
| 33 | CUTTER,ASM LINE | 14 | CLIP | V490-00 | V490-00-Online |
| 33 | CUTTER,ASM LINE | 14 | BAND | V495-00 | V495-00-Online |
| 33 | CUTTER,ASM LINE | 14 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 16 | GASKET,EXHAUST | V104-00 | V104-00-Online |
| 33 | CUTTER,ASM LINE | 16 | JOINT,PIPE | V186-00 | V186-00-Online |
| 33 | CUTTER,ASM LINE | 16 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 18 | SPRING, RETURN | P022-00 | P022-00-Online |
| 33 | CUTTER,ASM LINE | 18 | PAWL, STARTER | P022-00 | P022-00-Online |
| 33 | CUTTER,ASM LINE | 18 | SPRING,DAMPER | P022-00 | P022-00-Online |
| 33 | CUTTER,ASM LINE | 18 | SPRING | P022-01 | P022-01-Online |
| 33 | CUTTER,ASM LINE | 18 | NUT | P022-02 | P022-02-Online |
| 33 | CUTTER,ASM LINE | 18 | DRUM, STARTER | P022-03 | P022-03-Online |
| 33 | CUTTER,ASM LINE | 18 | HOUSING | P022-03 | P022-03-Online |
| 33 | CUTTER,ASM LINE | 18 | STATER CASE | P022-04 | P022-04-Online |
| 33 | CUTTER,ASM LINE | 18 | GUIDE, ROPE | P022-04 | P022-04-Online |
| 33 | CUTTER,ASM LINE | 18 | ARM,CLUTCH SET | P100-00 | P100-00-Online |
| 33 | CUTTER,ASM LINE | 18 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 2 | GASKET, | V102-00 | V102-00-Online |
| 33 | CUTTER,ASM LINE | 2 | BOLT, TORX | V804-00 | V804-00-Online |
| 33 | CUTTER,ASM LINE | 2 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 20 | GASKET,CYL | V100-00 | V100-00-Online |
| 33 | CUTTER,ASM LINE | 20 | KNOB,FASTENER | V299-00 | V299-00-Online |
| 33 | CUTTER,ASM LINE | 20 | WASHER,CIRCULAR | V323-00 | V323-00-Online |
| 33 | CUTTER,ASM LINE | 20 | PIPE | V471-00 | V471-00-Online |
| 33 | CUTTER,ASM LINE | 20 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 20 | BOLT, TORX | V855-00 | V855-00-Online |
| 33 | CUTTER,ASM LINE | 22 | CUSHION | V420-00 | V420-00-Online |
| 33 | CUTTER,ASM LINE | 22 | SEAL,OIL | V503-00 | V503-00-Online |
| 33 | CUTTER,ASM LINE | 22 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 24 | GEAR SET, BEVEL | V000-00 | V000-00-Online |
| 33 | CUTTER,ASM LINE | 24 | CABLE,BOWDEN | V430-00 | V430-00-Online |
| 33 | CUTTER,ASM LINE | 24 | SPRING,TENSION | V451-00 | V451-00-Online |
| 33 | CUTTER,ASM LINE | 24 | SPRING,TORSION | V452-00 | V452-00-Online |
| 33 | CUTTER,ASM LINE | 24 | LEAD | V485-00 | V485-00-Online |
| 33 | CUTTER,ASM LINE | 24 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 28 | NYLON CODE | P022-01 | P022-01-Online |
| 33 | CUTTER,ASM LINE | 28 | BOBBIN | P022-01 | P022-01-Online |
| 33 | CUTTER,ASM LINE | 28 | COVER | P022-01 | P022-01-Online |
| 33 | CUTTER,ASM LINE | 28 | ROPE, STARTER | P022-02 | P022-02-Online |
| 33 | CUTTER,ASM LINE | 28 | PLATE, CAM | P022-03 | P022-03-Online |
| 33 | CUTTER,ASM LINE | 28 | STOPPER, ROPE | P022-03 | P022-03-Online |
| 33 | CUTTER,ASM LINE | 4 | GASKET,INTAKE | V103-00 | V103-00-Online |
| 33 | CUTTER,ASM LINE | 4 | BEARING,NEEDLE | V554-00 | V554-00-Online |
| 33 | CUTTER,ASM LINE | 4 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 6 | COLLAR,24 | V363-00 | V363-00-Online |
| 33 | CUTTER,ASM LINE | 6 | TUBE | V475-00 | V475-00-Online |
| 33 | CUTTER,ASM LINE | 6 | CLIP | V490-00 | V490-00-Online |
| 33 | CUTTER,ASM LINE | 6 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | CUTTER,ASM LINE | 8 | LID,CLEANER ASY | P100-00 | P100-00-Online |
| 33 | CUTTER,ASM LINE | 8 | SPRING,TORSION | V452-00 | V452-00-Online |
| 33 | CUTTER,ASM LINE | 8 | BOLT, TORX | V805-00 | V805-00-Online |
| 34 | GOGGLE | CUTTER,ASM LINE | X047-00 | X047-00-Online | |
| 34 | GOGGLE | 10 | LABEL,EYE | X530-00 | X530-00-Online |
| 34 | GOGGLE | 18 | LABEL,SHINDAIWA | X562-00 | X562-00-Online |
| 34 | GOGGLE | 2 | TOOL,L WRENCH | X605-00 | X605-00-Online |
| 34 | GOGGLE | 20 | LABEL,SHINDAIWA | X562-00 | X562-00-Online |
| 34 | GOGGLE | 26 | TOOL,BAR | X606-00 | X606-00-Online |
| 34 | GOGGLE | 26 | GOGGLE | X690-00 | X690-00-Online |
| 34 | GOGGLE | 28 | LABEL | X524-00 | X524-00-Online |
Source file: 20191122-376_T262TXS_37_37001001_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
