Illustrated Parts List
Shindaiwa T262XS Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: T262XS
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 4 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-001460 | A011-001460-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 10 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,CYLINDER | A160-003290 | A160-003290-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 12 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 13 | LABEL,SHINDAIWA | X562-000350 | X562-000350-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 2 | CYLINDER | A130-002330 | A130-002330-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 3 | GASKET,CYL | V100-000840 | V100-000840-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 4 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 5 | PISTON KIT | P021-050840 | P021-050840-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 6 | RING,PISTON | A101-000010 | A101-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 7 | PIN, PISTON | 100013-35430 | 100013-35430-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 8 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 9 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |
| 6 | CRANKCASE | 1 | CRANKCASE KIT | P021-050850 | P021-050850-Online |
| 6 | CRANKCASE | 2 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 6 | CRANKCASE | 3 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 6 | CRANKCASE | 4 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 6 | CRANKCASE | 5 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 6 | CRANKCASE | 6 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 6 | CRANKCASE | 7 | BOLT, TORX | V805-000220 | V805-000220-Online |

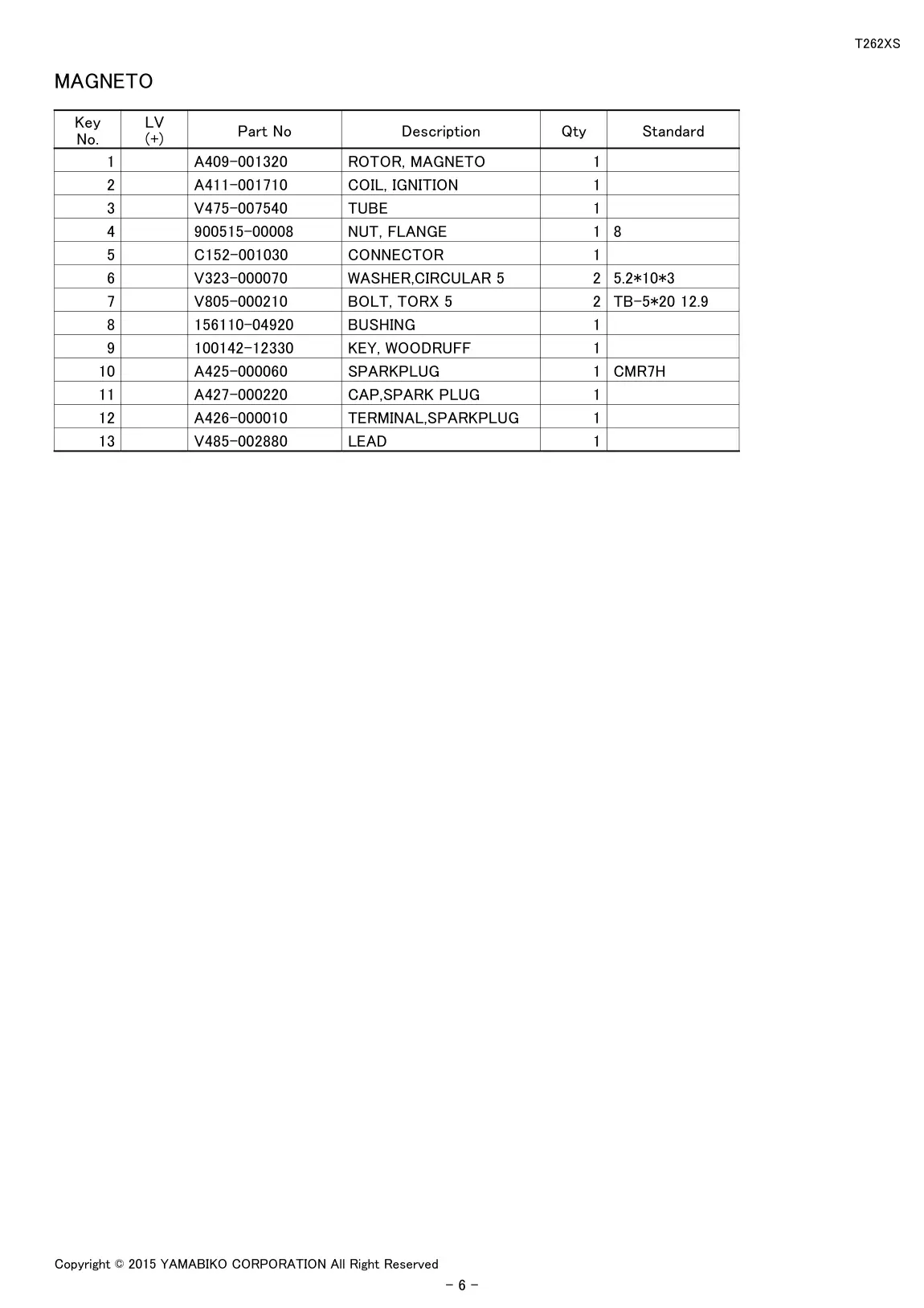

| 8 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 8 | MAGNETO | 10 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 8 | MAGNETO | 11 | CAP,SPARK PLUG | A427-000220 | A427-000220-Online |
| 8 | MAGNETO | 12 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 8 | MAGNETO | 13 | LEAD | V485-002880 | V485-002880-Online |
| 8 | MAGNETO | 2 | COIL, IGNITION | A411-001710 | A411-001710-Online |
| 8 | MAGNETO | 3 | TUBE | V475-007540 | V475-007540-Online |
| 8 | MAGNETO | 4 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 8 | MAGNETO | 5 | CONNECTOR | C152-001030 | C152-001030-Online |
| 8 | MAGNETO | 6 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 8 | MAGNETO | 7 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 8 | MAGNETO | 8 | BUSHING | 156110-04920 | 156110-04920-Online |
| 8 | MAGNETO | 9 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 10 | CLUTCH | 1 | CLUTCH ASY | P021-050860 | P021-050860-Online |
| 10 | CLUTCH | 10 | DRUM, CLUTCH | A556-001750 | A556-001750-Online |
| 10 | CLUTCH | 11 | CIRCLIP | 900702-00028 | 900702-00028-Online |
| 10 | CLUTCH | 12 | CIRCLIP | 900701-00012 | 900701-00012-Online |
| 10 | CLUTCH | 13 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 10 | CLUTCH | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 10 | CLUTCH | 16 | FIXTURE, MAIN PIPE | A575-000690 | A575-000690-Online |
| 10 | CLUTCH | 17 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 10 | CLUTCH | 18 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 10 | CLUTCH | 2 | ARM, CLUTCH | A553-000190 | A553-000190-Online |
| 10 | CLUTCH | 3 | SPRING,TENSION | V451-001390 | V451-001390-Online |
| 10 | CLUTCH | 4 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 10 | CLUTCH | 5 | WASHER | 175049-56030 | 175049-56030-Online |
| 10 | CLUTCH | 6 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 10 | CLUTCH | 7 | FAN COVER ASY | P021-051000 | P021-051000-Online |
| 10 | CLUTCH | 8 | COVER,FAN | A172-003140 | A172-003140-Online |
| 10 | CLUTCH | 9 | BEARING, BALL | 900807-06001 | 900807-06001-Online |
| 12 | AIR CLEANER, CARBURETOR | 1 | BELLOWS, INTAKE | A202-000300 | A202-000300-Online |
| 12 | AIR CLEANER, CARBURETOR | 10 | GASKET,INTAKE | V103-001900 | V103-001900-Online |
| 12 | AIR CLEANER, CARBURETOR | 11 | CLEANER CASE ASY | P021-051160 | P021-051160-Online |
| 12 | AIR CLEANER, CARBURETOR | 12 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 12 | AIR CLEANER, CARBURETOR | 13 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 12 | AIR CLEANER, CARBURETOR | 14 | LID,CLEANER | A232-001890 | A232-001890-Online |
| 12 | AIR CLEANER, CARBURETOR | 15 | KNOB,FASTENER | V299-000290 | V299-000290-Online |
| 12 | AIR CLEANER, CARBURETOR | 16 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 12 | AIR CLEANER, CARBURETOR | 17 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 12 | AIR CLEANER, CARBURETOR | 18 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 12 | AIR CLEANER, CARBURETOR | 19 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 12 | AIR CLEANER, CARBURETOR | 2 | HOLDER, BELLOWS | A206-000040 | A206-000040-Online |
| 12 | AIR CLEANER, CARBURETOR | 20 | LABEL | X524-001901 | X524-001901-Online |
| 12 | AIR CLEANER, CARBURETOR | 3 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 12 | AIR CLEANER, CARBURETOR | 4 | PLATE, INSULATOR | A209-001010 | A209-001010-Online |
| 12 | AIR CLEANER, CARBURETOR | 5 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 12 | AIR CLEANER, CARBURETOR | 6 | BOLT, TORX | V855-000000 | V855-000000-Online |
| 12 | AIR CLEANER, CARBURETOR | 7 | PLATE, INSULATOR | A209-001000 | A209-001000-Online |
| 12 | AIR CLEANER, CARBURETOR | 8 | GASKET,INTAKE | V103-001890 | V103-001890-Online |
| 12 | AIR CLEANER, CARBURETOR | 9 | CARBURETOR, | A021-004600 | A021-004600-Online |

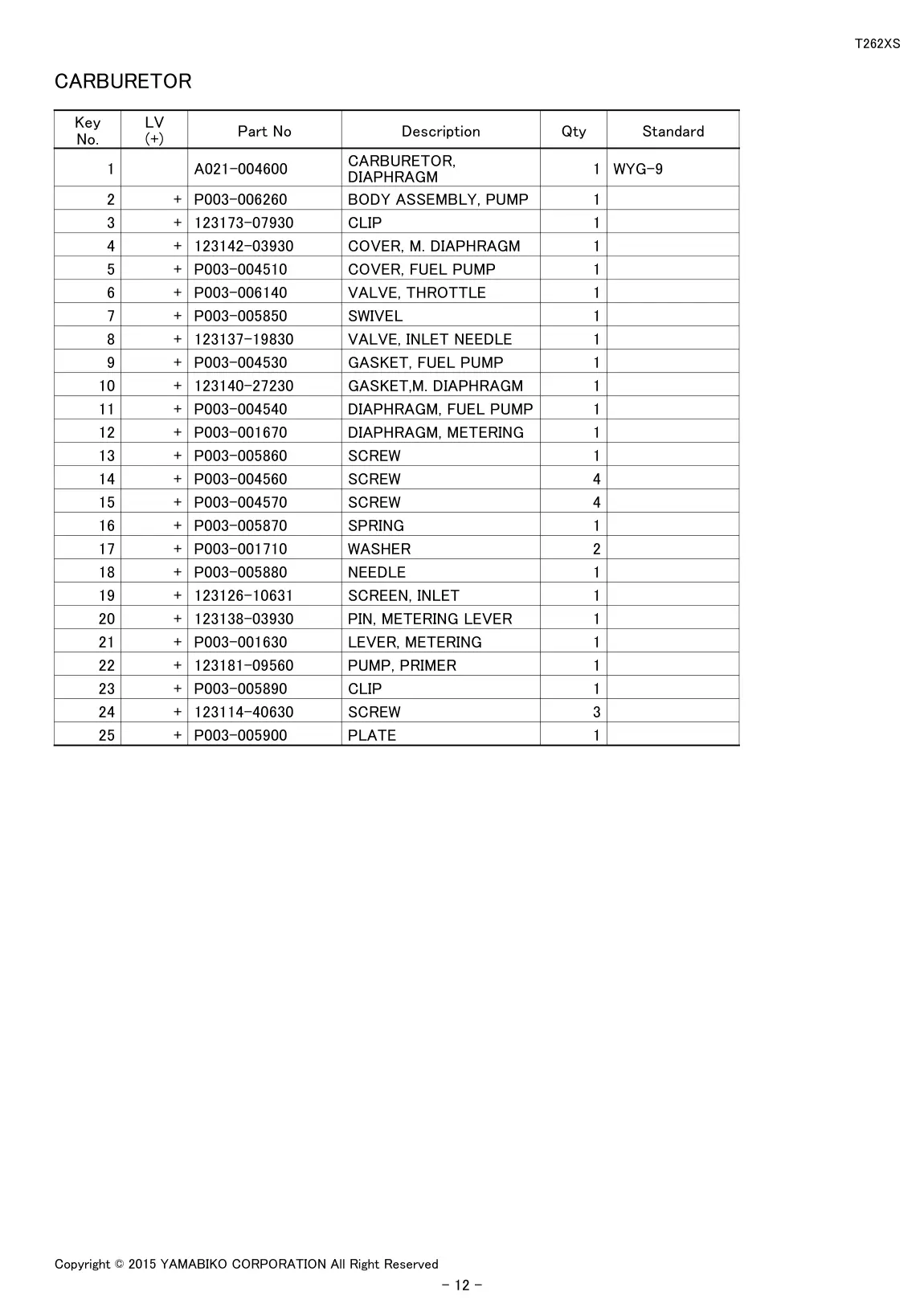

| 14 | CARBURETOR | 1 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 14 | CARBURETOR | 10 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 14 | CARBURETOR | 11 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 14 | CARBURETOR | 12 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 14 | CARBURETOR | 13 | SCREW | P003-005860 | P003-005860-Online |
| 14 | CARBURETOR | 14 | SCREW | P003-004560 | P003-004560-Online |
| 14 | CARBURETOR | 15 | SCREW | P003-004570 | P003-004570-Online |
| 14 | CARBURETOR | 16 | SPRING | P003-005870 | P003-005870-Online |
| 14 | CARBURETOR | 17 | WASHER | P003-001710 | P003-001710-Online |
| 14 | CARBURETOR | 18 | NEEDLE | P003-005880 | P003-005880-Online |
| 14 | CARBURETOR | 19 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 14 | CARBURETOR | 2 | BODY ASSEMBLY, PUMP | P003-006260 | P003-006260-Online |
| 14 | CARBURETOR | 20 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 14 | CARBURETOR | 21 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 14 | CARBURETOR | 22 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 14 | CARBURETOR | 23 | CLIP | P003-005890 | P003-005890-Online |
| 14 | CARBURETOR | 24 | SCREW | 123114-40630 | 123114-40630-Online |
| 14 | CARBURETOR | 25 | PLATE | P003-005900 | P003-005900-Online |
| 14 | CARBURETOR | 3 | CLIP | 123173-07930 | 123173-07930-Online |
| 14 | CARBURETOR | 4 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 14 | CARBURETOR | 5 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 14 | CARBURETOR | 6 | VALVE, THROTTLE | P003-006140 | P003-006140-Online |
| 14 | CARBURETOR | 7 | SWIVEL | P003-005850 | P003-005850-Online |
| 14 | CARBURETOR | 8 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 14 | CARBURETOR | 9 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 16 | FUEL TANK | 1 | TANK, FUEL | A350-002350 | A350-002350-Online |
| 16 | FUEL TANK | 10 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 16 | FUEL TANK | 11 | CLIP | V490-001230 | V490-001230-Online |
| 16 | FUEL TANK | 12 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 16 | FUEL TANK | 13 | CLIP | V490-001240 | V490-001240-Online |
| 16 | FUEL TANK | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 16 | FUEL TANK | 16 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 16 | FUEL TANK | 17 | WASHER | 900602-00005 | 900602-00005-Online |
| 16 | FUEL TANK | 2 | FUEL CAP ASY | P021-035680 | P021-035680-Online |
| 16 | FUEL TANK | 3 | GASKET, FUEL CAP | 131016-55830 | 131016-55830-Online |
| 16 | FUEL TANK | 4 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 16 | FUEL TANK | 5 | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |
| 16 | FUEL TANK | 6 | PIPE | V471-001230 | V471-001230-Online |
| 16 | FUEL TANK | 7 | PIPE 3*6* | 132010-06530 | 132010-06530-Online |
| 16 | FUEL TANK | 8 | PIPE | 132012-56030 | 132012-56030-Online |
| 16 | FUEL TANK | 9 | JOINT,PIPE | V186-000500 | V186-000500-Online |

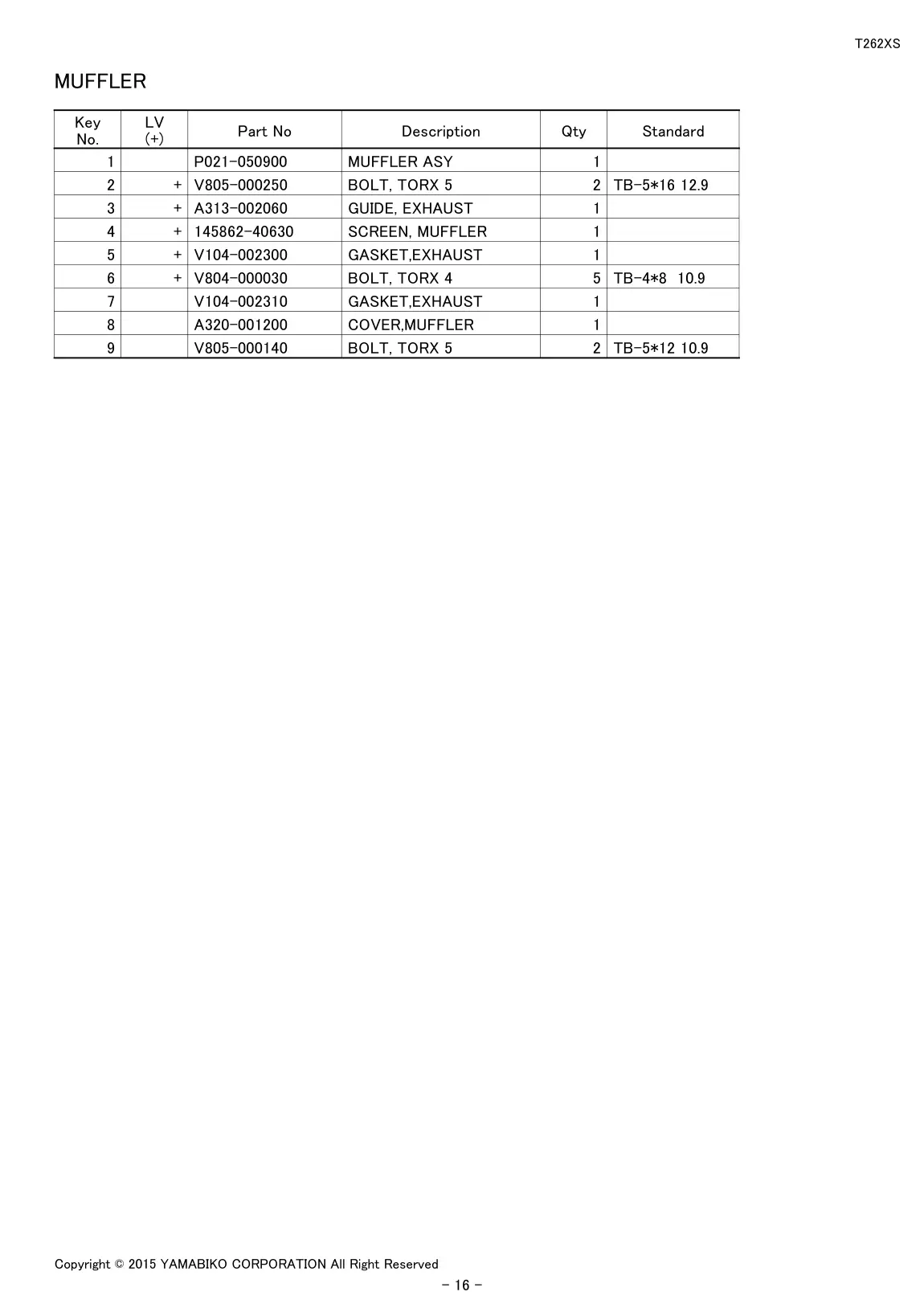

| 18 | MUFFLER | 1 | MUFFLER ASY | P021-050900 | P021-050900-Online |
| 18 | MUFFLER | 2 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 18 | MUFFLER | 3 | GUIDE, EXHAUST | A313-002060 | A313-002060-Online |
| 18 | MUFFLER | 4 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 18 | MUFFLER | 5 | GASKET,EXHAUST | V104-002300 | V104-002300-Online |
| 18 | MUFFLER | 6 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 18 | MUFFLER | 7 | GASKET,EXHAUST | V104-002310 | V104-002310-Online |
| 18 | MUFFLER | 8 | COVER,MUFFLER | A320-001200 | A320-001200-Online |
| 18 | MUFFLER | 9 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 20 | RECOIL STARTER, PULLY | 1 | STARTER,RECOIL ASY | A051-003220 | A051-003220-Online |
| 20 | RECOIL STARTER, PULLY | 10 | ROPE, STARTER | P022-022110 | P022-022110-Online |
| 20 | RECOIL STARTER, PULLY | 11 | GRIP, STARTER | 177228-27030 | 177228-27030-Online |
| 20 | RECOIL STARTER, PULLY | 12 | STOPPER, ROPE | P022-037670 | P022-037670-Online |
| 20 | RECOIL STARTER, PULLY | 13 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 20 | RECOIL STARTER, PULLY | 14 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 20 | RECOIL STARTER, PULLY | 15 | SPRING, RETURN | P022-006510 | P022-006510-Online |
| 20 | RECOIL STARTER, PULLY | 16 | E-RING | P022-002100 | P022-002100-Online |
| 20 | RECOIL STARTER, PULLY | 17 | COVER,DUST | A127-000470 | A127-000470-Online |
| 20 | RECOIL STARTER, PULLY | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 20 | RECOIL STARTER, PULLY | 19 | LABEL,SHINDAIWA | X562-000360 | X562-000360-Online |
| 20 | RECOIL STARTER, PULLY | 2 | STATER CASE | P022-043670 | P022-043670-Online |
| 20 | RECOIL STARTER, PULLY | 3 | GUIDE, ROPE | 177227-42030 | 177227-42030-Online |
| 20 | RECOIL STARTER, PULLY | 4 | NUT | 900565-00005 | 900565-00005-Online |
| 20 | RECOIL STARTER, PULLY | 5 | DRUM, STARTER | P022-033320 | P022-033320-Online |
| 20 | RECOIL STARTER, PULLY | 6 | PLATE, CAM | P022-033310 | P022-033310-Online |
| 20 | RECOIL STARTER, PULLY | 7 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 20 | RECOIL STARTER, PULLY | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 20 | RECOIL STARTER, PULLY | 9 | SCREW | 177236-61830 | 177236-61830-Online |
| 22 | GEAR CASE, SHIELD | 1 | GEAR CASE ASY | P021-050950 | P021-050950-Online |
| 22 | GEAR CASE, SHIELD | 10 | WASHER | 610444-56830 | 610444-56830-Online |
| 22 | GEAR CASE, SHIELD | 11 | CIRCLIP | 900702-00022 | 900702-00022-Online |
| 22 | GEAR CASE, SHIELD | 12 | CIRCLIP | 900706-00010 | 900706-00010-Online |
| 22 | GEAR CASE, SHIELD | 13 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 22 | GEAR CASE, SHIELD | 14 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 22 | GEAR CASE, SHIELD | 15 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 22 | GEAR CASE, SHIELD | 16 | WASHER | 900603-50008 | 900603-50008-Online |
| 22 | GEAR CASE, SHIELD | 17 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 22 | GEAR CASE, SHIELD | 18 | FIXTURE,BLADE | 610313-52932 | 610313-52932-Online |
| 22 | GEAR CASE, SHIELD | 19 | FIXTURE,BLADE | 610313-52132 | 610313-52132-Online |
| 22 | GEAR CASE, SHIELD | 2 | SCREW 4*6 | 900220-04006 | 900220-04006-Online |
| 22 | GEAR CASE, SHIELD | 20 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 22 | GEAR CASE, SHIELD | 21 | O-RING | 900720-00012 | 900720-00012-Online |
| 22 | GEAR CASE, SHIELD | 22 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 22 | GEAR CASE, SHIELD | 23 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 22 | GEAR CASE, SHIELD | 24 | NUT | 610320-52130 | 610320-52130-Online |
| 22 | GEAR CASE, SHIELD | 25 | SHIELD BLADE ASY | P021-050820 | P021-050820-Online |
| 22 | GEAR CASE, SHIELD | 26 | NUT | 900565-00005 | 900565-00005-Online |
| 22 | GEAR CASE, SHIELD | 27 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 22 | GEAR CASE, SHIELD | 28 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 22 | GEAR CASE, SHIELD | 29 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 22 | GEAR CASE, SHIELD | 3 | GEAR SET | 610300-25531 | 610300-25531-Online |
| 22 | GEAR CASE, SHIELD | 30 | SCREW | 91316-04010 | 91316-04010-Online |
| 22 | GEAR CASE, SHIELD | 31 | BOLT, TORX | V805-000260 | V805-000260-Online |
| 22 | GEAR CASE, SHIELD | 32 | SHIELD ASY, BLADE | P021-042900 | P021-042900-Online |
| 22 | GEAR CASE, SHIELD | 33 | KNIFE, CORD | C554-000030 | C554-000030-Online |
| 22 | GEAR CASE, SHIELD | 34 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 22 | GEAR CASE, SHIELD | 35 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 22 | GEAR CASE, SHIELD | 4 | SHAFT, P.T.O. | 610310-56832 | 610310-56832-Online |
| 22 | GEAR CASE, SHIELD | 5 | BEARING, BALL | 900812-06201 | 900812-06201-Online |
| 22 | GEAR CASE, SHIELD | 6 | BEARING, BALL | 94060-00626 | 94060-00626-Online |
| 22 | GEAR CASE, SHIELD | 7 | BEARING BALL | 94060-06900 | 94060-06900-Online |
| 22 | GEAR CASE, SHIELD | 7 | BEARING BALL | BB6900 | BB6900-Online |
| 22 | GEAR CASE, SHIELD | 8 | BEARING BALL | 94063-06900 | 94063-06900-Online |
| 22 | GEAR CASE, SHIELD | 9 | CIRCLIP | 900702-00032 | 900702-00032-Online |
| 24 | MAIN PIPE, HANDLE | 1 | MAIN PIPE ASY | P021-049000 | P021-049000-Online |
| 24 | MAIN PIPE, HANDLE | 10 | FRONT HANDLE ASY | P021-050970 | P021-050970-Online |
| 24 | MAIN PIPE, HANDLE | 11 | HANDLE,FRONT | C400-000220 | C400-000220-Online |
| 24 | MAIN PIPE, HANDLE | 12 | BRACET, HANDLE | 351643-51730 | 351643-51730-Online |
| 24 | MAIN PIPE, HANDLE | 13 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 24 | MAIN PIPE, HANDLE | 14 | NUT | 900500-00005 | 900500-00005-Online |
| 24 | MAIN PIPE, HANDLE | 2 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 24 | MAIN PIPE, HANDLE | 3 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 24 | MAIN PIPE, HANDLE | 4 | SHAFT,DRIVE | C504-000050 | C504-000050-Online |
| 24 | MAIN PIPE, HANDLE | 5 | BAND | V495-001010 | V495-001010-Online |
| 24 | MAIN PIPE, HANDLE | 6 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 24 | MAIN PIPE, HANDLE | 7 | HANGER,HARNESS | C624-000020 | C624-000020-Online |
| 24 | MAIN PIPE, HANDLE | 8 | COLLAR,24 | V363-000320 | V363-000320-Online |
| 24 | MAIN PIPE, HANDLE | 9 | SCREW 4*25 | 900253-04025 | 900253-04025-Online |

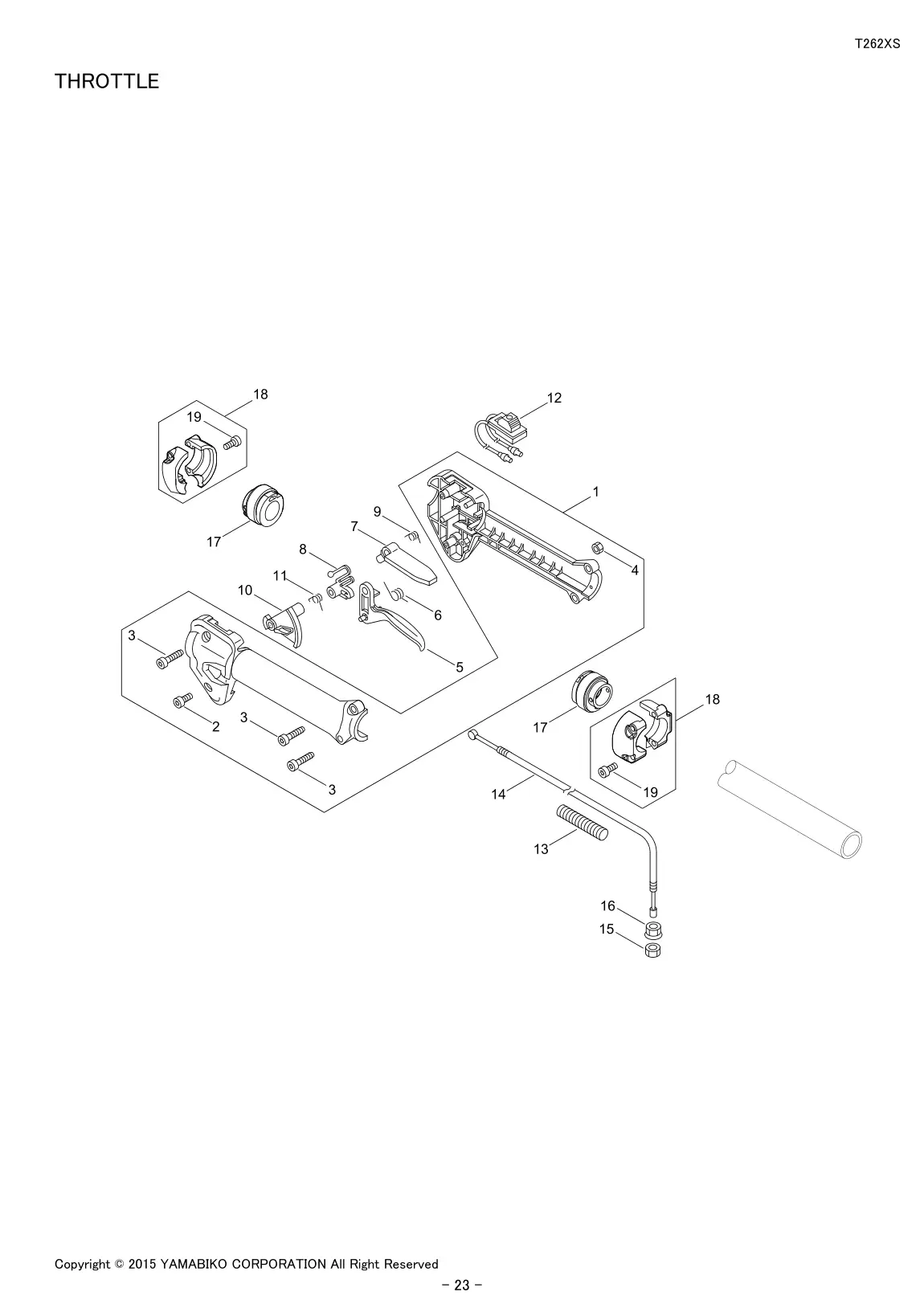

| 26 | THROTTLE | 1 | THROTTLE BRACKET | P021-050980 | P021-050980-Online |
| 26 | THROTTLE | 10 | LATCH,THROTTLE | C461-000110 | C461-000110-Online |
| 26 | THROTTLE | 11 | SPRING,TORSION | V452-000120 | V452-000120-Online |
| 26 | THROTTLE | 12 | SWITCH, ON OFF | A440-002800 | A440-002800-Online |
| 26 | THROTTLE | 13 | TUBE | V475-008930 | V475-008930-Online |
| 26 | THROTTLE | 14 | CABLE,BOWDEN | V430-004940 | V430-004940-Online |
| 26 | THROTTLE | 15 | NUT 6 (3N) | 900502-00006 | 900502-00006-Online |
| 26 | THROTTLE | 16 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 26 | THROTTLE | 17 | CUSHION | V420-000960 | V420-000960-Online |
| 26 | THROTTLE | 18 | HANDLE FIXTURE ASY | P021-050990 | P021-050990-Online |
| 26 | THROTTLE | 19 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 26 | THROTTLE | 2 | BOLT, TORX | V805-000060 | V805-000060-Online |
| 26 | THROTTLE | 3 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 26 | THROTTLE | 4 | NUT | 900500-00005 | 900500-00005-Online |
| 26 | THROTTLE | 5 | TRIGGER,THROTTLE | C450-000780 | C450-000780-Online |
| 26 | THROTTLE | 6 | SPRING, THR. RETURN | 178043-42230 | 178043-42230-Online |
| 26 | THROTTLE | 7 | LOCKOUT,THROTTLE | C460-000370 | C460-000370-Online |
| 26 | THROTTLE | 8 | LATCH,THROTTLE | C461-000000 | C461-000000-Online |
| 26 | THROTTLE | 9 | SPRING, THR. LOCK | 178013-52630 | 178013-52630-Online |
| 28 | ACCESSORIES | 1 | CUTTER,ASM LINE | X047-000270 | X047-000270-Online |
| 28 | ACCESSORIES | 2 | HARNESS, SHOULDER | 301001-46731 | 301001-46731-Online |
| 28 | ACCESSORIES | 2 | WRENCH, SPCKET | L1550 | L1550-Online |
| 28 | ACCESSORIES | 2 | WRENCH, SPCKET | L1910 | L1910-Online |
| 28 | ACCESSORIES | 3 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 28 | ACCESSORIES | 4 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 28 | ACCESSORIES | 5 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 28 | ACCESSORIES | 6 | GOGGLE | X690-000080 | X690-000080-Online |

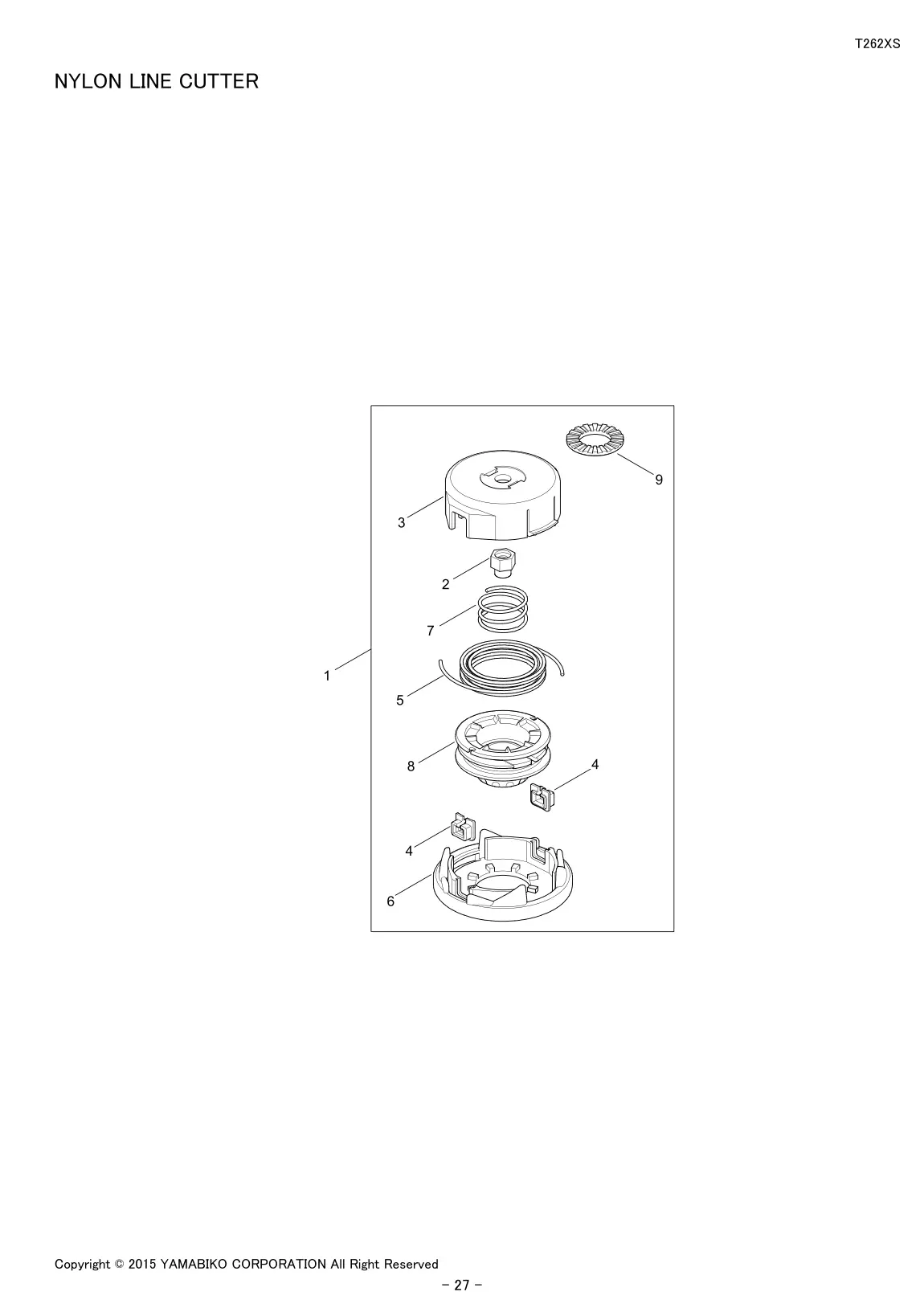

| 30 | NYLON LINE CUTTER | 1 | CUTTER,ASM LINE | X047-000270 | X047-000270-Online |
| 30 | NYLON LINE CUTTER | 2 | NUT | P022-001220 | P022-001220-Online |
| 30 | NYLON LINE CUTTER | 3 | HOUSING | P022-003310 | P022-003310-Online |
| 30 | NYLON LINE CUTTER | 4 | EYELET | P022-000710 | P022-000710-Online |
| 30 | NYLON LINE CUTTER | 5 | NYLON CODE | P022-006190 | P022-006190-Online |
| 30 | NYLON LINE CUTTER | 6 | COVER | P022-003330 | P022-003330-Online |
| 30 | NYLON LINE CUTTER | 7 | SPRING | P022-001250 | P022-001250-Online |
| 30 | NYLON LINE CUTTER | 8 | BOBBIN | P022-001260 | P022-001260-Online |
| 30 | NYLON LINE CUTTER | 9 | WASHER | P022-022050 | P022-022050-Online |
| 31 | BODY ASSEMBLY, PUMP | PIN, PISTON | 100013-35430 | 100013-35430-Online | |
| 31 | BODY ASSEMBLY, PUMP | 10 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | HOLDER, BELLOWS | A206-000040 | A206-000040-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | PLATE, INSULATOR | A209-001000 | A209-001000-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | PLATE, INSULATOR | A209-001010 | A209-001010-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | LID,CLEANER | A232-001890 | A232-001890-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 31 | BODY ASSEMBLY, PUMP | 10 | GUIDE, EXHAUST | A313-002060 | A313-002060-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | CLIP | 123173-07930 | 123173-07930-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | GASKET, FUEL CAP | 131016-55830 | 131016-55830-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | STARTER,RECOIL ASY | A051-003220 | A051-003220-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | WASHER | P003-001710 | P003-001710-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | SCREW | P003-004560 | P003-004560-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | SCREW | P003-004570 | P003-004570-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | SWIVEL | P003-005850 | P003-005850-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | SCREW | P003-005860 | P003-005860-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | SPRING | P003-005870 | P003-005870-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | NEEDLE | P003-005880 | P003-005880-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | CLIP | P003-005890 | P003-005890-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | PLATE | P003-005900 | P003-005900-Online |
| 31 | BODY ASSEMBLY, PUMP | 12 | VALVE, THROTTLE | P003-006140 | P003-006140-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | PIPE 3*6* | 132010-06530 | 132010-06530-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | PIPE | 132012-56030 | 132012-56030-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | WASHER | 900603-50008 | 900603-50008-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | BELLOWS, INTAKE | A202-000300 | A202-000300-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 31 | BODY ASSEMBLY, PUMP | 14 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 31 | BODY ASSEMBLY, PUMP | 16 | BUSHING | 156110-04920 | 156110-04920-Online |
| 31 | BODY ASSEMBLY, PUMP | 16 | COVER,MUFFLER | A320-001200 | A320-001200-Online |
| 31 | BODY ASSEMBLY, PUMP | 16 | TANK, FUEL | A350-002350 | A350-002350-Online |
| 31 | BODY ASSEMBLY, PUMP | 18 | GUIDE, ROPE | 177227-42030 | 177227-42030-Online |
| 31 | BODY ASSEMBLY, PUMP | 18 | GRIP, STARTER | 177228-27030 | 177228-27030-Online |
| 31 | BODY ASSEMBLY, PUMP | 18 | SCREW | 177236-61830 | 177236-61830-Online |
| 31 | BODY ASSEMBLY, PUMP | 18 | SPRING, THR. LOCK | 178013-52630 | 178013-52630-Online |
| 31 | BODY ASSEMBLY, PUMP | 18 | NUT | 900565-00005 | 900565-00005-Online |
| 31 | BODY ASSEMBLY, PUMP | 18 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 31 | BODY ASSEMBLY, PUMP | 18 | RING,PISTON | A101-000010 | A101-000010-Online |
| 31 | BODY ASSEMBLY, PUMP | 18 | CYLINDER | A130-002330 | A130-002330-Online |
| 31 | BODY ASSEMBLY, PUMP | 2 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 31 | BODY ASSEMBLY, PUMP | 2 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 31 | BODY ASSEMBLY, PUMP | 2 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 31 | BODY ASSEMBLY, PUMP | 2 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 31 | BODY ASSEMBLY, PUMP | 2 | COVER,DUST | A127-000470 | A127-000470-Online |
| 31 | BODY ASSEMBLY, PUMP | 2 | COVER,CYLINDER | A160-003290 | A160-003290-Online |
| 31 | BODY ASSEMBLY, PUMP | 2 | COVER,FAN | A172-003140 | A172-003140-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | SHAFT, P.T.O. | 610310-56832 | 610310-56832-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | FIXTURE,BLADE | 610313-52132 | 610313-52132-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | FIXTURE,BLADE | 610313-52932 | 610313-52932-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | NUT | 610320-52130 | 610320-52130-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | WASHER | 610444-56830 | 610444-56830-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | SCREW 4*25 | 900253-04025 | 900253-04025-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | NUT | 900565-00005 | 900565-00005-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | WASHER | 900602-00005 | 900602-00005-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | CIRCLIP | 900701-00012 | 900701-00012-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | CIRCLIP | 900702-00028 | 900702-00028-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | O-RING | 900720-00012 | 900720-00012-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | SCREW | 91316-04010 | 91316-04010-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | BEARING, BALL | 94060-00626 | 94060-00626-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | BEARING BALL | 94060-06900 | 94060-06900-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | BEARING BALL | 94063-06900 | 94063-06900-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | CRANKSHAFT,ASY | A011-001460 | A011-001460-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | KNIFE, CORD | C554-000030 | C554-000030-Online |
| 31 | BODY ASSEMBLY, PUMP | 20 | HANGER,HARNESS | C624-000020 | C624-000020-Online |
| 31 | BODY ASSEMBLY, PUMP | 22 | GEAR SET | 610300-25531 | 610300-25531-Online |
| 31 | BODY ASSEMBLY, PUMP | 22 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 31 | BODY ASSEMBLY, PUMP | 22 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 31 | BODY ASSEMBLY, PUMP | 22 | NUT | 900500-00005 | 900500-00005-Online |
| 31 | BODY ASSEMBLY, PUMP | 22 | TRIGGER,THROTTLE | C450-000780 | C450-000780-Online |
| 31 | BODY ASSEMBLY, PUMP | 22 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 31 | BODY ASSEMBLY, PUMP | 22 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | SPRING, THR. RETURN | 178043-42230 | 178043-42230-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | HARNESS, SHOULDER | 301001-46731 | 301001-46731-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | NUT 6 (3N) | 900502-00006 | 900502-00006-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | ARM, CLUTCH | A553-000190 | A553-000190-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | LOCKOUT,THROTTLE | C460-000370 | C460-000370-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | LATCH,THROTTLE | C461-000000 | C461-000000-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | LATCH,THROTTLE | C461-000110 | C461-000110-Online |
| 31 | BODY ASSEMBLY, PUMP | 24 | SHAFT,DRIVE | C504-000050 | C504-000050-Online |
| 31 | BODY ASSEMBLY, PUMP | 26 | BRACET, HANDLE | 351643-51730 | 351643-51730-Online |
| 31 | BODY ASSEMBLY, PUMP | 26 | SCREW 4*6 | 900220-04006 | 900220-04006-Online |
| 31 | BODY ASSEMBLY, PUMP | 4 | SCREW | 123114-40630 | 123114-40630-Online |
| 31 | BODY ASSEMBLY, PUMP | 4 | BEARING, BALL | 900807-06001 | 900807-06001-Online |
| 31 | BODY ASSEMBLY, PUMP | 4 | BEARING, BALL | 900812-06201 | 900812-06201-Online |
| 31 | BODY ASSEMBLY, PUMP | 6 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 31 | BODY ASSEMBLY, PUMP | 6 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 31 | BODY ASSEMBLY, PUMP | 6 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 31 | BODY ASSEMBLY, PUMP | 6 | COIL, IGNITION | A411-001710 | A411-001710-Online |
| 31 | BODY ASSEMBLY, PUMP | 6 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 31 | BODY ASSEMBLY, PUMP | 6 | CAP,SPARK PLUG | A427-000220 | A427-000220-Online |
| 31 | BODY ASSEMBLY, PUMP | 6 | SWITCH, ON OFF | A440-002800 | A440-002800-Online |
| 31 | BODY ASSEMBLY, PUMP | 6 | HANDLE,FRONT | C400-000220 | C400-000220-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | WASHER | 175049-56030 | 175049-56030-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | CIRCLIP | 900702-00022 | 900702-00022-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | CIRCLIP | 900702-00032 | 900702-00032-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | CIRCLIP | 900706-00010 | 900706-00010-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | DRUM, CLUTCH | A556-001750 | A556-001750-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | FIXTURE, MAIN PIPE | A575-000690 | A575-000690-Online |
| 31 | BODY ASSEMBLY, PUMP | 8 | CONNECTOR | C152-001030 | C152-001030-Online |
| 32 | GOGGLE | FUEL CAP ASY | P021-035680 | P021-035680-Online | |
| 32 | GOGGLE | 10 | EYELET | P022-000710 | P022-000710-Online |
| 32 | GOGGLE | 10 | GASKET,INTAKE | V103-001900 | V103-001900-Online |
| 32 | GOGGLE | 10 | GASKET,EXHAUST | V104-002300 | V104-002300-Online |
| 32 | GOGGLE | 10 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 32 | GOGGLE | 10 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 32 | GOGGLE | 10 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 32 | GOGGLE | 10 | CUTTER,ASM LINE | X047-000270 | X047-000270-Online |
| 32 | GOGGLE | 10 | LABEL,SHINDAIWA | X562-000350 | X562-000350-Online |
| 32 | GOGGLE | 14 | SHIELD ASY, BLADE | P021-042900 | P021-042900-Online |
| 32 | GOGGLE | 14 | KNOB,FASTENER | V299-000290 | V299-000290-Online |
| 32 | GOGGLE | 14 | TUBE | V475-007540 | V475-007540-Online |
| 32 | GOGGLE | 14 | CLIP | V490-001240 | V490-001240-Online |
| 32 | GOGGLE | 14 | BAND | V495-001010 | V495-001010-Online |
| 32 | GOGGLE | 14 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 32 | GOGGLE | 16 | GEAR CASE ASY | P021-050950 | P021-050950-Online |
| 32 | GOGGLE | 16 | GASKET,EXHAUST | V104-002310 | V104-002310-Online |
| 32 | GOGGLE | 16 | JOINT,PIPE | V186-000500 | V186-000500-Online |
| 32 | GOGGLE | 16 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 32 | GOGGLE | 16 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 32 | GOGGLE | 16 | BOLT, TORX | V805-000260 | V805-000260-Online |
| 32 | GOGGLE | 18 | HOUSING | P022-003310 | P022-003310-Online |
| 32 | GOGGLE | 18 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 32 | GOGGLE | 18 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 32 | GOGGLE | 18 | WASHER | P022-022050 | P022-022050-Online |
| 32 | GOGGLE | 18 | PLATE, CAM | P022-033310 | P022-033310-Online |
| 32 | GOGGLE | 18 | DRUM, STARTER | P022-033320 | P022-033320-Online |
| 32 | GOGGLE | 18 | STOPPER, ROPE | P022-037670 | P022-037670-Online |
| 32 | GOGGLE | 18 | STATER CASE | P022-043670 | P022-043670-Online |
| 32 | GOGGLE | 18 | GASKET,CYL | V100-000840 | V100-000840-Online |
| 32 | GOGGLE | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 32 | GOGGLE | 18 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 32 | GOGGLE | 2 | CRANKCASE KIT | P021-050850 | P021-050850-Online |
| 32 | GOGGLE | 2 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 32 | GOGGLE | 2 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 32 | GOGGLE | 2 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 32 | GOGGLE | 2 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 32 | GOGGLE | 2 | LABEL,SHINDAIWA | X562-000360 | X562-000360-Online |
| 32 | GOGGLE | 20 | MAIN PIPE ASY | P021-049000 | P021-049000-Online |
| 32 | GOGGLE | 20 | PISTON KIT | P021-050840 | P021-050840-Online |
| 32 | GOGGLE | 20 | FRONT HANDLE ASY | P021-050970 | P021-050970-Online |
| 32 | GOGGLE | 20 | PIPE | V471-001230 | V471-001230-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 32 | GOGGLE | 20 | BOLT, TORX | V855-000000 | V855-000000-Online |
| 32 | GOGGLE | 22 | SHIELD BLADE ASY | P021-050820 | P021-050820-Online |
| 32 | GOGGLE | 22 | THROTTLE BRACKET | P021-050980 | P021-050980-Online |
| 32 | GOGGLE | 22 | CUSHION | V420-000960 | V420-000960-Online |
| 32 | GOGGLE | 22 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 32 | GOGGLE | 22 | BOLT, TORX | V805-000060 | V805-000060-Online |
| 32 | GOGGLE | 22 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 32 | GOGGLE | 24 | HANDLE FIXTURE ASY | P021-050990 | P021-050990-Online |
| 32 | GOGGLE | 24 | FAN COVER ASY | P021-051000 | P021-051000-Online |
| 32 | GOGGLE | 24 | CABLE,BOWDEN | V430-004940 | V430-004940-Online |
| 32 | GOGGLE | 24 | SPRING,TENSION | V451-001390 | V451-001390-Online |
| 32 | GOGGLE | 24 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 32 | GOGGLE | 24 | LEAD | V485-002880 | V485-002880-Online |
| 32 | GOGGLE | 24 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 32 | GOGGLE | 24 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 32 | GOGGLE | 26 | CUTTER,ASM LINE | X047-000270 | X047-000270-Online |
| 32 | GOGGLE | 26 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 32 | GOGGLE | 28 | NUT | P022-001220 | P022-001220-Online |
| 32 | GOGGLE | 28 | SPRING | P022-001250 | P022-001250-Online |
| 32 | GOGGLE | 28 | BOBBIN | P022-001260 | P022-001260-Online |
| 32 | GOGGLE | 28 | E-RING | P022-002100 | P022-002100-Online |
| 32 | GOGGLE | 28 | COVER | P022-003330 | P022-003330-Online |
| 32 | GOGGLE | 28 | NYLON CODE | P022-006190 | P022-006190-Online |
| 32 | GOGGLE | 28 | SPRING, RETURN | P022-006510 | P022-006510-Online |
| 32 | GOGGLE | 28 | ROPE, STARTER | P022-022110 | P022-022110-Online |
| 32 | GOGGLE | 28 | LABEL | X524-001901 | X524-001901-Online |
| 32 | GOGGLE | 4 | CLUTCH ASY | P021-050860 | P021-050860-Online |
| 32 | GOGGLE | 4 | GASKET,INTAKE | V103-001890 | V103-001890-Online |
| 32 | GOGGLE | 4 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |
| 32 | GOGGLE | 4 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 32 | GOGGLE | 6 | COLLAR,24 | V363-000320 | V363-000320-Online |
| 32 | GOGGLE | 6 | TUBE | V475-008930 | V475-008930-Online |
| 32 | GOGGLE | 6 | CLIP | V490-001230 | V490-001230-Online |
| 32 | GOGGLE | 6 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 32 | GOGGLE | 8 | MUFFLER ASY | P021-050900 | P021-050900-Online |
| 32 | GOGGLE | 8 | CLEANER CASE ASY | P021-051160 | P021-051160-Online |
| 32 | GOGGLE | 8 | SPRING,TORSION | V452-000120 | V452-000120-Online |
| 32 | GOGGLE | 8 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 32 | GOGGLE | 8 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 32 | GOGGLE | 8 | BOLT, TORX | V805-000170 | V805-000170-Online |
Source file: 20200226-848_T262XS_37_37000001_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
