Illustrated Parts List
Hustler® X-One® Parts Manual - 936237EX
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 936237EXModel: 936286EXModel: 936328EXModel: 936401EXModel: 936419EXModel: 606528Model: 113856Model: 122842Model: 935783Model: 935775+11 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
Frame-Side DischargeFrame-Rear DischargeEngine GuardHydraulic SystemSteeringSteering CoverSteering CoverLS Steering Box AssemblyRS Steering Box AssemblyBrakeWheel & TireEngineEngineFuel SystemFuel Tank Service PartsBatteryInstrument Panel52" Deck Pulleys & Spindles52" Deck52" Deck54" Deck Pulleys & Spindles54" Deck54" Deck60" Deck Pulleys & Spindles60" Deck60" Deck60" Rear Discharge Deck Pulleys & Spindles60" Rear Discharge Deck60" Rear Discharge Deck54"/60" Rear Discharge Deck Dust Shield72" Deck Pulleys & Spindles72" Deck72" DeckDeck LiftSeatROPSFrame-Side Discharge
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 52" FRAME (WITH DECALS) | 553831 | 1 | 553831-Online |
| 1 | 60" FRAME (WITH DECALS) | 553832 | 1 | 553832-Online |
| 1 | 72" FRAME (WITH DECALS) | 553833 | 1 | 553833-Online |
| 2 | BUMPER .500 X 1.00 X .31 | 781880 | 4 | HT781880-Online |
| 3 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |
| 4 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 5 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 6 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 7 | 1/2-13 THREAD RIVET NUT | 600961 | 4 | 600961-Online |
| 8 | HOT DECAL | 602041 | 2 | 602041-Online |
| 9 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |

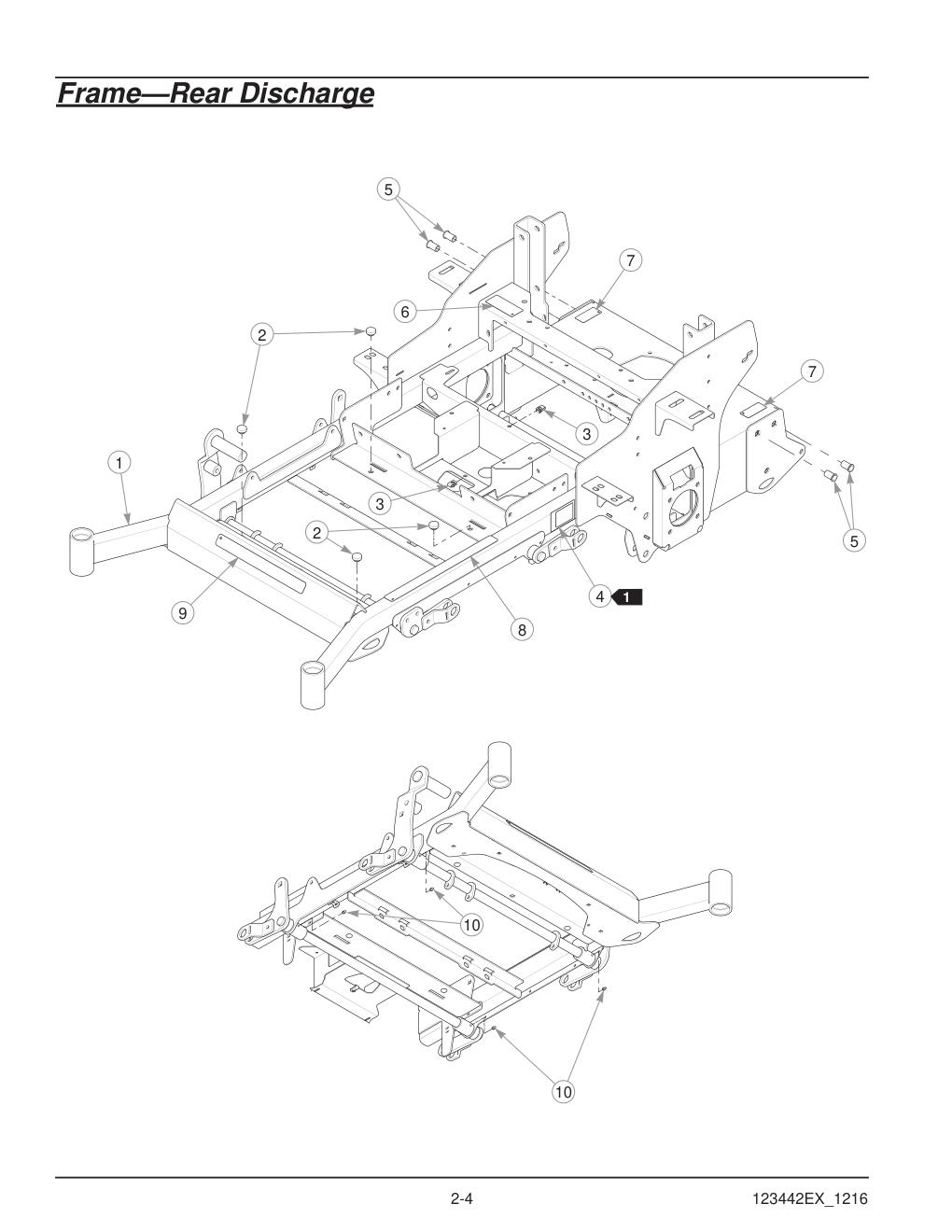

Frame-Rear Discharge
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FRAME, 54" (WITH DECALS AND RIVET NUTS) | 553876 | 1 | 553876-Online |
| 1 | FRAME, 60" (WITH DECALS AND RIVET NUTS) | 553833 | 1 | 553833-Online |
| 2 | BUMPER .500 X 1.00 X .31 | 781880 | 4 | HT781880-Online |
| 3 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |
| 4 | SERIAL NUMBER / SPEC DECAL | 083279 | 1 | 083279-Online |
| 5 | 1/2-13 THREAD RIVET NUT | 600961 | 4 | 600961-Online |
| 6 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 7 | HOT DECAL | 602041 | 2 | 602041-Online |
| 8 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 9 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE GUARD (WITH DECAL) | 553843 | 1 | 553843-Online |
| 2 | H LOGO DECAL | 604352 | 1 | 604352-Online |
| 3 | HITCH | 121404 | 1 | 121404-Online |
| 4 | CB .375-16 X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 5 | FW .531 X 1.063 X .175 | 767962 | 8 | HT767962-Online |
| 6 | CS .500-13 X 1.25 HX G5 | 705954 | 4 | HT705954-Online |
| 7 | NT .375-16 HX G5 FLK | 016899 | 4 | HT016899-Online |
| 8 | MUFFLER GUARD | 606483 | 1 | 606483-Online |
| 9 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 10 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 11 | SHIELD | 377994 | 2 | 377994-Online |
| 12 | CS .500-13 X 4.50 HX G5 | 068239 | 2 | HT068239-Online |
| 13 | NT .500-13 HX G5 ZNYC | 008193 | 2 | HT008193-Online |
Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13 X 5.00 HX G5 | 051151 | 1 | HT051151-Online |
| 2 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 3 | NT .500-13 UNT LK G8 | 023317 | 8 | 023317-Online |
| 4 | FW .531 X .812 X .089 HD | 604486 | 8 | 604486-Online |
| 5 | FW .379 X .813 X .063 | 767954 | 4 | HT767954-Online |
| 6 | NT .375-16 HX G5 | 054502 | 2 | HT054502-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 8 | IDLER SPRING MOUNT | 123183 | 1 | 123183-Online |
| 9 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 10 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 11 | 5" FLAT IDLER PULLEY | 602304 | 1 | 602304-Online |
| 12 | IDLER PIVOT BUSHING | 602880 | 1 | 602880-Online |
| 13 | TENSIONER | 122905 | 1 | HT122905-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 15 | IDLER PIVOT BUSHING | 602879 | 1 | 602879-Online |
| 16 | FW .531 X 1.063 X .175 | 767962 | 1 | HT767962-Online |
| 17 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 18 | BELT | 606411 | 1 | 606411-Online |
| 19 | CS .500-13 X 1.75 HX G5 | 017616 | 8 | HT017616-Online |
| 20 | LS TRANSMISSION | 606401 | 1 | 606401-Online |
| 21 | RS TRANSMISSION (NOT SHOWN) | 606402 | 1 | 606402-Online |

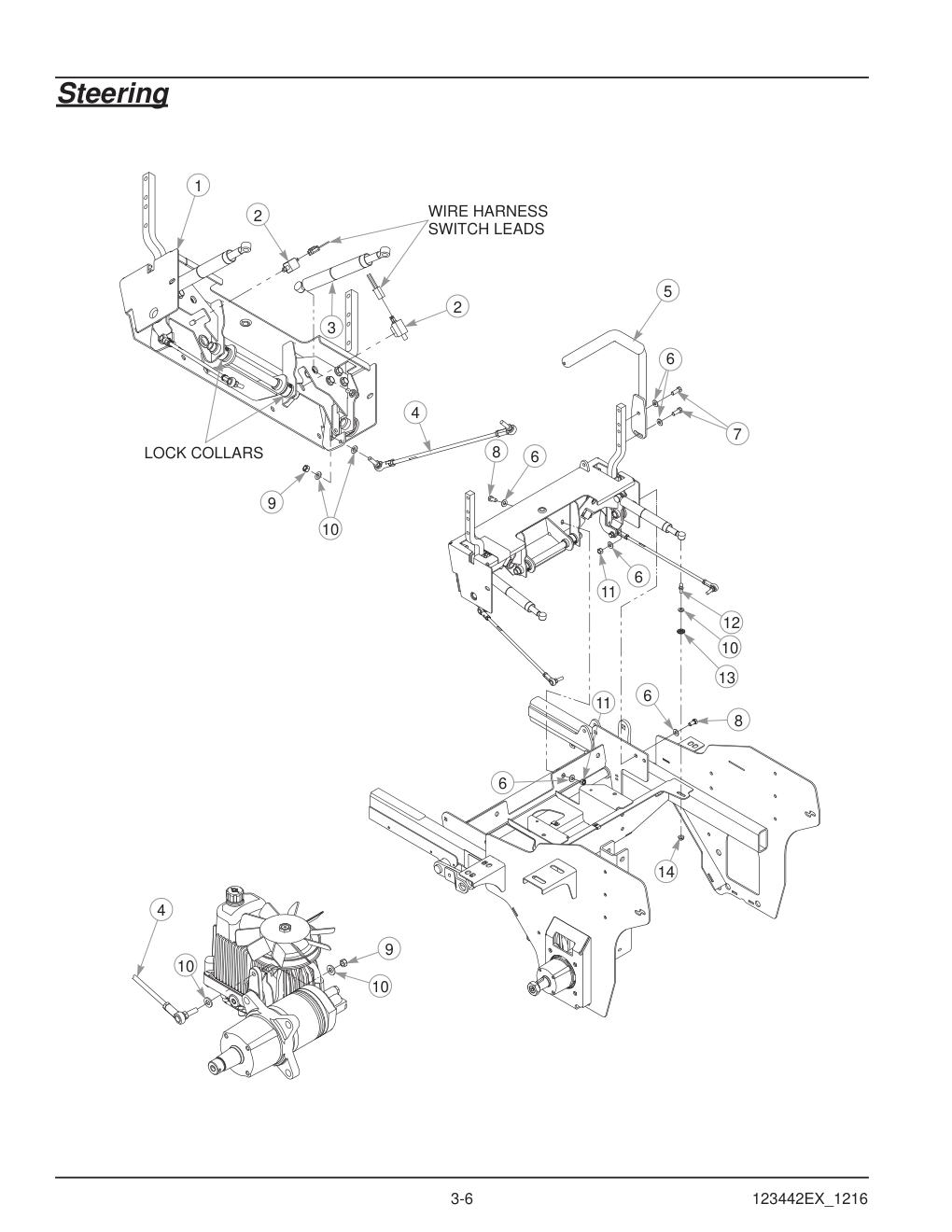

Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ASSEMBLY | N/A | 1 | No SKU |
| 2 | SWITCH | 601087 | 2 | HT601087-Online |
| 3 | DAMPER | 795351 | 2 | 795351-Online |
| 4 | PUMP ROD ASSEMBLY | 606521 | 2 | 606521-Online |
| 5 | STEERING HANDLE (WITH GRIP) | 605924 | 2 | 605924-Online |
| 5 | GRIP | 781260 | 2 | 781260-Online |
| 6 | FW .379 X .813 X .063 | 767954 | 16 | HT767954-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 8 | CS .375-16 X .75 HX G5 | 055822 | 6 | HT055822-Online |
| 9 | NT .312-24 HX G5 NL | 023655 | 4 | HT023655-Online |
| 10 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 11 | NT .375-16 HX G5 | 054502 | 6 | HT054502-Online |
| 12 | BALL STUD | 781922 | 2 | 781922-Online |
| 13 | LW .325 INT-EXT TOOTH | 029876 | 2 | 029876-Online |
| 14 | NT .312-18 HX FLK | 016832 | 2 | 016832-Online |
Steering Cover
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING COVER | 112895 | 1 | 112895-Online |
| 2 | BUSHING | 781153 | 2 | HT781153-Online |
| 3 | LOCK COLLAR .757 ID | 784439 | 2 | HT784439-Online |
| 4 | STEER PIVOT TUBE | 113007 | 1 | 113007-Online |
| 5 | NT .312-18 HX G5 | 034272 | 2 | HT034272-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 7 | FW .750 X 1.50 X .156 ZN | 603078 | 2 | 603078-Online |
| 8 | BALL STUD | 781922 | 2 | 781922-Online |
| 9 | LS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 10 | RS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
Steering Cover
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 11 | GM .50 X 1.00 X .75 X .12 | 080358 | 1 | 080358-Online |
| 12 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
| 13 | SS 1/2-13 X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 14 | X-ONE LOGO DECAL | 605087 | 1 | 605087-Online |
| 15 | WEAR TAPE | 722199 | 5.5" | 722199-Online |
LS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM | 113578 | 2 | 113578-Online |
| 2 | NT .375-16 G5 NL | 086660 | 3 | HT086660-Online |
| 3 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16 X 1.75 HX G5 | 705178 | 3 | HT705178-Online |
| 5 | BUSHING | 781153 | 2 | HT781153-Online |
| 6 | STEERLEVER BUSHING | 348862 | 2 | HT348862-Online |
| 7 | SS .500-13 X 2.00 SH ZY | 797738 | 1 | 797738-Online |
| 8 | LS STEERING BOX | 123305 | 1 | 123305-Online |
| 9 | GM .750 X .188 X 1.00 X .12 | 047456 | 1 | 047456-Online |
RS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM | 113578 | 2 | 113578-Online |
| 2 | NT .375-16 G5 NL | 086660 | 3 | HT086660-Online |
| 3 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16 X 1.75 HX G5 | 705178 | 3 | HT705178-Online |
| 5 | BUSHING | 781153 | 2 | HT781153-Online |
| 6 | SS .500-13 X 2.00 SH ZY | 797738 | 1 | 797738-Online |
| 7 | STEERLEVER BUSHING | 348862 | 2 | HT348862-Online |
| 8 | LS STEERING BOX | 123305 | 1 | 123305-Online |
| 9 | GM .750 X .188 X 1.00 X .12 | 047456 | 1 | 047456-Online |
Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .375-16 X 5.5 GR5 ZN | 748913 | 2 | 748913-Online |
| 2 | FW .379 X .813 X .063 | 767954 | 12 | HT767954-Online |
| 3 | NT .312-24 HX G5 NL | 023655 | 4 | HT023655-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 5 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 6 | CS .375-16 X 1.75 HX G5 | 705178 | 2 | HT705178-Online |
| 7 | FW .406 X .75 X .25 ZNYC | 073858 | 2 | 073858-Online |
| 8 | NT .375-16 HX G5 NL | 086660 | 6 | HT086660-Online |
| 9 | BRAKE LINK TURNBUCKLE | 350397 | 2 | 350397-Online |
| 10 | LS BRAKE BELLCRANK | 123435 | 1 | 123435-Online |
| 11 | RS BRAKE BELLCRANK (NOT SHOWN) | 123434 | 1 | 123434-Online |
| 12 | BUSHING | 765339 | 4 | HT765339-Online |
| 13 | NT .312-18 HX G5 | 034272 | 4 | HT034272-Online |
| 14 | CS .375-16 X 1.50 HX G5 | 080655 | 2 | HT080655-Online |
| 15 | LS BRAKE ARM | 123432 | 1 | 123432-Online |
| 16 | RS BRAKE ARM (NOT SHOWN) | 123433 | 1 | 123433-Online |
| 17 | BRAKE ASSEMBLY | 602383 | 2 | 602383-Online |
| 18 | CS .312-18 X 1.00 HX G5 | 036236 | 4 | 036236-Online |
| 19 | CS .312-18 X .75 HX G8 FLK | 604461 | 8 | 604461-Online |
| 20 | HUB ASSEMBLY (WITH STUDS) | 602384 | 2 | 602384-Online |
| 21 | STUD, WHEEL LUG 1/2-20 | 601085 | 10 | HT601085-Online |
Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 061077 | NUT | 10 | WHEEL | 10-Online |
| 10 | TIRE ASSEMBLY | N/A1 | FRONT | No SKU |
Engine
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FX850V ENGINE | N/A | 1 | No SKU |
| 2 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 3 | ELBOW STREET FITTING | 601216 | 1 | 601216-Online |
| 4 | MUFFLER | 603012 | 1 | 603012-Online |
| 5 | FW .379 X .813 X .063 | 767954 | 4 | HT767954-Online |
| 6 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 7 | NT .312-18 HX G5 | 034272 | 2 | HT034272-Online |
| 8 | FW .343 X .687 X .051/.080H | 768523 | 5 | HT768523-Online |
| 9 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 10 | WIRE TIE | 000331 | 4 | 000331-Online |
| 11 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
| 12 | ENGINE PULLEY | 606471 | 1 | 606471-Online |
| 13 | KEY 1/4 SQ X 1.50 LG | 212076 | 1 | HT212076-Online |
| 14 | CLUTCH KIT | 606404K | 1 | 606404K-Online |
| 15 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 16 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 17 | CS .437-20 X 2.50 HX G5 P85 | 785659 | 1 | HT785659-Online |
| 18 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |

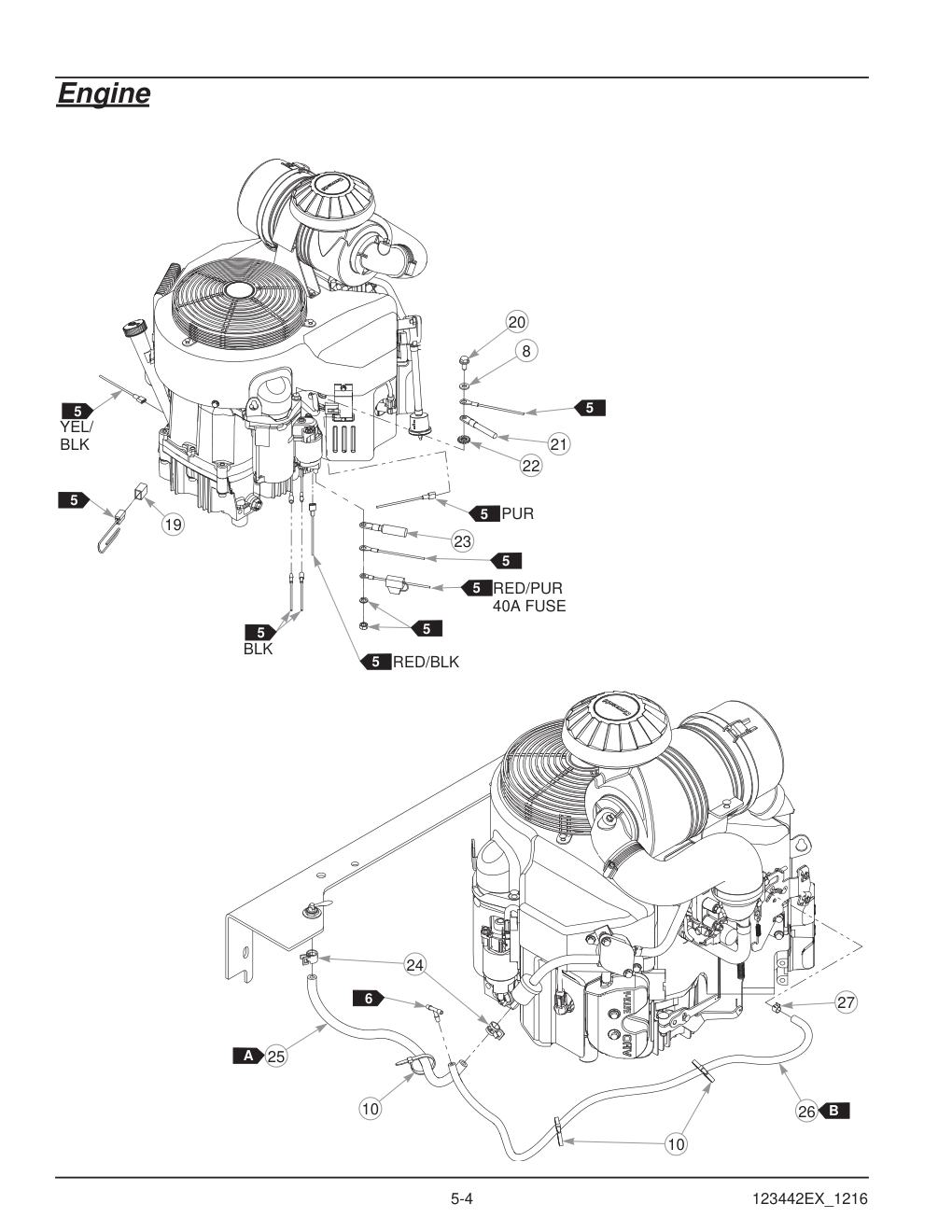

Engine
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 19 | FAN CAP | 789131 | 1 | 789131-Online |
| 20 | CS M8 X 1.25 X 16 HX FL 10.9 | 720516 | 1 | 720516-Online |
| 21 | NEGATIVE BATTERY CABLE | 796219 | 1 | 796219-Online |
| 22 | LW .325 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 23 | POSITIVE BATTERY CABLE | 744276 | 1 | 744276-Online |
| 24 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | 1/4" FUEL LINE | 015818 | 16.5" | HT015818-Online |
| 26 | 3/16" VAPOR LINE | 603326 | 32" | 603326-Online |
| 27 | 3/16" HOSE CLAMP | 603112 | 1 | 603112-Online |
Fuel System

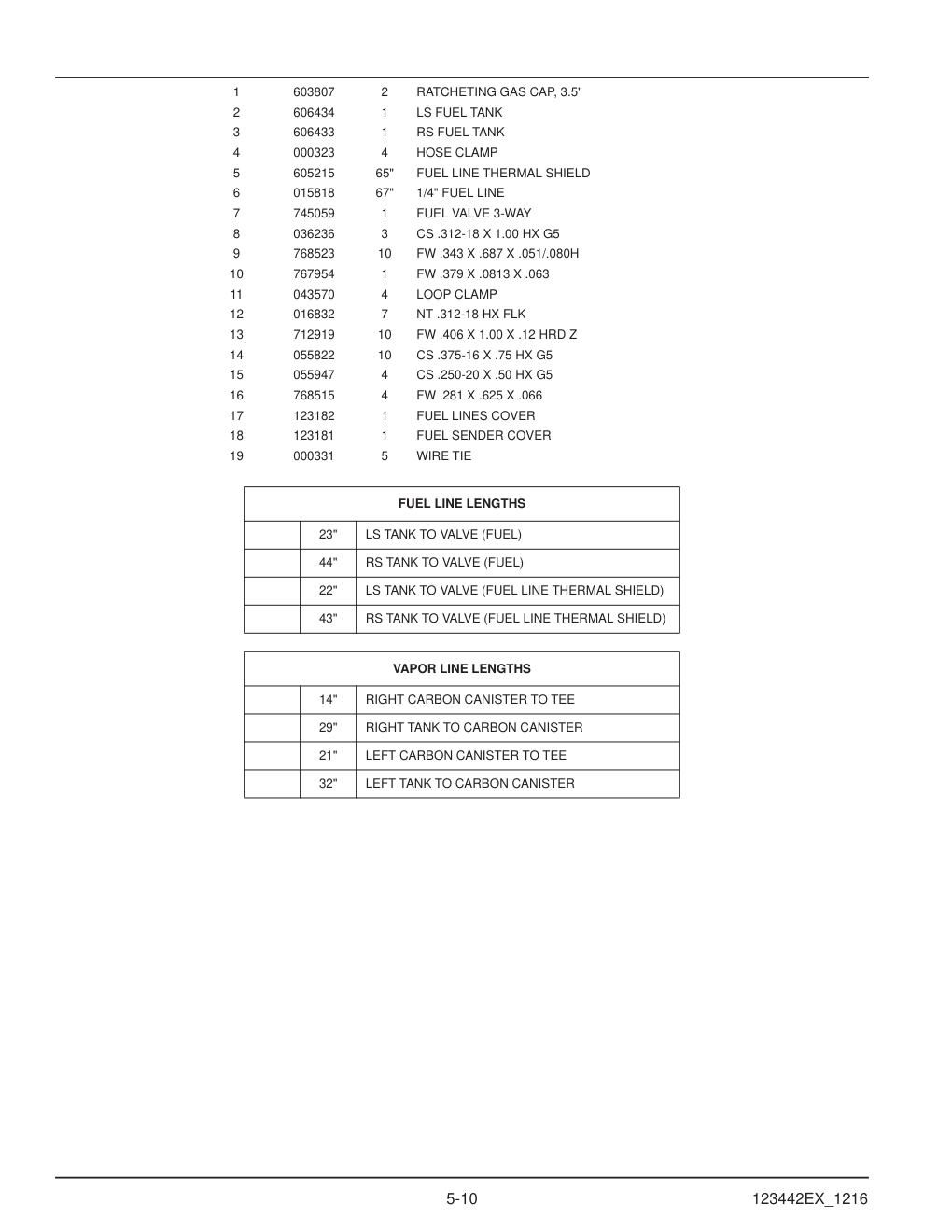

Fuel Tank Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS FUEL TANK | 606433 | 1 | 606433-Online |
| 2 | FUEL GAUGE | 603888 | 2 | 603888-Online |
| 3 | FUEL GROMMET | 605648 | 2 | 605648-Online |
| 4 | VENT FITTING | 604287 | 2 | 604287-Online |
| 5 | GROMMET | 604200 | 4 | 604200-Online |
| 6 | SUCTION HOSE ASSY 19.5" | 605159 | 2 | 605159-Online |
| 7 | LS FUEL TANK | 606434 | 1 | 606434-Online |

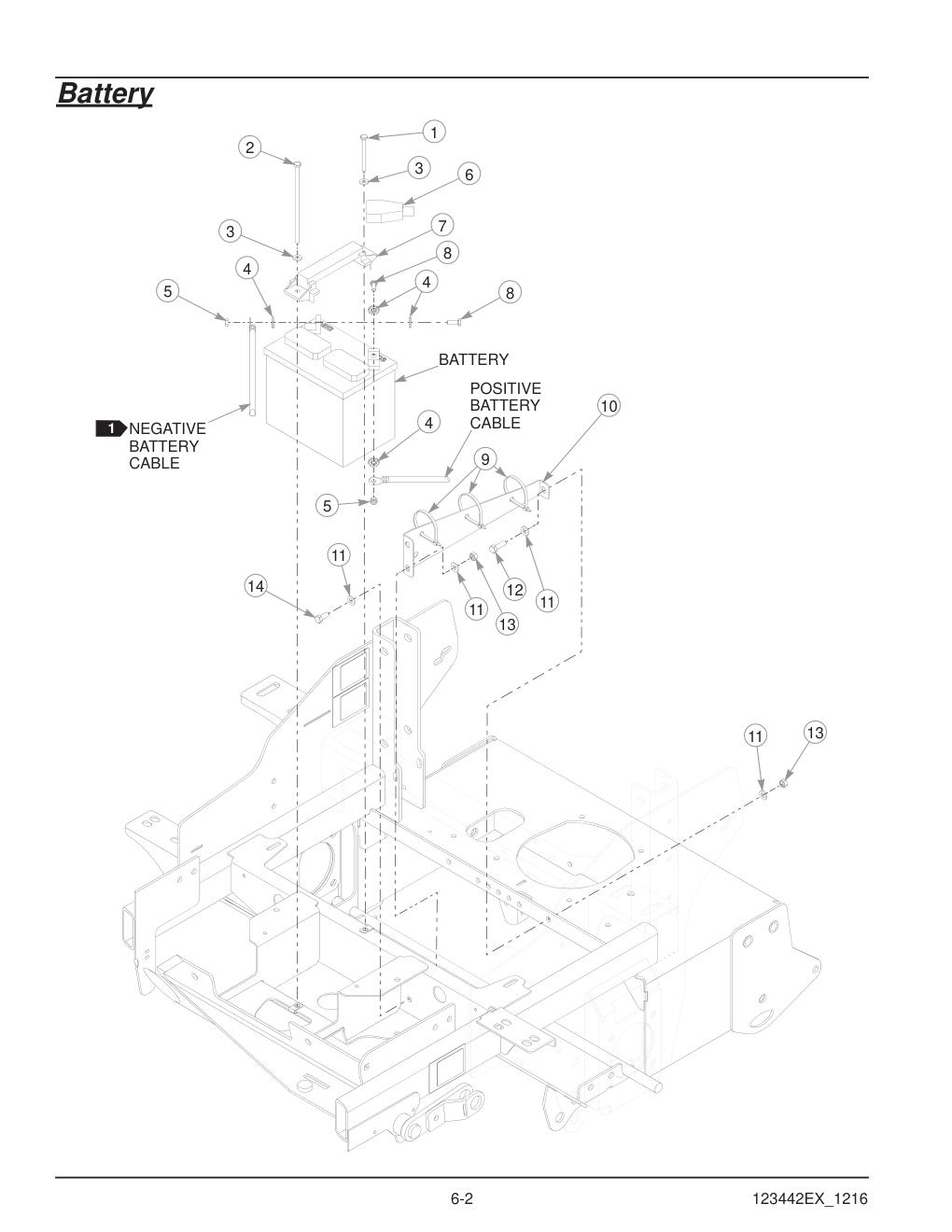

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20 X 2.75 HX G5 | 794156 | 1 | 794156-Online |
| 2 | CS .250-20 X 6.50 HX G5 | 601930 | 1 | 601930-Online |
| 3 | FW .281 X .625 X .066 | 768515 | 2 | HT768515-Online |
| 4 | LW .250 INT-EXT TOOTH Z | 029868 | 4 | 029868-Online |
| 5 | NT .250-20 HX G5 | 024927 | 2 | HT024927-Online |
| 6 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 7 | TIE DOWN STRAP | 604178 | 1 | 604178-Online |
| 8 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 9 | WIRE TIE | 000331 | 4 | 000331-Online |
| 10 | CABLE SUPPORT | 123179 | 1 | 123179-Online |
| 11 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 12 | CS .312-18 X 1.00 HX G5 | 036236 | 1 | 036236-Online |
| 13 | NT .312-18 HX G5 | 034272 | 3 | HT034272-Online |
| 14 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |

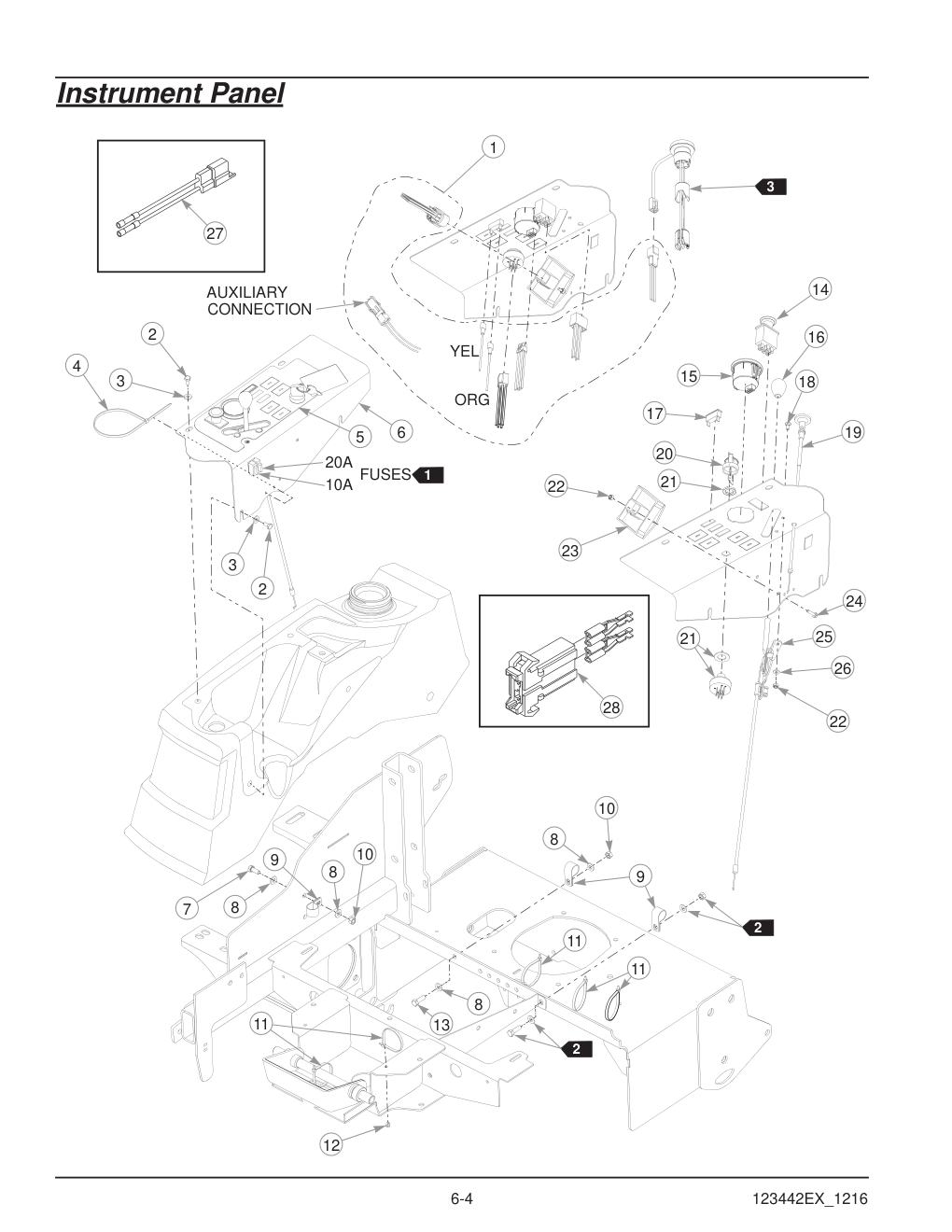

Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WIRE HARNESS | 604241 | 1 | 604241-Online |
| 2 | CS .250-20 X .50 HX G5 | 055947 | 4 | 055947-Online |
| 3 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 4 | WIRE TIE | 000430 | 1 | 000430-Online |
| 5 | INSTRUMENT PANEL DECAL | 606466 | 1 | 606466-Online |
| 6 | INSTRUMENT PANEL (WITH DECAL) | 553845 | 1 | 553845-Online |
| 7 | CS .312-18 X .75 HX G5 | 034280 | 1 | HT034280-Online |
| 8 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 9 | LOOP CLAMP | 043570 | 3 | 043570-Online |
| 10 | NT .312-18 HX G5 | 034272 | 2 | HT034272-Online |
| 11 | WIRE TIE | 000331 | 5 | 000331-Online |
| 12 | PUSH BUTTON MOUNT | 604307 | 1 | 604307-Online |
| 13 | CS .312-18 X 1.00 HX G5 | 036236 | 1 | 036236-Online |
| 14 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 15 | FUEL DISPLAY/HOUR METER | 606068 | 1 | 606068-Online |
| 16 | KNOB | 603523 | 1 | 603523-Online |
| 17 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 18 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 19 | CHOKE CABLE | 786657 | 1 | HT786657-Online |
| 20 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 21 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 22 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 23 | RELAY CONTROL MODULE | 604373 | 1 | 604373-Online |
| 24 | CS 10-24 X .75 HX FLK ZN | 063198 | 2 | 063198-Online |
| 25 | THROTTLE CABLE | 603475 | 1 | 603475-Online |
| 26 | FW .219 X .50 X .048 | 704932 | 2 | HT704932-Online |
| 27 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
| 28 | FUSE HOLDER | 601047 | 1 | HT601047-Online |
52" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 2 | HT025007-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 5 | HT028118-Online |
| 3 | BELT GUIDE | 606460 | 1 | 606460-Online |
| 4 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 5 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 12 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 13 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 14 | CS .500-13 X 1.25 HX G5 | 705954 | 15 | HT705954-Online |
| 15 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 16 | B-SEC 5.44 EOD PULLEY | 798967 | 3 | HT798967-Online |
| 17 | FW .531 X 1.063 X .175 | 767962 | 12 | HT767962-Online |
| 18 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 19 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 20 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 21 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |

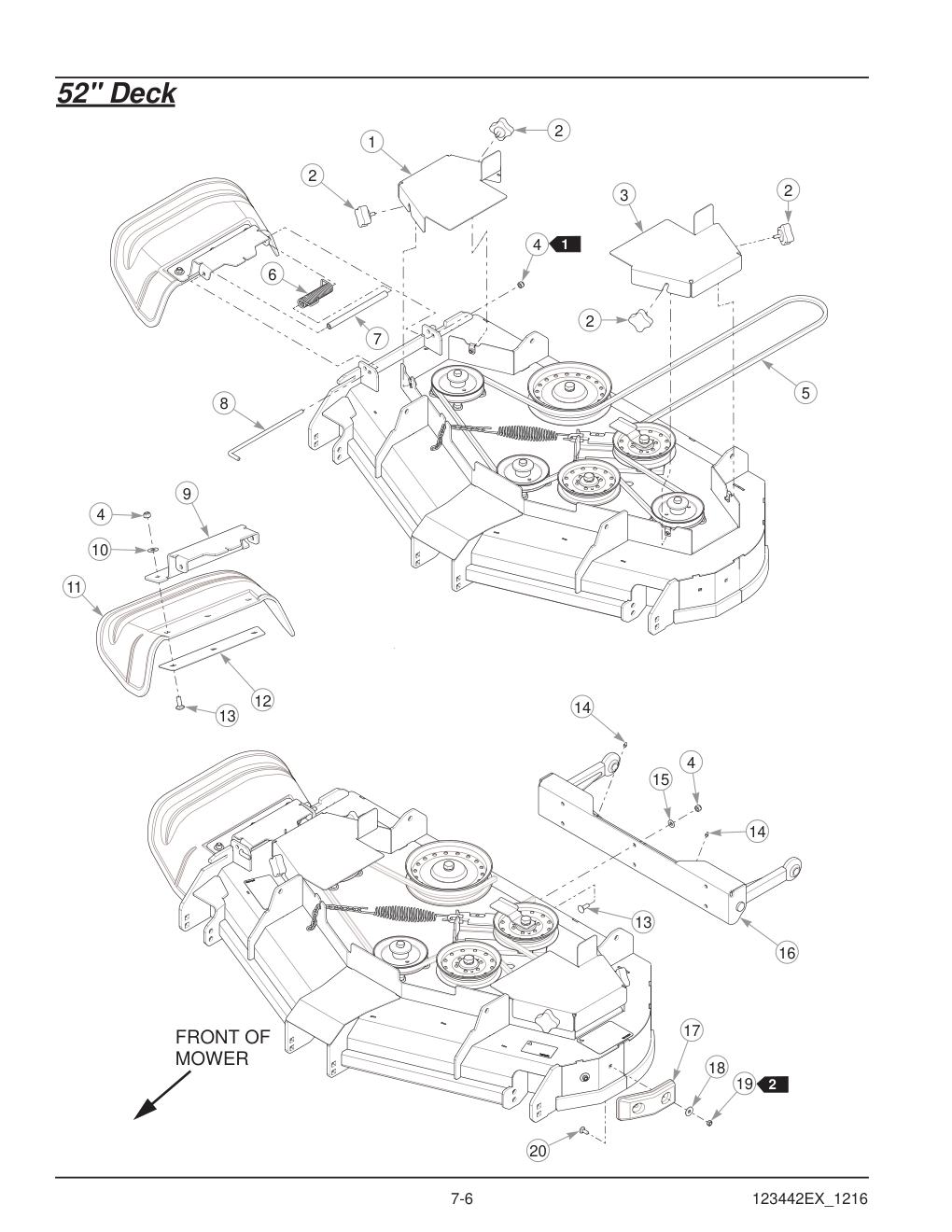

52" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 124095 | 1 | 124095-Online |
| 2 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 3 | LS PULLEY COVER | 124094 | 1 | 124094-Online |
| 4 | NT .375-16 HX G5 NL | 086660 | 10 | HT086660-Online |
| 5 | BELT, B 156.00" EL | 602077 | 1 | 602077-Online |
| 6 | TORSION SPRING | 606192 | 1 | 606192-Online |
| 7 | CHUTE SPRING RETAINER | 606166 | 1 | 606166-Online |
| 8 | CHUTE PIN | 605936 | 1 | 605936-Online |
| 9 | DISCHARGE CHUTE BRACKET | 123039 | 1 | 123039-Online |
| 10 | FW .406 X 1.00 X .06 ZNYC | 076422 | 3 | 076422-Online |
| 11 | DISCHARGE CHUTE | 605916 | 1 | 605916-Online |
| 12 | BOTTOM DISCHARGE CHUTE BRACKET | 122148 | 1 | 122148-Online |
| 13 | CB .375-16 X 1.00 G5 ZNY | 025395 | 9 | HT025395-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 15 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 16 | PUSHER | 124086 | 1 | 124086-Online |
| 17 | DECK BUMPER | 605376 | 1 | 605376-Online |
| 18 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 19 | NT .312-18 HX NL JAM G2 ZN | 604251 | 2 | 604251-Online |
| 20 | CB .312-18 X .75 FUL ZN | 016253 | 2 | 016253-Online |

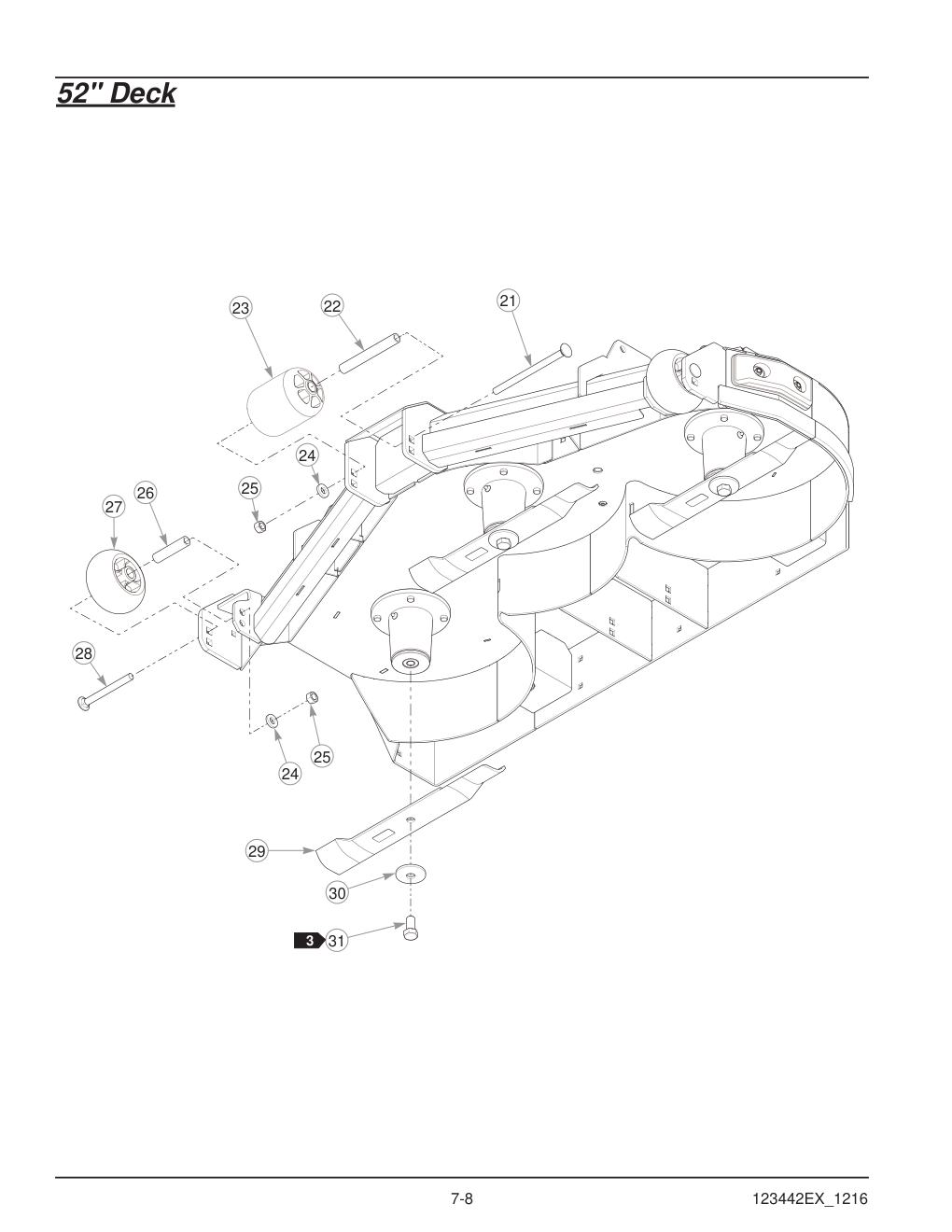

52" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 21 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 22 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 23 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 24 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 25 | NT .500-13 HX G5 ZNYC | 008193 | 3 | HT008193-Online |
| 26 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 27 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 28 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 29 | BLADE, 17.86"-H-F-CW | 787721 | 3 | HT787721-Online |
| 29 | BLADE, 17.86"-MUL-F-CW | 794198 | 3 | HT794198-Online |
| 29 | BLADE, 17.86"-GAT-F-CW | 785436 | 3 | 785436-Online |
| 30 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 31 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
54" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 2 | HT025007-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 5 | HT028118-Online |
| 3 | BELT GUIDE | 606460 | 1 | 606460-Online |
| 4 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 5 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 6 | CS .312-18 X .75 HX G5 | 034280 | 4 | HT034280-Online |
| 7 | FW .340 X .675 X .035 ZN | 604252 | 4 | 604252-Online |
| 8 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 9 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 10 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 11 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 12 | CS .500-13 X 1.25 HX G5 | 705954 | 9 | HT705954-Online |
| 13 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 14 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 15 | DECK DRIVE PULLEY | 798967 | 3 | HT798967-Online |
| 16 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 17 | CS .500-13 X 1.75 HX G5 | 017616 | 6 | HT017616-Online |
| 18 | FW .531 X 1.063 X .175 | 767962 | 12 | HT767962-Online |
| 19 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 20 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 21 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 22 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
54" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 123531 | 1 | 123531-Online |
| 2 | LS PULLEY COVER | 123532 | 1 | 123532-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | BELT B 158.5 EL | 605510 | 1 | 605510-Online |
| 5 | DECK BUMPER | 605376 | 2 | 605376-Online |
| 6 | FW .344 X 1.00 X .06 ZNYC | 079210 | 4 | 079210-Online |
| 7 | NT .312-18 HX NL JAM G2 ZN | 604251 | 4 | 604251-Online |
| 8 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 9 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
| 10 | NT .375-16 G5 NL | 086660 | 4 | HT086660-Online |
| 11 | FW .379 X .813 X .063 | 767954 | 7 | HT767954-Online |
| 12 | CLAMP | 123534 | 2 | 123534-Online |
| 13 | RUBBER FLAP | 606598 | 2 | 606598-Online |
| 14 | CB .375-16 X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 15 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 16 | CS .375-16 X .75 HX G5 | 055822 | 3 | HT055822-Online |
| 17 | CB .375-16 X .75 STD ZN | 011320 | 3 | 011320-Online |
| 18 | NT .375-16 FLK G5 | 016899 | 3 | HT016899-Online |
| 19 | PUSHER | 123396 | 1 | 123396-Online |
54" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 20 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 21 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 22 | FW .531 X 1.063 X .175 | 767962 | 9 | HT767962-Online |
| 23 | NT .500-13 HX G5 ZNYC | 008193 | 3 | HT008193-Online |
| 24 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 25 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 26 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 27 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 28 | CUT-OFF | 123512 | 2 | 123512-Online |
| 29 | MIDDLE CUT-OFF | 123513 | 1 | 123513-Online |
| 30 | NT .500-13 NL | 781567 | 6 | HT781567-Online |
| 31 | BLADE, 18.50"-L-F-CW | 601124 | 3 | HT601124-Online |
| 31 | BLADE, 18.50"-MUL-F-CW | 797704 | 3 | HT797704-Online |
| 31 | BLADE, 18.50"-GAT-F-CW | 797712 | 3 | HT797712-Online |
| 32 | CW .631 X 2.25 X .187 | 782474 | 3 | HT782474-Online |
| 33 | CS .625-11 X 1.25 HX G5 | 781872 | 3 | HT781872-Online |

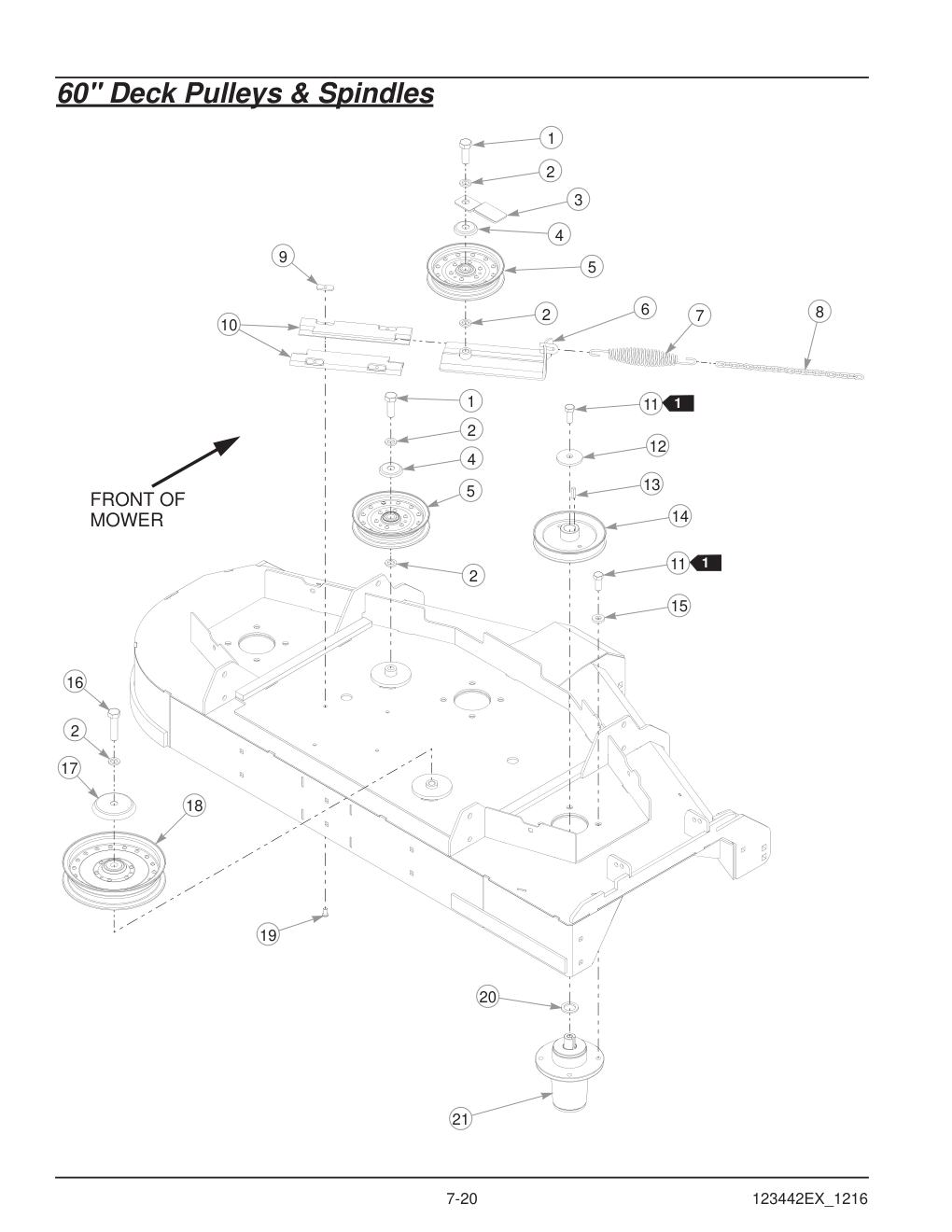

60" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 2 | HT025007-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 5 | HT028118-Online |
| 3 | BELT GUIDE | 606460 | 1 | 606460-Online |
| 4 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 5 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | CS .500-13 X 1.25 HX G5 | 705954 | 15 | HT705954-Online |
| 12 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 13 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 14 | DECK DRIVE PULLEY | 770842 | 3 | HT770842-Online |
| 15 | FW .531 X 1.063 X .175 | 767962 | 12 | HT767962-Online |
| 16 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 17 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 18 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 19 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 20 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 21 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
60" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 124079 | 1 | 124079-Online |
| 2 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 3 | LS PULLEY COVER | 124078 | 1 | 124078-Online |
| 4 | NT .375-16 HX G5 NL | 086660 | 10 | HT086660-Online |
| 5 | BELT, B 167.3" EL | 600929 | 1 | HT600929-Online |
| 6 | TORSION SPRING | 606192 | 1 | 606192-Online |
| 7 | CHUTE SPRING RETAINER | 606166 | 1 | 606166-Online |
| 8 | CHUTE PIN | 605936 | 1 | 605936-Online |
| 9 | DISCHARGE CHUTE BRACKET | 123039 | 1 | 123039-Online |
| 10 | FW .406 X 1.00 X .06 ZNYC | 076422 | 3 | 076422-Online |
| 11 | DISCHARGE CHUTE | 605916 | 1 | 605916-Online |
| 12 | BOTTOM DISCHARGE CHUTE BRACKET | 122148 | 1 | 122148-Online |
| 13 | CB .375-16 X 1.00 G5 ZNY | 025395 | 9 | HT025395-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 15 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 16 | PUSHER | 124086 | 1 | 124086-Online |
| 17 | DECK BUMPER | 605376 | 1 | 605376-Online |
| 18 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 19 | NT .312-18 HX NL JAM G2 ZN | 604251 | 2 | 604251-Online |
| 20 | CB .312-18 X .75 FUL ZN | 016253 | 2 | 016253-Online |

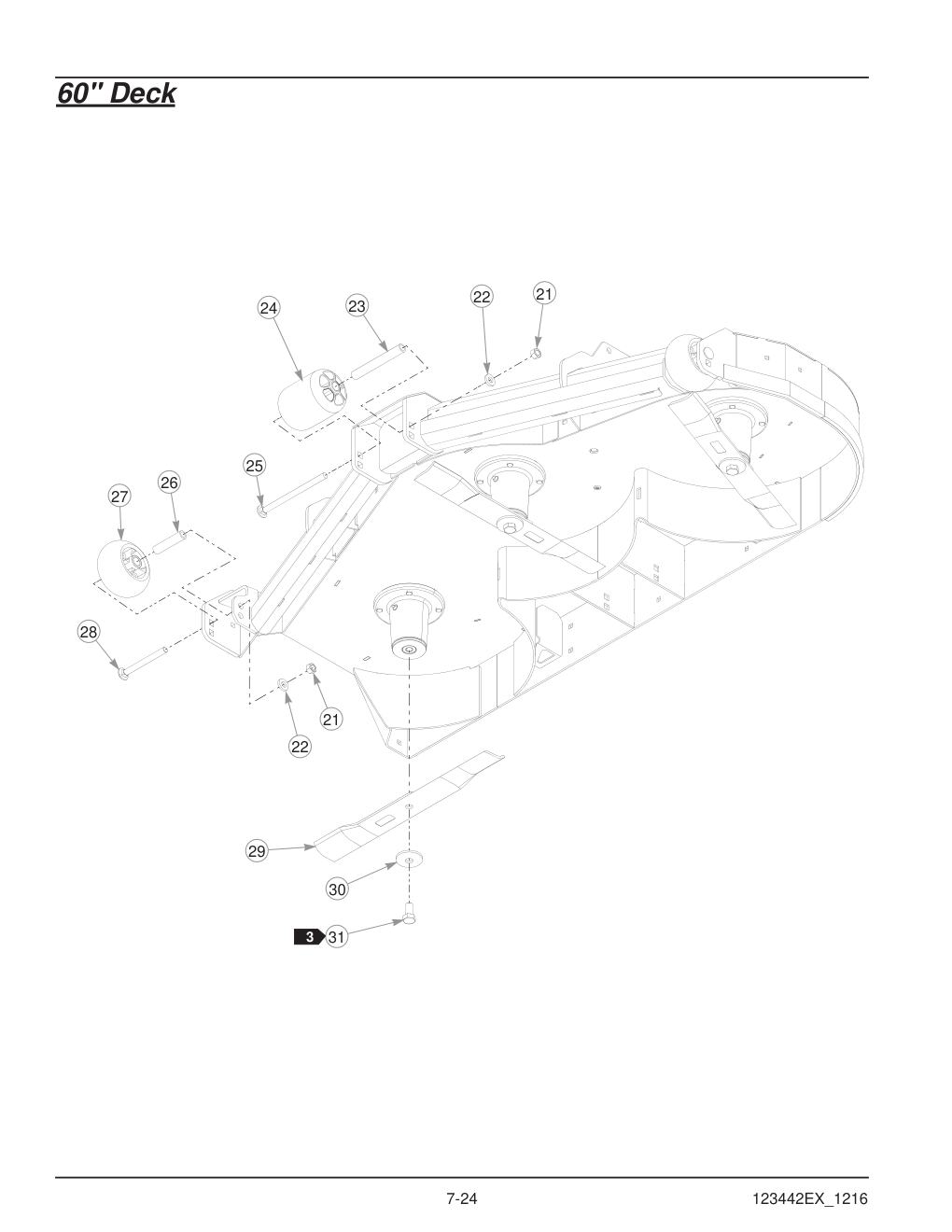

60" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 21 | NT .500-13 HX G5 ZNYC | 008193 | 3 | HT008193-Online |
| 22 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 23 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 24 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 25 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 26 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 27 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 28 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 29 | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 29 | BLADE, 20.50"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| 30 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 31 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |

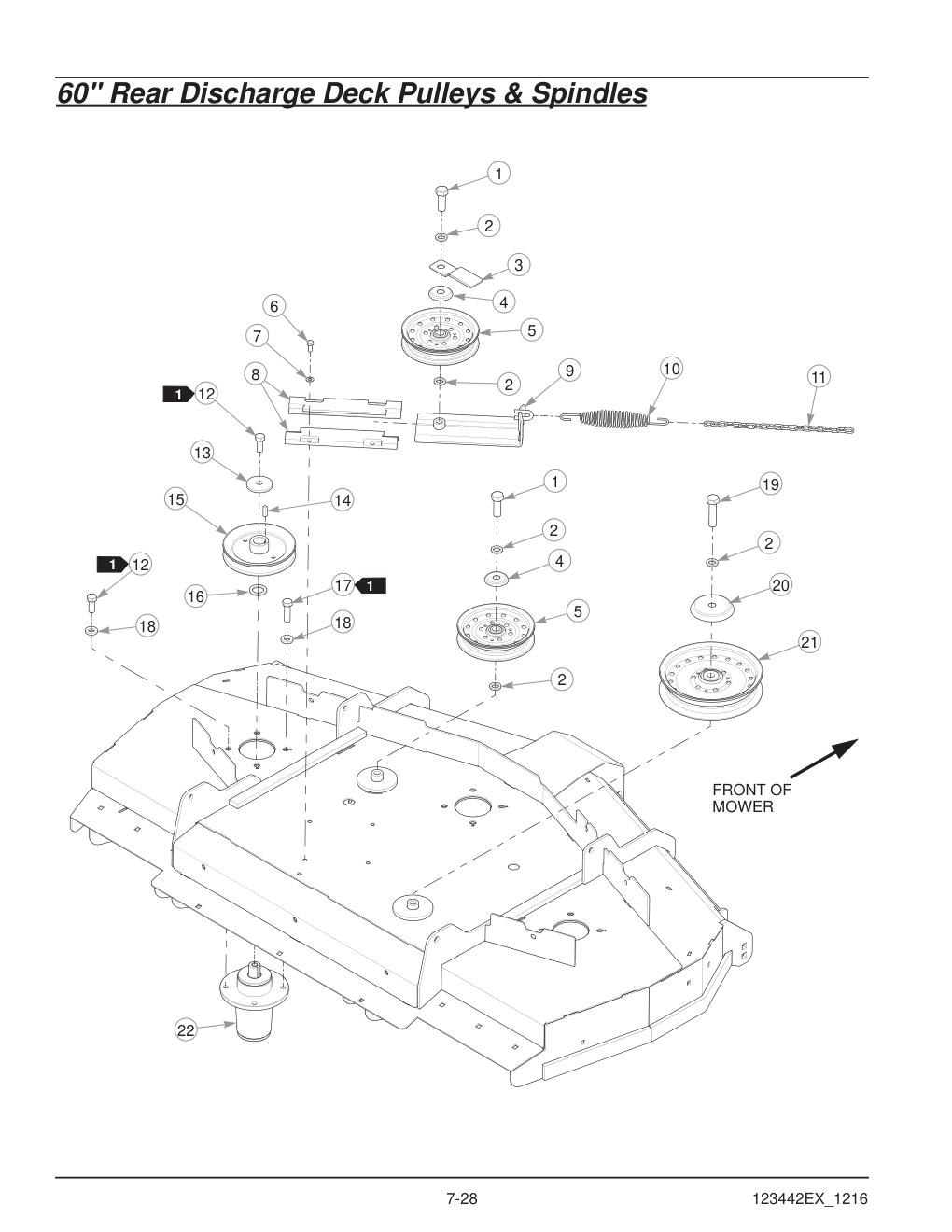

60" Rear Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 2 | HT025007-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 5 | HT028118-Online |
| 3 | BELT GUIDE | 606460 | 1 | 606460-Online |
| 4 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 5 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 6 | CS .312-18 X .75 HX G5 | 034280 | 4 | HT034280-Online |
| 7 | FW .340 X .675 X .035 ZN | 604252 | 4 | 604252-Online |
| 8 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 9 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 10 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 11 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 12 | CS .500-13 X 1.25 HX G5 | 705954 | 9 | HT705954-Online |
| 13 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 14 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 15 | DECK DRIVE PULLEY | 770842 | 3 | HT770842-Online |
| 16 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 17 | CS .500-13 X 1.75 HX G5 | 017616 | 6 | HT017616-Online |
| 18 | FW .531 X 1.063 X .175 | 767962 | 12 | HT767962-Online |
| 19 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 20 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 21 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 22 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
60" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 123395 | 1 | 123395-Online |
| 2 | LS PULLEY COVER | 123394 | 1 | 123394-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | BELT, B 171.00" EL | 602078 | 1 | 602078-Online |
| 5 | DECK BUMPER | 605376 | 2 | 605376-Online |
| 6 | FW .344 X 1.00 X .06 ZNYC | 079210 | 4 | 079210-Online |
| 7 | NT .312-18 HX NL JAM G2 ZN | 604251 | 4 | 604251-Online |
| 8 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 9 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
| 10 | NT .375-16 G5 NL | 086660 | 6 | HT086660-Online |
| 11 | FW .379 X .813 X .063 | 767954 | 9 | HT767954-Online |
| 12 | CLAMP | 123508 | 2 | 123508-Online |
| 13 | RUBBER FLAP | 606505 | 2 | 606505-Online |
| 14 | CB .375-16 X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 15 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 16 | CB .375-16 X .75 STD ZN | 011320 | 3 | 011320-Online |
| 17 | CS .375-16 X .75 HX G5 | 055822 | 3 | HT055822-Online |
| 18 | NT .375-16 FLK G5 | 016899 | 3 | HT016899-Online |
| 19 | PUSHER | 123396 | 1 | 123396-Online |
60" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 20 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 21 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 22 | FW .531 X 1.063 X .175 | 767962 | 9 | HT767962-Online |
| 23 | NT. 500-13 HX G5 | 008193 | 3 | HT008193-Online |
| 24 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 25 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 26 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 27 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 28 | RS CUT-OFF | 123510 | 1 | 123510-Online |
| 29 | MIDDLE CUT-OFF | 123509 | 1 | 123509-Online |
| 30 | LS CUT-OFF | 123511 | 1 | 123511-Online |
| 31 | NT .500-13 NL | 781567 | 6 | HT781567-Online |
| 32 | BLADE, F20.50"-L-F-CW | 600901 | 3 | HT600901-Online |
| 32 | BLADE, 20.5"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| 32 | BLADE, 20.5"-GAT-F-CW | 794230 | 3 | HT794230-Online |
| 33 | CW .631 X 2.25 X .187 | 782474 | 3 | HT782474-Online |
| 34 | CS .625-11 X 1.25 HX G5 | 781872 | 3 | HT781872-Online |
54"/60" Rear Discharge Deck Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .312-18 HX G5 ZY NL | 058776 | 10 | HT058776-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 3 | FW .781 X 1.375 X .250 ZNY | 778399 | 2 | 778399-Online |
| 4 | RS CHUTE BRACKET | 123525 | 1 | 123525-Online |
| 5 | LS CHUTE BRACKET | 123526 | 1 | 123526-Online |
| 6 | CS .312-18 X .875 HX G5 | 064014 | 6 | 064014-Online |
| 7 | RUBBER FLAP | 606614 | 2 | 606614-Online |
| 8 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
| 9 | FRONT REAR SHIELD | 123528 | 1 | 123528-Online |
| 10 | REAR SHIELD SUPPORT | 123530 | 2 | 123530-Online |
| 11 | FW .406 X 1.00 X .12 HRD Z | 712919 | 8 | HT712919-Online |
| 12 | CS .375-16 X .75 HX G5 | 055822 | 8 | HT055822-Online |
| 13 | BACK REAR SHIELD | 123529 | 1 | 123529-Online |

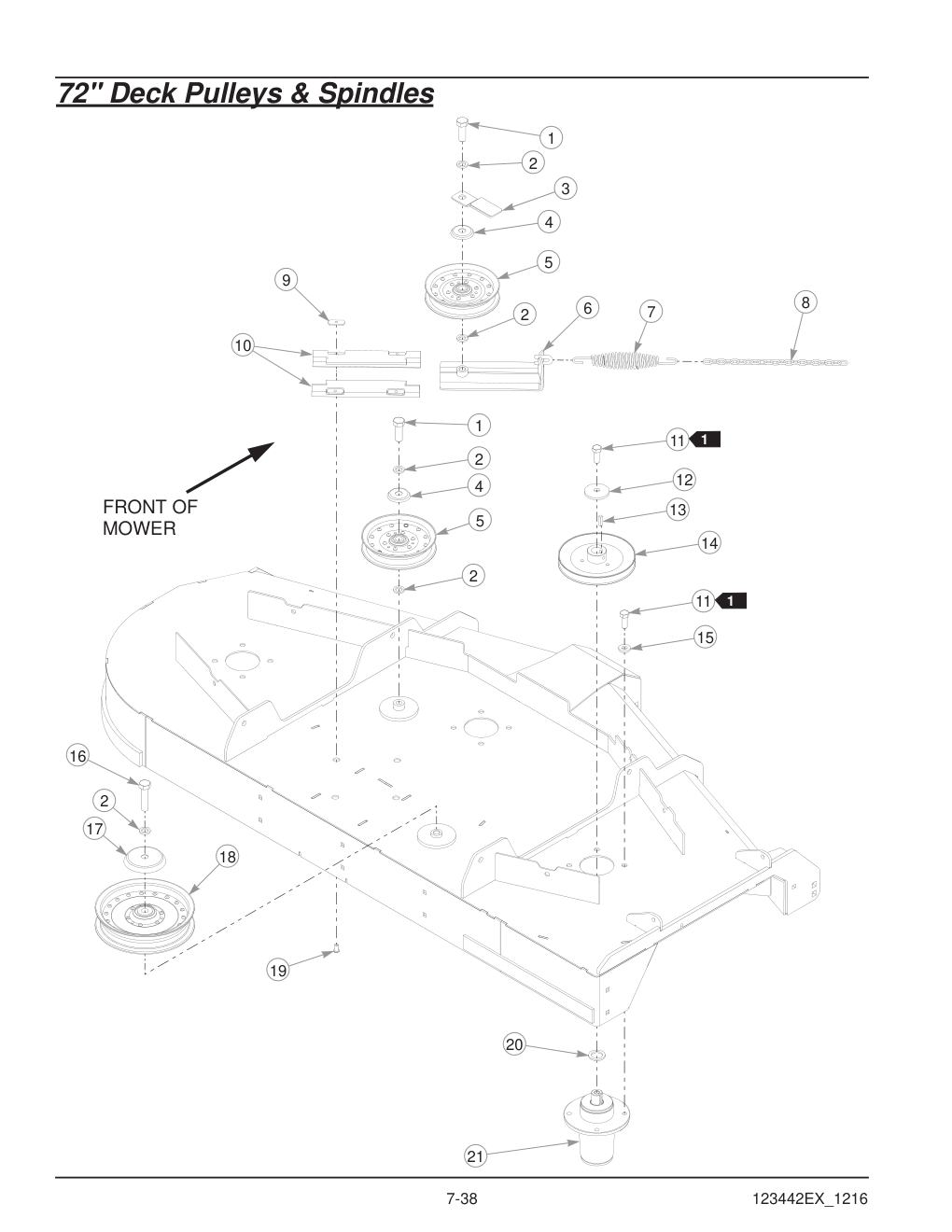

72" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 2 | HT025007-Online |
| 2 | FW .625 X 1.00 X .134 | 028118 | 5 | HT028118-Online |
| 3 | BELT GUIDE | 606460 | 1 | 606460-Online |
| 4 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 5 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | CS .500-13 X 1.25 HX G5 | 705954 | 15 | HT705954-Online |
| 12 | CW .550 X 2.25 X .305 BLK | 752386 | 3 | HT752386-Online |
| 13 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 14 | DRIVE PULLEY | 538850 | 3 | HT538850-Online |
| 15 | FW .531 X 1.063 X .175 | 767962 | 12 | HT767962-Online |
| 16 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 17 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 18 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 19 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 20 | FW 1.030 X 1.50 X .134 | 045765 | 3 | HT045765-Online |
| 21 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
72" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 124093 | 1 | 124093-Online |
| 2 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 3 | LS PULLEY COVER | 124092 | 1 | 124092-Online |
| 4 | NT .375-16 HX G5 NL | 086660 | 7 | HT086660-Online |
| 5 | BELT, B 184.79" EL | 797936 | 1 | 797936-Online |
| 6 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 7 | DISCHARGE CHUTE | 602891 | 1 | 602891-Online |
| 8 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 9 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 10 | FW .379 X .813 X .063 | 767954 | 6 | HT767954-Online |
| 11 | PUSHER | 124086 | 1 | 124086-Online |
| 12 | CB .375-16 X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 13 | DECK BUMPER | 605376 | 1 | 605376-Online |
| 14 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 15 | NT .312-18 HX NL JAM G2 ZN | 604251 | 2 | 604251-Online |
| 16 | CB .312-18 X .75 FUL ZN | 016253 | 2 | 016253-Online |
72" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 18 | NT .500-13 HX G5 ZNYC | 008193 | 3 | HT008193-Online |
| 19 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 20 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 21 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 22 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 23 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 24 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 25 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 26 | BLADE, F23.86"-H-F-CW | 795260 | 3 | 795260-Online |
| 26 | BLADE, 23.86"-MUL-F-CW | 793398 | 3 | HT793398-Online |
| 27 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 28 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 G5 NL | 086660 | 1 | HT086660-Online |
| 2 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 3 | FW .516 X .875 X .09 ZNYC | 718288 | 4 | 718288-Online |
| 4 | LATCH ARM | 122993 | 2 | 122993-Online |
| 5 | NT .375-16 HX G5 | 054502 | 4 | HT054502-Online |
| 6 | CB .375-16 X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 7 | DECK HEIGHT DECAL | 606452 | 1 | 606452-Online |
| 8 | LATCH SPACER | 117489 | 1 | HT117489-Online |
| 9 | CUT HEIGHT INDICATOR (WITH DECAL) | 553841 | 1 | 553841-Online |
| 10 | SPACER | 604075 | 1 | 604075-Online |
| 11 | DECK HEIGHT STOP PIN | 604076 | 1 | 604076-Online |
| 12 | CB .375-16 X 3.500 FUL Z | 041848 | 1 | HT041848-Online |
| 13 | CP .156D X 1.00 LG HML Z | 017251 | 3 | HT017251-Online |
| 14 | CE .500 X 3.50 .156 X 3.34 | 025965 | 2 | HT025965-Online |
| 15 | CE .500 X 1.50 .150 X 1.32 | 068056 | 1 | HT068056-Online |
| 16 | DECK LIFT SLIDER | 604069 | 1 | 604069-Online |
| 17 | CS .500-13 X 1.50 HX G5 | 074252 | 1 | HT074252-Online |
| 18 | FW .500 X 1.06 X .090 SAE | 004168 | 5 | HT004168-Online |
| 19 | DECK HEIGHT LINK | 122994 | 1 | 122994-Online |
| 20 | CB .50-13 X 2.00 STD ZN | 604253 | 2 | 604253-Online |
| 21 | LINK SPACER | 122996 | 1 | 122996-Online |
| 22 | DECK LIFT LINK | 122987 | 1 | HT122987-Online |
| 23 | NT .563-18 NLGC | 606316 | 4 | 606316-Online |
| 24 | DECK LEVEL SPACER | 606292 | 4 | 606292-Online |
| 25 | NT .500-13 NL | 781567 | 6 | HT781567-Online |
| 26 | NT .750-10 HX ZY NL | 061101 | 2 | HT061101-Online |
| 27 | FW .531 X 1.063 X .175 | 767962 | 10 | HT767962-Online |
| 28 | FW .760 X 1.625 X .08 | 025296 | 4 | HT025296-Online |
| 29 | CS .750-10 X 3.50 HX G5 | 789115 | 2 | 789115-Online |
| 30 | DECK LEVEL PIVOT | 606291 | 4 | 606291-Online |
| 31 | CS .500-13 X 2.25 HX G8 | 761544 | 4 | HT761544-Online |
| 32 | DECK LEVEL ROD END | 606290 | 4 | 606290-Online |
| 33 | NT .500-13 HX G5 ZNYC | 008193 | 4 | HT008193-Online |
| 34 | EB .500-13 X 3.00 FUL THD | 606478 | 2 | 606478-Online |
| 35 | SPRING | 606454 | 2 | 606454-Online |
Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT | 606474 | 1 | 606474-Online |
| 2 | CB .312-18 X .75 FUL ZN | 016253 | 2 | 016253-Online |
| 3 | LATCH ASSEMBLY | 605907 | 1 | 605907-Online |
| 4 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 6 | NT .312-18 HX G5 | 034272 | 2 | HT034272-Online |
| 7 | WIRE TIE | 000331 | 3 | 000331-Online |
| 8 | SEAT PAN (WITH DECALS & INSTALLATION KIT) | 550815 | 1 | 550815-Online |
| 9 | LEVEL FUEL FILL DECAL | 605688 | 1 | 605688-Online |
| 10 | ARMREST WARNING DECAL | 785188 | 1 | 785188-Online |
| 11 | FW .344 X 1.00 X .12 HRD Z | 712927 | 4 | HT712927-Online |
| 12 | NT .312-18 X 1.00 X .12 HRD Z | 058776 | 4 | HT058776-Online |
| 13 | FIBER WASHER | 724716 | 2 | 724716-Online |
| 14 | SEAT PAN STOP | 350421 | 1 | 350421-Online |
| 15 | FW .379 X .813 X .063 | 767954 | 10 | HT767954-Online |
| 16 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 17 | NT .375-16 HX G5 NL | 086660 | 4 | HT086660-Online |
| 18 | CS .375-16 X 1.25 HX G5 | 052860 | 3 | HT052860-Online |
| 19 | VIBRATION MOUNT | 601650 | 2 | 601650-Online |
| 20 | FUEL INDICATOR DECAL | 791848 | 1 | 791848-Online |
| 21 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 22 | LS FRAME COVER (WITH DECALS) | 550823 | 1 | 550823-Online |
| 23 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 24 | CN .312-18 X .20 MAX THK | 601069 | 5 | HT601069-Online |
| 25 | NT .375-16 HX G5 | 054502 | 2 | HT054502-Online |
| 26 | RS FRAME COVER (WITH DECAL) | 550824 | 1 | 550824-Online |
| 27 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 28 | FLOOR PAN | 606482 | 1 | 606482-Online |
| 29 | CS .312-18 X 1.00 HX G5 | 036236 | 3 | 036236-Online |
| 30 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |

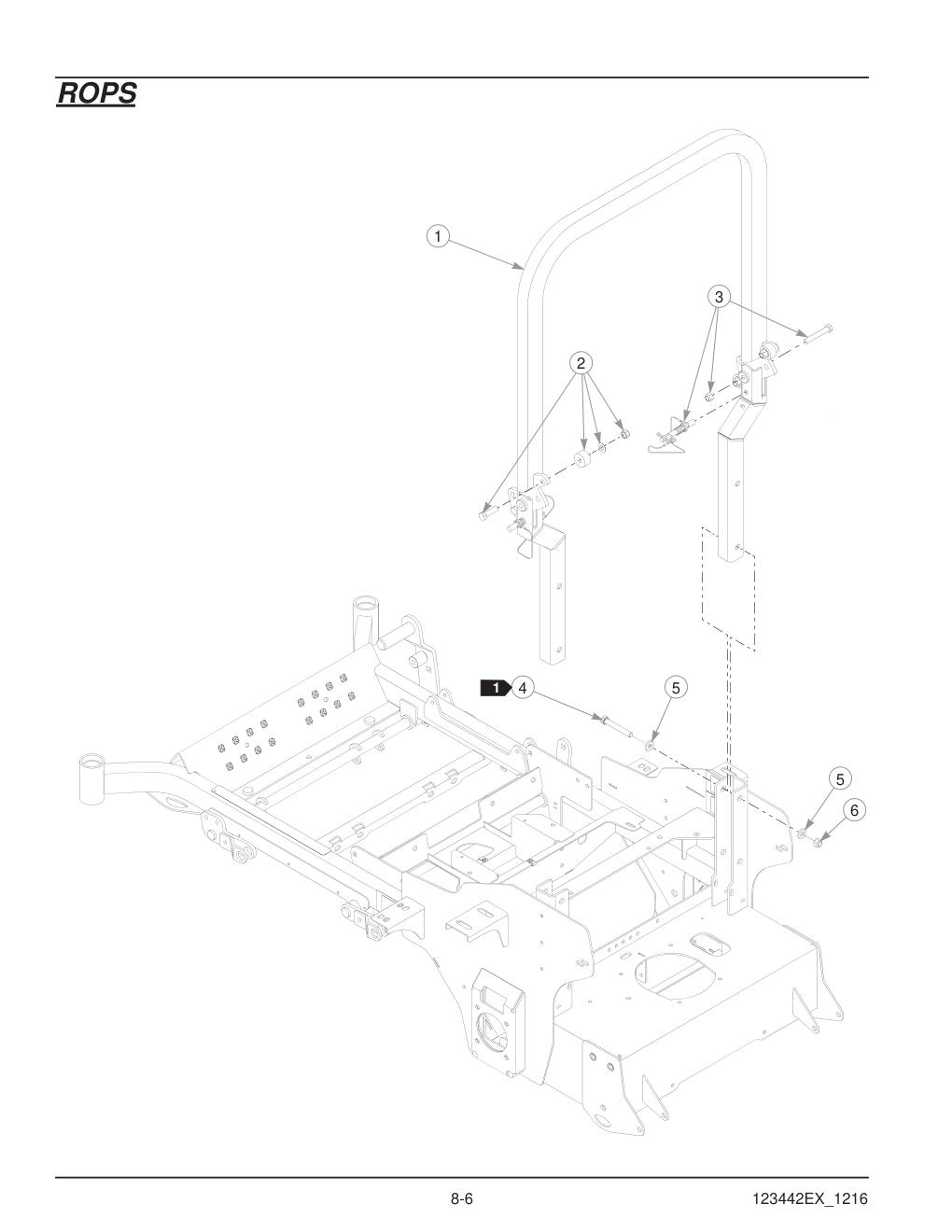

ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS KIT | 605741 | 1 | 605741-Online |
| 2 | POLY STOP KIT | 605731 | 2 | 605731-Online |
| 3 | ROPS HARDWARE KIT | 605638 | 1 | 605638-Online |
| 4 | CS .500-13 X 3.50 HX G5 | 061812 | 4 | 061812-Online |
| 5 | FW .531 X 1.063 X .175 | 767962 | 8 | HT767962-Online |
| 6 | NT .500-13 UNT LK G8 ZN | 023317 | 4 | 023317-Online |
