Illustrated Parts List
Hustler FasTrak Super Duty Parts Manual - 786061
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 786061Model: 930123Model: 930123EXModel: 930123USModel: 930131EXModel: 930131USModel: 930149Model: 930149EXModel: 930149USModel: 930156EX+39 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameFootrestEngine GuardHydraulic SystemSteeringSteering Sub-AssemblyBrakeWheel and TireDrive Wheel BreakdownFront Wheel Breakdown-786061Engine, Kaw FX691V, FX730VFuel Tanks, KawasakiEngine, HondaFuel System, HondaFuel Tanks, HondaBatteryInstrument Panel-KawasakiInstrument Panel-Honda48" Service Deck54" Service Deck60" Service Deck48" Deck, Pulleys & Spindles54" Deck, Pulleys & Spindles60" Deck, Pulleys & Spindles48" Deck54" Deck60" DeckSpindle Assembly-783506Deck LiftDeck Mounting HardwareSeatSeatROPSFrame

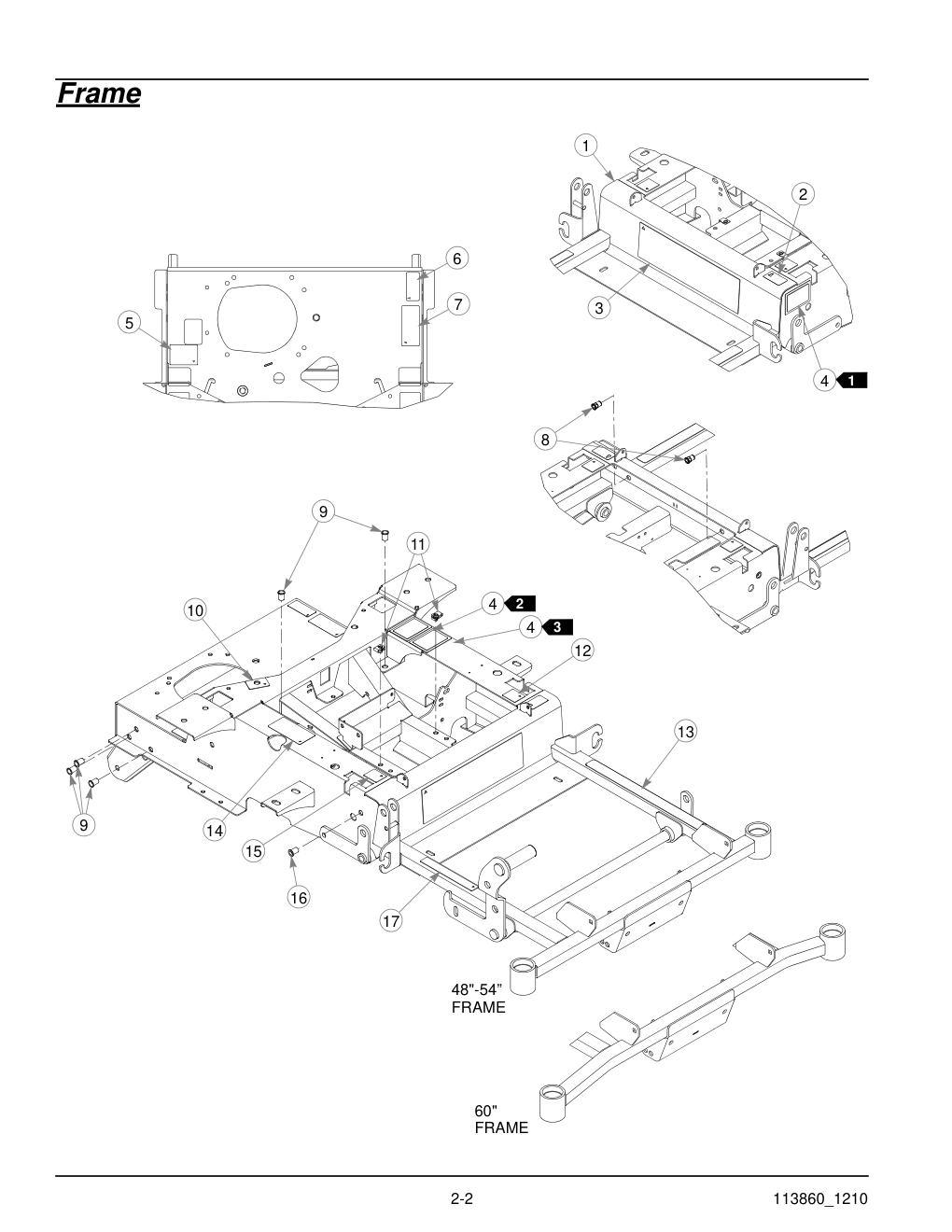

Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FRAME (WITH DECALS) | 550776 | 1 | 550776-Online |
| 1 | FRAME (WITH DECALS) | 550777 | 1 | 550777-Online |
| 1 | FRAME (WITH DECALS) | 550778 | 1 | 550778-Online |
| 2 | ‘MADE IN USA' DECAL | 727172 | 1 | 727172-Online |
| 3 | FASTRAK SD DECAL | 601421 | 1 | 601421-Online |
| 4 | TURF PRODUCTS SERIAL NO. PLATE | N/A | 3 | No SKU |
| 5 | TOW VALVE DECAL | 601099 | 1 | 601099-Online |
| 6 | HOT DECAL | 602041 | 1 | 602041-Online |
| 7 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 8 | RIVET NUT, 3/8-16 THREAD | 600994 | 2 | 600994-Online |
| 9 | 3/8-16 THREAD NUTSERT | 808493 | 8 | 808493-Online |
| 10 | FUEL INDICATOR DECAL | 791848 | 1 | 791848-Online |
| 11 | CN .312-18 X .200 MAX THK | 601069 | 2 | HT601069-Online |
| 12 | STEERING LS DECAL | 785139 | 1 | 785139-Online |
| 13 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 14 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 15 | STEERING RS DECAL | 785220 | 1 | 785220-Online |
| 16 | RIVET NUT, 5/16-18 THREAD | 808485 | 1 | HT808485-Online |
| 17 | DECK HEIGHT DECAL | 785154 | 1 | 785154-Online |
Footrest
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FLOOR PAN (WITH STEP TREADS) | 548768 | 1 | 548768-Online |
| 2 | STEP TREAD, UPPER | 785485 | 2 | 785485-Online |
| 3 | STEP TREAD, LOWER | 785493 | 2 | 785493-Online |
| 4 | CB .375-16 X .750 STD ZN | 011320 | 2 | 011320-Online |
| 5 | NT .375-16 HXZY NL | 086660 | 2 | HT086660-Online |
| 6 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 7 | CB .375-16 X 1.000 STD CD | 025395 | 2 | HT025395-Online |
| 8 | NT .375-16 HX G5 ZN | 054502 | 2 | HT054502-Online |
Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 2 | FW .510X 2.15X.187 SPL | 344267 | 4 | HT344267-Online |
| 3 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 4 | CS .375-16X1.250 HX G5 | 052860 | 6 | HT052860-Online |
| 5 | FW .406X .812 X.060 SAE | 767954 | 6 | HT767954-Online |
| 6 | ENGINE GUARD | 108847 | 1 | 108847-Online |
| 7 | CS .500-13X4.250 HX G5 | 781708 | 2 | HT781708-Online |
| 8 | FW .531X 1.063X.090 SAE | 767962 | 4 | HT767962-Online |
| 9 | ANTI-SCALP WHEEL | 031997 | 2 | HT031997-Online |
| 10 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X 2.500 HX G5 | 710087 | 4 | HT710087-Online |
| 2 | CS .312-18 X 2.250 HX G5 | 038828 | 4 | 038828-Online |
| 3 | FW .343 X .687 X .051/.080 HD ZN/YL | 768523 | 16 | HT768523-Online |
| 4 | IDLER PULLEY 4.0 OD | 786848 | 2 | 786848-Online |
| 5 | FW .625 X 1.00 X .134 ZNYC | 028118 | 2 | HT028118-Online |
| 6 | CS .625-11 X 1.500 HX G5 | 794446 | 1 | HT794446-Online |
| 7 | BELT, FASTRAK PUMP DRIVE | 600979 | 1 | HT600979-Online |
| 8 | CS .625-11 X 1.750 HX G5 | 025007 | 1 | HT025007-Online |
| 9 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 10 | UHMW BUSHING | 781153 | 2 | HT781153-Online |
| 11 | PUMP IDLER W/A, FASTRAK | 107881 | 1 | HT107881-Online |
| 12 | SB .750 X 2.000 SH .625-11 | 601084 | 1 | HT601084-Online |
| 13 | CS .375-16X2.00 G5 ZN | 016410 | 2 | HT016410-Online |
| 14 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 15 | ZT SPACER TUBE | 600987 | 1 | HT600987-Online |
| 16 | NT .312-18 HX G5 ZN | 034272 | 8 | HT034272-Online |
| 17 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 18 | ZT3100 LH | 601404 | 1 | 601404-Online |
| 19 | ZT3100 RH | 601403 | 1 | 601403-Online |
| 20 | TOW LINK ROD | 601088 | 2 | 601088-Online |
| 21 | CP .062DX1.000 LG HML Z | 048553 | 2 | 048553-Online |
| 22 | OVERFLOW TANK | 600759 | 1 | HT600759-Online |
| 23 | CS .250-20X.750 HX G5 ZN | 055939 | 2 | 055939-Online |
| 24 | FW .281X.625X.051/.080 HD ZN/YL | 768515 | 4 | HT768515-Online |
| 25 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 26 | SPRING CLAMP 3/4" DIA | 601001 | 4 | 601001-Online |
| 27 | OVERFLOW HOSE | 601018 | 2 | 601018-Online |
| 28 | HYDRAULIC FITTING 45 DEG | 600880 | 2 | 600880-Online |
| 29 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LOCK COLLAR .750 | 784439 | 2 | HT784439-Online |
| 2 | NT .312-24 HX NL ZN | 023655 | 2 | HT023655-Online |
| 3 | FW .343 X .687 X .051/.080 HD ZN/YL | 768523 | 17 | HT768523-Online |
| 4 | DAMPER, STEERING | 600221 | 2 | HT600221-Online |
| 5 | PUMP ROD ASSEMBLY | 600981 | 2 | HT600981-Online |
| 6 | BALL STUD, DAMPER | 781922 | 4 | 781922-Online |
| 7 | CS .250-20 X 2.000 HX G5 ZN | 704163 | 2 | 704163-Online |
| 8 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 12 | HT768515-Online |
| 9 | NT .250-20 HX ZN NL | 068551 | 2 | HT068551-Online |
| 10 | PUMP ARM | 109318 | 2 | HT109318-Online |
| 11 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 12 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
| 13 | CS .250-20 X .750 HX G5 ZN | 055939 | 4 | 055939-Online |
| 14 | STEER TUBE SUPPORT | 108968 | 2 | 108968-Online |
| 15 | CS .375-16 X 1.375 HX G5 ZN | 005116 | 2 | HT005116-Online |
| 16 | NT .375-16 HX JAM GR5 ZN | 706168 | 2 | HT706168-Online |
| 17 | CS .312-18 X 1.000 HX G5 ZN | 036236 | 1 | 036236-Online |
| 18 | PIVOT TUBE | 361295 | 1 | 361295-Online |
| 19 | LW .312 INT-EXT TOOTH ZN | 029876 | 2 | 029876-Online |
| 20 | NT .250-20 HX GR5 ZN | 024927 | 4 | HT024927-Online |
Steering Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING BAR GRIP | 781260 | 1 | 781260-Online |
| 2 | STEERING BAR (WITH GRIP) | 360487 | 1 | 360487-Online |
| 3 | FW .406 X .812 X .060 SAE HD ZN | 767954 | 12 | HT767954-Online |
| 4 | CS .375-16 X 1.750 HX G5 | 705178 | 3 | HT705178-Online |
| 5 | NT .375-16 HXZY NL | 086660 | 6 | HT086660-Online |
| 6 | STEERING ARM LEFT (SHOWN) | 107843 | 1 | HT107843-Online |
| 6 | STEERING ARM RIGHT | 107842 | 1 | HT107842-Online |
| 7 | BUSHING, PLASTIC .750X1 | 770867 | 2 | HT770867-Online |
| 8 | STEER PIVOT, LEFT (SHOWN) | 107848 | 1 | 107848-Online |
| 8 | STEER PIVOT RIGHT | 107847 | 1 | 107847-Online |
Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 HX LK NY | 086660 | 4 | HT086660-Online |
| 2 | FW .406 X .812 X .060 SAE HD ZN | 767954 | 12 | HT767954-Online |
| 3 | PLUNGER SWITCH | 601087 | 2 | HT601087-Online |
| 4 | CS .375-16X3.50 HX G5 Z | 005108 | 2 | HT005108-Online |
| 5 | BRAKE ROD ASSEMBLY | 601410 | 2 | 601410-Online |
| 6 | NT .375-16 HX GRD 5 ZN | 054502 | 2 | HT054502-Online |
| 7 | NT .312-24 HXZY NL | 023655 | 4 | HT023655-Online |
| 8 | FW .34 3X .687 X .051/.080 HD ZN/YL | 768523 | 8 | HT768523-Online |
| 9 | BUSHING | 765339 | 4 | HT765339-Online |
| 10 | BRAKE BELL CRANK LS | 107893 | 1 | HT107893-Online |
| 11 | BRAKE BELL CRANK RS | 107892 | 1 | HT107892-Online |
| 12 | CS .375-16X1.500 HX G5 | 080655 | 2 | HT080655-Online |
| 13 | SHORT BRAKE LINK ROD | 600991 | 2 | 600991-Online |
| 14 | BRAKE ARM RET. SPRING | 601131 | 2 | HT601131-Online |
| 15 | BRAKE SPRING LINK LS | 109203 | 1 | 109203-Online |
| 16 | BRAKE SPRING LINK RS (NOT SHOWN) | 109202 | 1 | HT109202-Online |
| 17 | CS .250-20X .750 HX G5 | 055939 | 2 | 055939-Online |
| 18 | NT .250-20 HX FL LK ZNY | 016816 | 2 | 016816-Online |
| 19 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |
Wheel and Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE/WHEEL 20 X 12-10 | 601349 | 2 | 601349-Online |
| 1 | TIRE/WHEEL 20 X 10-10 | 600668 | 2 | HT600668-Online |
| 2 | BACKUP PLATE, WHEEL | 111875 | 2 | 111875-Online |
| 3 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 4 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 5 | FW .510 X 2.15 X .187 SPL ZN | 344267 | 2 | HT344267-Online |
| 6 | FW .531 X 1.375 X .125 ZNYC | 712976 | 2 | HT712976-Online |
| 7 | BEARING W/O COLLAR | 784223 | 4 | HT784223-Online |
| 8 | SPACER | 784603 | 2 | HT784603-Online |
| 9 | NT .750-10 HX NL ZN | 061101 | 2 | HT061101-Online |
| 10 | FW .760 X 1.625 X .08 ZN | 025296 | 4 | HT025296-Online |
| 11 | FORK | 366625 | 2 | HT366625-Online |
| 12 | CS .750-10 X 8.00 HX GR5 ZNYC | 786731 | 2 | HT786731-Online |
| 13 | WHEEL & TIRE ASSY | 786061 | 2 | 786061-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE 20 X 12-10 ( 60" & 54" MOWER) | 601348 | 1 | 601348-Online |
| 2 | WHEEL ( 60" & 54" MOWER) | 601347 | 1 | 601347-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
| 1 | TIRE 20 X 10-10 ( 48" MOWER) | 600684 | 1 | HT600684-Online |
| 2 | WHEEL ( 48" MOWER) | 600700 | 1 | HT600700-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
Front Wheel Breakdown-786061
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL BEARING | 786103 | 2 | HT786103-Online |
| 2 | TIRE 13 X 5.00 | 747402 | 1 | 747402-Online |
| 3 | WHEEL | 786079 | 1 | HT786079-Online |
| 4 | TIRE VALVE | 019521 | 1 | HT019521-Online |
| 5 | GREASE FITTING 45 DEG 1/4 | 015511 | 1 | HT015511-Online |
Engine, Kaw FX691V, FX730V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAW FX691V ENGINE | N/A | 1 | No SKU |
| 1 | KAW FX730V ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 4 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 5 | PULLEY, ENGINE | 603255 | 1 | 603255-Online |
| 6 | KEY 1/4 SQ X 0.66 LG (FS) | 712372 | 1 | HT712372-Online |
| 7 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 8 | CLUTCH | 603273 | 1 | 603273-Online |
| 9 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 10 | CS .437-20 X 2.50 HXG5 P85 | 785659 | 1 | HT785659-Online |
| 11 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 12 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 13 | FW .343 X .687 X .051/.080H | 768523 | 11 | HT768523-Online |
| 14 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 15 | NT .312-18 HX G5 ZNYC | 034272 | 7 | HT034272-Online |
| 16 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 17 | 3/16" VAPOR LINE | 603326 | 12" | 603326-Online |
| 18 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 19 | 1/4" FUEL LINE | 015818 | 12" | HT015818-Online |
| 20 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 21 | CLAMP | 000398 | 1 | HT000398-Online |
| 22 | CS .312-18 X .750 HX G5 | 034280 | 1 | HT034280-Online |
| 23 | CS M8 X 1.25 X 16 G10.9 HX | 720516 | 3 | 720516-Online |
| 24 | MUFFLER, FS730V FSD | 602704 | 1 | 602704-Online |
| 25 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 26 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 27 | EXHAUST MOUNT | 112828 | 1 | 112828-Online |
| 28 | BATTERY CABLE, POSITIVE | 785063 | 1 | 785063-Online |
| 29 | BATTERY CABLE, NEGATIVE | 796219 | 1 | 796219-Online |
Fuel Tanks, Kawasaki
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RATCHETING GAS CAP | 602916 | 2 | 602916-Online |
| 2 | RS FUEL TANK | 602977 | 1 | 602977-Online |
| 3 | LS FUEL TANK | 602978 | 1 | 602978-Online |
| 4 | HOSE CLAMP | 000323 | 10 | 000323-Online |
| 5 | FUEL LINE, 1/4" | 015818 | 82" | HT015818-Online |
| 6 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 7 | PLASTIC TEE, 1/4" | 603025 | 1 | 603025-Online |
| 8 | VACUUM BREAKER | 603024 | 1 | 603024-Online |
| 9 | CS .312-18 X .750 HX G5 | 034280 | 2 | HT034280-Online |
| 10 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 11 | HOSE CLAMP | 043570 | 2 | 043570-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 13 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 14 | FW .406 X 1.00 X.12 HRD Z | 712919 | 8 | HT712919-Online |
| 15 | CS .375-16 X .750 HX G5 | 055822 | 8 | HT055822-Online |
| 16 | ROLLOVER VALVE & GROMMET | 603158 | 1 | 603158-Online |
| 17 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
| 18 | SUCTION HOSE GROMMET | 785295 | 1 | HT785295-Online |
| 19 | SUCTION HOSE 26.5 | 601529 | 1 | 601529-Online |
Engine, Honda
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE, HONDA GXV630 | N/A | 1 | No SKU |
| 2 | MUFFLER | 602699 | 1 | 602699-Online |
| 3 | NT .312-18 HX G5 ZNYC | 034272 | 6 | HT034272-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 5 | CN .250-20 X .19 MAX THK | 601118 | 2 | 601118-Online |
| 6 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 7 | CS .250-20 X 1.000 HX G5 | 056077 | 2 | 056077-Online |
| 8 | CB .312-18 X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 9 | EXHAUST MOUNT | 112828 | 1 | 112828-Online |
| 10 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 11 | CLUTCH | 603273 | 1 | 603273-Online |
| 12 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 13 | CS .437-20 X 2.50 HXG5 P85 | 785659 | 1 | HT785659-Online |
| 14 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 15 | FW .406 X .812 X .060 SAE | 767954 | 8 | HT767954-Online |
| 16 | CS .375-16 X 1.625 HX G5 | 705160 | 4 | 705160-Online |
| 17 | PULLEY | 783761 | 1 | HT783761-Online |
| 18 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 19 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 20 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 21 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 22 | NEGATIVE BATTERY CABLE | 796219 | 1 | 796219-Online |
| 23 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 24 | POSITIVE BATTERY CABLE | 744276 | 1 | 744276-Online |
| 25 | CS .312-18 X 1.750 HX G5 | 050161 | 4 | 050161-Online |
| 26 | FW .344 X .750 X .06 ZNYC | 070664 | 8 | 070664-Online |
| 27 | LOOP CLAMP | 043570 | 2 | 043570-Online |
| 28 | NT .312-18 HXZY NL | 058776 | 4 | HT058776-Online |
| 29 | M20X1.5 MALE ADAPTER | 602708 | 1 | 602708-Online |
| 30 | 3/8-18 OIL DRAIN VALVE | 796516 | 1 | 796516-Online |
| 31 | 3.0" CUSHIONED CLAMP | 602980 | 2 | 602980-Online |
Fuel System, Honda
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | HOSE CLAMP | 000323 | 6 | 000323-Online |
| 33 | HOSE CLAMP | 000307 | 1 | 000307-Online |
| 34 | 0.38" LOW PRESSURE HOSE | 603293 | 3" | 603293-Online |
| 35 | FITTING, -6BARB/-4BARB STR | 603209 | 1 | 603209-Online |
| 36 | CARBON CANISTER, 9 GAL. | 602982 | 1 | 602982-Online |
| 37 | 1/4" FUEL LINE | 015818 | 86" | HT015818-Online |
| 37 | VALVE TO ENGINE (FUEL) | 31" | 5 | No SKU |
| 37 | TEE TO CARBON CANISTER (VAPOR) | 20" | 6 | No SKU |
| 37 | ENGINE TO CARBON CANISTER (VAPOR) | 35" | 7 | No SKU |
Fuel Tanks, Honda
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RATCHETING GAS CAP, 3.5" | 602916 | 2 | 602916-Online |
| 2 | RS FUEL TANK | 602977 | 1 | 602977-Online |
| 3 | LS FUEL TANK | 602978 | 1 | 602978-Online |
| 4 | HOSE CLAMP | 000323 | 8 | 000323-Online |
| 5 | PLASTIC TEE, 1/4" | 603025 | 1 | 603025-Online |
| 6 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 7 | 1/4" FUEL LINE | 015818 | 82" | HT015818-Online |
| 8 | FW .406 X 1.00 X.12 HRD Z | 712919 | 8 | HT712919-Online |
| 9 | CS .375-16 X .750 HX G5 | 055822 | 8 | HT055822-Online |
| 10 | CS .312-18 X .750 HX G5 | 034280 | 2 | HT034280-Online |
| 11 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 12 | LOOP CLAMP | 043570 | 2 | 043570-Online |
| 13 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 14 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 15 | ROLLOVER VALVE & GROMMET | 603158 | 1 | 603158-Online |
| 16 | SUCTION HOSE GROMMET | 785295 | 1 | HT785295-Online |
| 17 | SUCTION HOSE 26.5 | 601529 | 1 | 601529-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X4.000 HX G5 | 714618 | 2 | HT714618-Online |
| 2 | FW .343X.687X.051/.080H | 768523 | 2 | HT768523-Online |
| 3 | STRAP, BATTERY CLAMP | 348417 | 1 | 348417-Online |
| 4 | CS .250-20X .750 HX G5 | 055939 | 2 | 055939-Online |
| 5 | LW .250 INT-EXT TOOTH Z | 029868 | 4 | 029868-Online |
| 6 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
| 7 | BATTERY CBL BOOT-RED | 771428 | 1 | 771428-Online |
| 8 | GM 1.50 X 2.12 X 1.75 | 794644 | 2 | 794644-Online |
Instrument Panel-Kawasaki
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 601095 | 1 | HT601095-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | HOUR METER | 769166 | 1 | HT769166-Online |
| 4 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 5 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 6 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 7 | WIRE HARNESS | 603172 | 1 | 603172-Online |
| 8 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 9 | INSTRUMENT PANEL (WITH DECAL) | 550454 | 1 | 550454-Online |
| 10 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 11 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 12 | THROTTLE CABLE | 601094 | 1 | HT601094-Online |
| 13 | CS .250-20 X .500 HX G5 | 055947 | 3 | 055947-Online |
| 14 | FW .281 X .625 X .051/.080H | 768515 | 3 | HT768515-Online |
| 15 | INSTRUMENT PANEL DECAL | 602233 | 1 | 602233-Online |
| 16 | WIRE TIE, SMALL/SHORT | 000331 | 6 | 000331-Online |
Instrument Panel-Honda
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE 55.00" LENGTH | 601095 | 1 | HT601095-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | HOUR METER | 769166 | 1 | HT769166-Online |
| 4 | KEY & RING | 785808 | 1 | 785808-Online |
| 5 | KEY SWITCH | 045898 | 1 | HT045898-Online |
| 6 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 7 | THROTTLE CABLE | 778365 | 1 | HT778365-Online |
| 8 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 9 | FW .219 X .500 X .048 ZN | 704932 | 2 | HT704932-Online |
| 10 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 11 | INSTRUMENT PANEL (WITH DECAL) | 550454 | 1 | 550454-Online |
| 12 | CS .250-20 X .500 HX G5 ZN | 055947 | 3 | 055947-Online |
| 13 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 3 | HT768515-Online |
| 14 | INST PANEL DECAL | 602233 | 1 | 602233-Online |
| 15 | WIRE TIE, SMALL/SHORT .185" W X 8" L | 000331 | 7 | 000331-Online |
| 16 | WIRE HARNESS, FST SD HON GXV630 | 602710 | 1 | 602710-Online |
| 17 | SEALED RELAY W/ BRACKET | 601053 | 2 | HT601053-Online |
48" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 48" FST DECK | 550752 | 1 | 550752-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | MADE IN U.S.A. DECAL | 727172 | 1 | 727172-Online |
| 6 | DECK STEP TREAD | 794503 | 1 | 794503-Online |
| 7 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 8 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
54" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK W/A | 550753 | 1 | 550753-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 4 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 5 | MADE IN U.S.A. DECAL | 727172 | 1 | 727172-Online |
| 6 | STEP TREAD | 785055 | 1 | 785055-Online |
| 7 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 8 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
60" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" DECK | 550754 | 1 | 550754-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 6 | STEP TREAD 3.70 X 9.00 | 785055 | 1 | 785055-Online |
| 7 | MADE IN U.S.A. DECAL | 727172 | 1 | 727172-Online |
| 8 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
48" Deck, Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.750 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 4 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 3 | 603057-Online |
| 4 | IDLER PULLEY, NHI 5.0" | 781856 | 3 | HT781856-Online |
| 5 | DECK IDLER SPACER | 600296 | 1 | HT600296-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN | 259812 | 1 | HT259812-Online |
| 9 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 10 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 13 | CW .631 X 2.250 X .187 PNT | 782474 | 5 | HT782474-Online |
| 14 | PULLEY 5" OD 80B102 | 792689 | 3 | HT792689-Online |
| 15 | NT .375-16 HX GRD 5 ZNY | 054502 | 12 | HT054502-Online |
| 16 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 17 | CS .312-18 X .750 HX G5 | 034280 | 2 | HT034280-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 19 | ANTI-SCALP WHEEL | 788166 | 4 | HT788166-Online |
| 20 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 21 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 22 | RS PULLER AND PIN | 109247 | 1 | HT109247-Online |
| 23 | LS PULLER AND PIN | 109248 | 1 | HT109248-Online |
| 24 | CS .625-11 X 3.00 FULL HX | 783738 | 2 | HT783738-Online |
| 25 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
| 26 | BLADE SPINDLE | 783506 | 3 | 783506-Online |
| 27 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 28 | CS .500-13X4.250 HX G5 | 781708 | 1 | HT781708-Online |
| 29 | FW .531X 1.063X.090 SAE | 767962 | 2 | HT767962-Online |
| 30 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 31 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |
54" Deck, Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.750 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 4 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 3 | 603057-Online |
| 4 | IDLER PULLEY, NHI 5.0" | 781856 | 3 | HT781856-Online |
| 5 | DECK IDLER SPACER | 600296 | 1 | HT600296-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN | 259812 | 1 | HT259812-Online |
| 9 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 10 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 13 | CW .631 X 2.250 X .187 PNT | 782474 | 5 | HT782474-Online |
| 14 | DRIVE PULLEY 5.68 OP | 786889 | 3 | HT786889-Online |
| 15 | NT .375-16 HX GRD 5 ZNY | 054502 | 12 | HT054502-Online |
| 16 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 17 | CS .312-18 X .750 HX G5 | 034280 | 2 | HT034280-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 19 | ANTI-SCALP WHEEL | 788166 | 4 | HT788166-Online |
| 20 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 21 | RS PULLER AND PIN | 109247 | 1 | HT109247-Online |
| 22 | LS PULLER AND PIN | 109248 | 1 | HT109248-Online |
| 23 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 24 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
| 25 | CS .625-11 X 3.00 FULL HX | 783738 | 2 | HT783738-Online |
| 26 | BLADE SPINDLE | 783506 | 3 | 783506-Online |
| 27 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 28 | CS .500-13X4.250 HX G5 | 781708 | 1 | HT781708-Online |
| 29 | FW .531X 1.063X.090 SAE | 767962 | 2 | HT767962-Online |
| 30 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 31 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |
60" Deck, Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.750 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 4 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 3 | 603057-Online |
| 4 | IDLER PULLEY, NHI 5.0" | 781856 | 3 | HT781856-Online |
| 5 | DECK IDLER SPACER | 600296 | 1 | HT600296-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN | 259812 | 1 | HT259812-Online |
| 9 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 10 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 13 | CW .631 X 2.250 X .187 PNT | 782474 | 5 | HT782474-Online |
| 14 | PULLEY, DECK DRIVE | 601447 | 3 | 601447-Online |
| 15 | NT .375-16 HX GRD 5 ZNY | 054502 | 12 | HT054502-Online |
| 16 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 17 | CS .312-18 X .750 HX G5 | 034280 | 2 | HT034280-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 19 | ANTI-SCALP WHEEL | 788166 | 4 | HT788166-Online |
| 20 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 21 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 22 | RS PULLER AND PIN | 112893 | 1 | 112893-Online |
| 23 | LS PULLER AND PIN | 112894 | 1 | 112894-Online |
| 24 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
| 25 | CS .625-11 X 3.00 FULL HX | 783738 | 2 | HT783738-Online |
| 26 | BLADE SPINDLE | 783506 | 3 | 783506-Online |
| 27 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 28 | CS .500-13X4.250 HX G5 | 781708 | 1 | HT781708-Online |
| 29 | FW .531X 1.063X.090 SAE | 767962 | 2 | HT767962-Online |
| 30 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 31 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |
48" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 108149 | 1 | HT108149-Online |
| 2 | LS PULLEY COVER (WITH DECALS) | 108148 | 1 | HT108148-Online |
| 3 | 48" DECK ID DECAL | 793976 | 1 | 793976-Online |
| 4 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 5 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 6 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 7 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 8 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 9 | CHUTE BRACKET | 112448 | 1 | HT112448-Online |
| 10 | BELT, B 143" EL | 791335 | 1 | HT791335-Online |
| 11 | CS .312-18 X .625 HX G5 | 064006 | 4 | 064006-Online |
| 12 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 13 | CB .375-16 X 1.00 STD CD | 025395 | 2 | HT025395-Online |
| 14 | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 15 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
54" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 2 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 3 | CHUTE BRACKET | 112448 | 1 | HT112448-Online |
| 4 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 5 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 6 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 7 | RS PULLEY COVER | 108124 | 1 | HT108124-Online |
| 8 | LS PULLEY COVER (WITH DECALS) | 550109 | 1 | 550109-Online |
| 9 | 54" DECK ID DECAL | 799171 | 1 | 799171-Online |
| 10 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 11 | CS .312-18 X .625 HX G5 | 064006 | 4 | 064006-Online |
| 12 | BELT, B 152" EL | 789388 | 1 | HT789388-Online |
| 13 | CB .375-16 X 1.00 STD CD | 025395 | 2 | HT025395-Online |
| 14 | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| 15 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
60" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 109310 | 1 | HT109310-Online |
| 2 | LS PULLEY COVER (WITH DECAL) | 550111 | 1 | HT550111-Online |
| 3 | 60" DECK DECAL | 786277 | 1 | 786277-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 5 | CS .312-18 X .625 HX G5 | 064006 | 4 | 064006-Online |
| 6 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 8 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 9 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 10 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 11 | CHUTE BRACKET | 112451 | 1 | 112451-Online |
| 12 | CB .375-16 X 1.00 STD CD | 025395 | 2 | HT025395-Online |
| 13 | BELT, B 165.56" EL | 782292 | 1 | HT782292-Online |
| 14 | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 15 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
Spindle Assembly-783506
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BLADE SPINDLE RING RETAINER | 783548 | 1 | HT783548-Online |
| 2 | BLADE SPINDLE BEARING | 783555 | 2 | 783555-Online |
| 3 | BLADE SPINDLE SPACER | 783530 | 1 | HT783530-Online |
| 4 | BLADE SPINDLE HOUSING | 783514 | 1 | HT783514-Online |
| 5 | BLADE SPINDLE SHAFT | 783522 | 1 | HT783522-Online |
Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 2 | HEIGHT ADJUSTMENT STOP | 348284 | 1 | HT348284-Online |
| 3 | DECK LIFT INDICATOR | 784488 | 1 | HT784488-Online |
| 4 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 5 | FW .781 X1.50 X.120 ZNYC | 601681 | 6 | 601681-Online |
| 6 | CLIP E, 1.00 X .625 X .050 | 781294 | 7 | HT781294-Online |
| 7 | CS .312-18 X 1.50 FLTHR G | 756270 | 1 | 756270-Online |
| 8 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 9 | DECK LEVELER YOKE W/A | 348458 | 1 | HT348458-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 6 | HT767962-Online |
| 11 | STRAIGHT GREASE FITTING | 015495 | 4 | HT015495-Online |
| 12 | DECK LIFT SPRING | 782995 | 2 | HT782995-Online |
| 13 | CE .750 X 2.25 X 1.75 HEADLESS | 781229 | 1 | 781229-Online |
| 14 | DECK LIFT CHAIN (3 LINKS) | 360131 | 4 | HT360131-Online |
| 15 | CS .437-14 X 1.750 HX G5 ZNYC | 055749 | 7 | HT055749-Online |
| 16 | CS .437-14 X 1.750 FULTH | 781831 | 1 | HT781831-Online |
Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | CS .500-13X 2.00 GR ZN | 078949 | 2 | HT078949-Online |
| 18 | NT .500-13 HX G5 ZN | 008193 | 2 | HT008193-Online |
Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STANDARD SEAT | 793661 | 1 | 793661-Online |
| 2 | CS .437-20 X1.00 HX G8 ZNYC | 797076 | 2 | 797076-Online |
| 3 | FW .440 X 1.000 X.083 ZNY | 017129 | 4 | 017129-Online |
| 4 | SEAT BELT | 601444 | 1 | 601444-Online |
| 5 | BAR, SEAT BELT CROSS | 794610 | 1 | 794610-Online |
| 6 | NT .437-20 HX GR5 ZNYC | 704635 | 2 | 704635-Online |
| 7 | CS .312-18X .750 HX G5 | 034280 | 3 | HT034280-Online |
| 8 | FW .343X.687X.051/.080H | 768523 | 13 | HT768523-Online |
| 9 | RIVET NUT, 5/16-18 THREAD | 808485 | 1 | HT808485-Online |
| 10 | SEAT LATCH | 108321 | 1 | HT108321-Online |
| 11 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 12 | SEAT PAN (WITH DECALS) | 550368 | 1 | 550368-Online |
| 13 | NT .312-18 HXZY NL | 058776 | 3 | HT058776-Online |
| 14 | SEAT PAN STOP | 109240 | 1 | 109240-Online |
| 15 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 16 | CS .312-18X .875 HX G5 | 064014 | 3 | 064014-Online |
| 17 | CS .375-16X1.250 HX G5 | 052860 | 2 | HT052860-Online |
| 18 | FW .406X .812 X.060 SAE | 767954 | 2 | HT767954-Online |
| 19 | SEAT SPRING | 601450 | 2 | 601450-Online |
| 20 | BATTERY DECAL | 601815 | 1 | 601815-Online |
Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STANDARD SEAT | 793661 | 1 | 793661-Online |
| 2 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 3 | SEAT PAN STOP | 109240 | 1 | 109240-Online |
| 4 | CS .312-18 X .875 HX G5 ZN | 064014 | 3 | 064014-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 6 | NT .312-18 HXZY NL | 058776 | 3 | HT058776-Online |
| 7 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 8 | SEAT PAN (INCLUDES DECAL) | 550855 | 1 | 550855-Online |
| 9 | CS .312-18 X .750 HX G5 | 034280 | 3 | HT034280-Online |
| 10 | TORSION SPRING | 783910 | 1 | HT783910-Online |
| 11 | SEAT LATCH | 603101 | 1 | 603101-Online |
| 12 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 13 | CS .375-16 X 3.50 HX G5 Z | 005108 | 1 | HT005108-Online |
| 14 | NT .375-16 HXZY NL | 086660 | 1 | HT086660-Online |
| 15 | NT .312-18 HX G5 ZNYC | 034272 | 8 | HT034272-Online |
| 16 | SEAT PAN BRACKET | 114203 | 1 | 114203-Online |
| 17 | SB .375 X .375 SH .312-18 | 754358 | 1 | 754358-Online |
| 18 | CS .375-16 X 1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 19 | SEAT SPRING, 150 LB/IN | 601450 | 2 | 601450-Online |
ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS KIT | 601439 | 1 | 601439-Online |
| 2 | CS .500-13 X 3.500 HX GR5 ZN | 061812 | 1 | 061812-Online |
| 3 | ROPS STOP | 601472 | 1 | 601472-Online |
| 4 | NT .500-13 UNT LK G8 ZN | 023317 | 6 | 023317-Online |
| 5 | KNOB, HAND FOR ROPS | 601470 | 2 | 601470-Online |
| 6 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 7 | CS .500-13X 3.250 HX G5 ZN | 077859 | 5 | 077859-Online |
| 8 | FW .531 X 1.063 X .09 SAE HRD ZN | 767962 | 8 | HT767962-Online |
| 9 | DECAL, ROP'S | 601635 | 2 | 601635-Online |
