Illustrated Parts List
Hustler Diesel Z Parts Manual (Export) - 782078
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 782078Model: 601238Model: 784058Model: 607407SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
Frame, Side Discharge DecksFrame, Rear Discharge DecksFootrestEngine Cover (P1 OF 2)Engine Cover (P2 OF 2)Radiator, Air Cleaner SupportHydraulic System (P1 OF 2)Hydraulic System (P2 OF 2)Pump BreakdownReservoir BreakdownManifold BreakdownMotor BreakdownSteeringSteering Cover (P1 OF 3)Steering Cover (P2 OF 3)Steering Cover (P3 OF 3)RS Steering Box AssemblyLS Steering Box AssemblyBrake - S/N 18031622 & HigherBrake - S/N Prior to 18031622Wheel & Tire, Flex Forks®Front Wheel Breakdown, Flex Forks®782078 Tire/Wheel Assembly (54" Side Discharge Mower)601238 Tire/Wheel Assembly (60"/72" Side Discharge Mowers)784058 Tire/Wheel Assembly (60"/72" Rear Discharge Mowers)Engine, Oil Filter, Fuel Filter & Muffler - S/N 19060988 & Higher (Multi-Page)Engine, Oil Filter, Fuel Filter & Muffler - S/N 19060988 & Higher (Multi-Page)Engine, Oil Filter, Fuel Filter & Muffler - S/N Prior to 19060988 (Multi-Page)Engine, Oil Filter, Fuel Filter & Muffler - S/N Prior to 19060988 (Multi-Page)Fuel SystemAir CleanerCooling SystemBelt Drive & ClutchBelt Drive & ClutchInstrument Panel & Wire HarnessInstrument Panel & Wire HarnessBattery54” Service Deck54” Deck Pulleys & Spindles54” Deck54” Deck Lift54" Deck Mounting Hardware60" Side Discharge - Service Deck60” Side Discharge Deck Pulleys & Spindles60" Side Discharge Deck72" Side Discharge Service Deck72" Side Discharge Deck Pulleys & Spindles72" Side Discharge Deck60" Rear Discharge Service Deck60" Rear Discharge Pulleys60" Rear Discharge Spindles60" Rear Discharge Deck (P1 OF 2)60" Rear Discharge Deck (P2 OF 2)60" Rear Discharge Dust Shield72" Rear Discharge Service Deck72" Rear Discharge Pulleys72" Rear Discharge Spindles72" Rear Discharge Deck (P1 OF 2)72" Rear Discharge Deck (P2 OF 2)72" Rear Discharge Dust Shield60" & 72" Deck Lift60" & 72" Deck Mounting HardwareSpindle Assembly Service Parts - 607407Seat, SuspensionSeat, Suspension Service PartsROPS & FirewallFrame, Side Discharge Decks
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE FRAME, 54" HDZ | 551232 | 1 | 551232-Online |
| Not Shown | SERVICE FRAME, 60" HDZ | 551153 | 1 | 551153-Online |
| Not Shown | SERVICE FRAME, 72" HDZ | 551154 | 1 | 551154-Online |
| 2 | RIVET NUT, 1/2-13 THREAD | 600961 | 4 | 600961-Online |
| 3 | DECAL, HYDRAULIC PRESS | 601968 | 1 | 601968-Online |
| 4 | DECAL, ANSI COMPLIANCE | 603363 | 1 | 603363-Online |
| 5 | DECAL, DECK HEIGHT INDI | 781427 | 1 | 781427-Online |
| 6 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 7 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 8 | SERIAL NO / SPEC. DECAL | N/A | 1 | No SKU |
| 9 | DECAL, BELT ROUTING | 601596 | 1 | 601596-Online |
Frame, Rear Discharge Decks
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE FRAME, 60 HDZ RD | 551155 | 1 | 551155-Online |
| Not Shown | SERVICE FRAME, 72 HDZ RD | 551156 | 1 | 551156-Online |
| 2 | RIVET NUT, 1/2-13 THREAD | 600961 | 4 | 600961-Online |
| 3 | DECAL, HYDRAULIC PRESS | 601968 | 1 | 601968-Online |
| 4 | DECAL, ANSI COMPLIANCE | 603363 | 1 | 603363-Online |
| 5 | DECAL, DECK HEIGHT INDI | 781427 | 1 | 781427-Online |
| 6 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 7 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 8 | SERIAL NO / SPEC DECAL | N/A | 1 | No SKU |
| 9 | DECAL, BELT ROUTING | 601596 | 1 | 601596-Online |
Footrest
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PLATE, FLOOR HDZ | 115152 | 1 | 115152-Online |
| 2 | BUMPER, .500x 1.00x .31 | 781880 | 4 | HT781880-Online |
| 3 | CS .375-16X1.25 HX G5 ZY | 052860 | 1 | HT052860-Online |
| 4 | FW 0.379X.82X.06 HD ZY | 767954 | 2 | HT767954-Online |
| 5 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 6 | STEP TREAD, LOWER 9.00 | 785493 | 2 | 785493-Online |
Engine Cover (P1 OF 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOOD, HDZ | 601363 | 1 | 601363-Online |
| 2 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 2 | 713198-Online |
| 3 | NT .250-20 HXZY NL | 068551 | 8 | HT068551-Online |
| 4 | FW 0.281SAE | 768515 | 10 | HT768515-Online |
| 5 | HINGE, 3"X3" ZN W/ HOLES | 601364 | 2 | 601364-Online |
| 6 | CB .250-20 X .625 ZNYC | 601503 | 8 | 601503-Online |
| 7 | GAS SPRING, HDZ HOOD | 601564 | 1 | 601564-Online |
| 8 | FW 0.379X.82X.06 HD ZY | 767954 | 2 | HT767954-Online |
| 9 | SB0.375X0.500SH0.312-18 | 063297 | 1 | 063297-Online |
| 10 | SB .375 X 1.50SH .312-18 | 601379 | 1 | 601379-Online |
| 11 | LIFT SUPPORT W/A | 109745 | 1 | 109745-Online |
| 12 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 13 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 14 | SCREEN, RS W/A HDZ | 109341 | 1 | 109341-Online |
| 15 | LATCH, HEAVY DUTY SWELL | 791384 | 1 | 791384-Online |
| 16 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 17 | LATCH STRIKER W/A | 109722 | 1 | 109722-Online |
| 18 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 19 | FW 0.344X1.00X.12 HD ZY | 712927 | 2 | HT712927-Online |
| 20 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 21 | RADIATOR SCREEN W/A HDZ | 109137 | 1 | 109137-Online |
| 22 | WEATHERSTRIP .12X.75 | 033035 | 2 | 033035-Online |
| 23 | WEATHERSTRIP .12X.75 | 033035 | 1 | 033035-Online |
| 24 | WEATHERSTRIP .12X.75 | 033035 | 2 | 033035-Online |
| 25 | WEATHERSTRIP .12X.75 | 033035 | 1 | 033035-Online |
| 26 | PANEL, FIREWALL ACCESS | 109136 | 1 | 109136-Online |
| 27 | CS .250-20X0.75 HX G5 ZY | 055939 | 4 | 055939-Online |
| 28 | LATCH BRACKET | 124364-1 | 1 | 124364-1-Online |
| 29 | LW .250 INTEXT ZY | 029868 | 2 | 029868-Online |
| 30 | LATCH, SLAM SOUTHCO | 601373 | 1 | 601373-Online |
| 31 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 32 | OVER CNTR CATCH W/LCK H | 758821 | 1 | 758821-Online |
| 33 | COVER, REAR W/A HDZ | 109413 | 1 | 109413-Online |
| 34 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 35 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 36 | FENDER, INNER PANEL | 109559 | 1 | 109559-Online |
Engine Cover (P2 OF 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOOD, HDZ | 601363 | 1 | 601363-Online |
| 2 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 2 | 713198-Online |
| 3 | NT .250-20 HXZY NL | 068551 | 8 | HT068551-Online |
| 4 | FW 0.281SAE | 768515 | 10 | HT768515-Online |
| 5 | HINGE, 3"X3" ZN W/ HOLES | 601364 | 2 | 601364-Online |
| 6 | CB .250-20 X .625 ZNYC | 601503 | 8 | 601503-Online |
| 7 | GAS SPRING, HDZ HOOD | 601564 | 1 | 601564-Online |
| 8 | FW 0.379X.82X.06 HD ZY | 767954 | 2 | HT767954-Online |
| 9 | SB0.375X0.500SH0.312-18 | 063297 | 1 | 063297-Online |
| 10 | SB .375 X 1.50SH .312-18 | 601379 | 1 | 601379-Online |
| 11 | LIFT SUPPORT W/A | 109745 | 1 | 109745-Online |
| 12 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 13 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 14 | SCREEN, RS W/A HDZ | 109341 | 1 | 109341-Online |
| 15 | LATCH, HEAVY DUTY SWELL | 791384 | 1 | 791384-Online |
| 16 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 17 | LATCH STRIKER W/A | 109722 | 1 | 109722-Online |
| 18 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 19 | FW 0.344X1.00X.12 HD ZY | 712927 | 2 | HT712927-Online |
| 20 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 21 | RADIATOR SCREEN W/A HDZ | 109137 | 1 | 109137-Online |
| 22 | WEATHERSTRIP .12X.75 | 033035 | 2 | 033035-Online |
| 23 | WEATHERSTRIP .12X.75 | 033035 | 1 | 033035-Online |
| 24 | WEATHERSTRIP .12X.75 | 033035 | 2 | 033035-Online |
| 25 | WEATHERSTRIP .12X.75 | 033035 | 1 | 033035-Online |
| 26 | PANEL, FIREWALL ACCESS | 109136 | 1 | 109136-Online |
| 27 | CS .250-20X0.75 HX G5 ZY | 055939 | 4 | 055939-Online |
| 28 | LATCH BRACKET | 124364-1 | 1 | 124364-1-Online |
| 29 | LW .250 INTEXT ZY | 029868 | 2 | 029868-Online |
| 30 | LATCH, SLAM SOUTHCO | 601373 | 1 | 601373-Online |
| 31 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 32 | OVER CNTR CATCH W/LCK H | 758821 | 1 | 758821-Online |
| 33 | COVER, REAR W/A HDZ | 109413 | 1 | 109413-Online |
| 34 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 35 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 36 | FENDER, INNER PANEL | 109559 | 1 | 109559-Online |
Radiator, Air Cleaner Support
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RADIATOR SUPPORT, | 551141 | 1 | 551141-Online |
| 2 | FAN WARNING DECAL | 763805CE | 1 | 763805CE-Online |
| 3 | GM 1.50 X 2.12 X 1.75 | 794644 | 3 | 794644-Online |
| 4 | NT .312-18HXG5 | 034272 | 10 | HT034272-Online |
| 5 | FW 0.343SAE | 768523 | 14 | HT768523-Online |
| 6 | RADIATOR SUPPORT PAD | 601558 | 1 | 601558-Online |
| 7 | CB .312-18X .750 FUL ZN | 016253 | 6 | 016253-Online |
| 8 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 9 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 10 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 11 | DECAL, SPARK ARRESTOR | 601908 | 1 | 601908-Online |
| 12 | AIR CLEANER MOUNT, | 551142 | 1 | 551142-Online |
| 13 | GM .31X.81X.56X.18 | 031666 | 2 | 031666-Online |
| 14 | GUARD, REAR ENGINE W/A | 109105 | 1 | 109105-Online |
| 15 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 16 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 17 | OVERFLOW BOTTLE MOUNT | 551143 | 1 | 551143-Online |
| 18 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 19 | CS .500-13X1.25 HX G5 ZY | 705954 | 4 | HT705954-Online |

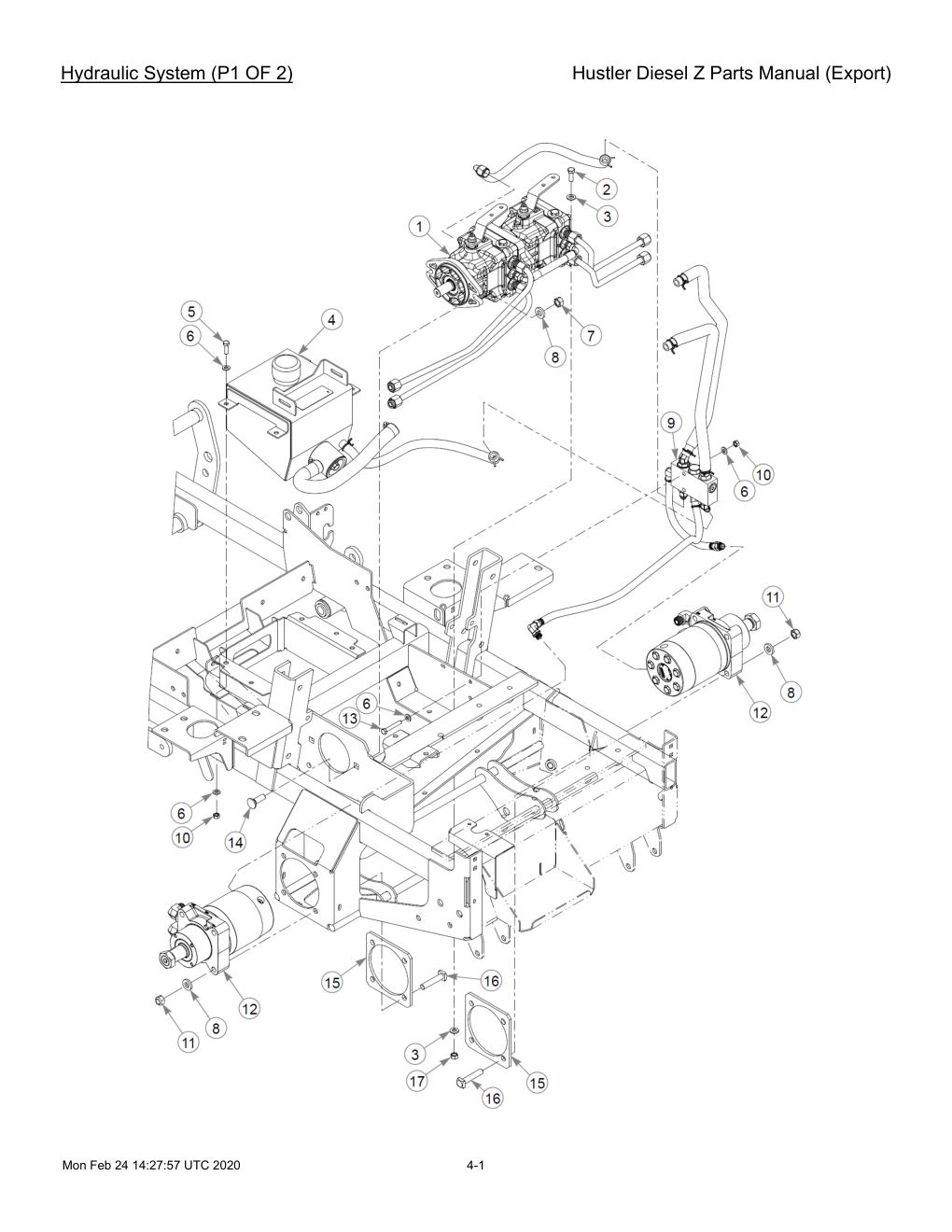

Hydraulic System (P1 OF 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUMP ASSEMBLY | N/A | 1 | No SKU |
| 2 | CS .375-16X1.00 HX G5 ZY | 036244 | 5 | HT036244-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 7 | HT767954-Online |
| 4 | RESERVOIR ASSEMBLY | N/A | 1 | No SKU |
| 5 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 6 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 7 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
| 8 | FW .531 x 1.063 x .175 | 767962 | 10 | HT767962-Online |
| 9 | MANIFOLD ASSEMBLY | N/A | 1 | No SKU |
| 10 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 11 | NT .500-13UNTG8 | 023317 | 8 | 023317-Online |
| 12 | MOTOR ASSEMBLY | N/A | 2 | No SKU |
| 13 | CS .312-18X2.000HXG5 | 064345 | 2 | 064345-Online |
| 14 | CB .500-13X 1.500 FULL | 028274 | 2 | 028274-Online |
| 15 | GUSSET, INT | 115816 | 2 | 115816-Online |
| 16 | CS .500-13X2.500 SQ G5 | 602256 | 8 | 602256-Online |
| 17 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 18 | CS .250-20X2.000HXG5 | 704163 | 4 | 704163-Online |
| 19 | FW 0.281SAE | 768515 | 16 | HT768515-Online |
| 20 | NT .250-20 HXZY NL | 068551 | 8 | HT068551-Online |
| 21 | SCREEN, OIL COOLER | 109401 | 1 | 109401-Online |
| 22 | OIL COOLER FOR 8" FAN | 601356 | 1 | 601356-Online |
| 23 | FOOT, ELECTRIC FAN | 601538 | 4 | 601538-Online |
| 24 | CS .250-20X1.000HXG5 | 056077 | 4 | 056077-Online |
| 25 | FAN, ELECTRIC 8" 12VDC | 601357 | 1 | 601357-Online |
| 26 | NT .375-16HXG5 | 016899 | 3 | HT016899-Online |
| 27 | CLIP - HOSE - SINGLE(FS) | 043570 | 2 | 043570-Online |
| 28 | HOSE CLAMP 1" (FS) | 045088 | 1 | 045088-Online |

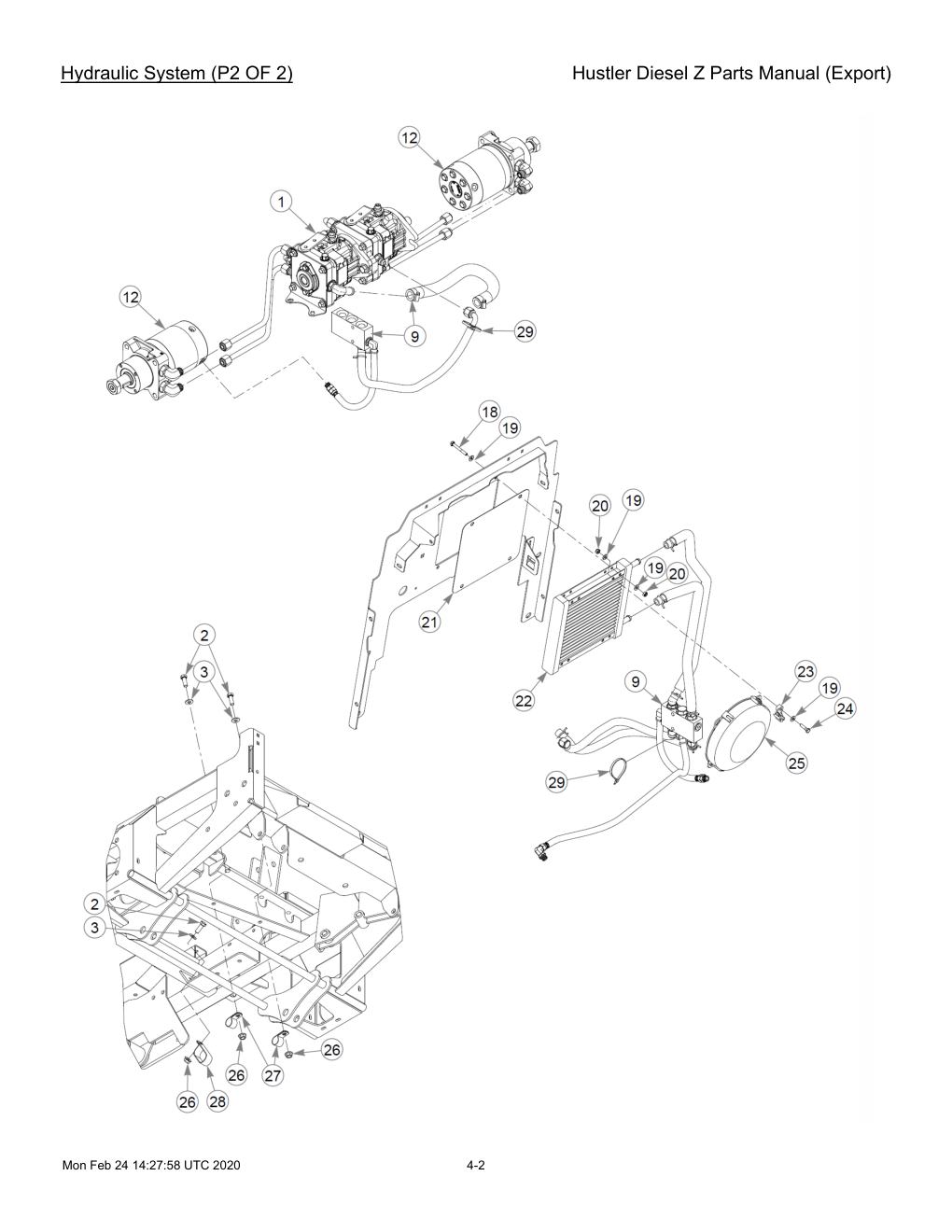

Hydraulic System (P2 OF 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUMP ASSEMBLY | N/A | 1 | No SKU |
| 2 | CS .375-16X1.00 HX G5 ZY | 036244 | 5 | HT036244-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 7 | HT767954-Online |
| 4 | RESERVOIR ASSEMBLY | N/A | 1 | No SKU |
| 5 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 6 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 7 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
| 8 | FW .531 x 1.063 x .175 | 767962 | 10 | HT767962-Online |
| 9 | MANIFOLD ASSEMBLY | N/A | 1 | No SKU |
| 10 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 11 | NT .500-13UNTG8 | 023317 | 8 | 023317-Online |
| 12 | MOTOR ASSEMBLY | N/A | 2 | No SKU |
| 13 | CS .312-18X2.000HXG5 | 064345 | 2 | 064345-Online |
| 14 | CB .500-13X 1.500 FULL | 028274 | 2 | 028274-Online |
| 15 | GUSSET, INT | 115816 | 2 | 115816-Online |
| 16 | CS .500-13X2.500 SQ G5 | 602256 | 8 | 602256-Online |
| 17 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 18 | CS .250-20X2.000HXG5 | 704163 | 4 | 704163-Online |
| 19 | FW 0.281SAE | 768515 | 16 | HT768515-Online |
| 20 | NT .250-20 HXZY NL | 068551 | 8 | HT068551-Online |
| 21 | SCREEN, OIL COOLER | 109401 | 1 | 109401-Online |
| 22 | OIL COOLER FOR 8" FAN | 601356 | 1 | 601356-Online |
| 23 | FOOT, ELECTRIC FAN | 601538 | 4 | 601538-Online |
| 24 | CS .250-20X1.000HXG5 | 056077 | 4 | 056077-Online |
| 25 | FAN, ELECTRIC 8" 12VDC | 601357 | 1 | 601357-Online |
| 26 | NT .375-16HXG5 | 016899 | 3 | HT016899-Online |
| 27 | CLIP - HOSE - SINGLE(FS) | 043570 | 2 | 043570-Online |
| 28 | HOSE CLAMP 1" (FS) | 045088 | 1 | 045088-Online |
| 29 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
Pump Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUMP, 21CC TANDEM | 603650 | 1 | 603650-Online |
| Not Shown | SEAL KIT, HG TANDEM 21 | 600934 | 1 | 600934-Online |
| 2 | FTG, STR-8MORB/-8MS | 781534 | 4 | 781534-Online |
| 3 | TUBE, TP-TM RH LOOP | 603701 | 1 | 603701-Online |
| 4 | TUBE, BP-BM RH LOOP | 603700 | 1 | 603700-Online |
| 5 | TUBE, TP-TM, LH LOOP | 603699 | 1 | 603699-Online |
| 6 | TUBE, BP-BM LH LOOP | 603698 | 1 | 603698-Online |
| 7 | CS M8-1.25x25 SH BO NY | 795377 | 2 | 795377-Online |
| 8 | RETAINER, PUMP ARM HYDR | 795369 | 2 | 795369-Online |
| 9 | PUMP ARM, HDZ | 109118 | 2 | 109118-Online |
| 10 | FTG,STR-8MORB/-8MJIC | 771337 | 1 | 771337-Online |
| 11 | FTG, -8MORB/-12 BEAD | 601524 | 1 | 601524-Online |
| 12 | SPRING CLAMP, .75" DIA | 601001 | 1 | 601001-Online |
| 13 | HOSE, CASE DRAIN PUMP | 601520 | 1 | 601520-Online |
| 14 | HOSE,LP PUMP TO PUMP | 796060 | 1 | 796060-Online |
Reservoir Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CAP, BREATHER | 032763 | 1 | HT032763-Online |
| 2 | STRAINER | 032771 | 1 | 032771-Online |
| 3 | RESERVOIR W/A HDZ | 549345 | 1 | 549345-Online |
| 4 | DECAL, HOT & HYD OIL | 779280 | 1 | 779280-Online |
| 5 | FTG, -8MORB/HEX PLUG | 781658 | 1 | 781658-Online |
| 6 | SPRING CLAMP, .75" DIA | 601001 | 2 | 601001-Online |
| 7 | HOSE, RETURN MANI BLOCK | 601570 | 1 | 601570-Online |
| 8 | FILTER ELEMENT | 601413X | 1 | 601413X-Online |
| 9 | CLAMP, HOSE (FS) | 700484 | 2 | 700484-Online |
| 10 | HOSE, SUCTION HDZ HYDRO | 601517 | 1 | 601517-Online |

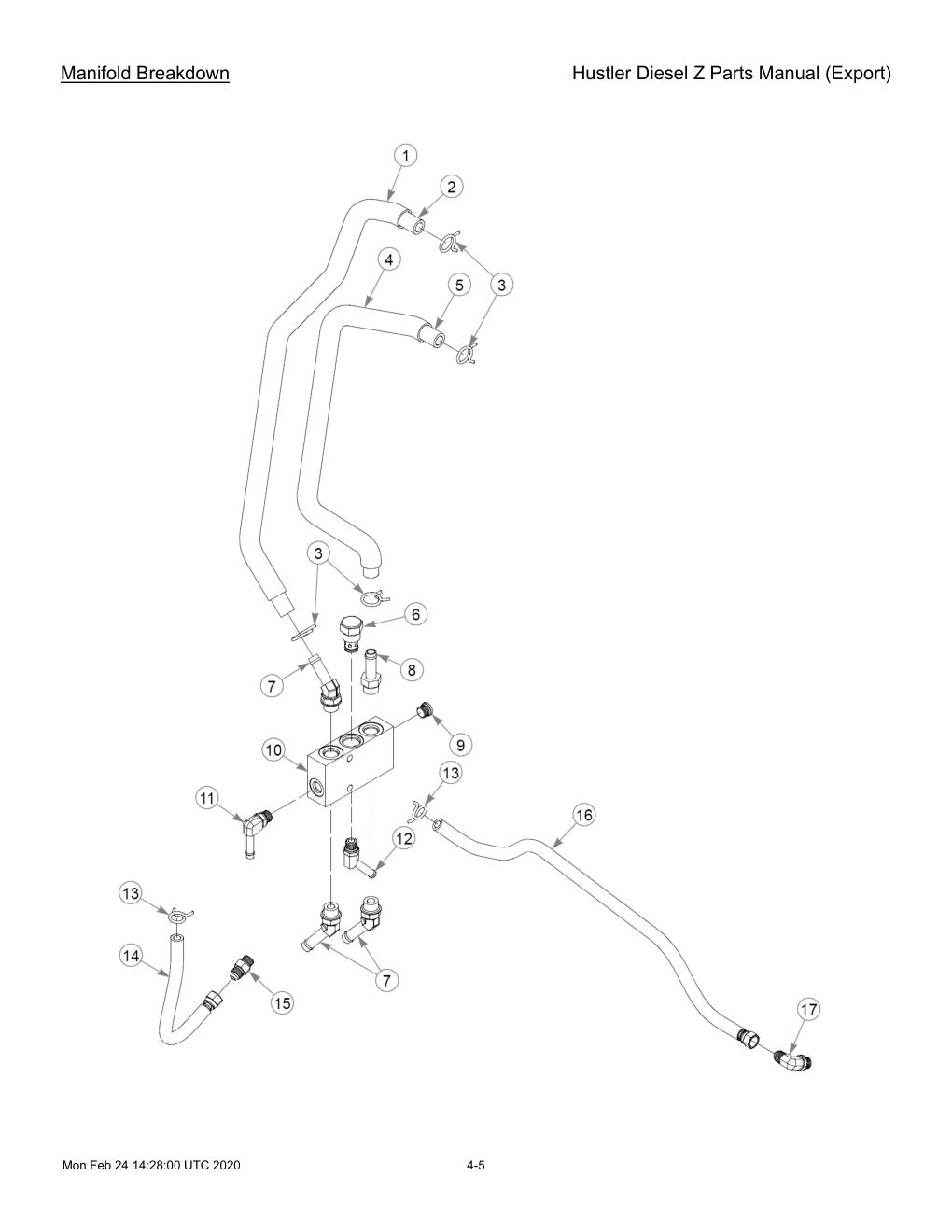

Manifold Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOSE GUARD, BLOCK TO | 601583 | 1 | 601583-Online |
| 2 | HOSE, MANIFOLD BLOCK | 601521 | 1 | 601521-Online |
| 3 | SPRING CLAMP, .75" DIA | 601001 | 4 | 601001-Online |
| 4 | HOSE GUARD, COOLER TO | 601584 | 1 | 601584-Online |
| 5 | HOSE, RETURN COOLER | 601522 | 1 | 601522-Online |
| 6 | VALVE, CARTRIDGE CHECK | 601568 | 1 | 601568-Online |
| 7 | FTG, -8MORB/-8BEAD | 601592 | 3 | 601592-Online |
| 8 | FTG, -8MORB/-8BT STR | 601523 | 1 | 601523-Online |
| 9 | FTG, PLUG -8MORB/HEX | 601569 | 1 | 601569-Online |
| 10 | MANIFOLD, CASE DRAIN | 601476 | 1 | 601476-Online |
| 11 | FTG, 90°-6MORB/-6BT | 787465 | 1 | 787465-Online |
| 12 | FTG, 45°-6MORB/-6BT | 784108 | 1 | 784108-Online |
| 13 | SPRING CLAMP, 5/8" DIA. | 601617 | 2 | 601617-Online |
| 14 | HOSE, CASE DRAIN RIGHT | 603697 | 1 | 603697-Online |
| 15 | FTG, -6MORB/-6MJIC STR | 779132 | 1 | 779132-Online |
| 16 | HOSE, CASE DRAIN LEFT | 603722 | 1 | 603722-Online |
| 17 | FTG, 90-6MORB/-6MJI | 795922 | 1 | HT795922-Online |
Motor Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MOTOR, PARKER TG0335 | 603663 | 1 | 603663-Online |
| 2 | FTG, 90°-10MORB/-8MORFS | 781526 | 2 | 781526-Online |
| 3 | ROSS WOODRUFF KEY | 064337 | 1 | HT064337-Online |
| 4 | ROSS NUT | 065516 | 1 | HT065516-Online |
| 5 | ROSS VITON SEAL KIT | 748806 | 1 | HT748806-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HANDLE, Z W/A | 109839 | 2 | 109839-Online |
| Not Shown | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 2 | CS .375-16X1.00 HX G5 ZY | 036244 | 4 | HT036244-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 16 | HT767954-Online |
| 4 | CS .375-16X0.75 HX G5 ZY | 055822 | 6 | HT055822-Online |
| 5 | STEERING COVER ASSEMBLY | N/A | 1 | No SKU |
| 6 | NT .375-16HXG5 | 054502 | 6 | HT054502-Online |
| 7 | DAMPER, CENTERING | 795351 | 2 | 795351-Online |
| 8 | BALL STUD | 781922 | 2 | 781922-Online |
| 9 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 10 | LW .312 INTEXT ZY | 029876 | 2 | 029876-Online |
| 11 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |
| 12 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 13 | SWITCH, PLUNGER N.O. | 601087 | 2 | HT601087-Online |

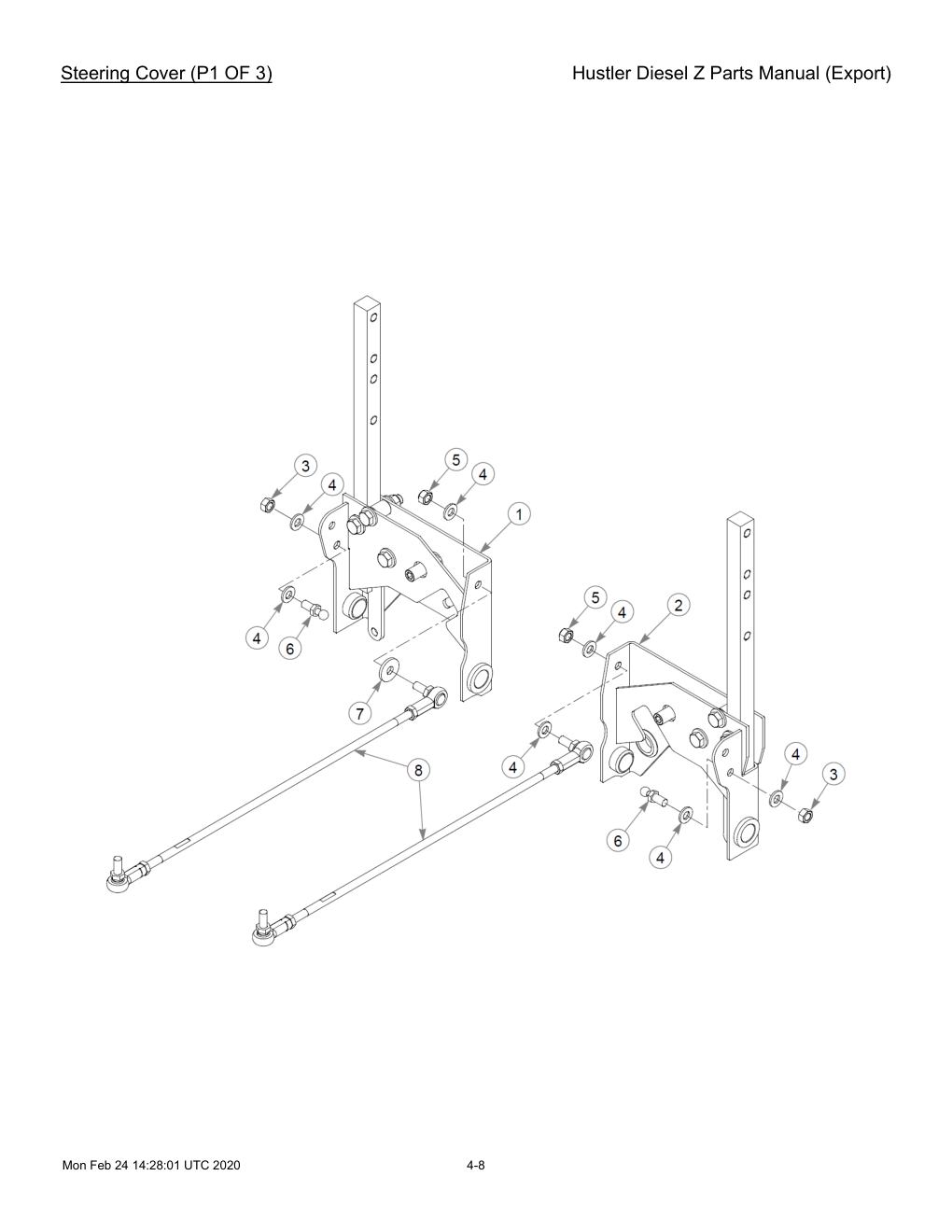

Steering Cover (P1 OF 3)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 2 | RS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 3 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 4 | FW 0.343SAE | 768523 | 7 | HT768523-Online |
| 5 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 6 | BALL STUD | 781922 | 2 | 781922-Online |
| 7 | FW 0.344X1.00X.12 HD ZY | 712927 | 1 | HT712927-Online |
| 8 | PUMP ROD ADJUSTER ASSY | 781286 | 2 | HT781286-Online |
| 9 | STEERING COVER W/A, HDZ | 115080 | 1 | 115080-Online |
| 10 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 11 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 12 | FW .750X1.50X.16 ZY | 603078 | 2 | 603078-Online |
| 13 | STEER PIVOT TUBE | 108813 | 1 | 108813-Online |
| 14 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 15 | SS .500-13X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 16 | DECAL, HDZ | 605089 | 1 | 605089-Online |
| 17 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 18 | POLYURETHANE 2" (FS) | 722199 | 5.5 | 722199-Online |
Steering Cover (P2 OF 3)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 2 | RS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 3 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 4 | FW 0.343SAE | 768523 | 7 | HT768523-Online |
| 5 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 6 | BALL STUD | 781922 | 2 | 781922-Online |
| 7 | FW 0.344X1.00X.12 HD ZY | 712927 | 1 | HT712927-Online |
| 8 | PUMP ROD ADJUSTER ASSY | 781286 | 2 | HT781286-Online |
| 9 | STEERING COVER W/A, HDZ | 115080 | 1 | 115080-Online |
| 10 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 11 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 12 | FW .750X1.50X.16 ZY | 603078 | 2 | 603078-Online |
| 13 | STEER PIVOT TUBE | 108813 | 1 | 108813-Online |
| 14 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 15 | SS .500-13X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 16 | DECAL, HDZ | 605089 | 1 | 605089-Online |
| 17 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 18 | POLYURETHANE 2" (FS) | 722199 | 5.5 | 722199-Online |

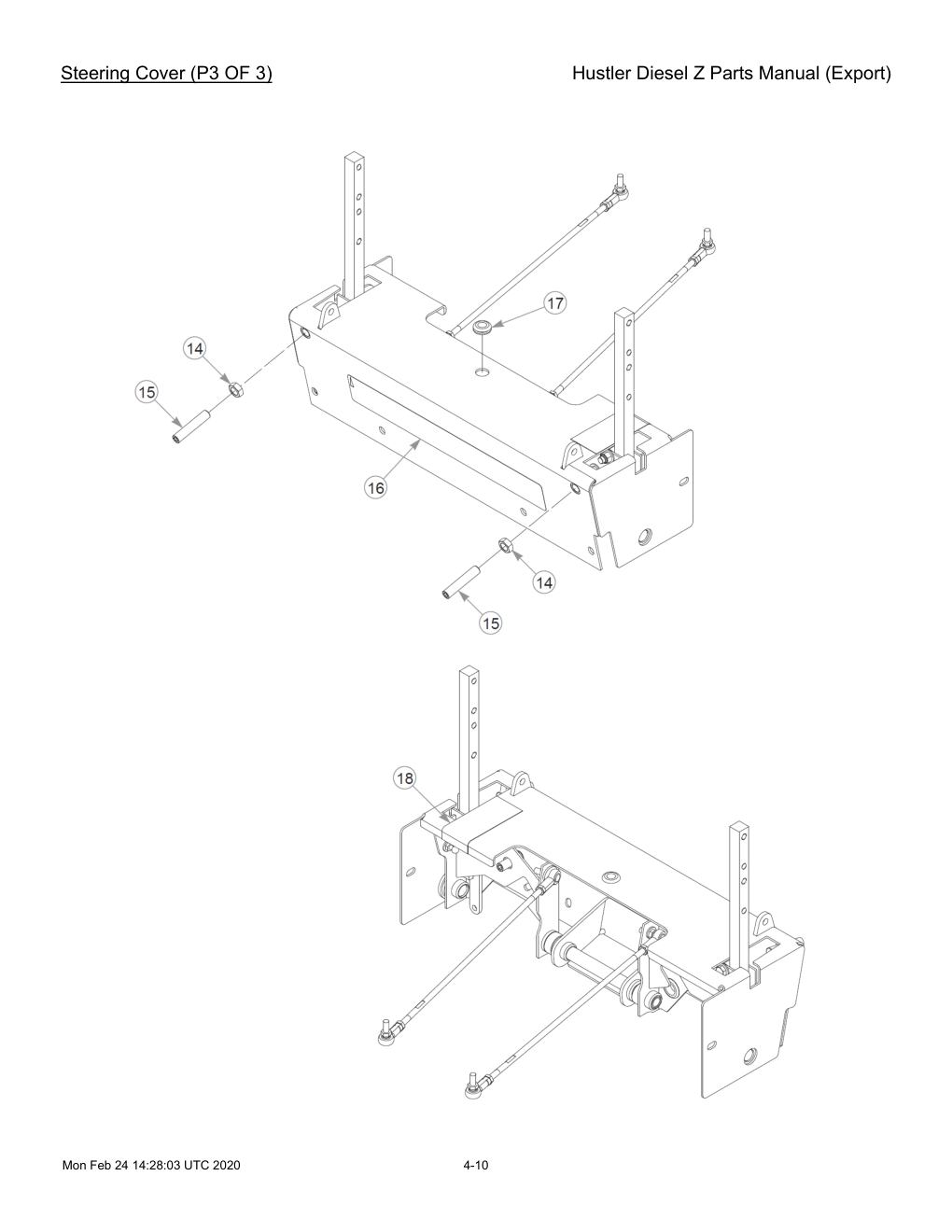

Steering Cover (P3 OF 3)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 2 | RS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 3 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 4 | FW 0.343SAE | 768523 | 7 | HT768523-Online |
| 5 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 6 | BALL STUD | 781922 | 2 | 781922-Online |
| 7 | FW 0.344X1.00X.12 HD ZY | 712927 | 1 | HT712927-Online |
| 8 | PUMP ROD ADJUSTER ASSY | 781286 | 2 | HT781286-Online |
| 9 | STEERING COVER W/A, HDZ | 115080 | 1 | 115080-Online |
| 10 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 11 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 12 | FW .750X1.50X.16 ZY | 603078 | 2 | 603078-Online |
| 13 | STEER PIVOT TUBE | 108813 | 1 | 108813-Online |
| 14 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 15 | SS .500-13X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 16 | DECAL, HDZ | 605089 | 1 | 605089-Online |
| 17 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 18 | POLYURETHANE 2" (FS) | 722199 | 5.5 | 722199-Online |
RS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A, SZ | 113575 | 1 | 113575-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | STEERING BOX W/A, RH | 112898 | 1 | 112898-Online |
| 6 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 7 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 8 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |
LS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A, SZ | 113575 | 1 | 113575-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | STEERING BOX W/A LH | 112899 | 1 | 112899-Online |
| 6 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 7 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 8 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |
Brake - S/N 18031622 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 2 | FW 0.379X.82X.06 HD ZY | 767954 | 12 | HT767954-Online |
| 3 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 4 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 5 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 6 | CS .375-16X1.500HXG5 | 080655 | 4 | HT080655-Online |
| 7 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 8 | BRAKE BELLCRANK, LS HDZ | 115123 | 1 | 115123-Online |
| Not Shown | BRAKE BELLCRANK, RS HDZ | 115124 | 1 | 115124-Online |
| 9 | BRAKE TURNBUCKLE ASSY | 603673 | 2 | 603673-Online |
| 10 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 11 | CS .375-16X4.500HXG5 | 052514 | 2 | 052514-Online |
| 12 | BRAKE ASSY, PARKER | 602383 | 2 | 602383-Online |
| 13 | CS .312-18X.75HXG8 FL | 604461 | 8 | 604461-Online |
| 14 | HUB ASSY, PARKER | 602384 | 2 | 602384-Online |
| 15 | BRAKE ARM,Z4 | 111309 | 2 | HT111309-Online |
| 16 | CB .312-18X 1.000 FUL YZ | 037887 | 4 | HT037887-Online |
| 17 | STUD 1/2-20 X 1 1/2" | 606124 | 5 | 606124-Online |
| Not Shown | STUD, WHEEL LUG 1/2-20 | 601085 | 5 | HT601085-Online |
Brake - S/N Prior to 18031622
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 2 | FW 0.379X.82X.06 HD ZY | 767954 | 12 | HT767954-Online |
| 3 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 4 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 5 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 6 | CS .375-16X1.38 HX G5 ZY | 005116 | 4 | HT005116-Online |
| 7 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 8 | BRAKE BELLCRANK, LS HDZ | 115123 | 1 | 115123-Online |
| Not Shown | BRAKE BELLCRANK, RS HDZ | 115124 | 1 | 115124-Online |
| 9 | BRAKE TURNBUCKLE ASSY | 603673 | 2 | 603673-Online |
| 10 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 11 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 12 | CS .375-16X4.500HXG5 | 052514 | 2 | 052514-Online |
| 13 | BRAKE ASSY, PARKER | 602383 | 2 | 602383-Online |
| 14 | CS .312-18X.75HXG8 FL | 604461 | 8 | 604461-Online |
| 15 | HUB ASSY, PARKER | 602384 | 2 | 602384-Online |
| 16 | BRAKE ARM,Z4 | 111309 | 2 | HT111309-Online |
| 17 | CB .312-18X 1.000 FUL YZ | 037887 | 4 | HT037887-Online |
| 18 | STUD 1/2-20 X 1 1/2" | 606124 | 5 | 606124-Online |
| Not Shown | STUD, WHEEL LUG 1/2-20 | 601085 | 5 | HT601085-Online |
Wheel & Tire, Flex Forks®
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13X1.25 HX G5 ZY | 705954 | 2 | HT705954-Online |
| 2 | FW .515X1.65X.12 HD ZY | 798603 | 2 | 798603-Online |
| 3 | O-RING, SAE-14 | 601375 | 2 | 601375-Online |
| 4 | DUST CAP, SZ CASTER | 603153 | 2 | 603153-Online |
| 5 | BEARING | 784223 | 4 | HT784223-Online |
| 6 | SPACER, 1.07x1.312x2.79 | 387035 | 2 | HT387035-Online |
| 7 | BEARING DISC, FORK | 603164 | 2 | 603164-Online |
| 8 | FLEX FORKS ASSEMBLY | N/A | 1 | No SKU |
| 9 | TIR/WHL 24X9.50-12 SLV | 782078 | 2 | 782078-Online |
| Not Shown | TIR/WHL 24X12.00-12 SLV | 601238 | 2 | 601238-Online |
| Not Shown | TIR/WHL 24X12.00-12 SLV | 784058 | 2 | HT784058-Online |
| 10 | WHEEL NUT | 061077 | 10 | HT061077-Online |
| 11 | CS .500-13X4.500HXG5 | 068239 | 2 | HT068239-Online |
| 12 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 13 | ANTI-SCALP WHEEL | 031997 | 2 | HT031997-Online |
| 14 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
Front Wheel Breakdown, Flex Forks®
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, FLEX FORK 13X6.5 LS | 116281 | 1 | 116281-Online |
| 2 | NT .750-10 HX ZY NL GR B | 061101 | 2 | HT061101-Online |
| 3 | FW .760X1.63X0.08 ZY | 025296 | 4 | HT025296-Online |
| 4 | CS .750-10X9.50 HX G5 ZY | 041475 | 2 | HT041475-Online |
| 5 | TIR 13X6.50-6 B4R RIB | 607734 | 2 | 607734-Online |
| 6 | WHEEL BEARING | 039677 | 2 | HT039677-Online |
| 7 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
| 8 | SPACER, BEARING (SERV P | 782771 | 1 | HT782771-Online |
| 9 | TIR 13X6.50-6 B4R SMTH | 604843 | 1 | 604843-Online |
| 10 | WHL 6X4.50 SLV | 606751 | 1 | 606751-Online |
782078 Tire/Wheel Assembly (54" Side Discharge Mower)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 24X9.50-12 B4R LTFT | 782284 | 1 | 782284-Online |
| 2 | WHL 12X7.00 5X4.5 SLV | 606821 | 1 | 606821-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

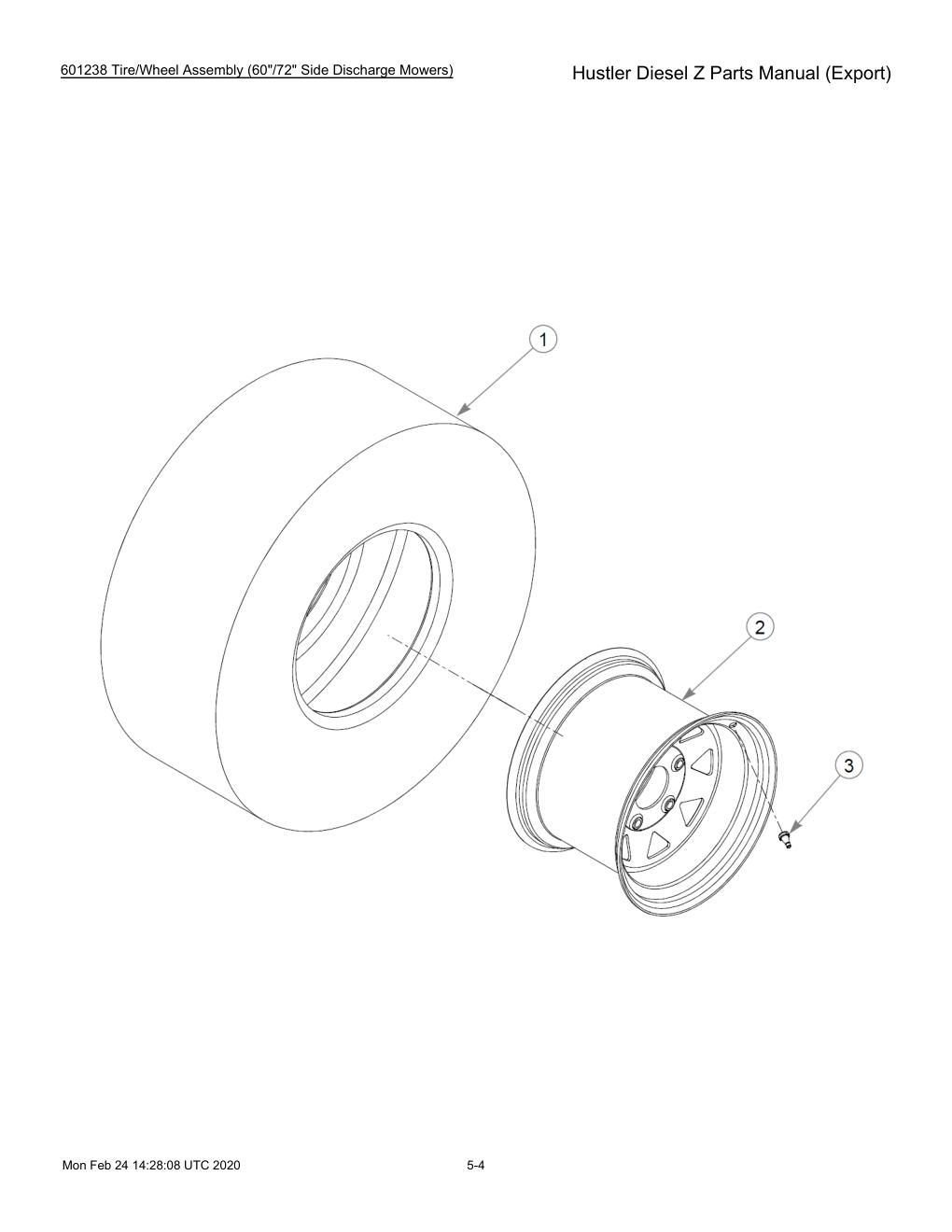

601238 Tire/Wheel Assembly (60"/72" Side Discharge Mowers)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 24X12.00-12 B4R LTFT | 781245 | 1 | HT781245-Online |
| 2 | WHL 12X8.50 5X4.5 SLV | 606820 | 1 | 606820-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

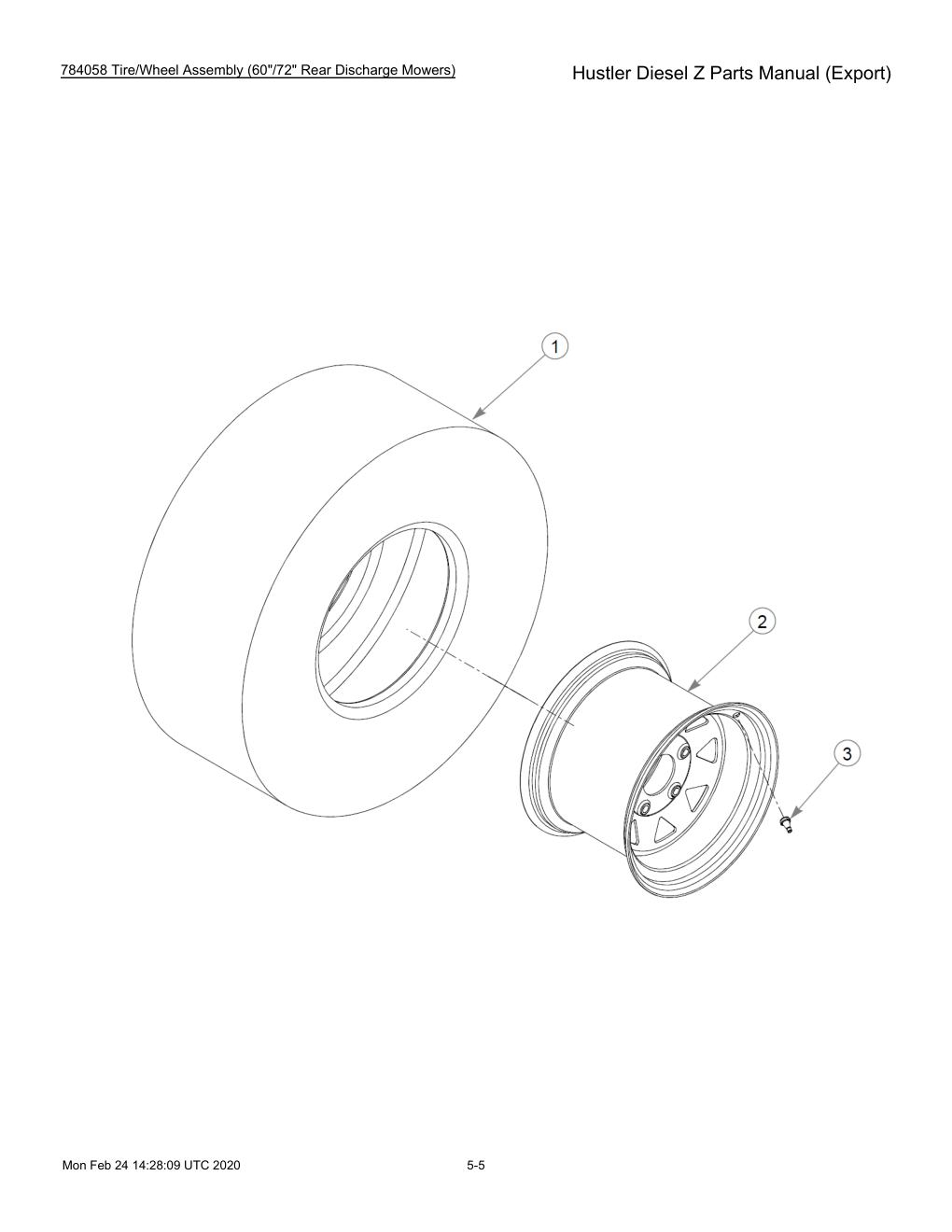

784058 Tire/Wheel Assembly (60"/72" Rear Discharge Mowers)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 24X12.00-12 B4R LTFT | 781245 | 1 | HT781245-Online |
| 2 | WHL 12X8.50 5X4.5 SLV | 606819 | 1 | 606819-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

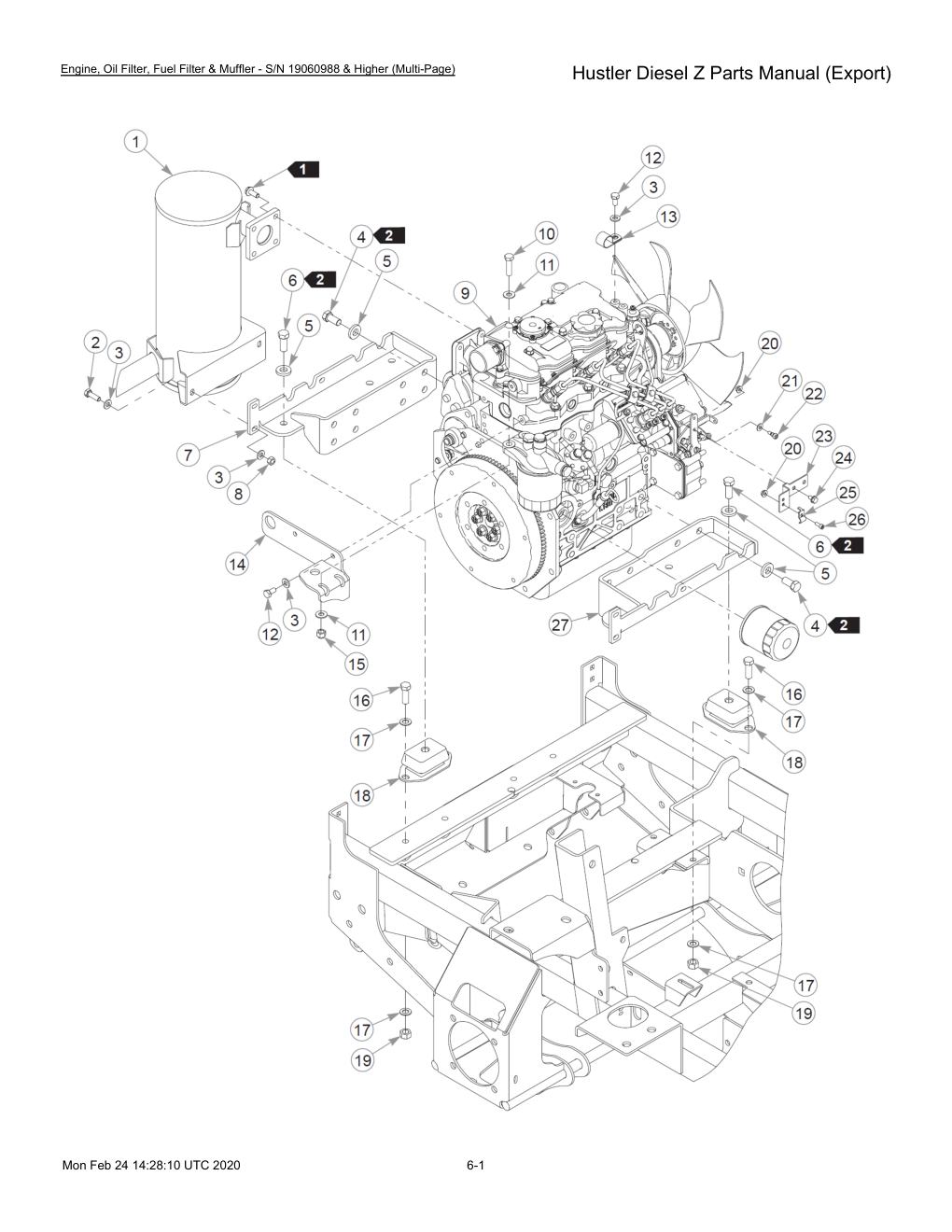

Engine, Oil Filter, Fuel Filter & Muffler - S/N 19060988 & Higher (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MUFFLER, ISM S773L HDZ | 601361 | 1 | 601361-Online |
| 2 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 3 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 4 | CS M12-1.25 X 25 ZN | 601428 | 16 | 601428-Online |
| 5 | FW .531 x 1.063 x .175 | 767962 | 20 | HT767962-Online |
| 6 | CS M12-1.75 x 30 G8.8 ZN | 602196 | 4 | 602196-Online |
| 7 | MOTOR MOUNT W/A, REAR | 111045 | 1 | 111045-Online |
| 8 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 9 | ENG, S773L DSL ISM138681 | 601355 | 1 | 601355-Online |
Engine, Oil Filter, Fuel Filter & Muffler - S/N 19060988 & Higher (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | BOOT, POSITIVE BATTERY | 601381 | 1 | 601381-Online |
| 35 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 36 | POST, POS BAT MARINE | 601380 | 1 | 601380-Online |
| 37 | DECAL, CAUTION | 606453 | 1 | 606453-Online |
| 38 | FUEL LINE, 5/16" | 791400 | 30" | 791400-Online |
| 39 | HOSE CLAMP, 1/4" - 5/8" | 601693 | 4 | 601693-Online |
| 40 | FUEL PRIMER BULB, 5/16" | 601378 | 1 | 601378-Online |
| 41 | CLAMP, 3/16 FUEL | 603112 | 2 | 603112-Online |
| 42 | VAPOR LINE, 3/16" | 603326 | 13" | 603326-Online |
| 43 | ENGINE OIL FILTER | 140517020 | 1 | HT140517020-Online |

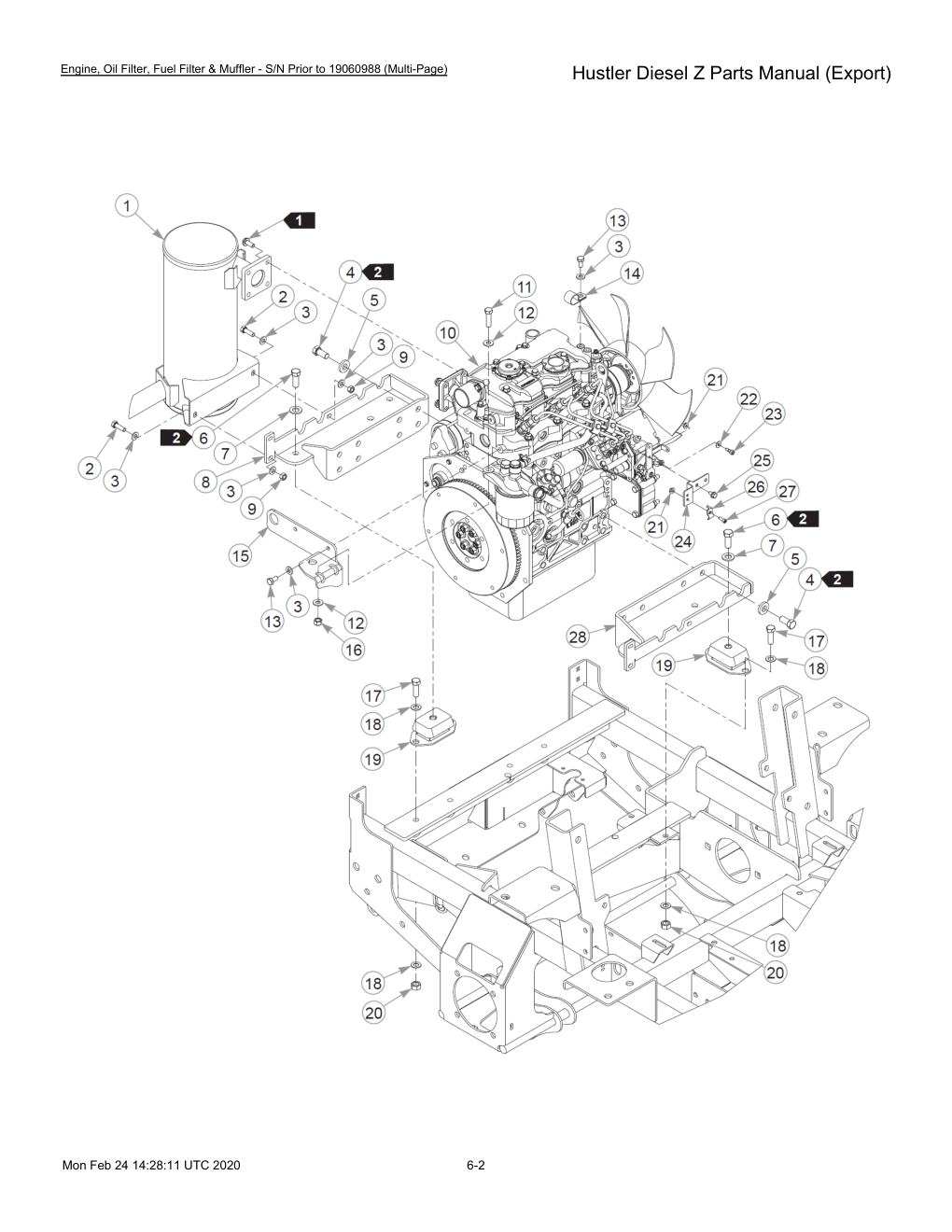

Engine, Oil Filter, Fuel Filter & Muffler - S/N Prior to 19060988 (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MUFFLER, ISM S773L HDZ | 601361 | 1 | 601361-Online |
| 2 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 3 | FW 0.343SAE | 768523 | 9 | HT768523-Online |
| 4 | CS M12-1.25 X 25 ZN | 601428 | 16 | 601428-Online |
| 5 | FW .531 x 1.063 x .175 | 767962 | 16 | HT767962-Online |
| 6 | CS M12-1.75 x 30 G8.8 ZN | 602196 | 4 | 602196-Online |
| 7 | FW .531x1.00x.090 ZY | 004168 | 4 | HT004168-Online |
| 8 | MOTOR MOUNT W/A, REAR | 111045 | 1 | 111045-Online |
| 9 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 10 | ENG, S773L DSL ISM138681 | 601355 | 1 | 601355-Online |
Engine, Oil Filter, Fuel Filter & Muffler - S/N Prior to 19060988 (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | CABLE, POS 9" | 601539 | 1 | 601539-Online |
| 35 | BOOT, POSITIVE BATTERY | 601381 | 1 | 601381-Online |
| 36 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 37 | POST, POS BAT MARINE | 601380 | 1 | 601380-Online |
| 38 | DECAL, CAUTION | 606453 | 1 | 606453-Online |
| 39 | FUEL LINE, 5/16" | 791400 | 30" | 791400-Online |
| 40 | HOSE CLAMP, 1/4" - 5/8" | 601693 | 4 | 601693-Online |
| 41 | FUEL PRIMER BULB, 5/16" | 601378 | 1 | 601378-Online |
| 42 | CLAMP, 3/16 FUEL | 603112 | 2 | 603112-Online |
| Not Shown | HOSE CLAMP, 7/16 SPRING | 041483 | 2 | 041483-Online |
| 43 | VAPOR LINE, 3/16" | 603326 | 13" | 603326-Online |
| Not Shown | FUEL LINE, 3/16" | 038398 | 13" | 038398-Online |
| 44 | O-RING, HDZ REMOTE OIL | 601567 | 1 | 601567-Online |
| 45 | ADAPTER, REMOTE OIL | 601526 | 1 | 601526-Online |
| 46 | HOSE CLAMP 1" (FS) | 045088 | 1 | 045088-Online |
| 47 | CS .250-20X0.50 HX G5 ZY | 055947 | 2 | 055947-Online |
| 48 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 49 | FILTER HEAD, HDZ | 601487 | 1 | 601487-Online |
| 50 | FTG, STR-6MORB/-6MS | 792150 | 2 | 792150-Online |
| 51 | FTG, -6MORB/-6MJIC STR | 779132 | 2 | 779132-Online |
| 52 | HOSE, OIL FILTER RELOC | 601546 | 1 | 601546-Online |
| 53 | HOSE, OIL FILTER RELOC | 601547 | 1 | 601547-Online |
| 54 | ENGINE OIL FILTER | 140517020 | 1 | HT140517020-Online |
| 55 | FILTER, FUEL SPIN ON | 130366120 | 1 | HT130366120-Online |

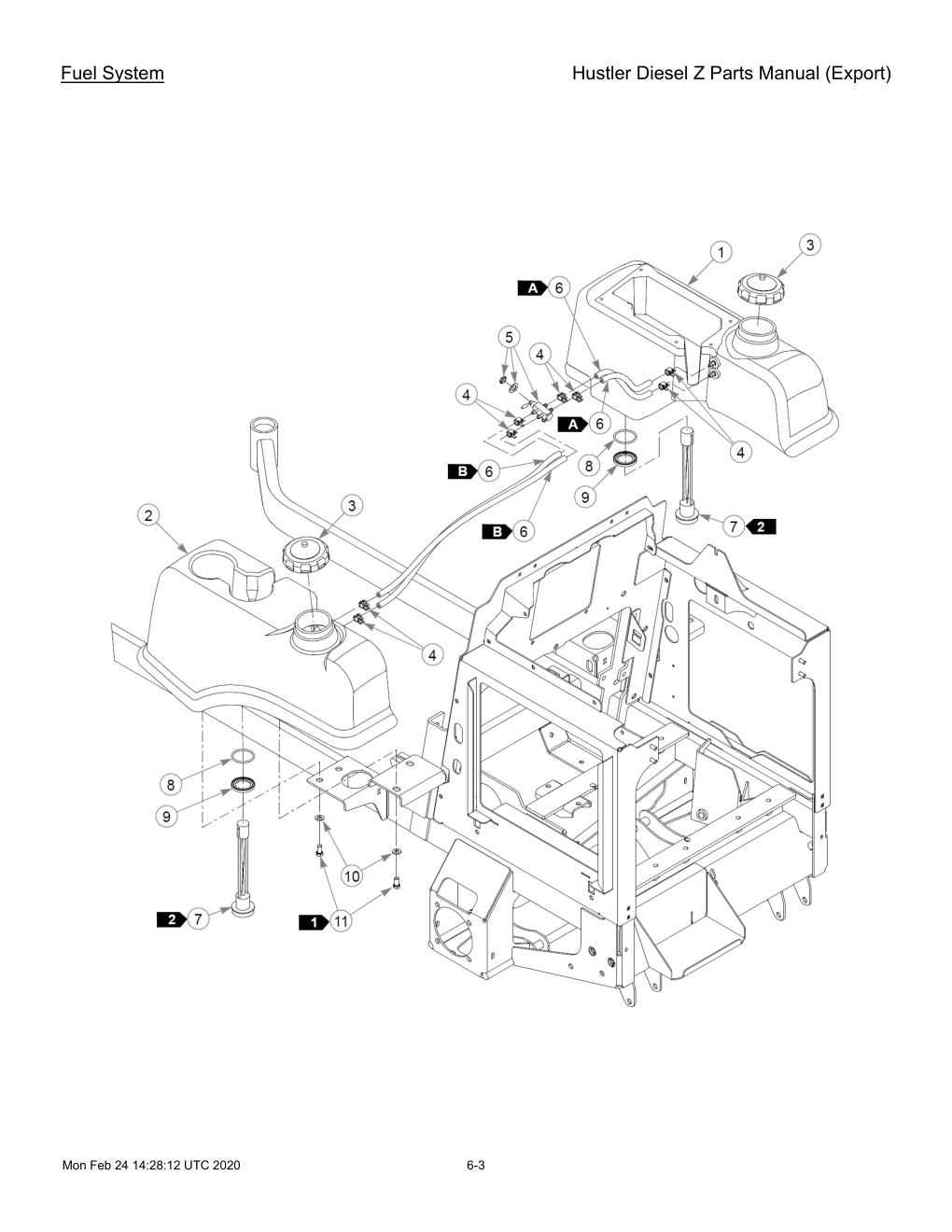

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL TANK, FENDER, RH | 603778 | 1 | 603778-Online |
| 2 | FUEL TANK, FENDER, LH | 603779 | 1 | 603779-Online |
| 3 | CAP, 3 1/2" YELLOW FUEL | 798470 | 2 | HT798470-Online |
| 4 | CLIP, HOSE CLAMP | 000323 | 8 | 000323-Online |
| 5 | FUEL VALVE SDZ | 795542 | 1 | 795542-Online |
| 6 | FUEL LINE, 1/4" | 015818 | 71 | HT015818-Online |
| 7 | S/C TO 603780K | 603780 | 2 | 603780-Online |
| 8 | O-RING, VITON -225 SIZE | 602069 | 2 | 602069-Online |
| 9 | SEAL WASHER | 603835 | 2 | 603835-Online |
| 10 | FW 0.379X.82X.06 HD ZY | 767954 | 8 | HT767954-Online |
| 11 | CS .375-16X0.75 HX G5 ZY | 055822 | 8 | HT055822-Online |
Air Cleaner
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR CLEANER, DONALDSON | 782763 | 1 | HT782763-Online |
| Not Shown | COVER END, W/ LATCHES | 600910 | 1 | 600910-Online |
| 2 | AIR FILTER INDICATOR,25 | 795138 | 1 | 795138-Online |
| 3 | HOSE, FRESH AIR INTK HDZ | 601359 | 1 | 601359-Online |
| 4 | HOSE CLAMP (FS) | 057661 | 5 | 057661-Online |
| 5 | HOSE, INTAKE HDZ | 601360 | 1 | 601360-Online |
| 6 | CS .312-18X1.250HXG5 | 079186 | 2 | 079186-Online |
| 7 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 8 | BAND, AIR CLEANER MOUNT | 785741 | 1 | 785741-Online |
| 9 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 10 | ENGINE CENTRIFICAL PREC | 775353 | 1 | HT775353-Online |
| 11 | AIR FILTER - SAFETY | 785279 | 1 | 785279-Online |
| 12 | AIR FILTER - MAIN | 785261 | 1 | 785261-Online |
Cooling System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 2 | WEATHERSTRIP .12X.75 | 033035 | 111" | 033035-Online |
| 3 | RADIATOR, HDZ ISM 773 | 601295 | 1 | 601295-Online |
| 4 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 17" | 713198-Online |
| 5 | SHROUD W/A, HDZ 773 | 109144 | 1 | 109144-Online |
| 6 | PLATE, RAD MNT TOP HDZ | 108977 | 2 | 108977-Online |
| 7 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 8 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 9 | CS .312-18X0.500HXG5 | 068346 | 4 | 068346-Online |
| 10 | RADIATOR SUPPORT PAD | 606946 | 1 | 606946-Online |
| 11 | RADIATOR BRACKET | 124556-3 | 1 | 124556-3-Online |
| 12 | BOTTLE, OVERFLOW RAD | 601358 | 1 | 601358-Online |
| Not Shown | CAP, RECOVERY TANK (VEN | 763367 | 1 | 763367-Online |
| 13 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 14 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 15 | HOSE CLAMP, 7/16 SPRING | 041483 | 1 | 041483-Online |
| 16 | HOSE, UPPER RADIATOR HDZ | 601353 | 1 | 601353-Online |
| 17 | HOSE CLAMP | 713040 | 4 | 713040-Online |
| 18 | HOSE, LOWER RADIATOR HDZ | 601354 | 1 | 601354-Online |
| 19 | CAP, RADIATOR YDZ TO FIT | 600320 | 1 | 600320-Online |

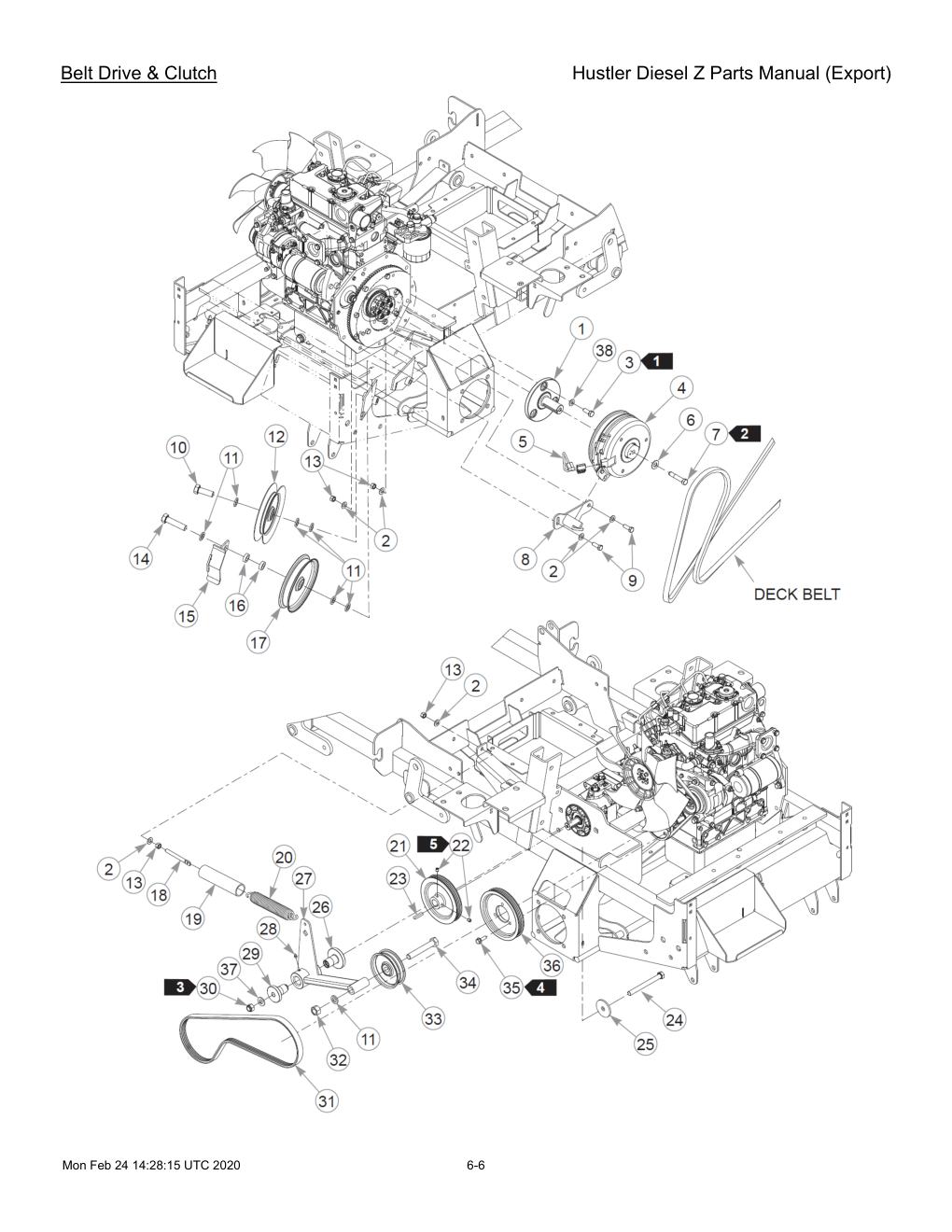

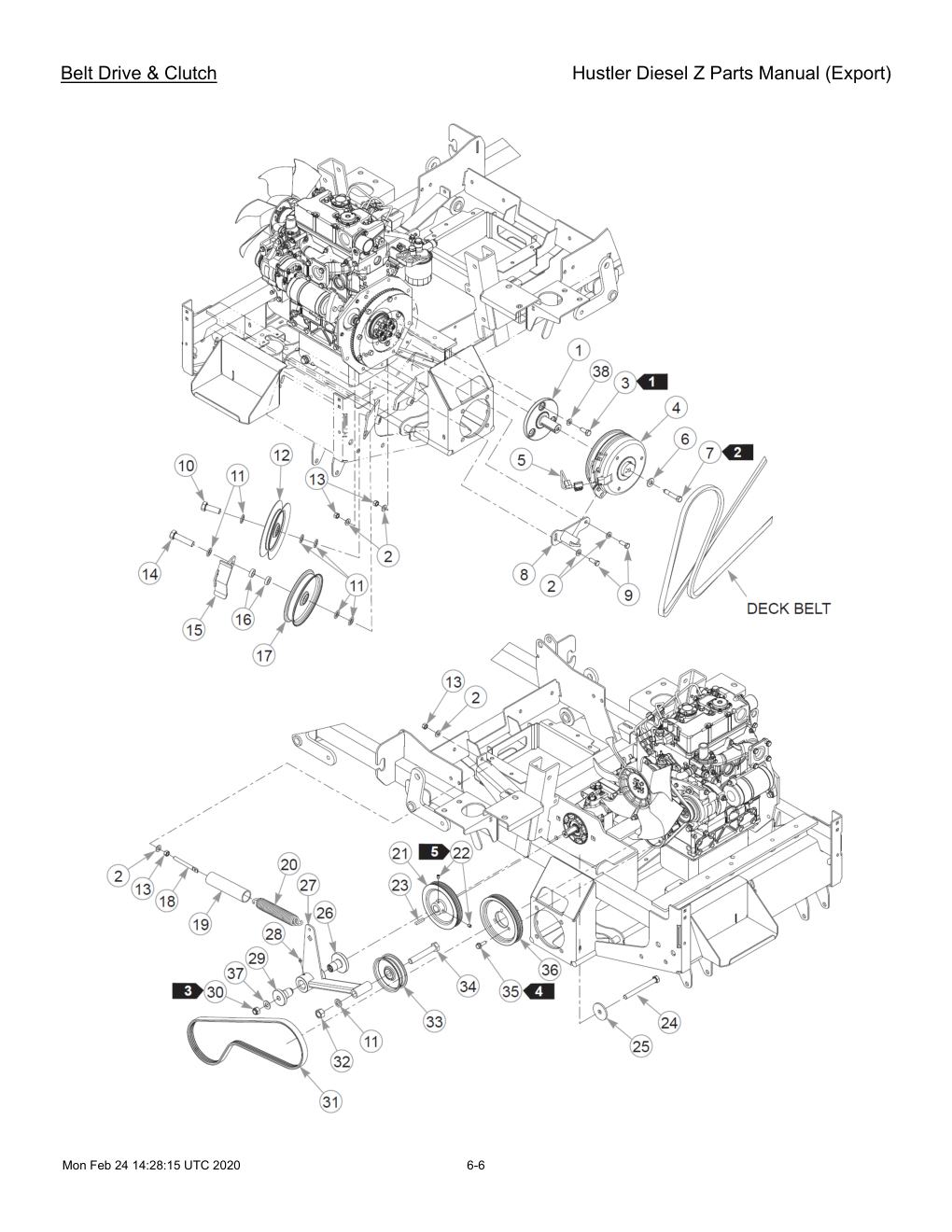

Belt Drive & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STUB SHAFT, ISM 773 | 601279 | 1 | 601279-Online |
| 2 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 3 | CS M10-1.50X25 HX ZN | 038836 | 3 | 038836-Online |
| 4 | CLUTCH KIT | 601278K | 1 | 601278K-Online |
| 5 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 6 | FW .453X1.12X.12 HRD ZY | 602680 | 1 | 602680-Online |
| 7 | CS .437-20X2.250 HXG5P85 | 778217 | 1 | 778217-Online |
| 8 | CLUTCH ANCHOR W/A | 109725 | 1 | 109725-Online |
| 9 | CS .375-16X1.00 HX G5 ZY | 036244 | 2 | HT036244-Online |
| 10 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 11 | FW 0.625X1.00X.13 ZY | 028118 | 7 | HT028118-Online |
| 12 | PULLEY, 6" HB IDLER RD | 796714 | 1 | HT796714-Online |
| 13 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 14 | CS .625-11X2.500HXG5 | 025015 | 1 | HT025015-Online |
| 15 | BELT GUIDE, W/A | 113088 | 1 | 113088-Online |
| 16 | SPACER, DECK IDLER | 600296 | 2 | HT600296-Online |
| 17 | PULLEY, IDLER NHI 6.00" | 781385 | 1 | HT781385-Online |
| 18 | EB, .375-16X3.00 FULTHD | 601486 | 1 | 601486-Online |
| 19 | TUBE, 1.500 X .12W CLR | 601722 | 1 | 601722-Online |
| 20 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 21 | PULLEY, 5.625" MICRO V | 601422 | 1 | 601422-Online |
| 22 | SS .312-18 X .312 SH BO | 600122 | 2 | HT600122-Online |
| 23 | KEY, 1/4 X 1.375 LONG | 601713 | 1 | 601713-Online |
| 24 | CS .500-13X5.000HXG5 | 051151 | 1 | HT051151-Online |
| 25 | FW .510X2.15X.19 ZY | 344267 | 1 | HT344267-Online |
| 26 | BUSHING, IDLER PIVOT | 602880 | 1 | 602880-Online |
| 27 | IDLER ARM, W/A | 115117 | 1 | 115117-Online |
| 28 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 29 | BUSHING, IDLER PIVOT | 602879 | 1 | 602879-Online |
| 30 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 31 | BELT, 4 RIB "PVL" | 601424 | 1 | 601424-Online |
| 32 | NT .625-11 HX G5 ZNYC | 016972 | 1 | HT016972-Online |
| 33 | PULLEY, 4" FLAT IDLER | 601488 | 1 | 601488-Online |
Belt Drive & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | CS .625-11X4.000HXG5 | 047712 | 1 | 047712-Online |
| 35 | CS M8-1.25X20FLG10.9 | 720177 | 3 | 720177-Online |
| 36 | PULLEY, 6.0" MICRO V | 601423 | 1 | 601423-Online |
| 37 | FW .531 x 1.063 x .175 | 767962 | 1 | HT767962-Online |
| 38 | FW 0.406X1.00X.12 HD ZY | 712919 | 3 | HT712919-Online |

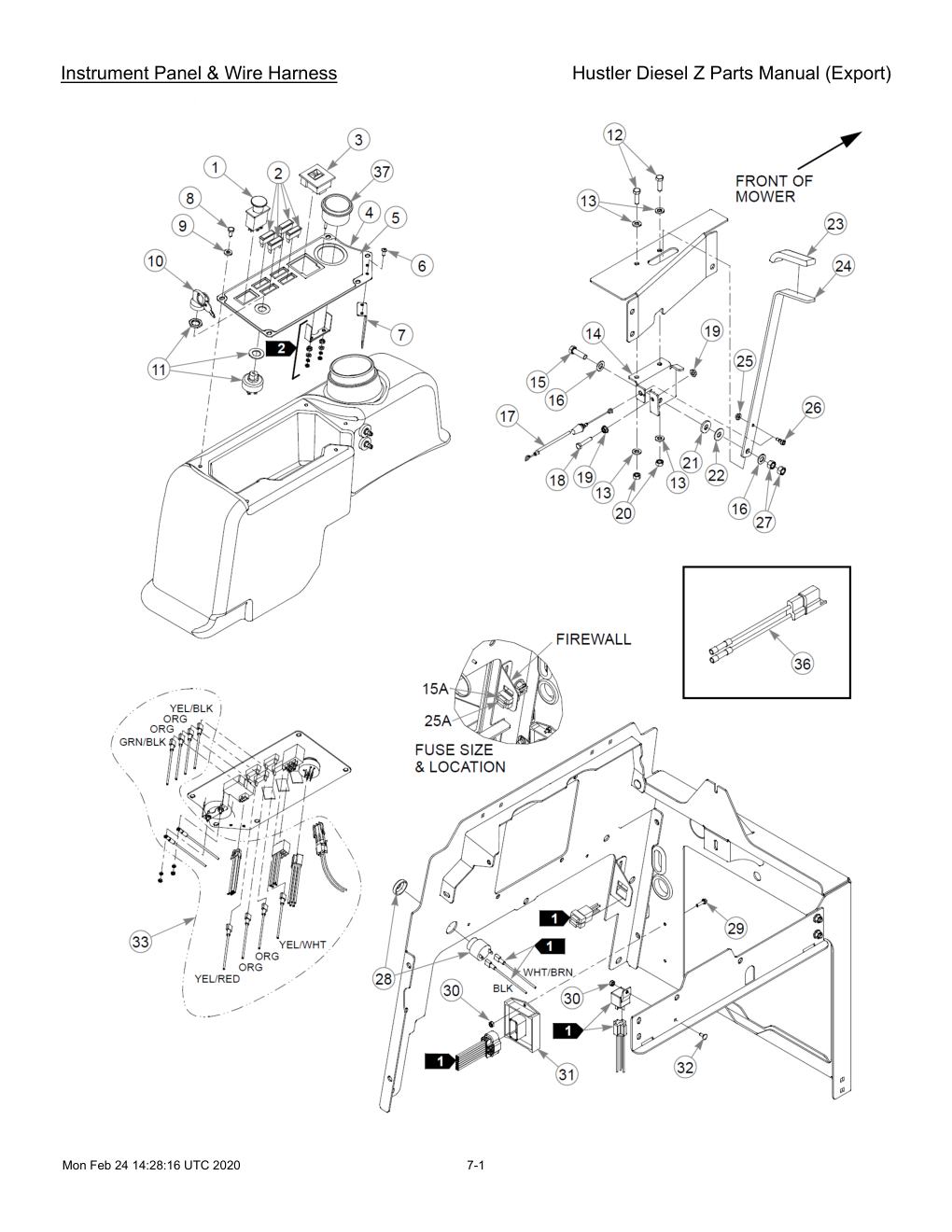

Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | INDICATOR LIGHT, RED(FS) | 712257 | 4 | HT712257-Online |
| 3 | FUEL DISPLAY/HOUR METER | 603748 | 1 | 603748-Online |
| 4 | INSTRUMENT PANEL, HDZ | 551325 | 1 | 551325-Online |
| 5 | DECAL, INST PANEL HDZ | 603758 | 1 | 603758-Online |
| 6 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 7 | COVER, HDZ FUEL TANK | 109729 | 1 | 109729-Online |
| 8 | CS .250-20X0.50 HX G5 ZY | 055947 | 5 | 055947-Online |
| 9 | FW 0.281SAE | 768515 | 5 | HT768515-Online |
| 10 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 11 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 12 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 13 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 14 | THROTTLE LEVER PLATE | 109421 | 1 | 109421-Online |
| 15 | CS .375-16X1.25 HX G5 ZY | 052860 | 1 | HT052860-Online |
| 16 | FW 0.379X.82X.06 HD ZY | 767954 | 2 | HT767954-Online |
| 17 | THROTTLE CABLE, HDZ | 601362 | 1 | 601362-Online |
| 18 | CS .250-20X1.25 HX FLTRD | 603968 | 1 | 603968-Online |
| 19 | NT .250-20FLKG5 | 016816 | 2 | 016816-Online |
| 20 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 21 | FW 0.406X1.00X.12 HD ZY | 712919 | 1 | HT712919-Online |
| 22 | FW .406X1.000X.06 NYLON | 601507 | 1 | 601507-Online |
| 23 | GRIP, BLACK .18x.94x4.0 | 603830 | 1 | 603830-Online |
| 24 | THROTTLE LEVER, HDZ | 115151 | 1 | 115151-Online |
| 25 | NT #10-24 HXFLK ZN | 016774 | 1 | 016774-Online |
| 26 | SB .250Dx.250L 10-24 ZN | 601493 | 1 | 601493-Online |
| 27 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 28 | ALARM, ULTRA LOUD WARBL | 794347 | 1 | 794347-Online |
| 29 | CS #10-24X0.750FLKG5 | 063198 | 2 | 063198-Online |
| 30 | NT #10-24 HX NL ZN | 059832 | 3 | 059832-Online |
| 31 | CONTROLLER, HDZ S773L | 601368 | 1 | 601368-Online |
| 32 | CB 10-24 X .500 ZYNC | 601098 | 1 | 601098-Online |
| 33 | WIRE HARNESS, HDZ | 603759 | 1 | 603759-Online |
| 34 | WIRE TIE, SMALL/LONG | 000430 | 3 | 000430-Online |
| 35 | WIRE TIE, SMALL/SHORT | 000331 | 8 | 000331-Online |
| 36 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 37 | GUAGE, TEMP HDZ | 385710011 | 1 | 385710011-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BOOT, POSITIVE BATTERY | 601381 | 1 | 601381-Online |
| 2 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 1 | HT767954-Online |
| 4 | POST, POS BAT MARINE | 601380 | 1 | 601380-Online |
| 5 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 6 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 7 | CLAMP, BATTERY HOLDDOWN | 109108 | 1 | 109108-Online |
| 8 | BATTERY CLAMP ROD | 793489 | 2 | 793489-Online |
| 9 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |

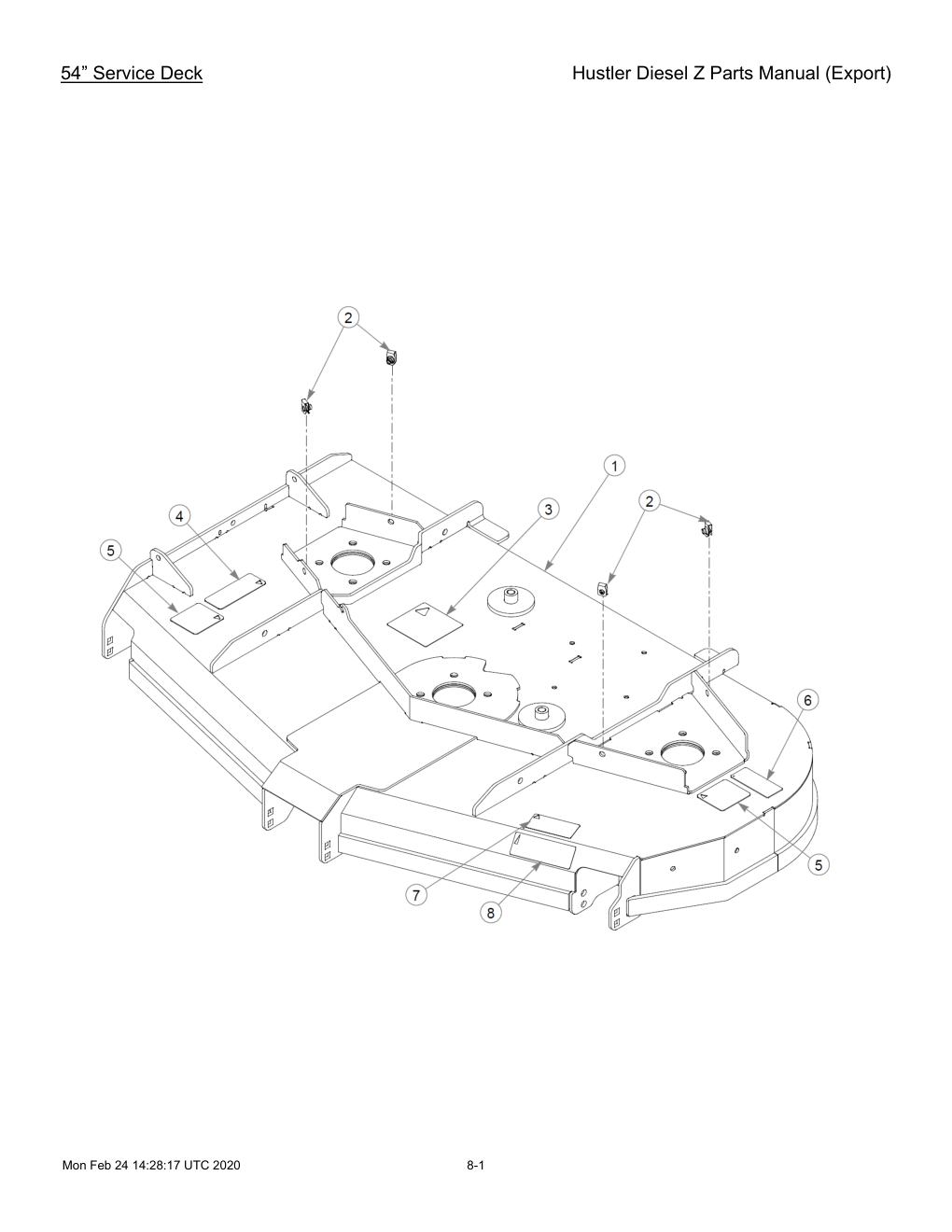

54” Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" SERVICE DECK | 550738 | 1 | 550738-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 4 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |
| 5 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 6 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
| 7 | DECAL, Z 54" Deck ID | 799171 | 1 | 799171-Online |
| 8 | DECAL, VX4 TECHNOLOGY | 603092 | 1 | 603092-Online |
54” Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 1 | HT794446-Online |
| 2 | FW 0.625X1.00X.13 ZY | 028118 | 4 | HT028118-Online |
| 3 | DUST SHIELD W/OFFSET | 603057 | 3 | 603057-Online |
| 4 | PULLEY, IDLER NHI 6.00" | 781385 | 3 | HT781385-Online |
| 5 | SPACER, DECK IDLER | 600296 | 2 | HT600296-Online |
| 6 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 7 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | IDLER SLIDE, UHMW | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | FW .531 x 1.063 x .175 | 767962 | 15 | HT767962-Online |
| 13 | PUSHER W/A, HZ/SZ | 113340 | 1 | 113340-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 15 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 16 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 17 | CS .500-13X1.25 HX G5 ZY | 705954 | 15 | HT705954-Online |
| 18 | CW .515X 2.25X .204 BLK | 752386 | 3 | HT752386-Online |
| 19 | PULLEY, B-SEC 5.44 EOD | 798967 | 3 | HT798967-Online |
| 20 | FW 1.030X1.50X.13 HD ZY | 045765 | 3 | HT045765-Online |
| 21 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 22 | SPINDLE ASSY, DUCTILE | 607407 | 3 | 607407-Online |
| 23 | CS .312-18X.625 BH ZN | 603022 | 4 | 603022-Online |
| 24 | CW .678 X 2.250 X .187 | 782474 | 2 | HT782474-Online |
| 25 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 26 | CB .375-16X1.250 G5 ZNC | 603113 | 6 | 603113-Online |
| 27 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 28 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 29 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |
| 30 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 31 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 32 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 33 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
54” Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | COVER, PULLEY RH 54" | 113241 | 1 | 113241-Online |
| 2 | COVER, PULLEY LH 54" | 113240 | 1 | 113240-Online |
| 3 | DISCHARGE CHUTE | 602429 | 1 | 602429-Online |
| 4 | SPRING, TORSION | 602435 | 1 | 602435-Online |
| 5 | PIN, CHUTE | 602432 | 1 | 602432-Online |
| 6 | NT .375-16NLG8 | 086660 | 5 | HT086660-Online |
| 7 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 8 | BELT B-SEC | 603687 | 1 | 603687-Online |
| 9 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 10 | BACKING PLATE W/A | 113563 | 1 | 113563-Online |
| 11 | FW 0.344X1.0X0.06 ZY | 079210 | 2 | 079210-Online |
| 12 | CS .312-18X0.875HXG5 | 064014 | 2 | 064014-Online |
| 13 | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| Not Shown | BLADE F18.50"-L-F-CW | 601012 | 3 | 601012-Online |
| Not Shown | BLADE, 18.50"-MUL-F-CW | 797704 | 3 | HT797704-Online |
| Not Shown | BLADE, 18.50"-GAT-F-CW | 797712 | 3 | HT797712-Online |
| 14 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 15 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
| 16 | WALL, INNER ADJ LH 54" | 113210 | 1 | 113210-Online |
| 17 | FW 0.379X.82X.06 HD ZY | 767954 | 4 | HT767954-Online |
| 18 | CB .375-16X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 19 | WALL, INNER ADJ RH 54" | 113211 | 1 | 113211-Online |
54” Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PIN, DECK HEIGHT W/A | 600437 | 1 | 600437-Online |
| 2 | HANDLE, STOP | 348318 | 1 | HT348318-Online |
| 3 | CE .750X2.25 X1.75 HEAD | 781229 | 1 | 781229-Online |
| 4 | DECK LIFT | 602898 | 1 | 602898-Online |
| 5 | DECK LIFT SPRING S/A | 782995 | 2 | HT782995-Online |
| 6 | CS .437-14X1.750HXG5 | 055749 | 3 | HT055749-Online |
| 7 | CHAIN, DECK LIFT | 348391 | 4 | HT348391-Online |
| 8 | NT .437-14FLKG5 | 704643 | 8 | HT704643-Online |
| 9 | CLIP E, 1.00 X.625X .05 | 781294 | 6 | HT781294-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .625-11X1.250HXG5 | 781872 | 1 | HT781872-Online |
| 12 | FW 0.625X1.500X0.105 | 704783 | 1 | 704783-Online |
| 13 | YOKE W/A, DECK LEVELER | 348458 | 1 | HT348458-Online |
| 14 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 15 | CS .312-18X1.500HXG5 | 756270 | 1 | 756270-Online |
| 16 | CS .437-14x1.75 FULTHG5 | 781831 | 1 | HT781831-Online |

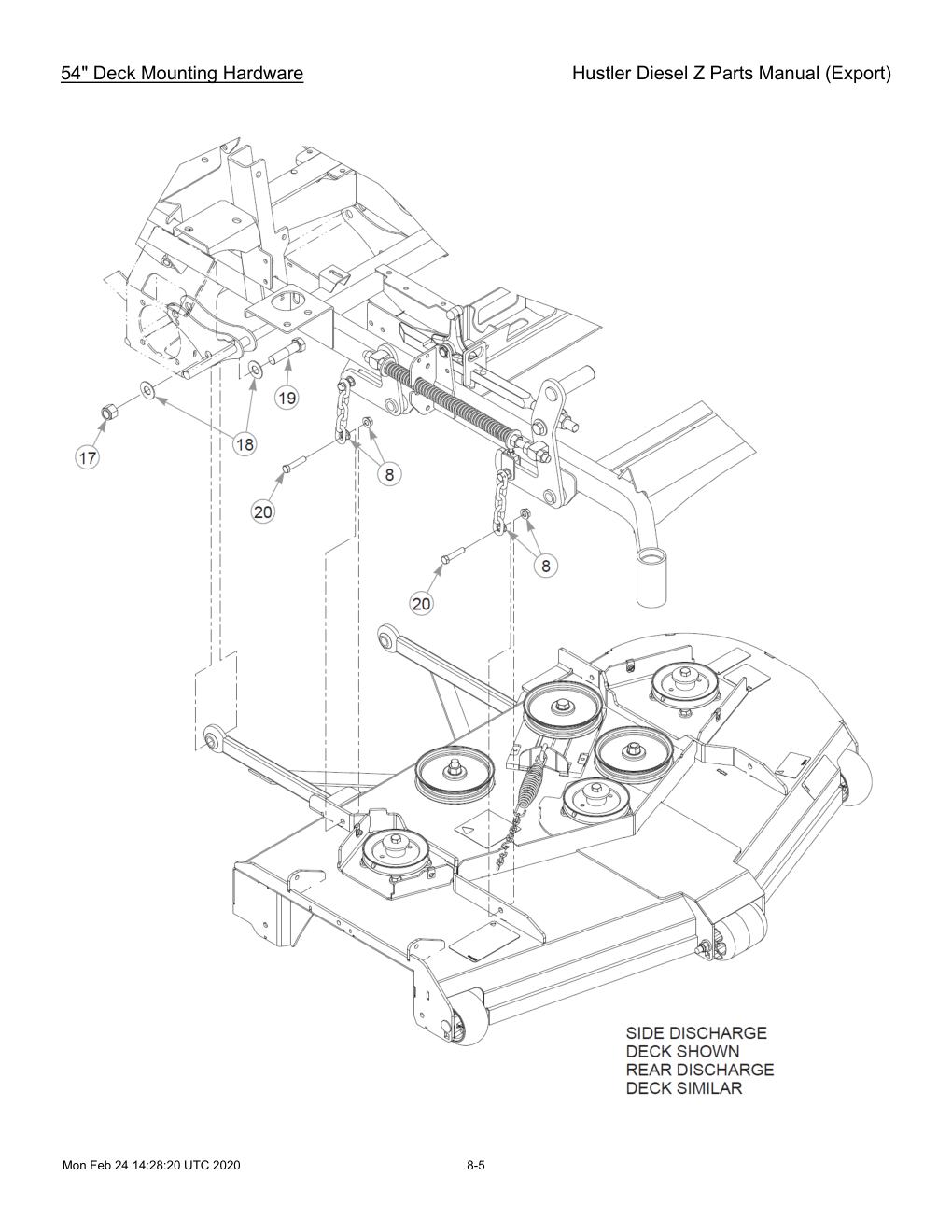

54" Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 8 | NT .437-14FLKG5 | 704643 | 16 | HT704643-Online |
| 17 | NT .750-10 HX ZY NL GR B | 061101 | 2 | HT061101-Online |
| 18 | FW .760X1.63X0.08 ZY | 025296 | 4 | HT025296-Online |
| 19 | CS .750-10X3.000HXG5 | 051169 | 2 | 051169-Online |
| 20 | CS .437-14X2.00 G5 ZNYC | 778324 | 4 | 778324-Online |

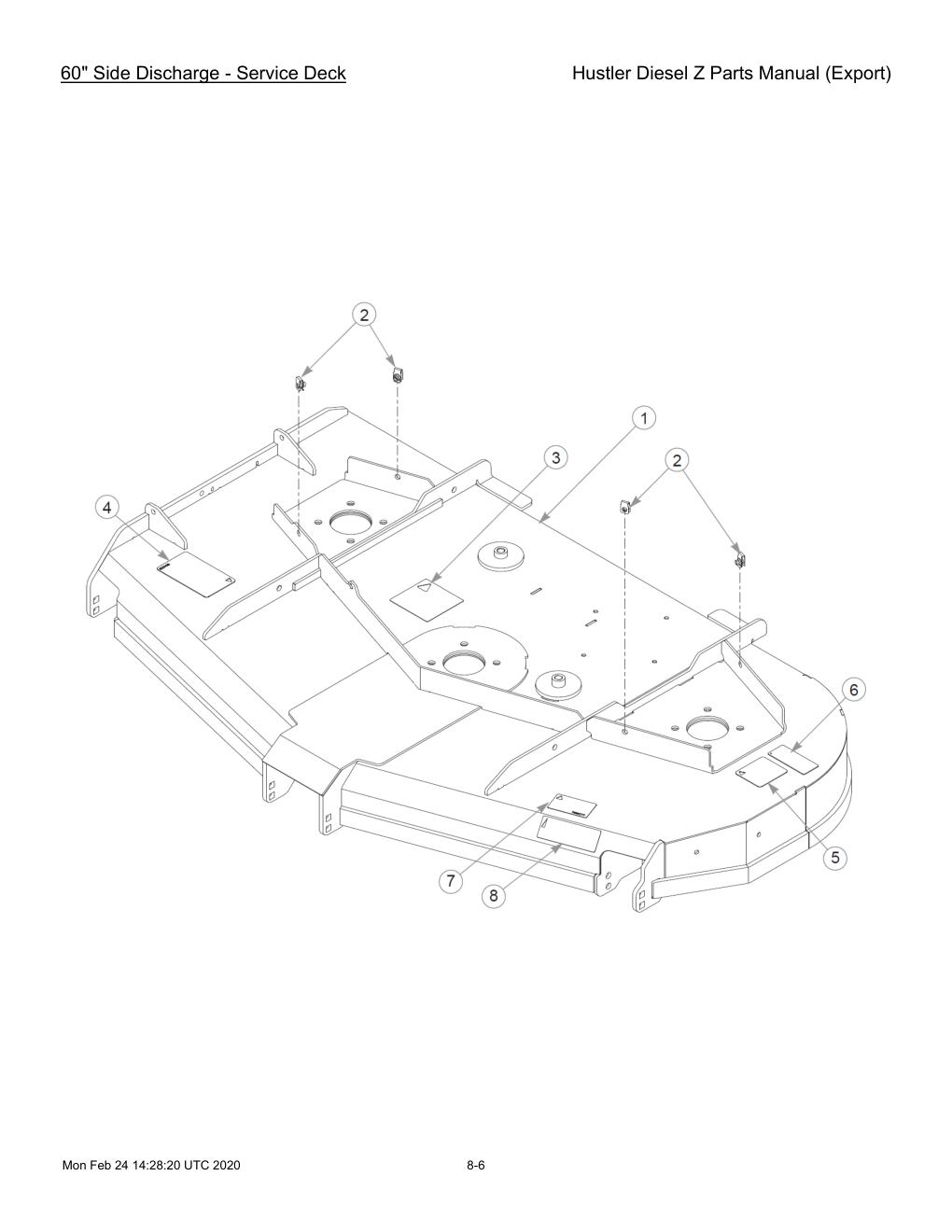

60" Side Discharge - Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" SERVICE DECK | 550739 | 1 | 550739-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 4 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |
| 5 | DECAL, DECK DANGERS | 601837 | 1 | 601837-Online |
| 6 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
| 7 | DECAL, 60 DECK ID | 786277 | 1 | 786277-Online |
| 8 | DECAL, VX4 TECHNOLOGY | 603092 | 1 | 603092-Online |
60” Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 1 | HT794446-Online |
| 2 | FW 0.625X1.00X.13 ZY | 028118 | 2 | HT028118-Online |
| 3 | DUST SHIELD W/OFFSET | 603057 | 2 | 603057-Online |
| 4 | PULLEY, IDLER NHI 6.00" | 781385 | 2 | HT781385-Online |
| 5 | SPACER, DECK IDLER | 600296 | 2 | HT600296-Online |
| 6 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 7 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 8 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | IDLER SLIDE, UHMW | 602936 | 2 | 602936-Online |
| 11 | CS .500-13X1.25 HX G5 ZY | 705954 | 15 | HT705954-Online |
| 12 | CW .515X 2.25X .204 BLK | 752386 | 3 | HT752386-Online |
| 13 | PULLEY, DECK DRIVE | 770842 | 3 | HT770842-Online |
| 14 | FW 1.030X1.50X.13 HD ZY | 045765 | 3 | HT045765-Online |
| 15 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 16 | DUST SHIELD, IDLER LG | 602963 | 1 | 602963-Online |
| 17 | IDLER, 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 18 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 19 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 20 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 21 | PUSHER W/A, HZ/SZ | 113340 | 1 | 113340-Online |
| 22 | FW .531 x 1.063 x .175 | 767962 | 15 | HT767962-Online |
| 23 | SPINDLE ASSY, DUCTILE | 607407 | 3 | 607407-Online |
| 24 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 25 | CW .678 X 2.250 X .187 | 782474 | 2 | HT782474-Online |
| 26 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 27 | CS .312-18X.625 BH ZN | 603022 | 4 | 603022-Online |
| 28 | CB .375-16X1.250 G5 ZNC | 603113 | 6 | 603113-Online |
| 29 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 30 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 31 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |
| 32 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 33 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 34 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 35 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
60" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | COVER, PULLEY RH 60" | 112933 | 1 | 112933-Online |
| 2 | COVER, PULLEY LH 60" | 112934 | 1 | 112934-Online |
| 3 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 4 | DECK BELT | 603688 | 1 | 603688-Online |
| 5 | CHUTE, DISCHARGE LG | 602891 | 1 | 602891-Online |
| 6 | SPRING, TORSION | 602435 | 1 | 602435-Online |
| 7 | PIN, CHUTE | 602432 | 1 | 602432-Online |
| 8 | NT .375-16NLG8 | 086660 | 7 | HT086660-Online |
| 9 | BACKING PLATE W/A | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW 0.344X1.0X0.06 ZY | 079210 | 2 | 079210-Online |
| 12 | CS .312-18X0.875HXG5 | 064014 | 2 | 064014-Online |
| 13 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 14 | WALL, INNER ADJ RH 60" | 113180 | 1 | HT113180-Online |
| 15 | CB .375-16X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 16 | WALL, INNER ADJ LH 60" | 113179 | 1 | HT113179-Online |
| 17 | BLADE, F20.50" EHN-F-CW | 602771 | 3 | 602771-Online |
| Not Shown | BLADE,20.50"-L-F-CW | 793794 | 3 | HT793794-Online |
| Not Shown | BLADE,20.50"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| Not Shown | BLADE,20.50"GAT-F-CW | 794230 | 3 | HT794230-Online |
| Not Shown | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 18 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 19 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
72" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 72" SERVICE DECK | 550751 | 1 | 550751-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |
| 4 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 5 | DECAL, 72 DECK ID | 786285 | 1 | 786285-Online |
| 6 | DECAL, VX4 TECHNOLOGY | 603092 | 1 | 603092-Online |
| 7 | DECAL, DECK DANGERS | 601837 | 1 | 601837-Online |
| 8 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
72" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 1 | HT794446-Online |
| 2 | FW 0.625X1.00X.13 ZY | 028118 | 2 | HT028118-Online |
| 3 | DUST SHIELD W/OFFSET | 603057 | 2 | 603057-Online |
| 4 | PULLEY, IDLER NHI 6.00" | 781385 | 2 | HT781385-Online |
| 5 | SPACER, DECK IDLER | 600296 | 2 | HT600296-Online |
| 6 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 7 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | IDLER SLIDE, UHMW | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | DUST SHIELD, IDLER LG | 602963 | 1 | 602963-Online |
| 13 | IDLER, 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 14 | CS .500-13X1.25 HX G5 ZY | 705954 | 15 | HT705954-Online |
| 15 | CW .515X 2.25X .204 BLK | 752386 | 3 | HT752386-Online |
| 16 | PULLEY, DRIVE(723486) B | 538850 | 3 | HT538850-Online |
| 17 | FW 1.030X1.50X.13 HD ZY | 045765 | 3 | HT045765-Online |
| 18 | PUSHER W/A, HZ/SZ | 113340 | 1 | 113340-Online |
| 19 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 20 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 21 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 22 | CS .312-18X.625 BH ZN | 603022 | 4 | 603022-Online |
| 23 | FW .531 x 1.063 x .175 | 767962 | 15 | HT767962-Online |
| 24 | SPINDLE ASSY, DUCTILE | 607407 | 3 | 607407-Online |
| 25 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 26 | CW .678 X 2.250 X .187 | 782474 | 2 | HT782474-Online |
| 27 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 28 | CB .375-16X1.250 G5 ZNC | 603113 | 6 | 603113-Online |
| 29 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 30 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 31 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |
| 32 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 33 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 34 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 35 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
72" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | COVER, PULLEY RH 72" | 112935 | 1 | 112935-Online |
| 2 | COVER, PULLEY LH 72" | 112936 | 1 | 112936-Online |
| 3 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 4 | DECK BELT | 603690 | 1 | 603690-Online |
| 5 | CHUTE, DISCHARGE LG | 602891 | 1 | 602891-Online |
| 6 | SPRING, TORSION | 602435 | 1 | 602435-Online |
| 7 | PIN, CHUTE | 602432 | 1 | 602432-Online |
| 9 | BACKING PLATE W/A | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW 0.344X1.0X0.06 ZY | 079210 | 2 | 079210-Online |
| 12 | CS .312-18X0.875HXG5 | 064014 | 2 | 064014-Online |
| 13 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 14 | CB .375-16X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 15 | WALL, ADJ INNER RH 72" | 112931 | 1 | HT112931-Online |
| 16 | WALL, ADJ INNER LH 72" | 112932 | 1 | HT112932-Online |
| 17 | BLADE, F24.50" EHN-F-CW | 602857 | 3 | 602857-Online |
| Not Shown | BLADE, F24.50"-H-F-CW | 798702 | 3 | 798702-Online |
| Not Shown | BLADE, 24.50"-MUL-F-CW | 798710 | 3 | HT798710-Online |
| Not Shown | BLADE, 24.50"-GAT-F-CW | 798728 | 3 | HT798728-Online |
| 18 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 19 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
60" Rear Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" RD SERVICE DECK | 550935 | 1 | 550935-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, 2 BELT ROUTING | 603349 | 1 | 603349-Online |
| 4 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 5 | DECAL, THROWN OBJECTS | 601892 | 2 | 601892-Online |
| 6 | DECAL, RUBBER FLAP | 603391 | 2 | 603391-Online |
| 7 | DECAL, 60 DECK ID | 786277 | 1 | 786277-Online |
| 8 | RIVET NUT,HX 5/16-18 TH | 792887 | 1 | 792887-Online |
60" Rear Discharge Pulleys
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X2.500HXG5 | 025015 | 1 | HT025015-Online |
| 2 | FW 0.625X1.00X.13 ZY | 028118 | 12 | HT028118-Online |
| 3 | BELT GUIDE, W/A | 113088 | 1 | 113088-Online |
| 4 | SPACER DECK IDLER 1/2"LG | 603256 | 1 | 603256-Online |
| 5 | DUST SHIELD, IDLER SM | 602935 | 2 | 602935-Online |
| 6 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 7 | IDLER ARM W/A, RD DECK | 114133 | 1 | 114133-Online |
| 8 | CS .312-18x1.50FLT SH ZY | 797910 | 2 | HT797910-Online |
| 9 | IDLER GUIDE, UHMW | 601779 | 1 | 601779-Online |
| 10 | CS .625-11X1.500HXG5 | 794446 | 1 | HT794446-Online |
| 11 | DUST SHIELD W/OFFSET | 603057 | 4 | 603057-Online |
| 12 | PULLEY, V-IDLER HBB 5.0" | 602672 | 2 | 602672-Online |
| 13 | CHAIN, 21 LINK | 373191 | 2 | HT373191-Online |
| 14 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 15 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 16 | BUSHING, PLAS .750x1(FS) | 770867 | 2 | HT770867-Online |
| 17 | BUSHING, IDLER PIVOT | 109549 | 1 | HT109549-Online |
| 18 | IDLER SPRING | 781302 | 2 | 781302-Online |
| 19 | FW 0.500X1.25X.08 ZY | 704759 | 1 | 704759-Online |
| 20 | CS .312-18X1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | DUST SHIELD, IDLER LG | 602963 | 1 | 602963-Online |
| 23 | IDLER, 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | IDLER SLIDE W/A | 114105 | 1 | 114105-Online |
| 25 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 26 | CS .625-11X2.000HXG5 | 016642 | 3 | 016642-Online |
| 27 | PULLEY, 6" HB IDLER RD | 796714 | 2 | HT796714-Online |
| 28 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 29 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 30 | CW .678 X 2.250 X .187 | 782474 | 1 | HT782474-Online |
| 31 | CS .625-11X3.000HXG5 | 783738 | 1 | HT783738-Online |
60" Rear Discharge Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 15 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 32 | CS .500-13X1.25 HX G5 ZY | 705954 | 1 | HT705954-Online |
| 33 | CS .500-13X1.750HXG5 | 017616 | 2 | HT017616-Online |
| 34 | CW .515X 2.25X .204 BLK | 752386 | 3 | HT752386-Online |
| 35 | PULLEY, DECK DRIVE | 770842 | 2 | HT770842-Online |
| 36 | PULLEY, (711499) PTED B | 524785 | 1 | HT524785-Online |
| 37 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 38 | FW 1.030X1.50X.13 HD ZY | 045765 | 2 | HT045765-Online |
| 39 | CS .500-13X1.000HXG5 | 016527 | 12 | 016527-Online |
| 40 | SPACER 3/8" THICK | 114108 | 1 | 114108-Online |
| 41 | SPINDLE ASSY, DUCTILE | 607408 | 1 | 607408-Online |
| 42 | SPINDLE ASSY, DUCTILE | 607407 | 3 | 607407-Online |
60" Rear Discharge Deck (P1 OF 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC PULLEY COVER RS US | 550939 | 1 | 550939-Online |
| 2 | DECAL, DECK DANGERS | 601837 | 1 | 601837-Online |
| 3 | KNOB,5/16-18 X 3/4"MALE | 792002 | 5 | HT792002-Online |
| 4 | PULLEY COVER, CENTER 60 | 114209 | 1 | 114209-Online |
| 5 | PULLEY COVER, 60" RD LH | 114210 | 1 | 114210-Online |
| 6 | DECK BELT | 602854 | 1 | 602854-Online |
| 7 | BELT, BB-SECTION | 603397 | 1 | 603397-Online |
| 8 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 9 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 10 | FW .531 x 1.063 x .175 | 767962 | 3 | HT767962-Online |
| 11 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 12 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 13 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 14 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 15 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |

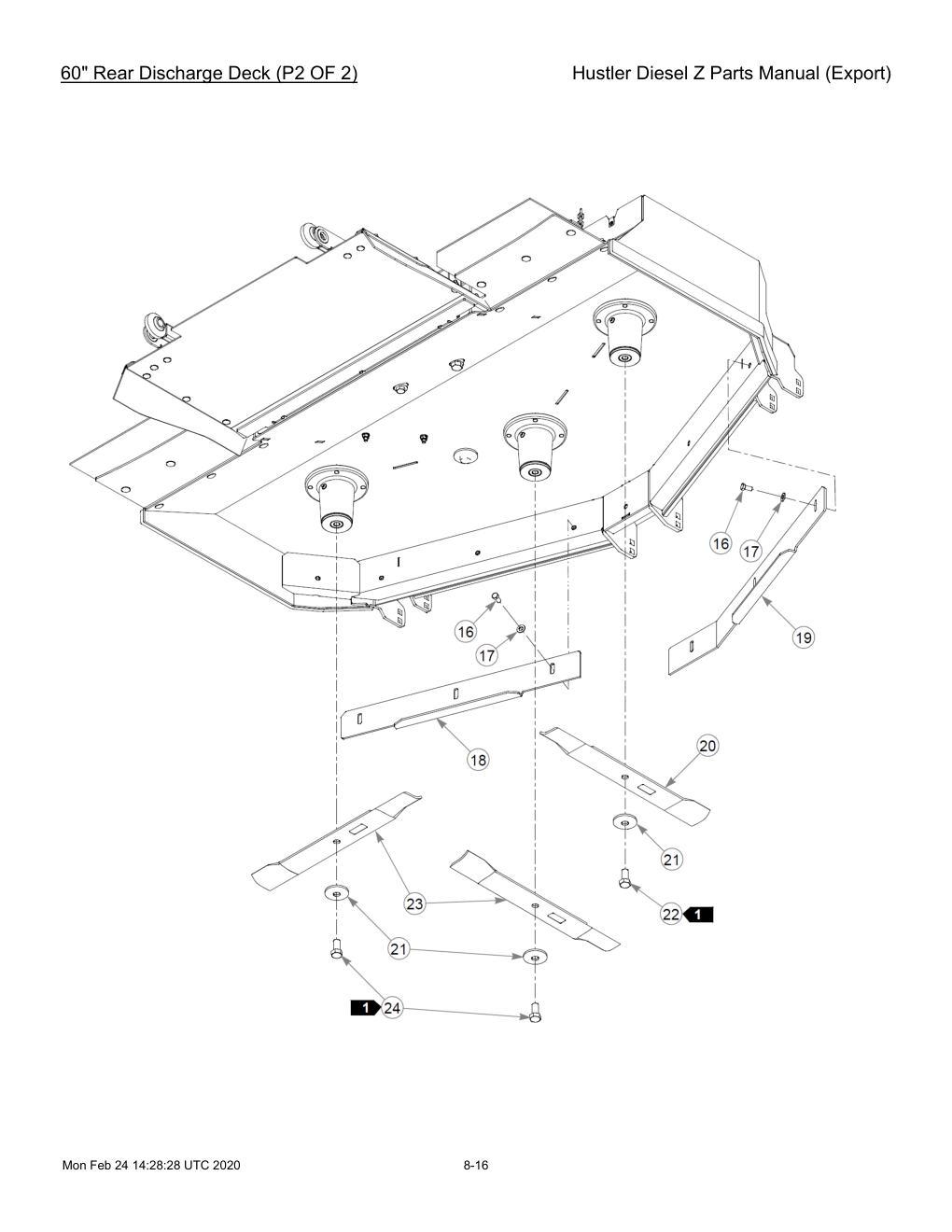

60" Rear Discharge Deck (P2 OF 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 16 | CS .375-16X0.75 HX G5 ZY | 055822 | 6 | HT055822-Online |
| 17 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 18 | BAFLE, ADJUSTABLE 60 LS | 114205 | 1 | 114205-Online |
| 19 | BAFFLE, ADJUSTABLE 60 RS | 114204 | 1 | 114204-Online |
| 20 | BLADE, F20.50"-L-F-CCW | 795633 | 1 | HT795633-Online |
| Not Shown | BLADE, 20.5"GAT-F-CCW | 601928 | 2 | 601928-Online |
| 21 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 22 | CS .625-11X1.250 G5 LHT | 604383 | 1 | 604383-Online |
| 23 | BLADE, F20.50"-L-F-CW | 600901 | 2 | HT600901-Online |
| Not Shown | BLADE,20.50"GAT-F-CW | 794230 | 2 | HT794230-Online |
| 24 | CS .625-11X1.250HXG5 | 781872 | 2 | HT781872-Online |
60" Rear Discharge Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUSHER W/A, HZ/SZ | 113340 | 1 | 113340-Online |
| 2 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 3 | CS .375-16X1.00 HX G5 ZY | 036244 | 6 | HT036244-Online |
| 4 | FW 0.379X.82X.06 HD ZY | 767954 | 18 | HT767954-Online |
| 5 | NT .312-18NLG5 | 058776 | 10 | HT058776-Online |
| 6 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 7 | CLAMP ANGLE RS | 109487 | 1 | 109487-Online |
| 8 | SIDE FLAP, RUBBER | 601483 | 2 | 601483-Online |
| 9 | CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 10 | FW .781X1.38X.25 ZY | 778399 | 2 | 778399-Online |
| 11 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 12 | CB .312-18X 1.000 FUL YZ | 037887 | 6 | HT037887-Online |
| 13 | SHIELD, DISCHARGE RD | 115533 | 1 | 115533-Online |
| 14 | CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 15 | CLAMP ANGLE LS | 109486 | 1 | 109486-Online |
| 16 | STOP, REAR DECK W/A | 114522 | 1 | 114522-Online |
| 17 | NT .375-16NLG8 | 086660 | 12 | HT086660-Online |
| 18 | FLAP HOLD DOWN | 110182 | 2 | 110182-Online |
| 19 | RUBBER DISCHARGE FLAP | 601717 | 2 | 601717-Online |
| 20 | FLAP EXT, LH 60"HDZ RD | 110181 | 1 | 110181-Online |
| 21 | FLAP EXT, RH 60"HDZ RD | 110180 | 1 | 110180-Online |
| 22 | CB .375-16X 1.00 G5 ZNY | 025395 | 12 | HT025395-Online |

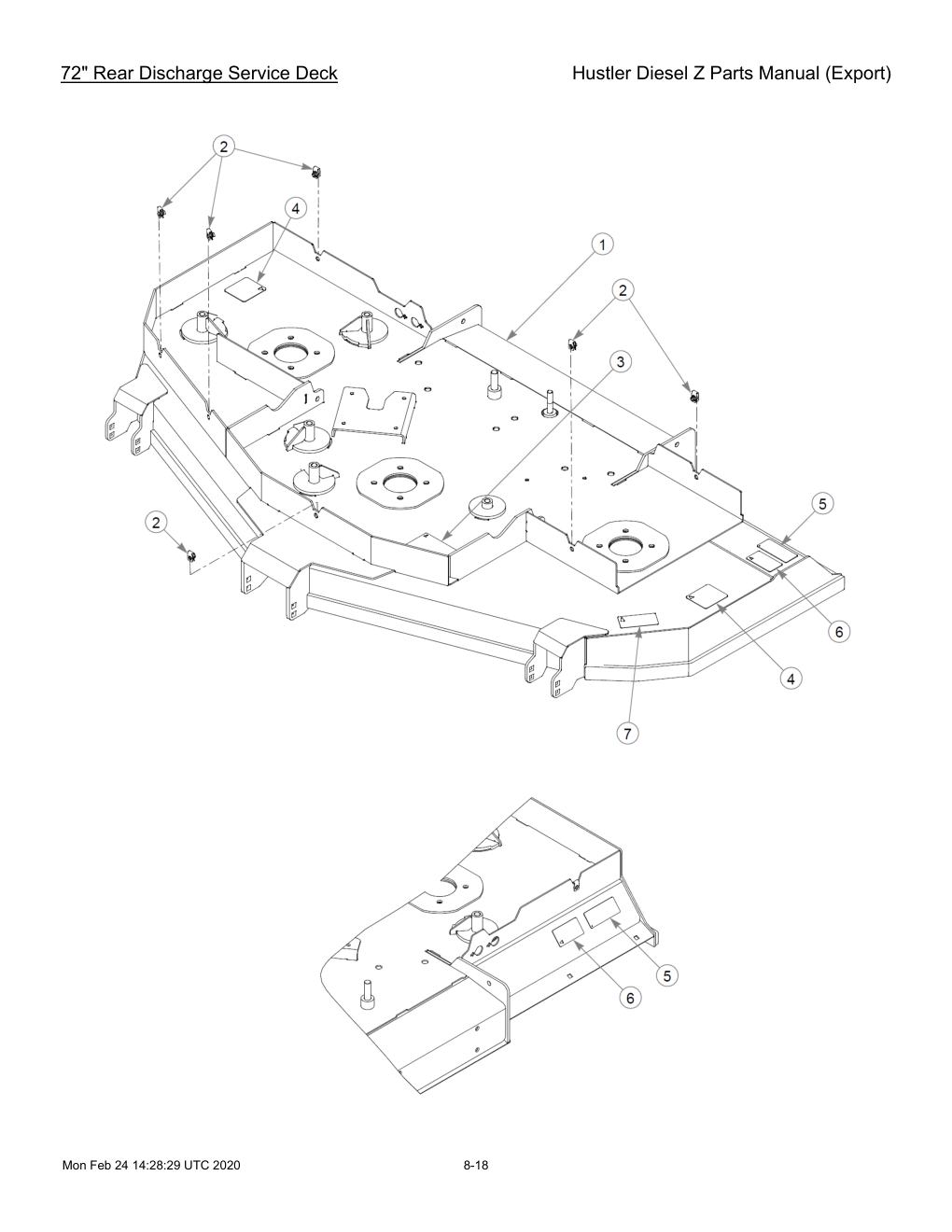

72" Rear Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 72" RD SERVICE DECK | 551049 | 1 | 551049-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 6 | HT601069-Online |
| 3 | DECAL, 2 BELT ROUTING | 603349 | 1 | 603349-Online |
| 4 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 5 | DECAL, THROWN OBJECTS | 601892 | 2 | 601892-Online |
| 6 | DECAL, RUBBER FLAP | 603391 | 2 | 603391-Online |
| 7 | DECAL, 72 DECK ID | 786285 | 1 | 786285-Online |
72" Rear Discharge Pulleys
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 1 | HT794446-Online |
| 2 | FW 0.625X1.00X.13 ZY | 028118 | 14 | HT028118-Online |
| 3 | DUST SHIELD W/OFFSET | 603057 | 5 | 603057-Online |
| 4 | PULLEY, V-IDLER HBB 5.0" | 602672 | 4 | 602672-Online |
| 5 | CHAIN, 21 LINK | 373191 | 2 | HT373191-Online |
| 6 | IDLER SPRING | 781302 | 2 | 781302-Online |
| 7 | IDLER SLIDE W/A | 114105 | 1 | 114105-Online |
| 8 | CS .312-18X1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 10 | CS .625-11X2.000HXG5 | 016642 | 4 | 016642-Online |
| 11 | CS .625-11X2.500HXG5 | 025015 | 1 | HT025015-Online |
| 12 | BELT GUIDE, W/A | 113088 | 1 | 113088-Online |
| 13 | SPACER DECK IDLER 1/2"LG | 603256 | 1 | 603256-Online |
| 14 | DUST SHIELD, IDLER SM | 602935 | 2 | 602935-Online |
| 15 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 16 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 17 | FW .531 x 1.063 x .175 | 767962 | 1 | HT767962-Online |
| 18 | BUSHING, PLAS .750x1(FS) | 770867 | 2 | HT770867-Online |
| 19 | BUSHING, IDLER PIVOT | 109549 | 1 | HT109549-Online |
| 20 | IDLER ARM W/A, RD DECK | 114133 | 1 | 114133-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | DUST SHIELD, IDLER LG | 602963 | 1 | 602963-Online |
| 23 | IDLER, 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | FW 0.500X1.25X.08 ZY | 704759 | 1 | 704759-Online |
| 25 | IDLER GUIDE, UHMW | 601779 | 1 | 601779-Online |
| 26 | CS .312-18x1.50FLT SH ZY | 797910 | 2 | HT797910-Online |
| 27 | IDLER PULLEY, NHI 4.288" | 788364 | 1 | 788364-Online |
| 28 | CW .678 X 2.250 X .187 | 782474 | 1 | HT782474-Online |
| 29 | CS .625-11X3.000HXG5 | 783738 | 1 | HT783738-Online |
| 30 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 31 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
72" Rear Discharge Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 32 | CS .500-13X1.25 HX G5 ZY | 705954 | 1 | HT705954-Online |
| 33 | CW .515X 2.25X .204 BLK | 752386 | 3 | HT752386-Online |
| 34 | PULLEY, DRIVE 7.00 EFF | 602745 | 2 | 602745-Online |
| 35 | FW 1.030X1.50X.13 HD ZY | 045765 | 2 | HT045765-Online |
| 36 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 37 | CS .500-13X1.750HXG5 | 017616 | 1 | HT017616-Online |
| 38 | PULLEY, (770388U) PTED | 770388 | 1 | 770388-Online |
| 39 | CS .500-13X1.50 HX G5 ZY | 074252 | 1 | HT074252-Online |
| 40 | SPACER 3/8" THICK | 114108 | 1 | 114108-Online |
| 41 | CS .500-13X1.000HXG5 | 016527 | 12 | 016527-Online |
| 42 | SPINDLE ASSY, DUCTILE | 607408 | 1 | 607408-Online |
| 43 | SPINDLE ASSY, DUCTILE | 607407 | 2 | 607407-Online |

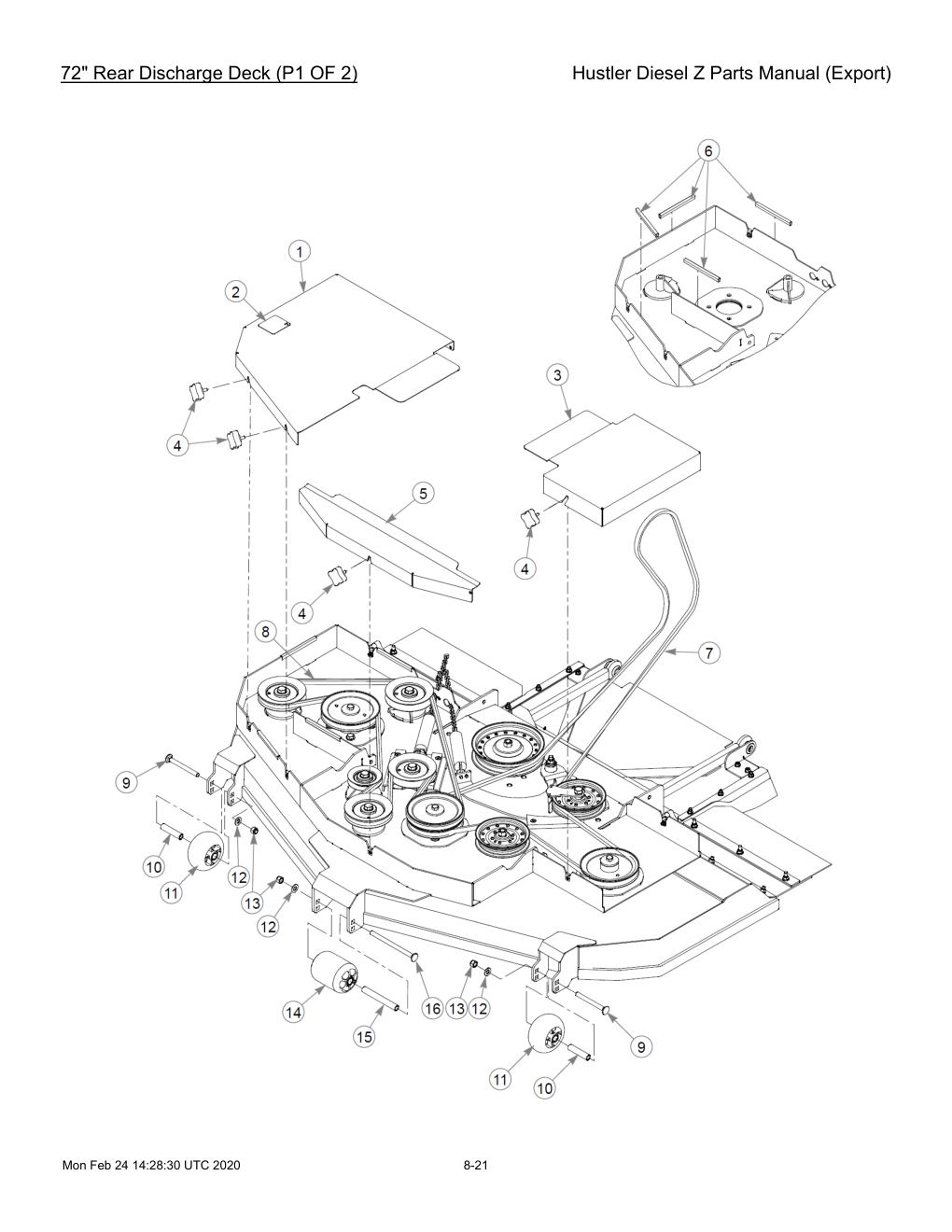

72" Rear Discharge Deck (P1 OF 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC PULLEY COVER 72 RS | 551050 | 1 | 551050-Online |
| 2 | DECAL, DECK DANGERS | 601837 | 1 | 601837-Online |
| 3 | PULLEY COVER, LH 72"RD | 114490 | 1 | 114490-Online |
| 4 | KNOB,5/16-18 X 3/4"MALE | 792002 | 6 | HT792002-Online |
| 5 | PULLEY COVER, CENTER 60 | 114209 | 1 | 114209-Online |
| 6 | TRIM, FLEX 6" length | 111339 | 4 | 111339-Online |
| 7 | BELT, B-SEC | 603522 | 1 | 603522-Online |
| 8 | BELT, BB-SECTION | 603397 | 1 | 603397-Online |
| 9 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 10 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 11 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 12 | FW .531 x 1.063 x .175 | 767962 | 3 | HT767962-Online |
| 13 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 14 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 15 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |
| 16 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
72" Rear Discharge Deck (P2 OF 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | CS .375-16X0.75 HX G5 ZY | 055822 | 7 | HT055822-Online |
| 18 | FW 0.379X.82X.06 HD ZY | 767954 | 7 | HT767954-Online |
| 19 | BAFFLE, ADJUST 72 LS RD | 114492 | 1 | 114492-Online |
| 20 | BAFFLE, ADJUST 72 RS RD | 114491 | 1 | 114491-Online |
| 21 | BLADE, F23.86-L-F-CW | 796839 | 2 | HT796839-Online |
| Not Shown | BLADE, 23.86"-GAT-F-CW | 794867 | 1 | 794867-Online |
| 22 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 23 | CS .625-11X1.250HXG5 | 781872 | 2 | HT781872-Online |
| 24 | BLADE, F23.86-L-F-CCW | 796508 | 1 | HT796508-Online |
| Not Shown | BLADE, 23.86" GAT-F-CCW | 601929 | 1 | 601929-Online |
| 25 | CS .625-11X1.250 G5 LHT | 604383 | 1 | 604383-Online |
72" Rear Discharge Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUSHER W/A, HZ/SZ | 113340 | 1 | 113340-Online |
| 2 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 3 | CS .375-16X1.00 HX G5 ZY | 036244 | 6 | HT036244-Online |
| 4 | FW 0.379X.82X.06 HD ZY | 767954 | 18 | HT767954-Online |
| 5 | NT .312-18NLG5 | 058776 | 10 | HT058776-Online |
| 6 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 7 | CLAMP ANGLE RS | 109487 | 1 | 109487-Online |
| 8 | SIDE FLAP, RUBBER | 601483 | 2 | 601483-Online |
| 9 | CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 10 | FW .781X1.38X.25 ZY | 778399 | 2 | 778399-Online |
| 11 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 12 | CB .312-18X 1.000 FUL YZ | 037887 | 6 | HT037887-Online |
| 13 | SHIELD, DISCHARGE RD | 115533 | 1 | 115533-Online |
| 14 | CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 15 | CLAMP ANGLE LS | 109486 | 1 | 109486-Online |
| 16 | STOP, REAR DECK W/A | 114522 | 1 | 114522-Online |
| 17 | NT .375-16NLG8 | 086660 | 12 | HT086660-Online |
| 18 | CLAMP BRACKET | 110473 | 2 | 110473-Online |
| 19 | RUBBER DISCHARGE FLAP | 601697 | 2 | 601697-Online |
| 20 | EXTENSION BRACKET,RH 72" | 110471 | 1 | 110471-Online |
| 21 | EXTENSTION BRACKET, LH72 | 110472 | 1 | 110472-Online |
| 22 | CB .375-16X 1.00 G5 ZNY | 025395 | 12 | HT025395-Online |

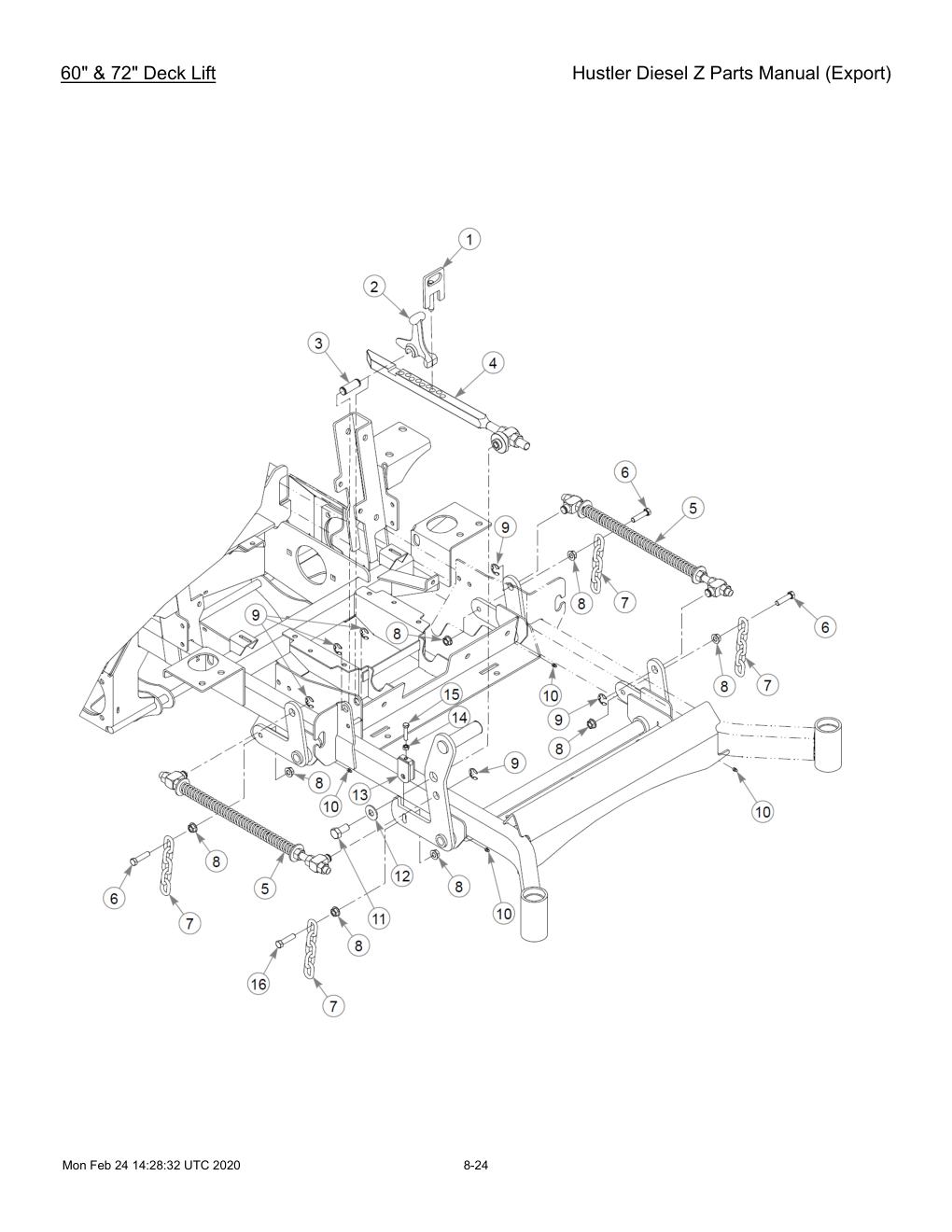

60" & 72" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PIN, DECK HEIGHT W/A | 600437 | 1 | 600437-Online |
| 2 | HANDLE, STOP | 348318 | 1 | HT348318-Online |
| 3 | CE .750X2.25 X1.75 HEAD | 781229 | 1 | 781229-Online |
| 4 | DECK LIFT | 602898 | 1 | 602898-Online |
| 5 | DECK LIFT SPRING S/A | 603184 | 2 | 603184-Online |
| 6 | CS .437-14X1.750HXG5 | 055749 | 3 | HT055749-Online |
| 7 | CHAIN, DECK LIFT | 348391 | 4 | HT348391-Online |
| 8 | NT .437-14FLKG5 | 704643 | 8 | HT704643-Online |
| 9 | CLIP E, 1.00 X.625X .05 | 781294 | 6 | HT781294-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .625-11X1.250HXG5 | 781872 | 1 | HT781872-Online |
| 12 | FW 0.625X1.500X0.105 | 704783 | 1 | 704783-Online |
| 13 | YOKE W/A, DECK LEVELER | 348458 | 1 | HT348458-Online |
| 14 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 15 | CS .312-18X1.500HXG5 | 756270 | 1 | 756270-Online |
| 16 | CS .437-14x1.75 FULTHG5 | 781831 | 1 | HT781831-Online |

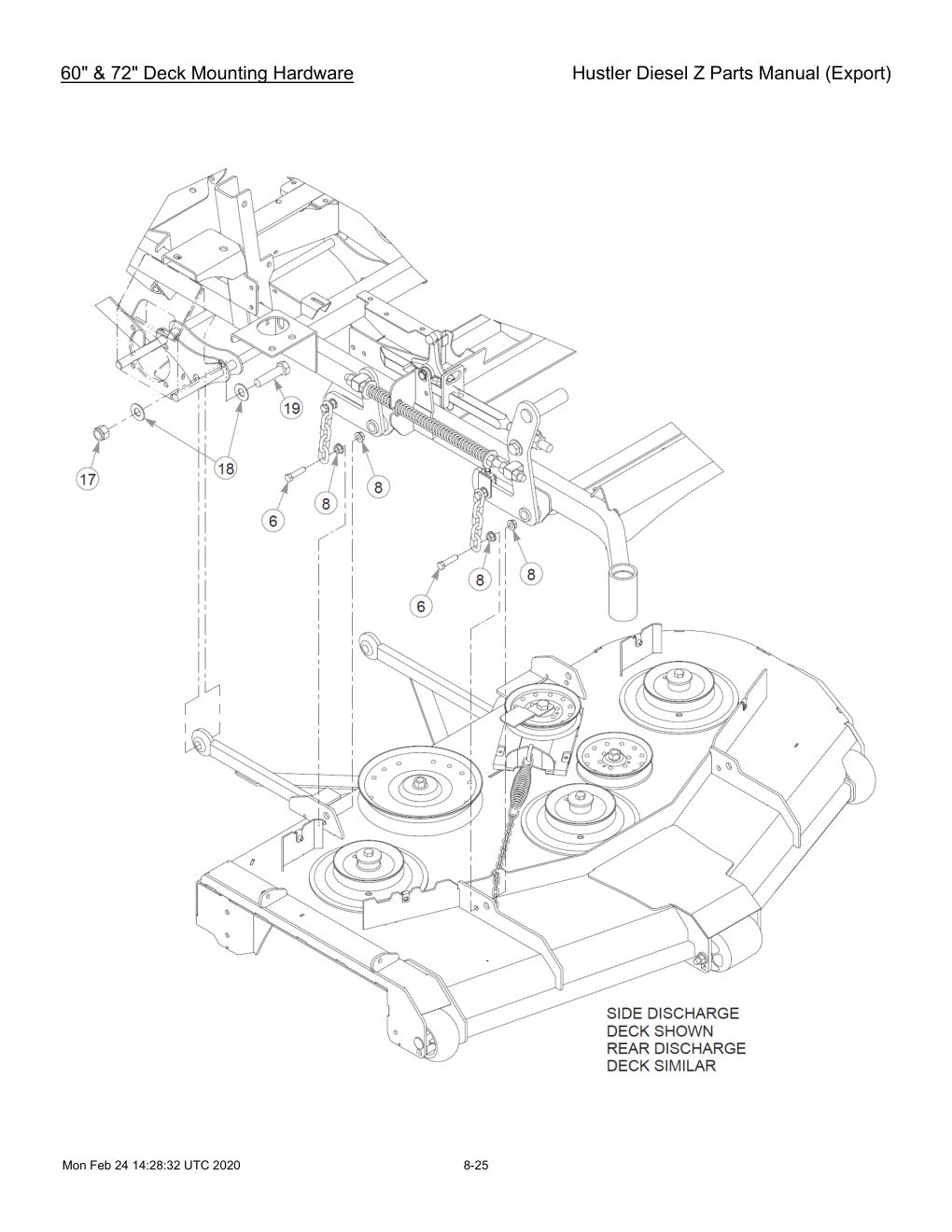

60" & 72" Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 6 | CS .437-14X1.750HXG5 | 055749 | 7 | HT055749-Online |
| 8 | NT .437-14FLKG5 | 704643 | 16 | HT704643-Online |
| 17 | NT .750-10 HX ZY NL GR B | 061101 | 2 | HT061101-Online |
| 18 | FW .760X1.63X0.08 ZY | 025296 | 4 | HT025296-Online |
| 19 | CS .750-10X3.000HXG5 | 051169 | 2 | 051169-Online |
| Not Shown | CS .750-10X3.500HXG5 | 789115 | 2 | 789115-Online |

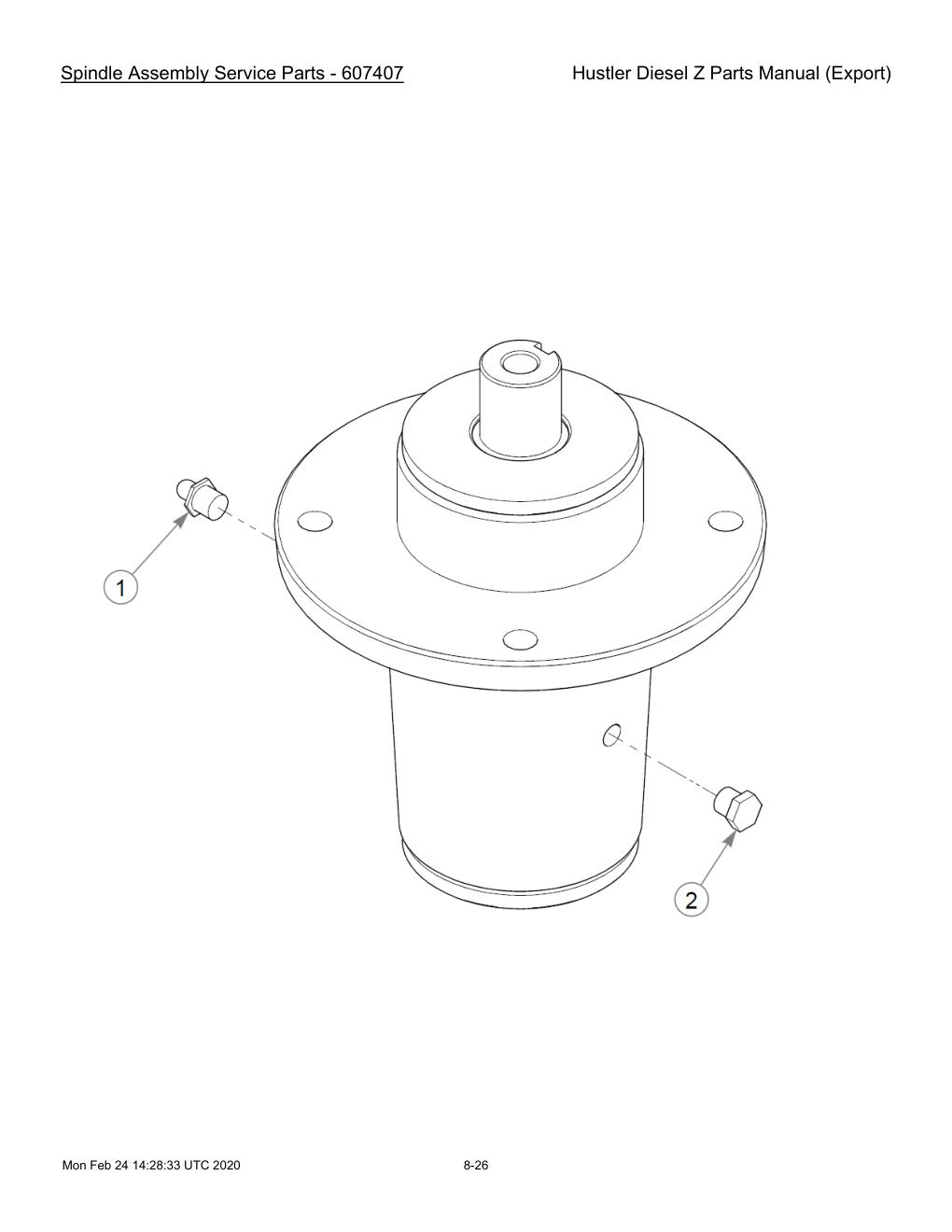

Spindle Assembly Service Parts - 607407
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GREASE ZERK | 607477 | 1 | 607477-Online |
| 2 | RELIEF FITTING | 607478 | 1 | 607478-Online |
Seat, Suspension
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, MICHIGAN SUSPENSI | 792051 | 1 | 792051-Online |
| 2 | CS .437-20X1.000HXG8 | 797076 | 2 | 797076-Online |
| 3 | FW .440X1.00X0.08 ZY | 017129 | 2 | 017129-Online |
| 4 | SEAT BELT | 601444 | 1 | 601444-Online |
| 5 | SEAT PAN, SERVICE | 551136 | 1 | 551136-Online |
| 6 | DECAL, Z ARMREST WARNING | 785188 | 1 | 785188-Online |
| 7 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 8 | FW 0.344X1.00X.12 HD ZY | 712927 | 4 | HT712927-Online |
| 9 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 10 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 11 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 12 | FW 0.379X.82X.06 HD ZY | 767954 | 16 | HT767954-Online |
| 13 | WASHER, FIBER (FS) | 724716 | 1 | 724716-Online |
| 14 | SEAT PAN STOP (PLATED) | 350421 | 1 | 350421-Online |
| 15 | CS .375-16X1.00 HX G5 ZY | 036244 | 7 | HT036244-Online |
| 16 | SPRING,TORSION - DIESEL | 795583 | 1 | 795583-Online |
| 17 | NT .375-16HXG5 | 054502 | 6 | HT054502-Online |
| 18 | VIBRATION MOUNT 70DURO | 601650 | 2 | 601650-Online |
| 19 | SEAT CATCH W/A | 109684 | 1 | 109684-Online |
| 20 | LH FRAME COVER, SERVICE | 551138 | 1 | 551138-Online |
| 21 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 22 | CN .312-18x.200 MAX THK | 601069 | 6 | HT601069-Online |
| 23 | RH FRAME COVER, SERVICE | 551137 | 1 | 551137-Online |
| 24 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 25 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 26 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 27 | CS .312-18X1.000HXG5 | 036236 | 6 | 036236-Online |
Seat, Suspension Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SLIDE KIT | 793307 | 1 | 793307-Online |
| 2 | KNOB KIT | 793323 | 1 | 793323-Online |
| 3 | BACK CUSHION KIT | 793281 | 1 | 793281-Online |
| 4 | SEAT CUSHION KIT | 793299 | 1 | 793299-Online |
| 5 | SEAT, BACK PANEL KIT | 797571 | 1 | 797571-Online |
| 6 | SWITCH, SNAP MOUNT | 793315 | 1 | 793315-Online |
| 7 | 2 ARMRESTS, MOLDED RND | 797480 | 1 | 797480-Online |
| 8 | ARMREST,STOP ASSY | 793273 | 1 | 793273-Online |
| 9 | SEAT WEIGHT ADJUST KIT | 601458 | 1 | 601458-Online |
| 10 | SEAT DRAIN | 602076 | 1 | 602076-Online |
| 11 | SPRING AND SADDLE KIT | 603040 | 1 | 603040-Online |
| 12 | ARMREST ASSEMBLY RH | 601533 | 1 | 601533-Online |
| 13 | ARMREST ASSEMBLY LH | 601534 | 1 | 601534-Online |
| 14 | SHOCK ABSORBER KIT | 603152 | 1 | 603152-Online |
ROPS & Firewall

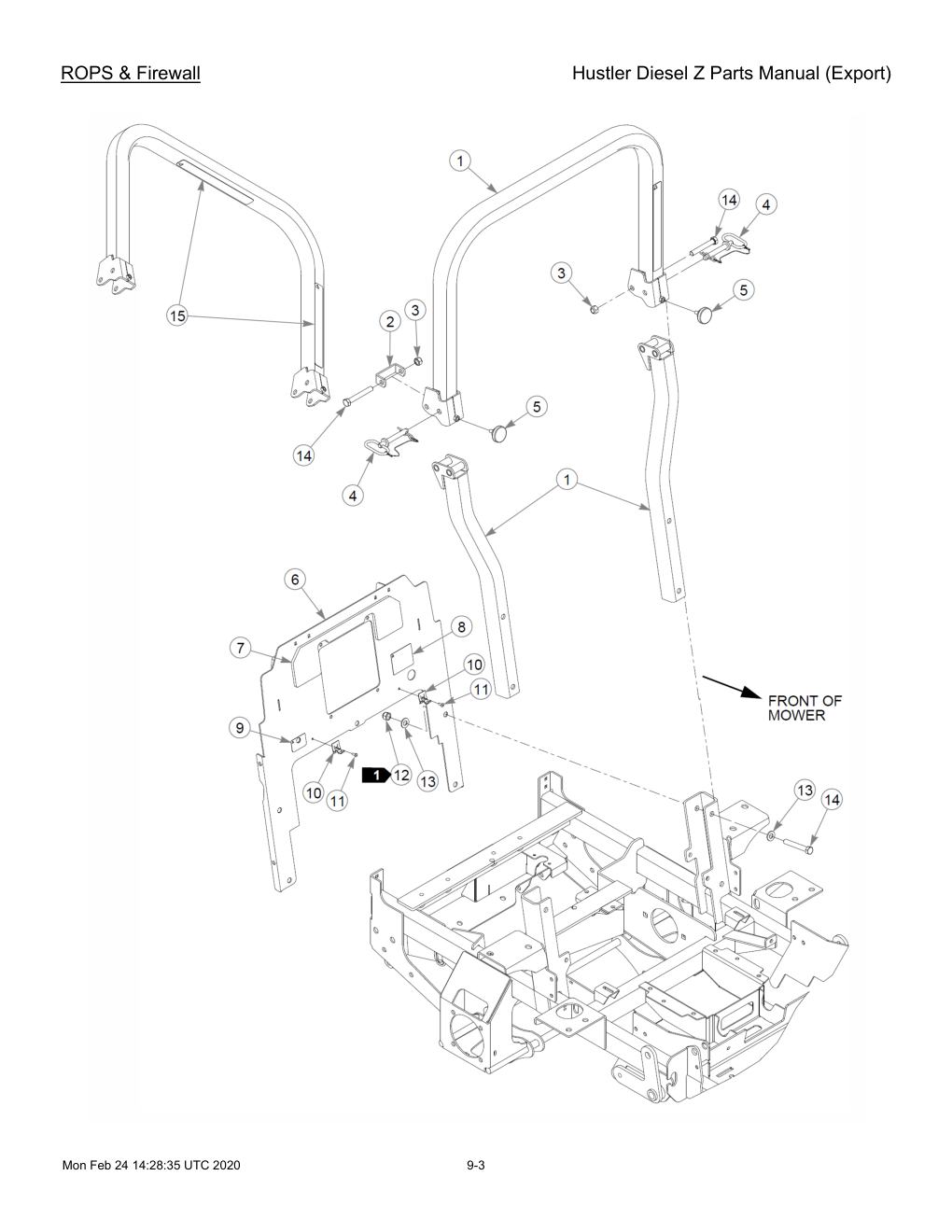

Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, ROPS HDZ | 603473 | 1 | 603473-Online |
| 2 | ROPS STOP | 601472 | 1 | 601472-Online |
| 3 | NT .500-13UNTG8 | 023317 | 2 | 023317-Online |
| 4 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 5 | KNOB, HAND FOR ROPS | 601470 | 2 | 601470-Online |
| 6 | FIREWALL ASSY, SERVICE | 551140 | 1 | 551140-Online |
| 7 | SEAT PAD, FIREWALL | 601559 | 1 | 601559-Online |
| 8 | DECAL, CHECK ENG OIL | 601377 | 1 | 601377-Online |
| 9 | DECAL, FUEL VALVE HDZ | 601246 | 1 | 601246-Online |
| 10 | LUDWIG SNAP FASTNER A-1 | 010306 | 2 | 010306-Online |
| 11 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 12 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 13 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 14 | CS .500-13X3.50 HX G5 ZY | 061812 | 6 | 061812-Online |
| 15 | DECAL, ROP'S | 601635 | 2 | 601635-Online |
