Illustrated Parts List
Hustler® Super 104 Parts Manual - 931733
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 931733Model: 604345Model: 117363Model: 117364SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameEngine GuardPump DriveHydraulic ComponentsOil Cooler MountSteeringSteering Sub-AssemblyBrakeWheel & Tire InstallFront Wheel BreakdownEngine, Kawasaki FX1000VFuel SystemBatteryInstrument PanelCenter Service DeckCenter Deck Idler SlidesCenter Deck IdlersCenter Deck Pulleys & SpindlesCenter DeckCenter DeckCenter DeckRight Side Service DeckRight Side DeckRight Side DeckLeft Side Service DeckLeft Side DeckLeft Side DeckDeck & Wing AssemblyDeck & Wing AssemblyDeck LiftDeck LiftDeck Mounting HardwareDeck Mounting HardwareWing LiftWing LiftSeatROPSFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FRAME (WITH DECALS & RIVET NUTS) | 551751 | 1 | 551751-Online |
| 2 | 3/8-16 THREAD RIVET NUT | 808493 | 4 | 808493-Online |
| 3 | SERIAL NUMBER / SPEC DECAL | N/A | 3 | No SKU |
| 4 | HOT DECAL | 602041 | 2 | 602041-Online |
| 5 | 1/2-13 THREAD RIVET NUT | 600961 | 4 | 600961-Online |
| 6 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 7 | BUMPER | 781880 | 5 | HT781880-Online |
| 8 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 9 | GREASE ZERK | 015495 | 4 | HT015495-Online |
| 10 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CENTER ENGINE GUARD | 116222 | 1 | 116222-Online |
| 2 | CB .375-16 X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 3 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 4 | HT705954-Online |
| 4 | FW .531 X 1.063 X .090 SAE | 767962 | 4 | HT767962-Online |
| 5 | HITCH | 115905 | 1 | 115905-Online |
| 6 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 8 | SHIELD | 377994 | 1 | 377994-Online |
Pump Drive
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13 X 5.00 HX G5 | 051151 | 1 | HT051151-Online |
| 2 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 3 | IDLER PIVOT BUSHING | 602880 | 1 | 602880-Online |
| 4 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 5 | 6" IDLER PULLEY | 603783 | 1 | 603783-Online |
| 6 | TENSIONER | 115536 | 1 | HT115536-Online |
| 7 | IDLER PIVOT BUSHING | 602879 | 1 | 602879-Online |
| 8 | FW .531 X 1.063 X .090 SAE | 767962 | 1 | HT767962-Online |
| 9 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 11 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 12 | EB, .375-16 X 3.00 FULL THD | 601486 | 1 | 601486-Online |
| 13 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 14 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 15 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
| 16 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 17 | CLUTCH ANCHOR | 113347 | 1 | HT113347-Online |
| 18 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 19 | PULLEY 7.0 OD X 1.125 SHFT | 602755 | 1 | 602755-Online |
| 20 | KEY 1/4 SQ X 1.50 LG | 212076 | 1 | HT212076-Online |
| 21 | CLUTCH KIT | 601278K | 1 | 601278K-Online |
| 22 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 23 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 24 | CS .437-20 X 3.00 HXG5 P85 | 785048 | 1 | HT785048-Online |
| 25 | BELT, 64.89" B B-SECTION | 603904 | 1 | 603904-Online |
| 26 | PULLEY 7.35 OP X 0.875 SHFT | 602754 | 2 | 602754-Online |
| 27 | SS .312-18 X .75 SQ-HD | 083196 | 4 | 083196-Online |
| 28 | KEY 1/4 SQ X 1.12 LONG | 210146 | 2 | HT210146-Online |
Hydraulic Components
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 8 | HT767954-Online |
| 4 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 5 | VIBRATION MOUNT | 604320 | 1 | 604320-Online |
| 6 | FTG, -10MORB/-12BT 45° | 774968 | 2 | 774968-Online |
| 7 | NT .500-13 HX G5 ZNYC | 008193 | 4 | HT008193-Online |
| 8 | FW .531 X 1.063 X .090 SAE | 767962 | 12 | HT767962-Online |
| 9 | RS PUMP | 602964 | 1 | 602964-Online |
| 10 | CS .250-20 X 1.50 HX G5 | 008581 | 2 | 008581-Online |
| 11 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 12 | PUMP ARM | 602732 | 2 | 602732-Online |
| 13 | CS M8-1.25 X 10 G10.9 SHBH | 603272 | 2 | 603272-Online |
| 14 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 15 | NT .250-20 HX ZY NL | 068551 | 2 | HT068551-Online |
| 16 | FTG, -8MORB/-8BT STR | 601523 | 2 | 601523-Online |
| 17 | FTG, -8MORB/-8BT STR | 602443 | 8 | 602443-Online |
| 18 | TUBE, RP-TM RH LOOP | 602876 | 1 | 602876-Online |
| 19 | TUBE, LP-BM RH LOOP | 602875 | 1 | 602875-Online |
| 20 | HYDRAULIC MOTOR | 603898 | 2 | 603898-Online |
| 21 | NT .500-13 UNT LK G8 ZN | 023317 | 8 | 023317-Online |
| 22 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 23 | FTG, 90-6MORB/-6MJI | 795922 | 1 | HT795922-Online |
| 24 | LS PUMP | 603895 | 1 | 603895-Online |
| 25 | FTG T,-6 O-RING/-6J | 763953 | 1 | HT763953-Online |
| 26 | TUBE, RP-TM LH LOOP | 602874 | 1 | 602874-Online |
| 27 | TUBE, LP-BM LH LOOP | 602873 | 1 | 602873-Online |
| 28 | CS .500-13 X 2.50 SQ G5 | 602256 | 8 | 602256-Online |
| 29 | CB .500-13 X 1.50 FULL | 028274 | 4 | 028274-Online |
| 30 | LOOP CLAMP | 043570 | 2 | 043570-Online |
| 31 | PUMP SEAL KIT (NOT SHOWN) | 603362 | 1 | 603362-Online |

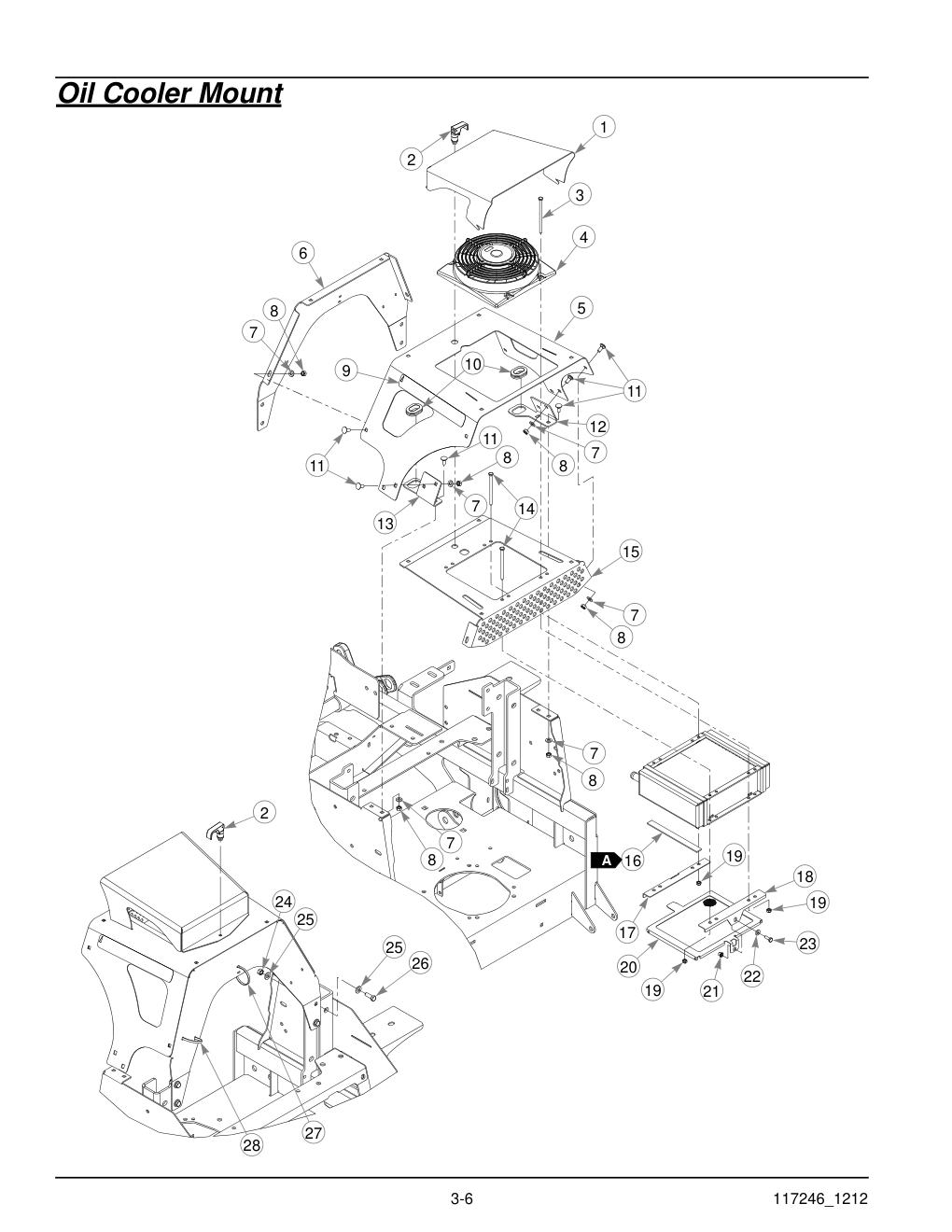

Oil Cooler Mount
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR SCOOP | 114038 | 1 | 114038-Online |
| 2 | LATCH | 791384 | 1 | 791384-Online |
| 3 | CS .250-20 X 4.50 HX G5 | 603229 | 4 | 603229-Online |
| 4 | FAN, 9" | 603066 | 1 | 603066-Online |
| 5 | OIL COOLER COVER | 117407 | 1 | 117407-Online |
| 6 | COOLER MOUNT FIREWALL | 114040 | 1 | 114040-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 8 | NT .312-18 HX G5 ZNYC | 034272 | 16 | HT034272-Online |
| 9 | HYPERDRIVE DECAL | 603290 | 2 | 603290-Online |
| 10 | GM 1.12 X 1.75 X 1.37 X .12 | 706531 | 2 | 706531-Online |
| 11 | CB .312-18 X .75 FUL ZN | 016253 | 16 | 016253-Online |
| 12 | RS COOLER MOUNT | 117408 | 1 | 117408-Online |
| 13 | LS COOLER MOUNT | 117409 | 1 | 117409-Online |
| 14 | CS .250-20 X 4.00 HX G5 | 603228 | 2 | 603228-Online |
| 15 | UPPER COOLER MOUNT | 114039 | 1 | 114039-Online |
| 16 | WEATHERSTRIP | 033035 | 15.5" | 033035-Online |
| 17 | FRONT SCREEN MOUNT BRACKET | 114141 | 1 | 114141-Online |
| 18 | REAR SCREEN MOUNT BRACKET | 114142 | 1 | 114142-Online |
| 19 | NT .250-20 HX ZY NL | 068551 | 6 | HT068551-Online |
| 20 | SCREEN | 114165 | 1 | 114165-Online |
| 21 | 1/4-20 THREAD RIVET NUT | 808477 | 1 | 808477-Online |
| 22 | FW .281 X .625 X .051/.080H | 768515 | 1 | HT768515-Online |
| 23 | CS .250-20 X .75 HX G5 | 055939 | 1 | 055939-Online |
| 24 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 25 | FW .406 X .812 X .060 SAE | 767954 | 8 | HT767954-Online |
| 26 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 27 | WIRE TIE | 000331 | 1 | 000331-Online |
| 28 | WIRE TIE | 000430 | 2 | 000430-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING COVER (WITH DECALS) | 551752 | 1 | 551752-Online |
| 2 | WEAR TAPE | 722199 | 11" | 722199-Online |
| 3 | SUPER 104 DECAL | 604233 | 1 | 604233-Online |
| 4 | RS STEERING BOX SUB-ASSEMBLY | 604295 | 1 | 604295-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 6 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 7 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 8 | FW .344 X 1.00 X .12 HRD Z | 712927 | 2 | HT712927-Online |
| 9 | PUMP ROD ADJUSTER | 781286 | 2 | HT781286-Online |
| 10 | BALL STUD | 781922 | 4 | 781922-Online |
| 11 | SWITCH | 601087 | 2 | HT601087-Online |
| 12 | STEERING DAMPER | 603192 | 2 | 603192-Online |
| 13 | LOCK COLLAR 0.757 ID | 784439 | 2 | HT784439-Online |
| 14 | SS .500-13 X 2.00 SH ZY | 797738 | 2 | 797738-Online |
| 15 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
| 16 | FW .750 X 1.50 X .156 ZN | 603078 | 2 | 603078-Online |
| 17 | BUSHING | 781153 | 2 | HT781153-Online |
| 18 | LS STEERING BOX SUB-ASSEMBLY | 604296 | 1 | 604296-Online |
| 19 | STEER PIVOT TUBE | 113007 | 1 | 113007-Online |
Steering Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 20 | STEERING ARM (WITH GRIP) | 604339 | 2 | 604339-Online |
| 20 | STEERING BAR GRIP | 781260 | 2 | 781260-Online |
| 21 | CS .375-12 X 1.500 HX G5 | 604365 | 4 | 604365-Online |
| 22 | FW .406 X .812 X .060 SAE | 767954 | 20 | HT767954-Online |
| 23 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 24 | NT .375-16 HX G5 ZNY | 054502 | 10 | HT054502-Online |
| 25 | LW .312 INT-EXT TOOTH | 029876 | 2 | 029876-Online |
| 26 | CS .375-16 X .75 HX G5 | 055822 | 2 | HT055822-Online |
| 27 | NT .312-18 HXFLK ZNYC | 016832 | 2 | 016832-Online |
| 28 | CAP LOCK | 601426 | 1 | 601426-Online |
Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 HX ZY NL | 086660 | 2 | HT086660-Online |
| 2 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 3 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 5 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 6 | LS BRAKE BELLCRANK | 112907 | 1 | 112907-Online |
| 6 | RS BRAKE BELLCRANK (NOT SHOWN) | 112906 | 1 | 112906-Online |
| 7 | BUSHING | 765339 | 4 | HT765339-Online |
| 8 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 9 | BRAKE LINK TURNBUCKLE | 350397 | 2 | 350397-Online |
| 10 | CS .375-16 X 1.375 HX G5 | 005116 | 4 | HT005116-Online |
| 11 | CS .375-16 X 4.50 HX G5 | 052514 | 2 | 052514-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 13 | BRAKE ARM | 111309 | 2 | HT111309-Online |
| 14 | CB .312-18 X 1.00 FULL ZN | 037887 | 4 | HT037887-Online |
| 15 | CS .312-18 X .875 HX G8 FLK | 604461 | 8 | 604461-Online |
| 16 | HUB ASSEMBLY (WITH STUDS) | 602384 | 2 | 602384-Online |
| 17 | BRAKE ASSEMBLY | 602383 | 2 | 602383-Online |
| 18 | STUD | 601085 | 5 | HT601085-Online |
Wheel & Tire Install
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.25 HX G5 Z | 781872 | 2 | HT781872-Online |
| 2 | FW .656 X 2.00 X .078 ZNYC | 046821 | 6 | HT046821-Online |
| 3 | IDLER DUST SHIELD LG | 602963 | 2 | 602963-Online |
| 4 | O-RING, -20 ORB | 603440 | 2 | 603440-Online |
| 5 | DUST SHIELD SPACER | 117723 | 2 | 117723-Online |
| 6 | SEALED BALL BEARING | 604484 | 4 | 604484-Online |
| 7 | BEARING SPACER | 117637 | 2 | 117637-Online |
| 8 | BEARING DISK | 604483 | 2 | 604483-Online |
| 9 | LEFT FRONT TIRE SUB-ASSEMBLY | N/A | 1 | No SKU |
| 10 | RIGHT FRONT TIRE SUB-ASSEMBLY | N/A | 1 | No SKU |
| 11 | TIRE/WHEEL ASSEMBLY 26 X 12-12 | 603928 | 2 | 603928-Online |
| 12 | WHEEL NUT | 061077 | 10 | HT061077-Online |
| 13 | CS .500-13 X 4.50 HX G5 | 068239 | 2 | HT068239-Online |
| 14 | FW .531 X 1.063 X .090 SAE | 767962 | 4 | HT767962-Online |
| 15 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 16 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 17 | NT .500-13 HX G5 ZNYC | 008193 | 2 | HT008193-Online |

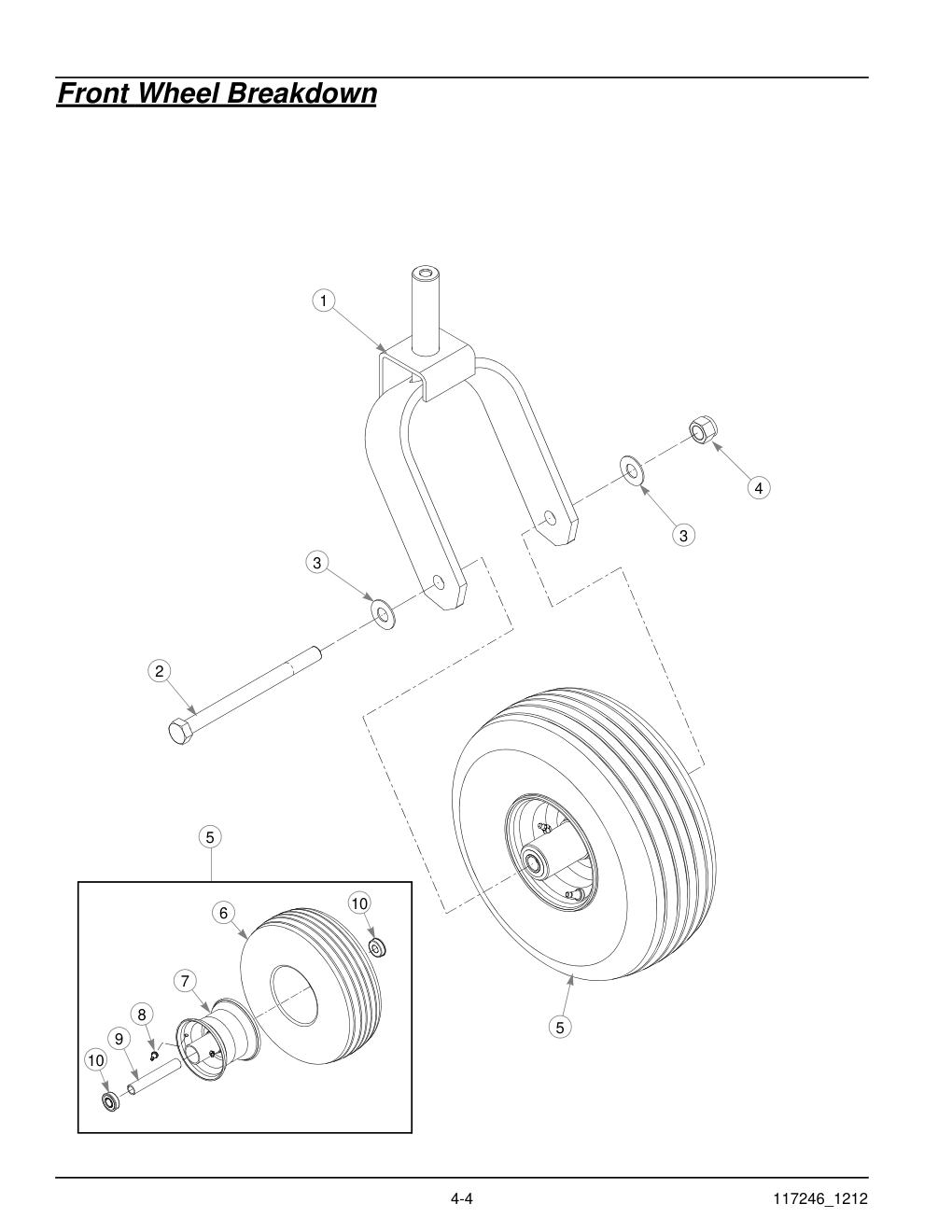

Front Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK 15.0 X 6.0 | 117632 | 1 | HT117632-Online |
| 2 | CS .750-10 X 9.50 HX ZY | 041475 | 1 | HT041475-Online |
| 3 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 4 | NT .750-10 HX ZY NL | 061101 | 1 | HT061101-Online |
| 5 | CASTER TIRE/WHEEL ASSEMBLY 15 X 6 | 791897 | 1 | HT791897-Online |
| 6 | TIRE 15 X 6-6 4 PLY | 791913 | 1 | 791913-Online |
| 7 | WHEEL 6 X 4.5 | 747832 | 1 | 747832-Online |
| 8 | VALVE STEM | 019521 | 1 | HT019521-Online |
| 9 | BEARING SPACER | 782771 | 1 | HT782771-Online |
| 10 | WHEEL BEARING | 039677 | 2 | HT039677-Online |
Engine, Kawasaki FX1000V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FX1000V ENGINE | N/A | 1 | No SKU |
| 2 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 3 | FITTING, STREET ELBOW 1/8 NPT BRASS | 601216 | 1 | 601216-Online |
| 4 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 5 | MUFFLER | 603708 | 1 | 603708-Online |
| 6 | POSITIVE BATTERY CABLE | 604029 | 1 | 604029-Online |
| 7 | NT .312-18 HX G5 ZNYC | 034272 | 8 | HT034272-Online |
| 8 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 9 | NEGATIVE BATTERY CABLE | 604026 | 1 | 604026-Online |
| 10 | CLAMP | 045088 | 1 | 045088-Online |
| 11 | CLAMP, 3/16" | 603112 | 1 | 603112-Online |
| 12 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 13 | CS .312-18 X 1.00 HX G5 | 036236 | 4 | 036236-Online |
| 14 | BRACE | 114578 | 1 | 114578-Online |
| 15 | NT .312-18 HXFLK ZNYC | 016832 | 4 | 016832-Online |
| 16 | LOOP CLAMP | 043570 | 2 | 043570-Online |
| 17 | 1/4" FUEL LINE | 015818 | 14" | HT015818-Online |
| 18 | 3/16" VAPOR LINE | 603326 | 34" | 603326-Online |
| 19 | WIRE TIE | 000331 | 5 | 000331-Online |
| 20 | FW .406 X .812 X .060 SAE | 767954 | 3 | HT767954-Online |
| 21 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 22 | LW .375 INT-EXT TOOTH | 793885 | 1 | 793885-Online |
| 23 | GROUND STRAP | 111894 | 1 | 111894-Online |
| 24 | CB .312-18 X 1.25 ZNYC | 602827 | 1 | 602827-Online |
| 25 | MUFFLER MOUNT | 115889 | 1 | 115889-Online |
| 26 | CS .500-13 X 1.00 HX G5 Z | 016253 | 4 | 016253-Online |
| 27 | CS M8 X 1.25 X 16 HX G10.9 | 720516 | 2 | 720516-Online |
| 28 | CABLE MOUNT | 115819 | 1 | 115819-Online |
Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RATCHETING GAS CAP 3.5" | 603807 | 2 | 603807-Online |
| 2 | LS FUEL TANK ASSEMBLY | 604443 | 1 | 604443-Online |
| 3 | RS FUEL TANK ASSEMBLY | 604442 | 1 | 604442-Online |
| 4 | HOSE CLAMP | 000323 | 4 | 000323-Online |
| 5 | 3/16" VAPOR LINE | 603326 | 74" | 603326-Online |
| 6 | PLASTIC TEE, 3/16" | 604281 | 2 | 604281-Online |
| 7 | 1/4" FUEL LINE | 015818 | 66" | HT015818-Online |
| 8 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 9 | VAPOR SYSTEM FILTER | 604323 | 1 | 604323-Online |
| 10 | FW .344 X 1.00 X .12 HRD Z | 712927 | 10 | HT712927-Online |
| 11 | CS .375-16 X .75 HX G5 | 055822 | 10 | HT055822-Online |
| 12 | CS .312-18 X 1.00 HX G5 | 036236 | 3 | 036236-Online |
| 13 | FW .343 X .687 X .051/.080H | 768523 | 3 | HT768523-Online |
| 14 | LOOP CLAMP | 043570 | 3 | 043570-Online |
| 15 | NT .312-18 HX FLK ZNYC | 016832 | 3 | 016832-Online |
| 16 | CS .250-20 X .50 HX G5 | 055947 | 4 | 055947-Online |
| 17 | FW .281 X .625 X .051/.080H | 768515 | 4 | HT768515-Online |
| 18 | TANK COVER | 115998 | 1 | 115998-Online |
| 19 | TANK COVER | 115999 | 1 | 115999-Online |
| 20 | WIRE TIE (NOT SHOWN) | 000331 | 1 | 000331-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X 5.00 HX GR5 | 050823 | 2 | 050823-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 3 | BATTERY STRAP | 113676 | 1 | 113676-Online |
| 4 | CN .312-18 X .20 MAX THK | 601069 | 2 | HT601069-Online |
| 5 | WIRE TIE (NOT SHOWN) | 000331 | 2 | 000331-Online |
Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LOOP CLAMP | 000398 | 4 | HT000398-Online |
| 2 | CHOKE CABLE | 603087 | 1 | 603087-Online |
| 3 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 4 | ROCKER SWITCH | 797308 | 1 | HT797308-Online |
| 5 | FUEL DISPLAY/HOUR METER | 603748 | 1 | 603748-Online |
| 6 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 7 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 8 | CS .250-20 X .50 HX G5 | 055947 | 10 | 055947-Online |
| 9 | FW .281 X .625 X .051/.080H | 768515 | 10 | HT768515-Online |
| 10 | SWITCH PANEL (WITH DECAL) | 551755 | 1 | 551755-Online |
| 11 | INSTRUMENT PANEL DECAL | 604261 | 1 | 604261-Online |
| 12 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 13 | 1/4-20 THREAD RIVET NUT | 808477 | 6 | 808477-Online |
| 14 | SWITCH CLOSEOUT | 116815 | 1 | 116815-Online |
| 15 | KNOB | 603523 | 1 | 603523-Online |
| 16 | CB 10-24 X .50 ZYNC | 601098 | 2 | 601098-Online |
| 17 | INSTRUMENT PANEL DECAL | 604260 | 1 | 604260-Online |
| 18 | INSTRUMENT PANEL (WITH DECAL) | 551754 | 1 | 551754-Online |
| 19 | THROTTLE CABLE | 603409 | 1 | 603409-Online |
| 20 | FW .219 X .50 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 21 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 22 | WIRE TIE | 000430 | 1 | 000430-Online |
| 23 | RELAY CONTROL MODULE | 604373 | 1 | 604373-Online |
| 24 | CS 10-24 X .75 HXFLK ZN | 063198 | 2 | 063198-Online |
| 25 | MOWER WIRE HARNESS | 604093 | 1 | 604093-Online |
| 26 | WING WIRE HARNESS (NOT SHOWN) | 604085 | 1 | 604085-Online |
| 27 | WIRE TIE | 000331 | 6 | 000331-Online |
| 28 | CS .312-18 X .75 HX G5 | 034280 | 1 | HT034280-Online |
| 29 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 30 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 31 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 32 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |

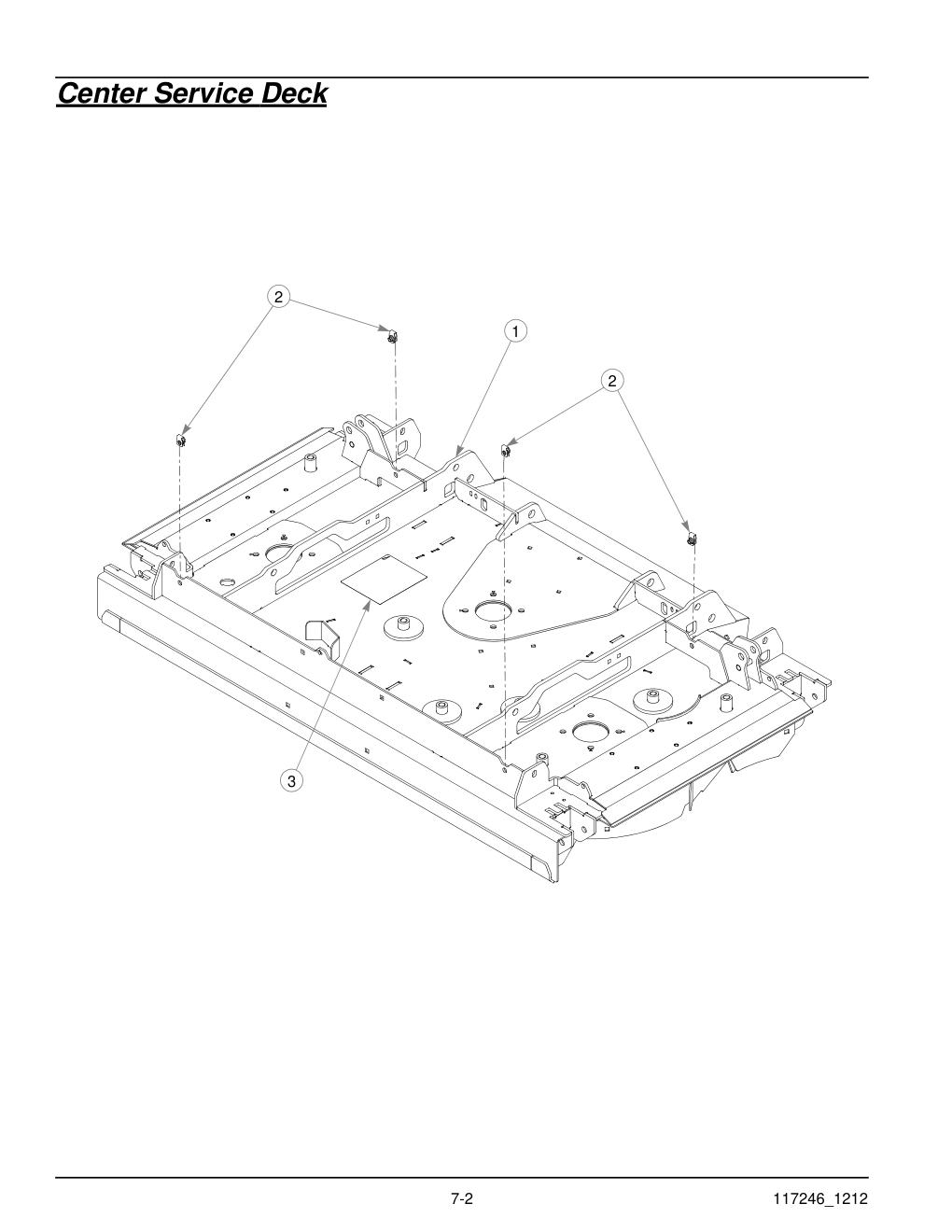

Center Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CENTER DECK (WITH DECALS & HARDWARE) | 551822 | 1 | 551822-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | BELT ROUTING DECAL | 604276 | 1 | 604276-Online |
Center Deck Idler Slides
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 11 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 20 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 11 | 603057-Online |
| 4 | IDLER PULLEY NHI 6.0" | 781385 | 1 | HT781385-Online |
| 5 | NT .312-18 HX ZY NL | 058776 | 10 | HT058776-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 7 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 8 | CHAIN | 259812 | 1 | HT259812-Online |
| 9 | FLAT IDLER PULLEY | 603784 | 2 | 603784-Online |
| 10 | WING IDLER SLED | 117576 | 2 | HT117576-Online |
| 11 | CS .312-18 X 1.00 FLT SH ZN | 604086 | 8 | 604086-Online |
| 12 | IDLER SLIDE UHMW | 601619 | 4 | 601619-Online |
| 13 | LONG IDLER SLED | 116547 | 1 | 116547-Online |
| 14 | SHORT IDLER SLIDE | 603750 | 4 | 603750-Online |
| 15 | CB .312-18 X 1.00 FULL ZN | 037887 | 6 | HT037887-Online |
| 16 | TENSIONER SPRING CATCH | 116546 | 1 | 116546-Online |
| 17 | CHAIN, 7 LINK | 364315 | 1 | HT364315-Online |
| 18 | 6" HB IDLER PULLEY | 796714 | 3 | HT796714-Online |
| 19 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 20 | CS .750-10 X 9.50 HX ZY | 041475 | 2 | HT041475-Online |
| 21 | FW .760 X 1.625 X .08 ZNYC | 025296 | 4 | HT025296-Online |
| 22 | DECK PUSHER | 116105 | 2 | HT116105-Online |
| 23 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 24 | NT .750-10 HX ZY NL | 061101 | 2 | HT061101-Online |
| 25 | SB .500 X .625 SH .375-16 | 060541 | 4 | 060541-Online |
| 26 | NT #10-24 HX NL JAM ZN | 603846 | 4 | 603846-Online |
| 27 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
Center Deck Idlers
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 28 | PULLEY V-IDLER HBB 5.0" | 602672 | 3 | 602672-Online |
| 29 | V IDLER PULLEY | 603785 | 2 | 603785-Online |
Center Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 30 | CS .500-13 X 1.75 HX G5 | 017616 | 9 | HT017616-Online |
| 31 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 32 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 33 | DOUBLE PULLEY 6.00 EFF | 524785 | 2 | HT524785-Online |
| 34 | FW .531 X 1.063 X .090 SAE | 767962 | 17 | HT767962-Online |
| 35 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 6 | HT705954-Online |
| 36 | DOUBLE DRIVE PULLEY 7.85/6.00 EFF | 604036 | 1 | 604036-Online |
| 37 | CB .500-13 X 4.50 STD ZN | 602339 | 5 | 602339-Online |
| 38 | PLASTIC WHEEL | 602263 | 5 | 602263-Online |
| 39 | SPACER 3.22 | 602345 | 5 | 602345-Online |
| 40 | NT .500-13 HX G8 ZY NL | 781567 | 5 | HT781567-Online |
| 41 | BLADE SPINDLE CCW | 604256 | 1 | 604256-Online |
| 42 | BLADE SPINDLE CW | 604255 | 2 | 604255-Online |

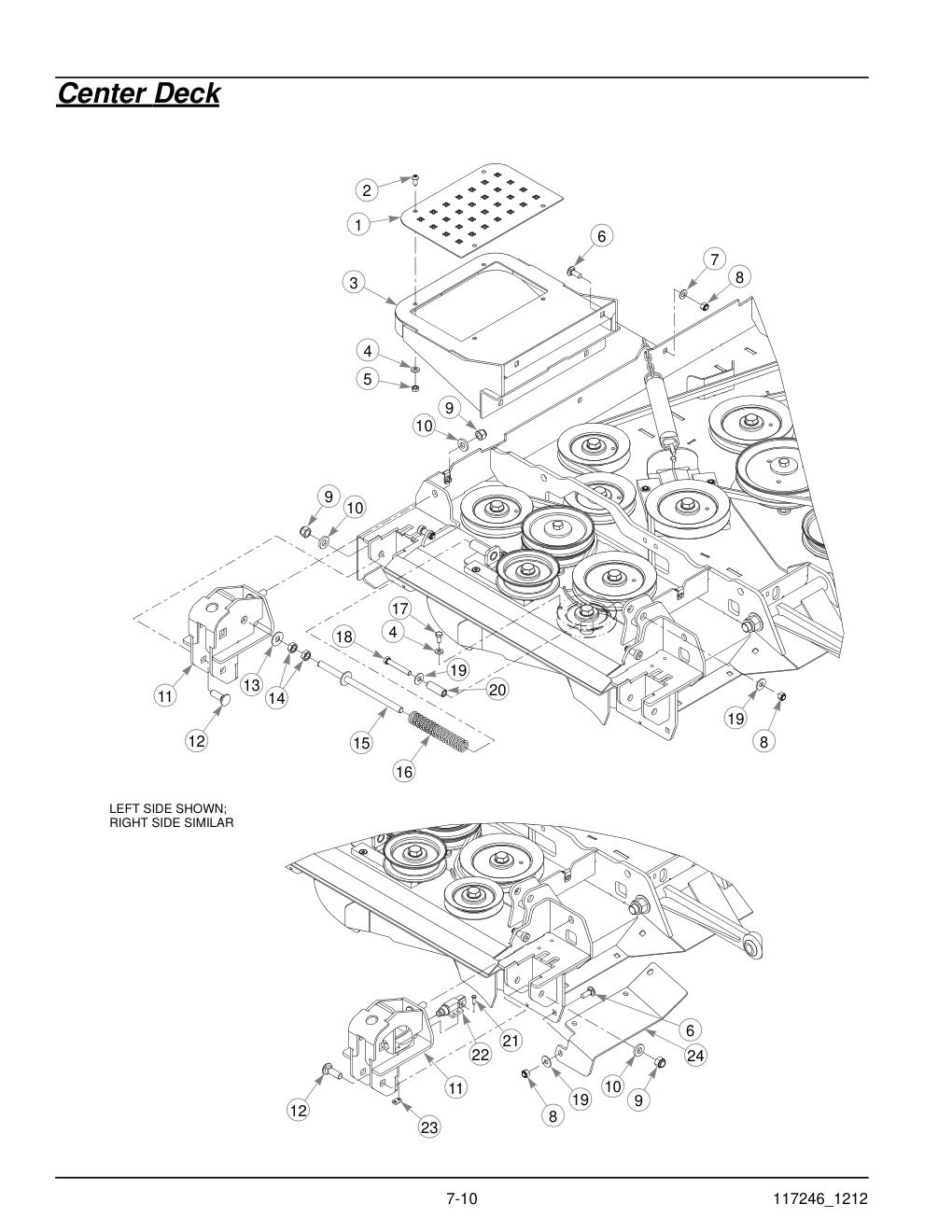

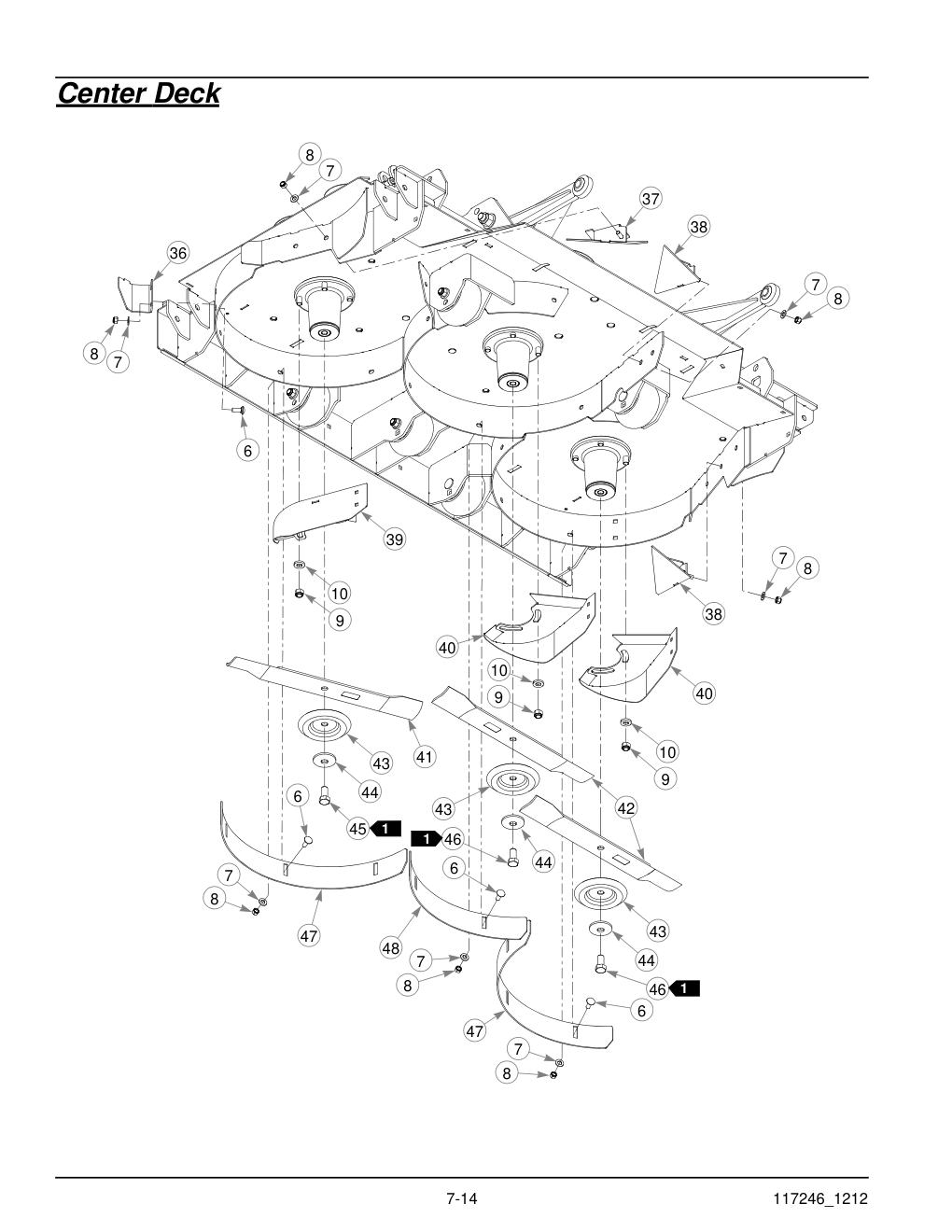

Center Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TREAD PLATE | 116630 | 1 | 116630-Online |
| 2 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 3 | STEP | 116625 | 1 | 116625-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 14 | HT768523-Online |
| 5 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 6 | CB .375-16 X 1.00 G5 ZNY | 025395 | 24 | HT025395-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 19 | HT767954-Online |
| 8 | NT .375-16 HXZY NL | 086660 | 29 | HT086660-Online |
| 9 | NT .500-13 HX G8 ZY NL | 781567 | 20 | HT781567-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 22 | HT767962-Online |
| 11 | WING PIVOT TOWER | 116550 | 4 | 116550-Online |
| 12 | CB .500-13 X 1.50 FULL | 028274 | 8 | 028274-Online |
| 13 | FW 0.50 X 1.25 X 0.075 | 704759 | 2 | 704759-Online |
| 14 | NT .500-13 HX JAM ZNYC | 053199 | 4 | HT053199-Online |
| 15 | TENSIONER ROD | 115245 | 2 | HT115245-Online |
| 16 | SPRING | 603787 | 2 | 603787-Online |
| 17 | CS .312-18 X .625 HX G5 | 064006 | 2 | 064006-Online |
| 18 | CS .375-16 X 2.50 HX GR5 | 016428 | 2 | 016428-Online |
| 19 | FW .406 X 1.00 X .06 ZNYC | 076422 | 12 | 076422-Online |
| 20 | SPACER | 604290 | 2 | 604290-Online |
| 21 | MS #10-24 X .625 HX ZN | 714998 | 8 | 714998-Online |
| 22 | SWITCH PLUNGER, NC/NO | 602538 | 4 | 602538-Online |
| 23 | NUT PLATE .420 CENTERS | 601822 | 4 | 601822-Online |
| 24 | CENTER DISCHARGE FLAP | 603704 | 2 | 603704-Online |
Center Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 25 | BELT, B 157.10" EL | 084178 | 1 | HT084178-Online |
| 26 | BELT, B SEC 102.0" EL | 603786 | 1 | 603786-Online |
| 27 | CB .250-20 X .625 ZNYC | 601503 | 6 | 601503-Online |
| 28 | STRIKER PLATE | 116613 | 2 | 116613-Online |
| 29 | LATCH TOWER | 116575 | 2 | 116575-Online |
| 30 | CS .312-18 X .875 HX G5 ZN | 064014 | 8 | 064014-Online |
| 31 | FW .250 X .560 X .04 SAE Z | 017079 | 6 | 017079-Online |
| 32 | NT .250-20 HX GR.5 ZNYC | 024927 | 6 | HT024927-Online |
| 33 | LATCH SWITCH BRACKET | 116632 | 2 | 116632-Online |
| 34 | CN .312-18 X .20 MAX THK | 601069 | 8 | HT601069-Online |
| 35 | CS .500-13 X 4.00 HX G5 Z | 089938 | 2 | 089938-Online |
Center Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 36 | FRONT LS DEFLECTOR | 116533 | 1 | 116533-Online |
| 36 | FRONT RS DEFLECTOR (NOT SHOWN) | 116532 | 1 | 116532-Online |
| 37 | DISCHARGE RAMP, CCW | 116561 | 1 | HT116561-Online |
| 38 | DISCHARGE RAMP, CW | 116560 | 2 | HT116560-Online |
| 39 | LS CUT-OFF | 117166 | 1 | HT117166-Online |
| 40 | RS CUT-OFF | 117165 | 2 | HT117165-Online |
| 41 | BLADE, F20.50"-L-F-CCW | 795633 | 1 | HT795633-Online |
| 41 | BLADE, 20.5" GAT-F-CCW | 601928 | 1 | 601928-Online |
| 41 | BLADE, 20.50-MUL-F-CCW | 604163 | 1 | 604163-Online |
| 42 | BLADE, F20.50"-L-F-CW | 600901 | 2 | HT600901-Online |
| 42 | BLADE, 20.50" GAT-F-CW | 794230 | 2 | HT794230-Online |
| 42 | BLADE, 20.50"-MUL-F-CW | 794214 | 2 | HT794214-Online |
| 43 | BLADE BOLT SHIELD | 114988 | 3 | HT114988-Online |
| 44 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 45 | CS .625-11 X 1.25 LH H5Y | 604383 | 1 | 604383-Online |
| 46 | CS .625-11 X 1.25 HX G5 ZY | 781872 | 2 | HT781872-Online |
| 47 | SIDE WRAPPER | 116637 | 2 | HT116637-Online |
| 48 | CENTER WRAPPER | 116636 | 1 | HT116636-Online |

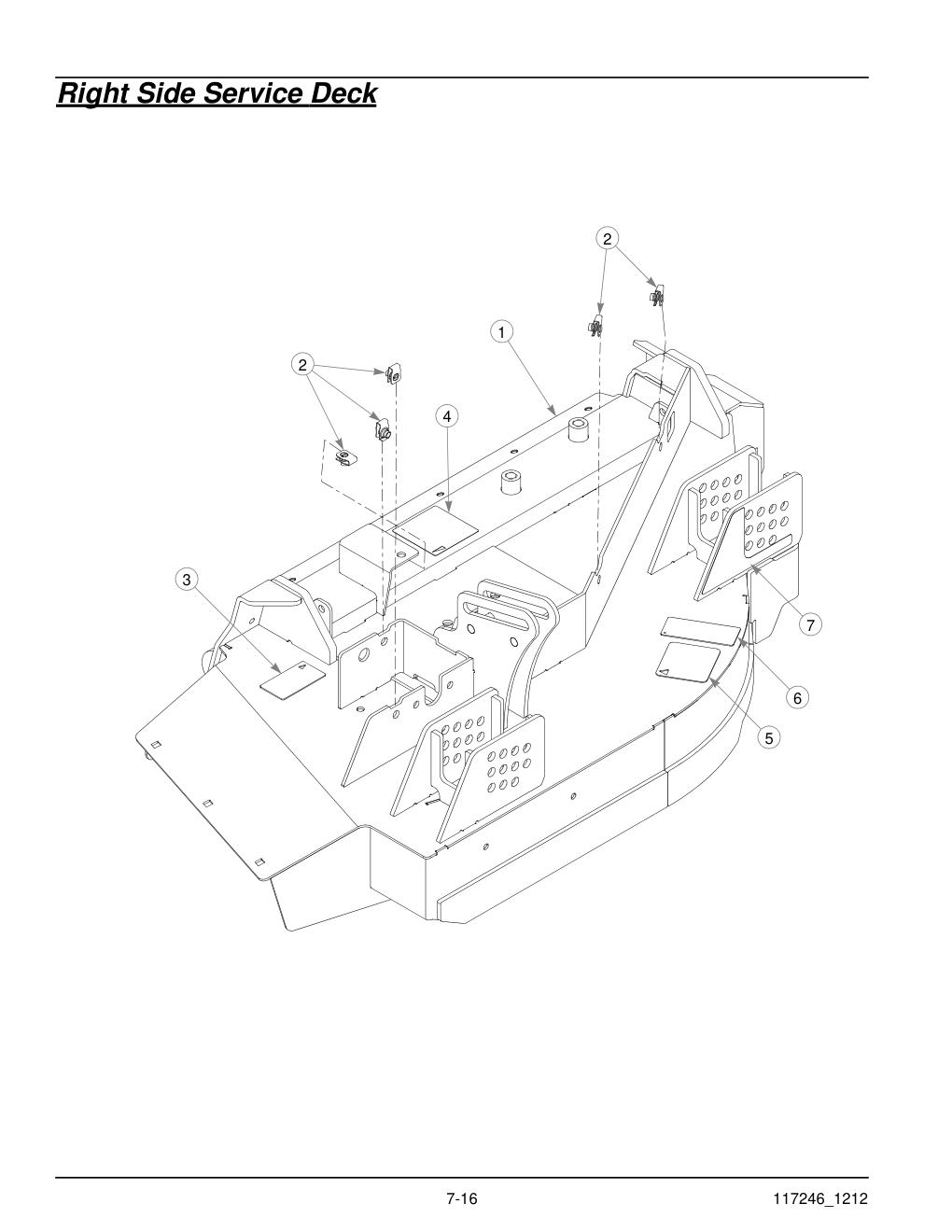

Right Side Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS WING DECK (WITH DECALS & HARDWARE) | 551823 | 1 | 551823-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 5 | HT601069-Online |
| 3 | RUBBER FLAP DECAL | 603391 | 1 | 603391-Online |
| 4 | TEMPLATE DECAL | 604277 | 1 | 604277-Online |
| 5 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 6 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 7 | CUT HEIGHT DECAL | 604285 | 1 | 604285-Online |
Right Side Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 2 | FW .515 X 1.65 X .125 HD ZY | 798603 | 1 | 798603-Online |
| 3 | O-RING, SAE-14 | 601375 | 1 | 601375-Online |
| 4 | DUST CAP | 603153 | 1 | 603153-Online |
| 5 | FW 1.030 X 1.50 X .134 ZN | 045765 | 2 | HT045765-Online |
| 6 | DISC BEARING | 603164 | 1 | 603164-Online |
| 7 | BEARING | 784223 | 2 | HT784223-Online |
| 8 | SPACER | 784603 | 1 | HT784603-Online |
| 9 | SPACER | 469924 | 1 | 469924-Online |
| 10 | WHEEL TUBE | 116293 | 1 | 116293-Online |
| 11 | CS .312-18 X .625 FLT SH BO | 604096 | 8 | 604096-Online |
| 12 | HEIGHT ADJUST PAD | 604095 | 4 | 604095-Online |
| 13 | CB .500-13 X 5.50 G5 ZN | 604197 | 2 | 604197-Online |
| 14 | FORK | 115315 | 1 | 115315-Online |
| 15 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 16 | NT .500-13 HX G8 ZY NL | 781567 | 6 | HT781567-Online |
| 17 | CS .500-13 X 3.50 HX G5 | 061812 | 2 | 061812-Online |
| 18 | GAUGE FORK | 116075 | 1 | 116075-Online |
| 19 | CS .375-16 X 1.75 G5 FULTD | 600878 | 1 | 600878-Online |
| 20 | NT .375-16 HX GRD 5 ZNY | 054502 | 1 | HT054502-Online |
| 21 | WHEEL, 9.0 X 3.5 X 4.0 HUB | 604087 | 2 | 604087-Online |
| 22 | GAUGE WHEEL SPACER | 604089 | 2 | 604089-Online |
| 23 | LANYARD PIN | 604041 | 2 | 604041-Online |
| 24 | RS LATCH COVER | 116882 | 1 | 116882-Online |
| 25 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 26 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |
| 27 | WING STOP PAD | 604088 | 2 | 604088-Online |
| 28 | CS .312-18 X 1.00 FLT SH ZN | 604086 | 4 | 604086-Online |
| 29 | CS .312-18 X .625 BH ZN | 603022 | 5 | 603022-Online |
| 30 | FLAP CLAMP PLATE | 116614 | 1 | 116614-Online |
| 31 | WING INTERSECTION FLAP | 603855 | 1 | 603855-Online |
| 32 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 33 | WING FLAP | 604270 | 1 | 604270-Online |
| 34 | NT .375-16 HXZY NL | 086660 | 6 | HT086660-Online |
| 35 | FW .406 X 1.00 X .06 ZNYC | 076422 | 3 | 076422-Online |
| 36 | CB .375-16 X 1.00 G5 ZNY | 025395 | 5 | HT025395-Online |
| 37 | NT .312-18 HXZY NL | 058776 | 2 | HT058776-Online |
| 38 | BUMPER | 604183 | 1 | 604183-Online |
| 39 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 40 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
Right Side Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 41 | WING WRAPPER EXTENSION | 116638 | 1 | HT116638-Online |
| 42 | FW .406 X .812 X .060 SAE | 767954 | 3 | HT767954-Online |
| 43 | DISCHARGE RAMP, CW | 116560 | 1 | HT116560-Online |
| 44 | RS CUT-OFF | 117165 | 1 | HT117165-Online |
| 45 | BLADE, F23.86-L-F-CW | 796839 | 1 | HT796839-Online |
| 45 | BLADE, 23.86"-GAT-F-CW | 794867 | 1 | 794867-Online |
| 45 | BLADE, 23.86"-MUL-F-CW | 793398 | 1 | HT793398-Online |
| 46 | BLADE BOLT SHIELD | 114988 | 1 | HT114988-Online |
| 47 | CW .631 X 2.25 X .187 PNT | 782474 | 1 | HT782474-Online |
| 48 | CS .625-11 X 1.25 HX G5 ZY | 781872 | 1 | HT781872-Online |
Left Side Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LS WING DECK (WITH DECALS & HARDWARE) | 551824 | 1 | 551824-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 5 | HT601069-Online |
| 3 | TEMPLATE DECAL | 604278 | 1 | 604278-Online |
| 4 | RUBBER FLAP DECAL | 603391 | 1 | 603391-Online |
| 5 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 6 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 7 | CUT HEIGHT DECAL | 604286 | 1 | 604286-Online |
Left Side Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 2 | FW .515 X 1.65 X .125 HD ZY | 798603 | 1 | 798603-Online |
| 3 | O-RING, SAE-14 | 601375 | 1 | 601375-Online |
| 4 | DUST CAP | 603153 | 1 | 603153-Online |
| 5 | FW 1.030 X 1.50 X .134 ZN | 045765 | 2 | HT045765-Online |
| 6 | DISC BEARING | 603164 | 1 | 603164-Online |
| 7 | BEARING | 784223 | 2 | HT784223-Online |
| 8 | SPACER | 784603 | 1 | HT784603-Online |
| 9 | SPACER | 469924 | 1 | 469924-Online |
| 10 | WHEEL TUBE | 116294 | 1 | 116294-Online |
| 11 | CS .312-18 X .625 FLT SH BO | 604096 | 8 | 604096-Online |
| 12 | HEIGHT ADJUST PAD | 604095 | 4 | 604095-Online |
| 13 | FORK | 115315 | 1 | 115315-Online |
| 14 | CB .500-13 X 5.50 G5 ZN | 604197 | 2 | 604197-Online |
| 15 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 16 | NT .500-13 HX G8 ZY NL | 781567 | 6 | HT781567-Online |
| 17 | GAUGE WHEEL SPACER | 604089 | 2 | 604089-Online |
| 18 | WHEEL, 9.0 X 3.5 X 4.0 HUB | 604087 | 2 | 604087-Online |
| 19 | CS .500-13 X 3.50 HX G5 | 061812 | 2 | 061812-Online |
| 20 | GAUGE FORK | 116075 | 1 | 116075-Online |
| 21 | CS .375-16 X 1.75 G5 FULTD | 600878 | 1 | 600878-Online |
| 22 | NT .375-16 HX G5 ZNY | 054502 | 1 | HT054502-Online |
| 23 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |
| 24 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 25 | LS LATCH COVER | 116883 | 1 | 116883-Online |
| 26 | LANYARD PIN | 604041 | 2 | 604041-Online |
| 27 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 28 | WING STOP PAD | 604088 | 2 | 604088-Online |
| 29 | CS .312-18 X 1.00 FLT SH ZN | 604086 | 4 | 604086-Online |
| 30 | CS .312-18 X .625 BH ZN | 603022 | 5 | 603022-Online |
| 31 | FLAP CLAMP PLATE | 116614 | 1 | 116614-Online |
| 32 | WING INTERSECTION FLAP | 603855 | 1 | 603855-Online |
| 33 | NT .375-16 HX ZY NL | 086660 | 6 | HT086660-Online |
| 34 | FW .406 X 1.00 X .06 ZNYC | 076422 | 3 | 076422-Online |
| 35 | WING FLAP | 604270 | 1 | 604270-Online |
| 36 | CB .375-16 X 1.00 G5 ZNY | 025395 | 5 | HT025395-Online |
| 37 | BUMPER | 604183 | 1 | 604183-Online |
| 38 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
| 39 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 40 | NT .312-18 HX ZY NL | 058776 | 2 | HT058776-Online |
Left Side Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 41 | FW .406 X .812 X .060 SAE | 767954 | 3 | HT767954-Online |
| 42 | DISCHARGE RAMP, CCW | 116561 | 1 | HT116561-Online |
| 43 | LS CUT-OFF | 117166 | 1 | HT117166-Online |
| 44 | WING WRAPPER EXTENSION | 116638 | 1 | HT116638-Online |
| 45 | BLADE, F23.86-L-F-CCW | 796508 | 1 | HT796508-Online |
| 45 | BLADE, 23.86" GAT-F-CCW | 601929 | 1 | 601929-Online |
| 45 | BLADE, 23.86"-MUL-F-CCW | 604164 | 1 | 604164-Online |
| 46 | BLADE BOLT SHIELD | 114988 | 1 | HT114988-Online |
| 47 | CW .631 X 2.25 X .187 PNT | 782474 | 1 | HT782474-Online |
| 48 | CS .625-11 X 1.25 HX G5 LH THREAD | 604383 | 1 | 604383-Online |
Deck & Wing Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BELT, 5L 106" EL | 603885 | 2 | 603885-Online |
| 2 | FW .760 X 1.625 X .08 ZNYC | 025296 | 8 | HT025296-Online |
| 3 | NT 0.75-10 NL JAM | 604495 | 4 | 604495-Online |
| 4 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 5 | BUSHING | 116558 | 4 | 116558-Online |
| 6 | LINK | 116555 | 4 | 116555-Online |
| 7 | FW 1.03 X 1.50 X .134 ZN | 045765 | 4 | HT045765-Online |
| 8 | CB .750-10 X 3.50 G5 ZN | 603953 | 4 | 603953-Online |
| 9 | NT .750-10 HX ZY NL | 061101 | 4 | HT061101-Online |
| 10 | CS .750-10 X 3.00 HX G5 | 051169 | 4 | 051169-Online |
| 11 | SPRING | 603966 | 4 | 603966-Online |
| 12 | SPACER | 604290 | 2 | 604290-Online |
| 13 | FW .406 X 1.00 X .06 ZNYC | 076422 | 4 | 076422-Online |
| 14 | CS .375-16 X 2.50 HX GR5 | 016428 | 2 | 016428-Online |
| 15 | NT .375-16 HX ZY NL | 086660 | 4 | HT086660-Online |
Deck & Wing Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 16 | CS .312-18 X 1.00 FLTSH ZN | 604086 | 8 | 604086-Online |
| 17 | PULLEY COVER SLIDE | 604028 | 4 | 604028-Online |
| 18 | LS PULLEY COVER | 117248 | 1 | 117248-Online |
| 18 | RS PULLEY COVER (NOT SHOWN) | 117247 | 1 | 117247-Online |
| 19 | KNOB 5/16-18 X 3/4 | 792002 | 10 | HT792002-Online |
| 20 | TRIM | 033001 | 58" | 033001-Online |
| 21 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 22 | NT .312-18 HXZY NL | 058776 | 8 | HT058776-Online |
| 23 | LS WING COVER | 116601 | 1 | 116601-Online |
| 23 | RS WING COVER (NOT SHOWN) | 116600 | 1 | 116600-Online |
| 24 | TORSION SPRING | 602435 | 2 | 602435-Online |
| 25 | CHUTE PIN | 602432 | 2 | 602432-Online |
| 26 | LS WING PULLEY COVER | 116545 | 1 | 116545-Online |
| 26 | RS WING PULLEY COVER (NOT SHOWN) | 116544 | 1 | 116544-Online |
| 27 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 28 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 29 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 30 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 31 | CB .500-13 X 4.50 STD ZN | 602339 | 2 | 602339-Online |
Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LATCH SPACER | 117489 | 1 | HT117489-Online |
| 2 | LATCH ARM | 117488 | 2 | 117488-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 20 | HT767954-Online |
| 4 | NT .375-16 HXZY NL | 086660 | 20 | HT086660-Online |
| 5 | CB .375-16 X 3.500 FUL Z | 041848 | 1 | HT041848-Online |
| 6 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 7 | FW .531 X 1.063 X .090 SAE | 767962 | 5 | HT767962-Online |
| 8 | CS .500-13 X 4.00 HX G5 Z | 089938 | 1 | 089938-Online |
| 9 | FW .516 X .875 X .09 ZNYC | 718288 | 2 | 718288-Online |
| 10 | CP .156D X 1.00 LG HML Z | 017251 | 2 | HT017251-Online |
| 11 | CE .500 X 3.50 .156 X 3.34 | 025965 | 1 | HT025965-Online |
| 12 | CUT HEIGHT INDICATOR | 117320 | 1 | 117320-Online |
| 13 | DECK HEIGHT STOP PIN | 604076 | 1 | 604076-Online |
| 14 | NT .375-16 HX G5 ZNY | 054502 | 9 | HT054502-Online |
| 15 | RS FRAME GUARD | 117492 | 1 | 117492-Online |
| 16 | CB .375-16 X .75 STD ZN | 011320 | 13 | 011320-Online |
| 17 | FW .760 X 1.625 X .08 ZNYC | 025296 | 6 | HT025296-Online |
| 18 | BUSHING | 770867 | 2 | HT770867-Online |
| 19 | SPACER | 604075 | 1 | 604075-Online |
| 20 | SINGLE ROD CYLINDER | 604073 | 1 | 604073-Online |
| 21 | NT .750-10 HX G5 ZNYC | 008417 | 2 | 008417-Online |
| 22 | DECK LIFT BLOCK | 602897 | 1 | 602897-Online |
| 23 | DECK LIFT SLIDER | 604069 | 1 | 604069-Online |
| 24 | CE .500 X 1.50 .150 X 1.32 | 068056 | 1 | HT068056-Online |
| 25 | ROD END ASSEMBLY | 604072 | 1 | 604072-Online |
| 26 | CS .500-13 X 1.50 HX G5 | 074252 | 1 | HT074252-Online |
| 27 | FW .531 X 1.375 X .125 ZNY | 712976 | 1 | HT712976-Online |
| 28 | FW .625 X 1.50 X .105 ZN | 704783 | 1 | 704783-Online |
| 29 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 30 | DECK LIFT BRACKET | 116784 | 1 | 116784-Online |
| 31 | NT .625-11 HXZY NY | 058768 | 6 | 058768-Online |
| 32 | CB .375-16 X 1.00 G5 ZNY | 025395 | 14 | HT025395-Online |
| 33 | LINK SPACER | 117188 | 2 | 117188-Online |
| 34 | WIRE TIE | 000331 | 4 | 000331-Online |
| 35 | DECK LINK | 116730 | 2 | HT116730-Online |
| 36 | CS 0.625-11 X 2.50 LGG5 | 604043 | 8 | 604043-Online |
| 37 | CS .375-16 X 1.50 HX G5 | 080655 | 4 | HT080655-Online |
| 38 | SWITCH | 604372 | 1 | 604372-Online |
| 39 | CS .250-20 X .75 BH ZNC | 601298 | 2 | 601298-Online |
| 40 | CUT HEIGHT DECAL | 604280 | 1 | 604280-Online |
Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 41 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 42 | LS FRAME GUARD | 117487 | 1 | 117487-Online |
| 43 | CS .375-16 X 1.75 HX G5 | 705178 | 1 | HT705178-Online |
| 44 | CYLINDER MOUNT | 117318 | 1 | 117318-Online |
| 45 | BRACKET SPACER | 116206 | 1 | 116206-Online |
| 46 | BUSHING | 765339 | 4 | HT765339-Online |
| 47 | GAS SPRING | 604037 | 1 | 604037-Online |
| 48 | CYLINDER BRACKET | 116203 | 1 | 116203-Online |
| 49 | CS .500-13 X 2.50 HX G5 | 008573 | 1 | 008573-Online |

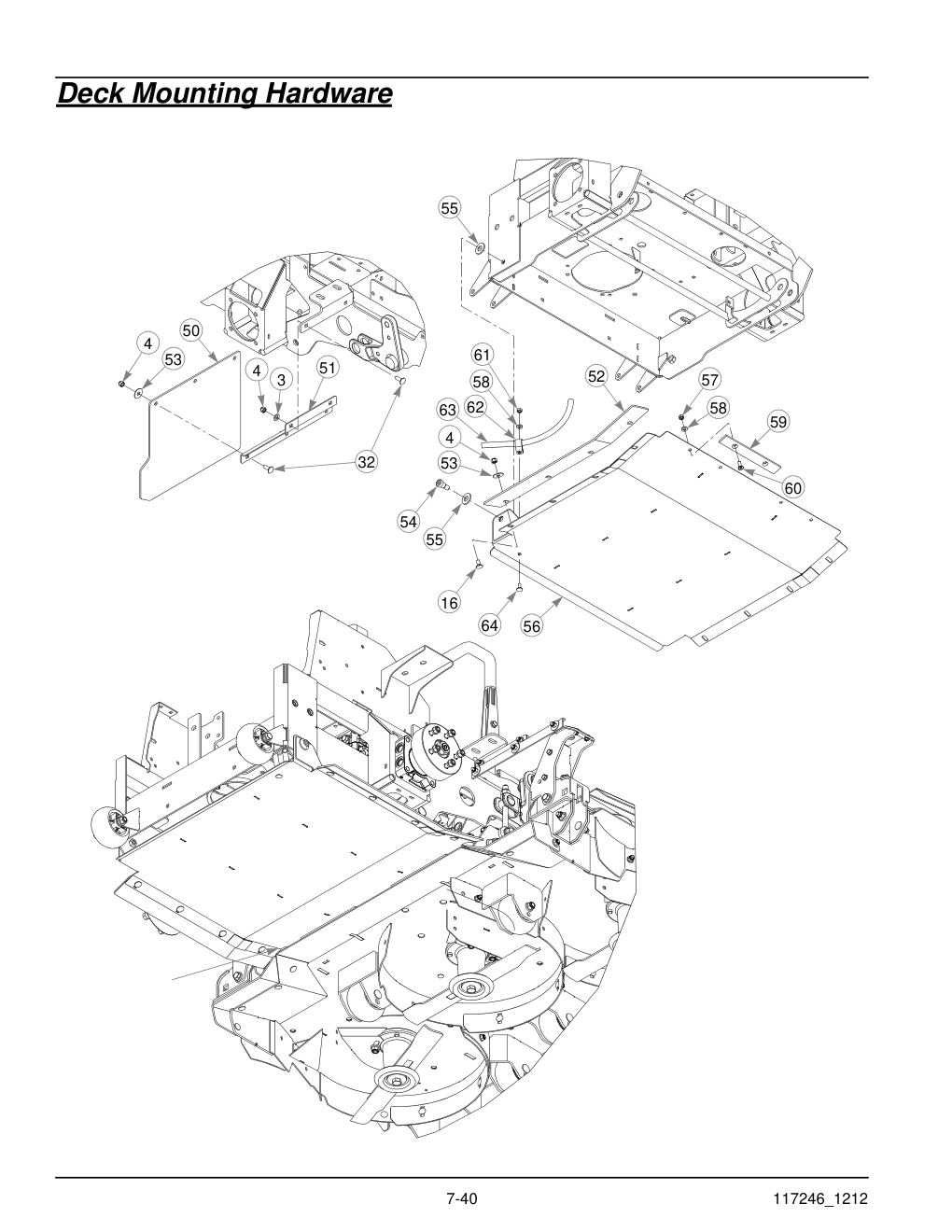

Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 50 | WHEEL FLAP | 604266 | 2 | 604266-Online |
| 51 | RS FLAP MOUNT ANGLE | 116639 | 1 | 116639-Online |
| 51 | LS FLAP MOUNT ANGLE | 116640 | 1 | 116640-Online |
| 52 | BELLY PAN FLAP | 604238 | 2 | 604238-Online |
| 53 | FW .391 X 1.25 X .060 ZNY | 705137 | 14 | 705137-Online |
| 54 | SB .625 X .50 SH .50-13 HX | 604239 | 2 | 604239-Online |
| 55 | BEARING DISC | 602026 | 4 | 602026-Online |
| 56 | BELLY PAN | 117200 | 1 | 117200-Online |
| 57 | NT .312-18 HXZY NL | 058776 | 4 | HT058776-Online |
| 58 | FW .343 X .687 X .051/.080H | 768523 | 5 | HT768523-Online |
| 59 | PULLEY COVER SLIDE | 604028 | 2 | 604028-Online |
| 60 | CS .312-18 X 1.00 FLT SH ZN | 604086 | 4 | 604086-Online |
| 61 | NT 0.312-18 X 0.75 G5 | 034272 | 1 | HT034272-Online |
| 62 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 63 | OIL DRAIN HOSE | 604463 | 15" | 604463-Online |
| 64 | CB .312-18 X 0.75 G5 | 016523 | 1 | 016523-Online |
Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 65 | NT 0.625-18 NLKG5 | 604232 | 4 | 604232-Online |
| 66 | DECK LEVEL SPACER | 603903 | 4 | 603903-Online |
| 67 | DECK LEVEL PIVOT | 603902 | 4 | 603902-Online |
| 68 | CS .750-10 X 3.50 HX G5 | 789115 | 2 | 789115-Online |
| 69 | NT .750-10 HXZY NL | 061101 | 2 | HT061101-Online |
| 70 | FW .625 X 1.00 X .134 ZNYC | 028118 | 4 | HT028118-Online |
| 71 | DECK LEVEL ROD END | 116732 | 4 | HT116732-Online |

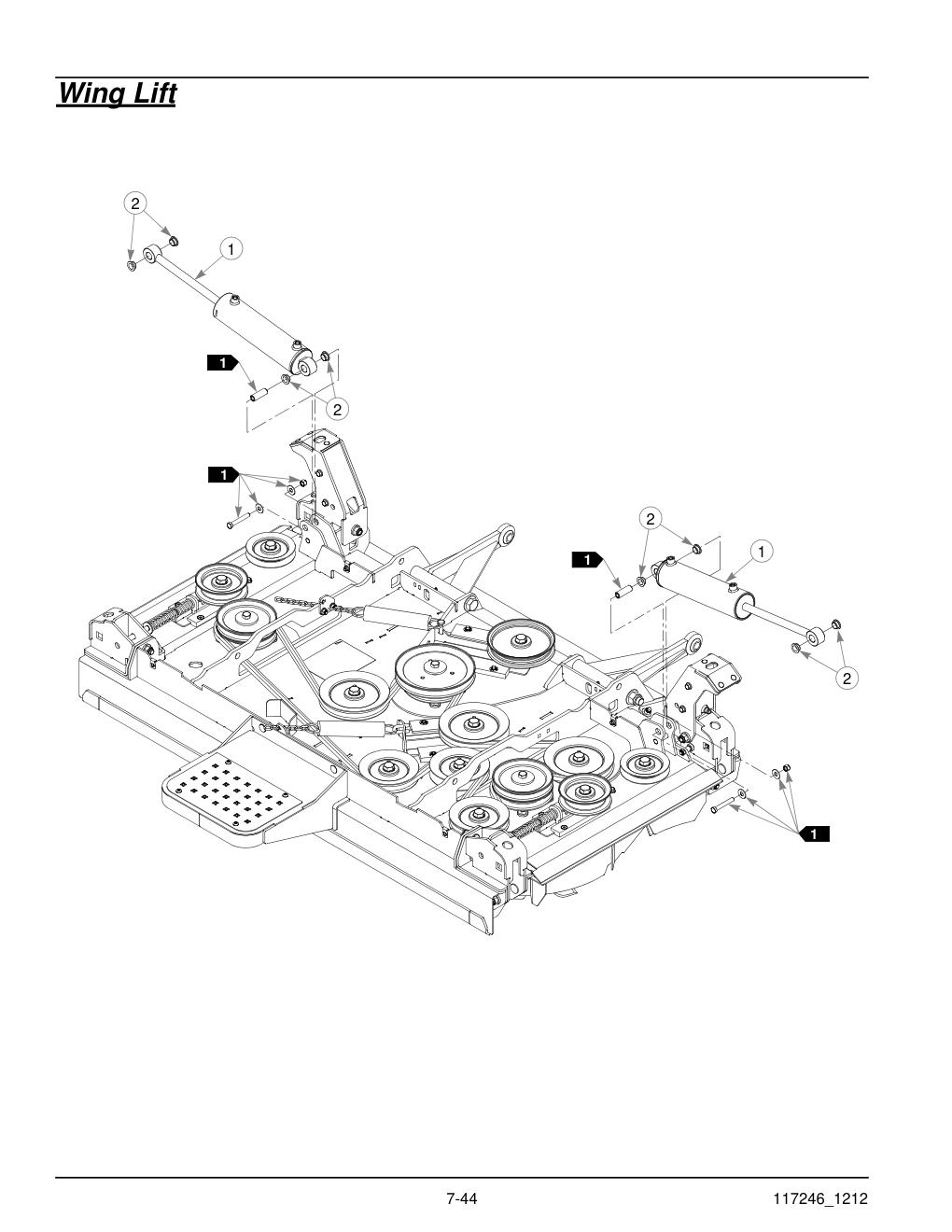

Wing Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CYLINDER | 604034 | 2 | 604034-Online |
| 2 | BUSHING .625 I.D. | 602539 | 8 | 602539-Online |
Wing Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 3 | SPACER, PARKER SOLENOID | 602835 | 1 | 602835-Online |
| 4 | MANIFOLD BLOCK ASSEMBLY | 604047 | 1 | 604047-Online |
| 5 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 6 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 7 | GROMMET 2.25" | 603289 | 2 | 603289-Online |
| 7 | IMPLEMENT HYDRO KIT (INCLUDES ITEMS 8-22 | 604112 | 1 | 604112-Online |
| 8 | HOSE ASSEMBLY, PUMP TO BLOCK | 604113 | 1 | 604113-Online |
| 9 | ELBOW, 6_C5OX-S | 795922 | 4 | HT795922-Online |
| 10 | FTG, -4MORB/4MJIC STR | 603181 | 2 | 603181-Online |
| 11 | FTG, 4FJIC CAP | 602479 | 1 | 602479-Online |
| 12 | HOSE ASSEMBLY, MAIN BLOCK RETURN | 604116 | 1 | 604116-Online |
| 13 | HOSE ASSEMBLY, MAIN BLOCK RELIEF TO PUMP | 604117 | 1 | 604117-Online |
| 14 | FITTING T, -6 O-RING/-6JIC/6JIC | 763953 | 1 | HT763953-Online |
| 15 | FTG, 4MORB / 4MJIC 90 | 604133 | 7 | 604133-Online |
| 16 | HOSE ASSEMBLY, WING LIFT RS CYLINDER, ROD | 604121 | 1 | 604121-Online |
| 17 | FTG, 4MORB/4MJIC 45 | 602478 | 4 | 602478-Online |
| 18 | HOSE ASSEMBLY, WING LIFT RS CYLINDER | 604120 | 1 | 604120-Online |
| 19 | HOSE ASSEMBLY, MAIN LIFT CYLINDER, ROD | 604115 | 1 | 604115-Online |
| 20 | HOSE ASSEMBLY, MAIN LIFT CYLINDER | 604114 | 1 | 604114-Online |
| 21 | HOSE ASSEMBLY, WING LIFT LS CYLINDER, ROD | 604119 | 1 | 604119-Online |
| 22 | HOSE ASSEMBLY, WING LIFT LS CYLINDER | 604118 | 1 | 604118-Online |
Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT | 604341 | 1 | 604341-Online |
| 2 | GM .50 X 1.00 X .75 X .12 | 080358 | 2 | 080358-Online |
| 3 | SEAT PAN (WITH DECALS) | 550815 | 1 | 550815-Online |
| 4 | ARMREST WARNING DECAL | 785188 | 1 | 785188-Online |
| 5 | FW .344 X 1.00 X.12 HRD Z | 712927 | 4 | HT712927-Online |
| 6 | NT .312-18 HX NL ZN | 058776 | 5 | HT058776-Online |
| 7 | FIBER WASHER | 724716 | 2 | 724716-Online |
| 8 | SEAT PAN STOP (PLATED) | 350421 | 2 | 350421-Online |
| 9 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 10 | NT .375-16 HX ZY NL | 086660 | 5 | HT086660-Online |
| 11 | CS .375-16 X 1.00 HX G5 | 036244 | 8 | HT036244-Online |
| 12 | FW .406 X 1.00 X .12 HRD Z | 712919 | 4 | HT712919-Online |
| 13 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 14 | HYDRAULIC PRESSURE DECAL | 601968 | 1 | 601968-Online |
| 15 | SEAT SUPPORT (WITH DECALS) | 550816 | 1 | 550816-Online |
| 16 | HOT/SYN HYDRO OIL DECAL | 601058 | 1 | 601058-Online |
| 17 | VIBRATION MOUNT | 601650 | 3 | 601650-Online |
| 18 | FUEL INDICATOR DECAL | 791848 | 1 | 791848-Online |
| 19 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 20 | LS FRAME COVER (WITH DECALS) | 550823 | 1 | 550823-Online |
| 21 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 22 | CN .312-18 X .200 MAX THK | 601069 | 5 | HT601069-Online |
| 23 | NT .375-16 HX GRD 5 ZNY | 054502 | 3 | HT054502-Online |
| 24 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 25 | RS FRAME COVER (WITH DECALS) | 551827 | 1 | 551827-Online |
| 26 | FW 0.343 SAE | 768523 | 5 | HT768523-Online |
| 27 | CS .312-18 X 1.00 HX G5 | 036236 | 5 | 036236-Online |
| 28 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 29 | SEAT LATCH | 113157 | 1 | 113157-Online |
| 30 | TORSION SPRING | 783910 | 1 | HT783910-Online |
| 31 | SB .375 X .375 SH .312-18 | 754358 | 1 | 754358-Online |
| 32 | WIRE TIE | 000331 | 3 | 000331-Online |
| 33 | FLOOR PAN | 117323 | 1 | 117323-Online |
| 34 | SEAT SWITCH WIRE HARNESS (NOT SHOWN) | 604439 | 1 | 604439-Online |
ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS KIT (WITH DECALS, SEATBELT & HARDWARE) | 603338 | 1 | 603338-Online |
| 2 | HAND KNOB | 601470 | 2 | 601470-Online |
| 3 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 4 | CS .500-13 X 3.50 HX G5 | 061812 | 5 | 061812-Online |
| 5 | NT .500-13 UNT LK G8 ZN | 023317 | 6 | 023317-Online |
| 6 | ROPS STOP | 603099 | 1 | 603099-Online |
| 7 | CS .500-13 X 3.25 HX G5 | 077859 | 1 | 077859-Online |
| 8 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 9 | ROPS DECAL | 601635 | 2 | 601635-Online |
